MDXS - MDXS A

EN
PRECAUTIONS AND SAFETY FEATURES
Machine design has taken into account all reasonable user safety precau-
tions; nevertheless, particular conditions of installation and/or handling may
create unforeseen situations beyond the installer’s control which will require
case-by-case evaluation of residual risks. We recommend keeping the fol-
lowing in mind:
•Always handle the machine with care to avoid the danger of its falling.
• Thepackingmaterials(carton,cellophane,staples,polystyrene,etc..)can
cut, wound or create hazards if used improperly or handled carelessly.
Store such materials out of reach of children and irresponsible persons.

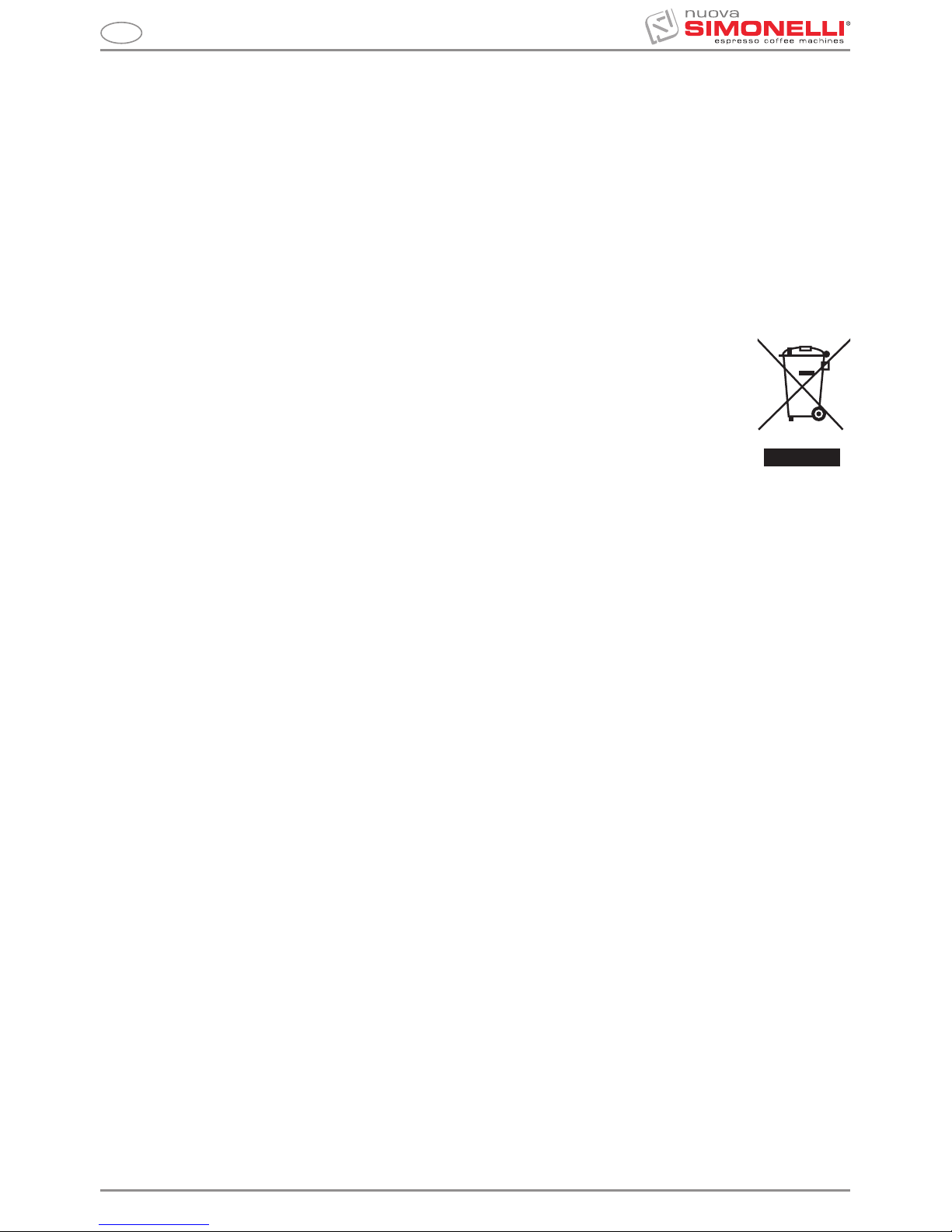

• Thissymbolontheapplianceorpackagemeansthattheappli-
ance must not be considered as normal household refuse but
that it must instead be delivered to an appropriate collection
centre for the recycling of electric and electronic appliances.
Make sure that this appliance is disposed of correctly and you
too will be making your contribution to the prevention of nega-
tive effects on health and the environment, which could otherwise be
caused by inadequate disposal. Recycling materials helps to preserve
our natural resources. For more information about how to recycle this
product, you can contact your local council office, local refuse disposal
service or the retailer from whom you purchased the appliance.
• Before carrying out any installation or adjustment process, be sure to
have read and thoroughly understood the warnings in this manual.
• Thecompanycannotbeheldliableforanydamagetopeopleorproperty
resulting from failure to respect the instructions concerning safety, instal-
lation and maintenance contained in this manual.
• Thepowercordofthisappliancemustneverbereplacedbytheuser.In
the event of damage, switch off the appliance and only contact profes-
sionally qualified technicians for its replacement.
•Should you decide to no longer use this type of appliance, we recom-
mend that you make it inoperative: unplug the appliance from the mains
socket and cut off the power cord.
• All defects and/or anomalous machine behaviour should be reported
immediately to authorized installation and/or maintenance personnel.
• Beforeconnectingthemachine,checkthatelectricalpowersupplycor-
responds to the specifications on the data plate.
• Shouldthemachineplugnotbecompatiblewithyoursocket,havethe
plug replaced with a suitable type by a qualified technician, who should
also check that the section of the wires supplying the power outlet is suit-
able for the machine power requirements.
• Avoiduseofmultiple-plugadaptersandextensioncords.
11
MDXS - MDXS A

EN
• Thegroundwiremustbeconnected;theelectricalsystemmustmeetthe
standards set by local safety laws and regulations.
• Themachinemustbeinstalledonlybyauthorized,qualifiedpersonnel.
• Check that the machine components have suffered no damage during
shipping; in the case defects or anomalies are found, interrupt installation
and request replacement.
APPLICATIONS AND USE
• Thisgrinderdispenserhasbeendevisedforprofessionalusebytrained
personnel.
• Thegrinder/dispensermustbeusedonlyfortheapplicationforwhichit
was designed; that is, grinding roasted coffee beans. Any other use must
be considered improper and therefore dangerous.
• The manufacturer shall not be held responsible for damages deriving
from improper, erroneous or unreasonable use of the machine.
• The appliance must not be used by children or people with reduced,
physical,sensorialormentalabilities.Itmustalsoneverbeusedbypeo-
plewithoutthenecessaryskillsandexperienceunlessundersupervision
or during training.
Do not allow children to play with this equipment at any time.
• Themachineisnotdesignedforuseinextremeenvironmentalconditions
andinanycaseattemperaturesoutsidethe-5°Cto+40°Crange.
• The user must respect the general safety regulations in force in the
country in which the machine is installed as well as the rules of common
sense, and shall be responsible for ensuring that periodic machine main-
tenance is correctly performed.
• The persons installing and using the machine and performing machine
maintenance shall inform the manufacturer of any defects or damages due
towearthatmightjeopardizetheoriginalsafetyfeaturesofthemachine.
• The installer shall be responsible for checking that the machine is
installed in tolerable environmental conditions such as to not to create
health or safety hazards for those using the machine.
• Anyresponsibilityderivingfromcomponentsmanufacturedandinstalled
on the machine shall be assumed by the respective manufacturers;
responsibility attributable to the persons authorized to use the machine
shall be assumed by the customer.
•
Themachineisdesignedfor24-hourintermittentservice.Themachinecom-
ponentsaredesignedandbuilttoensureatleast1000hours’operation.
• Good cleaning and maintenance also contribute to determining long
machine life.
12
MDXS - MDXS A

EN
BASIC SAFETY PRECAUTIONS
•Never touch the machine with damp or wet hands.
•Neverusethemachinewhenbarefoot.
• Never attempt to unplug the machine by pulling the power cord or the
machine itself.
• Donotexposethemachinetoatmosphericagents(sunrain,etc..).
•
Never allow the machine to be used by children or by irresponsible persons.
•Always use the appliance on a flat, steady surface that is able to support
its weight.
• Alwaysunplugthemachinefromthepowersupplybeforeperformingany
cleaning or maintenance operations.
• Donotusejetsofwaterordetergentsforcleaning.
• Inthecaseofmachinebreakdownormalfunctionswitchthemachineoff
and do not tamper with it.
• Forrepairscontactonlyanauthorizedservicecenterandrequestuseof
original spare parts.
• Non-observanceoftheaboveprecautionsmaymakethemachineunsafe
for future use.
• Do not leave the machine switched on when not in use. Unplug the
machine when not in use.
• Do not obstruct the ventilation and/or heat dissipation openings and/or
slits nor introduce water or any other liquids into same.
• Do not obstruct the ventilation and/or heat dissipation openings and/or
slits nor introduce water or any other liquids into same.
• Neverinsertspoons,forksorotherutensilsintothedoserunit,orintothe
coffee grain container (2) for any reason whatsoever while the appliance
is operating.
• Always switch off the appliance before removing blockages from the
doser unit.
• Neverplacetheapplianceinwaterorotherliquids.
• Shouldaforeignbodystopthemotor,switchthemachineoffimmedi-
ately and contact an authorized service center.
• Shouldaforeignbodystopthemotor,switchthemachineoffimmediately
and contact an authorized service center.
WARNING
Thosemachinesbearingthe“EL.MOTORWITHTHERMALPROTECTION”
indication are equipped with device which protects the motor from over-
heating. When this device is engaged, do not attempt to operate the
machine: isolate the machine from the power supply and eliminate the
cause of the trouble before re-starting.
13
MDXS - MDXS A

EN
14
MDXS - MDXS A
IMPORTANT INFORMATION
Thismanualisdesignedforusebytheuserofthemachineand/orbythose
performing maintenance on the machine and must be considered an inte-
gral part of the machine itself.
Thismanualprovidesinformationconcerningcorrectuseandappropriate
maintenance of the machine, as well as useful indications for ensuring user
safety.
Thismanualmustbepreservedfortheentireworkinglifeofthemachine
and must be transferred, together with the machine, to future users or
owners.Theinformationcontained inthismanual mustnotbe construed
as substituting the safety prescriptions and the technical data regarding
installation and operation carried on the machine itself and on the packing
materials.
Thismanualreflectsthecurrentstateofmachinetechnologyandshallnot
be considered obsolete solely because updated at a later date on the basis
ofacquiredexperience.
Themanufacturerreservestherighttomakemodificationstothismanual
withnoobligationtoupdatepreviousversionsexceptinexceptionalcases.
Improperuseofthemachineoruseinmannersotherthanthosedescribed
in this manual shall invalidate the guarantee conditions and shall release
the manufacturer from all responsibility, the machine must be used only by
adult, responsible persons.
This manual must be preserved with care: the manufacturer declines all
responsibility for damages to persons or things or to the machine itself
deriving from improper use or use in manners other than those described
herein or in the case the maintenance and safety precautions described
herein are not respected.
PRESERVATION OF THE MANUAL
Thismanualmustatalltimesbeavailabletothemachineuserand/orthe
persons performing maintenance on the machine, who must be provided
with full information regarding correct machine use and residual risks.
Thismanualmustbepreservedinaclean,dryplaceawayfromsourcesof
heat.Thismanualmustbeusedinamannersuchasnottodamageany
part of its contents.
Do not remove, tear out or re-write any part of this manual for any reason.
Incaseoflossofthismanualorforfurtherinformation,pleasecontactyour
area retailer or the manufacturer.

15
EN
MDXS - MDXS A
1. GENERAL INFORMATION
MANUFACTURER:
SIMONELLI GROUP - Via E. Betti, 1 - Belforte del Chienti, Macerata (MC) - Italy
COFFEE GRINDER MODEL: MDXS - MDXS A
2. TECHNICAL DATA
DESCRIPTION MODEL
MDXS - MDXS A
Voltage (V) 110 220 220/240
Frequency (Hz) 60 60 50
Power
consumption (W) 960 630 575
RPM 1090 1080 900
Productivity (Kg/h) 13 13 13
Weight when
empty (Kg) 12
Height (mm) 585
Width (mm) 212
Depth (mm) 290
(*) The value given is for the actual revolutions of the burrs.
In order to identify the appliance, read the code after "MATRICOLA" (serial
number) on the label applied on this manual or on the appliance itself and
select the corresponding voltage.
☞

16
EN
MDXS - MDXS A
3. APPLIANCE DESCRIPTION

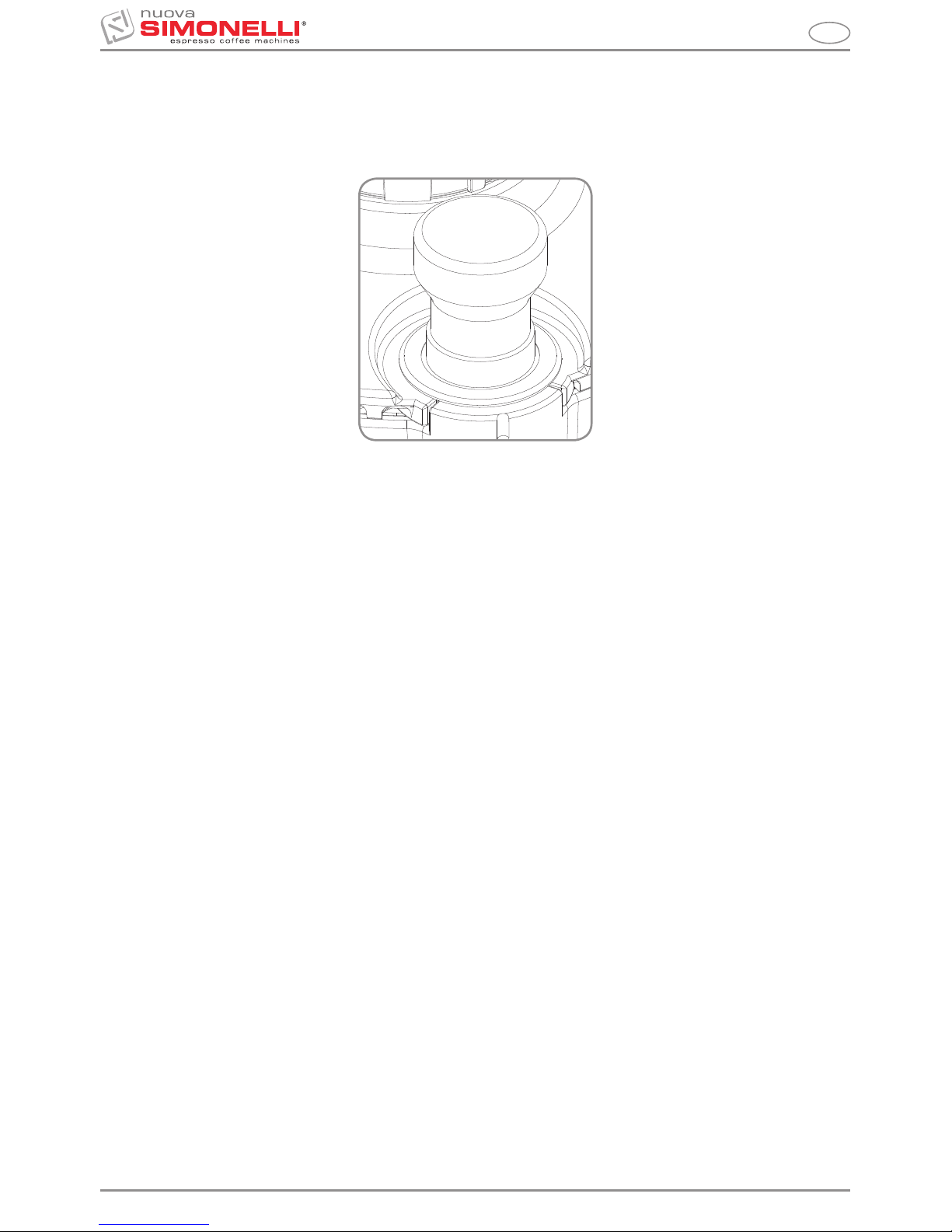

1- Container cover 2- Coffee bean
container
10 - Doser lid
9- Doser unit
7- Dose adjustment dial
8- Filter holder fork
5- Ignition switch6- Doser lever
3- Coffee bean con-
tainer for opening/
closing tab
4- Grinding adjusting
knob

17
EN
MDXS - MDXS A
4. LOCKING THE CONTAINER

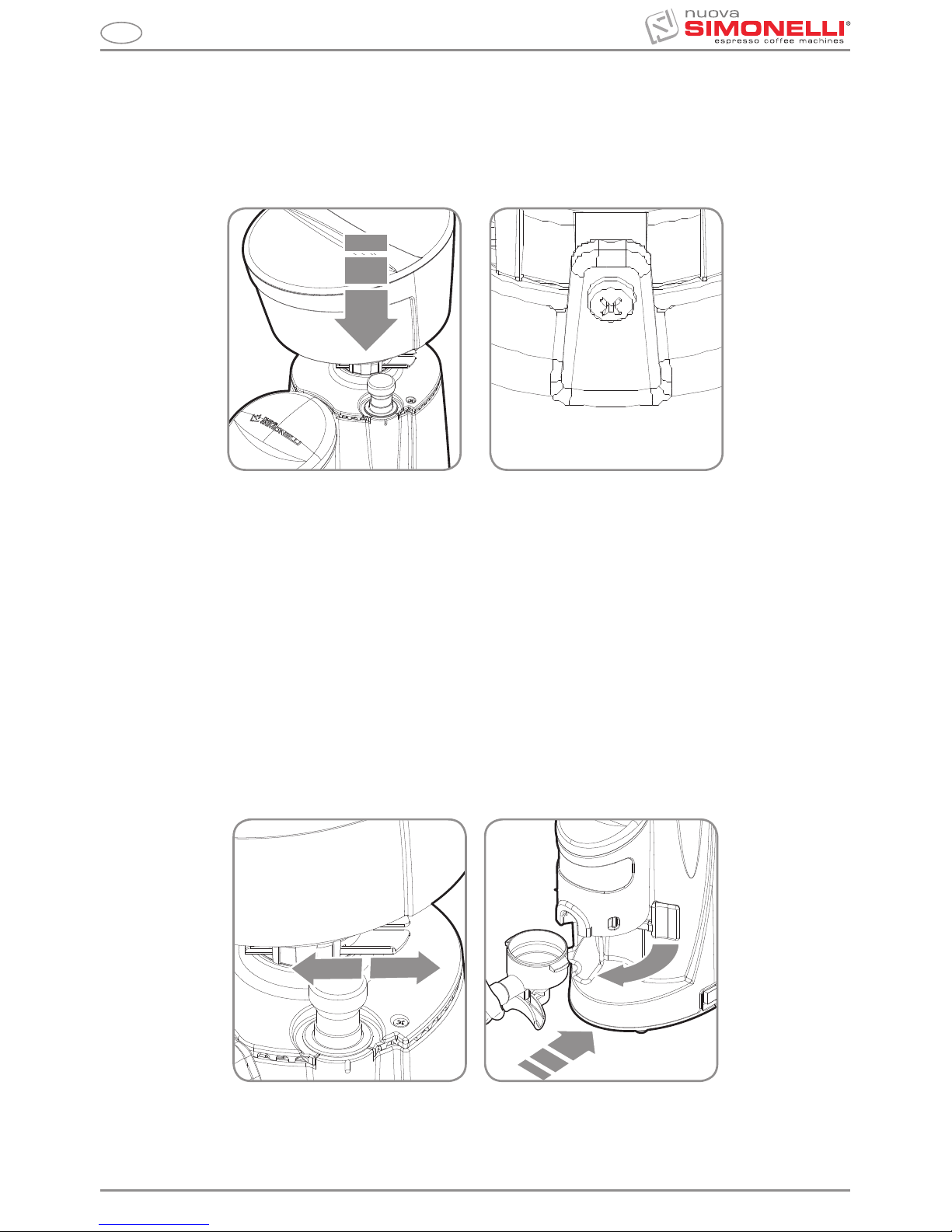

Before operating the appliance, it is necessary to fit the coffee bean container (2).
•Insert the container (2) into its seat, positioning it so that the hole lines up with the screw
on the back part of the appliance.
•Tighten the lock screw.
5. INSTRUCTIONS FOR USE
5.1 INTRODUCTION
•After having plugged the appliance in, push the tab (3) at the bottom of the coffee bean
container (2) to close it.
•Remove the cover (1) from the container (2) and fill it with coffee beans.
•Bring the switch (5) to on position.
•Pull the tab (3) permitting passage of coffee beans.
•Wait for the doser unit to fill to the halfway point, then place the filter holder cup on the fork
(8) and use the doser lever (6) . Each stroke of the lever is a single dose of ground coffee.
•Switch off the switch to stop the grinding operation.
In the interests of preventing damage and accidents, never place fingers or
other items into the spout below the doser while the ground coffee is being
dispensed.
☞

18
EN
MDXS - MDXS A
5.2 GRINDING AND DOSE SETTING
Set grinding by means of the adjusting knob (4), by rotating it clockwise to make powder
finer or anticlockwise to increase the size of its grain as shown on the knob. Setting is step-
less; it is to be gradually performed, by grinding some coffee every two notches maximum.
When knob is rotated of a turn with stationary motor, the appliance may stop.
To ad just the number of grams in a single dose, use the dial (7) on the bottom part of the
doser (9), turning it clockwise to increase the size of the dose and anticlockwise to reduce it.

19
EN
MDXS - MDXS A
6. CLEANING AND MAINTENANCE
ATTENTION
Unplug the appliance before performing any cleaning and maintenance operation.
ATTENTION
Do not pull the power cable or the appliance itself to disconnect the plug from the
power supply socket.
6.1 CLEANING
Cleanliness is a basic aspect for the proper functioning of the coffee grinder with a dos-
ing unit. A neglected coffee grinder with dosing unit may have a negative impact on coffee
dispensing as well as on the accuracy of dose and grinding. Before cleaning, make sure
the appliance is unplugged. At least once a week, remove the coffee bean container (2), by
unscrewing the appropriate fastening screw situated on the side of the container, pulling the
tab to close it (3) and remove the oily coat left by coffee beans by means of a clean cloth.
It is furthermore necessary to often clean (several times a day) the doser unit through a
brush and a vacuum cleaner.
In case such operations are not carried out, the aromatic oily part contained in coffee may
turn rancid with negative consequences on coffee, furthermore the lack of cleanliness may
jeopardize regularity of the dose itself.
Clean the base by means of a damp cloth.
6.2 MAINTENANCE
ATTENTION
Maintenance is to be performed only by skilled personnel authorized by the manu-
facturer.
ATTENTION
Do not carry out improvised or precarious repairing and do not use non original spare
parts.
In order to ensure a proper functioning of the appliance, check and eventually replace the
blades every 350 Kg of ground coffee for flat blades.

20
EN
MDXS - MDXS A
7. TROUBLESHOOTING
Contact skilled personnel.

DICHIARAZIONE DI CONFORMITÀ CE
EC DECLARATION OF CONFORMITY
Via E. Betti, 1 - 62020 Belforte del Chienti (MC) – ITALY
Dichiariamo sotto la nostra responsabilità, che il prodotto:
Declare under our responsibility that the product:
MACINADOSATORE PER CAFFÈ MODELLI
MODELLO: MDXS - MDXS A
COFFEE GRINDER MODELS
MODEL: MDXS - MDXS A
VERSIONE: 220-230-240V/50Hz; 220-240V/60Hz; 110V-127V/60Hz
VERSION: 220-230-240V/50Hz; 220-240V/60Hz; 110V-127V/60Hz
SERIE: AA; AB
SERIES: AA; AB
MATRICOLA DAL: 0001-17
SERIAL Nr. FROM: 0001-17
al quale si riferisce questa dichiarazione, è costruito in conformità alle direttive:
to which this declaration relates, following the provisions of the directives:
2006/42/CE - 2006/95/CE - 2004/108/CE
2002/95/CE - 2002/96/CE - 2003/108/CE
Data: Luglio 2017
Date: July 2017 SIMONELLI GROUP S.p.A
L'Amministratore Delegato
(Ottavi Nando)

SIMONELLI GROUP si riserva di apportare tutte le modifiche ritenute necessarie.
Via E. Betti, 1
62020 Belforte del Chienti
Macerata Italy
Tel. [phone]
Fax [phone]
www.nuovasimonelli.it
E-mail: [email protected]
Nuova Distribution USA LLC
6940 SALASHAN PKWY BLDG A 98248
FERNDALE, WA
Tel. [phone]
Fax.[phone]
www.simonelliusa.com
[e-mail]
_ _ _ _
00_07-2017
Graphics by: “ X Type Engineering S.r.l.”
