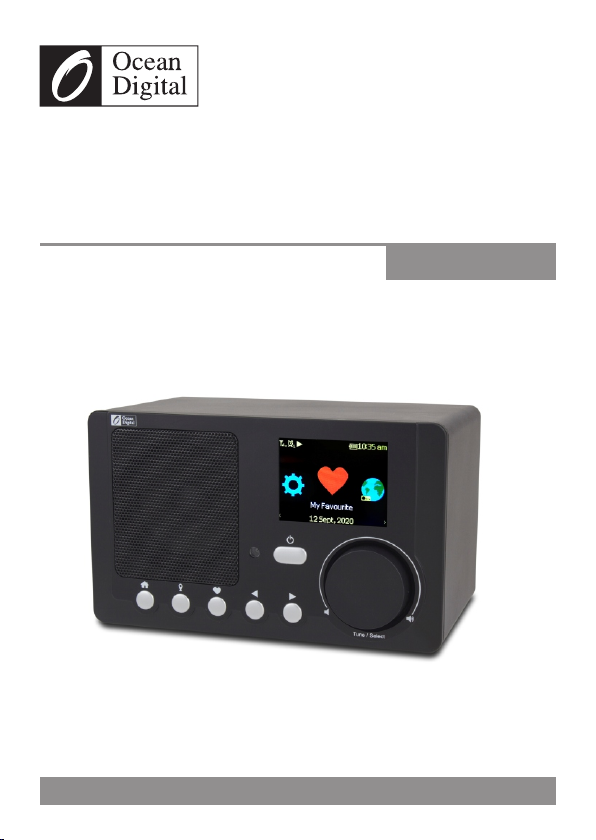

Ocean Digital WR-210N User manual

WR-210N
Internet Radio
User Manual
Please read this user manual carefully before using the receiver

Contents
1. Introduction to the WR-210N Internet Radio .....................4
2. Location of Controls ........................................................6
3. Remote controller ............................................................8
4. Choosing functions and options .......................................9
5. Network Setup ...............................................................10
6. My Favorite ...................................................................13
7. Internet Radio ...............................................................14
8. Media Center ................................................................16
9. Bluetooth Speaker .........................................................17
10. Alarm ..........................................................................18
11. Sleep Timer .................................................................19
12. Configuration ..............................................................20
13. Skytune Web Application for Internet Radio
www.skytune.net .........................................................22
14. Problems and Solutions ...............................................25
15. Technical Specification ................................................27

- 4 -
1Introduction to the WR-210N
Internet Radio
The WR-210N Internet Radio is a compact, multi-purpose
and attractive portable radio with an internal 2000 mAh Li-
Ion rechargeable battery for many hours of audio
entertainment and a gateway into the world of internet
radio.
There are seven different operating modes requiring
different wireless connections as listed below:
1) My Favorite (No Wi-Fi or Internet)
• List of previously Preset favorite listening choices
2) Wireless Wi-Fi (Internet connected)
• Internet Radio with more than 30 thousand radio
stations worldwide
3) Media Center (No Internet connected)
• Play music streamed over the Wi-Fi network by UPnP
or DLNA server e.g. smart phone, laptop.
4) Wireless (Bluetooth – no Internet or Wi-Fi)
• Play audio transmitted from a Bluetooth source e.g.
smart phone, Laptop.
5) Alarm (USB Power; Optional Wi-Fi and Internet)
• Wake up alarm Clock with option to automatically set
the Time of Day to Internet time standard
6) Timer (no Wi-Fi or Internet)
• Adjustable timer to delay putting the Radio Tuner into
Standby mode
7) Configuration (no Wi-Fi or Internet)
• Set up, options and information center

- 5 -
Introduction to the WR-210N Internet Radio
Precautions
Charge the battery with a USB-C type charger – do not
apply any other power source or permanent damage to the
radio will occur and may be hazardous.
To clean use only a damp cloth and dry with a clean towel -
keep away from all liquids.
To avoid loss of warranty do not attempt to repair or remove
the cover for any reason.

- 6 -
2Location of Controls
Speaker
Menu
Local Radio
Preset Move Forward
Remote Sensor
Move Back
On/Off(press and hold)
Tune/Select
Display
USB Connector
Battery Charging LED Line Out
Headphone

- 7 -
Location of Controls
Control Functions
Many of the controls have multiple functions depending on
the Radio mode:
a) Radio Front
Speaker – Audio off when headphone plugged in
Home – Go to the My Favorite main mode
Local Radio – Go to Local Internet Radio station list
Preset – Press and Hold to add current audio source to My
Favorite list
Press and Release to display My Favorite list
Move Forward – Go to next display or item in list
Remote Sensor – Infrared sensor for Remote Controller
input
Move Back – Go back to previous display or item in list
Power On/Off – Press and Hold (On/Standby with USB-C
power connected)
Tune/Select – Press and release to Select; Rotate to
navigate and adjust volume
Display – 2.4” color TFT LCD
b) Radio Back
USB Connector – 5 Volt input from USB to power radio and
charge battery
Battery Charging LED – Red battery charging; Green fully
charged
Line Out – standard 3.5 mm (pre-amp level audio output)
Headphone – standard 3.5 mm stereo audio

- 8 -
3Remote Controller
ON/Standby
Alpha Numeric
(Press keys to
cycle through
characters)
Preset (Save in
My Favorite)
Alarm
(Control & Setup)
Timer
(Control & Setup)
Menu (Go to
Mode selection)
Mode (Cycle
through Modes)
Play Last
(Media Center
Bluetooth)
Local Region Radio
(e.g. Europe, USA)
Dimmer
(Display brightness)
Play Next
(Media Center
Bluetooth)
Navigation
(Forward, Back,
Up, Down)
Select
(Confirm & Go)
Equalizer
(Playback sound)
Volume Control
Play/Pause
(Internet Radio Media Center
Bluetooth)
Go to
My Favorite
Mute

- 9 -
4Choosing functions and options
All user input is information the Radio uses to provide the
desired audio entertainment and pressing the Tune/Select
knob is a confirmation and go command.
Once a desired selection is displayed or highlighted the
selection is confirmed by pressing and releasing the
Tune/Select knob.
The Tune/Select control knob is also used for navigating
LCD displays and lists by rotating clockwise (CW) or
counter clockwise (CCW) to change or highlight
information displayed on the LCD screen.
The front panel Move Forward ( ► ) and Move Back ( ◄ )
buttons can also be used to move to the next or back to the
previous display but all Selections must be confirmed by
pressing and releasing the Tune/Select knob.
Alternatively navigate to functions (i.e. My Favorite,
Internet Radio, Media Center, Bluetooth, Alarm, Sleep
Timer and Configuration) or a position in a list by using the
Move Forward, Move Back, Move Up and Move Down
controls on the Remote Controller with the OK button
confirming the selection.
Many other controls are available on the remote controller
with discrete buttons for many functions e.g. volume up or
down.
Throughout this manual “Select” will mean navigating
through display screens or option lists to display or
highlight desired selection and confirming it by pressing
and releasing the Tune/Select knob or OK button on the
remote controller.

- 10 -
5Network Setup
The Internet Radio must have a high bandwidth internet
connection and a wireless (Wi-Fi) home network connected
to it to be fully functional.
To configure the Wi-Fi network connection turn on the radio
by pressing and holding the power On/Off button until the
display illuminates - this normally takes a few seconds.
The first time the Radio is turned on after leaving the
factory a Configure Network wizard is automatically
started:Highlight and Select Yes to connect to the Wi-Fi
network
1) The display will change and display a list of options –
Select Add AP (Scan)
2) The display will show a list of available networks – Select
your network
3) The display will ask for your passcode/password
– highlight the first digit by rotating the Tune/Select knob
and press Tune/Select knob to move forward.
– highlight the next digit and press Tune/Select knob to
confirm and move forward.
– Repeat highlighting digits and pressing Tune/Select
knob until the last digit is highlighted.
– While the last digit is highlighted Select it by pressing
and holding the Tune/Select knob until the display
changes.
4) If the connection is successful “Association Complete”
will be displayed briefly.
Note: the remote controller keypad and OK buttons can be
used to input the passcode / password directly.
To repeat the above procedure, or if Configure Network
wizard does not automatically start, the network can be
connected by using the Configuration mode.

- 11 -
Network Setup
1) Press the HOME ( ) button to go to the mode selection
options
2) Select Configuration
3) Select Network
There are two different options to connect to the network
from the Configuration mode:
1) Repeat steps 1) through 5) above.
2) Select Add AP (WPS button) – Press WPS button on your
router within 2 minutes to complete the connection.
Connection status is displayed in the top left hand corner of
the LCD with the Wi-Fi symbol and signal strength bars
( ).
For best Wi-Fi performance, limit “drop outs” (interruptions)
the Wi-Fi Channels should be set according to the location
of the Radio Tuner e.g. China, USA, Europe. The factory
default is China.
To set the correct location, select Configuration > Network>
Wi-Fi Channels and select the correct option.
Overview of Radio modes and functions
To Select any mode use the HOME button ( ) on the
radio or remote controller to display the My Favorite
screen:

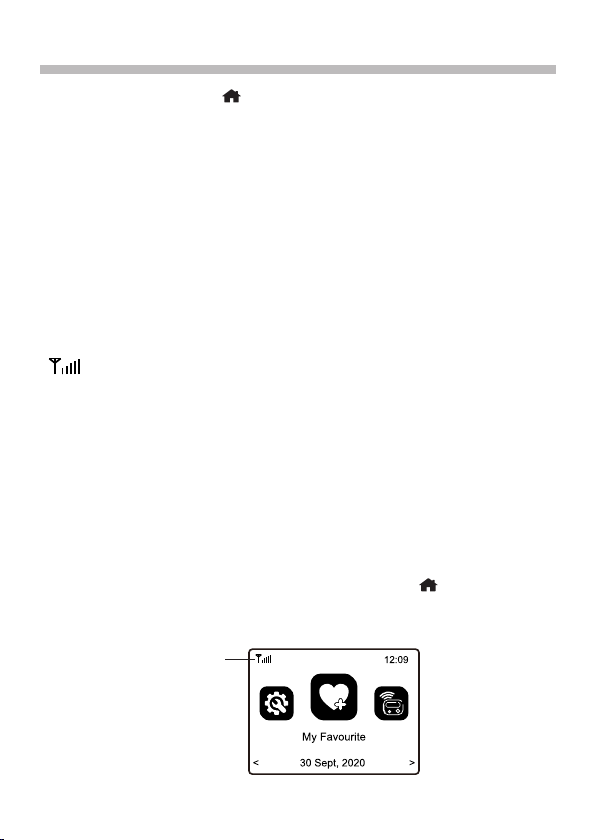

Wi-Fi signal bar

- 12 -
Navigate through the modes to find and Select any of these
functions:
1) My Favorite – A maximum of 150 previously saved
(Preset) favorite listening sources are listed for
Selection.
2) Internet Radio - Select online radio station from the
thousands available on Skytune or by using the History
list of previously selected radio stations or use Search to
find a preferred radio station.
3) Media Center – Browse and Select music streaming on
your home Wi-Fi network by any UPnP or DLNA
compatible server e.g. Smart phone, Tablet, PC, Laptop.
4) Bluetooth – When “Paired” (connected) to another
Bluetooth device use the Radio Tuner as a powered
speaker. Maximum range of the Bluetooth wireless
signal is 10 meters (32 feet) but may be reduced by the
presence of walls or other obstructions.
5) Alarm – two separate alarm clocks with the time of day
automatically synchronized to the internet time
standard. Only available if the radio is connected to a
USB charger.
6) Sleep Timer – Select a time delay before the Radio Tuner
goes to Standby mode while playing your selected audio
entertainment source. Only available if the radio is
connected to a USB charger.
7) Configuration – This mode lists all available options and
settings to personalize your Radio Tuner.
Network Setup

- 13 -
6My Favorite
This mode displays a list of up to a maximum of 150
audio sources that have been Preset (stored) using
the Preset button on the remote controller ( ) while
an audio source is playing.
Press and hold button until the Preset symbol ( ) is
displayed in the top left corner of the LCD.
After the first 150 presets have been stored the next
Preset will be stored in the first location, the next in
the second location; continuing to overwrite each list
location until it loops back to the first location again.
To Edit the list highlight a list item then press the
Move Forward button ( ► ) to move to the Edit list
function where the item can be moved Up, Down or
Deleted from the list.
To play an audio source in the list highlight the item,
Select it by pressing the Tune/Select knob or the OK
button on the remote controller and the radio will
automatically go to the correct mode and start
playing.

- 14 -
7Internet Radio
Select Internet Radio mode (Home>My Favorite>Internet
Radio) and navigate the extensive list of worldwide radio
stations using these options:
1) Skytune – Select a radio station using the structured lists
that aid and reduce the task of finding the right station.
2) Use Search instead of browsing the extensive radio
station list by using the initial letters of the desired
station name, creating a shorter list of stations the more
characters used in the search.
3) The History option will show a list of the radios stations
recently selected. Every station selected is added to the
list automatically until a maximum of 99 is reached when
the next station selected will replace the first station in
the list.
When playing Internet stations information about the
station and what is playing will be displayed on the LCD
screen. Pressing the Move Forward ( ► ) button once will
display more information and pressing Move Forward ( ► )
again will display the time of day in 12 or 24 hour format
depending on the time setup in Configuration.
Radio Stations can be added to the My Favorite list at
anytime a station is playing by pressing and holding Preset
( ) button until the Preset symbol is displayed in the top
left hand corner of the LCD as shown below.

- 15 -
A maximum of 150 Presets can be stored in the list before
the next Preset will overwrite the first item in the list.
To edit My Favorite list highlight a Preset location and press
Move Forward to display edit options; Move Up, Move
Down and Delete.
Internet Radio
Preset icon

- 16 -
8Media Center
The Radio Tuner supports the industry standard Universal
Plug and Play (UPnP) and Digital Living Network Alliance
(DLNA) standards.
This enables the Radio Tuner to browse and play music
files located on UPnP or DLNA server provided the server
has been setup to allow sharing of files on the network.
Set up Media Center playback options in Configuration and
Select the Media Center to display a list of options:
1) UPnP – A scan is made to find UPnP and DLNA devices
that are streaming on the Wi-Fi network (this can take a
few seconds) and when complete options are listed to
select music or playlists files. If no UPnP or DLNA
servers are found “Empty List” is displayed.
2) My Playlist – Your own play list may be created by
playing selected music and while it is playing pressing
and holding a Preset button until the Preset symbol ( )
is displayed.
3) Clear My Playlist – Select to delete all music files from
My Playlist.

- 17 -
9Bluetooth Speaker
After selecting Bluetooth the display will show the Radio ’s
Bluetooth identifier code and connection status. If it is not
connected “pairing” must take place with the audio source
Bluetooth device.
When the Radio’s identification code appears in the list of
local Bluetooth devices on the audio source Bluetooth
device pair the two devices so that they can recognize each
other and will automatically connect whenever the Radio
Tuner is in Bluetooth mode and in range.
Once pairing is complete the audio file being transmitted by
the Bluetooth device will be received by the Radio Tuner
and played the same as any other audio source.

- 18 -
10 Alarm
To save battery power the Alarm function is not available
unless the radio is connected to the USB charging power
source via the USB-C cable.
There are two separate wake up alarms that can be set up
independently to start at a given time, with selectable
sounds, at adjustable volume and with repeat options, on
their own or at the same time e.g. set Alarm 1 for normal
wake time and Alarm 2 to wake in case of falling asleep
again .
Select Alarm 1 or 2 and a setup wizard will start to guide
selecting options.
The wake sounds selected can be a tone or a source in the
My Favorites list.
After selecting the final option or adjustment exit the set up
wizard by using the Move Back button ( ◄ ).
Set the wake sound volume before sleeping using volume
control knob on the front panel or the volume Up / Down
controls on the remote.
After setting up the Alarm check to confirm it is set by the
presence of the alarm icon ( ) at the top, left side of the
display.
The Alarm will function while the radio is On or in Standby
mode if USB power is connected.
Stopping the Alarm/Activate the Snooze function
When the alarm goes off, press the ( ) to stop the alarm
or press the Tune/Select knob to activate the Snooze
feature.
When the Snooze is activated, the alarm is muted for 9
minutes and sounds again when the time is due. You can
repeat the process multiple times.
To stop the "Snooze" function, press the ( ).

- 19 -
11 Sleep Timer
Set a time delay before the Radio automatically goes to
Standby mode allowing the listening of audio entertainment
while falling asleep.
After selecting the Sleep Timer a list of delay times will be
displayed – select the appropriate time and use Move Back
( ◄ ) to exit setup.

- 20 -
12 Configuration
Select Configuration for a list of adjustments and options to
be displayed, navigate the list and select the desired
function, use the Move Forward / Back ( ◄/► ) controls to
go forward or backwards in the decision tree to make
selection.
Network
Wi-Fi Network
Ø Network Options – Select if the Radio Tuner should
be permanently connected or to disconnect if the
connection is not active for more than 30 seconds.
Ø Wi-Fi Channels – Select your location to minimize
interruption (drop outs) of the audio stream e.g.
music.
Ø Wi-Fi Network
• Add/Remove AP – Scan local area to find and list
available Wi-Fi networks
• AP:[ ] – If there is more than one router on the
network select the one for the Radio Tuner to use.
• Signal – Display Wi-Fi signal strength
• IP [current setting] – Factory Reset default is
Dynamic
• DNS [current setting] - Factory Reset default is
Dynamic
Date & Time – Set up and select options for time zone,
clock and date formats, adjust for day light saving time,
network time, NTP server address.
Language – Select language
Local Radio (United States) – Option to automatically set
local stations or set manually
