Ocean Digital DK-336 User manual

Wooden DAB Radio
DK-336
User Manual
Please read this user manual carefully before using the receiver

1. Power / Volume control
Rotate clockwise to power on the
radio.
Rotate anti-clockwise to power
off.
Increase / decrease volume level
2. Standby on /off
3. Mode
Toggle to switch between DAB
and FM
4. Scan
DAB - Press to full scan
FM - Press to scan the next
station
Press and hold to initiate auto
scan
5. (Preset)
Press and hold to enter list of
preset store
Press to recall the preset list
6. Info/Menu
Press and hold the button to enter
the main menu, press it briefly to
cycle through the information
broadcasted by the radio station
7. Sleep
Press to enter sleep timer
selection
8-10. Preset button 1 / 2 / 3
Dedicated preset button no. 1-3
Press and hold to preset the
channel
Press briefly to recall
11. Speaker
12. 2.4" color TFT screen
13. Tune / Select
Press to confirm / rotate the knob
to browse the item from the list or
adjust the radio frequencies
14. Telescopic Antenna
15. Battery charging indicator
16. DC IN 5V
Micro USB charging port /
connect with DC power adaptor
comes with micro USB connection
17. Line out
18. Earphone jack
12 34
5 6 7 8 9 10
11
12
13
14 15 16 17 18

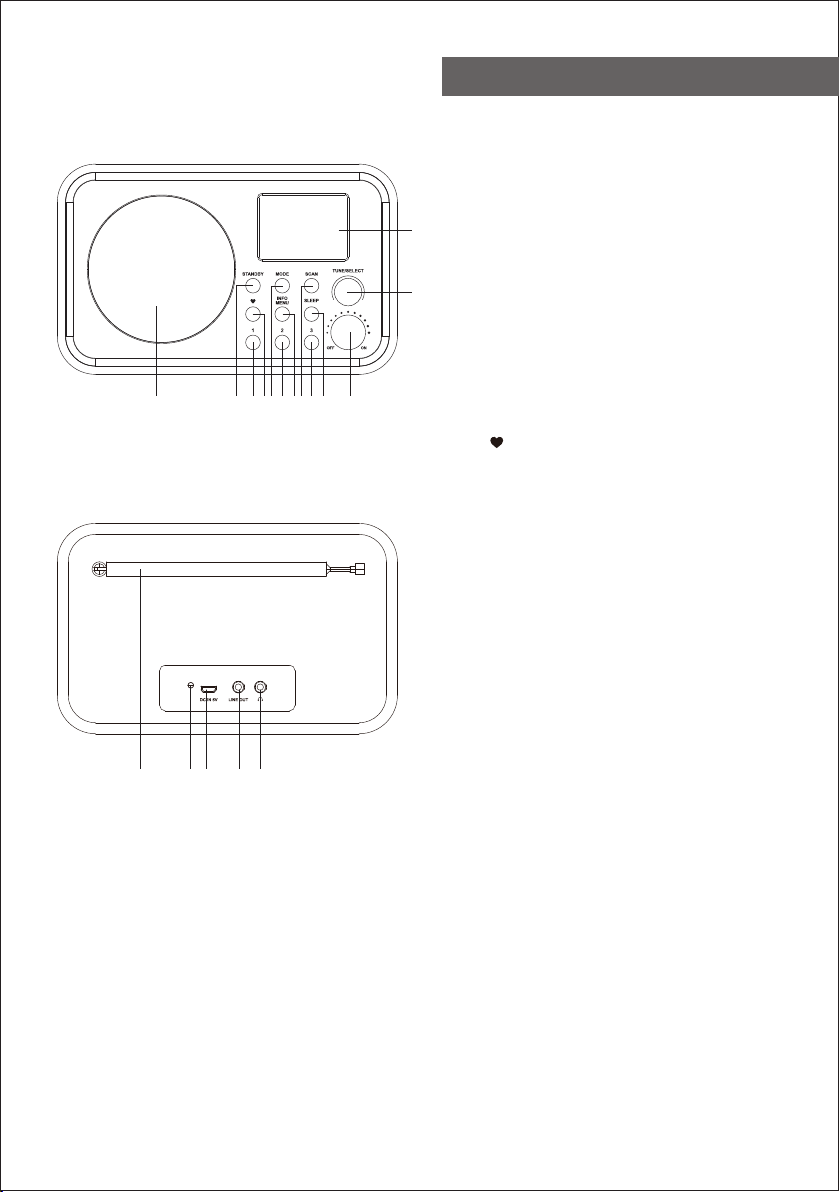

Location of Controls
- 01 -

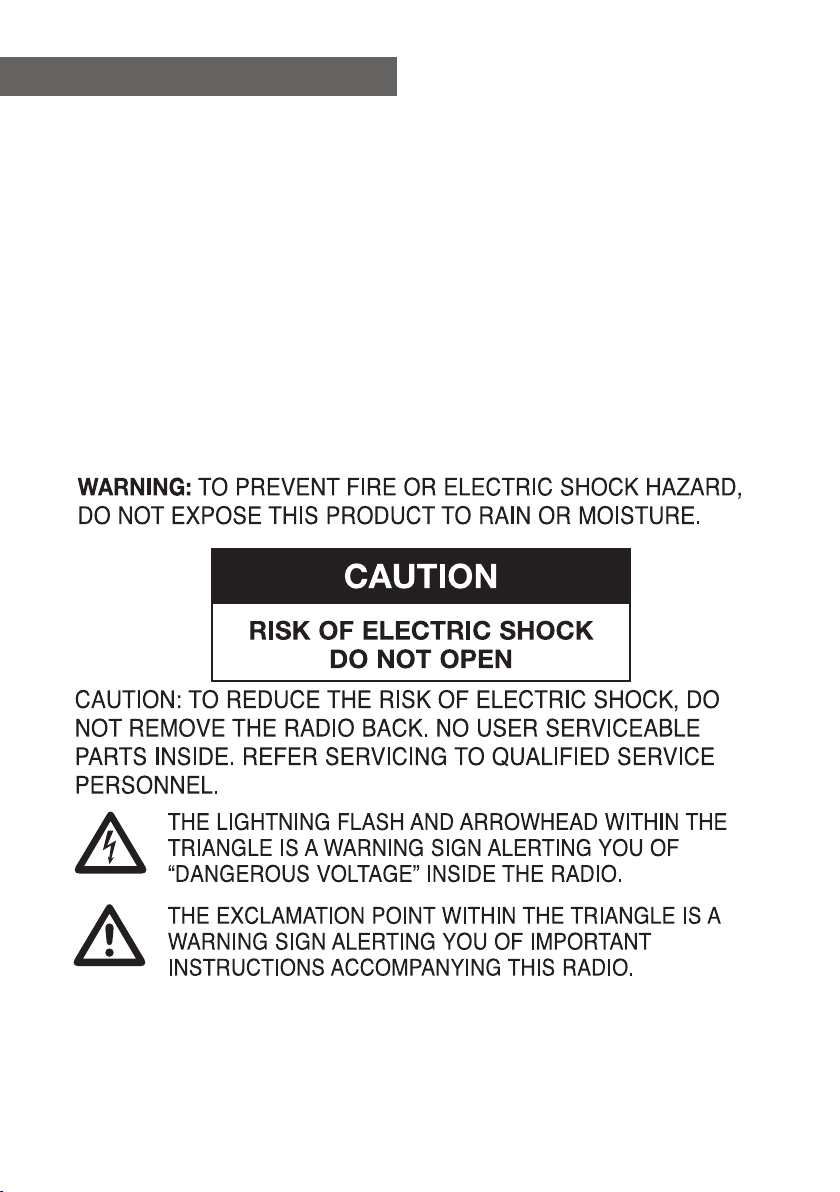

• The radio should not be used in a high temperature or high humidity environment
over prolonged periods of time as this may damage the unit.
• Keep the radio away from liquids as it may get damaged. Please switch off the
radio immediately if water or liquids is spilled into the radio. Consult with the shop
you bought this radio for any question.
• Avoid using or storing the unit in dusty or sandy environment.
• Do not open and repair the radio by yourself.
• Use only the specified power input voltage to charge the battery. Connecting a
power supply with a different rating will cause permanent damage to the radio and
may be hazardous.
• Clean only with dry cloth
Precautions
- 02 -

Getting started/Charging battery
The radio is powered by the built-in lithium battery. A USB cable is supplied in the
product package for battery charging.
Power on the radio by turning the <Power/Volume> knob to clockwise direction.
The radio will power up and enter into Standby. Press the < Standby > button to turn
it on.
To turn it into standby, press the < Standby > button. If you want to power off the
radio, turn the <Power/Volume> knob anti-clockwise until you hear the click and
the screen is off.
Charging battery
Always check the battery indicator on the top right corner of the screen to see the
battery power status.
When battery power is low, the battery indicator will keep blinking as a reminder for
battery charging.
To charge the battery, connect the micro USB plug to the port at the rear side of the
radio, connect the other end to a power source supplied in 5V OUT. The LED will
light up in red indicates the battery is charging.
The LED will turn to green when charging is done.
Note: The charging might take much longer to complete if the radio is playing
or in standby while charging.
30/1/2019 Wed
12:21
Battery power indicator
Getting started
- 03 -

DAB mode
If this is the first time using the radio, it will start on DAB. If not, press the <MODE>
button on the radio to change to DAB mode. The radio will start scanning all the
available radio stations as follow:
The scanned station list will be displayed after the scan is done. Use the
<TUNE/SELECT> knob to select the radio station.
When a radio station is playing and you want to choose others to play, rotate the
<TUNE/ SELECT> knob.
Press the <INFO/MENU> button repeatedly to cycling through the radio
information.
Note:
Always adjust the length and direction of the telescopic antenna to optimize
the best reception level.
DAB mode/FM mode
Select the FM mode, press and hold the <SCAN> to initiate the auto scan. The radio
will store the preset automatically when the scan is done.
To manual adjust the frequency , rotate the <TUNE/ SELECT> knob to tune the
frequency in the step of 0.05MHz.
FM mode
- 04 -

Your radio can store up to 20 DAB stations and 20 FM stations in its preset
memories for instant access to your favorite stations.
1. Tune your radio to the station that you wish to preset.
2. Press and hold < > button on the radio, it will enter the "Preset Store" list.
Select the preset number you want to save by using the <TUNE/SELECT> knob,
press the <TUNE/SELECT> knob to confirm. It will show the preset number is
saved.
3. There are 3 preset buttons on the radio. It allows to save and recall quickly a
dedicated channel. Press and hold the button to store the channel.
4. You can replace the existing preset with other channel by doing the same preset
procedure as described above.
Preset a station
Briefly press the < > button on the unit, the preset list will pop up. Rotate the
<TUNE/SELECT> knob to find the station you want to listen, then press
<TUNE/SELECT> knob to recall the station.
If you have preset the favourite channels for Preset button 1-3, simply press these
buttons to access them quickly.
Note
1. If there is already an existing DAB or FM station stored under a preset, it will
be overwritten when you save a new station.
2. The DAB presets will not overwrite the FM station presets.
Recall a station preset
Rotate the <POWER/VOLUME> knob to adjust the volume.
Volume control
Volume control/Preset a station
- 05 -

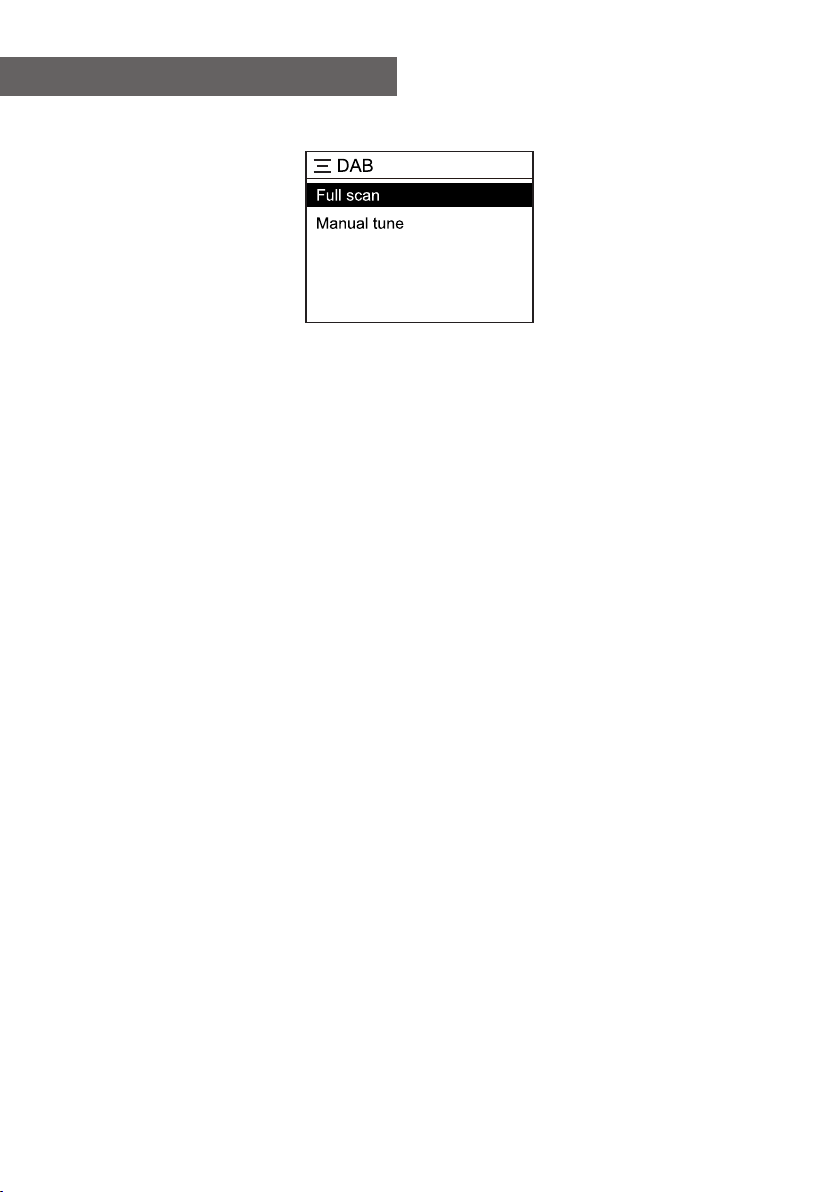

When you listen to DAB radio station, press and hold the <INFO/MENU> to enter
the main menu as follow:
Please note if there is not any operation in 30 seconds, the radio will return to last
playing mode.
Note: To exit / return to the last menu level, press the <INFO/MENU> button.
Full Scan
Press to scan for DAB radio stations.
Manual Tune
Press to enter the manual tune, then you can choose the frequency from 5A to 13F
and perform a scan in the available frequency manually.
DRC
Dynamic Range Control (also known as DRC) can make quieter sounds easier to
hear when your radio is used in a noisy environment. This function is only available
for the DAB.
DRC Off – No compression
DRC Low – Medium compression
DRC High – Maximum compression
Setting the compression to maximum will “boost” the quiet sounds, whilst keeping
the loudest sounds at their original level.
Prune
Some DAB services may stop broadcasting or you may not be able to receive a
station. Select “yes” to delete the DAB stations from your station list that can no
longer be received.
TA
This radio supports the Traffic Announcement so that you can receive the traffic
news if the radio channel supports such feature. It is OFF by default and you can
change the setting here.
System
Sleep
This is the setting for sleep timer. The radio will turn in Standby when the time is
due.
You can choose 15 minutes, 30 minutes, 45 minutes, 60 minutes and 90 minutes.
Use the <Tune/Select> knob to choose and press <Tune/Select> to confirm.
If you wish to cancel the sleep timer function, select “Off” on the menu.
DRC
Prune
TA
Main Menu of DAB mode
- 06 -

Time
There are 4 settings:
1. Set Time/Date: This allows the user to manually set the current Time and
Date.
2. Auto Update: This function will set the radio’s time and date automatically with
data sent along with the broadcast of either the FM or DAB radio
station. You can choose “No Update” then the radio will not
receive the time data.
3. Set 12/24 hour: This option will change the format of your clock to either 12
hour or 24 hour format.
4. Set date Format: This option will change the format of the date to
DD/MM/YYYY or MM/DD/YYYY.
Note:
The FM auto Time/Date update may not work in your area, so the DAB auto
update option is recommended.
Backlight
There are 3 brightness levels you can choose: High, Medium & Low.
1. Timeout: This option is used to set the period of time that you wish your
display’s backlight to remain lit when your radio is just playing
without any operation is made.
The available options are: On /10sec /20sec /30sec /45sec /60sec /90sec /120 sec
/180 sec.
Select “On” will force your radio’s backlight to remain on constantly without dim
down no matter during operation or idle. If you select a specific time interval,
after the selected time period has lapsed the display will dim down.
2. On level: There are 3 levels to choose, High, Medium and Low. This option will
determine how bright the display’s backlight is lit when the radio is
operating.
3. Dim level: The dim level can also be set to High, Medium and Low. It is to
determine how bright the display's backlight when it is dim down.
Language
There are 4 languages available for the menu, English, French, German, Italian.
Factory reset
You can reset the radio to the factory default any time. Once a reset has been
done, all previous settings and preset will be erased and the radio will resume to
DAB mode.
SW Version
Press to see the firmware version.
Main Menu of DAB mode
- 07 -

While the radio is in FM mode, press and hold the <INFO/MENU> button on the
radio to enter the main menu.
Scan setting
There are two types of scan available. The scan is carried out according to "Strong
station" or "All station". If "Strong station" is selected, it will scan only the channels
with strong reception signal where the radio is placed. If "All station" is selected, it
will scan out both the strong and weak channels.
Audio setting
You can choose to have "Forced Mono" or "Stereo allowed". If the signal is weak
and stable stereo reception is not possible, select "Forced Mono" have better
reception. When a FM station is playing, press the <TUNE/SELECT> button can
access to change the audio setting. When it appears with , it means it's stereo. To
select Mono, press [TUNE/SELECT] again. The icon will disappear and it means
Mono is selected.
Note: As the radio is a mono, it is suggested to use "Forced Mono" to gain a quality
reception.
System
The options available are same as DAB. Please refer to the DAB section as
described above.
Main Menu of FM mode
If you are experiencing problems with your DAB radio there are some quick and
easy checks that you can do, which may help to solve the problem.
Radio not turning on/not working
- Connect the USB cable to charge the battery and try powering on the radio again
No DAB reception
- Please carry out “Factory Reset” on the radio and adjust the length and direction of
the antenna.
- Move the radio close to the window.
- Carry out Full Scan again from the Main menu (Press and hold the Info/Menu
button)
Radio reception is poor
- Please adjust the length and direction of the antenna to improve reception.
- Check that you do not have other electrical equipment too close to your radio,
causing interference.
No sound
- Adjust the volume level.
- Please change other radio channels and see if there is sound. It could be the
reception issue or the broadcasting problem which does not have sound.
Q & A
Main Menu of FM mode/Q&A
- 08 -

The European laws do not allow any more the disposal of old or defective electric
or electronic devices with the household waste. Return your product to a
municipal collection point for recycling to dispose of it. This system is financed by
the industry and the ensures environmentally responsible disposal and the
recycling of valuable raw materials.
WEEE and Recycling
* DAB Radio
* USB charging cable
* User manual
What’s included in the box
Technical Specification
Technical Specification
174.928MHz (5A) - 239.200MHz (13F)
support DAB and DAB+
Model
DAB frequency range
FM frequency range
Lithium-ion battery capacity
Power input
Power voltage
Audio sockets
Unit Dimension
DK-336
87.5MHz - 108MHz
2000mAh
5V 1A
100-240V~50/60Hz
3.5mm earphone jack
3.5mm line-out jack
186 x 120 x 115 mm (L x W x H)
Remark: Specification may vary without notice
Ocean Digital Technology Ltd.
Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg.,
20 Wang Hoi Road, Kowloon Bay,
Hong Kong
Email: [email protected]
- 09 -
