Launch Box User Guide
September 2020
Version 2.4

Launch Box User Guide April 2020 P.1
Table of Contents
Introduction ................................................................................................................................................2
Important Notes .......................................................................................................................................2
Specifications.........................................................................................................................................2
Features ..................................................................................................................................................2
Ocean Sonics Launch Box Quick Start...............................................................................................3
Assemble Launch Box Configuration ...............................................................................................3
Connect to Launch Box Wi-Fi ............................................................................................................ 3
Setup Hydrophone................................................................................................................................3
GPS Position Logging...........................................................................................................................4
Deployment ............................................................................................................................................5
Recovery .................................................................................................................................................5
Charging the Battery................................................................................................................................5
GPS Position Data Retrieval...................................................................................................................6
From Web Browser [IP: 192.168.1.1] ...........................................................................................6
FTP Client (FileZilla) ..........................................................................................................................6
Clearing Log Files.............................................................................................................................. 6
Contact Ocean Sonics Ltd.......................................................................................................................7
Appendix A. Troubleshooting the Wi-Fi Connection ........................................................................8
Appendix B. Wi-fi Network Settings.................................................................................................... 9
Checking Wi-Fi Network Configuration .......................................................................................9
Setting Up Wi-Fi Password ............................................................................................................9
Configuring Network Settings ......................................................................................................10
Changing Static IP Address..........................................................................................................11
Factory Reset –Reset Button .......................................................................................................12
Appendix C. Marco Settings - DHCP..................................................................................................13
Appendix D. Launch Box Firmware Update.....................................................................................14
Appendix E. Using a Smart Phone or Tablet ....................................................................................14
Appendix F. Technical Drawing ..........................................................................................................15

Launch Box User Guide April 2020 P.2
Introduction
The Ocean Sonics Launch Box is an easy way to deploy icListen Smart Hydrophones in the
field. The Launch Box gives users the ability to deploy one or more synchronised
hydrophones for up to 48 hours, with a Wi-Fi connection to your computer or tablet.
The Launch Box is small and lightweight, so it can be transported and stowed with ease.
Never let your hydrophone die after 8 hours again with the ability to keep a hydrophone
charged for 48 hours! This all-in-one solution combines power, Wi-Fi, GPS positioning and
time synchronisation for all your deployment needs. Whether you are streaming your data
to your laptop for real-time processing or checking deployment settings, the Wi-Fi signal will
give you a reliable connection to make you feel confident that you are collecting the highest
quality data for the best underwater sound measurements.
The Launch Box provides recording of NMEA data from the GPS signal used to synchronise
hydrophones. This gives users the ability to track the coordinates of the Launch Box during
their deployments, extremely useful for vessel deployments.
Important Notes
•Water resistant when Launch Box case is closed and sealed.
•Launch Box Battery Life will depend on set-up of deployment
[Number of hydrophones powered, Wi-Fi, GPS]
•The distance of the Wi-Fi connection is based on obstructions, interference & devices.
•Turn the Launch Box OFF when not in use and recharge battery after each
deployment. Ensure the Launch Box is fully charged and in the OFF position before
each use.
Specifications
WEIGHT
2.3 kg
DIMENSIONS
259 mm x 201 mm x 114 mm
Features
•Built-in Rechargeable Battery
•24v Li-ion 100 watts
•LED Battery Level Indicator
•6 hours to charge from 0-100%
•GPS Time Synchronisation
•Hydrophone Synchronisation within 1 µs
•Recorded GPS Positioning
•NMEA messages logged in Launch Box memory
•2.4G Wi-Fi
•Real-time Set Up, Status, and Display Data
•Water Resistant when lid is
closed and sealed
•IP67 rated case
•Selectable cable lengths
•Deploy multiple hydrophones with Smart Cable

Launch Box User Guide April 2020 P.3
Ocean Sonics Launch Box Quick Start
OSL Tip
For a quick setup install Ocean Sonics’ Software Programs
Marco and Lucy on your PC prior to setting up your Launch Box
Assemble Launch Box Configuration
1. Turn Wi-Fi switch to ON position and wait 2 minutes to allow Wi-Fi to stabilize.
2. Turn remaining switches to ON position.
3. Attach cable(s) and hydrophone(s) in configuration for deployment.
Connect to Launch Box Wi-Fi
4. Use a PC to connect to the Launch Box Wi-Fi
(for troubleshooting Wi-Fi see Appendix A).
a. Go to Wi-Fi settings on computer.
b. Ensure Wi-Fi is turned on.
c. Show available networks.
d. Select Launch_Box_[SerialNumber] to connect.
For Launch Box Wi-Fi settings see Appendix B.
Setup Hydrophone
5. Open Marco on PC [Ocean Sonics’ Software Program found on icListen USB drive].
a. Click Refresh to view hydrophone(s) connected to the Launch Box.

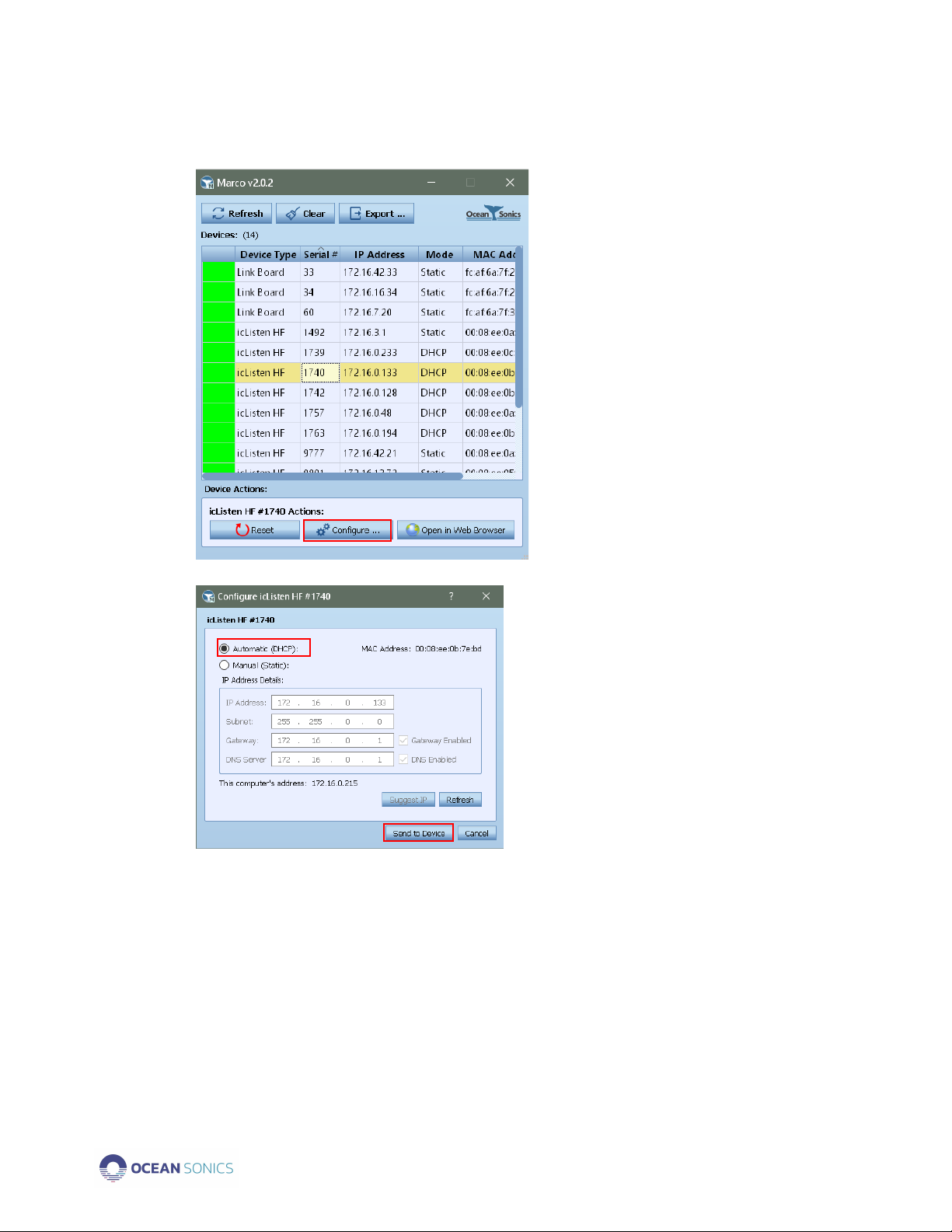

b. All units on Marco should be set to DHCP (See Appendix C for Marco Help).
c. Using Marco open the icListen in a Web Browser (double click on serial #).
6. Configure hydrophone for deployment.
a. Set icListen to Synchronise to GPS.
i. Under Special Features ensure Sync In –Falling Edge is selected
and Decode Time from PPS is checked.
ii. If the Launch Box is in a location where it can receive a GPS signal,
the Home Page should indicate the hydrophone is synchronising or is
Synchronised to PPS (see below).
iii. When it has a GPS sync, the time will indicate it was set by PPS.
(This can take up to 5 minutes for a hydrophone to obtain GPS
synchronisation. Ensure the correct date and time are displayed.)
b. Set up Sampling Rates for icListen.
i. Under Settings Tab →Data Collection, select the settings for
deployment - Sampling rates of WAV and FFT data.

Launch Box User Guide April 2020 P.4
GPS Position Logging
1. Enter the IP address: 192.168.1.1 into a web browser.
2. Select the GPS Tab and click CONFIGURE.
3. Click Enable.
4. Click APPLY.
5. Click OK.
Each time Logs are turned on and off (enabled / disabled) a new log file will be created.

Launch Box User Guide April 2020 P.5
Deployment
1. Secure Launch Box to vessel or dock prior to deploying hydrophone(s) on the cable
attached, so the Launch Box can not be pulled into the water.
2. If deploying on a vessel, the vessel should be stopped during deployment.
3. Use Launch Box Wi-Fi to ensure the hydrophone is recording and streaming.
4. Slowly feed the hydrophone and cable into the water.
5. Collect Data.
a. While collecting data the Wi-Fi connection can continue streaming
hydrophone data to the PC while the Launch Box is within range.
Recovery
1. Retrieve hydrophone and cable from water.
If the Launch Box has power:
2. Connect to Wi-Fi on Launch Box.
3. Turn off hydrophone recording.
4. Place Hydrophones into Standby Mode.
5. Turn off Power to hydrophones
6. Toggle icListen Power switch to STOP position.
7. Turn off remaining switches on Launch Box.
8. Rinse hydrophone and cable with fresh water.
If the Launch Box does not have power use the test cable instead of the Launch Box for
shutting off hydrophone.
Hydrophone internal batteries can be disconnected using the power down / hardware reset
tool to retain battery at 100%:
a. Attach test cable.
b. Put hydrophone is standby mode.
c. Insert -9v battery hardware reset tool into the power barrel connector on the
test cable.
Charging the Battery
1. Ensure the Launch Box is in a secure, dry location for charging.
2. Insert the power cord into a wall outlet.
3. Mate the charger cable to charging socket on the Launch Box.
4. Charging should take approximately 6 hours, depending on the discharge state of
the battery.

Launch Box User Guide April 2020 P.6
GPS Position Data Retrieval
Position data can be retrieved either by following the link provided in the GPS tab or using
an FTP client such as FileZilla.
From Web Browser [IP: 192.168.1.1]
1. On GPS Tab follow the hyperlink “this link”
2. Find File with date logged and download.
FTP Client (FileZilla)
1. Fill out the fields as shown below with the password being root.
2. Choose a destination folder on your computer and copy over the log files in the log
folder following the steps outlined for downloading hydrophone data.
Clearing Log Files
To delete all logged GPS files.
1. Disable GPS logging in the Launch Box web browser.
2. Click CLEAR_LOGS.

Launch Box User Guide April 2020 P.7
Contact Ocean Sonics Ltd.
To download Ocean Sonics Software please visit:
https://sites.google.com/a/oceansonics.com/ocean-sonics-resource-site/
Service
To request an RMA or technical support
Email: [e-mail]
Phone: [phone]
Sales
For general sales inquiries
Email: [e-mail]
Phone: [phone]
Website
https://OceanSonics.com
Mailing and Shipping Address
Ocean Sonics
110 Parkway Dr.
Truro Heights, NS Canada
B6L 1N8

Launch Box User Guide April 2020 P.8
Appendix A. Troubleshooting the Wi-Fi Connection
If advanced Network Settings have been changed in a computer, it may be necessary to
turn on Automatic DHCP.
Windows 10:
1. Go to Network Connections: Control Panel→Network and Sharing Centre and click
on the Launch Box Wi-Fi.
2. Choose Properties.
3. Click on Internet Protocol Version 4 (TCP/IPv4).
4. Click on Properties.
5. Ensure Obtain an IP address automatically and Obtain DNS server address
automatically are chosen.

Launch Box User Guide April 2020 P.9
Appendix B. Wi-fi Network Settings

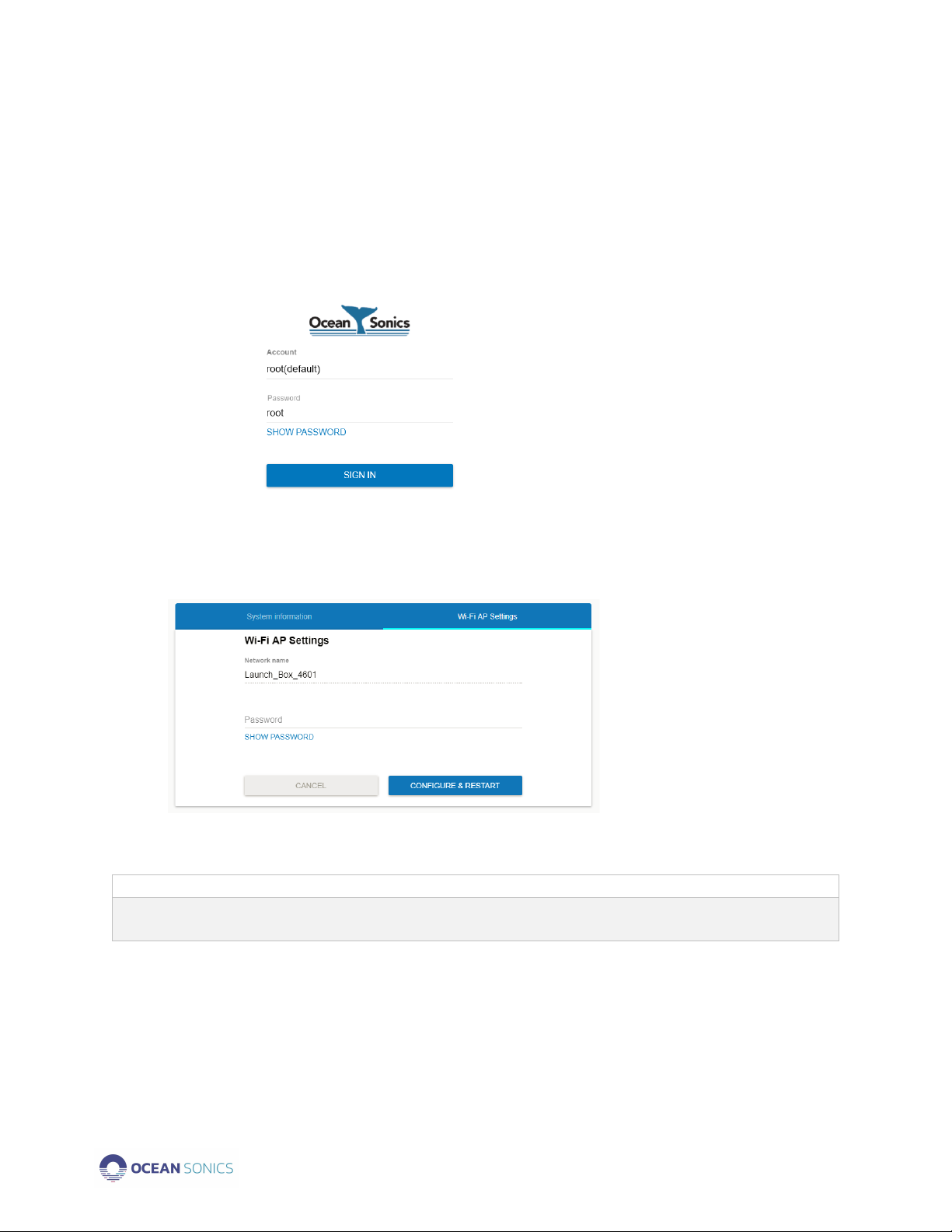

Checking Wi-Fi Network Configuration
a. Open your web browser of choice and type in IP Address of Launch Box.
[192.168.1.1]
b. Type in default username and password on the web page and click SIGN IN.
Username: root
Password: root
Setting Up Wi-Fi Password
1. Type in IP Address of Launch Box in web browser.
2. Choose Wi-Fi AP Settings Tab.
3. Type in password (must be 8 or more characters) into Password bar.
4. Click CONFIGURE & RESTART.
Note
Clicking CONFIGURE & RESTART will cause the connection to be lost. User must
reconnect and sign-in to Wi-Fi with new password.
5. To delete password protection on Wi-Fi, leave Password field blank and click
CONFIGURE & RESTART.

Launch Box User Guide April 2020 P.10
Configuring Network Settings
To change IP Address Mode to DHCP
1. Open Web Browser with IP address of Launch Box.
2. Sign In.
3. Click CONFIGURE.
4. Select DHCP.

Launch Box User Guide April 2020 P.11
5. Click CONFIGURE & RESTART.
Note
Launch Box will restart, and communications will be lost. IP address provided will no
longer be the static address, the address can be found by viewing the Network
Connection Settings for the Wi-Fi.

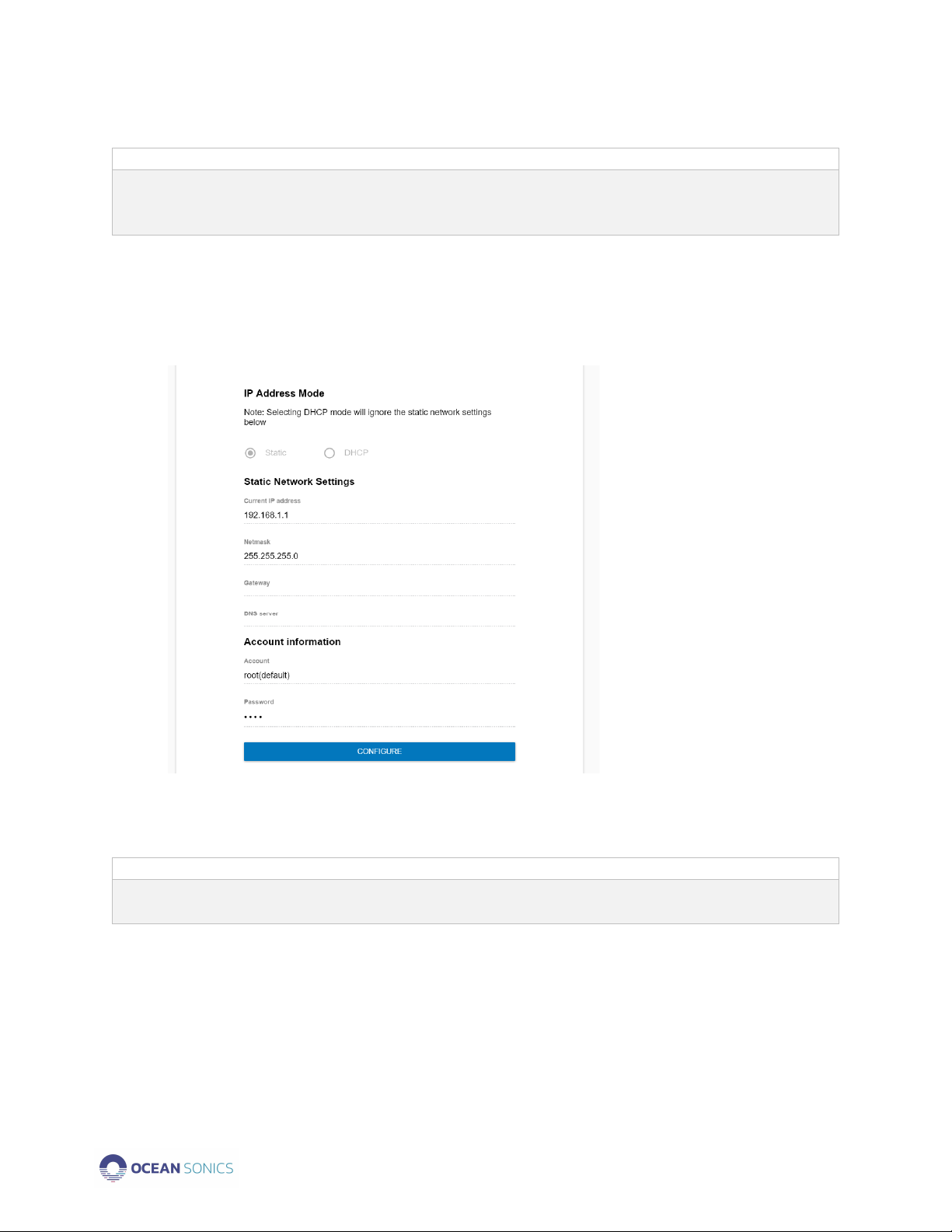

Changing Static IP Address
1. Open Web Browser with IP address of Launch Box.
2. Sign In
3. Click CONFIGURE
4. Type in New IP address and Netmask
(Gateway and DNS server can be left blank and will not be changed)
5. Click CONFIGURE & RESTART
Note
Launch Box will restart, and communications will be lost. User must reconnect to Wi-Fi
and can open web browser with new IP address.

Launch Box User Guide April 2020 P.12
Factory Reset –Reset Button
If there are problems with the Wi-Fi settings a Factory reset can be applied.
This will reset to default IP address and password. This is the same function as the Reset
Button on the Launch Box (see Resetting Wi-Fi).
Resetting Wi-Fi
A Wi-Fi reset can be done to recover the Wi-Fi network settings to the original configuration
that was provided for the Launch Box. All Wi-Fi settings will be lost and restored to
default.
A Reset would be necessary in the following states:
•The Wi-Fi network on the Launch Box was configured and caused the Wi-Fi to stop
working and communications were lost.
•The Wi-Fi password for a Launch Box was set and forgotten.
To Reset - Use a pen or paper clip to press and hold the Reset button for at least 4 seconds.

Launch Box User Guide April 2020 P.13
Appendix C. Marco Settings - DHCP
1. Click on the hydrophone serial number
2. Click Configure …
3. Choose Automatic (DHCP).
4. Click Send to Device and wait for settings to be successfully sent to the unit.
5. Continue this for each unit so they are all set to DHCP IP addresses.
6. Units should all show up green indicating they are ready.

Launch Box User Guide April 2020 P.14
Appendix D. Launch Box Firmware Update
1. Open web browser with IP address of Launch Box (default IP: 192.168.1.1).
2. Click on UPGRADE FIRMWARE.
3. Click on Choose the file.
4. Choose the software update file provided by Ocean Sonics.
5. Click on UPGRADE & RESTART.
Appendix E. Using a Smart Phone or Tablet
1. Download an App on your device that will allow the discovery of IP addresses on
your Network. Suggested App: Fing
2. Connect to Launch Box Wi-Fi on device
3. Open the Fing App to find the IP address of the hydrophone(s) connected
4. Type the hydrophone IP Address of your hydrophone(s) found into a web browser
5. Use the web browser to configure settings for deployment as shown in Quick Start
6. Web Browser can also be used to configure Launch Box Settings and set up GPS
logging by going to IP Address: 192.168.1.1 (using the same instructions as above
for the computer)

Launch Box User Guide April 2020 P.15
Appendix F. Technical Drawing
