LED ELEVATED HELIPORT LIGHT
LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION
AND MAINTENANCE
Compiled by: Nicola Marabini
Approved by: Piero Scaramagli
N° Attachments: 1
Copy n°:

Document UT-MT-0708_EN Page 2 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
LIMITED PRODUCT WARRANTY
THE FOLLOWING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS,
IMPLIED OR STATUTORY, INCLUDING, BUT NOT BY WAY OF LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
OCEM - ENERGY TECHNOLOGY warrants to each original Buyer of Products manufactured by the Company
that such Products are at the time of delivery to the Buyer, free of material and workmanship defects,
provided that no warranty is made with respect to:
(a) any Product, which has been repaired or altered in such a way, in Company’s judgement, as to affect
the Product adversely;
(b) any Product which has, in Company’s judgement, been subject to negligence, accident or improper
storage;
(c) any Product which has not been operated and maintained in accordance with normal practice and in
conformity with recommendations and published specification of Company;
(d) the breaking of the warranty seals, if present, determines the immediate termination of the warranty;
and,
OCEM - ENERGY TECHNOLOGY’s obligation under this warranty is limited to use reasonable efforts to
repair or, at its option, replace, during normal working hours at the facility of the Company, any Product
which in its judgement proved not to be as warranted within the applicable warranty period. All costs of
transportation of Products claimed not to be warranted and of those repaired or replaced, to or from the
facility of the Company shall be borne by Purchaser. Company may require the return of any Product
claimed not to be as warranted to its facility, transportation prepaid by Purchaser, to establish a claim
under this warranty. The cost of labour for the installation of a repaired or replaced Product shall be
borne by Purchaser. Replacement parts provided under the terms of this warranty are warranted for the
remainder of the warranty period of the Products upon which they are installed to the same extent as if
such parts were original components thereof. Warranty services provided under the Agreement do not
assure uninterrupted operations of Products; Company does not assume any liability for damages caused
by any delays involving warranty service.
IMPORTANT: READ THIS DOCUMENT
Before proceeding to the operations of installation, commissioning, operation, maintenance or disposal,
carefully read the entire document.
SAFETY INFORMATION
Extreme caution should be exercised when working with this equipment; it is normally used or connected
to circuits that operate at dangerous voltages and can be fatal.
The following section contains important safety information that you must follow when installing and
using the apparatus.
Misuse of the equipment or lack of care in applying safety procedures and prescriptions specified in this
document, may result in a hazard.
Avoid contact with voltage or current sources.
For no reason the protections and the safety devices must be removed.

Document UT-MT-0708_EN Page 3 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
OPERATION ON THE EQUIPMENT - SKILLS
Operation on the equipment and access to its internal parts shall be done by experienced personnel,
adequately trained and aware of the risks related to electricity and high voltages.
Safety rules shall be adopted when operating on the equipment, or on cables and other apparatus
connected to the it
DO NOT OPERATE ON ENERGIZED CIRCUITS
Do not carry out any operation on the converter or on apparatus connected to it when the circuits are
energized.
WHEN HANDLING AND SERVICING THIS EQUIPMENT, OBSERVE PRECAUTIONS FOR HIGH VOLTAGE
EQUIPMENT.
Before any access, inspection or intervention, be sure to have switched-off the unit, opened the main
circuit breaker and removed the supply to the unit (by opening the circuit breaker/switch on the
distribution board at the beginning of the supply line).
Then wait discharge time (at least 5 minutes), ground carefully the system, and check for voltage
presence before accessing..
REANIMATION
The maintenance staff must be aware of the risks related to electricity, criteria to prevent the risk of
electric shock and resuscitation techniques
CE MARK
This equipment complies with the requirements of European regulations for the CE mark.The
user has to respect all prescriptions reported in this document.
This equipment complies with the requirements of the EEC directives 2004/108/EEC and
2006/95/EEC with regard to “Electromagnetic Compatibility” and “Low Voltage Electrical
Apparatus” respectively.
OUT OF SERVICE
In case of dismantling, decommissioning, destruction, disposal, the user shall follow all the required
precautions for component and material elimination, according to local rules and applicable law.

Document UT-MT-0708_EN Page 4 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
EDITIONS
Date
02/10/2013
11/14/2013
11/03/2014
First issue
Updated chapter “Cable lead with plug” and “List of the recommended spare
parts”
New address of the Company
Deleted § “List of the recommended spare parts” and added relevant
attachment
REVISIONS
Index
Date
Description
Edited by
Approved by
LIST OF EFFECTIVE PAGES
From page 1 to page 17

Document UT-MT-0708_EN Page 5 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
INDEX
LIMITED PRODUCT WARRANTY......................................................................................................... 2
SAFETY INFORMATION...................................................................................................................... 2
EDITIONS ........................................................................................................................................... 4
REVISIONS.......................................................................................................................................... 4
LIST OF EFFECTIVE PAGES.................................................................................................................. 4
INDEX................................................................................................................................................. 5
INDEX OF FIGURES............................................................................................................................. 5
LIST OF ATTACHMENTS ..................................................................................................................... 6
1GENERAL.........................................................................................................................7
2MAIN FEATURES ............................................................................................................. 7
3INSTALLATION .............................................................................................................. 10
3.1 CIVIL WORKS................................................................................................................. 10
3.2 INSTALLING THE LIGH UNIT.......................................................................................... 11
4MAINTENANCE ............................................................................................................. 12
4.1 MAINTENANCE PROGRAM........................................................................................... 12
4.1.1 Periodical Checks ................................................................................................ 13
4.1.2 Snowplow Operations......................................................................................... 13
4.2 REMOVING AND OPENING THE LIGHT UNIT................................................................ 13
4.2.1 Removing the fixture .......................................................................................... 13
4.3 LENS CLEANING ............................................................................................................ 13
4.3.1 Prism outside cleaning........................................................................................ 13
4.4 LENS REPLACEMENT..................................................................................................... 14
4.5 LED MODULE REPLACEMENT ....................................................................................... 14
4.6 ELECTRONIC REPLACEMENT......................................................................................... 15
4.7 BREAKABLE COUPLING REPLACEMENT........................................................................ 15
4.8 CABLE LEAD WITH PLUG............................................................................................... 16
4.8.1 Removing the cable lead with plug..................................................................... 16
4.8.2 Installing the new cable lead with plug .............................................................. 16
5TROUBLESHOOTING...................................................................................................... 16
INDEX OF FIGURES
Figure 1 –Exploded View .................................................................................................................. 8
Figure 2 –Part List............................................................................................................................. 9
Figure 3 - Complete P/N identification ............................................................................................. 9
Figure 4 –Civil Works ...................................................................................................................... 10
Figure 5 –Levelling Device .............................................................................................................. 12

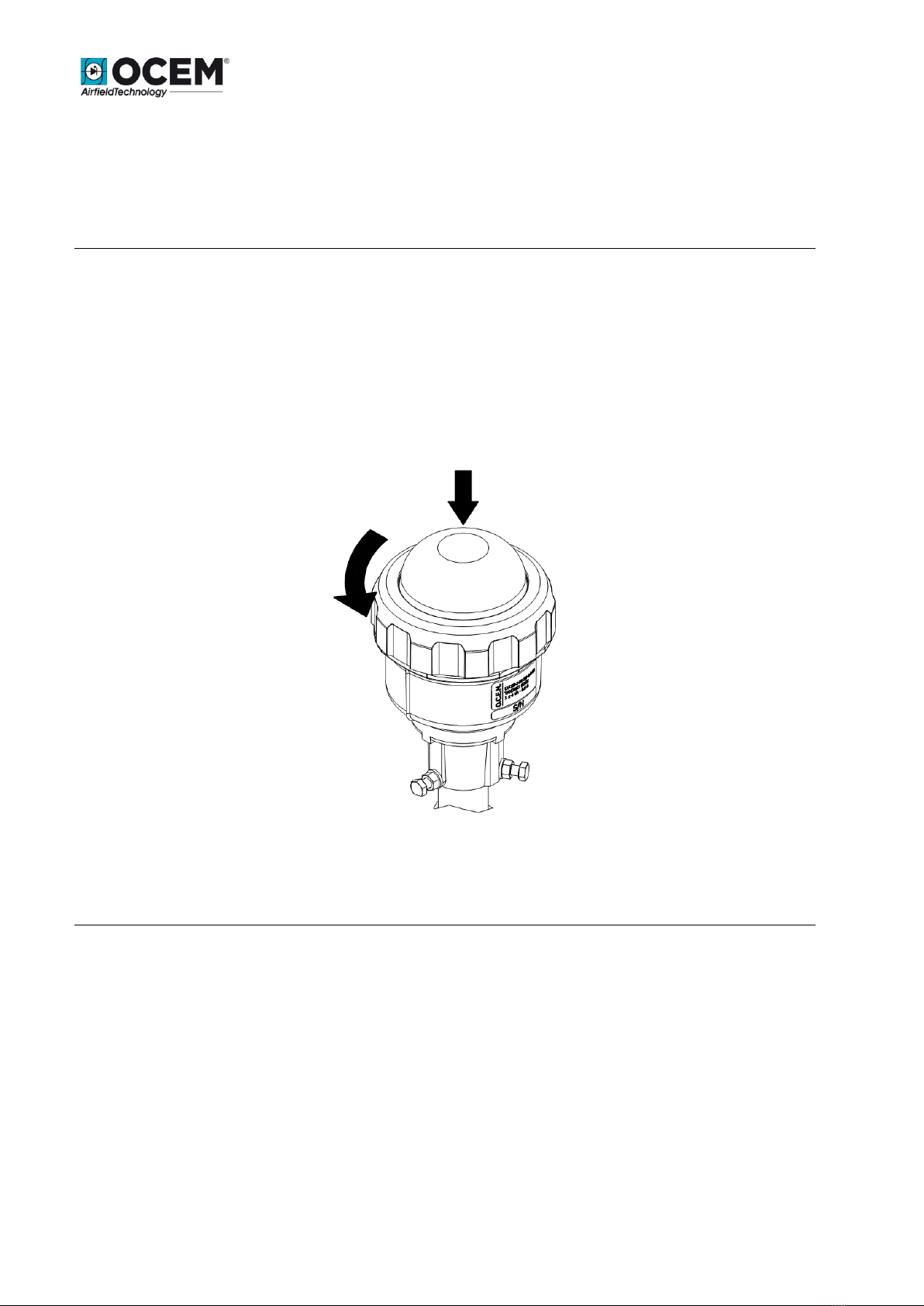

Figure 6 –Removing the Lens ......................................................................................................... 14
Figure 7 –Reassembly the Light Unit.............................................................................................. 15

Document UT-MT-0708_EN Page 6 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
LIST OF ATTACHMENTS
UC-PU-0279 - LIST OF THE RECOMMENDED SPARE PARTS

Document UT-MT-0708_EN Page 7 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
1GENERAL
LHE elevated LED heliports light is low intensity, omnidirectional steady burning type.
These fixtures are intended for use as helipad area lighting.
LHE lights are in compliance with ICAO Annex 14 Vol.2, IEC TS 61827 and NATO-
STANAG 3619.
The fixtures described in this manual are designed to be connected to parallel
circuits.
Location of these fittings shall be in compliance with ICAO - Annex 14 or STANAG
Specs
2MAIN FEATURES
The fixture consists of:
heat resistant transparent glass lens; it is mechanically secured to the body by
metal threaded ring with flat gasket
aluminium body mounted on the pole using three screws. These screws also allow
the levelling of equipment
the power supply/control PCB and the LED circuit are mounted on the aluminium
inner body
steel 1-inch-tube, available in different length, connecting the main body and
fragile joint; to lock the tube, the breakable coupling is equipped with one screw
aluminium breakable coupling provided with a breakable groove 2" GAS
two, single-pole neoprene cable leads, size 2.5 mm2, 0.3 m long, with plug
meeting FAA Specs L-823; a yellow-green wire, size 2.5 mm2, 0.5 m long, is
provided for grounding purpose; as alternative a cable lead (L = 2 m exceeding
over the breakable coupling) can be provided
a LED module, consisting of six LED, mounted on a PCB complete with a dedicated
optic to collect the LED luminous flux so to maximize the light output
All hardware is made of stainless steel.
See “Complete P/N identification” figure for P/N information.
Power consumption 28 VA and 11 VA (white or green/yellow respectively).

Document UT-MT-0708_EN Page 8 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
Figure 1 –Exploded View

Document UT-MT-0708_EN Page 9 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
No. Description Qty
1 Lens locking ring...................................................................................................1
2 Lens ......................................................................................................................1
3 Gasket for lens .....................................................................................................1
4 LED module with accessories...............................................................................1
5 Electronic .............................................................................................................1
6 Cable gland...........................................................................................................1
7 Body with slipfitter...............................................................................................1
8 Standard 1-inch tube ...........................................................................................1
9 Breakable coupling ..............................................................................................1
10 FAA L-823 plug .....................................................................................................1
11 Fixture grounding wire.........................................................................................1
Figure 2 –Part List
LHE - I - G - D - 25 - C - P - 0
Basic P/N:
Compliance:
I = ICAO - IEC
S = STANAG
Colour:
W = White
G = Green
Y = Yellow
Mode:
D = Parallel Circuits 48 V
Height:
00 = w/o pole
25 = 250 mm
Breakable Coupling:
0 = w/o breakable coupling
C = 2” GAS
Electrical System:
L = Cable Leads (L = 2 m)*
P = Cable Lead with plug (L = 20 cm)*
Arctic Kit:
0 = Without Arctic Kit
* Exceeding over the breakable coupling
Colour Selection
SPECS
USE
COLOUR
WHITE
GREEN
YELLOW
ICAO
FATO and Aiming Point
X
ICAO
TLOF Heliport Edge
X
STANAG
TLOF Heliport Edge
X
STANAG
Landing Direction
X
Figure 3 - Complete P/N identification

Document UT-MT-0708_EN Page 10 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
3INSTALLATION
3.1 CIVIL WORKS
Each light is usually installed on a suitable concrete block, into which a pipe elbows is
cemented. The isolating transformer is housed into a separate concrete pit which is
normally placed close the above concrete block (Figure 4).
The pit can be placed far from the concrete block too, but in this case a suitable cable
duct has to be provided between the pit and the pipe elbow for passing the
secondary cable.
As alternative the assembly pit-pipe elbow can be replaced by a steel sheet base,
which can be used to house the isolating transformer, complete with an upper steel
plate with a threaded sleeve.
Figure 4 –Civil Works

Document UT-MT-0708_EN Page 11 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
3.2 INSTALLING THE LIGH UNIT
The light is shipped completely assembled including the LED module, except the 1-
inch tube and the breakable coupling which are delivered separately inside the same
carton.
Note: if the fixture has been ordered with an extra height option, the tubing may be
packaged separately.
For the installation of the light the following steps are suggested:
pass together the secondary cable lead with receptacle and a suitable length of
grounding wire (grounded inside the pit) through the pipe elbow
place the receptacle into the upper threaded section of the pipe elbow, by
holding it between the two plastic rings, and pass the grounding wire through the
rings (in correspondence of break point provided on the rings)
slide one end of the 1-inch tube over the fixture cable assembly (cable leads with
plug plus yellow-green wire) and into the fixture body until the body bottoms
against the tube
approach, without tighten, the set screws on the side of the body to the 1-inch
tube
slide the frangible coupling over the cable assembly (cable leads with plug plus
yellow-green wire) and onto the other end of the 1-inch tube until it bottoms
against the tube
connect the fixture grounding wire to the grounding wire coming from the pit (or
from the base): splice both the wires and connect them together by using a
crimping connector
connect the light plug to the secondary receptacle inside the pipe elbow
slide the frangible coupling down over the plug and tighten it into pipe elbow (or
the base plate) until coupling bottoms out. Push any extra cable length into the 1-
inch tube. Tighten the tube to the coupling with the setscrew on the coupling
Place on the lens locking ring the levelling device (P/N 332.3500 available on
request) as shown in Figure 5. Levelling the light body by operating the three
levelling screws until the bubble is centered
remove the levelling device

Document UT-MT-0708_EN Page 12 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
1. Fixture
2. Levelling device
3. Circular level
4. Levelling screws
Figure 5 –Levelling Device
4MAINTENANCE
WARNING
BEFORE ANY MAINTENANCE INTERVENTION, MAKE SURE
THE POWER SUPPLY BE SWITCHED OFF.
DO NOT OPERATE ON LIVE PARTS!!!
LED lighting fixtures do not require frequent maintenance. With well-run installations
and handling fixture carefully, avoiding excessive falls or collisions, the only
maintenance work to be carried out on the field is to clean the prisms.
4.1 MAINTENANCE PROGRAM
In order to ensure maximum light fixture life, the installed units should be subject to
a maintenance program in accordance with the following instructions and taking as
reference the Airport Service Manual ICAO - Part 9 - Airport Maintenance Practices or
FAA AC 150 5340-30.

Document UT-MT-0708_EN Page 13 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
4.1.1 Periodical Checks
Daily
Burnt-out luminous source
Broken parts of lights
Monthly
Cleaning of the lenses
Correct setting of the lights
Semi-Annual
Painting or replacement of rusted parts
Annual
Stability of the civil works
Stability and assembly of lights
Electrical connections and insulation degree
Luminous efficiency of luminous sources
Condition of all the gaskets
Unscheduled
After unusual atmospheric precipitation, check the
light condition and remove any luminous beam
obstructions
4.1.2 Snowplow Operations
Snowplow operators should exercise extra care not to strike the light fixtures with
snowplow blades. After snow removal operations, inspect all light fixtures to locate
and replace, if necessary, any damaged light assemblies.
4.2 REMOVING AND OPENING THE LIGHT UNIT
4.2.1 Removing the fixture
Remove the fixture from base plate or pipe elbow following steps are suggested:
unscrew the frangible coupling screw
hold the fixture and unscrew the frangible coupling
lay the fixture and disconnect plug to the secondary receptacle inside the pipe elbow
disconnect the fixture grounding wire to the grounding wire coming from the pit (or from
the base).
4.3 LENS CLEANING
4.3.1 Prism outside cleaning
Removing the fixture is not necessary to clean the outer surface of the prisms, and if
already removed is not necessary to open it. Clean the lens surface with non abrasive
glass product.

Document UT-MT-0708_EN Page 14 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
4.4 LENS REPLACEMENT
Unscrew the lens locking ring and remove the broken lens with the relevant gasket
from the fixture body.
In order to removal the lens, press down the lens with the palm of one hand and,
with the other hand, unscrew the locking ring (Figure 6).
Place a new gasket on the body.
Set the new lens on the body.
Hand tighten the locking ring.
Figure 6 –Removing the Lens
4.5 LED MODULE REPLACEMENT
Remove the lens with gasket as above described and proceed as follow:
remove the LED module by unscrewing the four M3x8 HSCH screws
take out the electronic from the body and disconnect the LED module from the
PCB
provide a new LED module and reassembly the unit with reverse procedure
IMPORTANT: IT IS SUGGESTED TO REPLACE THE LENS GASKET TO NOT AFFECT
WATERTIGHTNESS.
Make sure the tooth of the Electronic goes to inserted into its seat on the body
(Figure 7).

Document UT-MT-0708_EN Page 15 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
1. Electronic
2. Main body
Figure 7 –Reassembly the Light Unit
4.6 ELECTRONIC REPLACEMENT
Remove the lens with gasket as above described and proceed as follow:
take out the electronic from the body and disconnect the PCB from cable lead
with plug and from the LED module
remove the LED module by unscrewing the four M3x8 HSCH screws
provide a new electronic and reassembly the unit with reverse procedure
IMPORTANT: IT IS SUGGESTED TO REPLACE THE LENS GASKET TO NOT AFFECT
WATERTIGHTNESS.
4.7 BREAKABLE COUPLING REPLACEMENT
Unscrew the lower threaded section of broken breakable coupling from the pipe
elbow (or base plate), cut the grounding wire, disconnect the light plug from the
secondary receptacle and remove the threaded section.
Remove the upper section of the broken breakable coupling from the 1-inch pipe by
releasing the setscrew.
If damaged, replace the 1-inch tube too. To make free the tube, release the setscrew
on the main body.
Provide a new breakable coupling and, if required, a new 1-inch tube.
Reassembly the unit by following the installation steps.

Document UT-MT-0708_EN Page 16 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
4.8 CABLE LEAD WITH PLUG
4.8.1 Removing the cable lead with plug
The replacement of the cable lead requires the fixture completely disassembled;
follow the procedures above described to replace the power supply/control PCB, to
replace the breakable coupling and the 1-inch tube.
Unscrew the grounding screw inside the body to make free the grounding cable.
Remove the cable gland from the outside of the fixture body using a double ended
deep offset ring wrench CH 20; pull out the damaged cable lead and/or the grounding
wire from the sealing insert.
4.8.2 Installing the new cable lead with plug
Replace the cable gland if damaged.
Insert a new cable lead and a new grounding wire (if necessary) into the sealing insert
at approx 8 cm from the free extremity of the cable lead. Take care that the
grounding wire end with eyelet terminal be at 3-4 cm from the cable gland.
Place the sealing insert into the relevant cable gland seat and tighten it using a
double ended deep offset ring wrench CH 20.
Reassembly with reverse procedure.
5TROUBLESHOOTING
Problem
Possible cause
Solution
Distorted light beam
output
Broken or damaged lens
Replace lens
Weak light output
Primary loop with partial short
circuit
Check cable assembly
Defect in the isolation transformer
Replace transformer
Dirty lens
Clean the light fixture
One LED of the luminous source
damaged in short circuit
Replace the LEDs board
Wrong power PCB installed
Check parts list and install the
correct PCB

Document UT-MT-0708_EN Page 17 of 17
Edition 11/03/2014 Supersedes edition 11/14/2013
LED ELEVATED HELIPORT LIGHT LHE
INSTRUCTION MANUAL FOR USE, INSTALLATION AND MAINTENANCE
Problem
Possible cause
Solution
Luminous source not
working
LEDS DEFECTIVE
Replace the LEDs board
POWER PCB DEFECTIVE
Replace the Power PCB
Moisture inside the fixture
Execute leakage test and replace
damaged components. Clean and
dry the inside area of the fixture
No connection of primary circuit
Check transformer output current
with A-meter
Defective isolation transformer or
secondary wiring
Check power line between the
light fixture and the transformer,
including connectors
Water or moisture inside
the fixture
Lens gasket
Replace the gasket
Pinched fixture power cables
Replace fixture leads
T
