OHAUS JR 300T User manual

1
Ohaus Corporation
19A Chapin Road
P.O. Box 2033
Pine Brook, NJ 07058, USA

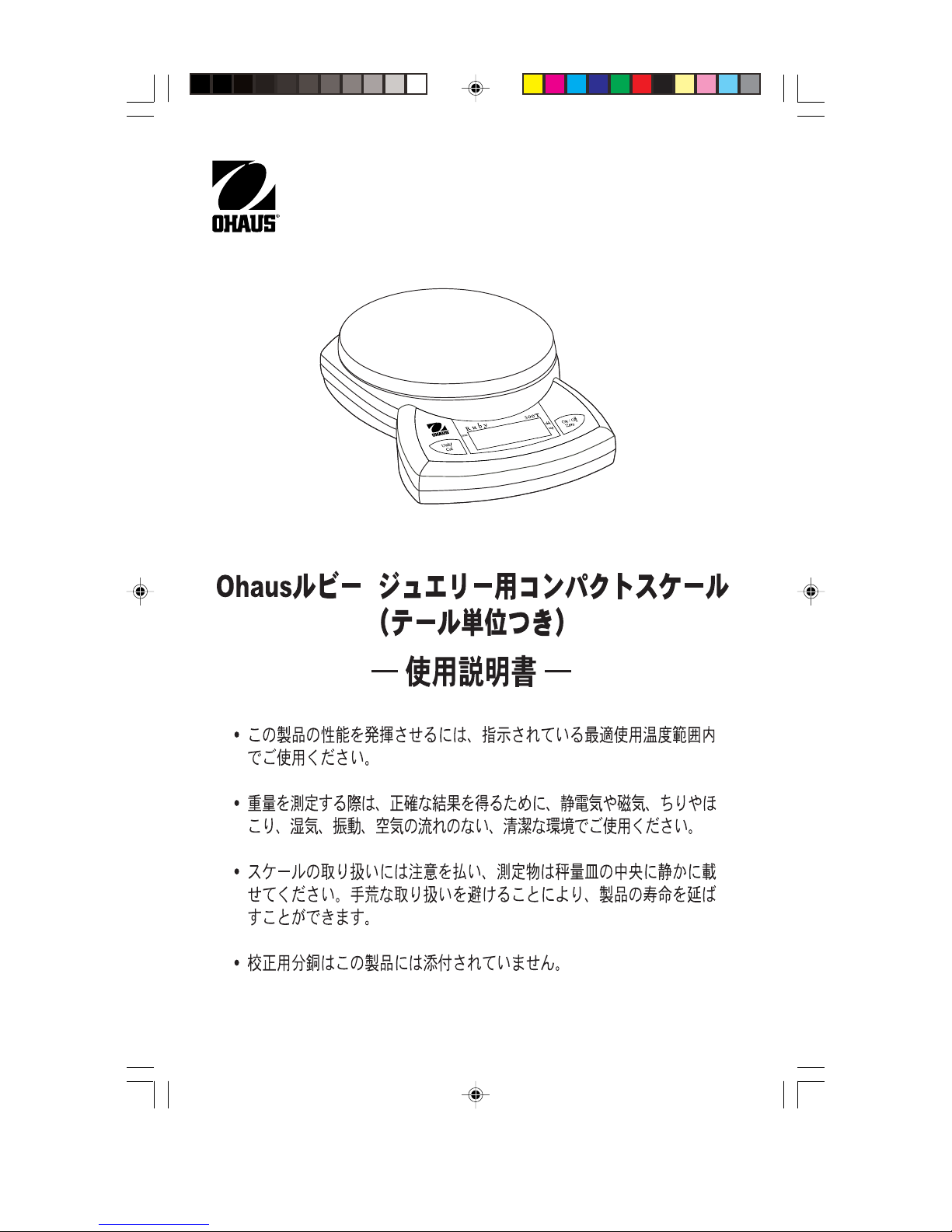

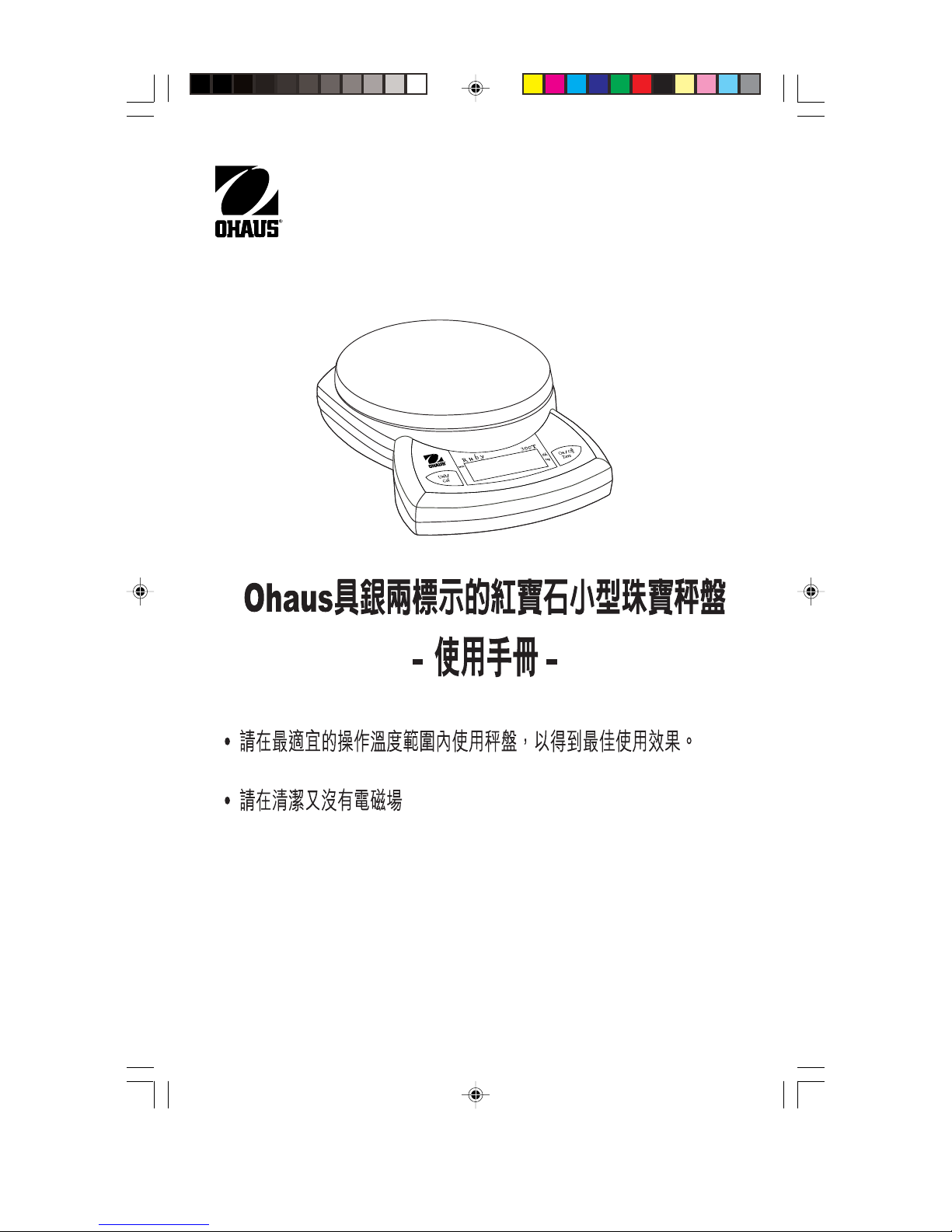

Ohaus Ruby Compact Jewelry Scale
with Taels
-OPERATING MANUAL-
• For best results, use the scale in the specified optimum operating
temperature.
• For best accuracy, perform your mass measurements in clean
environments, free of electrostatic and magnetic fields, dust and dirt,
moisture,vibrationandaircurrents.
• Use your scale with care, gently loading items to be weighed onto the
center of the pan. Avoiding rough treatment will aid in the life of your
compact scale.
• Calibrationweightsarenotprovidedwiththescale.
MANUAL.pmd 9/14/2005, 2:51 PM1

2
Battery Installation
Three AA size alkaline batteries are provided.
• Remove the battery cover on the bottom of the scale and place the
three “AA” size alkaline batteries into the compartment as indicated.
• Do not use excessive force or press the weighing pan.
• Re-insert the battery cover.
AC Adapter Operation
ACpoweradaptersareavailableasoptionalaccessories.
• Connect the AC adapter to the power input jack at the rear of the scale.
• PlugtheACadapterintoaproperlygroundedwalloutlet.

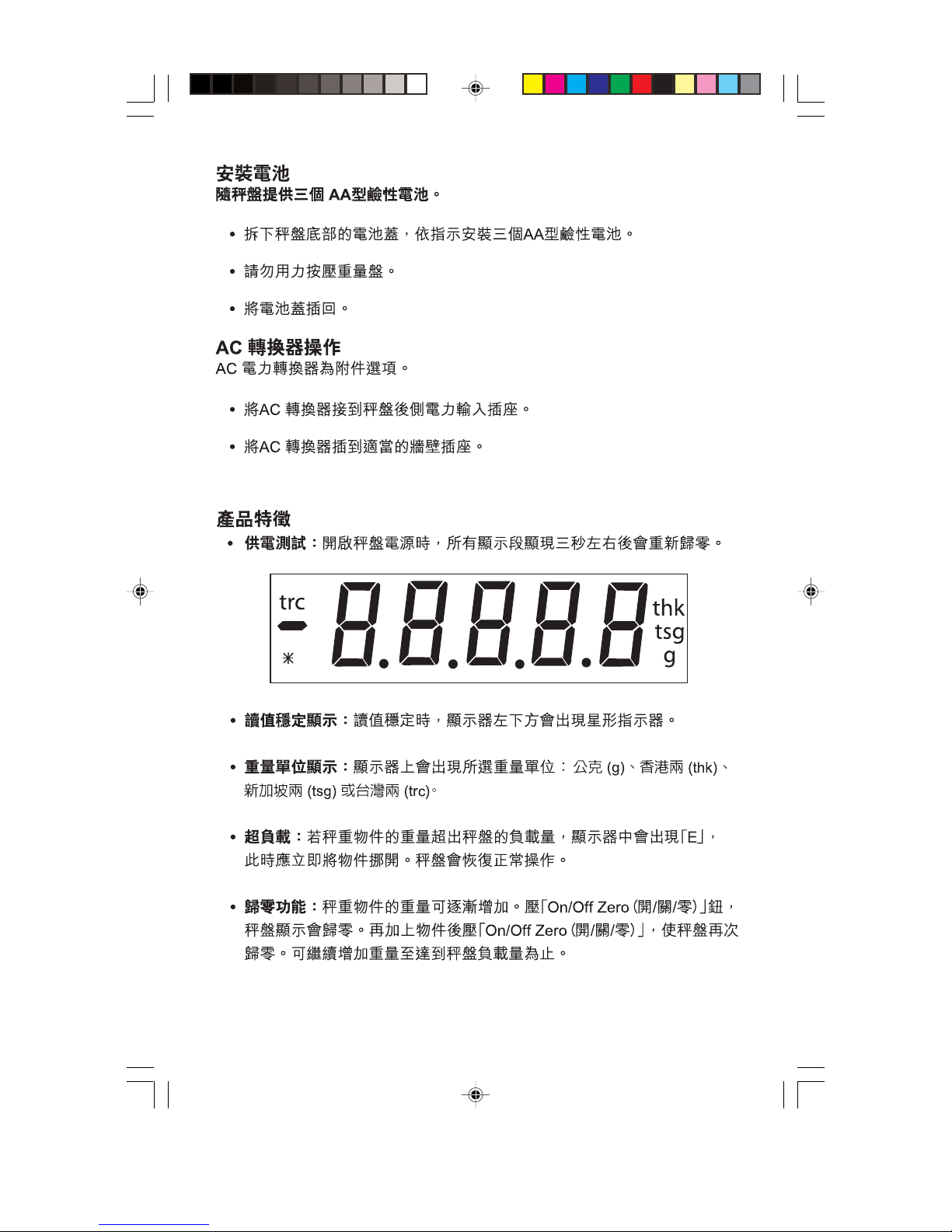

General Product Features
•Power Up Test: When the scale is turned on, all display segments will
appearforapproximately3secondsbeforeresettingtozero.
•Stable Reading Indication: On the display, a star indicator will appear in
the lower left corner of the display when a stable reading has been
reached.
•Weight Unit Indication: On the display, either g, thk, tsg or trc will
appearindicatingtheweightunitselected.
•Overload: If the applied load exceeds the capacity of the scale, an E
willappearonthedisplayandtheloadshould be removed immediately.
Thescalewillreturntonormaloperation.
•Zero Function: Values can progressively be added to a sample. By
pressing the On/Off Zero button, the scale display returns to zero. After
adding additional mass, press On/Off Zero to zero the scale again.
Additional mass may be added up to the capacity of the scale.
MANUAL.pmd 9/14/2005, 2:51 PM2

3

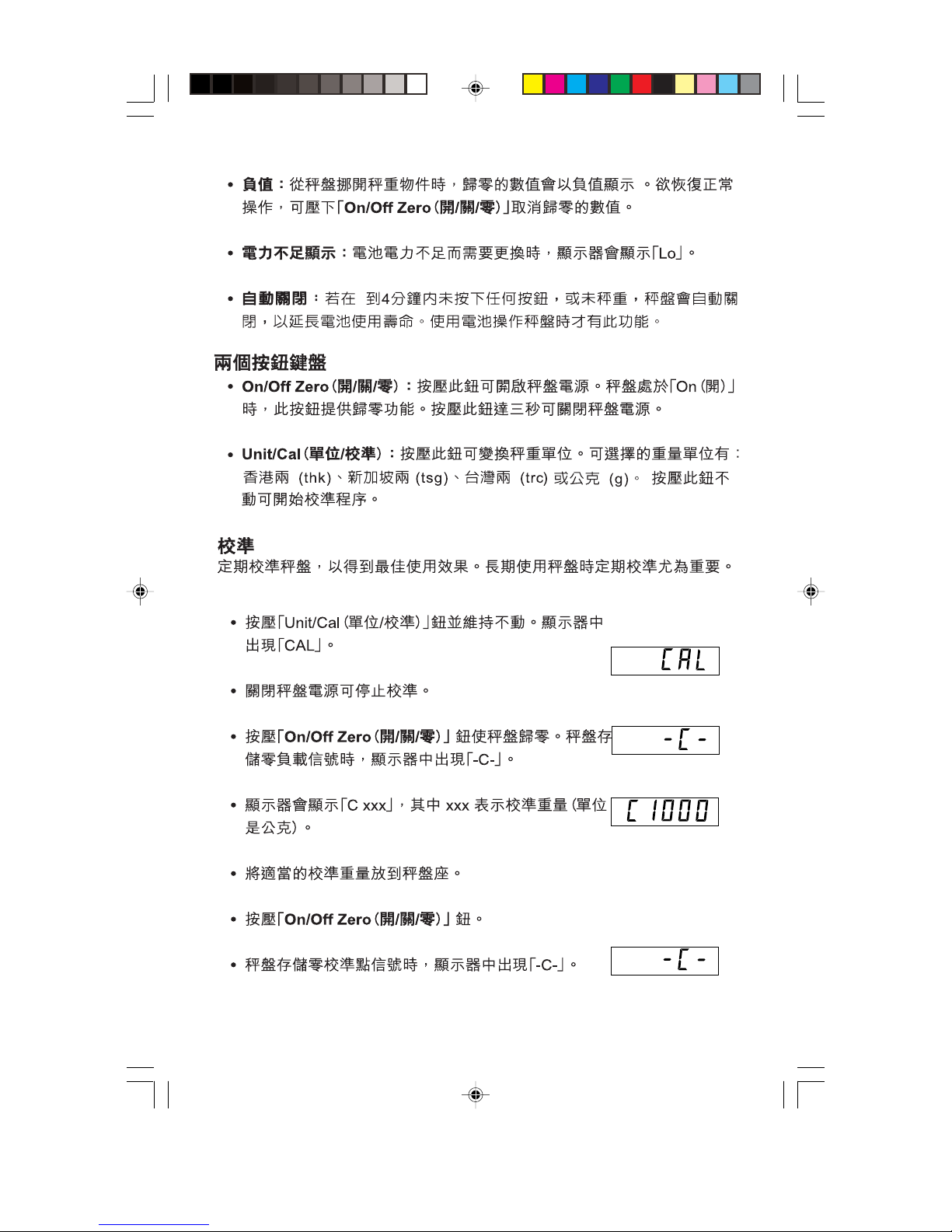

•Negative Value: When a load is removedfromthe scale, any zeroed
value will be displayed as a negative number. To return to normal
operation,thezeroedvaluecanbecancelledbypressingOn/Off Zero.
•Low Battery Indication: The display will show Lo when the batteries are
weakandneedtobereplaced.
•Auto Shut-Off: To extend battery life, the scale will automatically turn off
after approximately 4 minutes if no button press or active weighing is
occurring. This feature is only active with battery operation.
Two Button Keypad
•On/Off Zero: Pressing this button turns on the scale. This same button
operates the zero feature when the scale is on. Press and hold this
button for three seconds to turn the scale off.
•Unit/Cal: Press this button briefly to change the weighing unit. The
followingweightunitsmaybeselected:HongKongTaels (thk), Singapore
Taels (tsg), Taiwan Taels (trc) or grams (g). Press and hold this button to
beginthecalibrationprocess.
Calibration
For best results, calibrate the scale at regular intervals. This is especially
important if the scale is in use for prolonged periods.
• Pressing and holding the Unit/Cal button starts the
calibration process. The display should show CAL.
• The calibration process can be aborted by turning the
scale off.
• Press theOn/Off Zero button to capture 0. The
display shows -C- while the scale stores the the zero
loadsignal.
• The display will show C xxx where xxx is the
calibrationweightingrams.
• Placetheappropriatecalibrationweightonthe
platform.
• PressOn/Off Zero button.
• The display shows -C- while the scale stores the
calibrationpointsignal.
MANUAL.pmd 9/14/2005, 2:51 PM3

4
Accessories Supplied
• ThreeAAsize alkaline batteries.
Optional Accessories
ACPowerAdapters: OhausPart No.
120V US Plug 90524-66
220VEuroPlug 90524-63
240V UK Plug 90524-64
240VAustralianPlug 90524-65
CalibrationMasses:
200g 51025-16
1050mlBowl 80850075
Stainless steel weighing pan cover 80850076

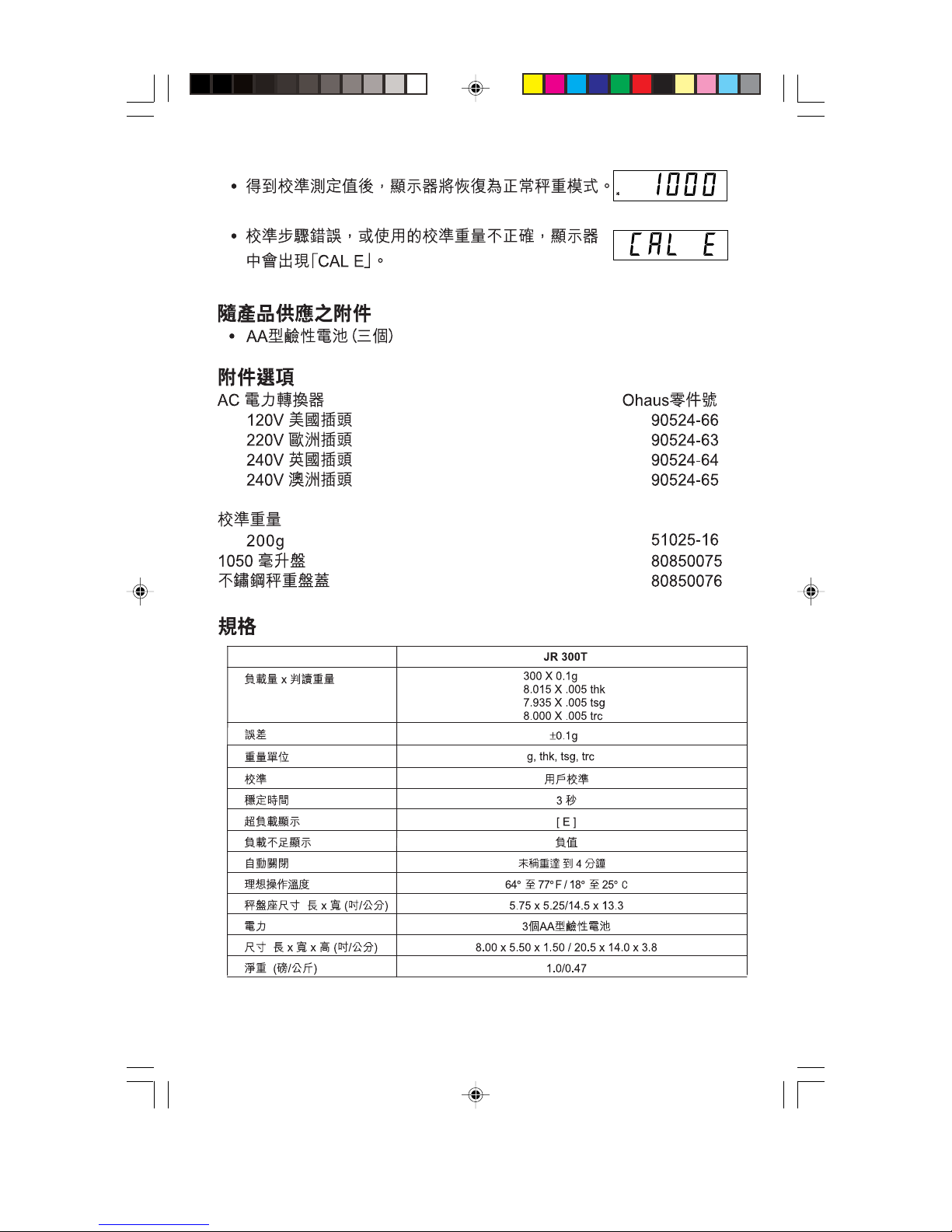

• After span capture, the display returns to the
normalweighingmode.
• The message CAL E will appear if the calibration
stepsarenotfollowedorthewrongweightwasused.
Specifications
JR 300T
Capacity x Readability 300 X 0.1g
8.015 X .005thk
7.935 X .005tsg
8.000 X .005trc
Linearity ±0.1g
Weighing units g, thk, tsg, trc
Calibration User calibration
Stabilization time 3 seconds
Overload indication [ E ]
Underload indication Negative value
Auto shut-off 4 minutes no activity
Optimum operating temperature 64° to 77° F / 18° to 25° C
Weigh pan size L x W (in/cm) 5.75 x 5.25/14.5 x 13.3
Power requirements 3-AA alkaline batteries
Dimensions L x W x H (in/cm) 8.00 x 5.50 x 1.50 / 20.5 x 14.0 x 3.8
Net Weight (lb/kg) 1.0/0.47
g
MANUAL.pmd 9/14/2005, 2:51 PM4

5
Declaration of Conformity We, Ohaus Corporation, declare under our sole responsibility that
the balance models listed below marked with "CE" are in conformity with the directives and
standards mentioned.
EC Marking EC Directive Applicable Standards
73/23/EC EN60950:1992
Electrical equipment for use
within specified voltage limits
89/336/EC EN61326:1997 + A1:1998 + A2:2001
Electromagnetic compatibility
Ted Xia
President
Ohaus Corporation
Pine Brook, NJ USA
Date: September 15, 2005
Ohaus Corporation, 19A Chapin Road, P.O. Box 2033, Pine Brook, NJ, 07058-2033, USA
Instrument type JR300T
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Urs Müller
General Manager
Ohaus Europe
Greifensee, Switzerland
ISO 9001 Registration
In 1994, Ohaus Corporation, USA, was awarded a certificate of registration to ISO 9001 by
Bureau Veritus Quality International (BVQI), confirming that the Ohaus quality management
system is compliant with the ISO 9001 standard’s requirements. On May 15, 2003, Ohaus
Corporation, USA, was re-registered to the ISO 9001:2000 standard.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
MANUAL.pmd 9/14/2005, 2:51 PM5

6
LIMITED WARRANTY
Ohaus compact scales are warranted against defects in materials and
workmanship for a period of 12 months from the date of delivery. During
the warranty period, Ohaus will repair, or, at its option, replace any
component(s) that prove to be defective at no charge, provided that the
productisreturned,freightprepaid,toOhaus.
This warranty does not apply if the product has been damaged by accident
or misuse, exposed to radioactive or corrosive materials, has foreign
material penetrating to the inside of the product, or as a result of service
ormodificationbyotherthanOhaus.Inlieuofaproperlyreturnedwarranty
registration card, the warranty period shall begin on the date of shipment
to the authorized dealer. No other express or implied warranty is given by
OhausCorporation.OhausCorporationshall not be liable forany
consequentialdamages.
Ohaus Corporation
19A Chapin Road
P.O. Box 2033
Pine Brook, NJ 07058, USA
Tel: [phone]
Fax: [phone]
With offices worldwide.
P/N 71152433 A
Ohaus Corporation 2005, all rights reserved. Printed in China
*71152433*
MANUAL.pmd 9/14/2005, 2:51 PM6

7
Ohaus Corporation
19A Chapin Road
P.O. Box 2033
Pine Brook, NJ 07058, USA
MANUAL.pmd 9/14/2005, 2:51 PM7

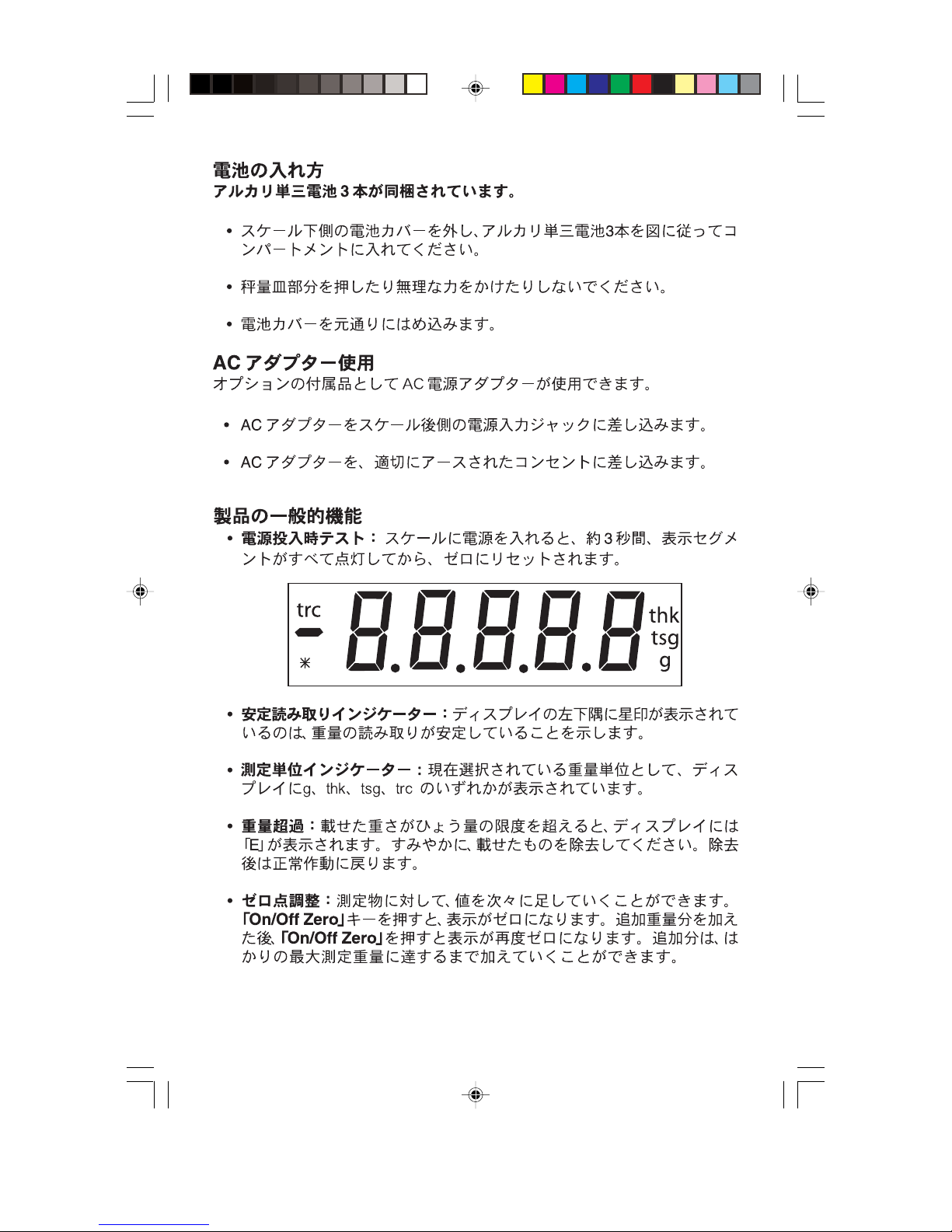

8
MANUAL.pmd 9/14/2005, 2:51 PM8

9
MANUAL.pmd 9/14/2005, 2:51 PM9

10
g
MANUAL.pmd 9/14/2005, 2:51 PM10

11
*71152433*
P/N 71152433 A
MANUAL.pmd 9/14/2005, 2:51 PM11

12
Ohaus Corporation
19A Chapin Road
P.O. Box 2033
Pine Brook, NJ 07058, USA
MANUAL.pmd 9/14/2005, 2:51 PM12

13
MANUAL.pmd 9/14/2005, 2:51 PM13

14
MANUAL.pmd 9/14/2005, 2:51 PM14

15
g
MANUAL.pmd 9/14/2005, 2:51 PM15

16
MANUAL.pmd 9/14/2005, 2:51 PM16

17

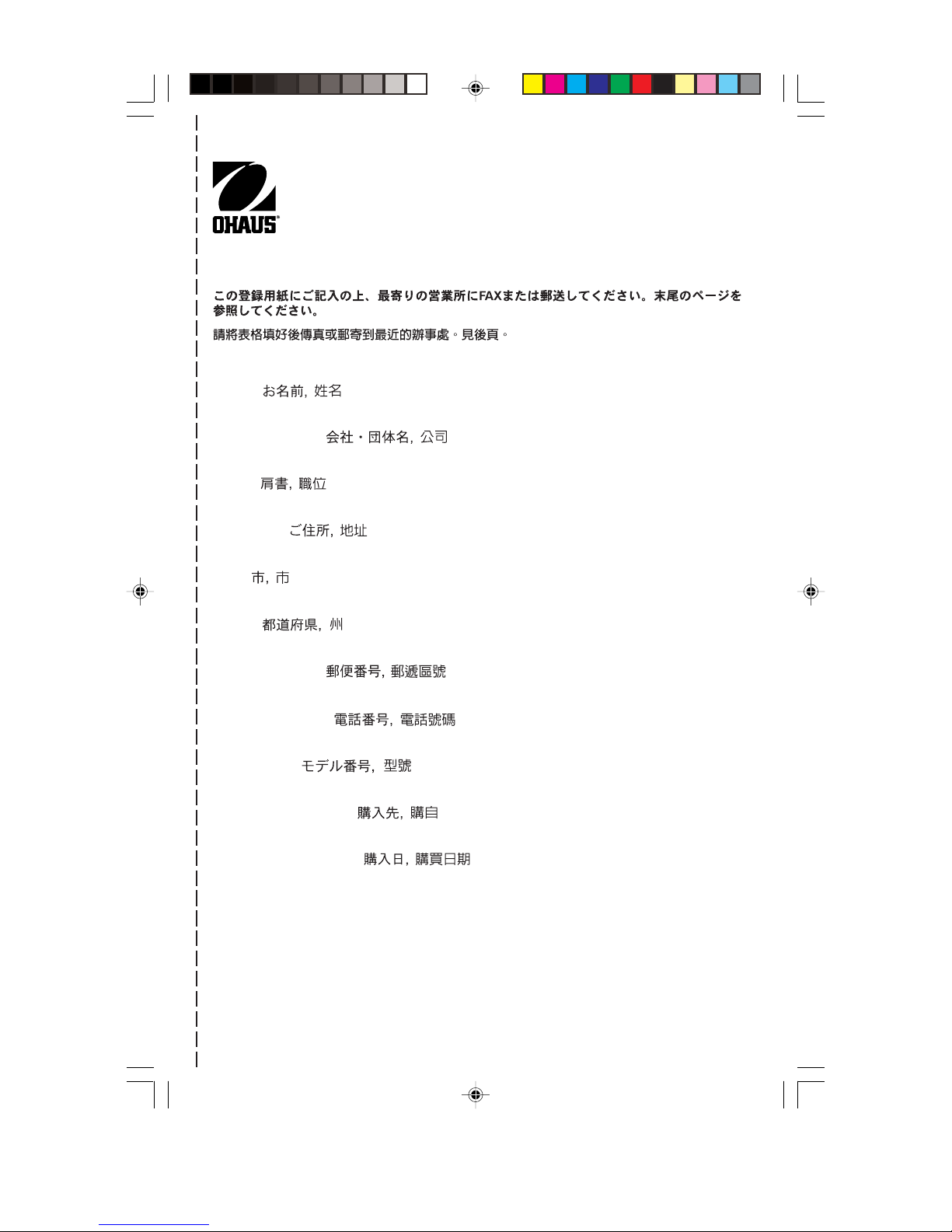

OHAUS WARRANTY REGISTRATION
