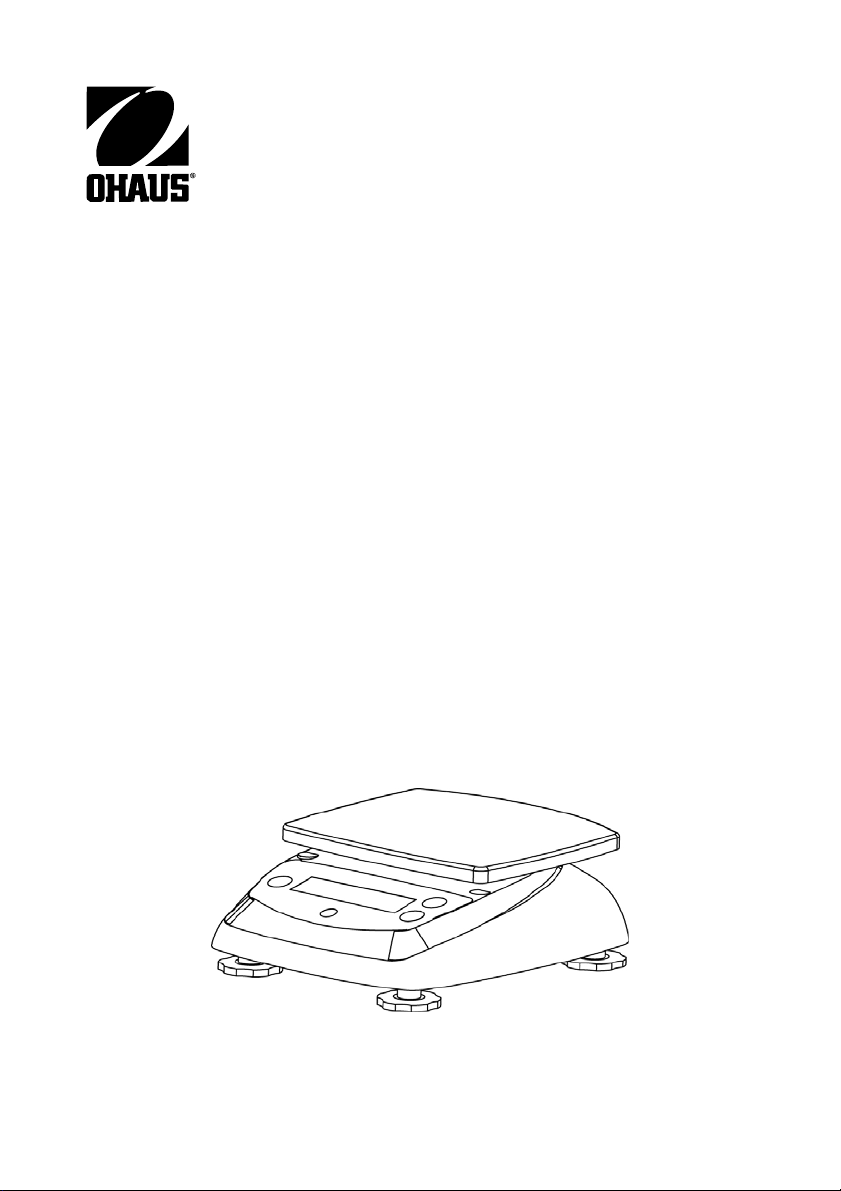

OHAUS Valor 6000G X 1G User manual

Valor 3000 Series
TM
Instruction Manual
SerieValorTM 3000
Manual de instrucciones
ValorTM série 3000
Manuel d’instructions
ValorTM 3000-Serie
Bedienungsanleitung
SerieValorTM 3000
Manuale di istruzioni

Valor 3000 Series Scales
EN-1
1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for the
Valor 3000 Series Scales. Please read the manual completely before using the
scale.
TM
1.1 Safety Precautions
Please follow these safety precautions:
• Verify that the AC Adapter input voltage matches the local AC power supply.
• Use the scale only in dry locations.
• Do not operate the scale in hostile environments.
• Do not drop loads on the platform.
• Do not place the scale upside down on the pan.
• Service should be performed only by authorized personnel.
1.2. Controls

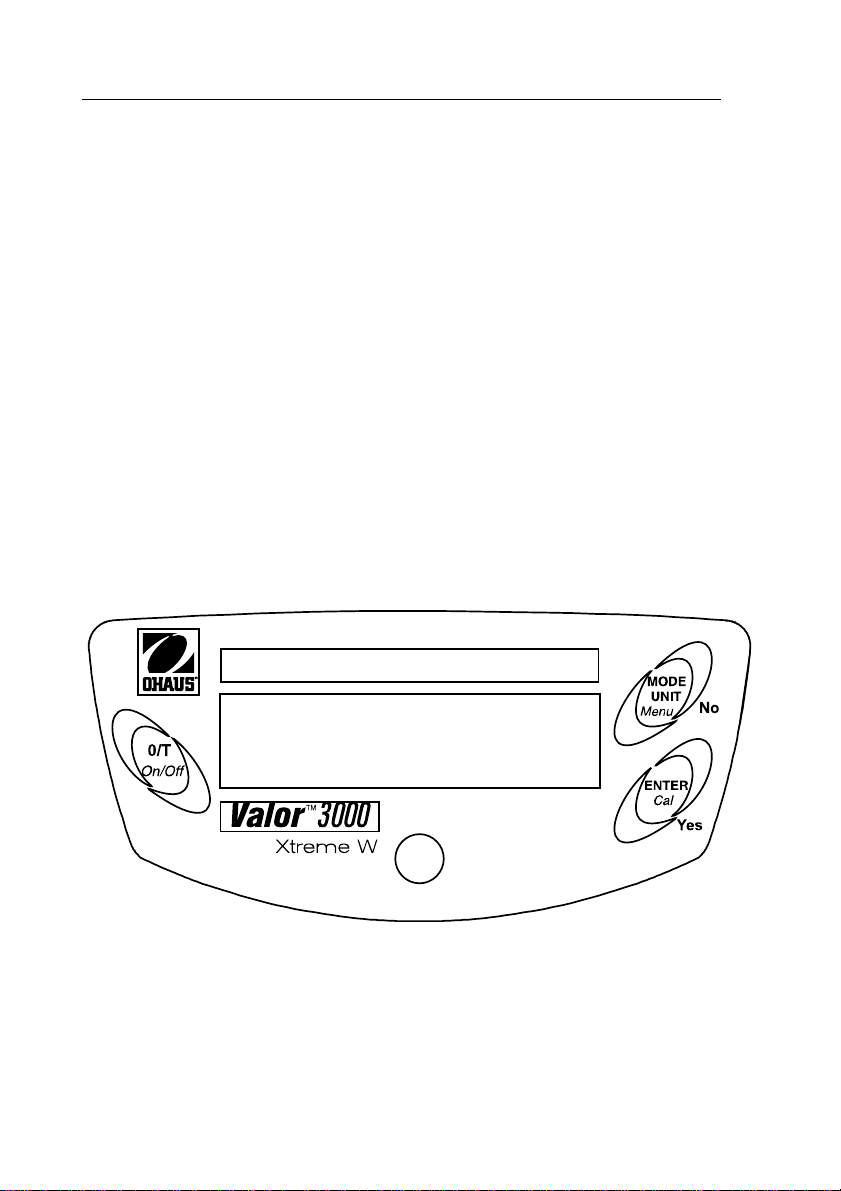

Figure 1-1. Controls.

EN-2 Valor 3000 Series Scales
TABLE 1-1. CONTROL FUNCTIONS.
Button Functions
O/T On/Off Short Press: (when off) Turns scale on
(when on) Sets display to zero
Tares weight of item on pan
Long Press: Turns the scale off
MODE/UNIT
Menu
Short Press Steps through active units and modes
Long Press: Enters menu
Short Press (Menu) “No” (toggles through available settings)
ENTER Cal Short Press: Stores 100% reference in % mode
Stores reference sample in SG mode
Long Press Initiates span calibration process
Short Press(Menu) “Yes” (selects/accepts displayed setting)
2. INSTALLATION
2.1 Package Contents
• Scale
• Pan
• Power Adapter
• Instruction Manual
• Warranty Card
2.2. Location
Use the scale on a firm, steady surface. Avoid locations with excessive air current,
vibrations, heat sources, or rapid temperature changes. For models V31XW301,
V31XW3, V31XW6 adjust the leveling feet so the bubble is centered in the circle.

Valor 3000 Series Scales
EN-3
Figure 2-1. Leveling the Scale.
2.3. Transport lock
Open the battery cover. Move the transport lock switch to “Unlock” position. Install
4 C (LR14) batteries, if desired. Reinstall the battery cover
Figure 2-2. Battery Installation.
2.4 Power
The AC adapter(included) may be used to power the scale when battery power is not
available. Remove the rubber seal in the bottom. Store it in the location provided.
Connect the AC adaptor plug to the input jack.
NOTE: To prevent water ingress during cleaning, insert back rubber seal into the
input jack recess.

EN-4 Valor 3000 Series Scales
Figure 2-3. Power Connection and Sealing.
2.5 Initial Calibration
When the scale is first installed, it should be calibrated to ensure accurate weighing
results.
Press and hold the ENTER/Cal button until CAL is displayed. When the button is
again pressed and released, the display shows –C- while zero reading is stored.
Next, the display shows the calibration weight value in grams. Place the specified
calibration weight (sold separately) on the pan. See Table 2-1 for appropriate
weights. The display shows –C- while the reading is stored. The display returns to
the previous application mode and scale is ready for use.
TABLE 2-1. CALIBRATION WEIGHTS.
MODELS
V31XH202 V31XH2 V31X3 V31X6 V31XW301 V31XW3 V31XW6
Calibration
Weights 200g 2 kg 3 kg 6 kg 300 g 3 kg 6 kg
3. OPERATION
3.1 Weighing Mode
Use this mode to measure the weight of a sample in the selected unit of measure.
1. Press MODE/UNIT/Menu until the desired unit icon is displayed.
2. Put an empty container on the pan, then press O/T/On/Off to tare the container
weight.
3. Add material to the container. The display shows the weight of the material.

Valor 3000 Series Scales
EN-5
3.2 Percent Mode
Use this mode to measure the weight of a sample as a percentage of a reference
weight.
1. Press MODE/UNIT/Menu until Set.rEF and the % icon are displayed.
2. Press No to use the reference weight in memory and proceed to step 6.
3. Press Yes to establish a new reference. Scale display will now blink until
reference is stored.
4. Put an empty container on the pan, then press O/T/On/Off to tare the container
weight.
5. Add the desired amount of material to the container, then press ENTER/Cal to
store the displayed weight. The display shows 100%.
6. Replace the reference material with new material. The display shows the
percentage of the sample compared to reference weight.
3.3 Specific Gravity Mode
Use this mode to measure the specific gravity of a sample.
1. Press MODE/UNIT/Menu until Set.rEF and the S icon are displayed.
2. Press No to use the reference weight in memory and proceed to step 6.
3. Press Yes to establish a new reference weight. Scale display will now blink until
reference is stored.
4. Put an empty container on the pan, then press O/T/On/Off to tare the
container weight.
5. Fill the container with water, then press ENTER/Cal to store the displayed
weight. The display shows the water weight with the S icon blinking.
6. Replace the water with the same volume of sample material, then press
ENTER/Cal. The display shows the specific gravity of the sample.
3.4 Fluid Ounce Mode
Use this mode to measure the fluid ounce volume of a sample.
1. Press MODE/UNIT/Menu until the FL icon is displayed.
2. Put an empty container on the pan, then press O/T/On/Off to tare the
container weight.
3. Fill the container with sample material. The display shows the volume of the
sample.

EN-6 Valor 3000 Series Scales
4. SETTINGS
The Menu allows the user to customize scale settings.
4.1 Menu Navigation
Press and hold MODE/UNIT/Menu button until SEtUP is displayed, then release it.
Press Yes to enter the displayed menu. or press No to advance to the next menu.
Once in the menu, press Yes to view the menu item setting or press No to move to
the next menu item. When viewing the setting, press Yes to accept the setting, or
press No to change the setting. When End is displayed, press Yes to advance to the
next menu or No to return to the top of the current menu.
4.2 Setup Menu
STABILITY RANGE
Set the stability range to 0.5d, 1d, 2d or 5d (divisions).
AUTO ZERO TRACKING RANGE
Set the automatic zero tracking range to OFF, 0.5d, 1d,
3d (divisions).

Valor 3000 Series Scales
EN-7

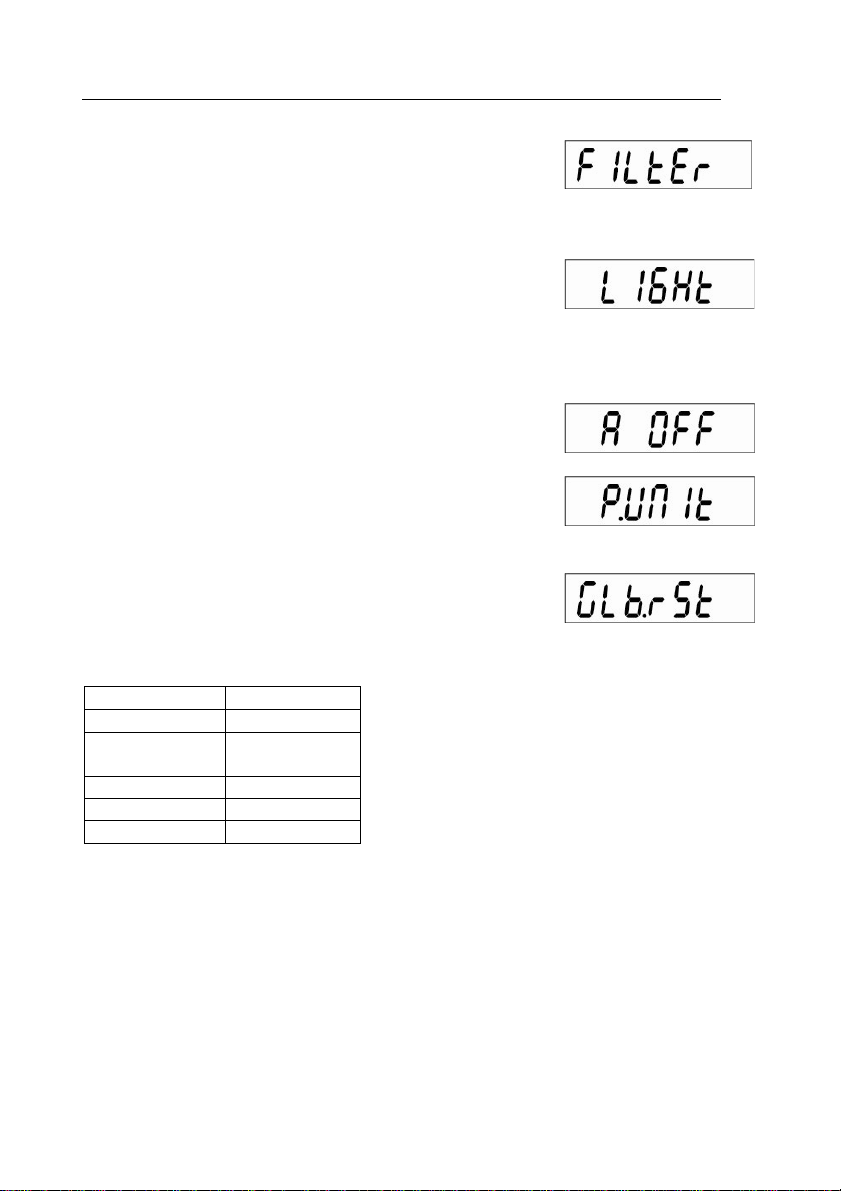

FILTER LEVEL
Set the filter level to LO (low), ME (medium), or HI
(high).
BACK LIGHT
Set the back light functionality to OFF (always
off), ON (always on) or Auto (turns on when a
key is pressed or the displayed weight
changes).
AUTO OFF
Set the automatic shut off functionality to ON (shut off
after 5 minutes) or OFF (stays on).
POWER ON UNIT
Set the unit of measure displayed at startup to g, kg, lb,
oz or lb:oz.
GLOBAL RESET
Select YES (reset menus to factory defaults) or NO (do not
reset).
Units will be set to factory defaults.
Menu Default
Stability Range 1d
Auto zero
Tracking
0.5d
Filter Level ME
Back Light Auto
Auto off On
END:
Advance to the Unit/Mode menu (Yes) or back to Setup (No).

EN-8 Valor 3000 Series Scales

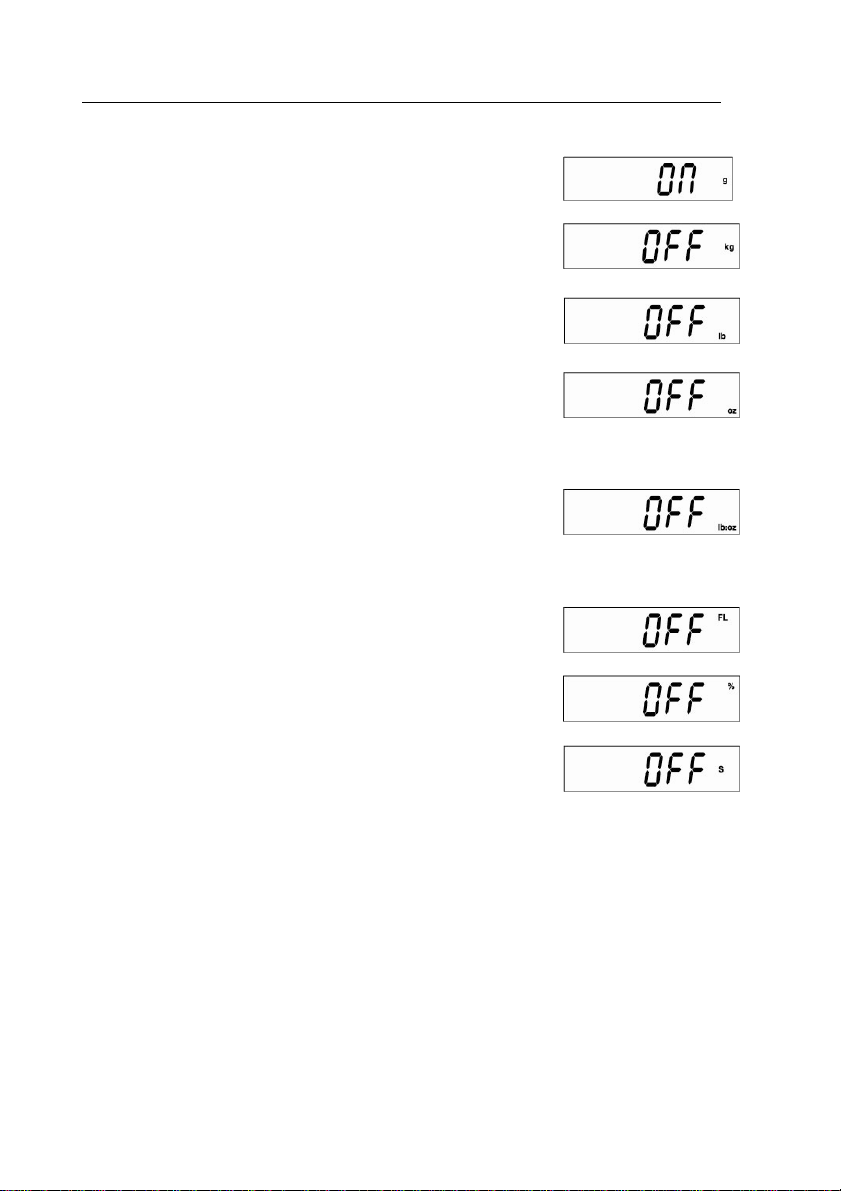

4.3 Unit/Mode Menu
GRAM UNIT
Set grams ON or OFF.
KILOGRAM UNIT
Set kilograms ON or OFF.
POUND UNIT
Set pounds ON or OFF.
OUNCE UNIT
Set ounces ON or OFF. If ON is selected, set DEC
(decimal ounces) or FrA (fractional ounces)
POUND OUNCE UNIT
Set pound ounces ON or OFF. If On is selected, set DEC
(decimal ounces) or FrA (fractional ounces)
Note: V31XH202 and V31XW301 models do not include
fractional ounces in lb:oz unit
FLUID OUNCE MODE
Set fluid ounces ON or OFF.
PERCENT MODE
Set percent ON or OFF.
SPECIFIC GRAVITY MODE
Set specific gravity ON or OFF.
END
Exit to the previous Unit/Mode (Yes) or g (No).

Valor 3000 Series Scales
EN-9
5. MAINTENANCE
5.1 Troubleshooting
The following table lists common problems and possible causes and remedies.
If the problem persists, contact Ohaus or your authorized dealer.
TABLE 5-1. TROUBLESHOOTING.
Symptom Possible Cause Remedy
Cannot turn on No power to scale Verify connections and voltage.
Poor accuracy Improper calibration • Unstable
environment
Perform calibration • Move scale to
suitable location
Cannot calibrate Unstable environment • Incorrect
calibration weight
Move the scale to suitable location •
Use correct calibration weight
Cannot access mode Mode not enabled Enter menu and enable mode
Cannot access unit Unit not enabled Enter menu and enable unit
Err 8.1 Pan has load during power on Remove weight from pan and re-zero.
Err 8.2 Pan was removed prior to power on Install pan and re-zero.
OVER Weight on pan exceeds capacity Remove weight from the pan
UNDER Pan was removed during weighing Re-install pan
Err 9 Factory calibration data corrupted Contact Ohaus or an authorized service
agent • Perform service calibration
REF Err Reference Weight is too small Use larger sample
LOWrEF Reference Weight is too low for
accurate percent weighing.
Continue to weigh with less accurate
results
5.2 Service Information
If the troubleshooting section does not resolve or describe your problem, contact
your authorized Ohaus service agent. For service assistance or technical support in
the United States call toll-free 1-800-526-0659 between 8.00 AM and 5:00 PM
EST. An Ohaus product service specialist will be available to provide assistance.
Outside the USA, please visit our web site, www.ohaus.com to locate the Ohaus
office nearest you.

EN-10 Valor 3000 Series Scales
6. TECHNICAL DATA
The technical data is valid under the following ambient conditions:
Ambient temperature: 0°C to 40°C
Relative humidity: 10% to 95% relative humidity, non-condensing
Height above sea level: Up to 4000 m
Operability is assured at ambient temperatures between 0°C and 40°C
Power
AC adapter – 9VDC 500mA output
Protection
Protected against dust and water
Pollution degree: 2
Installation category: Class III
EMC: See Declaration of Conformity
6.1 Specifications
TABLE 6-1.SPECIFICATIONS.
Model V31XH202 V31XH2 V31X3 V31X6 V31XW301 V31XW3 V31XW6
Capacity 200 2000 3000 6000 300 3000 6000
Repeatability
(g) 0.01 0.1 1 0.2 1 2
Linearity (g)
(+/-) 0.01 0.1 1 0.2 1 2
Weighing
Units g, kg, lb, oz, lb:oz
Application
Modes Weigh, Percent weighing, Specific Gravity, Fluid Ounces
Tare range To capacity by subtraction
Stabilization
Time ≤3 seconds
Power
Requirements 9 VDC 500 mA AC adaptor (supplied) or 4 C (LR14) batteries (not supplied)
Calibration Digital with external weight
Display Type 6-digit 7-segment LCD with white LED backlight
Display Size 15 mm / 0.6” digits
Keypad 3-button overlay
OIML Class - - - - III III III
Ingress
Protection - - - - IP65 IP65 IP65
Pan Size
(mm / in) 120 / 4.7 146 x 158 /
5.7 x 6.2
Net Weight
(kg / lb) 1.2/2.6 1.3/2.9 1.4/3.1
Shipping
Weight
(kg / lb)
2.6/5.7 2.7/6 2.8/6.2

Valor 3000 Series Scales
EN-11
6.2. Capacity and Readability
TABLE 6-2. CAPACITY AND READABILITY.
MODELS
UNITS
V31XH202 V31XH2 V31X3 V31X6 V31XW301 V31XW3 V31XW6
g 200.00 x
0.01
2000.0 x
0.1 3000 x 1 6000 x 1 300.0 x 0.2 3000 x 1 6000 x 2
kg 0.20000x
0.00001
2.0000 x
0.0001
3.000 x
0.001
6.000 x
0.001
0.3000 x
0.0002
3.000 x
0.001
6.000 x
0.002
oz 7.0550 x
0.0005
70.550 x
0.005
105.80 x
0.05
211.65 x
0.05
10.585 x
0.01
105.80 x
0.05
211.6 x
0.1
lb 0.44090x
0.00005
4.4090 x
0.0005
6.615 x
0.005
13.230 x
0.005
0.6615 x
0.0005
6.615 x
0.005
13.225 x
0.005
lb:oz 0lb : 7.05oz
X0.01oz
4lb: 6.55oz
x 0.01oz
6 lb : 9.80
oz x 0.05oz
13lb:
3.65oz x
0.05oz
0lb : 10.58
oz
X 0.01 oz
6 lb :
9.80 oz x
0.05oz
13lb: 3.6
oz x 0.1oz
oz 7 x 1 / 8 70.5 x
1 / 8
105.5 x
1 / 8
211.5 x
1 / 8
10.5 x
1 / 8
105.5 x
1 / 8
211.5 x
1 / 8
lb : oz N A 4lb : 6.5oz
x 1/8oz
6lb : 9.5oz x
1/8oz
13 lb :
3.5oz x
1/8oz
N A
6lb :
9.5oz x
1/8oz
13 lb :
3.5oz x
1/8oz
fl 6.7630 x
0.0005
67.630 x
0.005
101.45 x
0.05
202.90 x
0.05
10.145 x
0.01
101.45 x
0.05
202.9 x
0.1

EN-12 Valor 3000 Series Scales
6.3 Drawings
Figure 6-1. Models V31XH2, V31X3, V31X6, V31XW301, V31XW3, V31XW6

Valor 3000 Series Scales
EN-13
Figure 6-2. Model V31XH202

EN-14 Valor 3000 Series Scales

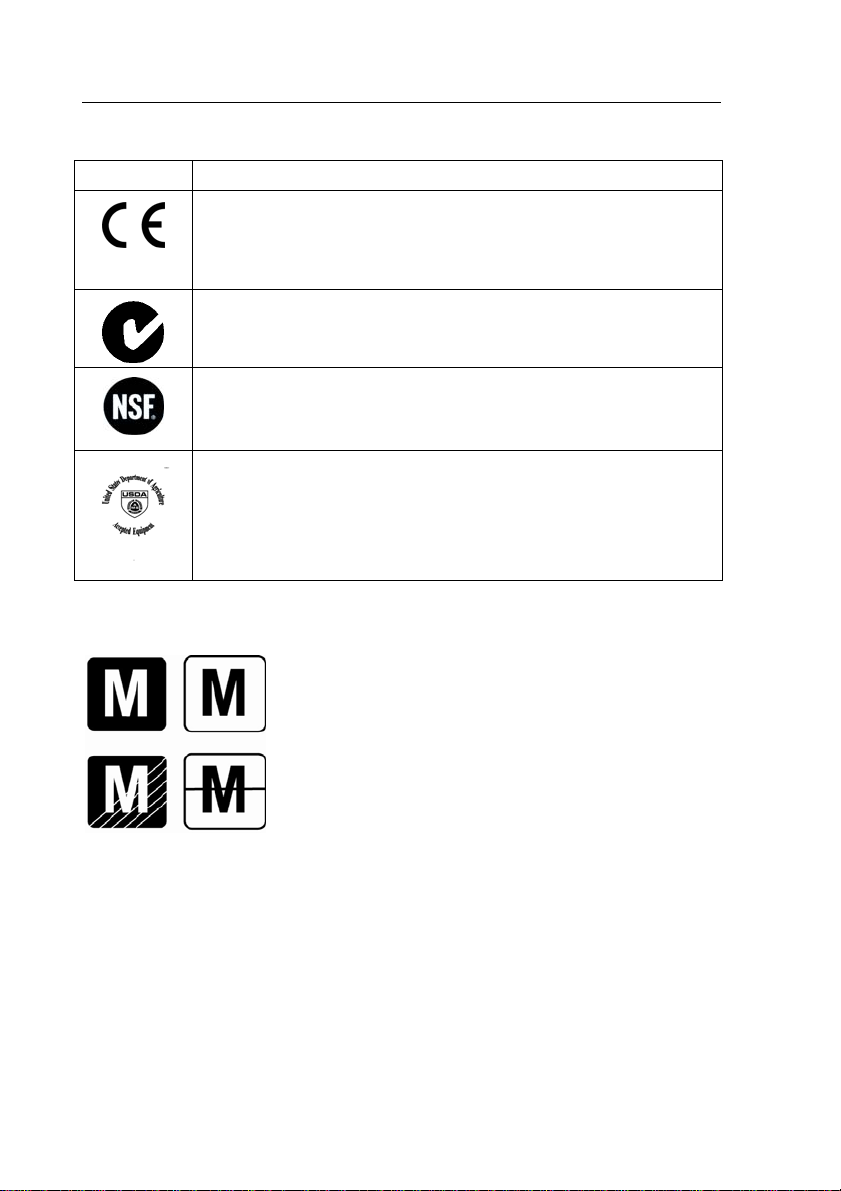

Compliance to the following standards is indicated by the corresponding mark on the
product
.
Mark Standard
This product conforms to the EMC directive 89/336/EEC and the
Low Voltage Directive 73/23/EEC. The complete declaration of
Conformity is available from Ohaus Corporation
AS/NZS4251.1 Emission; AS/NZS4252.1 Immunity
NSF/ANSI 169 - 2005
NSF/ANSI /3-A 14159-1 - 2002
Important notice for verified weighing instruments
Weighing Instruments verified at the place of manufacture
bear one of the preceding mark on the packing label and
the green ‘M’ (metrology) sticker on the descriptive plate.
They may be put into service immediately.
Weighing Instruments to be verified in two stages have no
green ‘M’ (metrology) on the descriptive plate and bear
one of the preceding identification mark on the packing
label. The second stage of the initial verification must be
carried out by the approved service organization of the
authorized representative within the EC or by the national
weight & measures (W+M) authorities.
The first stage of the initial verification has been carried out at the manufacturers work. It
comprises all tests according to the adopted European standard EN 45501:1992,
paragraph 8.2.2.
If national regulations limit the validity period of the verification, the user of the weighing
instrument must strictly observe the re-verification period and inform the respective W+M
authorities.

Valor 3000 Series Scales
EN-15
Disposal
In conformance with the European Directive 2002/96 EC on Waste Electrical
and Electronic Equipment (WEEE) this device may not be disposed of in
domestic waste. This also applies to countries outside the EU, per their
specific requirements.
Please dispose of this product in accordance with local regulations at the
collecting point specified for electrical and electronic equipment.
If you have any questions, please contact the responsible authority or the
distributor from which you purchased this device.
Should this device be passed on to other parties (for private or professional
use), the content of this regulation must also be related.
Thank you for your contribution to environmental protection.
FCC Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
ISO 9001 Registration
In 1994, Ohaus Corporation, USA, was awarded a certificate of registration to ISO 9001 by
Bureau Veritus Quality International (BVQI), confirming that the Ohaus quality management
system is compliant with the ISO 9001 standard’s requirements. On May 15, 2003, Ohaus
Corporation, USA, was re-registered to the ISO 9001:2000 standard.

EN-16 Valor 3000 Series Scales
LIMITED WARRANTY
Ohaus products are warranted against defects in materials and workmanship from
the date of delivery through the duration of the warranty period. During the warranty
period Ohaus will repair, or, at its option, replace any component(s) that proves to
be defective at no charge, provided that the product is returned, freight prepaid, to
Ohaus. This warranty does not apply if the product has been damaged by accident
or misuse, exposed to radioactive or corrosive materials, has foreign material
penetrating to the inside of the product, or as a result of service or modification by
other than Ohaus. In lieu of a properly returned warranty registration card, the
warranty period shall begin on the date of shipment to the authorized dealer. No
other express or implied warranty is given by Ohaus Corporation. Ohaus Corporation
shall not be liable for any consequential damages.
As warranty legislation differs from state to state and country to country, please
contact Ohaus or your local Ohaus dealer for further details.

Básculas serie Valor 3000
ES-1
1. INTRODUCCIÓN
Este manual contiene instrucciones de instalación, operación y mantenimiento para
las básculas serie Valor 3000. Lea el manual completamente antes de usar la
báscula.
TM
1.1 Precauciones de seguridad
Siga estas precauciones de seguridad:
• Verifique que el voltaje del adaptador de corriente alterna coincida con la
alimentación eléctrica local.
• Use la báscula sólo en lugares secos
• No opere la báscula en ambientes adversos
• No deje caer cargas sobre la plataforma de pesaje
• No coloque la báscula al revés sobre la bandeja
• El servicio debe proporcionarse solamente por personal autorizado
1.2. Controles
Figura 1-1. Controles.

ES-2
Básculas serie Valor 3000
TABLA 1-1. FUNCIONES DE CONTROL.
Botón Funciones
O/T On/Off Presión corta: (en “off”) Enciende la báscula
(en “on”) Pone la pantalla en cero
Tara el peso del artículo en la bandeja
Presión larga: Apaga la báscula
MODE/UNIT
Menu
Presión corta Recorre las unidades y modos activos
Presión larga: Ingresa al menú
Presión corta (Menu) “No” (alterna a través de
las configuraciones disponibles)
ENTER Cal Presión corta: Guarda referencias al 100% en
modo de %
Guarda la muestra de referencia en
el modo SG
Presión larga Inicia el proceso de calibración
de extensión
Presión corta (Menu) “Yes” (selecciona/acepta
la configuración mostrada)
2. INSTALACIÓN
2.1 Contenido del paquete
• Báscula
• Bandeja
• Adaptador de corriente
• Manual de instrucciones
• Tarjeta de garantía
2.2. Ubicación
Coloque la báscula sobre una superficie firme y estable. Evite lugares con exceso
de corrientes de aire, vibraciones, fuentes de calor y cambios rápidos de
temperatura. En los modelos V31XW301, V31XW3, V31XW6, ajuste las patas de
nivelación para que la burbuja quede centrada en el círculo.
