Oki OL600e User manual

Chapter 0
Front Cover
Front Cover
OKI OL600/610ex(96-01-19)

Copyright
Copyright
Every effort has been made to ensure that the information in this document is complete, accurate, and
up-to-date. OKI assumes no responsibility for the results of errors beyond its control. OKI also cannot
guarantee that changes in software and equipment made by other manufacturers and referred to in this
guide will not affect the applicability of the information in it. Mention of software products manufactured by
other companies does not necessarily constitute endorsement by OKI.
Copyright 1995 by OKI. All rights reserved.
First edition September, 1995.
Written and produced by the OKI Publications Dept.
Please address any comments to:
Publications Department OKIDATA
532 Fellowship Road
Mount Laurel, New Jersey 08054
OKI is a registered trademark of Oki Electric Industry Company, Ltd.
Energy Star is a trademark of the United States Environmental Protection Agency.
TrueType is a registered trademark of Apple Computer Company.
Hewlett-Packard, HP, and LaserJet are registered trademarks of Hewlett-Packard Company.
IBM is a registered trademark of International Business Machines Corp.
Microsoft and MS-DOS are registered trademarks and Windows is a registered trademark of Microsoft
Corporation in the
U. S. and other countries.
Intellifont is a registered trademark of Compugraphic Corporation.
OKI OL600/610ex(96-01-19)

*Safety Instructions
Safety Instructions
Your OKI printer has been carefully designed to give you years of safe, reliable performance. As
with all electrical equipment, however, there are a few basic precautions you should take to avoid
hurting yourself or damaging the printer:
Read the setup instructions in this handbook carefully. Be sure to save it for future reference.
Read and follow all warning and instruction labels on the printer itself.
Unplug the printer before you clean it. Use only a damp cloth; do not use liquid or aerosol cleaners.
Place your printer on a firm, solid surface. If you put it on something unsteady, it may fall and be
damaged; if you place it on a soft surface, such as a rug, sofa, or bed, the vents may be blocked,
causing the printer to overheat.
To protect your printer from overheating, make sure all openings on the printer are not blocked.
Don't put the printer on or near a heat source, such as a radiator or heat register. Keep it out of
direct sunlight. Allow enough room around the printer for adequate ventilation and easy access to
the paper trays.
Do not use your printer near water, or spill liquid of any kind into it.
Be certain that your power source matches the rating listed on the back of the printer. If you're not
sure, check with your dealer or with your local power company.
Your printer has a grounded, 3-prong plug as a safety feature, and it will only fit into a grounded
outlet. If you cant plug it in, chances are you have an older, non-grounded outlet; contact an
electrician to have the outlet replaced. Do not use an adapter to defeat the grounding.
To avoid damaging the power cord, don't put anything on it or place it where it will be walked on. If
the cord becomes damaged or frayed, replace it immediately.
If you are using an extension cord or power strip with the printer, make sure that the total of the
amperes required by all the equipment on the extension is less than the extensions rating. The
total ratings of all equipment plugged into the outlet should not exceed 15 amperes.
Do not poke anything into the ventilation slots on the printer; you could get a shock or cause a fire.
Aside from the routine maintenance described in this handbook, don't try to service the printer
yourself; opening the cover may expose you to shocks or other hazards.
Do not make any adjustments other than those outlined in the handbook you may cause damage
requiring extensive repair work. See the Help Guide for information on how to get your printer
serviced by qualified OKI technicians ().
If anything happens that indicates that your printer is not working properly or has been damaged,
unplug it immediately and follow the procedures in the Help Guide for having your printer serviced
(). These are some of the things to look for:
The power cord or plug is frayed or damaged.
Liquid has been spilled into the printer, or it has been exposed to water.
OKI OL600/610ex(96-01-19)

The printer has been dropped, or the cabinet is damaged.
The printer doesnt function normally when youre following the operating instructions.
OKI OL600/610ex(96-01-19)

Chapter 1
OL610e Features
Your printers features include:
6 PPM output
100 sheet universal letter size paper tray, plus manual feed for envelopes and special documents
On-screen soft operator panel for printer setup and control, and status monitor for real-time printer
status information
Compatible with all Windows and DOS applications
Bi-directional Centronics IEEE 1284 parallel interface
OL610e Features:
300 DPI and 600 DPI Class output
PCL5e (HP LaserJet 4P compatible)
35 Intellifont ® and 10 TrueType ® Scalable Fonts plus USPS Postnet
2 MB of memory with Enhanced Memory Management, expandable to 19 MB
OL600e Features:
HP ® PCL ® 4.5 (HP LaserJet ® IIP+ compatible)
300 DPI plus 600 DPI Class output from Windows ®
44 Bitmap fonts and USPS Postnet
1 MB memory with Enhanced Memory Management, expandable to 18 MB
Optional Accessories
100 sheet universal Second Paper Mechanism
100 sheet/50 envelope Multi-Purpose Feeder
1 MB Memory Expansion Board
SIMM modules for expanding memory
Congratulations! You have selected a printer with fast output, excellent print quality, and easy
operation.
As an Energy Star Partner, Okidata has determined that this product meets the Energy Star guidelines
for energy efficiency.
OKI OL600/610ex(96-01-19)

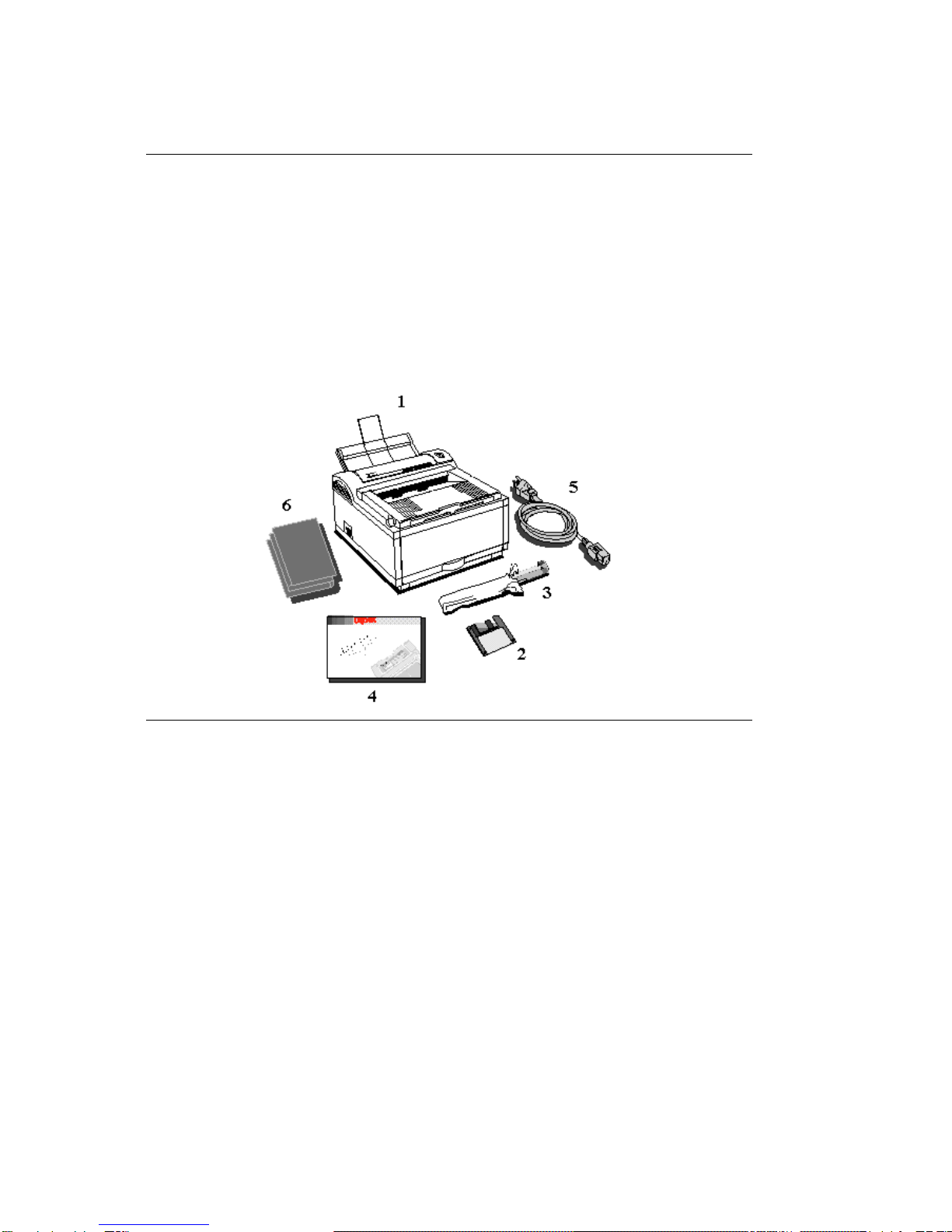

Check the Contents
Check the Contents
Unpack your printer. You should have:
1. OL600/610e Printer (with Image Drum Cartridge installed)
2. Software Diskettes
3. Toner Cartridge
4. Printer Handbook
5. Power Cord
6. Lightproof plastic bag (for storing image drum if printer must be shipped)
If anything is missing, contact your dealer for a replacement.
OKI OL600/610ex(96-01-19)

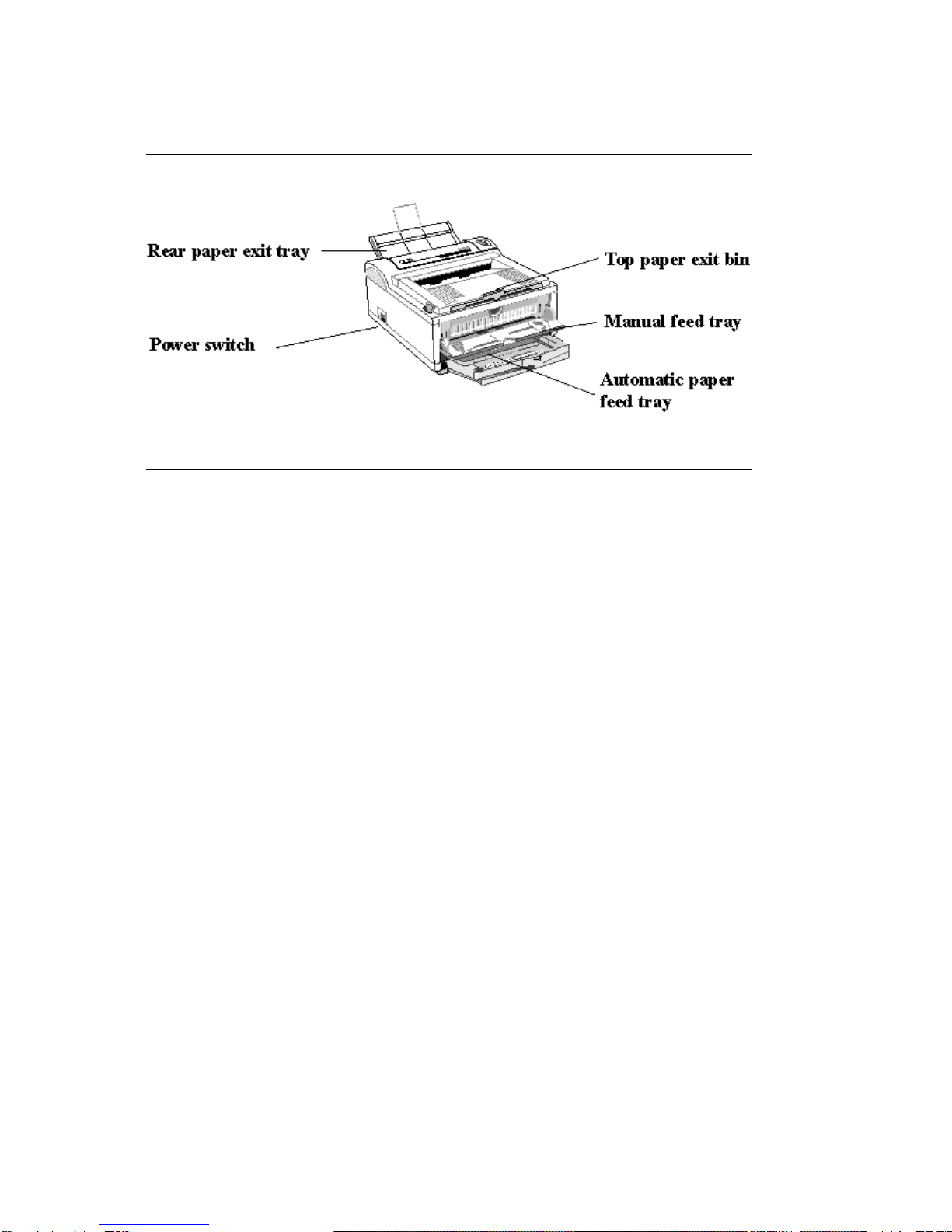

Printer Components - Front View
Printer Components - Front View
OKI OL600/610ex(96-01-19)

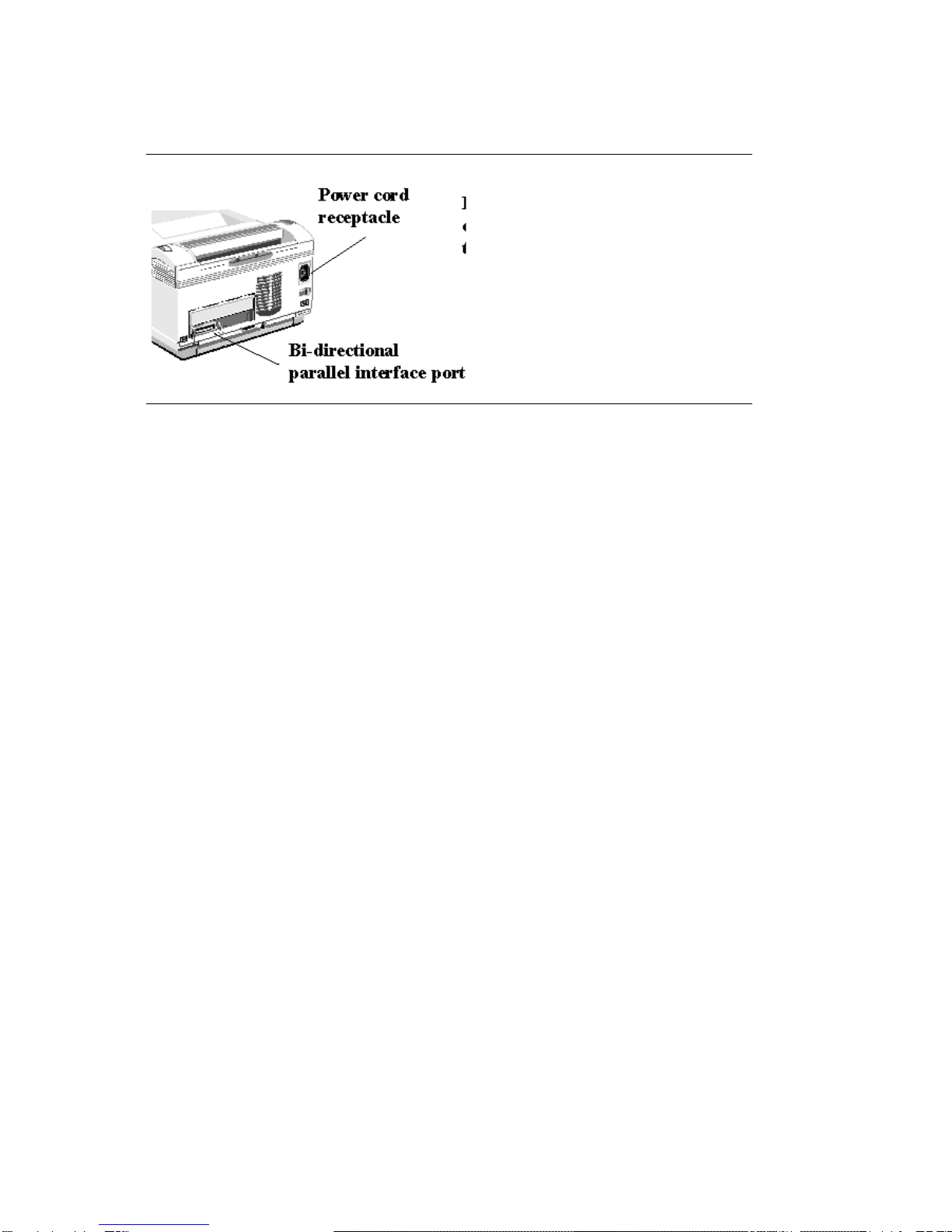

Printer Components - Rear View
Printer Components - Rear View
OKI OL600/610ex(96-01-19)

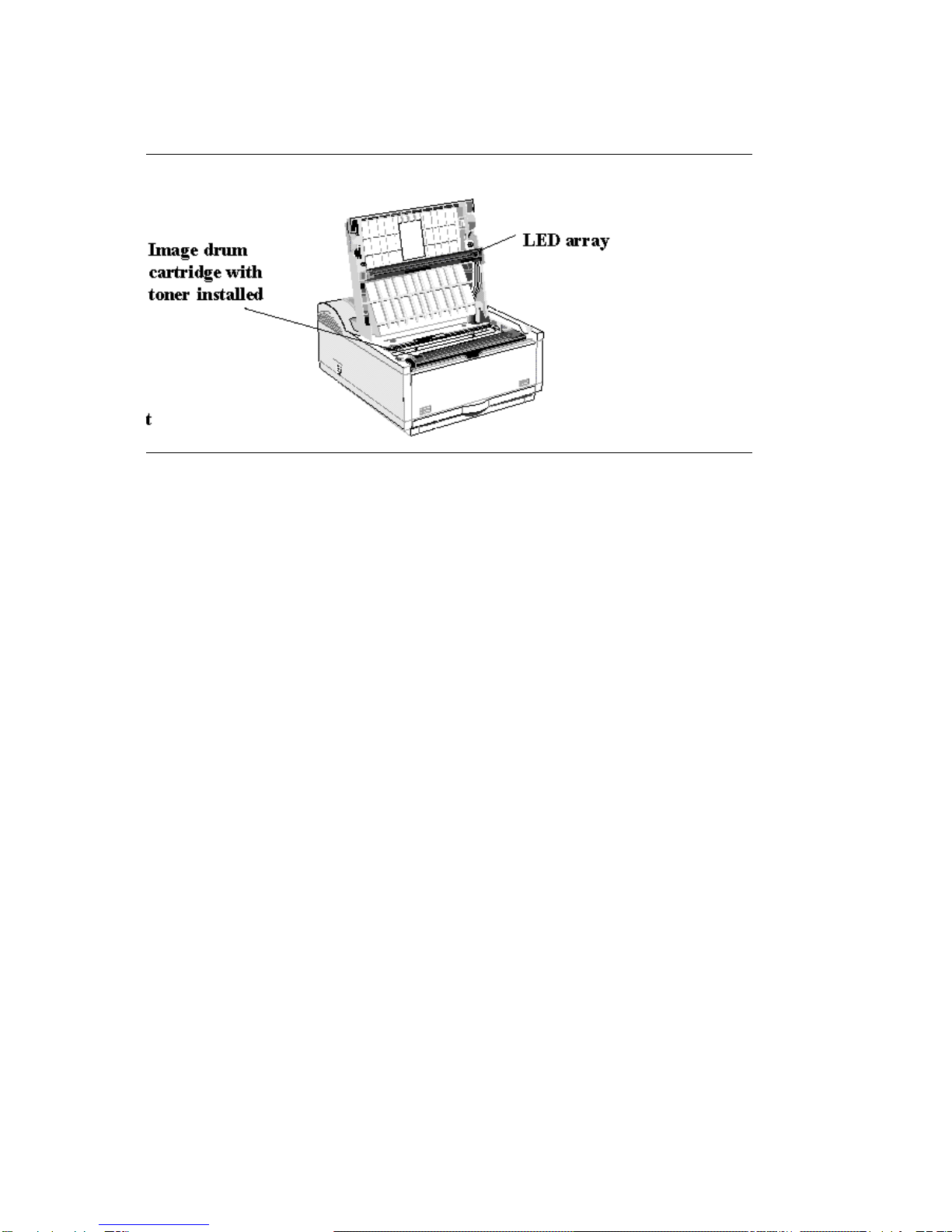

Printer Components - Inside View
Printer Components - Inside View
OKI OL600/610ex(96-01-19)

Setup -- Remove the protective sheet
Remove the protective sheet
1. Press and open the cover.
2. Remove the image drum.
3. Remove the protective sheet.
Note:
Be Careful: do not touch the Image Drum's green surface.

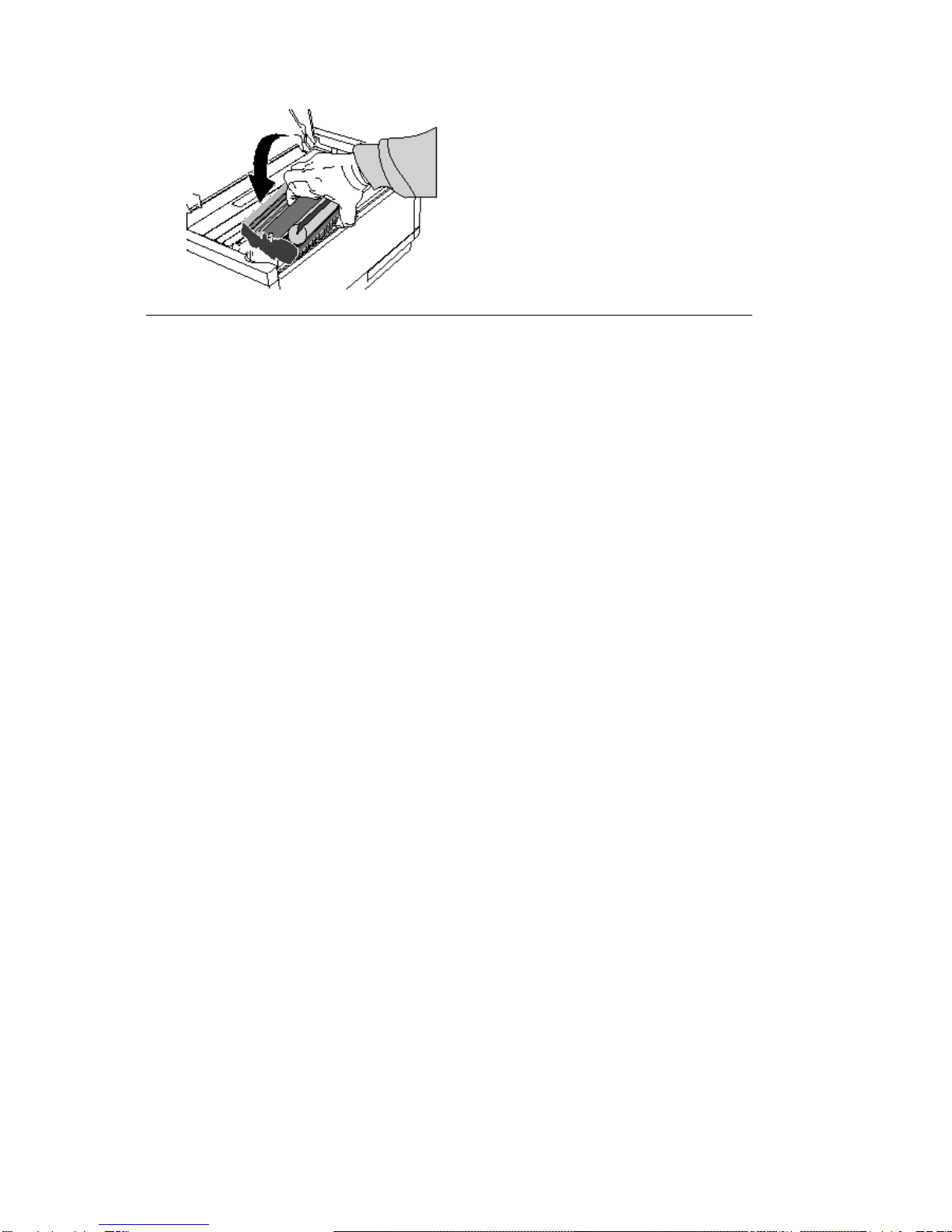

4. Replace the image drum.
OKI OL600/610ex(96-01-19)

OKI OL600/610ex(96-01-19)

Installing Toner
Installing Toner
1. Remove the sponge and discard.
2. Unwrap the toner cartridge.
3. Shake the toner cartridge to evenly distribute toner.

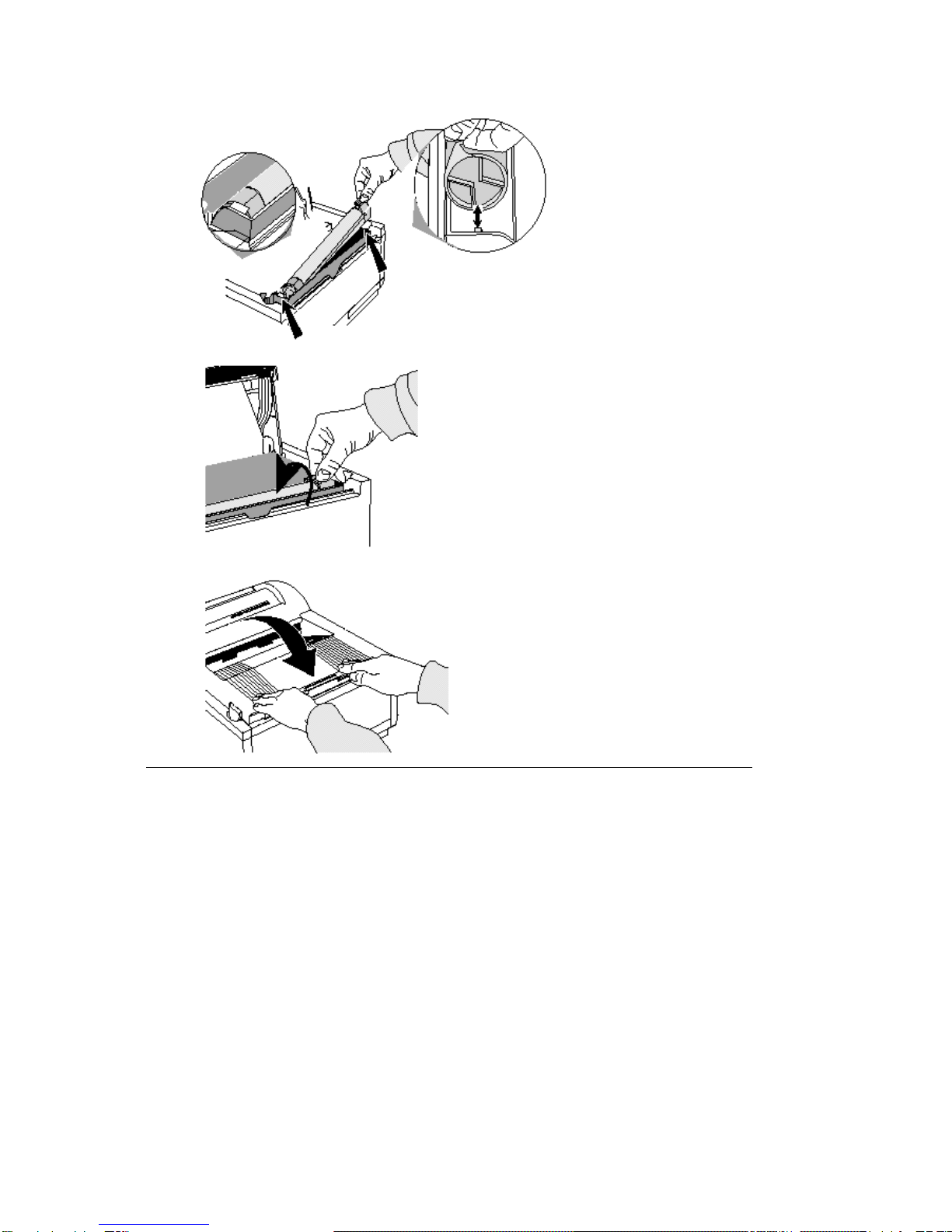

4. Remove the tape.
5. Insert the toner cartridge.
OKI OL600/610ex(96-01-19)

6. Push the blue lever forward.
7. Close the printer cover.
OKI OL600/610ex(96-01-19)

Choosing Paper
Choosing Paper
For best results, use paper that is smooth and of high quality, like copier type paper or paper with
a Sheffield rating of 250 or less.
Store paper in its ream wrapper until you are ready to use it. Keep it away from moisture or other
conditions that can cause it to wrinkle or curl.
Preprinted forms must not scorch, melt, offset, or release hazardous emissions when heated to
392°F (200° C) for 0.1 second.
Avoid printing on both sides of the paper for more than a few pages, or on preprinted documents
that have been in a photocopier.
Try paper before you buy it in quantity.
OKI OL600/610ex(96-01-19)

Installing Paper
Installing Paper
1. Push the paper tray handle.
2. Remove the paper tray.
3. Adjust the paper guides.
4. Insert paper.
5. Re-insert the paper tray.
OKI OL600/610ex(96-01-19)

OKI OL600/610ex(96-01-19)

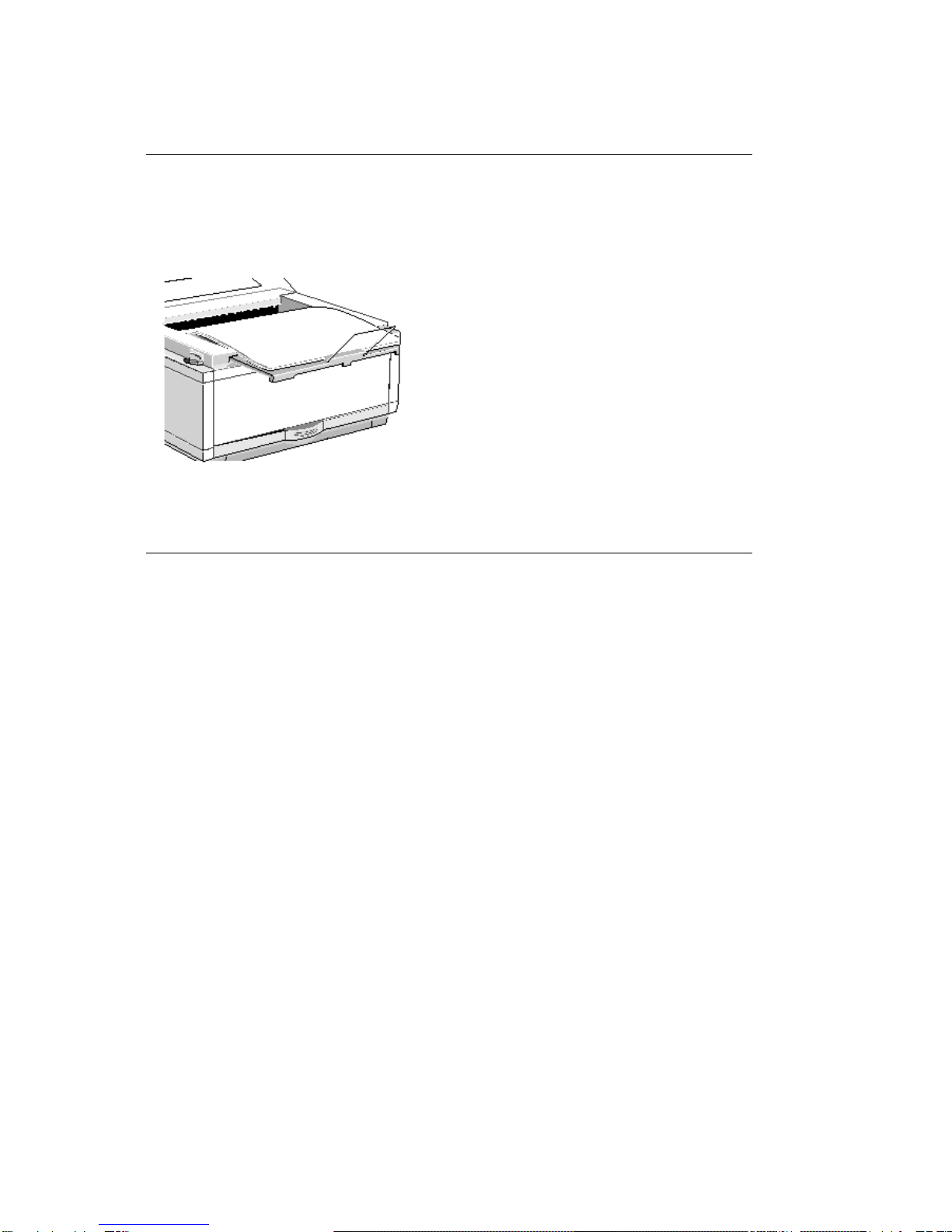

Paper Exit Paths - Top Paper Exit
Paper Exit Paths - Top Paper Exit
Printed pages exit face down.
- Pages are stacked in the order printed.
- Exit bin holds 100 sheets (20 lb. paper)
Pull the front exit extender forward. Lift out the metal support bar.
Note:
Do not change the direction of the paper output during printing.
OKI OL600/610ex(96-01-19)

Rear Paper Exit
Rear Paper Exit
- Always use rear exit for printing on heavy paper, envelopes, labels and transparencies.
- Printed pages exit face up in reverse order.
- Exit tray's maximum capacity is 50 sheets (20 lb. paper).
Pull out the rear exit extender until it locks into place. Lift out the metal support bar.
To return to top exit, fold in the metal support bar and push the rear exit extender in until it clicks
into place.
OKI OL600/610ex(96-01-19)

Manual Feed
Manual Feed
Use manual feed for printing envelopes, transparencies, legal and odd size paper.
1. Press the bottom of the front panel to release the manual feed tray. Pull the tray down.
2. Adjust the guides. Insert a sheet of paper until the printer grips it. When using letterhead paper,
insert letterhead in first face up.
3. Set your software application for manual feed and paper size, then issue print command.
OKI OL600/610ex(96-01-19)

Transparencies/Adhesive Labels
Transparencies/Adhesive Labels
Use Manual Feed
Always use rear output.
Should be specifically made for laser printers or photocopiers.
Must be able to withstand 200°C for 0.1 sec.
Labels should cover entire carrier sheet.
Carrier sheet or adhesive must not be exposed to any part of the printer.
OKI OL600/610ex(96-01-19)
