1Chamber Compatibility
H301-MIZAR-TILT is compatible with Mizar Tilt Systems.
2Components and Dimensions
H301-MIZAR-TILT includes the following components:
1. Chamber Lid with embedded temperature sensor
2. Light Trap to avoid any reflected light (to be ordered separately)
3. Magnetic Clamps to snap lock the chamber slide (to be ordered separately)
4. Chamber Base with embedded temperature sensor
5. Chamber Bracket to fix the chamber to the stage
24,20
Distance between
focal plane and
upper side of the
glass lid
88
63,10
1
2
3
4
5
Figure 1. Components and Dimensions.

2
3Available Light Traps
H301-MIZAR-TILT can accept Mizar Cube Holder (with or without guide arm), MIZAR-1x22by40
Sample Holder and 1”x3” slides/chamber slide. H301-MIZAR-TILT must be equipped with at least one light
trap. The following light traps are available for H301-MIZAR-TILT.
LIGHT-TRAP-MCH
Light trap for Mizar Cube Holder (with or without guide arm) and for MIZAR-1x22by40 Sample
Holder.
LIGHT-TRAP-GS
Light trap for 1”x3” slides/chamber slides.
Figure 2. Available Light Traps.
4Available Magnetic Clamps
H301-MIZAR-TILT can accept standard glass slide with thickness between 1.50 up to 2 mm and also
glass slide with thickness between 2.1 to 4 mm. The following magnetic clamps are available for H301-MIZAR-
TILT.
MAG-CLAMP-1.5-2
Magnetic clamp for slides/chamber slides with thickness in the range 1.50 –2 mm.
MAG-CLAMP-2.1-4
Magnetic clamp for slides/chamber slides with thickness in the range 2.10 –4 mm.
Figure 3. Available Magnetic Clamps.

3
5Optional Components
Available Sample Holders
The following sample holders are available for H301-MIZAR-TILT.
Figure 4. Available Sample Holders.
Available Accessories
MIZAR-CUBE GL
Stainless Steel Top Lid for 12.50x12.50 Mizar Imaging Cube. It helps to minimize evaporation.
Figure 5. MIZAR-CUBE GL.

4
6Installation
Follow the instructions in the following paragraphs to install the chamber properly.
Installation of the Chamber on the Stage
To fix the H301-MIZAR-TILT on the stage, follow the steps listed below and shown in Figure 6:

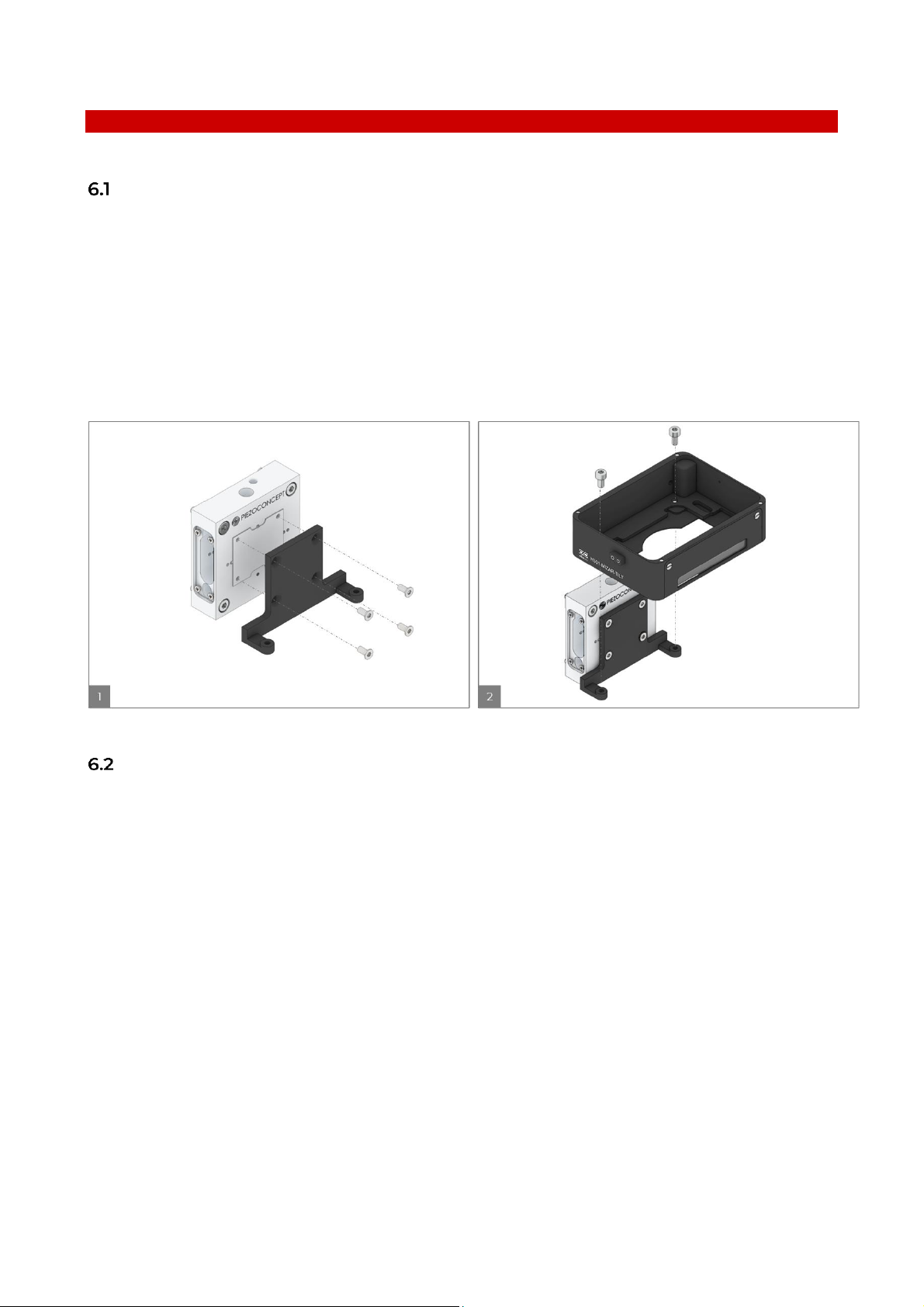

6. Fix the bracket to the SLR.300 Piezoconcept Stage with four M2.5x6 screws (see Image 1 of
Figure 6).
7. Fix the base of the chamber with two M3x6 screws on the bracket (see Image 2 of Figure 6).
8. Insert the sample holder (see paragraph 6.2, 6.3, 6.4 or 6.5 according to the sample holder you
have purchased).
Figure 6. Installation of the Chamber on the Stage.
Working with MIZAR-1x22by40 Sample Holder or Mizar Cube Holder
The MIZAR-1x22by40 fits into the Chamber Base and it is held in place by the magnetic clamps in
order to prevent movement inside the opening on the base. To insert the MIZAR-1x22by40 Sample Holder,
follow the steps shown in Figure 8 and listed below:

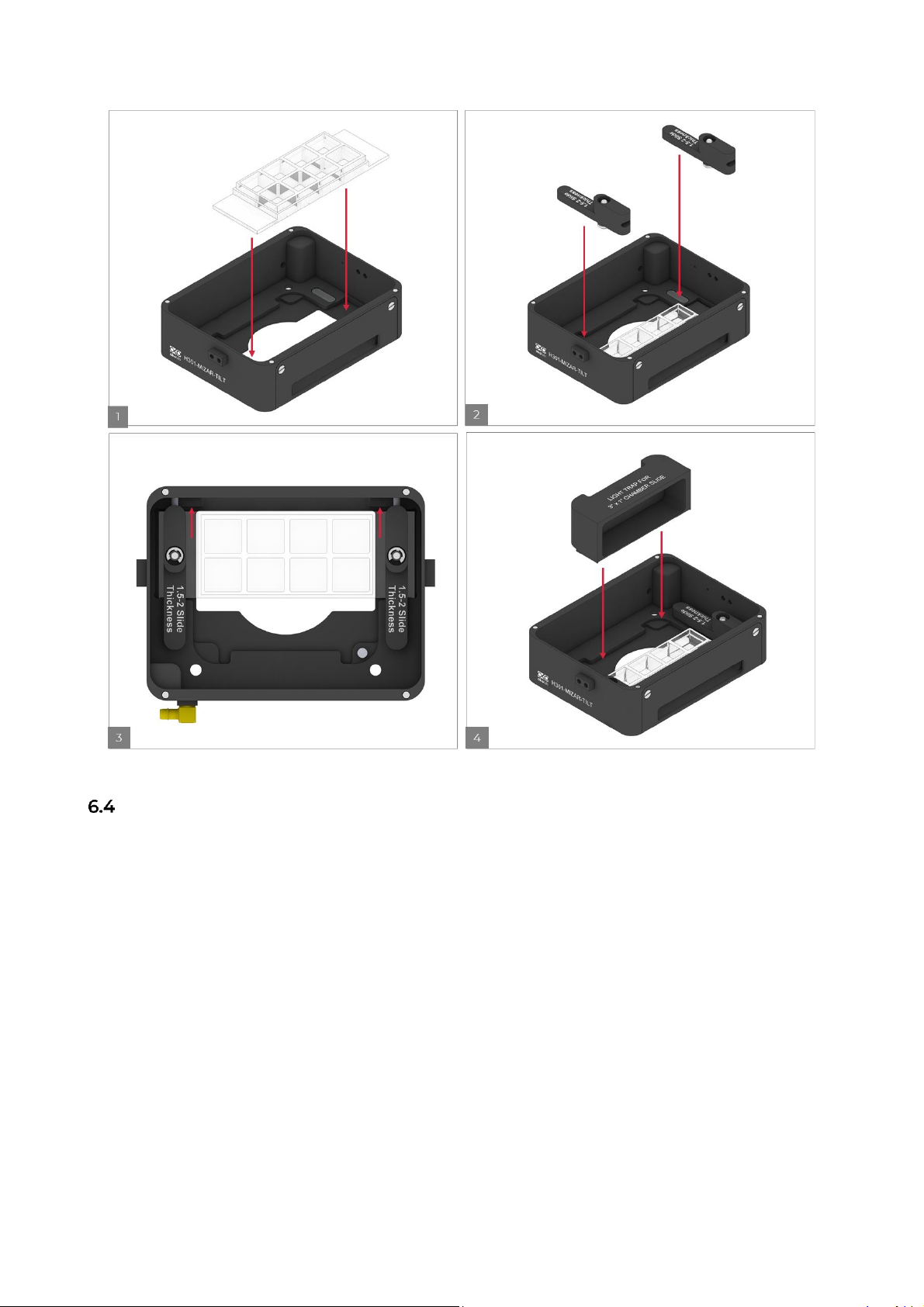

1. Insert the MIZAR-1x22by40 into the Chamber Base (see image 1 in Figure 8).
2. Place the magnetic clamps over the insert (see image 2 in Figure 8), then push down the head of
the clamps simultaneously and move it in the direction shown in the image 3 of Figure 8.
3. Insert the Light Trap into the Chamber Base as shown in image 4 in Figure 8.

5

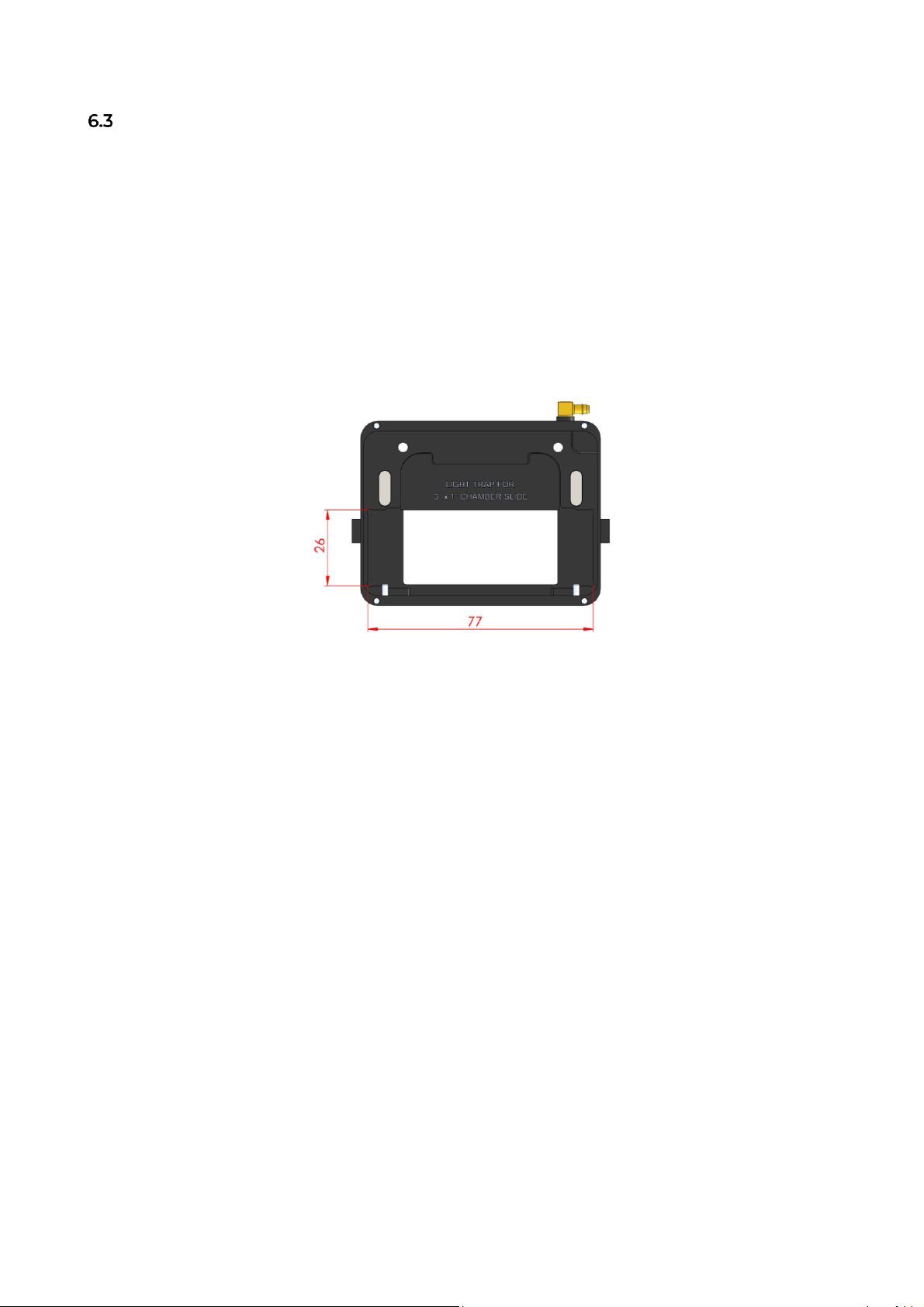

Figure 7. Base Top View dimensions.
Figure 8. Working with MIZAR-1x22by40.
Note ►To work with Mizar Cube Holder, the procedure is the same as MIZAR-1x22by40 Sample Holder.

6
Working with 1”x3’’ chamber slide
The 1”x3” chamber slide fits into the Chamber Base and it is held in place by the magnetic clamps in
order to prevent movement inside the opening on the base. To insert the 1”x3” chamber slide, follow the steps
shown in Figure 10 and listed below:
1. Insert the 1”x3” chamber slide into the Chamber Base (see image 1 in Figure 10).
2. Place the magnetic clamps over the 1”x3” chamber slide (see image 2 in Figure 10), then push
down the head of the clamps simultaneously and move it in the direction shown in the image 3 of
Figure 10.
3. Insert the Light Trap into the Chamber Base as shown in image 4 in Figure 10.
Figure 9. Base top View Dimensions.

7
Figure 10. Working with 1”x3” chamber slide.
Working with 35mm petri-dish
Flat springs prevent movement of 35mm petri-dish inside the opening on the Chamber Base. To insert
the MIZAR-1x35, follow the steps shown in Figure 12 and listed below:
1. Insert the MIZAR-1x35 into the Chamber Base (see image 1 in Figure 12).
2. Place the magnetic clamps over the MIZAR-1x35 (see image 2 in Figure 12), then push down the
head of the clamps simultaneously and move it in the direction shown in the image 3 of Figure
12.
3. Turn the flat springs (see image 4 in Figure 12) and insert the petri-dish (see image 5 in Figure 12)
into the sample holder.
4. Lock the petri-dish by using the flat springs (see image 6 in Figure 12).

8
Figure 11. Base Top View dimensions.

9
Figure 12. Working with 35mm petri dish.
Working with MIZAR-CUBE GL
H301-MIZAR-TILT can accept Mizar Cube Holder and MIZAR-1x22by40 Sample Holder with Mizar
Imaging Cube. The following glass lid is available to cover the 12.50 x 12.50 mm Mizar Imaging Cube, in order
to reduce evaporation of the medium. The glass lid provides a lateral dedicated hole to insert the Sample
Feedback Temperature Sensor (see Figure 13).

10
Figure 13. Working with MIZAR-CUBE GL.
Lid Assembly
Place the Lid on the chamber base (no screws or tools are necessary). See Figure 14.
1 2
Figure 14. Lid Assembly.
7Gas Connection
A single silicon tubing carries output gas from the Okolab Gas Controller to the H301-MIZAR-TILT.
Silicon tubing connects to a gas input - brass opening - located on rear side of the H301-MIZAR-TILT. See
Figure 15. Connect by gently pushing silicon tubing onto brass opening.

11
Figure 15. Gas Connection.
8Working with perfusion
H301-MIZAR-TILT features 4 perfusion holes on the sides of the chamber base for the insertion of
perfusion tubing up to 2.0 mm in outer diameter. Small screws plug the perfusion holes when not in use (Grub
screws M2,5x3). Remove the small screws as necessary before introducing perfusion tubing.
Figure 16 shows the location of the perfusion holes.
Figure 16. Working with Perfusion.
9Insertion of the Sample Feedback Temperature Sensor

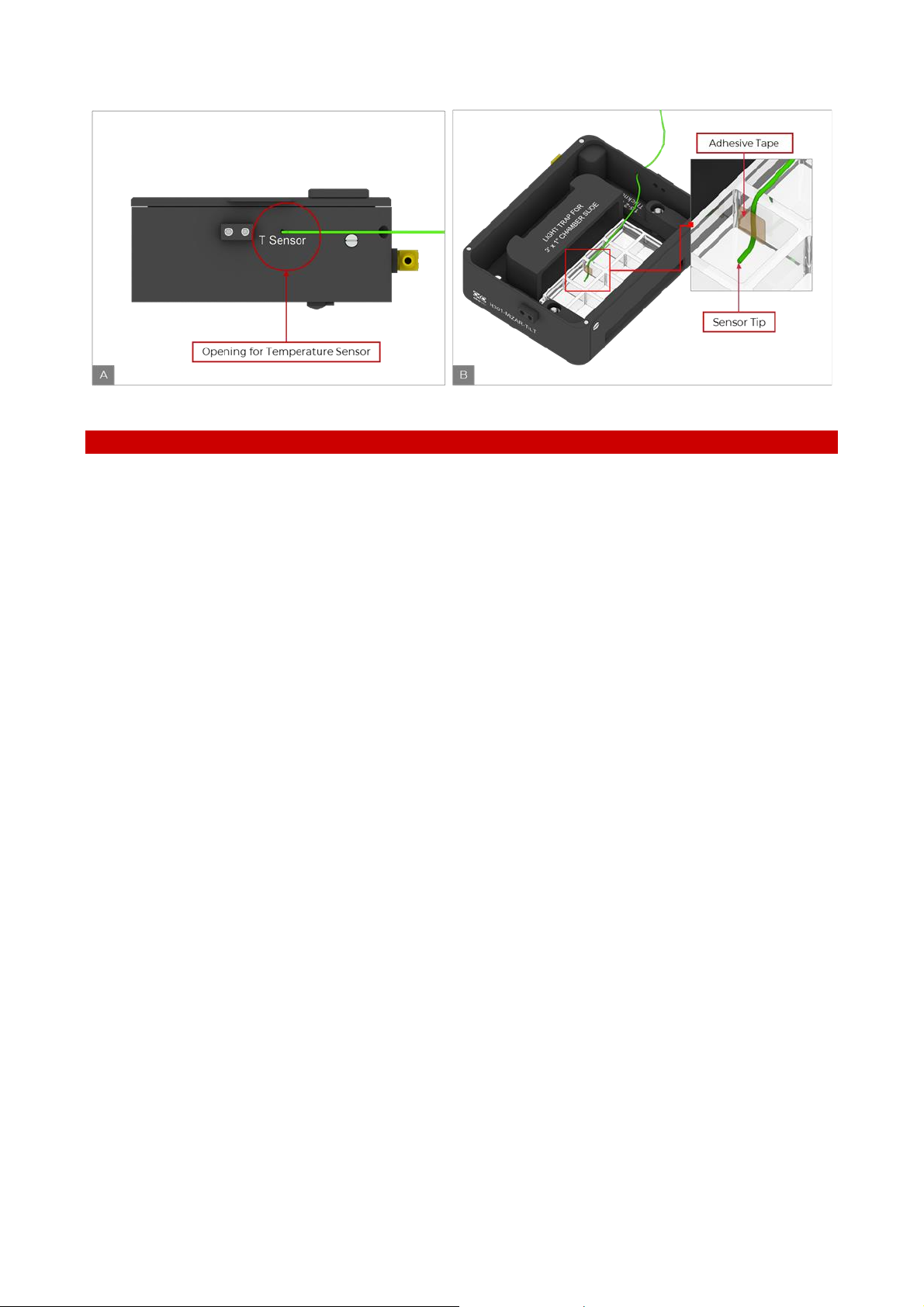

Insert the Sample Feedback Temperature Sensor through the dedicated opening located in the H301-
MIZAR-TILT (see A in Figure 17).
To read the medium temperature and realize a self-calibration of the chamber, fix the Temperature
Sensor tip with adhesive tape on the bottom of the medium volume of the sample holder. For more information
about the self-calibration, please refer to the User Manual of the Okolab Controller in use.

12
Figure 17. Insertion of the Sample Feedback Temperature Sensor.
10 Cleaning
•Turn the system off and pull the mains plug out the socket
•Remove the lid from the chamber main body, and keep it separate from the chamber main body
while the chamber cools down.
•To clean the body and the glass lid of the chamber, wipe with a soft micro-fiber cloth. For stubborn
smudges, you can damp the soft micro-fiber cloth with ethyl alcohol (product code UN1170). Do not
put any liquid directly on the chamber. While cleaning the glass lid, do not apply strong force to the
