OLG Axis/Anvil System User manual

TOOLS REQUIRED: Powered screwdriver, soft rubber hammer.
Installation Guide
Anvil Leg Axis Leg
Inset Leg
myolgoffice.com

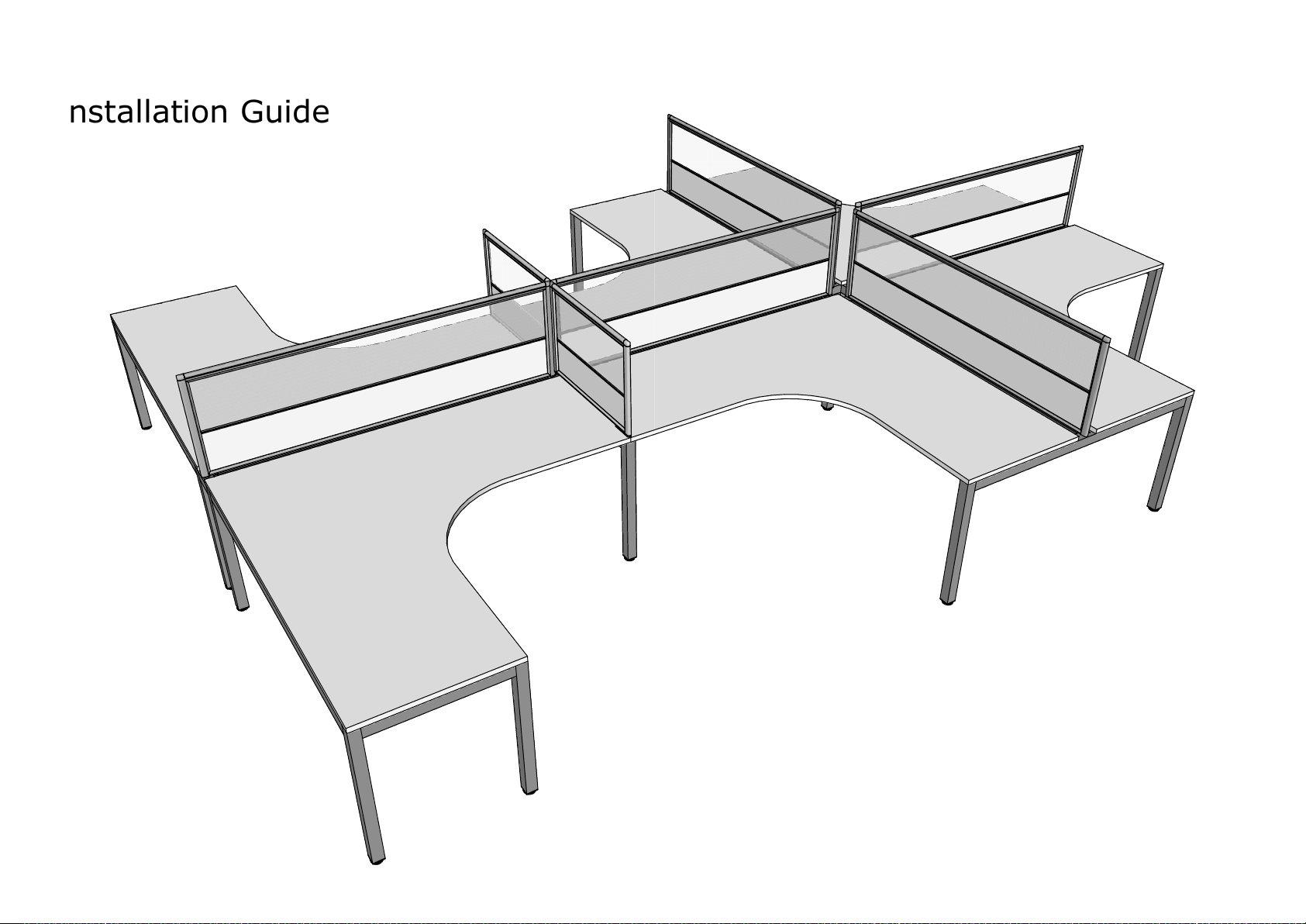

Axis/Anvil System

3Axis/Anvil Installation Guide
AXIS SYSTEM WORKSTATION
Installation Guide
AXIS SYSTEM WORKSTATION
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

4Axis/Anvil Installation Guide
AXIS SYSTEM WORKSTATION
Installation Guide
AX2LEG90W
AXRAIL....A/W
AXLEGDS..../W
AXDTRAY.../W
A
A
1
2
OPCBSCBR/E
25mm, E1 TOP
OPCBSCBR/E
AXKP510
OPCBSCBR/M
AX....TECH/.. or
AX....TRANS
AX....TECH/.. or
AX....TRANS
OPTIONAL RETURN
SCREENS
OPCBSC1/E2
AX....TECH/.. or
AX....TRANS
AXLEGDE..../W
AXLEGDE..../W
AX....TECH/.. or
AX....TRANS
AX4LEG90W
OPCBSCBR/E
AXLEGD...W
AXLEGD...W
AXRAIL....A/W
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

5Axis/Anvil Installation Guide
AXIS SYSTEM WORKSTATION
Installation Guide
1
Carefully remove end seal on screen & fit screen between end brackets &
screw self tappers to fix screen tightly.
4
2
A
A

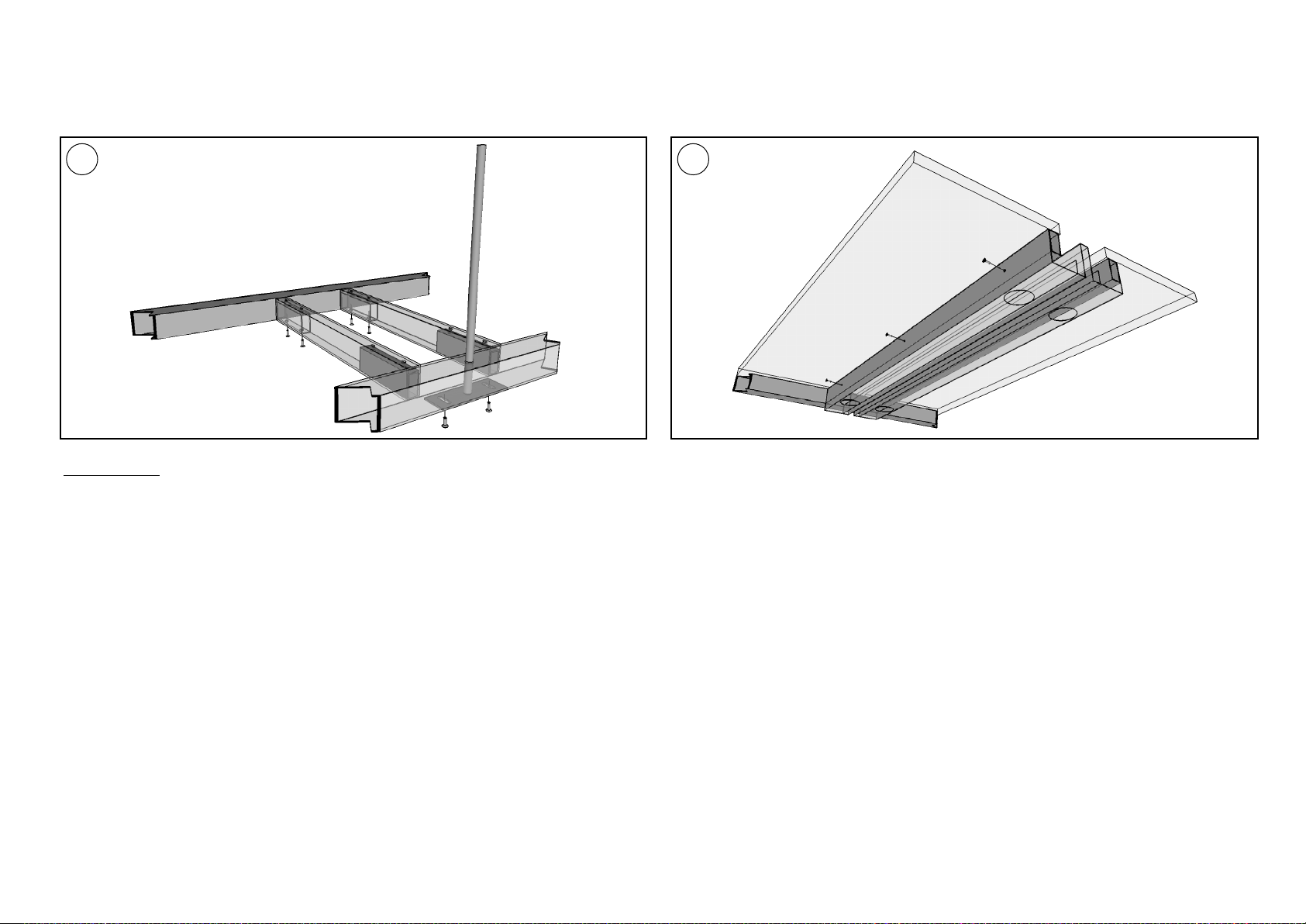

Assemble frames & rails together, loosely (1 turn from tight).
Assemble screen brackets to frame, loosely (1 turn from tight).
Fix desk top with 5mm overhang over metal frame. Where desktops butt
together, make sure these are fitted tight together.
3
DESK TOP
DESK
SIDE
RAIL
SCREW
5mm
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

6Axis/Anvil Installation Guide
AXIS SYSTEM WORKSTATION
Installation Guide

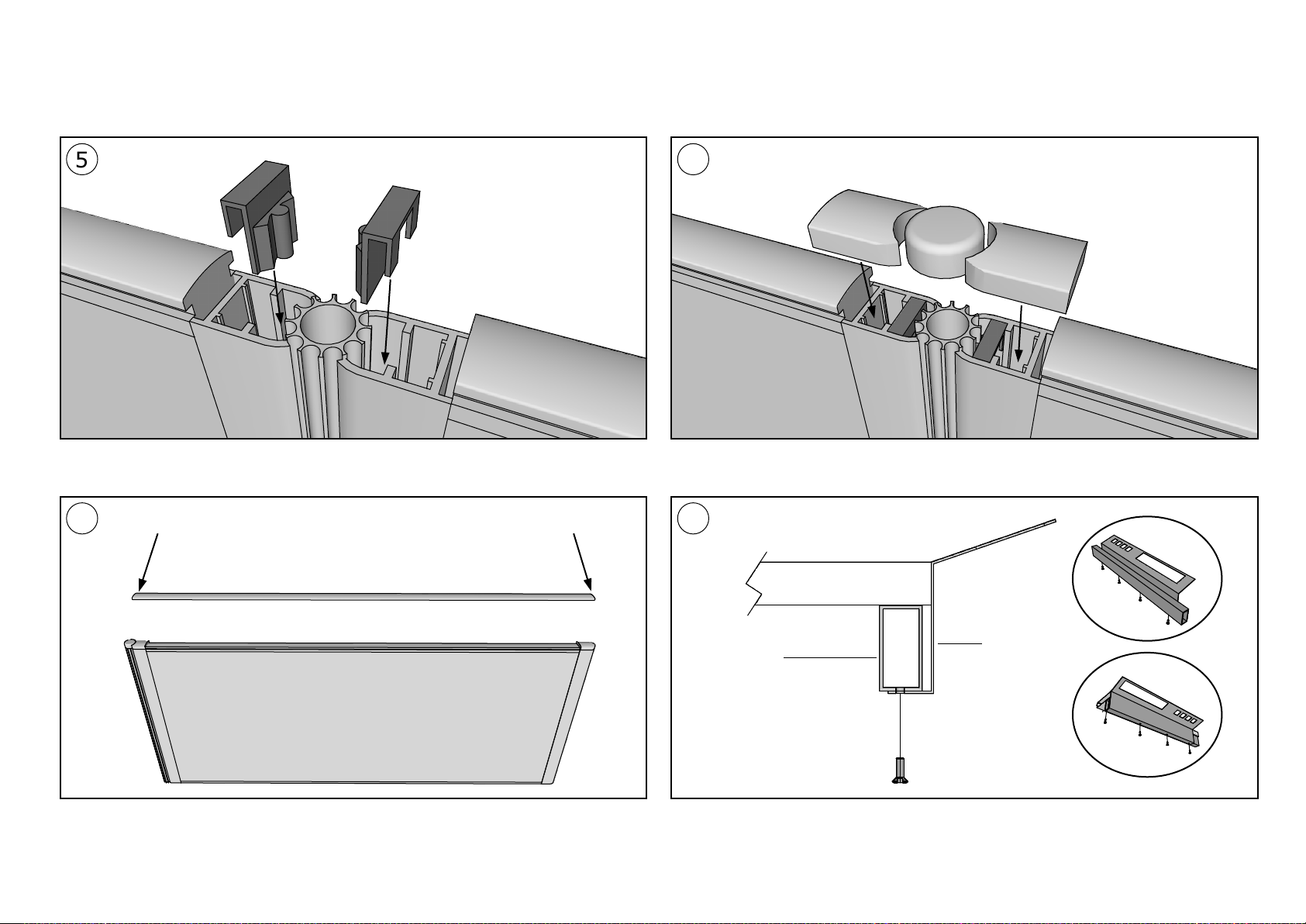

Slide screen pole over bracket & attach screens to pole with top slug
connectors.
5
If for whatever reason you have to remove the top seal, then to refit,
slightly arc in the middle, placing the 2 ends into location, & gently tap
down.
7
If not using wing screens then gently attach the 3 caps simultaneously
tapping into position.
6
Fit data rails with screws into rails.
8
DATA PLATE
RAIL
ENDS IN FIRST
ENDS IN FIRST
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

7Axis/Anvil Installation Guide
AXIS SYSTEM WORKSTATION
Installation Guide
Fully tighten all rails to frame screws, & then screen bracket screws.
7
Attach cable trays with screws provided.
8
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

8Axis/Anvil Installation Guide

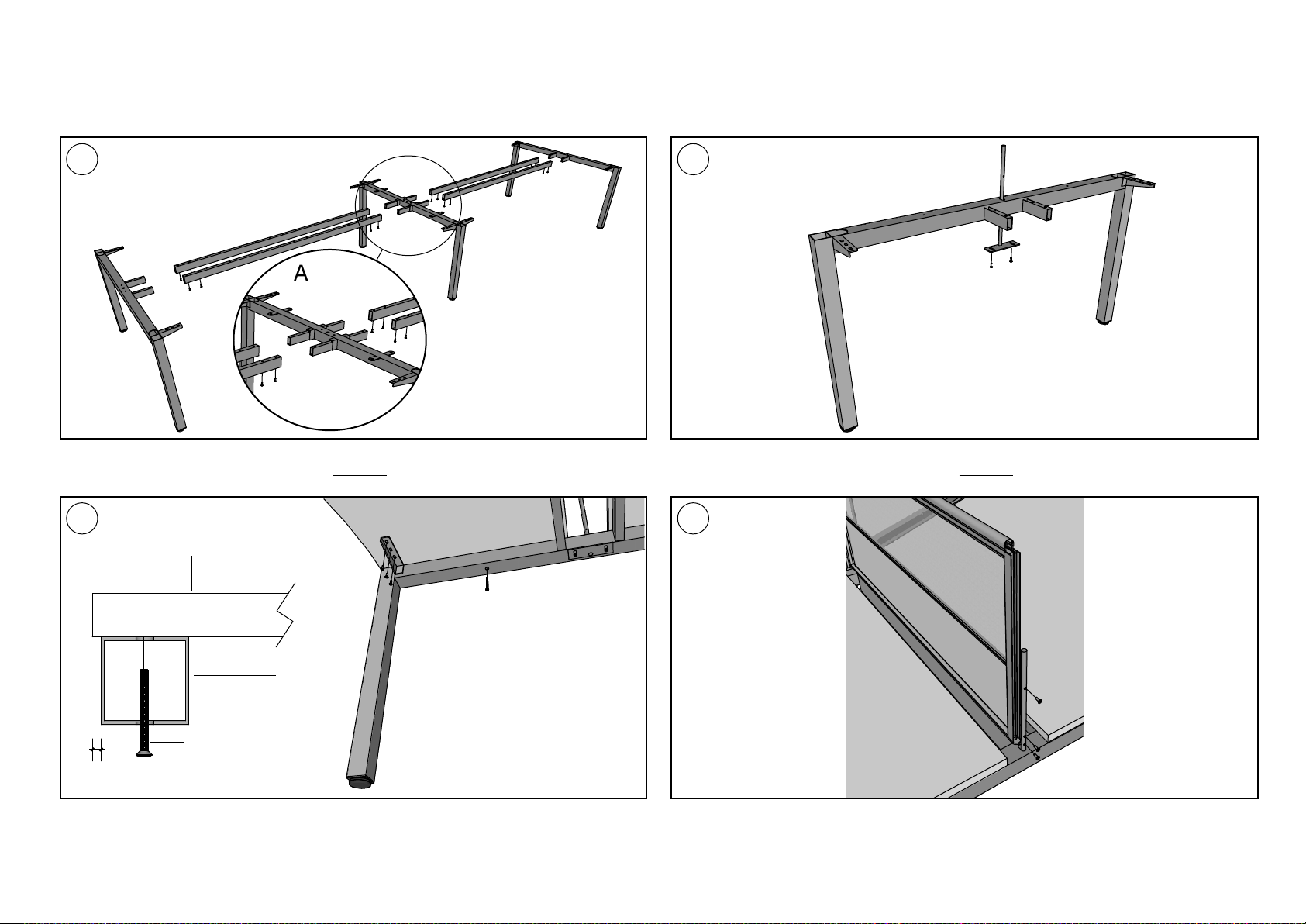

AXIS SYSTEM STRAIGHTLINE
Installation Guide
AXIS SYSTEM STRAIGHTLINE
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

9Axis/Anvil Installation Guide
AXLEGDE..../W
AXRAIL....A/W
AXLEGDS..../W
AXDTRAY.../W
A
A
1
2
OPCBSCBR/E
25mm, E1 TOP
OPCBSCBR/E
AXIS SYSTEM STRAIGHTLINE
Installation Guide
AXKP510
OPCBSC1/E2
OPCBSCBR/M
AX....TECH/.. or
AX....TRANS
AX....TECH/.. or
AX....TRANS
OPTIONAL RETURN
SCREENS
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

10Axis/Anvil Installation Guide
1
Carefully remove end seal on screen & fit screen between end brackets &
screw self tappers to fix screen tightly.
4
2
AXIS SYSTEM STRAIGHTLINE
Installation Guide
A
A
Assemble frames & rails together, loosely (1 turn from tight).
Assemble screen brackets to frame, loosely (1 turn from tight).
Fix desk top with 5mm overhang over metal frame. Where desktops butt
together, make sure these are fitted tight together.
3
DESK TOP
DESK
SIDE
RAIL
SCREW
5mm
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

11Axis/Anvil Installation Guide
Slide screen pole over bracket & attach screens to pole with top slug
connectors.
5
If for whatever reason you have to remove the top seal, then to refit,
slightly arc in the middle, placing the 2 ends into location, & gently tap
down.
7
If not using wing screens then gently attach the 3 caps simultaneously
tapping into position.
6
AXIS SYSTEM STRAIGHTLINE
Installation Guide
Fit data rails with screws into rails.
8
DATA PLATE
RAIL
ENDS IN FIRST
ENDS IN FIRST
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

12Axis/Anvil Installation Guide
AXIS SYSTEM STRAIGHTLINE
Installation Guide
Fully tighten all rails to frame screws, & then screen bracket screws.
9
Attach cable trays with screws provided.
10
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

13Axis/Anvil Installation Guide

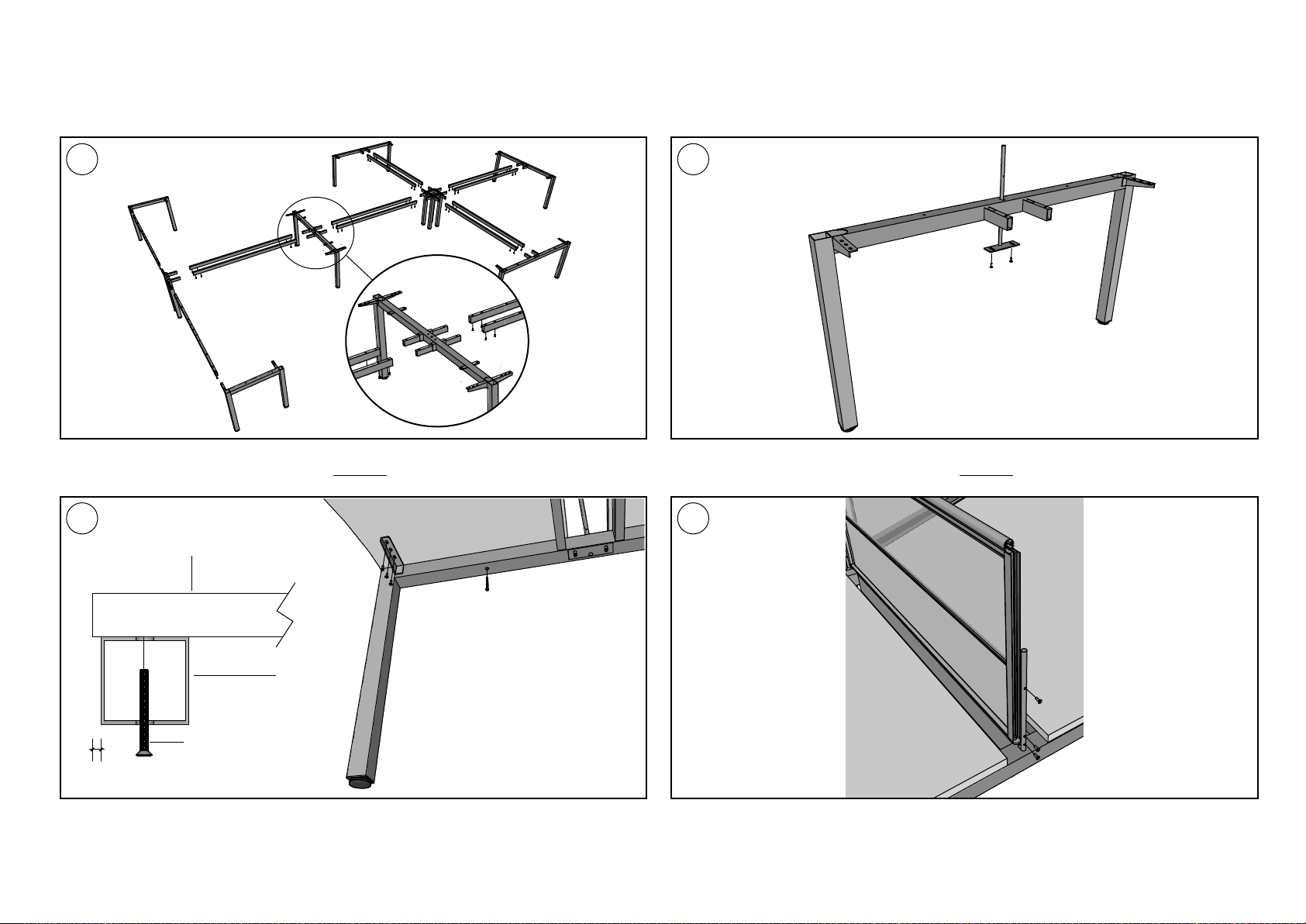

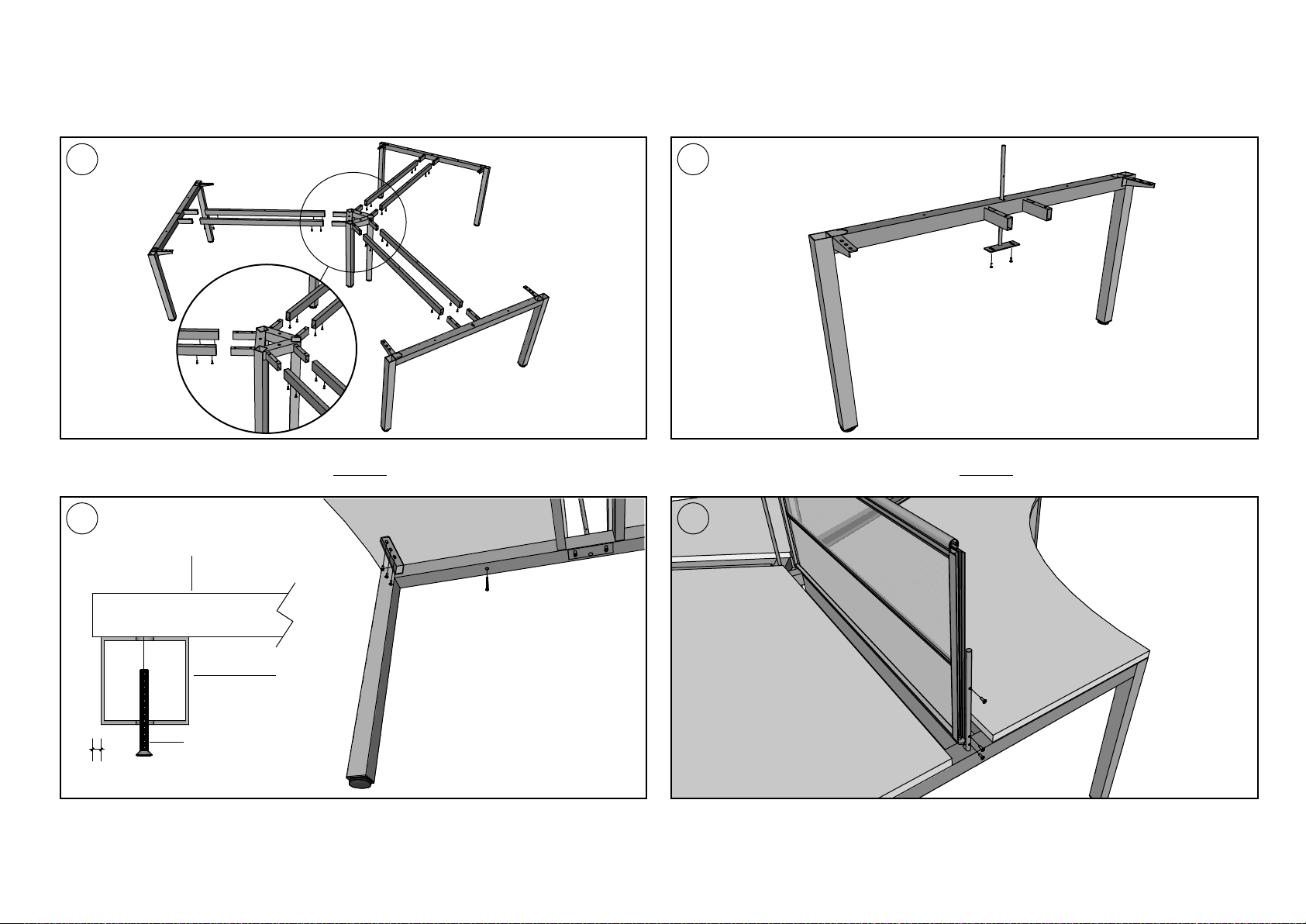

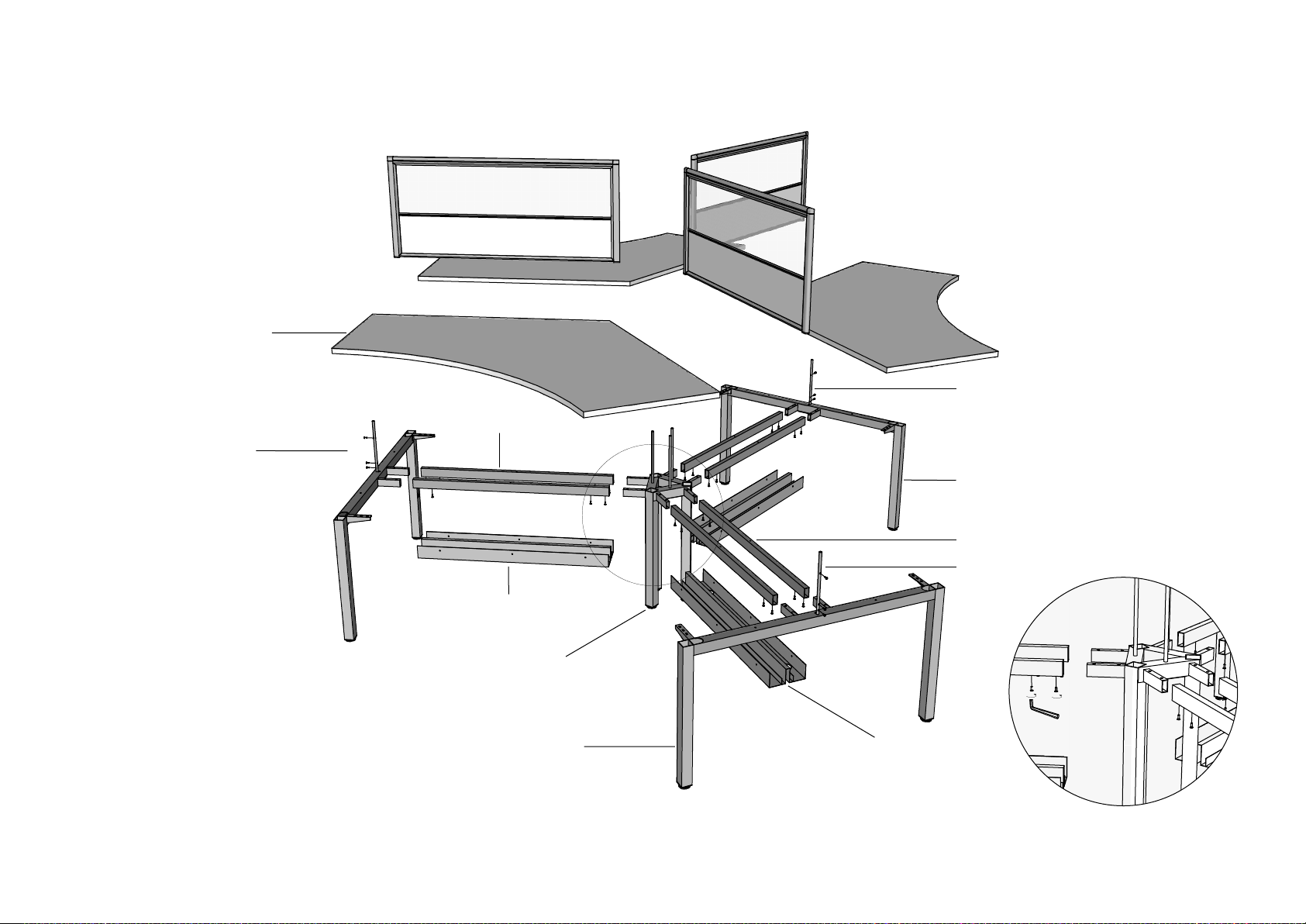

AXIS SYSTEM 120º
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

14Axis/Anvil Installation Guide
AX...TECH/..
or
AXRAIL109/A
AXLEGDE132/W
A
A
1
2
OPCBSCBR/E
AXDTRAY120/W
OPCBSCBR/E
AX3LEG120/W
OPCBSCBR/E
AXRAIL109/A
AXDTRAY120/W
AXLEGDE132/W
E1 - 25mm TOP
AX...TRANS
AXIS SYSTEM 120º
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

15Axis/Anvil Installation Guide
AXIS SYSTEM 120º
Installation Guide
Assemble frames & rails together, loosely (1 turn from tight).
A
A
1
Carefully remove end seal on screen & fit screen between end brackets &
screw self tappers to fix screen tightly.
4
Assemble screen brackets to frame, loosely (1 turn from tight).
2
Fix desk top with 5mm overhang over metal frame. Where desktops butt
together, make sure these are fitted tight together.
3
DESK TOP
DESK
SIDE
RAIL
SCREW
5mm
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

16Axis/Anvil Installation Guide
AXIS SYSTEM 120º
Installation Guide
Attach screen end seals with soft non-marking mallet.
5
Fully tighten all rails to frame screws, & then screen bracket screws.
7
Attach cable trays with screws provided.
8
Fit data rails with screws into rails.
6
DATA PLATE
RAIL
DESK TOP
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

17Axis/Anvil Installation Guide

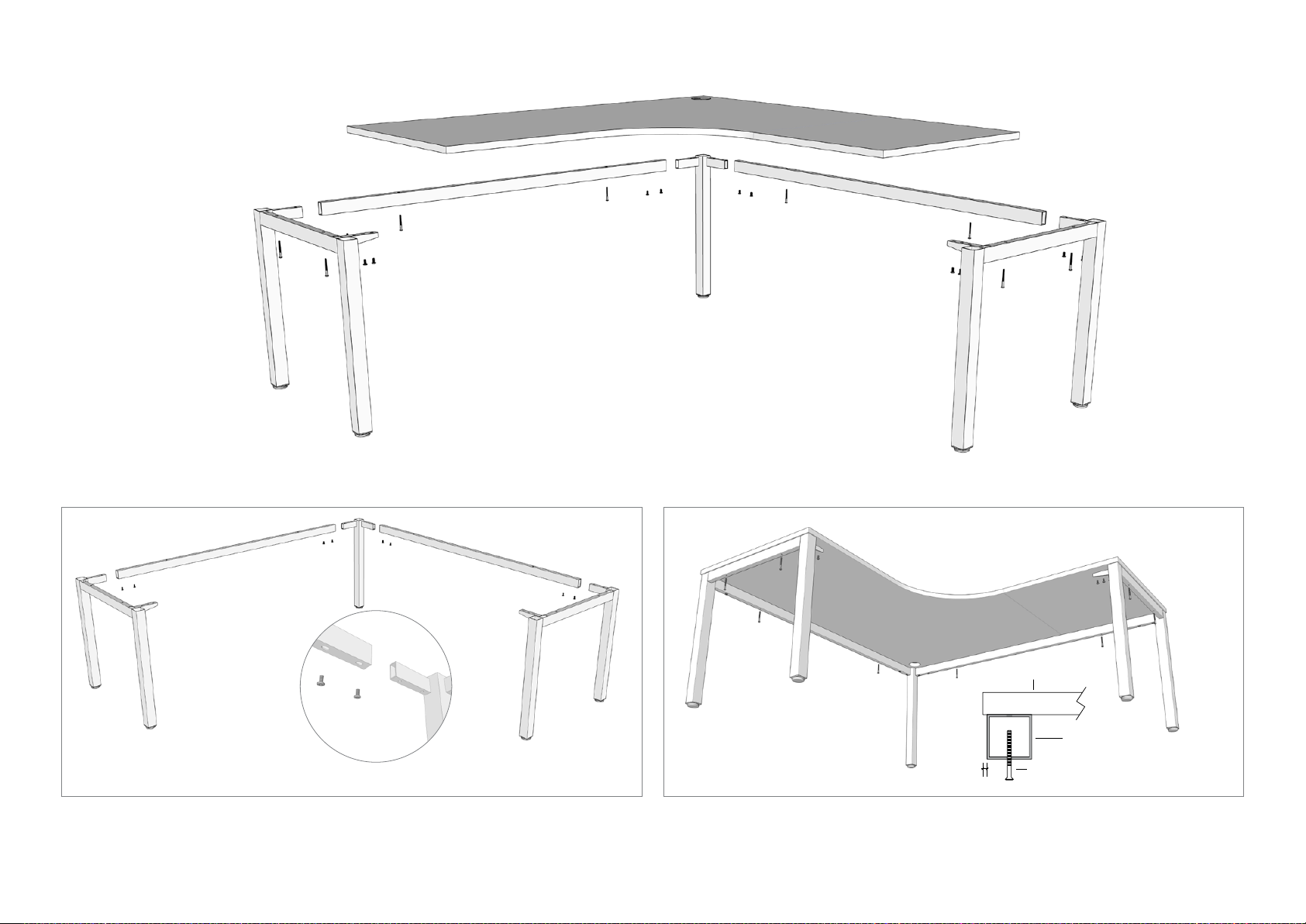

AXIS WORKSTATION
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

18Axis/Anvil Installation Guide
STEP 1: Assemble frames & rails together, loosely (1 turn from tight). STEP 2: Fix desk top with 5mm overhang over metal frame. Lastly,
fully tighten all rail to frame screws.
Desk Top
Desk Side
Rail
Screw
5mm
AXIS WORKSTATION
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

19Axis/Anvil Installation Guide
AXIS DESK
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

20Axis/Anvil Installation Guide
STEP 1: Assemble frames & rails together, loosely (1 turn from tight). STEP 2: Fix desk top with 5mm overhang over metal frame. Lastly,
fully tighten all rail to frame screws.
Desk Top
Desk Side
Rail
Screw
5mm
AXIS DESK
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23

21Axis/Anvil Installation Guide
AXIS HUNG SCREEN
Installation Guide
Axis/Anvil System Workstation 3
Axis/Anvil System Straightline 8
Axis/Anvil System 120° 13
Axis/Anvil Single Workstation 17
Axis/Anvil Single Desk 19
Axis/Anvil Hung Screen 21
Axis/Anvil CKD Legs 23
