OLG Qzone Phonebooth User manual

Qzone Phonebooth
Assembly Instructions

Qzone Phonebooth Assembly Instructions
2
Qzone Phonebooth
Parts List
Fan (x1) Hinge (x3)Handle (x2) Motion Sensor (x1)
Rubber
Washers (x4)
4 x 45 Self
Tapping Screw (x4) Light (x1)
4 x 25 Self
Tapping Screw (36)Door Latch
M6 x 50 Allen
bolts (x32)
M6 x 20 Allen
bolts (x32)
M6 x 40 Allen
bolts (x4)
5 x 15 Self
Tapping Screw (x4)
4 x 40 Self
Tapping Screw (x4)
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Qzone Phonebooth Assembly Instructions 3
Qzone Phonebooth
Exploded Parts
Ceiling Panel
Top Panel
AKU Panel
Front Panel
Glass Door
Back Panel
Shelf
Bottom Panel
Side Panel
AKU Side Panel
Side Panel
AKU Side Panel
A
A1
A2
B
B1
D
E
G
X
X1
Z
Z1
A2
-
-
-
-
-
-
-
-
-
-
-
-
A1
A
X
D
X1 B1
G
E
B
ZZ1
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Qzone Phonebooth Assembly Instructions
4
Qzone Phonebooth
Assembly Instructions
STEP 1: Bolt the side panel X to the back panel D using M6 x 50 screws. STEP 2: Bolt the side panel Z to the back panel D using M6 x 50 screws.
back
panel D
side panel X
side panel Z
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Qzone Phonebooth Assembly Instructions 5
Qzone Phonebooth
Assembly Instructions
STEP 3: Bolt the bottom panel G to the back panel D using M6 x 50 screws. STEP 4: Bolt ceiling panel A to the back panel D using M6 x 50 screws.
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre
M6 x 50mm
bottom
panel G
ceiling
panel A

Qzone Phonebooth Assembly Instructions
6
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre
STEP 5: Bolt the front panel B to panels Z, X, G and A using M6 x 50 screws. STEP 6: Install the fan on the panel A1 with washers and 4 x 45 self-tapping screws.
front panel B
Qzone Phonebooth
Assembly Instructions

Qzone Phonebooth Assembly Instructions 7
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre
STEP 7: Make the electric connections according to instructions then bolt the
top panel A1.
STEP 8: Bolt PET panels X1 and Z1 using M6 x 20 screws.
top panel A1
PET panel Z1
PET panel X1
M6 x 20mm
2M extension from
Phonebooth base
Qzone Phonebooth
Assembly Instructions

Qzone Phonebooth Assembly Instructions
8
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre
STEP 9: Bolt the top panel A1 using self-tapping screws. STEP 10: Bolt the shelf E to the panels front B and back D using M6 x 45 screws.
top panel A1
shelf E M6 x 45mm
Qzone Phonebooth
Assembly Instructions

Qzone Phonebooth Assembly Instructions 9
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre
M6 x 16mm
STEP 11: Bolt the hinges, handle and door lock to the glass door. The threaded
tube on the door latch allows adjustment for a tigther closing. Might
requiere a few trials to find the perfect position.
STEP 12: Mount glass door B1 to the frame using supplied hardware.
top panel A1
pre-drilled holes
Qzone Phonebooth
Assembly Instructions

Qzone Phonebooth Assembly Instructions
10
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

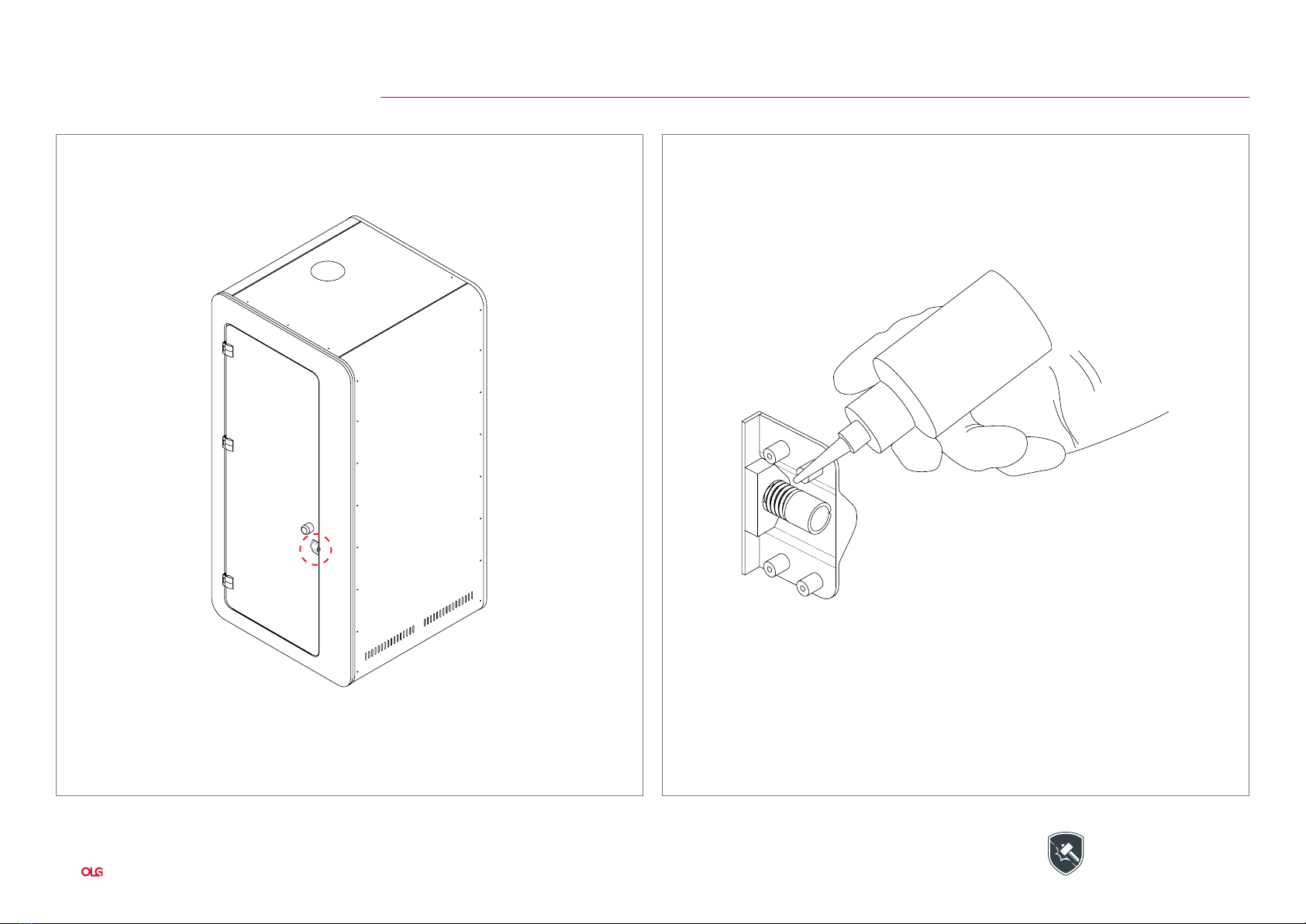

STEP 13: Adjust the thread on the door lock to get the desired closing. STEP 14: Once the desired locking setup is achieved, remove the latch from the
door. Mark the correct position of the threaded tube and unscrew. Apply
LOCTITE or similar product on the thread so it doesn’t loosen over time.
Adjust the threaded tube back to the original position.
Qzone Phonebooth
Assembly Instructions
