OLG Phone Booth User manual

Phone Booth
Assembly Instructions

Phonebooth Assembly Instructions
2
Phone Booth
Parts List
Fan (x1)
Light (x1)
Hinge (x3)
Metal feet (x6) Switch (x1)
Handle (x1)
M6 bolts
Threshold plate (x1)
Self tapping screws
M6 x 50 mm
M6 x 40 mm
M6 x 20 mm
M6 x 12 mm
(x36)
(x4)
(x32)
(x18)
3.5 x 40 mm
3.5 x 20 mm
4 x 30 mm
(x4)
(x4)
(x32)
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions 3
Phone Booth
Exploded Parts
Ceiling Panel
Top Panel
E-panel Top
Front Panel
Glass Door
Back Panel
Shelf
Bottom Panel
Side panel
Side E-panel
Side Panel
Side E-panel
A
A1
A2
B
B1
D
E
G
X
X1
Z
Z1
A2
-
-
-
-
-
-
-
-
-
-
-
-
A1
A
X
D
X1
B1
G
E
B
Z
Z1
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions
4
Phone Booth
Assembly Instructions
STEP 1: Bolt the bottom to the back panel. STEP 2: Bolt the side panel to the back panel.
M6 x 50 mm
M6 x 50 mm
bottom
panel G
back panel D
side panel X
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions 5
Phone Booth
Assembly Instructions
STEP 3: Bolt the ceiling panel A to the back panel D and side panel X. STEP 4: Bolt the side panel Z to the back panel.
side panel Z
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions
6
STEP 5: Bolt the front panel B.
Phone Booth
Assembly Instructions
front panel B
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions 7
STEP 6: Install the switch, light and fan on the ceiling panel A and bolt the top panel A1
along with the A2 E-panel.
Phone Booth
Assembly Instructions
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions
8

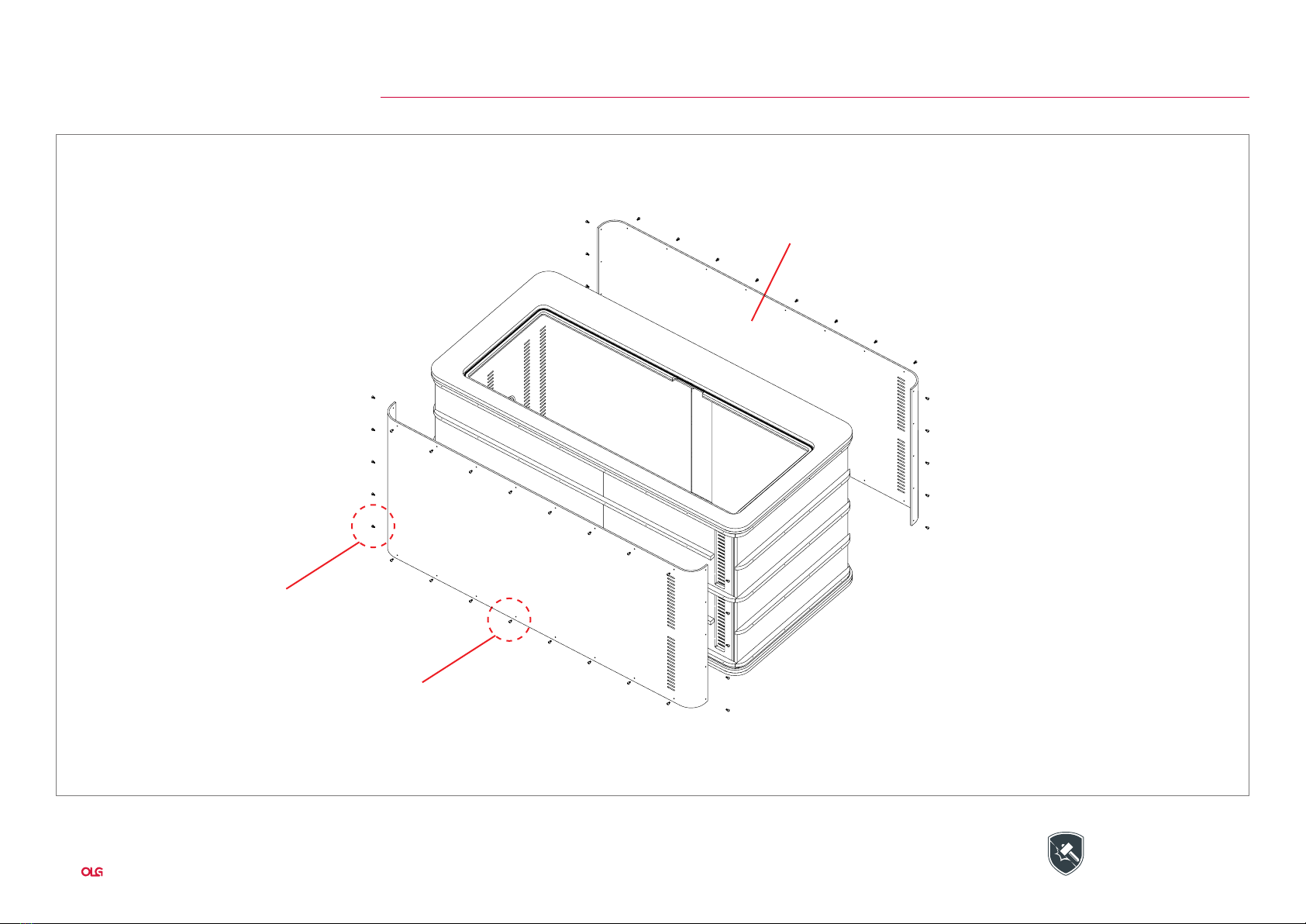

STEP 7: Bolt the E-panels X1 and Z1.
Phone Booth
Assembly Instructions
Wood Screw x 20 mm
M6 x 20 mm
E-panel X1
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre
NOTE:
Slightly compress the E-Panel
so that it holds in place. And
does not crush the panel.
E-panel Z1

Phonebooth Assembly Instructions 9
STEP 8: Bolt the metal feet to the bottom panel.
Phone Booth
Assembly Instructions
M6 x 12 mm
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions
10
Phone Booth
Assembly Instructions
STEP 9: Bolt the shelf E to the front and back panel. STEP 10: Bolt the hinges to the inner edge of the front panel.
M6 x 12 mm
M6 x 16 mm
shelf E
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions 11
STEP 11: Bolt the glass door B1 to the hinges and add the handle.
Phone Booth
Assembly Instructions
3.5 x 30 mm
TEMPERED GLASS DOOR
Must be recycled at specialist
recycling centre

Phonebooth Assembly Instructions
12
Phone Booth
Softwiring
General recommended settings for the sensor:
• 300 or 500 Lux
• 5 minutes on Timer 1
•Sensitivity set to about ¾ the way to full
