USER’S OPERATING AND INSTRUCTION MANUAL
MODEL 1908
AUTOMATED PACKAGING SYSTEM

11/12/09 1908S20001
1-1
INDEX
QUICK SPECS…...……………………...……………………………… PG. 1-2
INTRODUCTION AND DESCRIPTION………………………………. PG. 1-3
UNCRATING…………………………………………………………….. PG. 1-4
SAFETY..............................................……………………..………….. PG. 1-8
MACHINE PLACEMENT………………………………………..……… PG. 1-9
MACHINE COMPONENTS…………………………………………….. PG. 1-12
START-UP……………………………………………………………….. PG. 1-17
OPERATING PROCEDURE............................................................. PG. 1-20
TECHNICAL SPECIFICATIONS....................................................... PG. 1-24
CLEANING AND MAINTENANCE....................…..............…........... PG. 1-26
TROUBLE SHOOTING......................................…......................….. PG. 1-31
MAINTENANCE CHECKLIST……....................…..............….......... PG. 2-1
ASSEMBLY DRAWINGS & PARTS LISTS..………………………... PG. 3-1
ELECTRICAL……………………………………………………………. PG. 4-1
PNEUMATIC.…………..………………………………………………… PG. 5-1
MACHINE EXCHANGE PROGRAM………… GEN 050815
WARRANTY...................…............................. GEN 050816
WARRANTY PROCEDURE..........….............. GEN 050817
RETURNED PARTS POLICY......................... GEN 050818

11/12/09 1908S20001
1-2
QUICK SPECS
Weight 300 lbs
Overall Dimensions 30”W x 64”L x 50”H
Loading Station 3 tray carriers
Electrical 1 phase, 60 hz, 115 VAC, 15 amps
Air Supply 90 psi ± 10 psi
Air Connector Size ¼”
Air Compressor:
Electrical 1 phase, 60 hz, 115/230 VAC,
1.7 run HP, 13 GAL tank
Dimensions 16.625”W x 30.5”L x 33.75”H
Weight 60 lbs
Length of Air Hose 70 ft
Air Hose I.D. 3/8”

11/12/09 1908S20001
1-3
INTRODUCTION AND DESCRIPTION
The OLIVER Model 1908 Lidder has been designed and manufactured to provide a high
quality machine that is a cost effective approach to producing film lidded trays. The
machine can be operated with a 120 V.A.C. outlet. The Model 1908 is an automated
system capable of producing a high volume, but it is easy to operate and requires
minimal space.

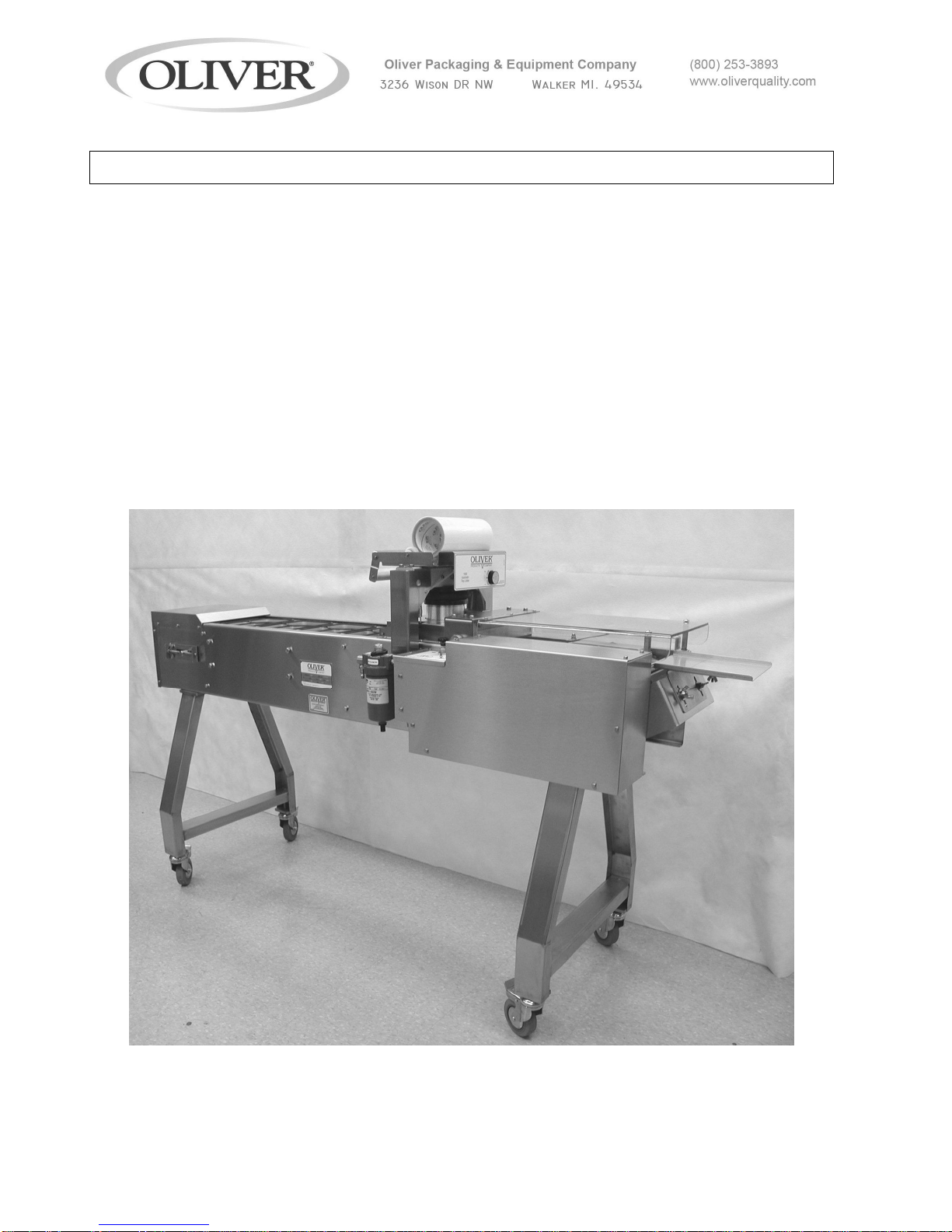

The machine consists of a conveyor system that transports the filled trays, a film feed
system, a heated platen and a film cutter unit. These are all packaged together in a
stainless steel framework that also houses all the necessary controls. The conveyor is
intermittent motion and is capable of running speeds of 5 to 35 packages per minute.
The system also includes an air compressor that is a separate unit that can be located
remotely.

11/12/09 1908S20001
1-4
INSPECTING
MODEL 1908
Upon receipt of Machine, inspect the exterior for damage. If damage is noted,
Indicate damage on the Freight Bill and immediately contact the freight Carrier and
notify them of the damage. Have a freight claim filed. This must be done at the
Recipient’s location and not at the Shipper’s Location.
Remove the tie-downs that hold the Trays from moving. Cut bands
that hold the 1908 Machine and the Air Compressor on the skid.
Lift the Air Compressor and then the Machine off the skid in a safe
manner.

11/12/09 1908S20001
1-5
SAFETY
Various safety devices and methods of guarding have been provided on this machine.
Do not operate the machine with guards removed and do not tamper with safety
devices. It is essential that machine operators and maintenance personnel observe the
following safety precautions. Improper installation or operation of this equipment may
cause injury to personnel or damage to equipment.
·Before operating the OLIVER Model 1908 Lidder read through this manual. Never
allow an untrained person to operate this machine
WARNING

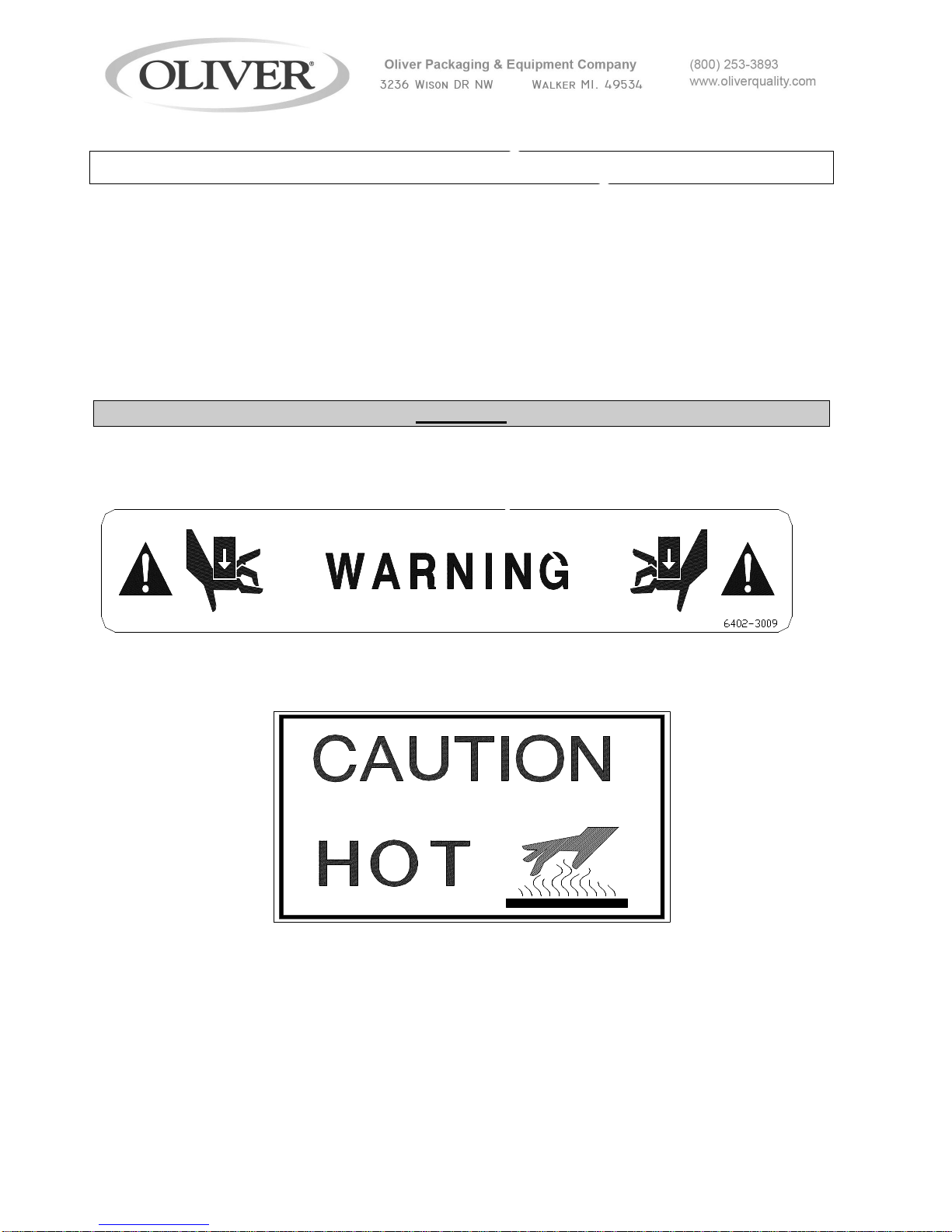

·WARNING PINCH POINT: Keep hands out of machine. Always be sure the
machine has been unplugged from power before cleaning or servicing.
·CAUTION HOT: The heater cover and upper platen are very HOT! Caution must
be used to protect yourself and others.
·In addition to these general safety instructions, follow the specific instructions given
throughout this manual.

11/12/09 1908S20001
1-6
MACHINE PLACEMENT AND UTILITIES
MODEL 1908

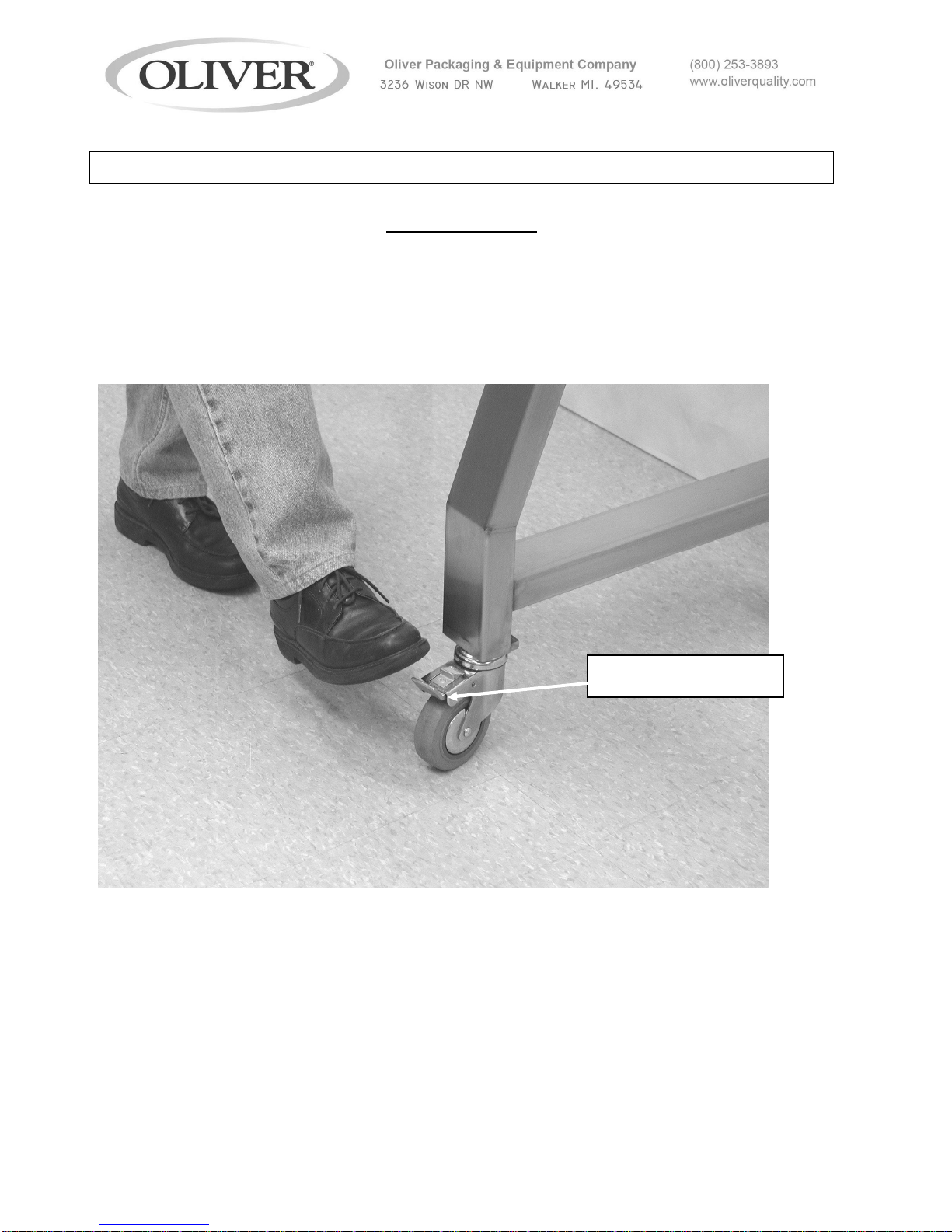

Decide on a suitable location for the machine. This location should have ample room to
work around all sides of the machine. Once the machine is in the location where it will
be used, the brakes on the casters should be locked by stepping down on the brake
locking lever. To unlock, lift the lever with your foot. Do not attempt to move machine
with casters in locked position.
The machine operates on 120 V.A.C., 60 Hz, 15 Amp electrical power. It is
recommended that this power be supplied by an overhead drop to prevent the cord from
becoming a trip hazard.
The machine needs to be connected to compressed air. This is accomplished by
connecting the machine to the air compressor supplied with the machine. This
connection should be made using an overhead drop.
LOCKING LEVER

11/12/09 1908S20001
1-7
Air Compressor
Decide on a suitable location for the air compressor. It is best to locate it out of the way
and preferably where the noise will not be a factor. The air compressor operates on
120 V.A.C., 60 Hz, 15 Amp electrical power. The air compressor is supplied with a 70
ft. length of 3/8”ID air hose that needs to be connected between the air compressor and
the Model 1908. This air hose has quick-disconnect fittings at both ends for easy
connection and disconnection. Pull the collar back on the female portion of the quick-
disconnect fitting and then push the female portion onto the male portion and release
your hand. Pull on the hose to make sure the connection is secure.
Continued
MALE CONNECTOR
FEMALE CONNECTOR
COLLAR

11/12/09 1908S20001
1-8
Air Compressor Continued
The air compressor has been factory set. If for some reason the settings are not
correct, the following procedure should be followed to set the output pressure from the
compressor.
The gage shown below should be set at 80 PSI. This is accomplished by turning the
knob on the regulator clockwise to increase pressure or counter clockwise to decrease
pressure. It is recommended that the air compressor be left with the switch in the
“AUTO”position. The compressor will only run when there is a demand for air when it is
set in the “AUTO”position. Leaving the switch in this position assures that the
compressor will be ready when it is needed.

11/12/09 1908S20001
1-9
MACHINE COMPONENTS
Before proceeding further, take a moment to familiarize yourself with the
identification of the machine components as shown in the illustrations below.

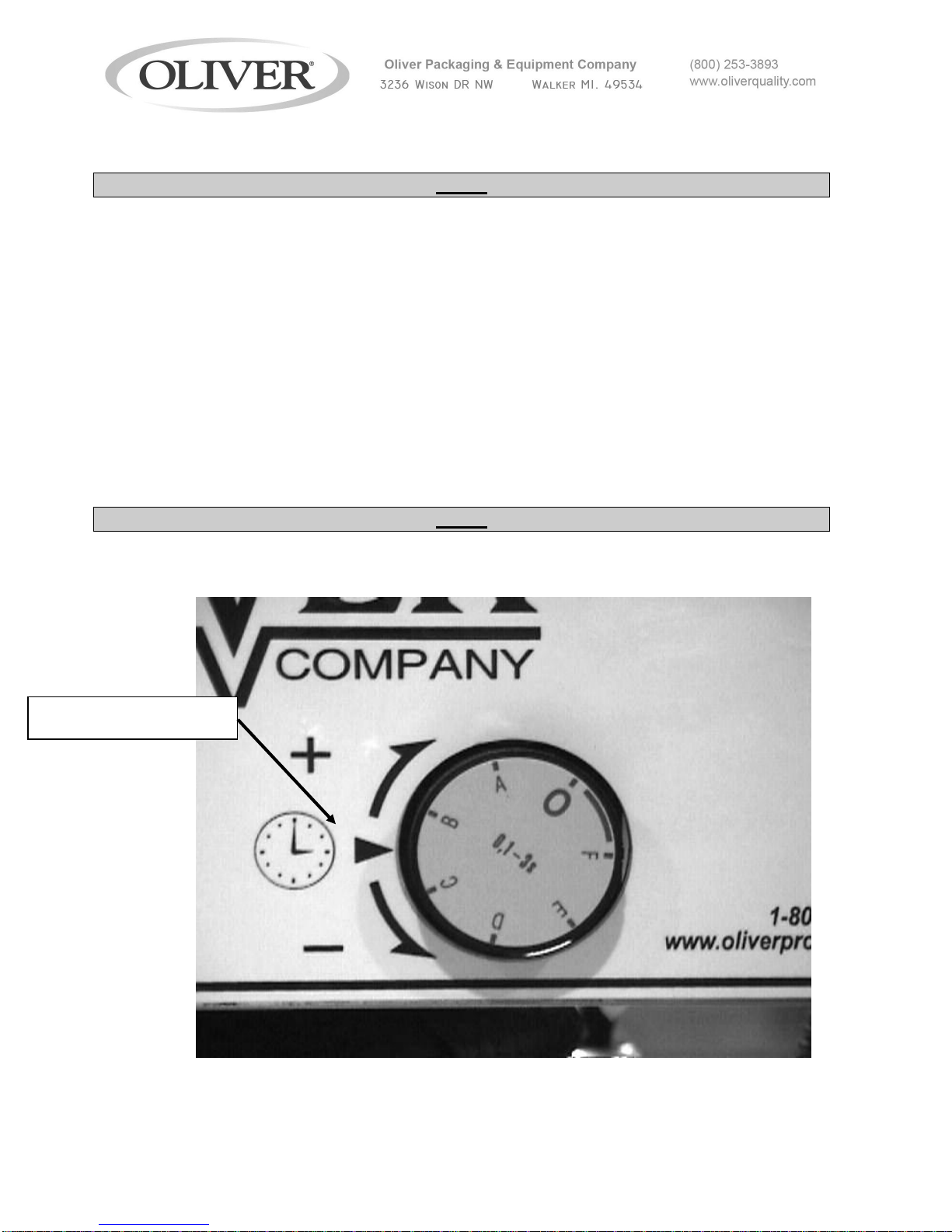

HEAT SEAL
DWELL TIMER
FILTER
REPLACEMENT
INDICATOR
FILTER
OK / REPLACE
LABELS
FILTER
BRACKET
