Olivetti d-color mf752plus User manual
SERVICE MANUAL
Multifuction Digital Copier
d-Color MF752Plus,
MF652Plus and Options
Code:Y117760-6
www MK-Electronic de

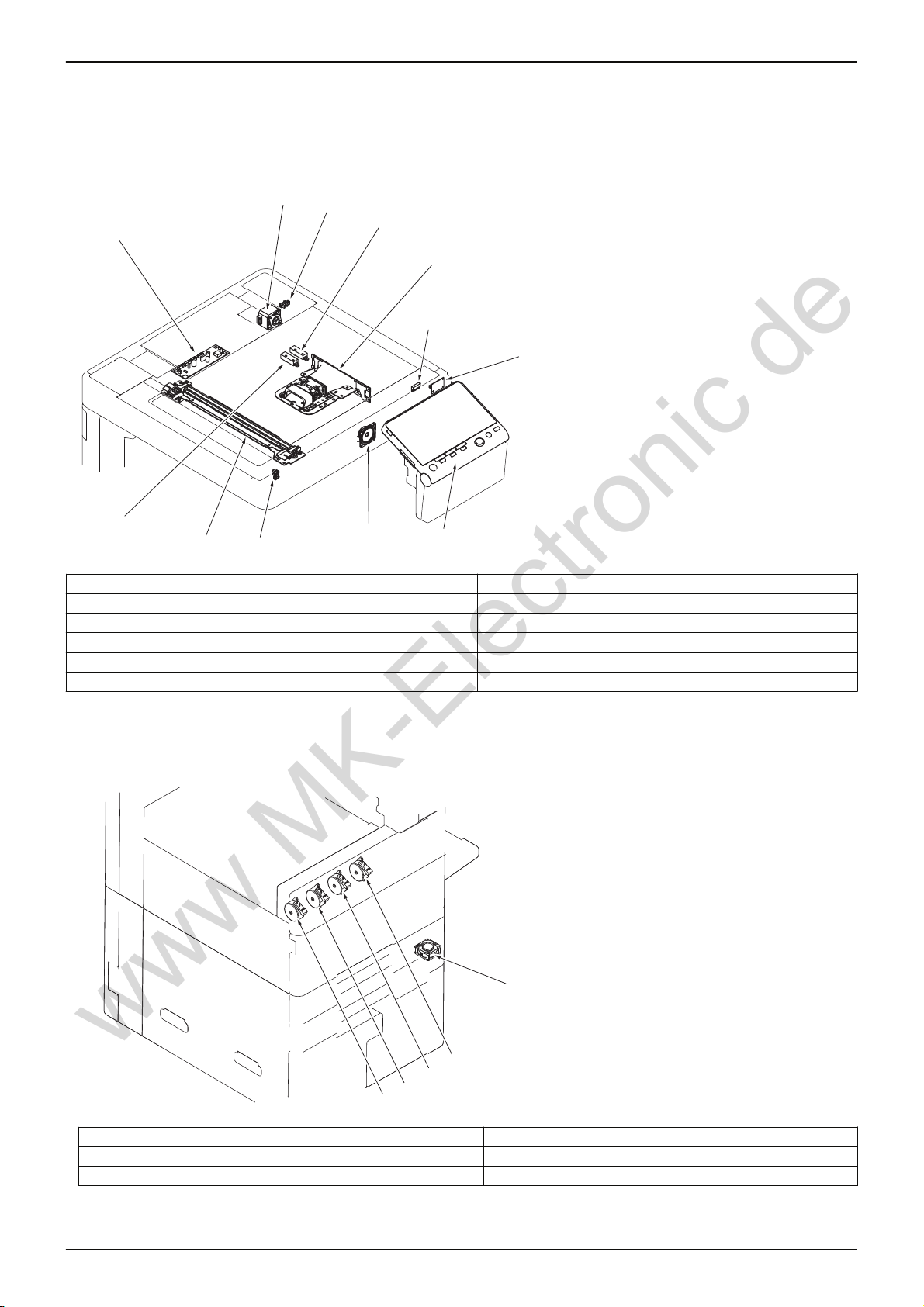

L PARTS/CONNECTOR LAYOUT DRAWING
1. PARTS LAYOUT DRAWING
EL]KXE&H&H
6FDQQHUVHFWLRQ
[7]
[8]
[2] [3]
[4]
[6]
[5]
[1]
[12]
[11] [10] [9]
[1] Scanner motor (M201) [2] Angle sensor (PS202)
[3] Original size sensor/2 (PS204) *1 [4] CCD board (CCDB)
[5] Original cover sensor (RS201) [6] USB board (USBB)
[7] Operation panel unit [8] Fax speaker (SP)
[9] Scanner home sensor (PS201) [10] LED exposure unit (LA201)
[11] Original size sensor/1 (PS203) [12] Scanner drive board (SCDB)
• *1: option
)URQWVLGH
/RDG

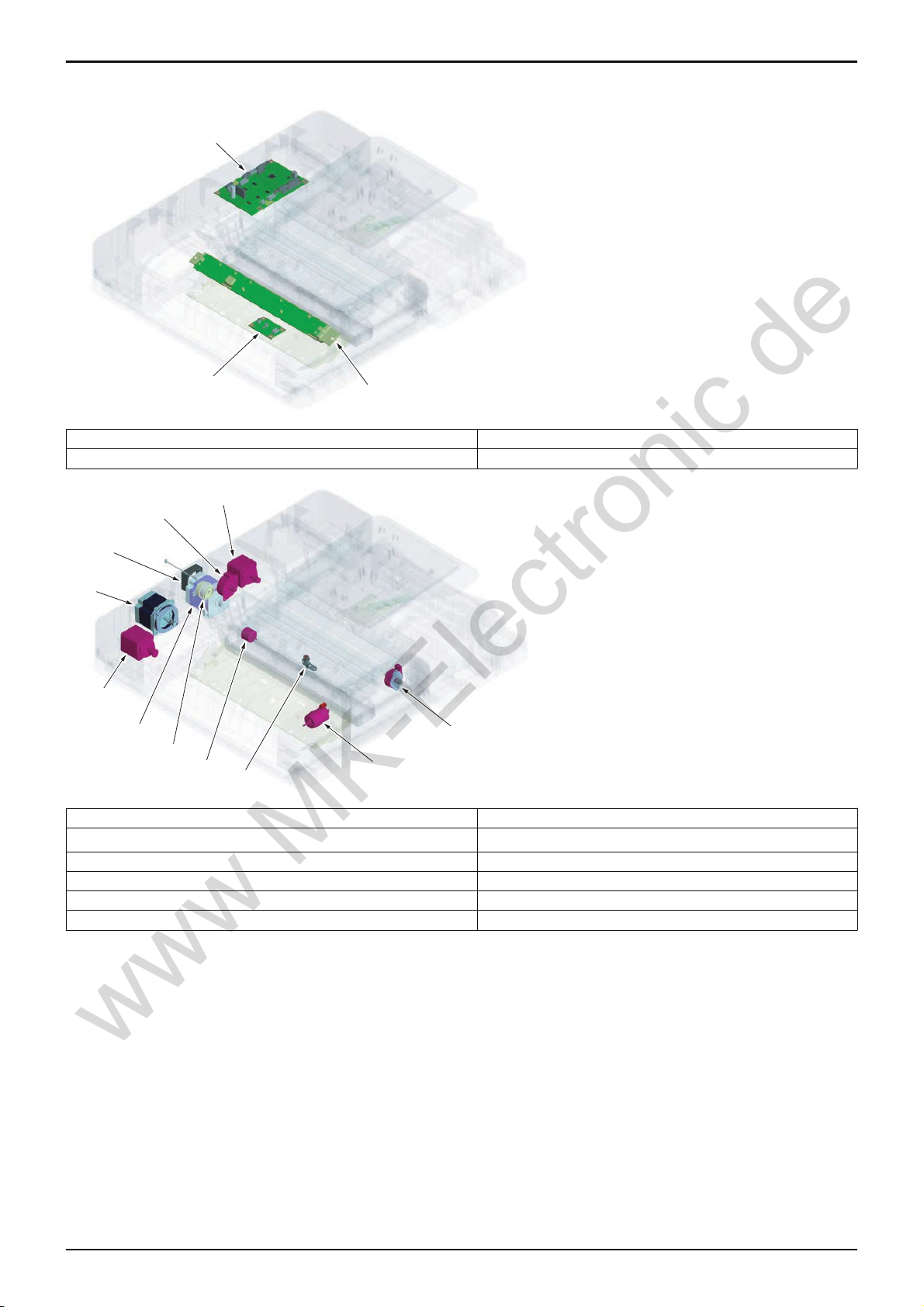

[1]
[2]
[3]
[4]
[5]
[1] IH power supply cooling fan (FM10) [2] Toner supply motor/K (M12)
[3] Toner supply motor/C (M11) [4] Toner supply motor/M (M10)
[5] Toner supply motor/Y (M9) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de

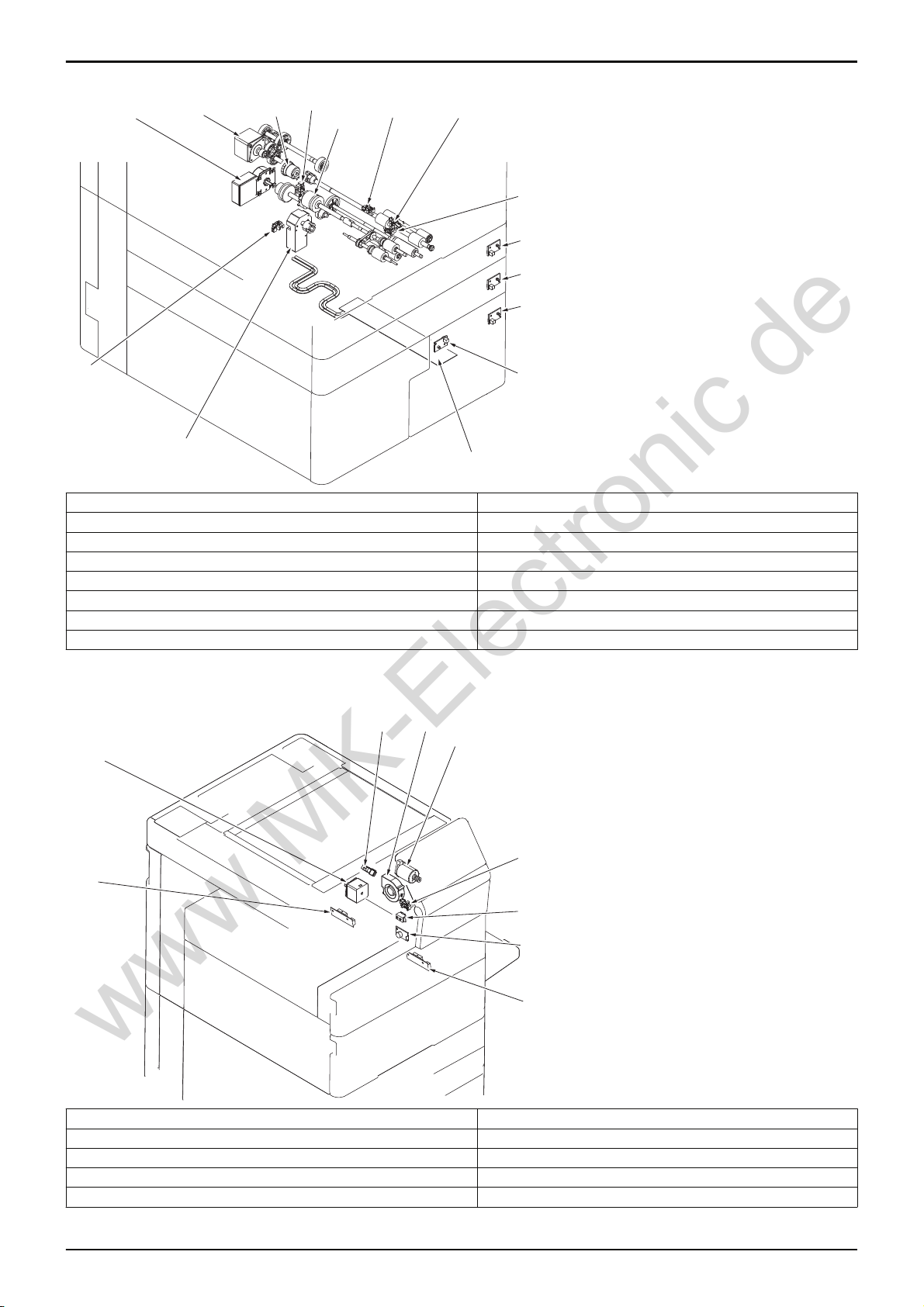

%RDUGVZLWFKVHQVRURWKHUV
[8]
[
7]
[1]
[2
]
[3]
[16]
[17]
[15]
[14]
[13]
[11]
[
10]
[9]
[12]
[4]
[5]
[6]
[1] IH power supply (IHPU) [2] IH magnetic erasing board (IHMEB)
[3] Main power switch (SW1) [4] Total counter (TCT) *
[5] Waste toner box set sensor (PS53) [6] Waste toner full sensor (PS54)
[7] Front bottom door switch (MS3) [8] Front upper door switch (RS1)
[9] Erase LED/Y (EL/Y) [10] Erase LED/M (EL/M)
[11] Erase LED/C (EL/C) [12] Erase LED/K (EL/K)
[13] Toner empty sensor/Y (RS/Y) [14] Toner empty sensor/M (RS/M)
[15] Toner empty sensor/C (RS/C) [16] Toner empty sensor/K (PZS/K)
[17] Machine condition monitor board (MCMB) - -
127(
-DSDQRQO\
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
%DFNVLGH
%RDUG
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[10]
[8]
[9]
[1] ERP board (ERPB) [2] Printer control board (PRCB)
[3] Dual scan image processing board (DSIPB) [4] Hard disk (HDD)
[5] DC power supply (DCPU) [6] Paper feed/transport drive board (PFTDB)
[7] SSD board (SSDB) [8] Memory board/1 (MEMB/1)
[9] CPU cooling fan (FM104) [10] MFP board (MFPB)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de
[1]
[2]
[3]
[4]
[5]
[1] High voltage unit/2 (HV2) [2] High voltage unit/3 (HV3)
[3] High voltage unit/1 (HV1) [4] Noise filter (NF1)
[5] Dehumidifier relay board (DEDB) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
/RDG
[11]
[12]
[14]
[15]
[17]
[16] [19]
[9]
[10]
[1]
[8]
[3]
[4]
[5]
[6]
[7]
[2]
[18]
[13]
[1] Paper cooling fan/out (FM2) [2] Transfer belt motor (M1)
[3] PC motor/K (M18) [4] Ozone ventilation fan (FM6)
[5] Developing motor/K (M19) [6] Charge cleaning motor/K (M15)
[7] MFP controller cooling fan (FM17) [8] PC motor/YMC (M16)
[9] DC power supply cooling fan (FM9) [10] IU cooling fan (FM15)
[11] Cleaning brush motor (M38) [12] Developing motor/YMC (M17)
[13] 1st transfer pressure motor (M21) [14] Toner cartridge motor/YM (M13)
[15] Toner cartridge motor/CK (M14) [16] Toner suction fan (FM7)
[17] IH coil cooling fan (FM3) [18] Toner bottle cooling fan (FM16)
[19] Paper cooling fan/in (FM13) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de

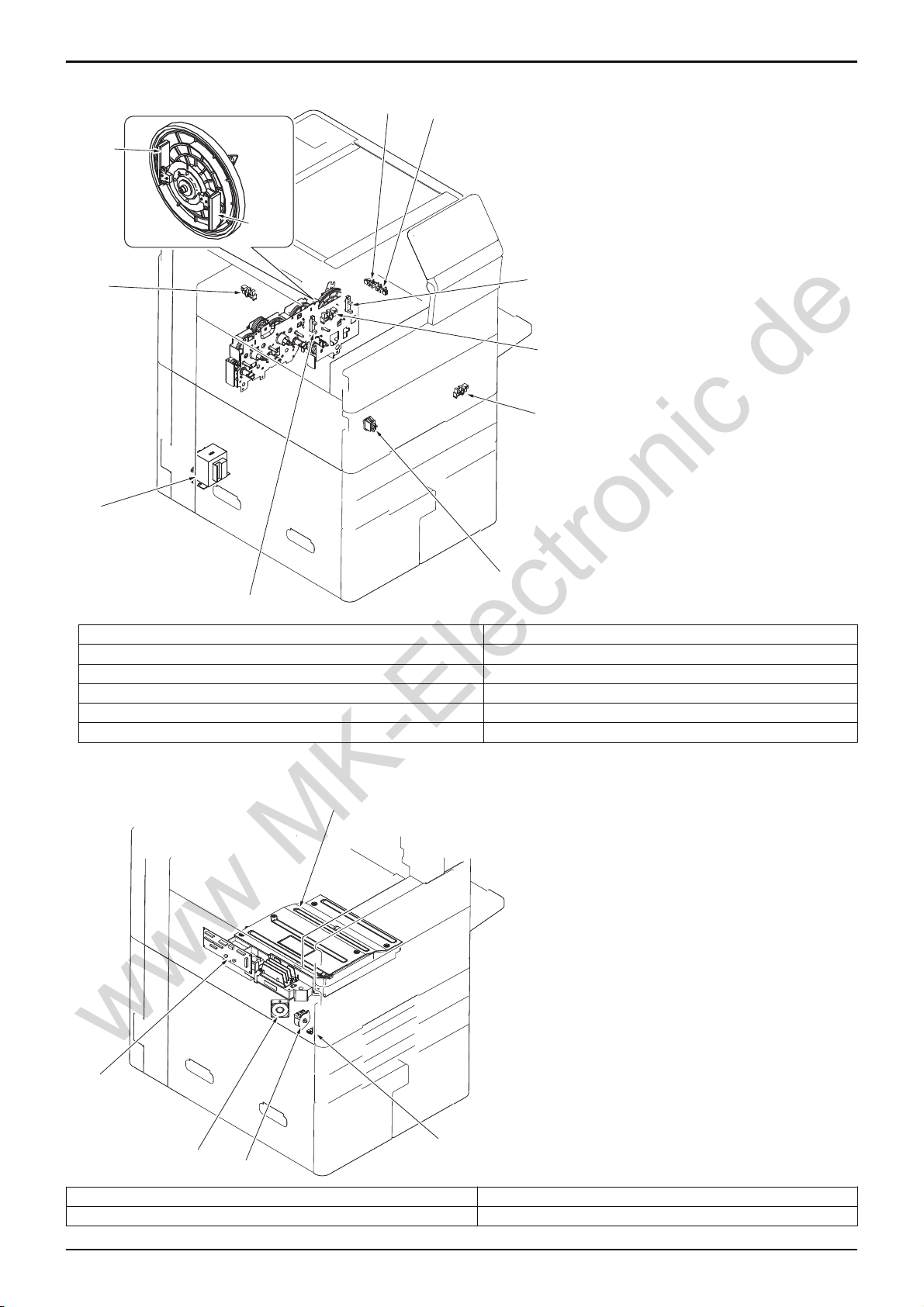

6ZLWFKVHQVRURWKHUV
[9]
[
8]
[1]
[2]
[3]
[4
]
[5
]
[6]
[7]
[10]
[11]
[1] Fusing loop sensor/Rr (PS42) [2] Fusing loop sensor/Fr (PS41)
[3] 1st transfer pressure sensor/K (PS51) [4] Charging cleaner home sensor (PS43)
[5] Charging cleaner return sensor (PS44) [6] Dehumidification heater switch (SW2)
[7] 1st transfer pressure sensor/YMC (PS52) [8] Dehumidifier heater transformer (T1)
[9] USB cover sensor (PS60) [10] Encoder sensor/K1 (PS45)
[11] Encoder sensor/K2 (PS46) - -
$URXQGWKHZULWHVHFWLRQ
[1]
[4] [3] [2]
[5]
[1] PH unit [2] Waste toner lock sensor (PS23)
[3] Waste toner transport motor (M20) [4] PH cooling fan (FM14)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
[5] PH relay board (PHRYB) - -
0DQXDOE\SDVVWUD\
[1] [2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[11]
[10]
[1] Bypass lift-up motor (M28) [2] Bypass paper feed motor (M27)
[3] Bypass sub tray set sensor (PS37) [4] Bypass FD size sensor/3 (PS33)
[5] Bypass FD size sensor/2 (PS32) [6] Bypass FD size sensor/1 (PS31)
[7] Bypass CD size VR (VR1) [8] Bypass set sensor (PS30)
[9] Bypass empty sensor (PS34) [10] Bypass upper limit sensor (PS35)
[11] Bypass lower limit sensor (PS36) - -
7UD\
[6]
[7]
[12]
[11]
[10]
[9]
[3] [4]
[1] [5]
[8]
[2]
[1] Tray 1 vertical transport motor (M5) [2] Tray 1 paper feed clutch (CL1)
[3] Tray 1 upper limit sensor (PS6) [4] Tray 1 vertical transport sensor (PS4)
[5] Tray 1 paper feed sensor (PS5) [6] Tray 1 paper empty sensor (PS2)
[7] Tray 1 near empty sensor (PS3) [8] Tray 1 FD paper size board (FDPSB/1)
[9] Tray 1 CD paper size board (CDPSB/1) [10] Tray 1 set sensor (PS1)
[11] Tray 1 lift-up motor (M6) [12] Take-up motor (M22)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de

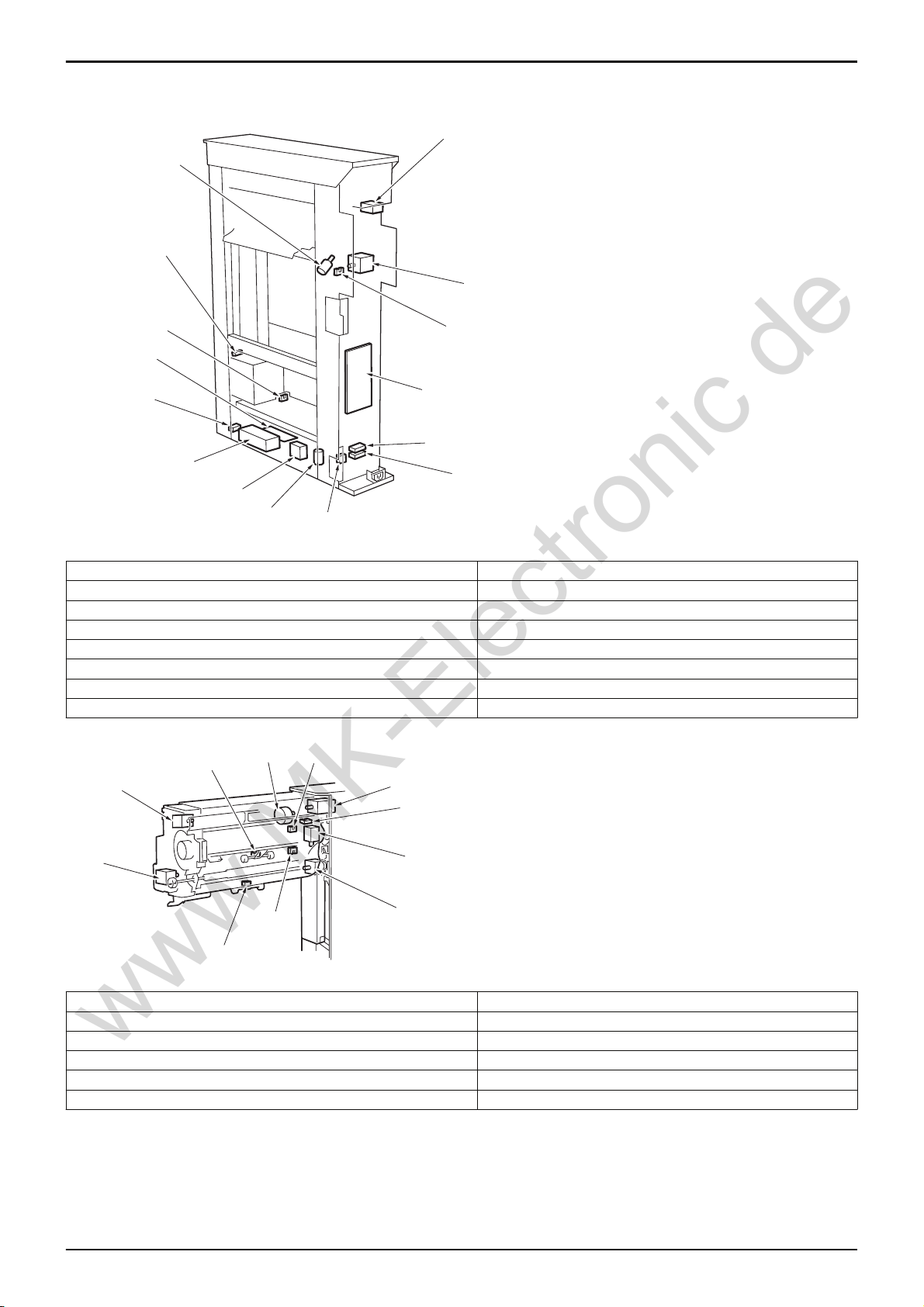

7UD\
[7]
[8]
[12]
[11]
[10]
[4] [5]
[1] [6]
[2]
[3]
[9]
[1] Tray 2 vertical transport motor (M7) [2] Tray 2 paper feed clutch (CL2)
[3] Right bottom door sensor (PS17) [4] Tray 2 upper limit sensor (PS14)
[5] Tray 2 vertical transport sensor (PS12) [6] Tray 2 paper feed sensor (PS13)
[7] Tray 2 paper empty sensor (PS10) [8] Tray 2 near empty sensor (PS11)
[9] Tray 2 FD paper size board (FDPSB/2) [10] Tray 2 CD paper size board (CDPSB/2)
[11] Tray2 set sensor (PS9) [12] Tray 2 lift-up motor (M8)
7UD\
[8]
[7] [6]
[9] [10][11] [1] [2]
[5]
[4]
[3]
[1] Tray 3 upper limit sensor (PS22) [2] Tray 3 paper empty sensor (PS19)
[3] LCC vertical transport sensor (PS28) [4] Horizontal transport sensor (PS29)
[5] Tray 3 paper feed sensor (PS21) [6] Tray 3 dehumidifier heater (DH1) *1
[7] Paper temperature sensor (TH8) [8] Tray 3 lift-up motor (M23)
[9] Tray 3 near empty sensor (PS20) [10] Tray 3 paper feed clutch (CL5)
[11] Tray 3 transport clutch (CL6) - -
• *1: Optional equipment (HT-508) only for North America and Europe.
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
7UD\
[13]
[11] [10]
[12]
[3]
[2]
[1]
[15]
[14] [4]
[5]
[6
]
[7
]
[8
]
[9]
[1] Horizontal transport set sensor (PS58) [2] Tray 4 paper feed clutch (CL7)
[3] Tray 4 upper limit sensor (PS27) [4] Tray 4 paper empty sensor (PS24)
[5] Tray 4 paper feed sensor (PS26) [6] Tray 1 paper empty indicator board (PEIB/1)
[7] Tray 2 paper empty indicator board (PEIB/2) [8] Tray 4 paper empty indicator board (PEIB/4)
[9] Tray 3 paper empty indicator board (PEIB/3) [10] Tray 4 dehumidifier heater (DH2) *1
[11] Tray 4 lift-up motor (M24) [12] Tray 4 near empty sensor (PS25)
[13] LCC transport motor (M25) [14] LCC vertical transport motor (M26)
[15] Horizontal transport clutch (CL3) - -
• *1: Optional equipment (HT-508) only for North America and Europe.

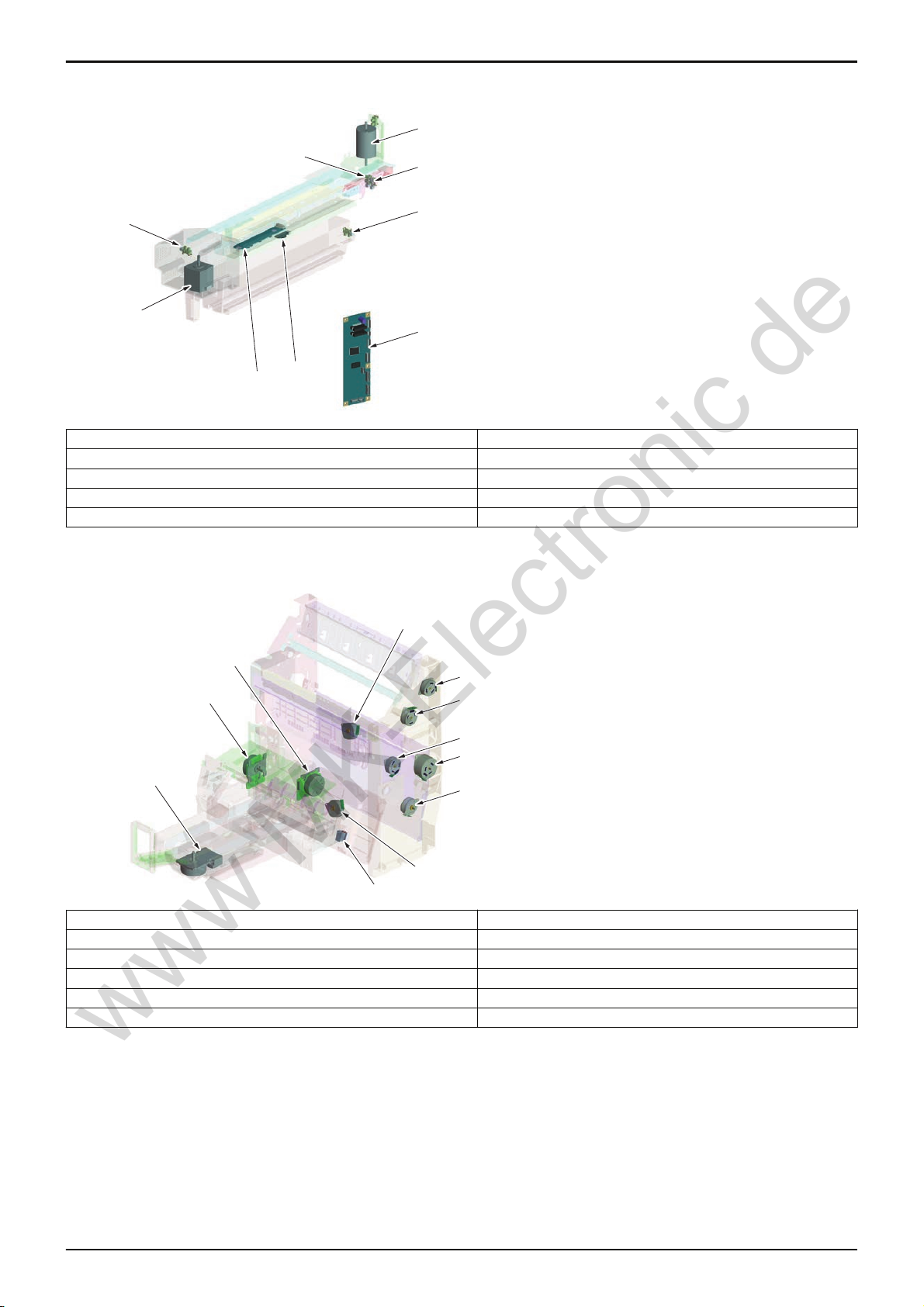

QGWUDQVIHUVHFWLRQ
[3]
[2]
[1]
[4]
[5]
[6
]
[7
]
[8]
[9]
[1] 2nd transfer pressure sensor (PS50) [2] Suction fan (FM1)
[3] 2nd transfer pressure motor (M3) [4] Registration sensor (PS38)
[5] OHP sensor (PS40) [6] Temperature/humidity sensor (TEM/HUMS)
[7] IDC sensor/Fr (IDCS/Fr) [8] IDC sensor/Rr (IDCS/Rr)
[9] Registration motor (M2) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de
'XSOH[VHFWLRQ
[5]
[4]
[3]
[1]
[2]
[1] ADU paper passage sensor/1 (PS47) [2] ADU paper passage sensor/2 (PS48)
[3] ADU transport motor/2 (M32) [4] ADU door sensor (PS49)
[5] ADU transport motor/1 (M31) - -

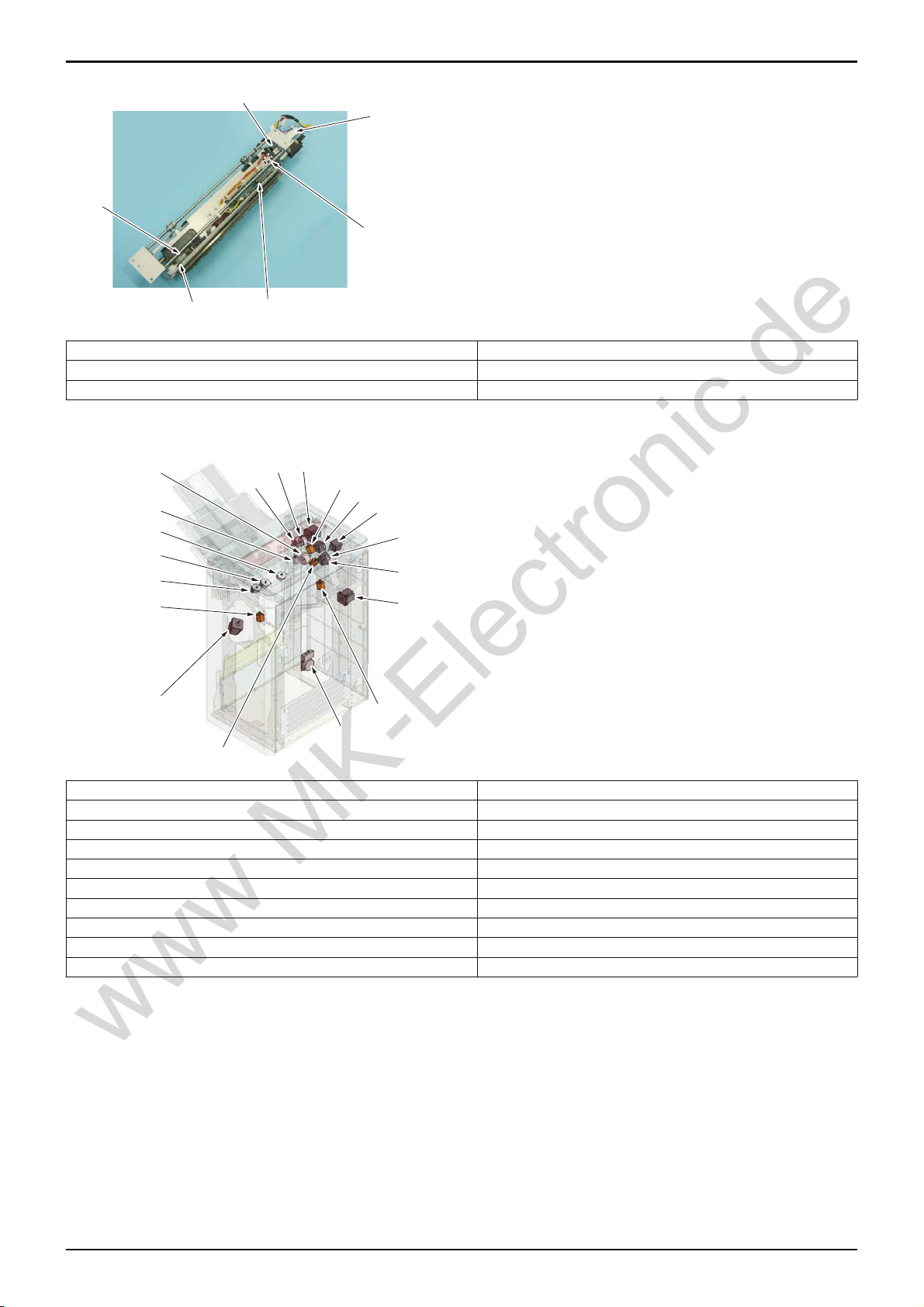

)XVLQJSDSHUH[LWVHFWLRQ
[11]
[10]
[9]
[13]
[12]
[15]
[14] [1] [2]
[3]
[5
]
[4]
[6
]
[7]
[8]
[1] Switchback paper cooling fan (FM4) [2] Heating roller temperature sensor (TEMS2)
[3] IH coil (FH1) [4] Paper exit sensor (PS39)
[5] Gate switch solenoid (SD1) [6] Heating roller rotation sensor (PS56)
[7] Fusing pressure home sensor (PS55) [8] Tucking fan/Fr (FM103) *1
[9] Tucking fan/Md (FM101) *1 [10] Tucking fan/Rr (FM102) *1
[11] Fusing pressure motor (M29) [12] Right upper door switch (MS2)
[13] Fusing motor (M30) [14] Exit motor (M4)
[15] Switchback motor (M33) - -
• *1: Only when the output tray OT-503 is mounted.
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
')
[1]
[2]
[3]
[1] DF control board (DFCB) [2] CIS module (CIS)
[3] DF power supply (DFPU) - -
[7]
[8]
[2]
[1]
[3]
[6]
[4]
[5]
[10] [11]
[9]
[1] Front side cleaning motor (M8) [2] Reading roller pressure/retraction motor (M6)
[3] Stamp solenoid (SD1) * [4] Lift-up motor (M5)
[5] Take-up clutch (CL1) [6] Take-up motor (M2)
[7] Registration motor (M3) [8] Reading motor (M1)
[9] Take-up motor cooling fan (FM1) [10] Back side cleaning motor (M7)
[11] Exit motor (M4) - -
• *: Option
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de

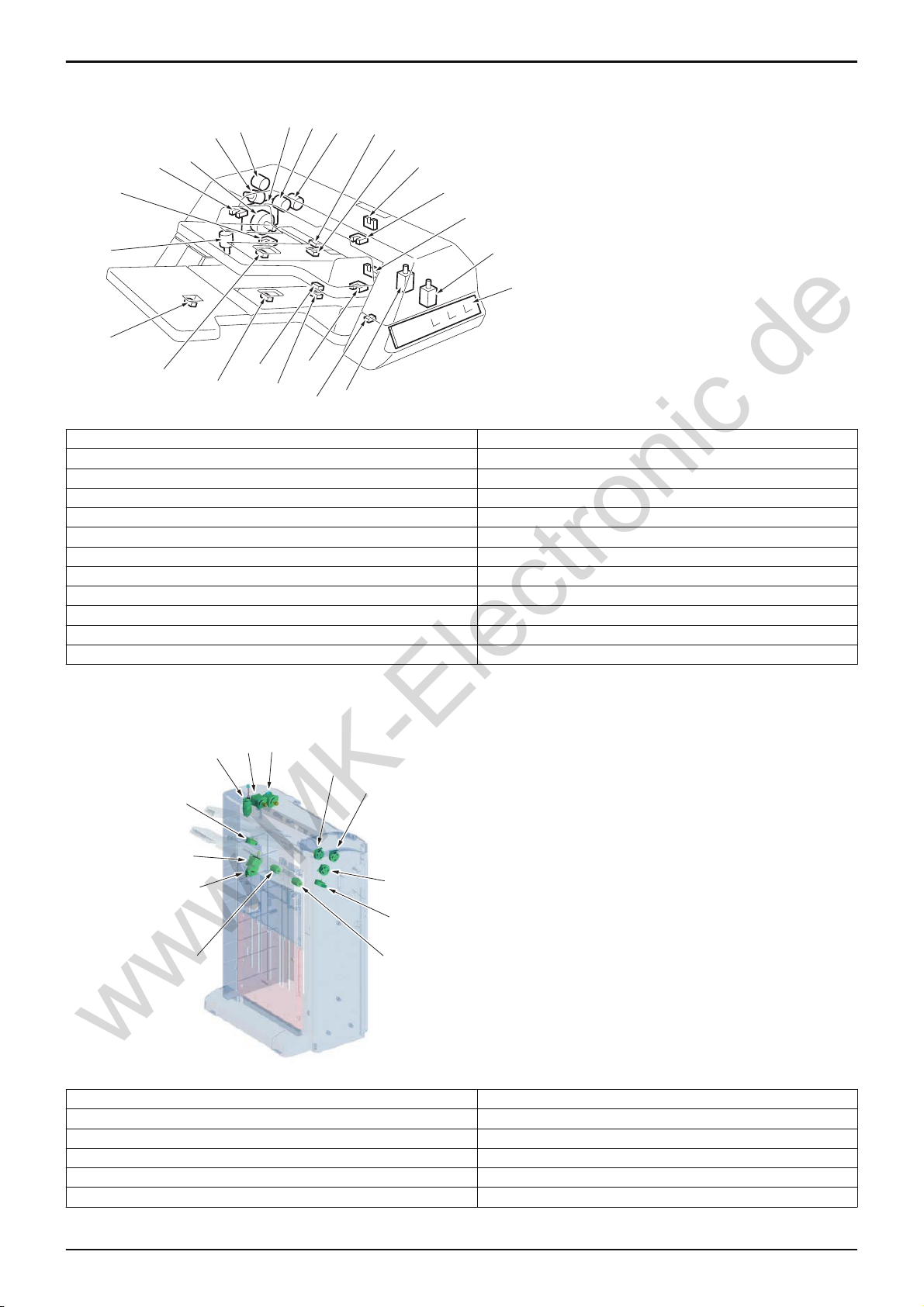

[10]
[20]
[7]
[5]
[23] [1] [2]
[3]
[4]
[6]
[8]
[9]
[12]
[13]
[14]
[15]
[16]
[17]
[22]
[18]
[19]
[11]
[21]
[1] Length sensor/1 (PS10) [2] Length sensor/3 (PS12)
[3] Length sensor/2 (PS11) [4] Restriction plate positional volume (VR1)
[5] Lift up upper sensor (PS2) [6] Empty sensor (PS1)
[7] Front side cleaning home sensor (PS18) [8] Lift up lower sensor (PS3)
[9] CIS under guide open/close sensor (PS20) [10] Read roller home sensor (PS8)
[11] Exit sensor (PS7) [12] Consolidation sensor/3 (PS15)
[13] Consolidation sensor/2 (PS14) [14] Consolidation sensor/1 (PS13)
[15] Before read sensor (PS6) [16] Different width registration sensor (PS22)
[17] Registration sensor (PS5) [18] Left Cover open/close sensor (PS16)
[19] Conveyance sensor (PS21) [20] Back side cleaning home sensor (PS9)
[21] Feed open/close sensor (PS19) [22] After separate sensor (PS4)
[23] Original set sensor (PS17) - -

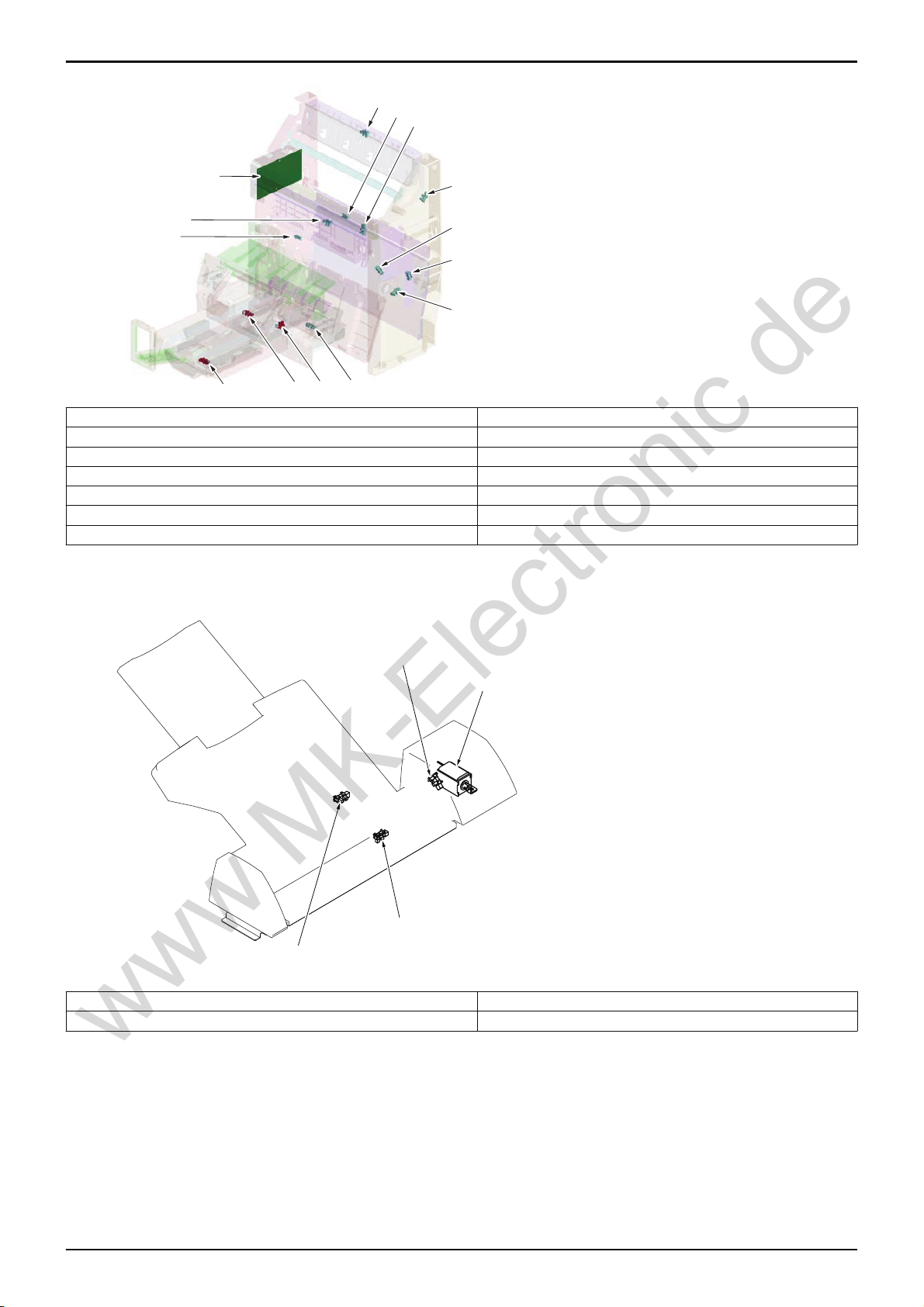

/82SWLRQ
[1]
[3]
[2]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12] [13]
[14]
[1] LU door switch (MS1) [2] Near empty sensor /2 (PS6)
[3] Paper empty sensor (PS4) [4] Tray LED (LED)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
[5] Dehumidification heater (DH) [6] Tray set sensor/2 (PS7)
[7] Paper feed sensor (PS3) [8] Upper limit sensor (PS2)
[9] Tray set sensor/1 (PS1) [10] Lift-up motor (M1)
[11] Paper feed motor (M2) [12] Transport motor (M3)
[13] LU drive board (LUDB) [14] Near empty sensor /1 (PS5)
/82SWLRQ
[1] [2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12] [13]
[1] LU door switch (MS1) [2] Near empty sensor /2 (PS6)
[3] Paper empty sensor (PS4) [4] Tray LED (LED)
[5] Dehumidification heater (DH) [6] Paper feed sensor (PS3)
[7] Upper limit sensor (PS2) [8] Tray set sensor (PS1)
[9] Lift-up motor (M1) [10] Paper feed motor (M2)
[11] Transport motor (M3) [12] LU drive board (LUDB)
[13] Near empty sensor /1 (PS5) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de
=82SWLRQ
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[13]
[12]
[14]
[15]
[1] Main motor cooling fan (FM601) [2] Punch shift motor (M605)
[3] Punch shift home sensor (PS605) [4] ZU control board (ZUCB)
[5] Circuit breaker/2 (CBR2) [6] Circuit breaker/1 (CBR1)
[7] Power relay (RY1) [8] Noise filter (NF1)
[9] Coil (COIL) [10] DC power supply/1 (DCPU1)
[11] Door switch (MS602) [12] DC power supply/2 (DCPU2)
[13] Punch scraps box set sensor (PS607) [14] Punch scraps full sensor (PS608)
[15] Punch scraps conveyance motor (M607) - -
[4]
[3]
[2]
[1]
[11]
[10]
[9]
[5]
[6]
[7]
[8]
[1] Main motor (M606) [2] Conveyance encoder sensor (PS610)
[3] Gate solenoid/Lw (SD601) [4] Registration motor (M601)
[5] 2nd folding stopper home sensor (PS604) [6] Exit sensor (PS609)
[7] 2nd folding stopper motor (M603) [8] Gate solenoid/Up (SD602)
[9] Conveyance sensor (PS601) [10] 1st folding stopper motor (M602)
[11] 1st folding stopper home sensor (PS603) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
[1]
[2]
[3]
[4]
[5]
[6]
[1] Punch motor (M604) [2] Punch home sensor (PS606)
[3] Paper size detect board (PSDTB) [4] Punch switchover switch (MS601)
[5] Punch switchover motor (M608) [6] Punch clutch (CL601)
)62SWLRQ
[1][2][3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[16] [17]
[18] [19]
[15]
[1] Sub tray switching gate solenoid (SD3) [2] Bypass transport motor (M3)
[3] 2nd transport motor (M2) [4] Stacker transport motor (M10)
[5] Trailing edge paddle up/down motor (M15) [6] 1st transport motor (M1)
[7] Center staple switching gate solenoid (SD1) [8] Main tray up/down motor (M5)
[9] Bypass switching gate solenoid (SD2) [10] Stapler movement motor (M13)
[11] Switchback gate solenoid (SD4) [12] Alignment plate motor/Fr (M11)
[13] Alignment plate motor/Rr (M12) [14] Trailing edge stopper motor (M19)
[15] Stacker plate drive motor (M17) [16] Paddle motor (M16)
[17] Exit roller motor (M4) [18] Leading edge paddle up/down motor (M18)
[19] Paper output roller motor (M6) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de
[1] [2] [3] [4][5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[24]
[23]
[25]
[
26] [27] [28]
[29]
[30] [31]
[32]
[1] Shutter open/close switch (SW2) [2] Leading edge paddle home sensor (PS16)
[3] Paper output roller home sensor (PS10) [4] Trailing edge paddle home sensor (PS20)
[5] Trailing edge stopper standby sensor/2 (PS42) [6] Trailing edge paddle sensor (PS19)
[7] Stapler position sensor/1 (PS50) [8] PK punch scraps box set sensor (PS304)
[9] FS control board (FSCB) [10] FNS Entrance sensor (PS1)
[11] Z-fold punch regist sensor (PS2) [12] SD exit sensor (PS12)
[13] Main tray lower limit sensor (PS5) [14] Trailing edge stopper standby sensor/1 (PS23)
[15] FNS door open/close switch (SW1) [16] Stapler position sensor/2 (PS51)
[17] Trailing edge stopper home sensor (PS22) [18] Stapler position sensor/4 (PS53)
[19] Stapler position sensor/3 (PS52) [20] Alignment plate motor home sensor/Fr (PS17)
[21] Main tray upper limit sensor/in (PS44) [22] Staple paper exit top surface sensor (PS7)
[23] Stacker plate home sensor (PS11) [24] Shutter open/close sensor (PS24)
[25] Staples stacker empty sensor (PS15) [26] Stacker entrance sensor (PS3)
[27] Main tray top surface sensor (PS4) [28] Alignment plate motor home sensor/Rr (PS18)
[29] Sub tray full sensor (PS9) [30] Sub tray exit sensor (PS8)
[31] Main tray upper limit sensor/out (PS45) [32] Main tray empty sensor (PS6)
[1]
[2]
[3]
[4]
[1] RU transport sensor (PS60) [2] RU door open/close sensor (PS61)
[3] RU transport motor (M35) [4] RU control board (RUCB)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
3.2SWLRQ
[1]
[2]
[4]
[3]
[5]
[6]
[7]
[8]
[9]
[1] Punch drive motor (M301) [2] PK punch hole position sensor/1 (PS307)
[3] PK punch scraps box set sensor (PS304) [4] Punch control board (PKCB)
[5] PK punch hole scraps box full sensor (PS302) [6] Paper size detect board (PSDTB)
[7] Punch oscillating motor (M302) [8] PK punch home sensor (PS303)
[9] PK punch hole position sensor/2 (PS301) - -
6'2SWLRQ
[1]
[2]
[3]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[4]
[1] Alignment motor (M3) [2] SD transport motor (M1)
[3] Paper receiving guide control motor (M2) [4] Tri-fold guide motor (M6)
[5] Center fold change motor (M8) [6] SD paddle motor (M7)
[7] Stopper drive motor (M4) [8] Stopper solenoid (SD1)
[9] Paper transport belt motor (M34) [10] Center fold roller motor (M5)
[11] Center fold knife motor (M9) - -
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de
[1][2][3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[1] SD entrance sensor (PS1) [2] Stacker paper sensor (PS3)
[3] Alignment home sensor (PS4) [4] Paper receiving guide home sensor (PS2)
[5] Center fold change gate home sensor (PS11) [6] Tri-fold guide home sensor (PS7)
[7] Paddle home sensor (PS5) [8] Stopper home sensor (PS6)
[9] SD exit full sensor (PS35) [10] SD exit tray lift sensor (PS43)
[11] SD exit tray limit sensor (PS41) [12] SD exit sensor (PS12)
[13] Center fold home sensor (PS8) [14] SD drive board (SDDB)
-62SWLRQ
[1]
[2]
[3]
[4]
[1] 3rd Entrance switching solenoid (SD401) [2] Job tray paper exit sensor (PS402)
[3] Job tray full sensor (PS403) [4] Job tray cover sensor (PS401)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Service Manual Y117760-6
www MK-Electronic de
3,2SWLRQ
[1][2] [3] [4][5] [6] [7][8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21] [22][23] [24]
[1] PI drive board (PIDB) [2] Transfer clutch /Lw (CL202)
[3] Registration clutch (CL203) [4] Paper empty sensor /Up (PS202)
[5] Paper size VR /Up (VR201) [6] Paper entrance sensor /Up (PS201)
[7] Tray upper limit sensor /Up (PS204) [8] Paper entrance sensor /Lw (PS206)
[9] Pick-up solenoid /Lw (SD202) [10] PI control board (PIOB)
[11] Pick-up solenoid /Up (SD201) [12] Upper door open/close switch (MS205)
[13] Tray upper limit sensor /Lw (PS209) [14] Paper size VR /Lw (VR202)
[15] Paper empty sensor /Lw (PS207) [16] Paper set sensor /Lw (PS208)
[17] Paper set sensor /Up (PS203) [18] L size sensor /Lw (PS212)
[19] Tray lift motor /Lw (M202) [20] Tray lower limit sensor /Lw (PS210)
[21] Tray lower limit sensor /Up (PS205) [22] Transfer motor (M203)
[23] Tray lift motor /Up (M201) [24] Transfer clutch /Up (CL201)
)62SWLRQ
[1] [4] [5]
[2]
[6]
[7]
[3]
[8]
[9]
[10]
[11]
[12]
[1] Main tray up/down motor (M11) [2] FNS discharge motor (M3)
[3] FNS entry transport motor (M2) [4] FNS paddle motor (M5)
[5] Receving roller retraction motor (M4) [6] Trailing edge stopper motor (M6)
[7] Alignment motor/Front (M7) [8] Bundle eject motor (M10)
[9] Pre-eject drive motor (M9) [10] Paper receiving control motor (M12)
[11] Side stapler movement motor (M13) [12] Alignment motor/Rear (M8)
d-Color MF752Plus/MF652Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT
DRAWING
/
Y117760-6 Service Manual
www MK-Electronic de
This manual suits for next models
1
Table of contents
Other Olivetti Copier manuals
Olivetti
Olivetti d-Copia 1800MF User manual
Olivetti
Olivetti d-Copia 284MF User manual
Olivetti
Olivetti d-Color MF2552 plus User manual
Olivetti
Olivetti d-Copia 12 User manual
Olivetti
Olivetti AR-NC7 User manual
Olivetti
Olivetti d-Copia 52 User manual
Olivetti
Olivetti DP-670 User manual
Olivetti
Olivetti d-Copia 1800 User manual
Olivetti
Olivetti d-Color MF364 User manual
Olivetti
Olivetti d-Copia 5200MF User manual
Olivetti
Olivetti d-Copia 16 User manual
Olivetti
Olivetti d-COLOR MF222plus User manual
Olivetti
Olivetti PF-680 User manual
Olivetti
Olivetti FAX System M-New User manual
Olivetti
Olivetti D-COPIA 120D User manual
Olivetti
Olivetti d-Copia 23 Setup guide
Olivetti
Olivetti d-Color MF920 User manual
Olivetti
Olivetti DP-700 User manual
Olivetti
Olivetti d-Copia 6500MF Plus User manual
Olivetti
Olivetti d-Color MF2613 Plus User manual
