Olympus SZX2-ILR66 User manual

INSTRUCTIONS
LED FOUR-PART RING
ILLUMINATOR SYSTEM
A X 7 5 5 9
This instruction manual is for the Olympus LED Four-Part Ring Illuminator System. To ensure safety,
obtain optimum performance, familiarize yourself fully with the use of this equipment, we recommend
that you study this manual thoroughly before operating the microscope.
Retain this instruction manual in an easily accessible place near the work desk for future reference.
Optional Module
SZX2-ILR66
SZX2-RHS
Optical Microscope Accessory

For Korea only
ࣾ匏ࣜ匶匶ࣜࣜࣤ儆洛殯ࣜ愯暧皻柦匶沖沲ࣥ
決ࣜ匶匶垚ࣜ儆洛殯ࣤࣾ匏ࣥࣜ洊沖砒洇穯匶匶嵢昢ࣜ渂嵢ࣜ儆洛櫖昢ࣜ斲殯穞垚ࣜ冉汊
徯洇求嵢ࣜ穞彶ࣨࣜ微姦ࣜ滆櫳櫖昢ࣜ斲殯穦ࣜ朞ࣜ沎枻城埪࣪
NOTE: This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated
in a commercial environment. This product generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this product in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the product.

CONTENTS
LED FOUR-PART RING ILLUMINATOR SYSTEM
Page
IMPORTANT — Be sure to read this chapter for safe use of the equipment. — 1-4
1 SYSTEM CHART 5
2 NOMENCLATURE 6
3 ASSEMBLY 7-10
1Attaching the LED Four-Part Illuminator SZX2-ILR66 ...................................................................................................................... 7-9
2Attaching the Cable and Power Cord..................................................................................................................................................................... 10
4 OPERATION 11
1Adjusting the Brightness ............................................................................................................................................................................................................ 11
2Using the Control Buttons of the Hand Switch ......................................................................................................................................... 12
3Illumination Performance Per Objective and Microscope .............................................................................................. 13-15
5 SPECIFICATIONS 16,17
PROPER SELECTION OF THE POWER SUPPLY CORD ................................................................................................................. 18-21

1
IMPORTANT
SAFETY PRECAUTIONS
1. Always use the power cord provided by Olympus.
2. Always ground the SZX2-RHS Hand Switch.
3. The SZX2-RHS Hand Switch incorporates high-voltage parts inside. Do not open the cover of this unit to prevent electric
shock.
4. Do not connect the SZX2-RHS Hand Switch for LED Four-Part Ring Illuminator to any devices other than the SZX2-ILR66
LED Four Part Ring Illuminator.
Notes on the LED (Light Emitting Diode) Safety
The LED built into the SZX2-ILR66 LED Four-Part Ring Illuminator is basically safe but it is discommended to stare at the
light from the LED Four-Part Ring Illuminator for a long period as this could damage your eye.
Safety Symbols
The following symbols are found on the SZX2-RHS Hand Switch. Study the meaning of the symbols, and always use the
equipment in the safest possible manner.
Symbol Explanation
Before use, carefully read the instruction manual.
Improper use could result in personal injury to the user and/or damage to the equipment.
Indicates that the main switch is ON.
Indicates that the main switch is OFF.

2
LED FOUR-PART RING ILLUMINATOR SYSTEM
1Getting Ready
1. The LED Four-Part Ring Illuminator System is a precision instrument. Handle it with care and avoid subjecting it to sudden
or severe impact.
2. Do not use the LED Four-Part Ring Illuminator System where it may be subjected to direct sunlight, high temperatures and
humidity, dust or vibrations (for the operating environment, see Chapter 5, “SPECIFICATIONS” on page 17).
3. Applicable microscopes are as follows.
SZX16
SZX10/7: Use the SZX-LGR66 adapter.
SZ61/51 series: Use the SZ-LGR66 adapter.
MVX10: Use the SZX-LGR66 adapter.
STM6 series Use the SZX-LGR66 adapter.
4. The full illumination performance cannot be manifested when an optional auxiliary objective for the SZ61/51 series or a
low-power objective for the SZX16/10 is used (see pages 13,14 for details).
5. Take the following care when using the STM6 series because measurement accuracy is affected even by slight heat
generation of the LED.
If he intensity of the illumination is expected to be changed widely (minimum maximum) when the measurement is
going to take long, keep the illumination in the maximum condition for about an hour before using the system.
6. Variance in phase may be produced due to variance of individual LEDs.

3
2Maintenance and Storage
1. Clean the lens components by blowing dirt away with a commercially available blower and then wiping lightly with a
piece of cleaning paper (or freshly washed clean gauze). To remove fingerprints or oil smudges, wipe with cleaning paper
slightly moistened with commercially available absolute alcohol.
Since the absolute alcohol is highly flammable, it must be handled carefully. Be sure to keep it away from open
flames or potential sources of electrical sparks --- for example, electrical equipment that is being switched on or
off. Also remember to always use it only in a well-ventilated room.
2. Do not use organic solvents to clean the non-lens components. If smudges are difficult to clean, wipe them with a soft
cloth slightly moistened with a diluted neutral detergent.
3. Never disassemble any part of the system as this could cause malfunctions or reduced performance.
4. When disposing of this system, be sure to follow your local regulations or ordinances.
3Caution
If the system equipment is used in a manner not specified by this manual, the safety of the user may be imperiled. In
addition, the equipment may also be damaged. Always use the equipment as outlined in the instruction manual.
The following symbols are used to set off text in this instruction manual.
: Indicates that failure to follow the instructions in the warning could result in bodily harm to the
user and/or damage to equipment (including objects in the vicinity of the equipment).
#: Indicates that failure to follow the instructions could result in damage to the equipment.
}: Indicates commentary (for ease of operation and maintenance).

4
LED FOUR-PART RING ILLUMINATOR SYSTEM

5
SYSTEM CHART
SZX16
SZX10
SZX7
MVX10 STM 6 series*1SZ61/51 series
(Auxiliary lens:
Only 10AL0.62X,
110AL0.75X or
110AL1.5X can
be mounted.)
Ring Guide
Adapter for SZX
SZX-LGR66
Ring Guide
Adapter for SZ
SZ-LGR66
LED Four-Part Ring
Illuminator
SZX2-ILR66
Hand Switch For
LED Four-Part Ring
Illuminator
SZX2-RHS
}When the SZX7 and SZ2-ILST are used in combination with this system, the following objectives cannot be used:
DFPL0.5X-4, DFPL0.75X-4, DFPLAPO1X-4, SZX-ACH1X, SZX-ACH1.25X-2.
}When an SZ61/SZX7 series microscope is used with this system, the SZ2-ET cannot be used.
*1When the MM6-VL/MM6C-VL vertical illumination arm is used with the STM6 series, the SZX-LGR66 ring light guide
adapter is required for mounting.

6
LED FOUR-PART RING ILLUMINATOR SYSTEM
NOMENCLATURE
LED Four-Part Ring Illuminator
SZX2-ILR66
Mounting screws
LED irradiation surface
(Four-part illumination capable)
Connector
Hand Switch for LED Four-Part Ring Illuminator
SZX2-RHS
Full ring illumination
button (P. 12)
Indicators
Light intensity control buttons
: Brighten.
: Darken
Oblique illumination button (P. 12)
Illuminating part rotation button (P. 12)
Illuminating part reverse
rotation button (P. 12)
Main switch
Illuminating part select
buttons (P.12)
Four-parted ON-OFF buttons
(The buttons corresponding
to the current illuminating
part light up.)

7
ASSEMBLY
1Attaching the LED Four-Part Illuminator SZX2-ILR66
}An adapter is required for mounting on a microscope other than the SZX16.
}Attach the SZX2-ILR66 illuminator so that the cable comes on the rear part.
Otherwise, the actual illuminating parts of the SZX2-ILR66 will not match
the illuminating parts selected with the illuminating part select buttons of
the SZX2-RHS hand switch.
Fig. 1

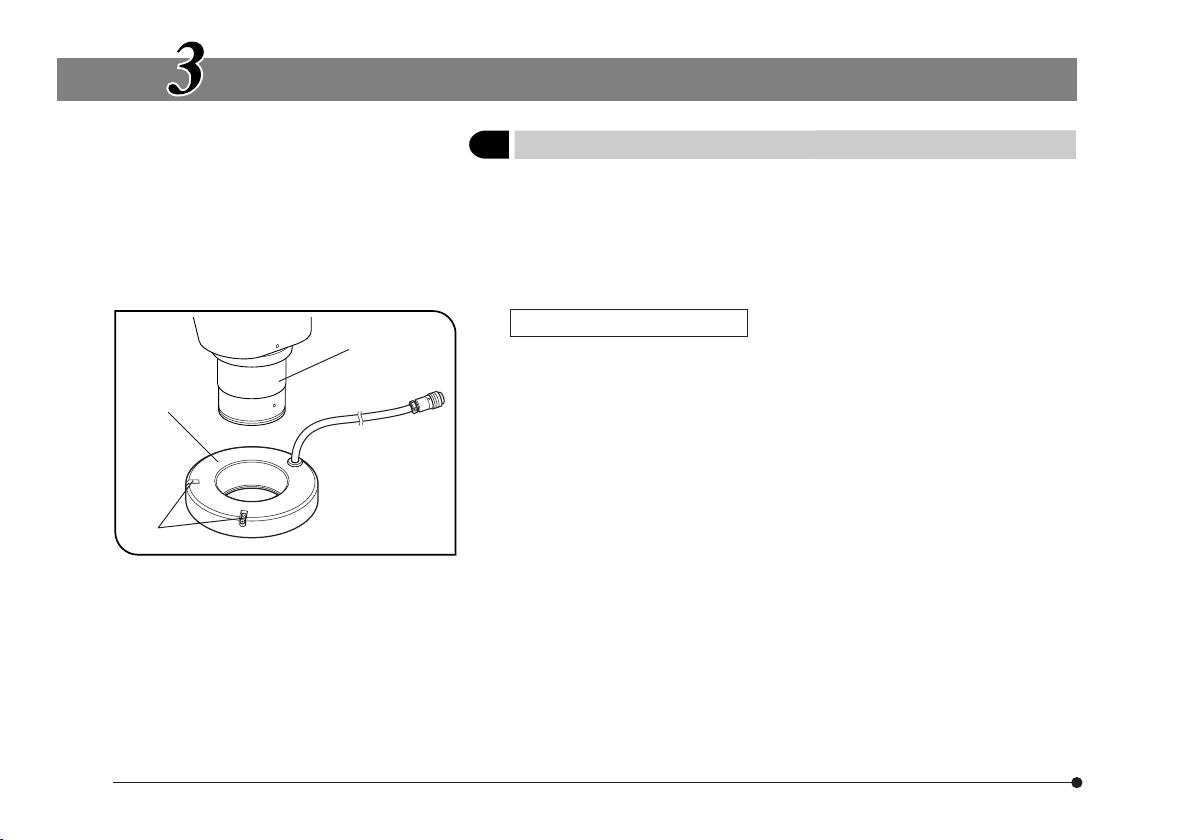

Mounting on SZX16 (Fig. 1)
1. Using the Allen screwdriver provided with the microscope, loosen the two
clamping screws ² on the SZX2-ILR66 illuminator @.
2. Fit the SZX2-ILR66 @ all the way into the objective ³ of the SZX16 and
tighten the clamping screws ² using the Allen screwdriver.
@
²
³

8
LED FOUR-PART RING ILLUMINATOR SYSTEM

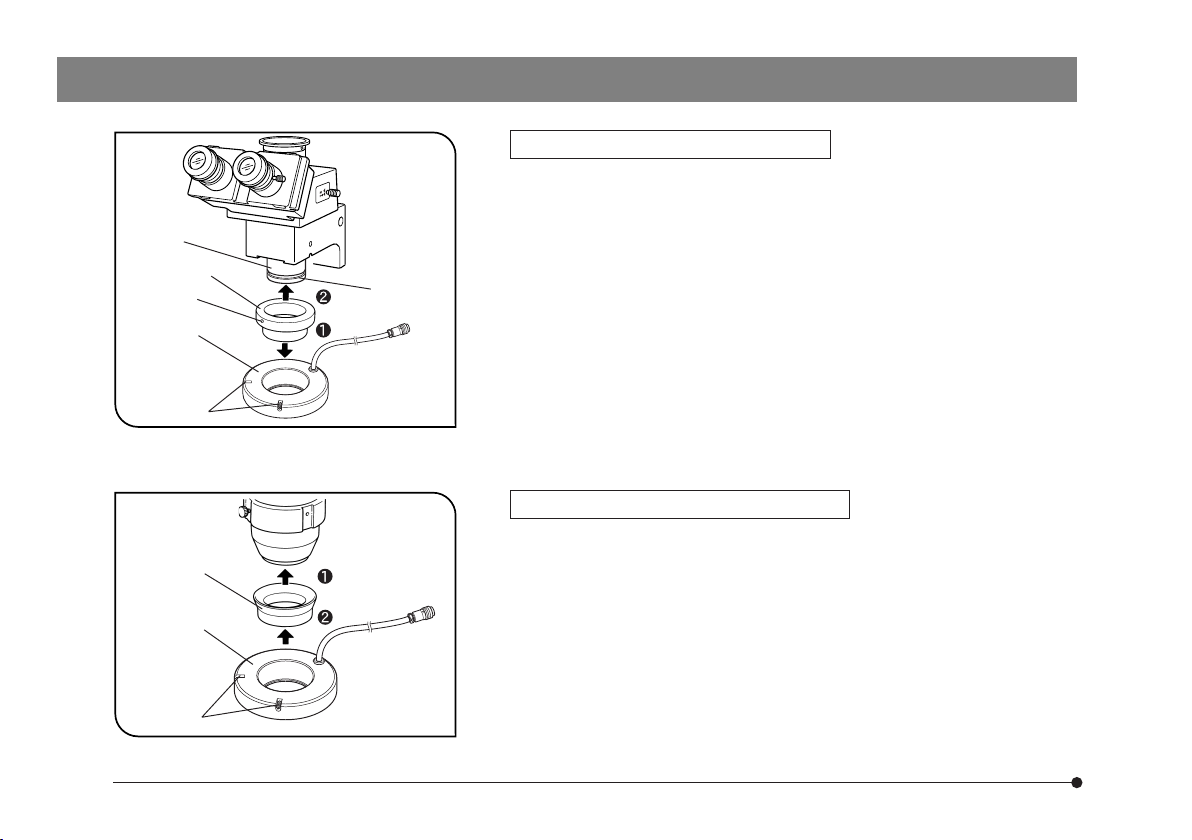

Mounting on SZX10/7 or MVX10 (Fig. 2)
1. Using the Allen screwdriver provided with the microscope, loosen the two
clamping screws ² on the SZX2-ILR66 illuminator @.
2. Insert the SZX-LGR66 ring light guide adapter ³ all the way into the SZX2-
ILR66 @ and tighten the clamping screws ² using the Allen screwdriver.
3. Loosen the clamping screw | on the SZX-LGR66 ³ using the Allen
screwdriver.
4. Fir the SZX-LGR66 ³ into the objective ³ of the SZX10/7 or MVX10 until
the front tip of the SZX-LGR66 ³ is aligned with that of the objective 5,
and tighten the clamping screw | using the Allen screwdriver.
# When the DFPLAPO1.5X-4/DFPL2X-4 objective is used, the SZX-LGR66
should be fixed at a position about 10 mm higher than the front tip of
the objective in order to obtain optimum illumination.
# When either objective mentioned below is used, the working distance
is reduced slightly:
When the SZX10/7 is used: By 11 mm with the SZX-ACH1X. By 1.5 mm
with the SZX-ACH1.25X.
When the MVX10 is used: By 6.5 mm with the MVPLAPO0.63X. By 3.5
mm with the MVPLAPO1X.
Fig. 2
@
²
³
|
5

9
Fig. 3
Fig. 4
Mounting on the STM6 Series (Fig. 3)
# When the MM6-VL/MM6C-VL vertical illumination arm is used with the
STM6 series, the SZX-LGR66 ring light guide adapter is required for
mounting.
1. Using the Allen wrench provided with the microscope, loosen the two
clamping screws ² on the SZX2-ILR66 illuminator @.
2. Insert the SZX-LGR66 ring light guide adapter ³ all the way into the SZX2-
ILR66 @ and tighten the clamping screws ² using the Allen wrench.
3. Loosen the clamping screw | on the SZX-LGR66 ³ using the Allen wrench.
4. Fir the SZX-LGR66 ³ into the objective 5of the STM6, align the height of
the clamping screw | with the positioning groove 6, and tighten the
clamping screw | using the Allen wrench.
Mounting on the SZ61/51 Series (Fig. 4)
1. Fir the SZ-LGR66 ring guide adapter @ all the way into the auxiliary objec-
tive mount thread section at the front tip of the SZ61/51 microscopes.
}When an applicable auxiliary objective (110AL0.62X, 110AL0.75X or 110AL1.5X)
is mounted, attach the SZ-LGR66 to the front tip of the auxiliary objective.
2. Using the Allen wrench provided with the microscope, loosen the two
clamping screws ³ on the SZX2-ILR66 illuminator ².
3. Fit the SZX2-ILR66 ² all the way into the SZ-LGR66 @ and tighten the
clamping screws ³ using the Allen wrench.
|
5
³6
@
²
@
²
³

10
LED FOUR-PART RING ILLUMINATOR SYSTEM
Fig. 5
Fig. 6
2Attaching the Cable and Power Cord (Figs. 5 & 6)
Cables and cords are vulnerable to bend or twist. Do not apply
excessive force to them.
Make sure that the main switch @ of the SZX2-RHS is set to “ "
(OFF) before connecting the power cord.
Always use the power cord provided by Olympus. If no power cord is
provided, please select the power cord by referring to the section
“PROPER SELECTION OF THE POWER SUPPLY CORD” at the end of
this instruction manual. If the proper power cord is not used, Olympus
can no longer warrant the electrical safety performance of the
equipment.
1. Insert the cable connector ² of the SZX2-ILR66 illuminator firmly into the
OUTPUT connector ³ on the SZX2-RHS hand switch. (Fig. 5)
2. Insert the connector 5of the power cord into the power cord connector | of
the SZX2-RHS, and insert the power cord plug 6into the power outlet 7.
Connect the provided power cord correctly and ensure that the
grounding terminal of the power supply and that of the 3-conductor
wall outlet are properly connected. If the equipment is not grounded,
Olympus can no longer warrant the electrical safety performance of
the equipment.
Unplugging the power cord is also used to stop power supply in case
of emergency. Set up the Power Supply so that the power cord
connector (on the back of the unit) or the power cord plug is within
your reach.
@³
²
|5
67

11

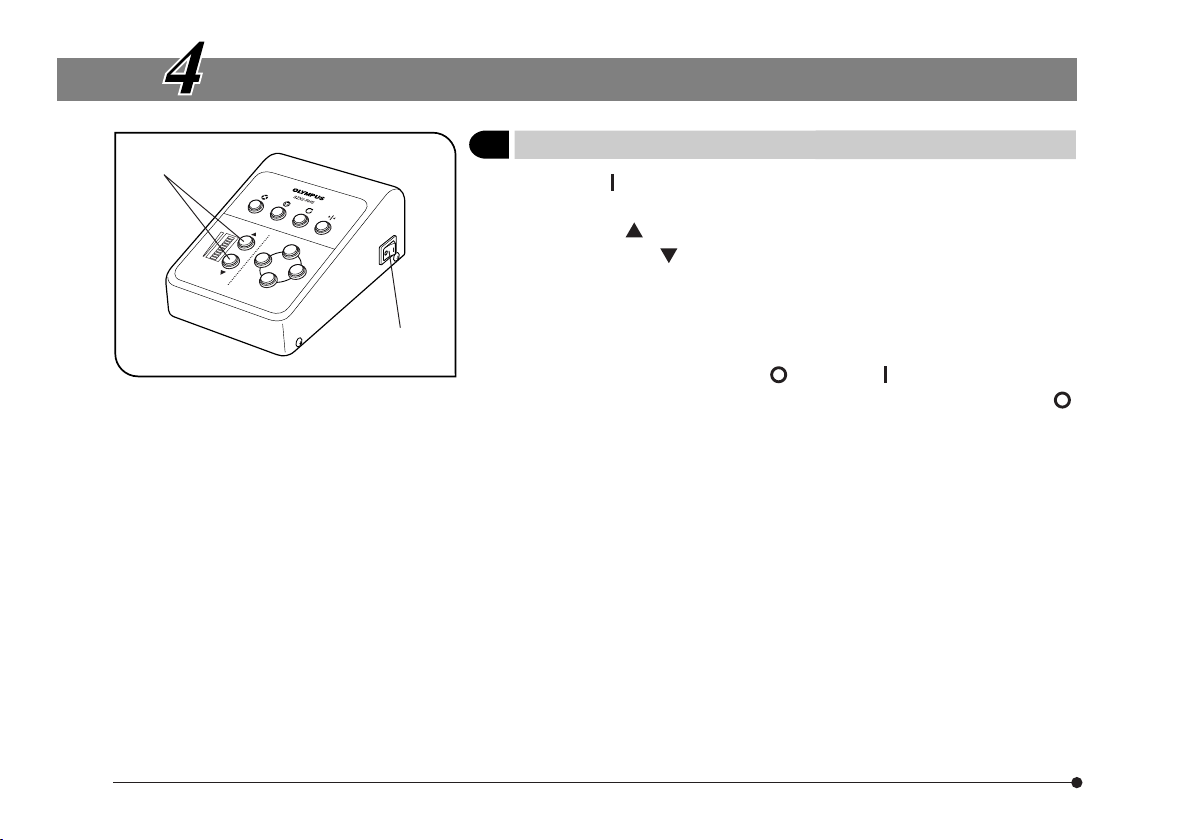

1. Press the “ ” (ON) segment of the main switch @ of the SZX2-RHS hand
switch to turn it ON.
2. Pressing the light intensity control button ² to increase the brightness,
and pressing the button decreases it.
}Holding a light intensity control button varies the brightness continuously.
}The indicator at the bottom is also used as the pilot lamp. It is lit even
when the light intensity is “0” so that the user would not forget turning the
hand switch OFF.
}Even if the main switch is set to “ ” (OFF) then “ ” (ON) again, the last light
intensity and illuminating part settings before the main switch is set to “ ”
(OFF) are recalled.
Fig. 7
OPERATION
1Adjusting the Brightness (Fig. 7)
@
²

12
LED FOUR-PART RING ILLUMINATOR SYSTEM
Fig. 8
Fig. 9
2Using the Control Buttons of the Hand Switch (Figs. 8 & 9)
@Press to illuminate all of the four parts of the illuminator.
This will offer bright, shadow-free observation images.
²Press to illuminate only one of the four parts of the illuminator. (Illumination
part Cis illuminated with the initial setting.)
This provides the specimen with a shadow and offers high-contrast
observation images.
This is convenient for stressing the surface irregularities on the specimen.
³Press to move the illuminating part in the clockwise direction.
This changes the shadow on the specimen in sequence and makes it
possible to select the optimum illuminating part.
|Press to move the illuminating part in the counterclockwise direction.
A- DPress one of the buttons to select the desired illuminating part.
(See Fig. 8, 9 for the correspondence between select button Ato Dand
illuminating parts Ato D.)
@²³|
A
DACB
B
C
D

13
3Illumination Performance Per Objective and Microscope
}The data shows the range in which observation is possible when the specimen is a light-scattering object.
Observation may be impossible when the specimen has a highly reflective surface such as a mirror surface.
SZX16
Zoom Ratio
Objective 0.7 0.8 1 1.25 1.6 2 2.5 3.2 4 5 6.3 8 10 11.5
SDFPLFL0.3X
SDFPL0.5XPF
SDFPLAPO 0.8X
SDFPLAPO 1XPF
LED image may be observed.
Observation possible.
}Observation is not possible with the SDFPLAPO 1.6XPF or SDFPLAPO 2XPFC.

14
LED FOUR-PART RING ILLUMINATOR SYSTEM
SZX10
Zoom Ratio
Objective 0.63 0.8 1 1.25 1.6 2 2.5 3.2 4 5 6.3
DFPL0.5X-4
DFPL0.75X-4
DFPLAPO1X-4
SZX-ACH1X
DFPLAPO1.25X-4
SZX-ACH1.25X
DFPL1.5X-4
DFPL2X-4
LED image
may be
observed.
Observation possible.
SZX7
Observation is always possible.

15
SZX61/51
Zoom Ratio
Auxiliary objective
0.67 0.8 1 1.2 1.5 2 2.5 3 3.5 4 4.5
110AL0.62X
110AL0.75X
110AL1.5X
LED image may
be observed.
Observation possible.
}Observation is not possible with the 110ALK0.3X, 110ALK0.4X, 110AL0.5X or 110AL2X.
MVX10
Zoom Ratio
Objective 0.63 0.8 1 1.25 1.6 2 2.5 3.2 4 5 6.3
MVPLAPO0.63X
MVPLAPO1X Observation possible.
}Observation is not possible with the MVPLAPO 2XC.
STM6
Observation is always possible.

16
LED FOUR-PART RING ILLUMINATOR SYSTEM
SPECIFICATIONS
LED Four-Part Ring Illuminator SZX2-ILR66
Item Specification
LED color White
Color temperature Max. 8000K
Min. 5000K
Dimensions 120 x 29.5 mm
Cable length: 1000 mm
Weight 500 g
Average life Approx. 20000 hours
(Ambient temperature 20°C, light intensity level 50%)
Hand Switch For LED Four-Part Ring Illuminator SZX2-RHS
Item Specification
System Pulse duty control, 1 circuit
Output current variation 0 to 240 mA
Rated supply voltage 100-240 V AC, 0.2-0.1A, 50/60 Hz
Power consumption 12 W
Dimensions 110 (W) x 160 (D) x 67 (H) mm (excluding projections)
Weight 700 g

17
Common Specifications to SZX2-ILR66/SZX2-RHS
Item Specification
Operating environment · Indoor use
· Altitude : Max. 2,000 m
· Ambient temperature: 5°C to 40°C (41°F to 104°F)
· Maximum relative humidity: 80% for temperatures up to 31°C (88°F)
decreasing linearly through 70% at 34°C (93°F), 60% at 37°C (99°F), to
50% relative humidity at 40°C (104°F)
· Main supply voltage fluctuations not to exceed ±10% of nominal voltage
· Pollution Degree: 2 (in accordance with IEC60664)
· Installation/Overvoltage Category: II (in accordance with IEC60664)
