Olympus OLYMPUS OSF-3 User manual

Refer to the endoscope’s companion manual, the “OLYMPUS OSF-3 ENDOSCOPE REPROCESSING
MANUAL” for reprocessing information.
USA: CAUTION: Federal law restricts this device to sale by or on the order of a physician.
INSTRUCTIONS
SIGMOIDOFIBERSCOPE
OLYMPUS OSF-3

Contents
i
OSF-3 OPERATION MANUAL
Contents
Symbols......................................................................................... 1
Important Information — Please Read Before Use.................... 3
Intended Use ............................................................................................ 3
Applicability of Endoscopy and Endoscopic Treatment ........................... 3
Instruction Manual..................................................................................... 4
User Qualifications ................................................................................... 4
Instrument Compatibility ........................................................................... 4
Reprocessing and Storage ....................................................................... 4
Spare Equipment ...................................................................................... 5
Repair and Modification ........................................................................... 5
Signal Words ............................................................................................ 5
Warnings and Cautions ............................................................................ 5
Chapter 1 Checking the Package Contents............................ 8
1.1 Checking the Package Contents..................................................... 8
Chapter 2 Instrument Nomenclature and Specifications ...... 10

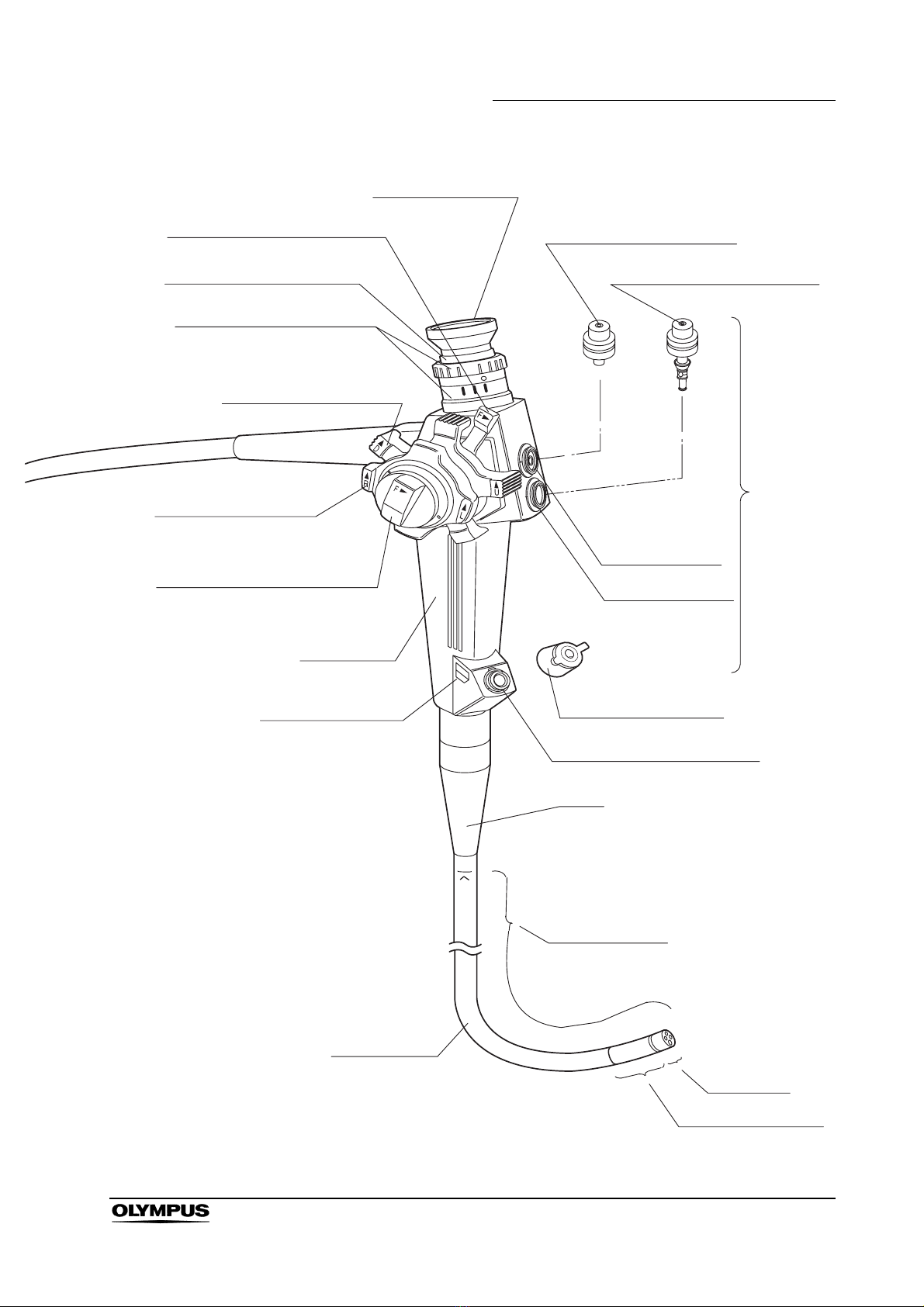

2.1 Nomenclature.................................................................................. 10
2.2 Endoscope Functions ..................................................................... 12
2.3 Specifications.................................................................................. 14
Chapter 3 Preparation and Inspection .................................... 17
3.1 Preparation of the Equipment ......................................................... 17
3.2 Preparation and Inspection of the Endoscope ................................ 18
3.3 Preparation and Inspection of Accessories..................................... 21
3.4 Attaching Accessories to the Endoscope........................................ 23
3.5 Preparation, Inspection and Connection of Ancillary Equipment .... 25
3.6 Inspection of the Endoscopic System ............................................. 26
Chapter 4 Operation ................................................................. 30
4.1 Insertion .......................................................................................... 32
4.2 Using Endo-Therapy Accessories................................................... 36
4.3 Withdrawal of the Endoscope ......................................................... 41
4.4 Transportation of the Endoscope.................................................... 41

Contents
ii OSF-3 OPERATION MANUAL
Chapter 5 Troubleshooting ...................................................... 43
5.1 Troubleshooting Guide.................................................................... 43
5.2 Returning the Endoscope for Repair............................................... 46
Appendix........................................................................................ 47
System Chart ........................................................................................... 47

Symbols
1
OSF-3 OPERATION MANUAL
Symbols
The meaning(s) of the symbol(s) shown on the package with the components,
the back cover of this instruction manual and/or this instrument are as follows:
Refer to instructions.
Endoscope
Type BF applied part
Manufacturer
Authorized representative in the European Community

2
Symbols
OSF-3 OPERATION MANUAL
s

Important Information — Please Read Before Use
3
OSF-3 OPERATION MANUAL
Important Information — Please Read
Before Use
Intended Use
This instrument has been designed to be used with Light Sources,
Documentation Equipment, Endo-Therapy Accessories, Eletctrosurgical Unit
and other ancillary equipment for endoscopic applications within the lower
digestive tract including rectum and sigmoid colon.
Do not use this instrument for any purposes other than its intended use.
Applicability of Endoscopy and Endoscopic Treatment
If there is an official standard on the applicability of endoscopy and endoscopic
treatment that is defined by the hospital’s administration or other official
institutions such as academic societies on endoscopy, follow that standard.
Before starting endoscopy and endoscopic treatment, thoroughly evaluate its
properties, purposes, effects, and possible risk (their natures, extent and
probability). Perform endoscopy and endoscopic treatment only when its
potential benefits are greater than its risks.
Fully explain to the patient the potential benefits and risks of the endoscopy and
endoscopic treatment as well as any examination/treatment methods that can be
performed in its place, and perform the endoscopy and endoscopic treatment
only after obtaining the consent of the patient.
Even after starting the endoscopy and endoscopic treatment, continue to
evaluate the potential benefits and risks, and immediately stop the
endoscopy/treatment and take proper measures if the risks to the patient
become greater than the potential benefits.

4
Important Information — Please Read Before Use
OSF-3 OPERATION MANUAL
Instruction Manual
This instruction manual contains essential information on using this instrument
safely and effectively. Before use, thoroughly review this manual and the
manuals of all equipment, which will be used during the procedure and use the
instruments as instructed. Note that the complete instruction manual set for this
Endoscope consists of this manual and the “OLYMPUS OSF-3 ENDOSCOPE
REPROCESSING MANUAL” which also accompanied the Endoscope at
shipment.
Keep this and all related instruction manuals in a safe, accessible location.
If you have any questions or comments about any information in this manual,
please contact Olympus.
User Qualifications
The operator of this instrument must be a physician or medical personnel under
the supervision of a physician and must have received sufficient training in
clinical endoscopic technique. This manual, therefore, does not explain or
discuss clinical endoscopic procedures.
Instrument Compatibility
Refer to the “System Chart” in the Appendix to confirm that this instrument is
compatible with the ancillary equipment being used. Using incompatible
equipment can result in patient injury or equipment damage.
Reprocessing and Storage
This instrument was not disinfected or sterilized before shipment. Before using
this instrument for the first time, reprocess it according to the instruction in the
endoscope’s companion manual, the “OLYMPUS OSF-3 ENDOSCOPE
REPROCESSING MANUAL”.
After using this instrument, reprocess and store it according to the instructions in
the endoscope’s companion manual, the “OLYMPUS OSF-3 ENDOSCOPE
REPROCESSING MANUAL”. Improper and/or incomplete reprocessing or
storage can present an infection control risk, cause equipment damage or
reduce performance.

Important Information — Please Read Before Use
5
OSF-3 OPERATION MANUAL
Spare Equipment
Be sure to prepare another endoscope to avoid that the examination will be
interrupted due to equipment failure or malfunction.
Repair and Modification
This instrument contains no user-serviceable parts. Do not disassemble, modify
or attempt to repair; patient or user injury and equipment damage can result.
Problems that appear not to be malfunctions may be correctable by referring to
Chapter 5, “Troubleshooting”. If the problem cannot be resolved using the
information in Chapter 5, contact Olympus.
Signal Words
The following signal words are used throughout this manual:
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also
be used to alert against unsafe practices or potential
equipment damage.
Indicates additional helpful information.
Warnings and Cautions
Follow the warnings and cautions described below when handling this
instrument. This information is supplemented by the warnings and cautions
described in each chapter.
• Never insert or withdraw the endoscope’s Insertion Tube
while the Angulation Locks are fixed. Patient injury can result.

6
Important Information — Please Read Before Use
OSF-3 OPERATION MANUAL
• Do not strike, bend, hit, pull, twist, or drop the endoscope’s
distal end, insertion tube, bending section, control section,
universal cord, or endoscope connector of the endoscope
with excessive force. The endoscope may be damaged and
could cause patient injury, burns, bleeding and/or
perforations. It could also cause parts of the endoscope to fall
off inside the patient.
• Never perform angulation control forcibly or abruptly. Never
forcefully pull, twist or rotate the angulated bending section.
Patient injury, bleeding and/or perforation can result. It may
also become impossible to straighten the bending section
during an examination.
• Never perform angulation control, air feed control, suction
control or insertion/withdrawal of the endoscope’s Insertion
Tube without viewing the endoscopic image. Patient injury
can result.
• Do not operate the Bending Section, feed air or apply
suction, insert or withdraw the endoscope Insertion Tube
while the image remains frozen. This could result in patient
injury.
• Do not touch the Light Guide immediately after removing it
from the Light Source because it is extremely hot.
• Do not pull the Universal Cord. The Endoscope Light Guide
Connector will be pulled out from the output socket of the
Light Source and the endoscopic image will not be visible.
• Do not coil the Insertion Tube and Universal Cord with a
diameter less of than 12 cm. Equipment damage can result.
• Do not apply shock to the Distal End of the Insertion Tube,
particularly the Objective Lens surface of the Distal End.
Vision abnormalities may result.
• Do not twist or bend the Bending Section by hands.
Equipment damage may result.
• Do not squeeze the Bending Section forcefully. The covering
of the Bending Section may stretch or break and cause water
leaks.
• Do not hit or bend the Electrical Contacts on the Endoscope
Light Guide Connector. The connection to the Light Source
may be impaired and faulty contact can result.

Important Information — Please Read Before Use
7
OSF-3 OPERATION MANUAL
Details on clinical endoscopic technique are the responsibility of trained
specialists. Patient safety in endoscopic examinations and endoscopic treatment
can be ensured through appropriate handling by the physician and the medical
facility. Examples of inappropriate handling are given below.
• Over-insufflating the lumen may cause patient pain and/or perforation.
• Using improperly reprocessed or stored instruments may cause patient
cross-contamination and infection.
• Applying prolonged suction with the distal tip in contact with the mucosal
surface may cause bleeding or suction lesions.
• Retroflexing the endoscope within the esophagus, colon, or duodenal
bulb may cause mucosal trauma or impaction of the endoscope.
• Inserting and using Endo-Therapy Accessories without a clear
endoscopic view may cause burns or perforation.
• Patient injury may be caused by: inserting or withdrawing the
endoscope, feeding air or applying suction without a clear endoscopic
view; withdrawing the endoscope with the angulation controls locked;
forcefully pulling, twisting or rotating the angulated Bending Section.

8
Chapter 1 Checking the Package Contents
OSF-3 OPERATION MANUAL
Chapter 1 Checking the Package
Contents
1.1 Checking the Package Contents
Match all items in the package with the components shown below. Inspect each
item for damage. If the instrument is damaged, a component is missing or you
have any questions, do not use the instrument; immediately contact Olympus.
This instrument was not disinfected or sterilized before shipment. Before using
this instrument for the first time, reprocess it according to the instructions in the
endoscope’s companion manual, the “OLYMPUS OSF-3 ENDOSCOPE
REPROCESSING MANUAL”.
Biopsy Valve (MB-358)
Channel Cleaning Brush
(BW-20T)
Sigmoido Fiberscope OSF-3
All Channel Irrigator (CW-3)
ETO Cap (MB-156)
Lubricant (Silicon Oil) (MB-146) Channel Cleaning Adapter (MB-19)
Channel-opening Cleaning
Brush (MH-507)
Instruction Manual
(Operation)
Instruction Manual
(Reprocessing)
AW Channel Cleaning
Adapter (MB-107)

Chapter 1 Checking the Package Contents
9
OSF-3 OPERATION MANUAL

10
Chapter 2 Instrument Nomenclature and Specifications
OSF-3 OPERATION MANUAL
Chapter 2 Instrument Nomenclature
and Specifications
2.1 Nomenclature
The Endoscope Main Body is illustrated with its valves detached.
To the output socket of
OES/EVIS Light Source
17. ETO Cap (MB-156)
Universal Cord
Serial No.
Air Pipe
Light Guide
13. Light Guide Connector Section
15. S-Cord Connector Mount
12. Suction Connector
16. Venting Connector
14. Water Container Connector

Chapter 2 Instrument Nomenclature and Specifications
11
OSF-3 OPERATION MANUAL
(indicates that this is
waterproof system)
3. UP/DOWN Angulation Lock
Control
Section
8. Eyepiece Section
9. Diopter Adjustment Ring
Blue Ring
6. Suction Valve (MB-197)
5. Air/Water Valve (MB-196)
1. UP/DOWN Angulation
Control Knob
2. RIGHT/LEFT Angulation
Control Knob
4. RIGHT/LEFT Angulation Lock
7. Color Code
10. Instrument Channel Port
11. Bending Section
Air/Water Cylinder
Biopsy Valve (MB-358)
Grip Section
Boot
Working Length
Insertion Tube
Distal End
Suction Cylinder
Yellow: OSF-3 (Non-Sterile)

12
Chapter 2 Instrument Nomenclature and Specifications
OSF-3 OPERATION MANUAL
2.2 Endoscope Functions
1. UP/DOWN Angulation Control Knob
When turned in the “ U” direction, the Bending Section moves UP; When
turned in the “ D” direction, the Bending Section moves DOWN.
2. RIGHT/LEFT Angulation Control Knob
When turned in the “R ” direction, the Bending Section moves RIGHT;
When turned in the “ L” direction, the Bending Section moves LEFT.
3. UP/DOWN Angulation Lock
Pushing the lever in the “F ” direction frees angulation. Pushing the lever
in the opposite direction locks the Bending Section at any desired position.
4. RIGHT/LEFT Angulation Lock
Pushing this lever in the “F ” direction frees angulation. Pushing the lever
in the opposite direction locks the Bending Section at any desired position.
5. Air/Water Valve
Covers the valve to insufflate air. Depress the valve to feed water for lens
washing. If necessary, feed air to remove any remaining fluid or debris
adhering to the Objective Lens.
6. Suction Valve
Depress the valve to activate suction. Used to remove fluid and debris that
obstruct the visual field.
7. Color Code (Yellow)
Used to quickly determine the compatibility of Endo-Therapy Accessories.
(The endoscope can be used with Endo-Therapy Accessories that have the
same color code.)
8. Eyepiece Section
There is a permanent marker in the field of view indicating which direction
corresponds to the Bending Section moving UP. As the scope is turned in
different directions, this marker is important to maintaining the safety of the
procedure.
9. Diopter Adjustment Ring
Adjusts the operator’s focus. This does not affect focussing for photography.
10. Instrument Channel Port
Functions as: Channel for insertion of Endo-Therapy Accessories; Suction
Channel; fluid feed channel (from a syringe via the Biopsy Valve).
11. Bending Section
Moves the Distal End of the endoscope by operating the UP/DOWN and
RIGHT/LEFT Angulation Control Knobs.

Chapter 2 Instrument Nomenclature and Specifications
13
OSF-3 OPERATION MANUAL
12. Suction Connector
Connects to the Suction tube.
13. Light Guide Connector Section
Connects to the OES/EVIS Light Source, receives the lamp light from the
EVIS Universal Light Source in the Light Guide and transfers the light
internally.
14. Water Container Connector
Accepts the Water Container tube to a sterile water supply.
15. S-Cord Connector Mount
Connects to the S-cord to the conduct leakage current from the Endoscope
to the Olympus Electrosurgical Unit. To connect, refer to the instruction
manual for the Olympus Electrosurgical Unit.
16. Venting Connector
Install the ETO Cap before performing ETO gas sterilization.
17. ETO Cap
ETO gas sterilization can be performed when this cap is installed.

14
Chapter 2 Instrument Nomenclature and Specifications
OSF-3 OPERATION MANUAL
2.3 Specifications
Environment
Operating
environment
Ambient temperature 10 – 40°C (50 – 104°F)
Relative humidity 30 – 85%
Atmospheric pressure 700 – 1060 hPa
(0.7 – 1.1 kgf/cm2)
(10.2 – 15.4 psia)
Transportation and
storage
environment
Ambient temperature –47 to 70°C (–52.6 to 158°F)
Relative humidity 10 – 95%
Atmospheric pressure 700 – 1060 hPa
(0.7 – 1.1 kgf/cm2)
(10.2 – 15.4 psia)

Chapter 2 Instrument Nomenclature and Specifications
15
OSF-3 OPERATION MANUAL
Specifications
Endoscope Functions

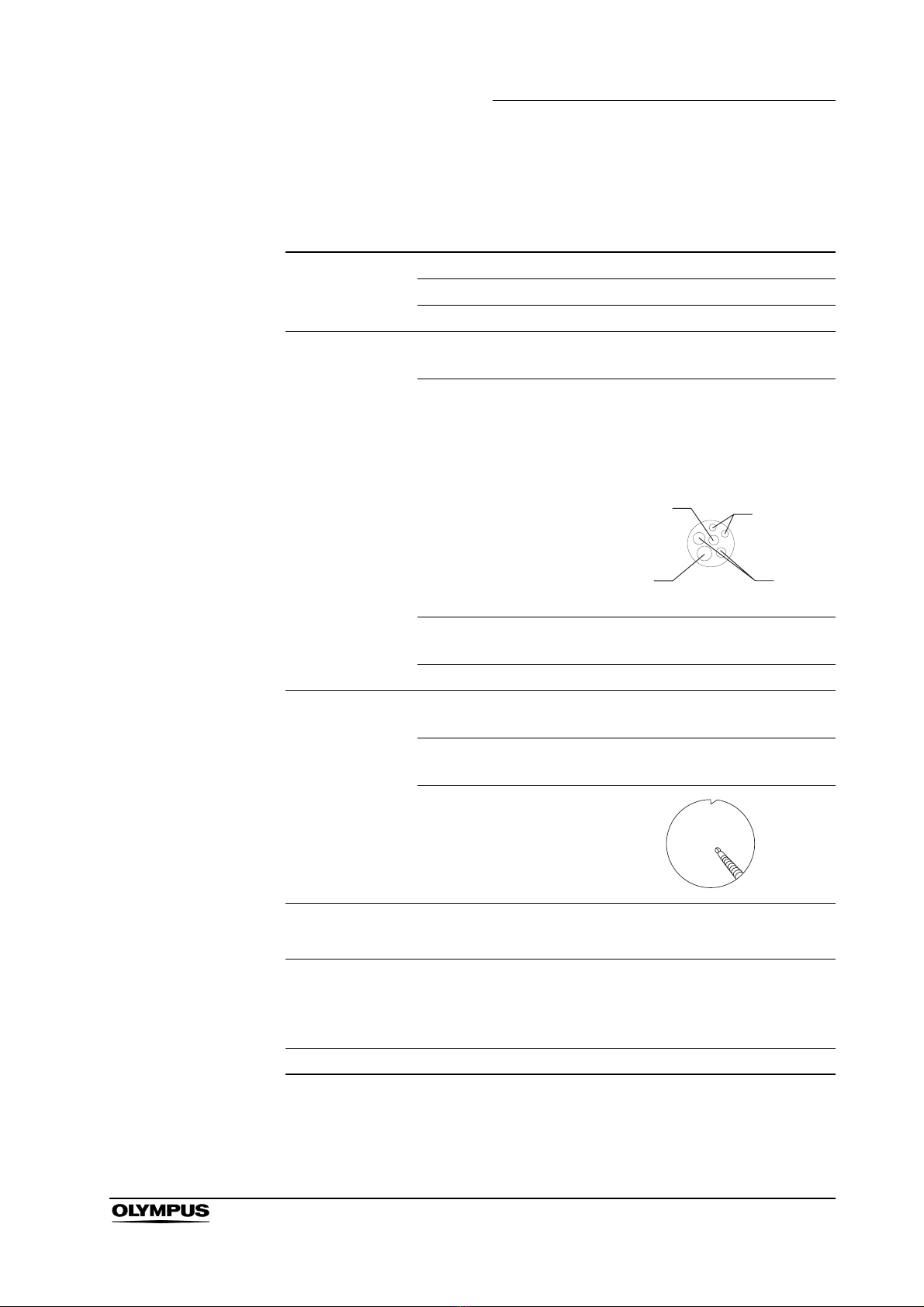

Optical System Field of View 120°
Direction of View 0°
Depth of Field 3 to 100 mm
Insertion Tube Distal End Outer
Diameter ø12mm
Distal End enlarged 1. Air/Water Nozzle
2. Light Guide Lens
3. Objective Lens
4. Instrument Channel
Flexible Tube Outer
Diameter ø12.2mm
Working Length 700 mm
Instrument
Channel
Channel Inner
Diameter ø3.2mm
Minimum Visible
Distance 3mm
Direction from which
Endo-Therapy
Accessories enter and
exit the endoscopic
Air Flow Rate 25 cm3/s
Note: Standard when CLK-4 is used
Bending Section Angulation Range UP 180°,
DOWN 180°,
RIGHT 160°,
LEFT 160°
Total Length 1040 mm
3
42
1
DOWN
UP
RIGHT LEFT

16
Chapter 2 Instrument Nomenclature and Specifications
OSF-3 OPERATION MANUAL
Year of
manufacture The last digit of the year of manufacture
is given in the second digit of the serial
number.
Degree of
protection against
electric shock
TYPE BF applied part.
2712345
