Olympus VISERA CLV-S40 User manual

USA: CAUTION: Federal law restricts this device to sale by or on the order of a physician.
INSTRUCTIONS
VISERA XENON LIGHT SOURCE
CLV-S40

Contents
i
VISERA XENON LIGHT SOURCE CLV-S40
Contents
Labels and Symbols..................................................................... 1
Important Information — Please Read Before Use.................... 3
Intended use ............................................................................................ 3
Instruction manual .................................................................................... 3
User qualifications..................................................................................... 4
Instrument compatibility ........................................................................... 4
Repair and modification ........................................................................... 4
Signal words.............................................................................................. 5
Dangers, warnings and cautions .............................................................. 5

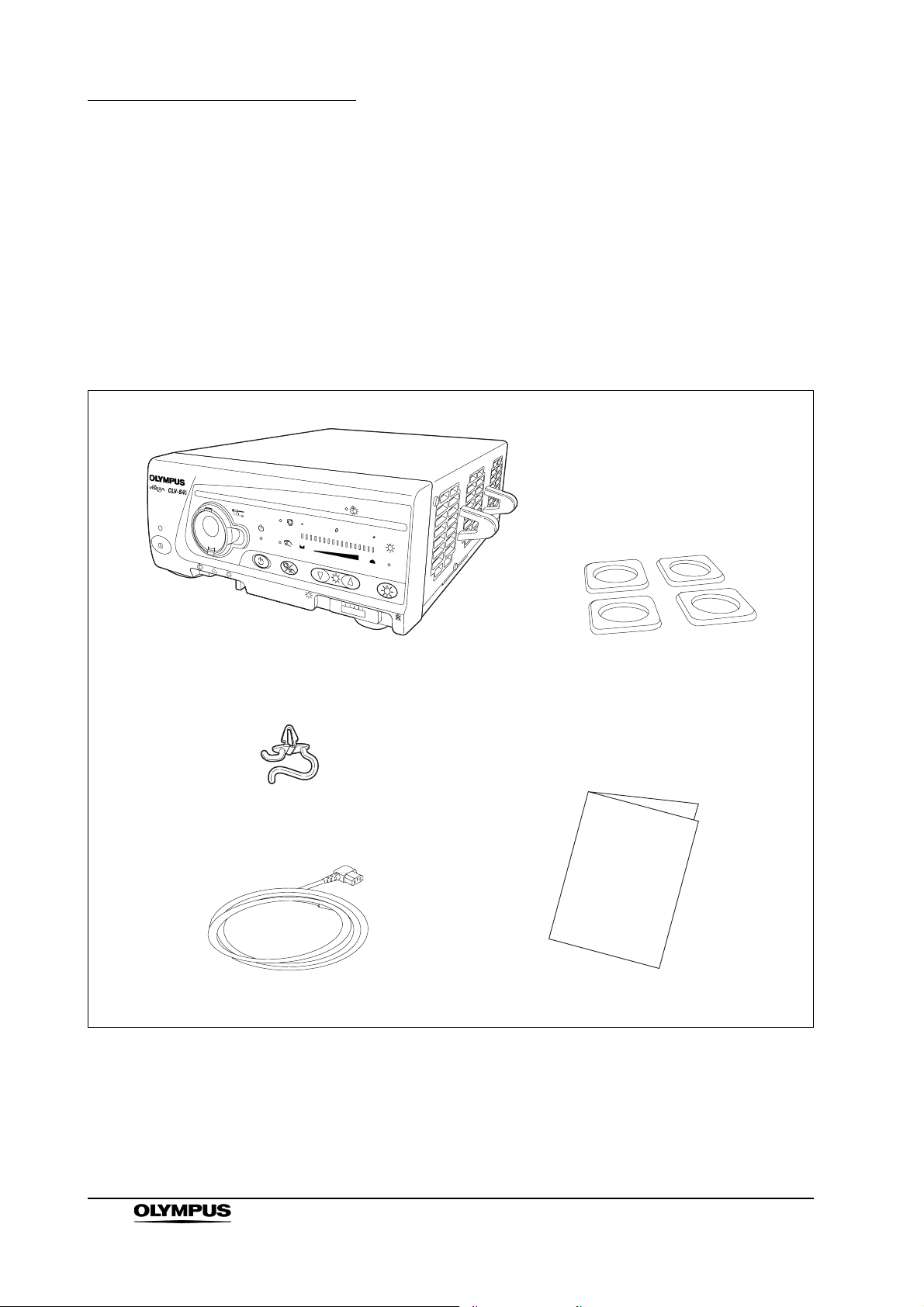

Chapter 1 Checking the Package Contents............................ 10
Chapter 2 Instrument Nomenclature....................................... 12
2.1 Symbols and descriptions ............................................................... 12
2.2 Front panel...................................................................................... 14
2.3 Rear and side panels ...................................................................... 16
Chapter 3 Installation and Connection ................................... 19
3.1 Installation....................................................................................... 19
3.2 Connection to an endoscope .......................................................... 23
3.3 Connection to an Olympus video system (OTV-S7V, etc.) ............. 29
3.4 Connection to an AC mains power supply ...................................... 31
Chapter 4 Inspection ................................................................ 33
4.1 Turn the power ON ......................................................................... 33
4.2 Checking the lamp life..................................................................... 36
4.3 Inspection of illumination................................................................. 37
4.4 Inspection of the light cutoff function............................................... 39
4.5 Inspection of the standby mode ...................................................... 40
4.6 Inspection of the high intensity mode.............................................. 41
4.7 Inspection of brightness adjustment ............................................... 42
4.8 Emergency lamp ............................................................................. 49
Chapter 5 Operation ................................................................. 50
5.1 Recommended video systems and functions ................................. 52
5.2 Power supply and igniting the lamp ................................................ 53
5.3 Adjusting the brightness (automatic/manual).................................. 54
5.4 After use.......................................................................................... 58

Contents
ii VISERA XENON LIGHT SOURCE CLV-S40
Chapter 6 Lamp Replacement.................................................. 59
6.1 When to replace the lamp ............................................................... 60
Chapter 7 Care, Storage and Disposal .................................... 65
7.1 Care ................................................................................................ 65
7.2 Storage ........................................................................................... 66
7.3 Disposal .......................................................................................... 66
Chapter 8 Troubleshooting ...................................................... 67
8.1 Troubleshooting guide .................................................................... 67
8.2 Returning the light source for repair................................................ 71
Appendix........................................................................................ 72
System chart ............................................................................................ 72
Operating environment.............................................................................. 74
Transportation and storage environment ................................................. 74
Specifications ........................................................................................... 74

Labels and Symbols
1
VISERA XENON LIGHT SOURCE CLV-S40
Labels and Symbols
Safety-related labels are attached to the instrument at the locations shown
below. If labels are missing or illegible, contact Olympus.
Lamp rating
Refer to instructions.
Electrical rating plate
Product name, rated voltage and
serial number are described.
Warns that the lamp
and heat sink are hot.
Front side
Rear side

2
Labels and Symbols
VISERA XENON LIGHT SOURCE CLV-S40
Back cover of this instruction manual
Manufacturer
Authorized representative in the European Community
Lamp rating
Electrical rating plate

Important Information — Please Read Before Use
3
VISERA XENON LIGHT SOURCE CLV-S40
Important Information — Please Read
Before Use
Intended use
This instrument has been designed to be used with an Olympus endoscope,
Video system, accessories and other ancillary equipment for observation,
diagnosis and endoscopic treatment.
Do not use this instrument for any purpose other than its intended use.
Instruction manual
This instruction manual contains essential information on using this instrument
safely and effectively. Before use, thoroughly review this manual and the
manuals of all equipment which will be used during the procedure and use the
instruments as instructed.
Keep this and all related instruction manuals in a safe, accessible location.
If you have any questions or comments about any information in this manual,
please contact Olympus.
Terms used in this manual
Video system / video system center
Devices that convert endoscopic images from a rigid endoscope, fiberscope
or videoscope into video images on a monitor.
Videoscope
This is an endoscope with a built-in CCD at its distal end to enable you to
view images on a monitor without using a camera head.
High intensity mode
This mode provides brighter illumination than the normal intensity mode.
Wall mains outlet
An electrical outlet that has a terminal used exclusively for grounding.

4
Important Information — Please Read Before Use
VISERA XENON LIGHT SOURCE CLV-S40
User qualifications
The operator of this instrument must be a physician or medical personnel under
the supervision of a physician and must have received sufficient training in
clinical endoscopic technique. This manual, therefore, does not explain or
discuss clinical endoscopic procedures.
Instrument compatibility
Refer to the “System chart” in the Appendix to confirm that this instrument is
compatible with the ancillary equipment being used. Using incompatible
equipment can result in patient injury and/or equipment damage.
Repair and modification
This instrument does not contain any user-serviceable parts. Do not
disassemble, modify or attempt to repair it; patient or user injury and/or
equipment damage can result.
Some problems that appear to be malfunctions may be correctable by referring
to Chapter 8, “Troubleshooting”. If the problem cannot be resolved using the
information in Chapter 8, contact Olympus.

Important Information — Please Read Before Use
5
VISERA XENON LIGHT SOURCE CLV-S40
Signal words
The following signal words are used throughout this manual:
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also
be used to alert against unsafe practices or potential
equipment damage.
Indicates additional helpful information.
Dangers, warnings and cautions
Follow the dangers, warnings and cautions described below when handling this
instrument. This information is supplemented by the dangers, warnings and
cautions described in each chapter.
• Any applied part except “TYPE CF APPLIED PART” must
never be applied directly to the heart and must not be used in
procedures involving cardiac observation or surgery.
Leakage current from any applied part except “TYPE CF
APPLIED PART” may be dangerous and cause ventricular
fibrillation or otherwise seriously affect the cardiac function of
the patient. Accordingly, always adhere to the following:
−Never apply an endoscope connected to any applied part
except a “TYPE CF APPLIED PART” to the heart or any
area near the heart.
−Never allow an accessory or another endoscope, which is
in contact with the heart (or an area near the heart) to
contact an endoscope connected to any applied part
except a “TYPE CF APPLIED PART”.

6
Important Information — Please Read Before Use
VISERA XENON LIGHT SOURCE CLV-S40
−For cardiac applications, use only instruments bearing the
words “TYPE CF APPLIED PART” or the “ ” mark.
Refer to the instruction manual of the camera head or light
guide cable for system configuration requirements.
• Strictly observe the following precautions. Failure to do so
may place the patient and/or medical personnel in danger of
an electrical shock.
−When using this equipment to examine a patient, make
sure that the metal parts of the endoscope and
accessories do not come in contact with metal in the
facility or in other system components. Metal-to-metal
contact can create an electrical connection and
unintentionally conduct current to the patient (leakage
current, for example).
−Keep liquids away from all electrical equipment. If spilled
fluids enter the unit, stop operation of the equipment at
once and contact Olympus.
−Do not prepare, inspect or use this instrument with wet
hands.
• Never use the light source in the presence of flammable
substances or in an environment with a high concentration of
oxygen, and keep all flammable gases and liquids away from
the light source while it is being used. Explosion or fire may
result because the instrument is not designed to be
explosion-proof.

Important Information — Please Read Before Use
7
VISERA XENON LIGHT SOURCE CLV-S40
• Although the illumination light emitted from the endoscope’s
distal end is required for endoscopic observation and
treatment, it may also cause alteration of living tissues such
as protein denaturation of liver tissue and perforation of the
intestines by inappropriate using.
Observe the following warnings on the illumination.
−Always set the minimum required brightness.
The brightness of the image on a video monitor may differ
from actual brightness at the distal end of endoscope.
Especially, operating the electrical shutter function of a
video system, pay attention to the brightness level setting
of this instrument. When this instrument is used with a
video system compatible with the automatic brightness
control function, be sure to use the function of this
instrument. The automatic brightness control function can
keep the illumination light properly. Refer to the instruction
manual of the video system for details.
−Do not continue observation in proximity to tissue or keep
the distal end of the endoscope in contact with a living
tissue for a long time.
−When discontinuing the use of the endoscope, be sure to
turn this instrument OFF or activate the light shield
function (standby mode) so that the endoscope does not
irradiate unnecessary light.
• If the endoscopic image dims during use, this may be a sign
that blood or mucus is adhered to the light guide on the distal
end of endoscope. Carefully withdraw the endoscope from
patient and remove the blood or mucus in order to obtain
optimum illumination and to ensure the safety of
examination. If you continue to use the endoscope in such a
condition, the distal end temperature may rise and cause
mucosa burns. It may also cause patient and/or operator
injury.
• Do not touch the light guide connector of the endoscope or
the output connector of the light source immediately after
removing it from this instrument because they are extremely
hot. Operator or patient injury can result.
• Do not look directly into the distal end of the endoscope or
the output connector of the light source while the light source
is on. The intense light may harm your eyes.

8
Important Information — Please Read Before Use
VISERA XENON LIGHT SOURCE CLV-S40
• Xenon light sources produce significant heat due to the high
intensity light required for endoscopic procedures. If the
disconnected end of the light guide cable or the distal end of
an endoscope touches operating room drapes or other
flammable materials, fire can result.
−Never place the unattached end of an illuminated light
guide cable on an operating room drape or other
flammable material.
−Never allow the distal end of an illuminated endoscope to
come in contact with operating room drapes or other
flammable material.
• Be sure to prepare another light source to avoid that the
examination must be interrupted due to equipment failure or
malfunction.
• This product may interfere with other medical electronic
equipment used in combination with it. Before use, fully
confirm the compatibility of this instrument with all equipment
to be used with it.
• Do not use this product in any place where it may be subject
to strong electromagnetic radiation (for example, in the
vicinity of a microwave therapeutic device, MRI, wireless set,
short-wave therapeutic device, cellular/portable phone, etc.).
This may impair the performance of the product.
• Do not remove the cover of the light source. Electrical shock
can occur.
• Do not use a pointed or hard object to press the switches on
the front panel of the instrument. This may break the
switches.
• To avoid damaging electrical contacts and/or causing a
malfunction, do not apply excessive force to any connector.

Important Information — Please Read Before Use
9
VISERA XENON LIGHT SOURCE CLV-S40
As defined by the international safety standard
(IEC 60601-1), medical electrical equipment is classified into
the following types: Type CF (the instrument can safely be
applied to any part of the body, including the heart), and Type
B/BF (the instrument can safely be applied to any organ
except the heart). The part of the body to which a videoscope
or electrosurgical accessory can safely be applied depends
on the classification of the equipment to which the
instruments are connected. Before beginning the procedure,
review the current leakage classification type of each
instrument that you will use for the procedure. Classification
types are clearly specified on the instruments and in the
instruments’ instruction manuals.
Symbol Classification
TYPE CF applied part
TYPE BF applied part
TYPE B applied part

10
Chapter 1 Checking the Package Contents
VISERA XENON LIGHT SOURCE CLV-S40
Chapter 1 Checking the Package
Contents
Match all items in the package with the components shown below. Inspect each
item for damage. If the instrument is damaged, a component is missing or you
have any questions, do not use the instrument; immediately contact Olympus.
Light source (CLV-S40) Foot holders (MD-512, 4 pcs.)
Connector cover holder
Power cord Instruction manual

Chapter 1 Checking the Package Contents
11
VISERA XENON LIGHT SOURCE CLV-S40

12
Chapter 2 Instrument Nomenclature
VISERA XENON LIGHT SOURCE CLV-S40
Chapter 2 Instrument Nomenclature
2.1 Symbols and descriptions
Output connector
Power switch
Lamp
Brightness control
Connector for endoscope
Power ON/OFF
Main lamp (xenon)
Emergency lamp (halogen)
High intensity mode
Standby mode
Manual control
Automatic control
Brightness
Automatic/manual Min.

Chapter 2 Instrument Nomenclature
13
VISERA XENON LIGHT SOURCE CLV-S40
Lamp life meter
Others
Lamp life
Alternating current
Circuit breaker
Equipotential terminal
Refer to instructions
Caution hot

14
Chapter 2 Instrument Nomenclature
VISERA XENON LIGHT SOURCE CLV-S40
2.2 Front panel
1. Power switch indicator
The indicator lights when the light source is ON.
2. Power switch
Press the switch to turned power ON or OFF. The xenon lamp lights up
simultaneously.
3. Connector cover
When this cover is removed, a fiber scope (BF TYPE 40 series/CHF TYPE
20 series) can be connected.
8. AUTO indicator
11. Emergency lamp
indicator
7. MANUAL indicator
1. Power switch
indicator
14. High intensity
mode indicator
9. Brightness control indicator
10. Brightness control switches
12. Brightness level indicator
13. Intensity mode selector
2. Power switch
3. Connector cover
4. Output connector
5. Standby mode indicator
6. AUTO/MANUAL brightness selector
17. Emergency lamp switch lever 15. Lamp life meter
16. Standby switch

Chapter 2 Instrument Nomenclature
15
VISERA XENON LIGHT SOURCE CLV-S40
4. Output connector
The connector transmits light to the connected endoscope or light guide
cable.
5. Standby mode indicator
The indicator lights when the standby mode is selected.
6. AUTO/MANUAL brightness selector
Press to select AUTO or MANUAL brightness control.
7. MANUAL indicator
The indicator lights when the MANUAL brightness control is selected.
8. AUTO indicator
The indicator lights when the AUTO brightness control is selected.
9. Brightness control indicator
The indicator lights when the brightness control switches are available.
10. Brightness control switches
Press to set the video brightness level (in AUTO mode), or to adjust the light
level (in MANUAL mode).
11. Emergency lamp indicator
The indicator lights when the emergency lamp (halogen) is in use and blinks
when the emergency lamp switch lever is left in an intermediate position or
the emergency lamp is malfunctioning.
12. Brightness level indicator
These indicators display the current brightness level.
13. Intensity mode selector
Press to switch between the high intensity mode and normal intensity mode
(when using an endoscope compatible with the high intensity mode).
14. High intensity mode indicator
The indicator lights when high intensity mode is selected.
15. Lamp life meter
The meter indicates the approximate number of hours that the main lamp
(xenon)has been used.
16. Standby switch
Press to temporarily deactivate the illumination light.
Press again to exit from the standby mode and reactivate the illumination
light.
17. Emergency lamp switch lever
When the switch lever is set to the “EMERGENCY LAMP” position, the
emergency lamp (halogen) will turn ON. If the lever is set at an intermediate
position, neither the main lamp (xenon) nor the emergency lamp (halogen)
will turn ON. Be sure to set the switch lever to either the “MAIN LAMP” or
“EMERGENCY LAMP” position.

16
Chapter 2 Instrument Nomenclature
VISERA XENON LIGHT SOURCE CLV-S40
2.3 Rear and side panels
1. VIDEO IN connector
CSA mark
Rating plate
2. SYSTEM connector
3. VIDEO OUT connector
4. AC inlet
5. Circuit breakers
6. LIGHT CONT. connector
7. Equipotential
terminal
