Olympus U-APT User manual

INSTRUCTIONS
U-APT
ARROW POINTER
This instruction manual is for the Olympus Arrow Pointer Model U-APT. To ensure the safety, obtain
optimum performance and to familiarize yourself fully with the use of this attachment, we recommend that
you study this manual thoroughly before operating the microscope. Retain this instruction manual in an
easily accessible place near the work desk for future reference.
A X 9 8 9 7
Optical Microscope Accessory

In accordance with European Directive on Waste Electrical and Electronic Equipment, this
symbol indicates that the product must not be disposed of as unsorted municipal waste, but
should be collected separately.
Refer to your local Olympus distributor in EU for return and/or collection systems available in
your country.
For Korea only
ࣾ匏ࣜ匶匶ࣜࣜࣤ儆洛殯ࣜ愯暧皻柦匶沖沲ࣥ
決ࣜ匶匶垚ࣜ儆洛殯ࣤࣾ匏ࣥࣜ洊沖砒洇穯匶匶嵢昢ࣜ渂嵢ࣜ儆洛櫖昢ࣜ斲殯穞垚ࣜ冉汊
徯洇求嵢ࣜ穞彶ࣨࣜ微姦ࣜ滆櫳櫖昢ࣜ斲殯穦ࣜ朞ࣜ沎枻城埪࣪
This product is applied with the requirements of standard IEC/EN61326-1 concerning
electromagnetic compatibility.
- Immunity Applied to industrial and basic environment requirements.

U-APT
CONTENTS
Correct assembly* and adjustments are critical for the arrow pointer to exhibit its full performance. If you are going to assemble the
attachment yourself, please carefully read Chapter 4, “ASSEMBLY” (pages 10 to 11).
IMPORTANT — Be sure to read this section for safe use of the equipment. — 1-4
1 CONTROLS 5
2 OPERATION 6-8
2-1 Focus Adjustment of the Arrow Pointer.......................................................................................................................................................................... 6
2-2 Pointer Operation ............................................................................................................................................................................................................................................ 7
2-3 Notes on Photomicrography .......................................................................................................................................................................................................... 8
3 SPECIFICATIONS 9
4 ASSEMBLY 10-11
1Adjusting the Pointer Brightness; 2 Selecting the Pointer Color;
3Moving the Pointer
PROPER SELECTION OF THE POWER SUPPLY CORD ........................................................................................................................ 12-15

1
IMPORTANT
This system employs a UIS (Universal Infinity System) optical design, and should be used only with UIS micro-
scopes, eyepieces, objectives and condensers for the BX2 series. (Some of the modules designed for the BX
series are also usable. For details, please consult Olympus or the catalogues.) Less than optimum performance
may result if inappropriate accessories are used.
1Getting Ready
1. This manual pertains only to the arrow pointer. Before using this attachment together with the microscope and associated
options, make sure that you have carefully read and understood their manuals, and understand how the system should
be operated together.
2. This system has a field number of 22. When the arrow pointer is combined with a superwide-field observation tube, the
pointer cannot be moved around the entire range of the field of view. Also note that a ghost of pointer may be observed
in such a case.
3. If the eyepiece in use incorporates a micrometer, ghost may be observed with dark specimens.
4. Always use the power cord and AC adapter provided by Olympus. If no power cord is provided, please select the proper
power cord by referring to the section “PROPER SELECTION OF THE POWER SUPPLY CORD” at the end of this instruction
manual. If the proper power cord is not used, product safety and performance cannot be guaranteed.
5. To ensure safety, disconnect the power plug of the AC adapter from the power outlet after operation.
6. The AC adapter cord should be fixed with the provided stoppers at a position that does not come in the way of operation.
Take special care so that the cord does not contact the lamp housing.

U-APT
2
Safety Symbols
The following symbols are found on the microscope. Study the meaning of the symbols and always use the equipment in
the safest possible manner.
Supply DC current (from the provided AC adapter).
Indicates an input jack.
Indicates a pointer.
Symbol Meaning
2 Maintenance and Storage
1. To clean the lenses and other glass components, simply blow dirty away using a commercially available blower and wipe
gently using a piece of cleaning paper (or clean gauze).If a lens is stained with fingerprints or oil smudges, wipe it gauze
slightly moistened with commercially available absolute alcohol.
Since the absolute alcohol is highly flammable, it must be handled carefully. Be sure to keep it away from open
flames or potential sources of electrical sparks —— for example, electrical equipment that is being switched on or
off. Also remember to always use it only in a well-ventilated room.
2. With any part of the arrow pointer other than glass components gets dirty, do not use organic solvents. If a plastic part gets
dirty, use a cloth moistened with a diluted neutral detergent.
3. Do not disassemble any part of the arrow pointer. This could result in malfunctions or reduced performance.
4. When the arrow pointer is not used, make sure to put the dust cover on it.

3
Observation tube
Arrow pointer
U-APT
Drawing
attachment
U-DA
Magnification
changer
U-CA
U-ECA
Intermediate
tube
for AN360
U-OPA
Polarizing
intermediate
tube
U-CPA
Reflected
illuminator
U-RLA
Universal
illuminator
BX-URA2
Fluorescence
illuminator
BX-RFA
Microscope frame
BX40
BX50
Microscope frame
BX41
BX51
BX52
Microscope frame
BX45
BX46
BX60
Universal
illuminator
U-URA
Microscope frame
BX43
BX53
Universal
reflected
illuminator
BX3-URA
Coded
fluorescence
illuminator
BX3-RFAS
5. When the arrow pointer is used with the BX40, BX41, BX43, BX45, BX46, BX50, BX51, BX52, BX53, BX60 microscope frame,
only one intermediate attachment can be mounted in a 2-level configuration.
However, the usable intermediate attachment is restricted depending on whether it is mounted above or below the arrow
pointer.
· The only intermediate attachments that can be used on top of the arrow pointer is the U-EPA or U-EPA2 eyepoint adjuster.
For the intermediate attachments that can be used below the arrow pointer, consult the following sketch and select the
optimum one.

U-APT
4
If the system is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition, the
system equipment may also be damaged. Always use the system as outlined in this instruction manual.
The following symbols are used to set off text in this instruction manual.
: Indicates that failure to follow the instructions in the warning could result in bodily harm to the
user and/or damage to equipment (including objects in the vicinity of the equipment).
# : Indicates that failure to follow the instructions could result in damage to equipment.
} : Indicates commentary (for ease of operation and maintenance).
3Caution

5

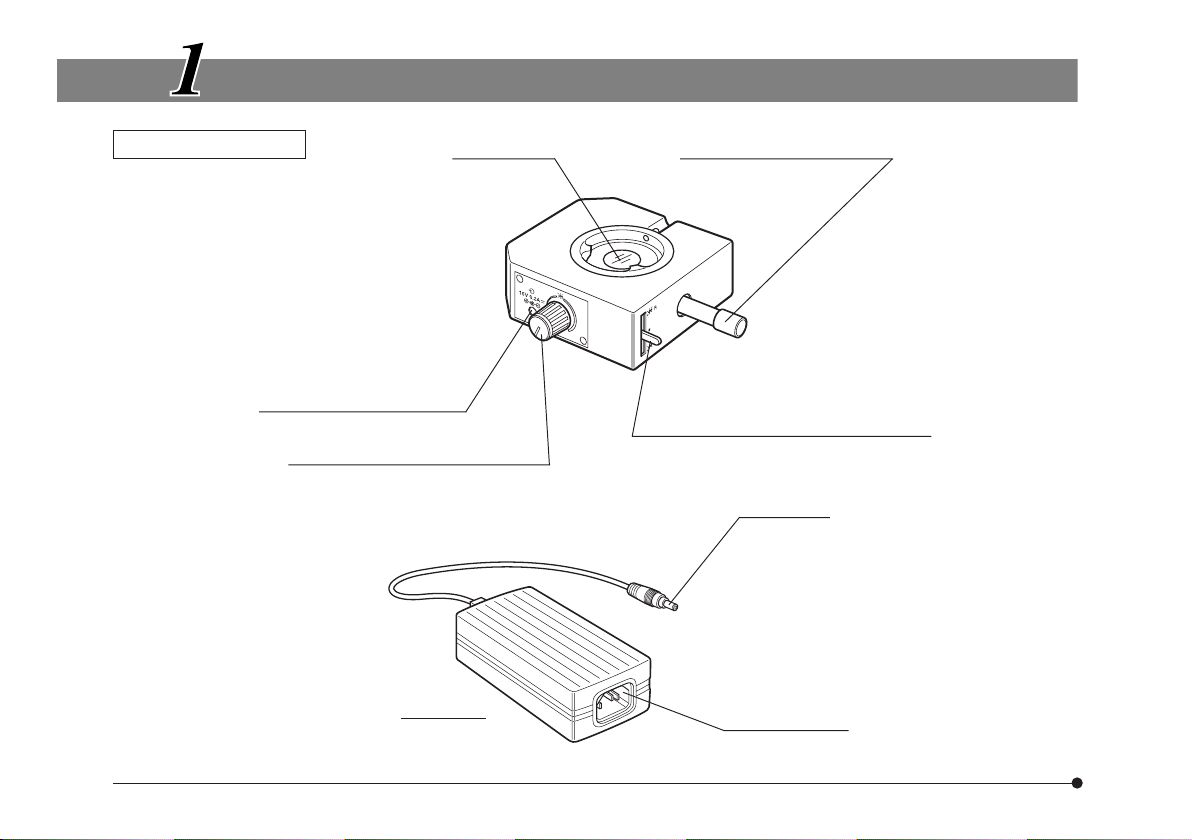

CONTROLS
Arrow Pointer U-APT Pointer control lever (Page 6)
AC adapter input connector
Pointer brightness control (Page 6)
OFF/Continuously variable
Pointer color switch lever (Page 6)
Up: Red. Middle: Shielded. Down: Green.
Tube mounts
Output plug
Input connector
AC Adapter

U-APT
6
Fig. 1
Fig. 2
OPERATION
2-1 Focus Adjustment of the Arrow Pointer (Figs 1 & 2)
}For use in focusing of the pointer, one of the eyepiece sleeves should be
equipped with a helicoid (or a focusing mask).
1. Turn the pointer brightness control @ of the arrow pointer clockwise to
turn on the pointer ( ).
}Set the pointer color switching lever ² to other position than the middle
position. If the pointer cannot be seen in the field of view, move the pointer
at the center of field using the pointer control lever ³.
2. Looking into the eyepiece sleeve without the diopter adjustment ring, turn
the helicoid | of the eyepiece to focus on the pointer.
3. Looking into the eyepiece sleeve with the diopter adjustment ring, turn the
diopter adjustment ring ƒ to focus on the pointer.
4. Turn the coarse and fine focus adjustment knobs of the microscope to
focus on the specimen.
²
ƒ
@
³
|

7
2-2 Pointer Operation
}Light intensity alignment range of the pointer has been set to comply with
a dark specimen, such as the case of fluorescence observation. For this
reason, in case of brightfield observation with high light illumination, you
may feel it difficult to identify the pointer even by rotating the pointer bright-
ness control dial which is not defect of this product.
1. While looking into the eyepiece, turn the pointer brightness control @
clockwise to vary the brightness continuously.
2. Turning the control to the fully counterclockwise position switches it off.
Using the pointer color switching lever ² select a color which is clearly
distinguishable from the specimen color.
· Top position: Red
· Middle position: Light shielded.
· Down position: Green

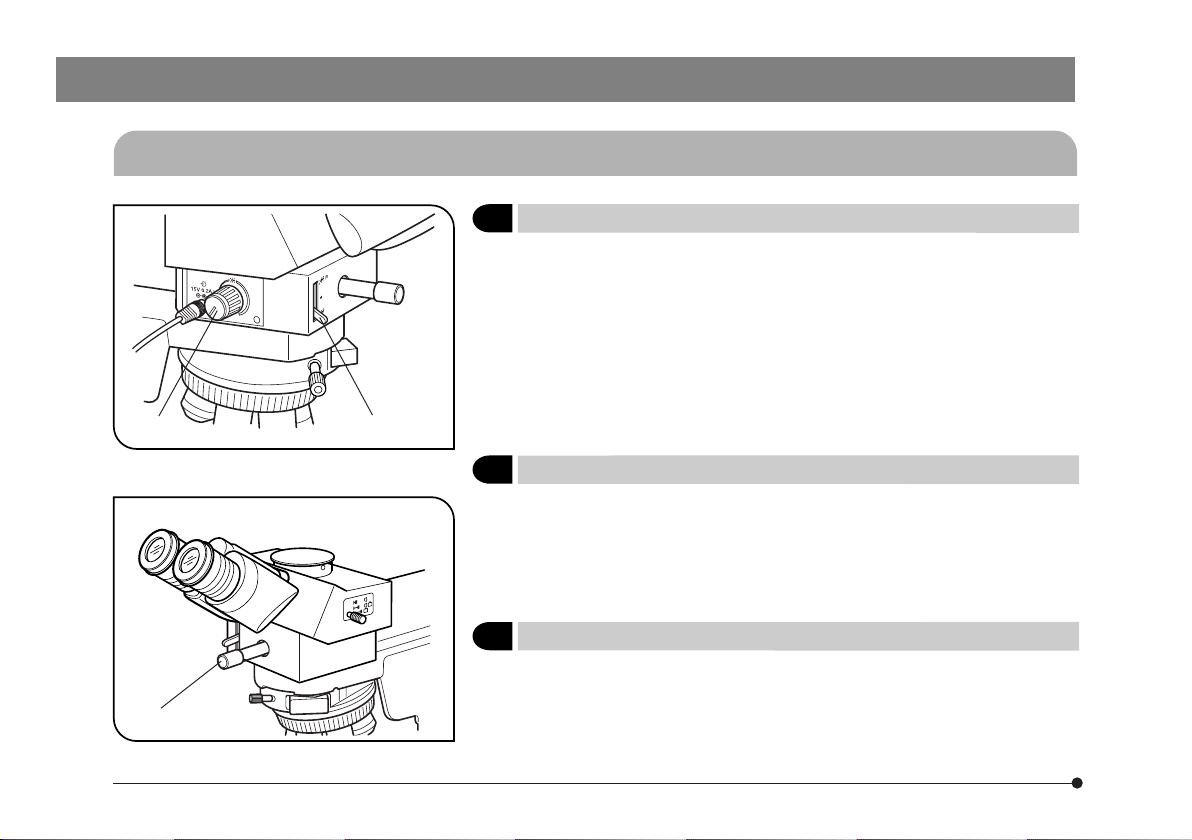

Fig. 3
1Adjusting the Pointer Brightness (Fig. 3)
2Selecting the Pointer Color (Fig. 3)
Fig. 4
@
3Moving the Pointer (Fig. 4)
Move the pointer to the desired location in the field of view by operating
the pointer control lever @ on the front of the arrow pointer.
}When the pointer is not used, move it away from the field of view or set the
pointer color switching lever to the middle position.
²
@

U-APT
8
2-3 Notes on Photomicrography
In general, the procedure for taking photographs is the same as usual. This section describes special considerations that
apply when taking photographs with the arrow pointer installed.
1. Using the trinocular observation tube on top of the microscope, you can take photographs that include the pointer.
# When you use genuine Olympus trinocular observation tubes, photo eyepiece and photomicrographic equip-
ment, the pointer ( ) is always focused on the film plane.
2. Brightness of the pointer is set to be brighter than the specimen to ensure adequate contrast. This has the following
effects on photographs that are not apparent during visual observation.
· Since the pointer is always overexposed when exposure is correct for specimen, the pointer color will bleach to white in
color photographs.
· When taking photographs with photomicrographic equipment with automatic exposure control, the brightness of the
pointer will cause the specimen to be underexposed. In such cases, set the photomicrographic equipment’s specimen
distribution compensation dial to the OVER position.
· Since the effect of the pointer is especially great when making long exposures of dark specimens, check the exposure
time with the pointer illumination turned off, then make the exposure manually after turning the pointer illumination back
on.

9
SPECIFICATIONS
Item Specification
Maximum field number 22
Pointer color 3 steps switchable (Top: Red. Middle: Shielded. Down: Green.)
Joystick control.
Pointer power supply AC adapter
Input rating: 100-240 V 50-60 Hz 1.2 A MAX.
Output rating: 15 V 3.34 A
Arrow pointer
dimensions & weight
115(W) x 165(D) x 45(H) mm, approx. 1.2 kg
Operating environment · Indoor use.
· Altitude: Max. 2000 meters
· Ambient temperature: 5oto 40oC (41oto 104oF)
· Maximum relative humidity: 80% for temperatures up to 31oC (88oF),
decreasing linearly through 70% at 34oC (93oF), 60% at 37oC (99oF),
to 50% relative humidity at 40oC (104oF).
· Supply voltage fluctuations; Not to exceed ±10% of the normal
voltage.
· Pollution degree: 2 (in accordance with IEC60664)
· Installation/Overvoltage category: II (in accordance with IEC60664)
Pointer movement

U-APT
10
Fig. 6
ASSEMBLY
1. Remove the observation tube from the microscope frame in use @, and
attach the arrow pointer ² so that the pointer control lever is located on
the front.
2. Attach the observation tune removed before above the arrow pointer.
2Connecting the AC Adapter (Fig. 6)
Before connecting the AC adapter, turn the pointer brightness con-
trol fully counterclockwise to the OFF position.
The power cord is vulnerable when bent or twisted. Never subject it
to excessive force.
Always use the power cord and AC adapter provided by Olympus. IF
no power cord is provided with the microscope, please select the
proper power cord by referring to section “PROPER SELECTION OF
THE POWER SUPPLY CORD” at the end of this instruction manual.
1. Firmly connect the AC adapter’s output plug @ to the AC adapter input
connector ² on the left side panel of the arrow pointer.
2. Connect the power cord’s connector | into the AC adapter’s input con-
nector ³, then connect the power cord’s plug ƒ to the wall power outlet.
The power cord should be connected to a grounded, 3-conductor
power outlet. If the power outlet is not grounded properly, Olympus
can no longer warrant the electrical safety performance of the equip-
ment.
Fig. 5
|
³
²
@
1Mounting the Arrow Pointer (Fig. 5)
²
@
ƒ

11
To prevent the AC adapter cord @ from coming in the way of microscope
operation and from contacting the lamp housing, peel off the backings
from the two provided cord stopper ² stickers and fix the power cord at
two positions on the arrow pointer using them.
Fig. 7
²@
3Fixing the Cord Stopper

U-APT
12

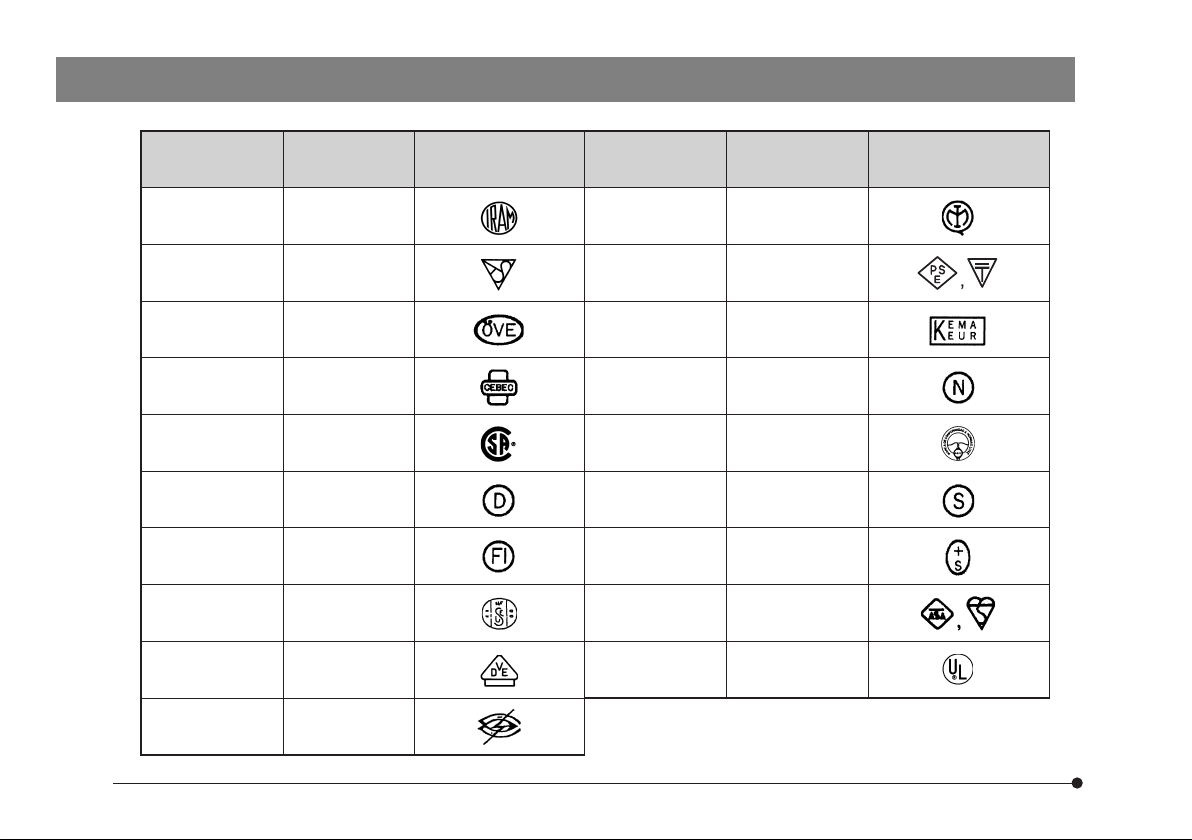

Table 1 Certified Cord
A power supply cord should be certified by one of the agencies listed in Table 1 , or comprised of cordage marked with an
agency marking per Table 1 or marked per Table 2. The fittings are to be marked with at least one of agencies listed in
Table 1. In case you are unable to buy locally in your country the power supply cord which is approved by one of the
agencies mentioned in Table 1, please use replacements approved by any other equivalent and authorized agencies in
your country.
PROPER SELECTION OF THE POWER SUPPLY CORD
If no power supply cord is provided, please select the proper power supply cord for the equipment by referring to “ Specifications ” and
“ Certified Cord ” below:
CAUTION: In case you use a non-approved power supply cord for Olympus products, Olympus can no longer warrant the
electrical safety of the equipment.
Specifications
Voltage Rating
Current Rating
Temperature Rating
Length
Fittings Configuration
125V AC (for 100-120V AC area) or, 250V AC (for 220-240V AC area)
6A minimum
60°C minimum
3.05 m maximum
Grounding type attachment plug cap. Opposite terminates in molded-on IEC con-
figuration appliance coupling.

13
Country Agency Certification
Mark Country Agency Certification
Mark
Argentina
Australia
Austria
Belgium
Canada
Denmark
Finland
France
Germany
Ireland
IRAM
SAA
ÖVE
CEBEC
CSA
DEMKO
FEI
UTE
VDE
NSAI
Italy
Japan
Netherlands
Norway
Spain
Sweden
Switzerland
United
Kingdom
U.S.A.
IMQ
KEMA
NEMKO
AEE
SEMKO
SEV
ASTA
BSI
UL
JET, JQA, TÜV,
UL-APEX / MITI

U-APT
14
10 30 10
30 10 10
30 10 30
10 30 50
10 10 30
10 30 30
10 10 50
Table 2 HAR Flexible Cord
APPROVAL ORGANIZATIONS AND CORDAGE HARMONIZATION MARKING METHODS
Approval Organization
Printed or Embossed Harmoniza-
tion Marking (May be located on
jacket or insulation of internal wir-
ing)
Alternative Marking Utilizing
Black-Red-Yellow Thread (Length
of color section in mm)
Black Red Yellow
Comite Electrotechnique Belge
(CEBEC)
Verband Deutscher Elektrotechniker
(VDE) e.V. Prüfstelle
Union Technique de l´Electricite´
(UTE)
Instituto Italiano del Marchio di
Qualita´ (IMQ)
British Approvals Service for Electric
Cables (BASEC)
N.V. KEMA
SEMKO AB Svenska Elektriska
Materielkontrollanstalter
CEBEC <HAR>
<VDE> <HAR>
USE <HAR>
IEMMEQU <HAR>
BASEC <HAR>
KEMA-KEUR <HAR>
SEMKO <HAR>

15
Österreichischer Verband für
Elektrotechnik (ÖVE)
Danmarks Elektriske Materialkontroll
(DEMKO)
National Standards Authority of Ireland
(NSAI)
Norges Elektriske Materiellkontroll
(NEMKO)
Asociacion Electrotecnica Y
Electronica Espanola (AEE)
Hellenic Organization for
Standardization (ELOT)
Instituto Portages da Qualidade
(IPQ)
Schweizerischer Elektro
Technischer Verein (SEV)
Elektriska Inspektoratet
<ÖVE> <HAR>
<DEMKO> <HAR>
<NSAI> <HAR>
NEMKO <HAR>
<UNED> <HAR>
ELOT <HAR>
np <HAR>
SEV <HAR>
SETI <HAR>
30 10 50
30 10 30
30 30 50
10 10 70
30 10 70
30 30 70
10 10 90
10 30 90
10 30 90
Underwriters Laboratories Inc. (UL) SV, SVT, SJ or SJT, 3 X 18AWG
Canadian Standards Association (CSA) SV, SVT, SJ or SJT, 3 X 18AWG

AX9897 11
8F Olympus Tower, 446 Bongeunsa-ro, Gangnam-gu, Seoul, 06153 Korea
Distributed by
Manufactured by
48 Woerd Avenue Waltham, MA 02453, U.S.A.
Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan
www.olympus-global.com
Printed in Japan 20161028 M0000
