Olympus USPM-RUIII Series User manual

PV6088-F4E017
1
Optical Measuring Instrument
USPM-RUIII series
USPM3-100、USPM3-200
Hardware Operation Manual
Before you get started
Thank you for purchasing Olympus Lens Spectral Reflectivity Measurement
USPM3-100/USPM3-200. Before you start using it, please be sure to read this operation
manual carefully, and then, store it in a readily accessible safe place, so that it can be
referred to at any time you need it. Our warranty card is attached to the back of the
manual. Complete the required entries, and then store the card in a safe place.

PV6088-F4E017
2
PREFACE
How to carry

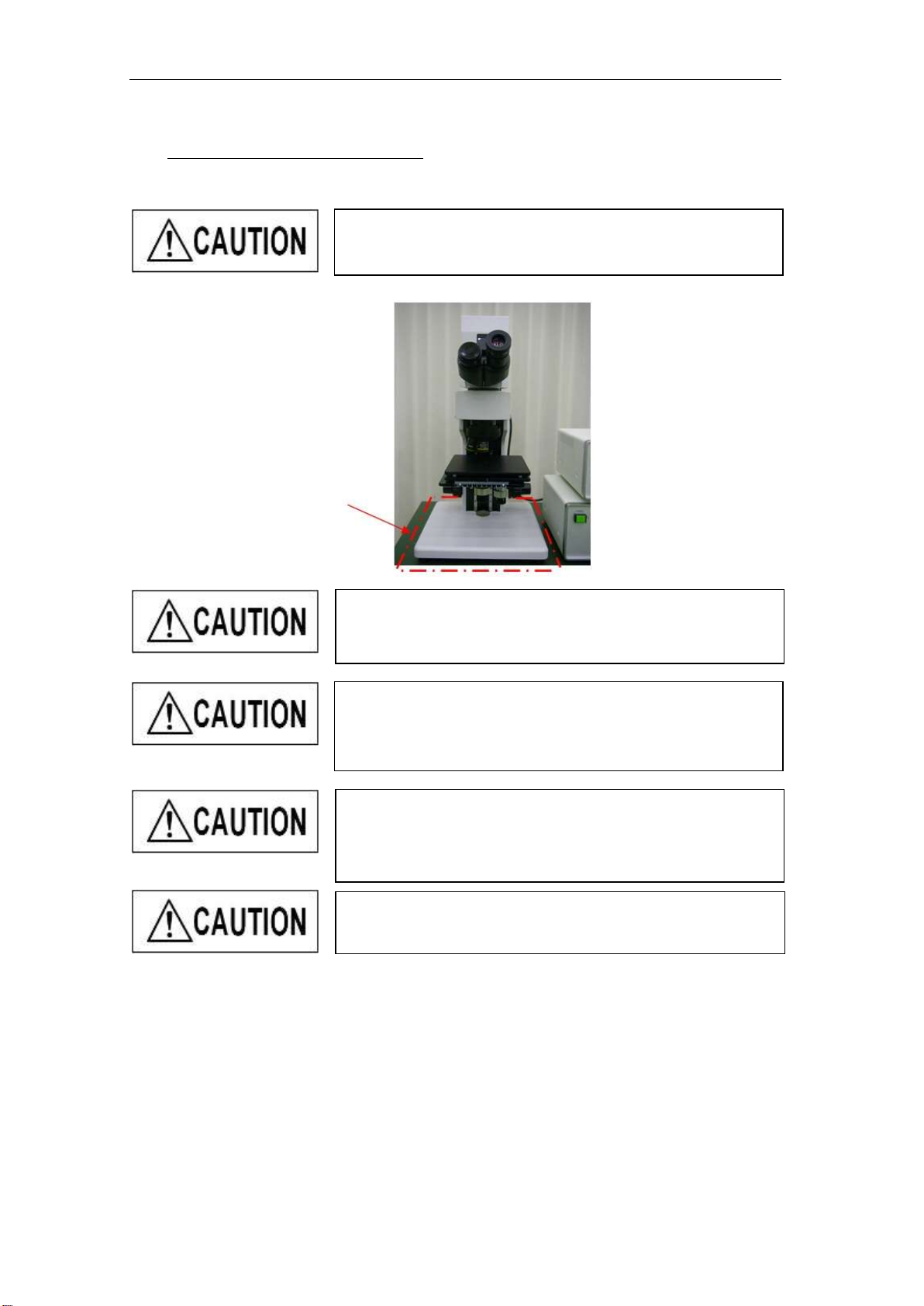

For how to carry this product, refer to 2.2 How to carry and install the product.
How to clean
For how to clean this product, refer to 2.3 How to clean.
Usage environment
Use this product in an environment that conforms to the specification.
For the specification of usage environments, refer to 9. SPECIFICATIONS.
About the lamp house
Though heavily dependent on the usage conditions (ambient temperature and
humidity, supply voltage, period of lighting, etc.), the useful life of the lighting device
(lamp house) * assumes either short one of for approximately three years（In the case
of the use of approximately eight hours a day）or approximately 15,000 hours .
*The above statement does not guarantee freedom from failures or repair at no
charge during the service life.
* Depending on the usage conditions, there is a possibility of aging degradation in a
shorter period.
Inspect the lamp house according to Appendix: Checklist for inspection of the
lighting device (lamp house) until the lamp house reaches the end of its useful life.
Should any unexpected incident occur (e.g., smoke) during use, turn off the power
immediately and contact the sales representative where you purchased the unit or our
sales department. Regular inspection is recommended, in order to achieve safe use
and reduce downtime.
About the personal computer (hereinafter "computer")
We (Olympus) will take no responsibility for any and all damage arising out of the use
or malfunction of the unit, including, but not limited to, any damage to the data stored
in your personal computer(s). Please make a backup copy of your computer system
and keep it in a safe place. (Olympus does not provide any backup support.)
We assure the quality of the unit when it is shipped from our factory. No malfunction
or disability due to any change in the environment settings of the computer by you
(e.g., any change in the BIOS) or installation of any other applications are covered by
the quality assurance of Olympus.
When there is only a small amount of free space in the computer’s hard disk drive
this may make the data processing take longer or even cause errors. Delete
unneeded data files regularly. For how to delete data files, refer to the operating
system manual.
NEVER delete or rename any folders already included on the hard disk drive of the
computer in the configuration at the set up. Otherwise, the software may become no
longer usable.

PV6088-F4E017
3
SAFETY PRECAUTIONS
About safety
If this product is used in a way that is not described in this document, safety is not
guaranteed, in addition to the risk of failure. Always adhere to the instructions given here.
Description of Symbols and Terms Used in This Instruction Manual
The following symbols and terms are introduced in connection with possibly hazardous
operations and practices according to the importance of the involved hazards. Pay utmost
attention to these symbols and terms to ensure the safe use of the device.
Symbols denoting prohibition (prohibited actions)
Symbols denoting obligation (mandatory actions)
Symbols denoting caution
Failure to follow the instructions associated with this symbol could
cause an accident, such as fire, electric shock, etc., which could
result in serious injury to the user or death.
Failure to follow the instructions associated with this symbol could
result in an accident, such as electric shock which could cause
injury to the eyes or body of the user, or result in damage to the
device.
Mandatory
Unplugged

PV6088-F4E017
4
Symbols relating to safety
Lens Spectral Reflectivity Measurement USPM3-100/USPM3-200 contains the following
symbols.
Handle the product safely, keeping in mind the significance of these marks.
Symbols on the package
The package has the following symbols:
Indicates this side up.
Indicates that the box should be protected from rain.
Indicates that the items inside are fragile and that the package should be
handled with care.
Indicates the compatibility with China RoHS.
Symbols
Description
Avoid touching the surface since it is hot.
There is a risk of burns.
Indicates an unspecified, common danger. Follow the instruction in
the operation manual or that shown with the mark.
An inter-switching push button turns on/off the main switch.

PV6088-F4E017
5
Do not install the device in a location that is frequently exposed to dust,
moisture, oily fumes, or steam.
If the device is installed in any of aforementioned environments, fire or
electric shock hazards may result. To install the device, avoid a location
exposed to direct sunlight, location at an unusually high temperature, such
as near a space heater, heating unit, etc., or at a very low temperature, or a
location with high humidity, heavy dirt or dust.
Do not introduce water or a foreign object into the device.
Introducing water or a foreign object into the device will result in a fire or
electric shock hazard. If water or a foreign object is found to have been
accidentally introduced into the device, immediately switch off the device.
Unplug the power cord. Then contact the vendor from whom the device was
purchased.
Do not modify or disassemble the part.
Unauthorized disassembling or modifying of the system might cause fire,
electric chock, or injury. If any abnormality occurs as a result of
unauthorized modification of the system, such as the failure of the piezo
element, inactivation of the computer display, inactivation of the computer,
blown fuse, development of unusual odor and sounds, etc., power off the
system instantly. Remove the power cord from the wall outlet. Contact our
sales department for repair. Troubleshooting by an unauthorized person,
which is very dangerous, is strictly prohibited.
Do not block the ventilation hole for heat radiation of the light source!
The light source (U-LH100L-3) becomes very hot while the lamp is on. Be
careful not to block the ventilation hole for heat radiation. If the lamp is
turned on with the ventilation hole blocked, it may lead to fire.
Set up the main body 10cm or more apart from walls!
The light source (U-LH100L-3) becomes very hot while the lamp is on. Set it
up with the main body and the wall 10cm or more apart. It may lead to fire.
If the following cautions are not observed, there
may be a possibility of fire, electric shock, etc.,
which could result in serious injury to the user or
death.

PV6088-F4E017
6
Do not touch on the light source. Moreover, do not put the thing.
The light source (U-LH100L-3) becomes very hot while the lamp is on. Do
not touch on the light source. Moreover, do not put the thing. It may lead to
the burn and a fire.
Do not cover with the vinyl cover etc. until the light source gets cold.
The light source (U-LH100L-3) becomes very hot while the lamp is on. Do
not cover with the vinyl cover etc. until the light source gets cold. It may lead
to a fire.
Do not handle the device with wet hands.
If the user handles the device with wet hands, or plugs or unplugs the power
cord using wet hands, severe electric shock could result.
Operate the device with the specified power!
Input voltage of the Control Box is configured to 100–120 V or 220–240 V,
depending on the shipment destination. There is a nameplate indicating the
voltage setting on the back surface. Use this product within the voltage
range. Otherwise there is a risk of damage or fire. Make sure to contact our
service department when you move it into a place having a different voltage
range.
Ground the unit securely!
Connect the earth terminal of a three-terminal outlet to the ground for safety.
Imperfect grounding may cause electric shocks. Without grounding, the
intended electrical safety is not achieved.
Always use the supplied cables.
Always usee supplied cables. Using any cables other than those supplied
may cause malfunctions due to internal and/or external noise.

PV6088-F4E017
7
Always use the supplied power cord.
Employing any other cables than those supplied may cause failures due to
internal and/or external noises.
The supplied cables are not usable with any other devices.
When no power cord is attached to the product, refer to the “Precautions for
proper use of the power cord”to choose a proper power code for the unit.
Replacement of fuses
Before replacing a fuse, turn off the power and unplug the power cord so as
to avoid electric shocks.
Rating of the fuse: 250 V AC, 3.15 A
Type of the fuse: Time lag , High breaking capacity type
Size of the fuse: φ5.2 mm 20 mm
Replacement of the lamp
Use the specified lamp for replacement. Otherwise there is a risk of damage
or fire.
Compatible lamp: 12 V 100 W (7023 from PHILIPS)
Do not install the device in an unstable location.
If the device is installed on an unstable platform, an inclined floor, or a floor
lacking sufficient rigidity, the device could fall or collapse, which might cause
bodily injury to the user or others in the area. Prior to installation, thoroughly
check the rigidity and flatness of the place where the device is to be
installed.
Do not change the lamp outright after turning it off!
To change the lamp because it was burnt out, or for any other reason, wait
till after it has cooled down enough, because it is very hot immediately after
switched off.
Failure to conform to the following cautions may cause injury or
physical damage to peripheral devices.

PV6088-F4E017
8
Exert good caution in focusing!
When bringing the reflection sample surface into focus, use good caution
not to allow the objective to inadvertently hit the sample surface.
Measure the sample at a normal temperature
If the sample temperature is higher than normal, the sample may transform
or give damaged to the stage..
FCC Warning
If the user changes or modifies a device without first receiving permission
from the entity responsible for ensuring the device complies with FCC rules,
the user forfeits the right to operate the device.

PV6088-F4E017
9
Position of the warning label
Warning labels
The lamp house, which becomes hot, has a warning label (back of the unit).
Make sure to adhere to the instructions. If the label is missing, or it gets dirty
or starts to peel, contact your supplier for a replacement.

Confirm that a lamp turns off the light!
Please confirm that a lamp turns off the light by all means before excluding
a lamp house
Indicates precautions about
replacement of lamps.
Warning label
This product corresponds to RISK GROUP2 in a UV range (200-400nm) and a blue light
range (300-700nm) based on IEC62471-2.
In addition, this product corresponds to RISK GROUP1 in the IR range (780-3000nm).

PV6088-F4E017
10
TABLE OF CONTENTS
1. PURPOSES AND FEATURES ·····························11
2. CARRYING AND INSTALLATION·························12
3. NAMES AND FUNCTIONS OF COMPONENT
PARTS ····························································15
4. ASSEMBLING AND CABLING ·····························22
5. MEASURING METHOD·····································25
6. PRINCIPLE OF MEASUREMENT·························28
7. REPLACEMENT OF FUSES································29
8. REPLACEMENT OF LAMP································30
9. SPECIFICATIONS ·············································31
10. LAWS AND REGULATIONS ······························33
11. QUALITY ASSURANCE (WARRANTY SHEET)·····35
APPENDIX·····························································37
○Precautions for proper use of the power cord

PV6088-F4E017
11
1. PURPOSES AND FEATURES
1.1 Intended uses of this product
Lens Spectral Reflectivity Measurement USPM3-100/USPM3-200 is intended to measure
the reflectance of a coated plane. Through easy operations, the reflectance of a subject
is calculated in comparison to that of the reference sample.
1.2 Features
This device has the following useful features:
Short measurement time
Use of high-speed spectrometry based on a flat field grating and line sensor enables
the measurement to be finished within a short time.
Cutout of rear surface reflection noise
The device employs zonal illumination to cut out rear surface reflection noise.
Therefore, it allows to accurately measure the reflectance of the front surface only,
without the need for antireflection treatment on the rear surface or any other
countermeasure.
Reflectance measurement of minute area
The objective forms a spot of approximately 60 [μm] (when the 10x objective is
employed) on the surface under measurement. This allows to measure also lens
curvatures and coating unevenness.
Flexible comparison measurement
Since the reflectances of different comparison measurement masters can be set up
as reference values, the device can be applied to comparison measurements with
flexibility.
The product is intended to measure spectral characteristics,
including reflectance. Do not use for any other purpose.

PV6088-F4E017
12
2. CARRYING AND INSTALLATION
2.1.Conditions of installation
(1) Avoid any place that is exposed to direct sunlight, extremely hot (near a heater or a
thermal appliance) or cold, or any humid, dirty or dusty place.
(2) Install it on a flat, stable and solid bench.
(3) Avoid any place exposed to frequent vibration.
(4) Before moving the product to a location having different voltage, it is necessary to
change the voltage configuration of the product. Contact our service department for
assistance.
Input voltage is configured to 100–120 V or 220–240 V, depending
on the shipment destination. There is a label indicating the voltage
setting on the back surface. Use this product within the voltage
range. Otherwise there is a risk of damage or fire. Make sure to
contact our service department when you move it into a place
having a different voltage range.

PV6088-F4E017
13
2.2. How to carry and install the product
Keep the following cautions in mind when installing the product:
(1) Remove the main unit, cables and accessories from the shipping box.
(2) Check whether all of the items listed in [Packaged Items] are in place.
(3) Remove the packing materials and check whether there is any visible damage to
the contents.
(4) Set up the main unit, the control box, the light source power supply and computer
into a place that satisfies the installation conditions.
Always firmly hold the base when carrying or installing the product.
Otherwise there is a risk of failure.
Base
Always use two or more persons to unpack, install or carry the
device, which weighs about 20 kg. Handling the device alone may
cause injury.
Do not allow any impact to occur to the device when unpacking or
installing it. Damage to optical parts or undesired effects to the
sample adjustment feature of the product may result, causing failure
or incorrectness.
Avoid installing the product in an unstable place or any place with
strong vibrations. There is a risk of the unit overturning or falling, or
injury. Take the usage conditions into consideration when installing
it.
Do not place equipment so that it is difficult to pull out power supply
cord from rear side receptacle of Control Box and Light Source
Power Supply

PV6088-F4E017
14
2.3. How to clean
(1) Use a commercial air blaster to blow dust off the lens and then wipe it softly with a
sheet of lens cleaning tissue (or washed gauze).
Wipe off any fingerprints or oils with a sheet of lens cleaning tissue dampened with
a little absolute alcohol.
(2) Avoid using any organic solvents in the cleaning of any parts other than the lens.
Wipe off heavy dirt, if any, with a soft cloth slightly dampened with diluted neutral
detergent.
Absolute alcohol is highly flammable. Never place the device near
an open flame when using absolute alcohol, and do not handle any
electrical device switches that may cause ignition. In addition, make
sure there is sufficient ventilation in the room. Before conducting
maintenance on the lamp house, wait until it is cool enough to
touch.

PV6088-F4E017
15
3. NAMES AND FUNCTIONS OF
COMPONENT PARTS
3.1. Names of Component Parts

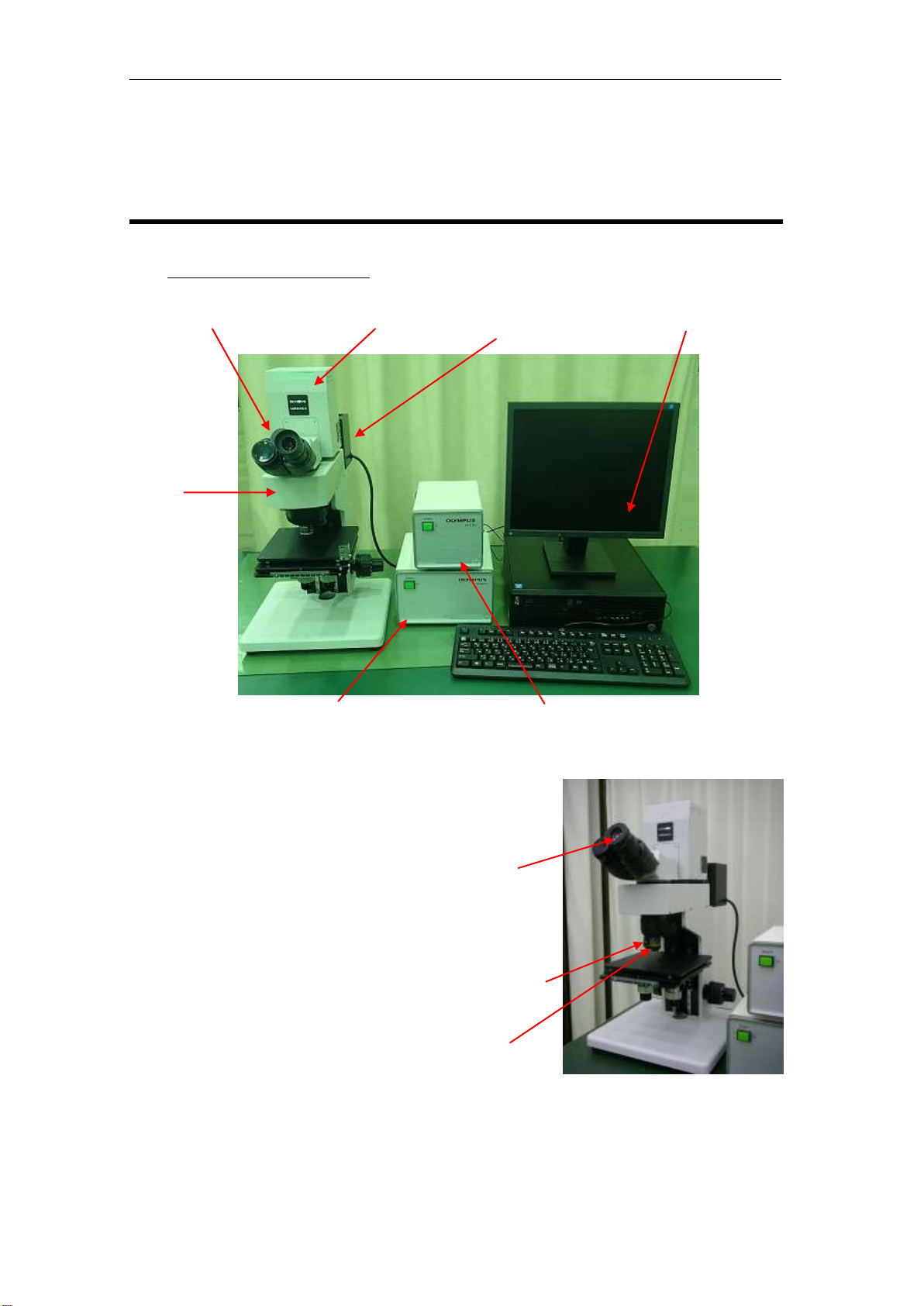

Figure 1-1. The complete system
(1) Main unit
(2) Ocular body tube
(3) Photometric head
(4) Lamp house
(5) Control box
(6) Light source power supply
(7) Computer
（１０）Eyepiece
（８）Objective lens of ten magnifications (MPLFLN 10×)
(9)Objective lens of twenty magnifications (MPLFLN 20×)
Figure 1-2. Optical component

PV6088-F4E017
16
Figure 1-3. Cables supplied
(12) Photometric cable
(13) Main unit cable
(14) IO cable
(11) USB cable
(15) BK7 reference sample
Figure 1-4. Samples supplied
(16) Calibration sample
for wavelength calibration

PV6088-F4E017
17
(20) High-intensity
halogen lamp
（２２）Set of
hexagon wrenches
Figure 1-5. Accessories in box
Operation Manual (this document)
（１７）Lens Spectral Reflectivity Measurement
(USPM3-100/USPM3-200)Hardware Operation Manual
（１８）USPM-RU Software Operation Manual
（19）USPM-RU/RUIII Installation Guide
（21）Installation CD

PV6088-F4E017
18
3.2. Features of each component
The device
(1) Main unit
Contains the spectrometric optical system.
(2) The ocular body tube (U-BI30-2)
Used for observing the reflected light from the subject.
(3) Photometric head (USPM-380)
Receives and conducts spectrometry of light from the subject.
(4) Lamp house (U-LH100L-3)
Accommodates a halogen lamp.
(5) Control box (UCB-01)
Captures data from the photometric head and transmits it to the computer.
(6) Light source power supply (ULP-01)
Supplies the lamp house with 12 V (DC 12 V output ) power.
(7) Computer
Processes the data sent from the control box and displays the measurement
results.
Optical components
(8) Objective lens of ten magnifications (MPLFLN 10×)
Irradiates the subject with convergent light. This lens allows you to measure a spot
of about 60 μm.
(9) Objective lens of twenty magnifications (MPLFLN 20×)
Irradiates the subject with convergent light. This lens allows you to measure a spot
of about 30 μm.
(10) Eyepiece (MICRO SWH 10×)
Combines with the ocular body tube to observe light reflected from the subject.
Cables
(11) USB cable
Connects the control box with the computer.
(12) Photometric cable
Connects the control box with the photometric head.
(13) Main unit cable
Connects the control box with the main unit.
(14) IO cable
Connects the control box with the light source power supply.

PV6088-F4E017
19
Samples
(15) BK7 reference sample (reference)
Used for setting the reference values.
(16) Calibration sample for wavelength calibration (CALIB sample)
Used for checking and calibrating the wavelength direction.
Accessories
(17) Lens Spectral Reflectivity Measurement (USPM3-100/USPM3-200) Hardware
Operation Manual
The manual describes how to install the product, conduct measurements with it,
and perform maintenance. Consult this manual when operating the product.
(18) USPM-RU Software Operation Manual
The software manual: Consult this manual when using the software.
(19) USPM-RU/RUIII Installation Guide
The manual describes how to install the software. Consult this manual when
reinstalling the software.
(20) High-intensity halogen lamp (with ten spares)
Spare halogen lamps.
(21) Software CD
Installation CD. Use to reinstall the software.
(22) Set of hexagon wrenches (1.5 mm/2 mm/2.5 mm/3 mm/4 mm/5 mm)
Use these tools to install the photometric head onto the main unit.
3.3. Expendable parts
High-intensity halogen lamps (7023 from PHILIPS, Average life: 50H*)
* Average life is the time when half of the test samples are burned out.
In short, the time at which the survival rate reaches 50%.

PV6088-F4E017
20
3.4.Names of the parts of the control box (UCB-01)
3.5. Features of the control box (UCB-01)
(1) Power switch
Turns the control box power on/off.
(2) USB connector
Terminal to send and receive the control signals. Connected with the computer via
the USB cable.
(3) Main unit connector
Terminal to supply power for sending/receiving control signals and the controller
functions. Connected with the main unit via the main unit cable (DC 12V
output ).
(4) Photometric connector
Terminal to supply power for sending/receiving control signals and the controller
functions. Connected with the photometric head via the photometric cable (DC 12V
output ).
(5) Power inlet
Supplies AC power to the control box via the power cord. This inlet also contains a
fuse. For details on replacing fuses, refer to 7. REPLACEMENT OF FUSES.
(6) IO connector
Terminal to receive and send the control signals. Connected with the light source
power supply via the IO cable.
Figure 2. Control box
(1) Power switch
(2) USB connector
(5) Power inlet
(6) IO connector
(3) Main unit connector
(4) Photometric connector
