Pasta Sheeter

Model PM-IT-0146

Item 13234

Instruction Manual

Revised - 04/07/2017

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 6

-------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6 - 7

----------------------------------------------------------------------------------------- 8

------------------------------------------------------------------------------------- 8

-------------------------------------------------------------------------- 9 - 10

---------------------------------------------------------------------------------- 11

---------------------------------------------------------------------------- 12

------------------------------------------------------------------------------------------- 13 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

Troubleshooting

Illustrated Drawings

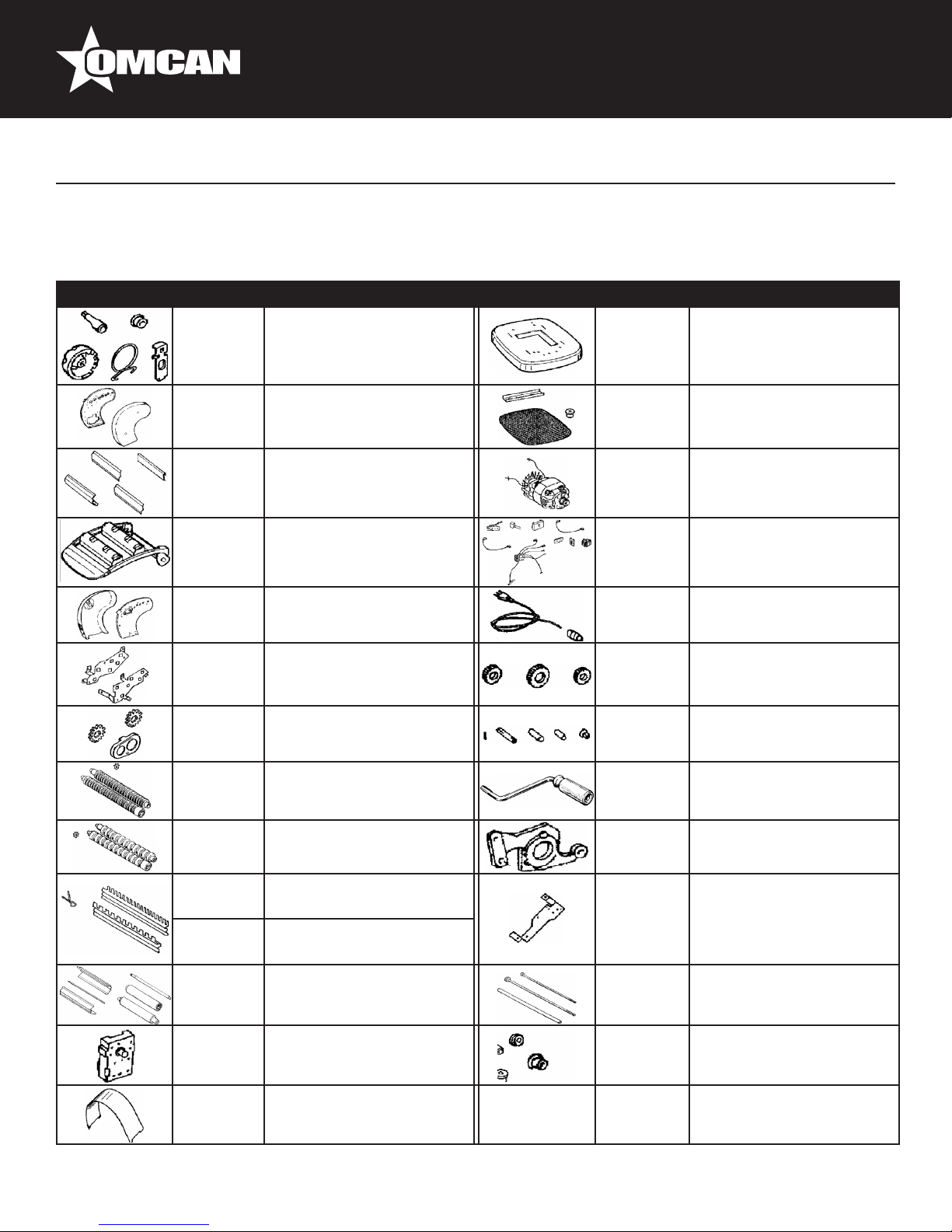

Parts Breakdown

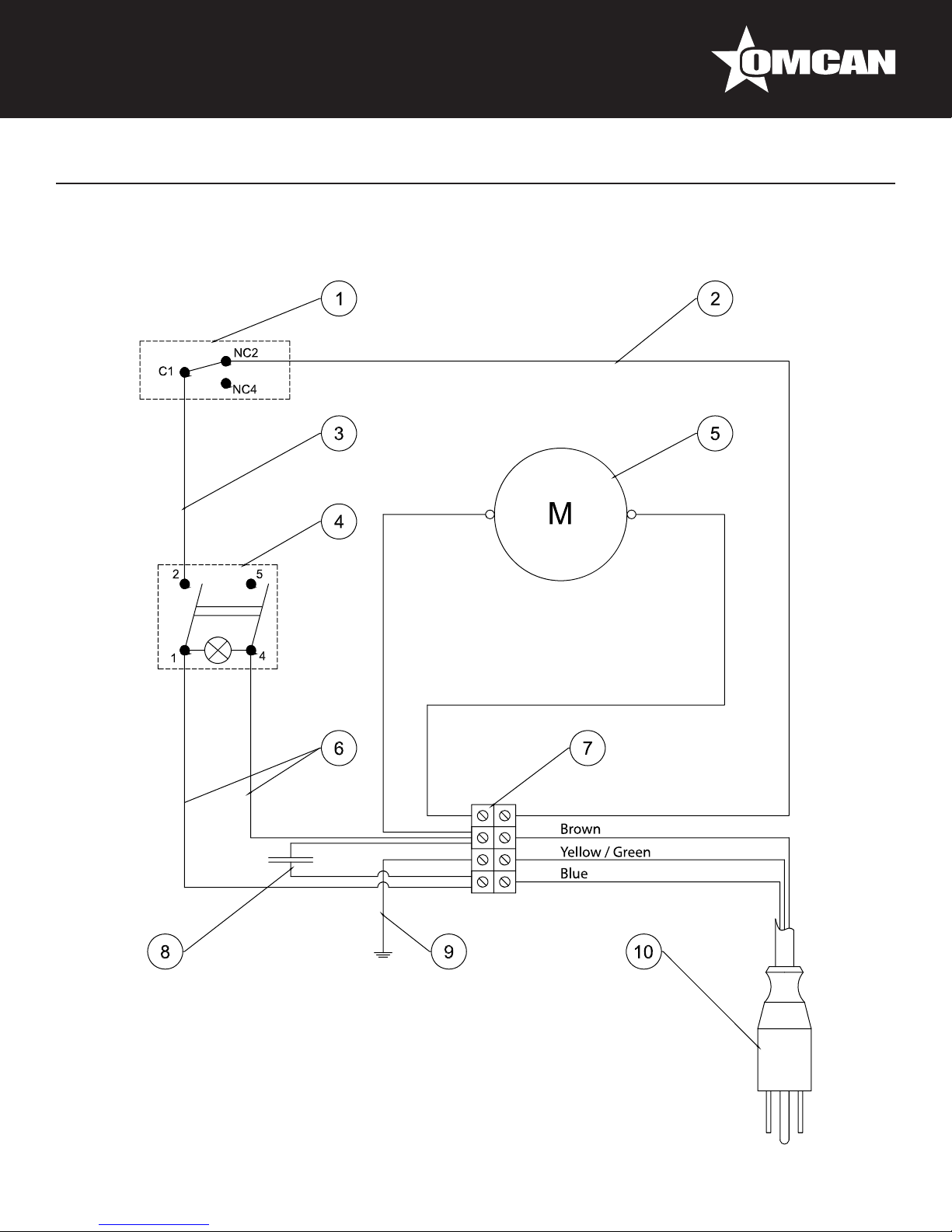

Electrical Schematics

Notes

Warranty Registration

Model PM-IT-0146

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

Safety and Warranty

General Information

Warning! Any use of the machine not provided for herein shall be considered incorrect or improper and

involving conditions of danger. The machine (also designed for manual use of Imperia accessories)

is intended only and exclusively for mixing, rolling or cutting pasta and may not be used for other

purposes.

The Manufacturer disclaims any liability in the event of:

• Improper use.

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5

Safety and Warranty

• Incorrect installation.

• Unsuitable electrical supply.

• Alterations or operations not authorised by the Manufacturer.

• Use of non genuine spares or not specic to the model.

CAUTION! If the power lead is damaged, it must be replaced by the manufacturer or Service Dept. or in

any case by similarly qualied persons to prevent any possible hazard.

ELECTRICAL CONNECTION

Before operating the machine, check that your home voltage is the one stated in the technical sheet of this

manual and that the system is earthed. Never use any other type of supply. The Manufacturer disclaims any

liability for damage to persons or property owing to the failure to follow this rule. Where necessary, use a plug

adapter, making sure that it is suitable for the supply lead.

WARNINGS

In the event of an emergency, to stop the machine, simply lift the safety guard (E), or press the switch (B) to

position “0”. Do not tamper with or neutralise any protections your machine is tted with. If you note that the

machine starts working also in conditions in which it ought not to (safety guard “E” up), switch it off immediately

pressing the switch (B) to position “0”. Take the power lead plug (C) out of the socket and get in touch with your

Authorised Dealer (see guarantee coupon accompanying the machine). This machine is not a toy: during use

it must be kept under control and out of the reach of children. Do not use the machine with loose clothes or

aprons that might get caught in the turning rollers. Use the same precaution for hair, jewellery, etc. Place the

machine on a rm surface, able to bear its weight. Before using the machine make sure you know how to stop

it in an emergency.

Do not use the machine if:

• It is not working properly.

• It has been damaged or dropped.

• If the power lead or plug are damaged.

If the power lead is damaged it must be replaced by the Manufacturer or Service Dept. or in any case by

similarly qualied persons to prevent any possible hazard. Never put the power lead or plug in water. Also keep

them away from sources of heat. Do not allow the power lead to hang from tables or furniture.

Do not use the machine near sinks or wet surfaces.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

6

Operation

USE OF THE MACHINE

Before each time of use: Follow the instructions given in the “Warnings” page of the “Cleaning” paragraph.

1. Set the machine on a suitable surface.

2. With the safety guard lifted as illustrated, put the plug in the socket and press the switch to position ( I ).

3. Lower the safety guard thereby enabling the machine to start.

4. Position the mobile guards leaving the stretching rollers uncovered.

5. The dough must be kept at room temperature.

Safety and Warranty

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste

and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model PM-IT-0146

Roller Width 5.75” / 146mm

Maximum Roller Opening 0.1” / 1.9 mm

Roller Revolution Speed 36 min / 48 Max.

Nominal Power 85W

Electrical 120V/60/1

Weight 13 lbs. / 5.9 kgs.

Dimensions 8.25” x 10.5” x 10.5” / 210 x 267 x 267mm

Item Number 13234

7

Operation

6. Turn the adjustment knob to position 6 (max roller opening) and insert part of the previously prepared

dough between the stretching rollers. This will obtain a rst shaping of the sheet. Fold it in two and pass it

through the rollers again to make it homogeneous.

7. To reduce the thickness, turn the adjustment knob to position 5, then gradually to the lower numbers, still

passing the sheet obtained between the rollers.

8. For an optimum result it is advisable to sprinkle the dough with our on both sides every time it goes

between the puller rollers.

9. To cut the sheets, move the mobile guards leaving the required cutter rollers uncovered, rest one end of

the sheet on the rollers to obtain cutting.

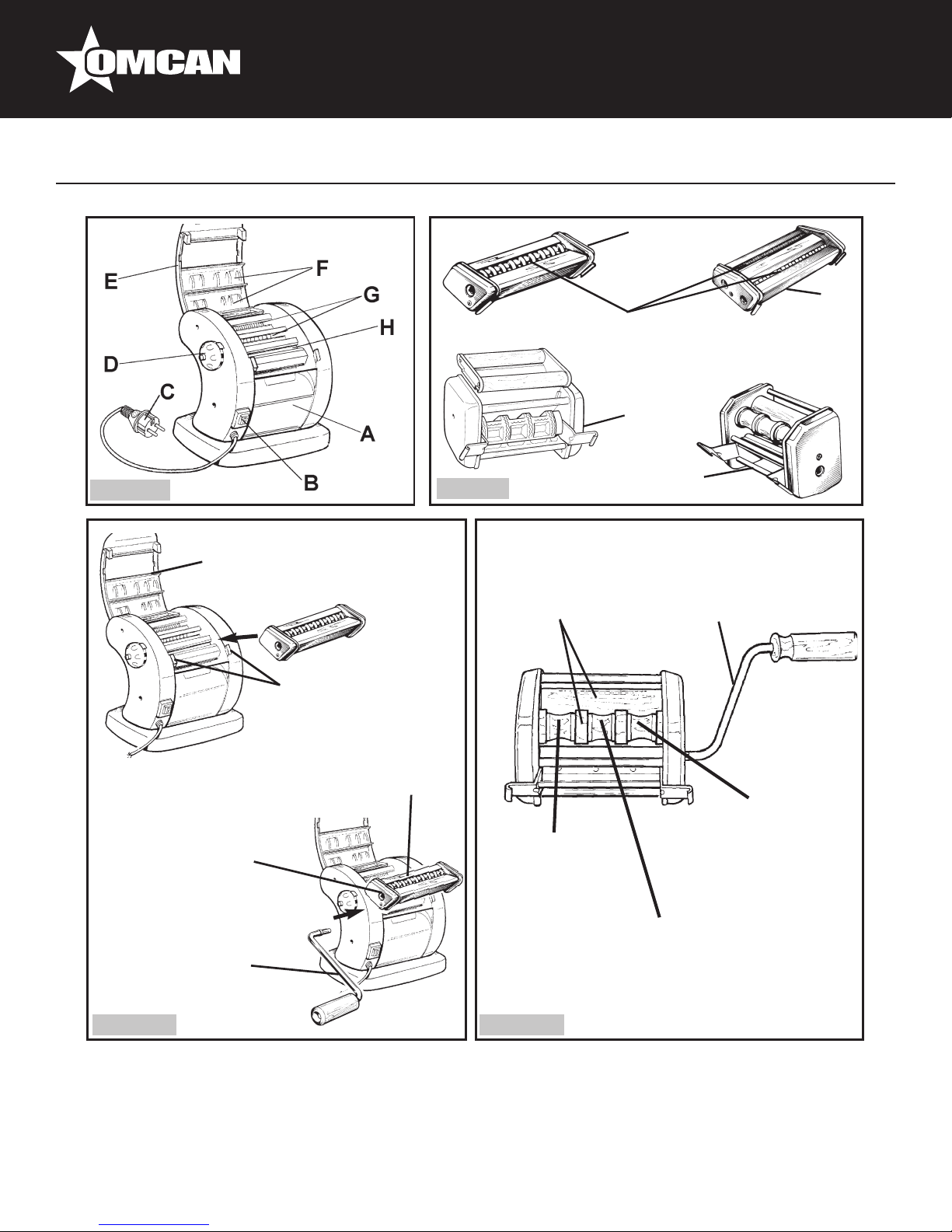

FITTING ACCESSORIES (FIG.3)

Before each time of use: follow the instructions given in the “Warnings” page of the “Cleaning” paragraph. All

accessory tting and removing operations are to be carried out with the power plug disconnected.

1. Set the machine on a suitable surface.

2. Raise the safety guard.

3. Connect the required accessory to the retainer ns provided on the machine.

4. Insert the handle provided in the slot present on all accessories.

This procedure is the same for all the manual devices shown on this page with the letters I, L, M, N.

MANUAL USE OF ACCESSORIES (FIG.4)

Before each time of use: follow the instructions given in the “Warnings” page of the “Cleaning” paragraph.

SIMPLEX/DUPLEX” CUTTERS

Rest one end of the sheet obtained previously on the cutter rollers, insert the handle in the slot of the device

and turn clockwise to obtain the cutting action.

RAVIOLI MAKER

1. Fold in half the sheet prepared previously, insert it between the hopper rollers until it touches the ravioli

maker rollers. With a 1/4 of a turn of the handle, move the sheet under the rollers.

2. Carefully open the two edges of the sheet resting them on the sloped surfaces of the hopper.

3. Place a rather restricted quantity of lling inside the sheet.

4. Turn the handle and replenish the lling inside the sheet as soon as it is lacking.

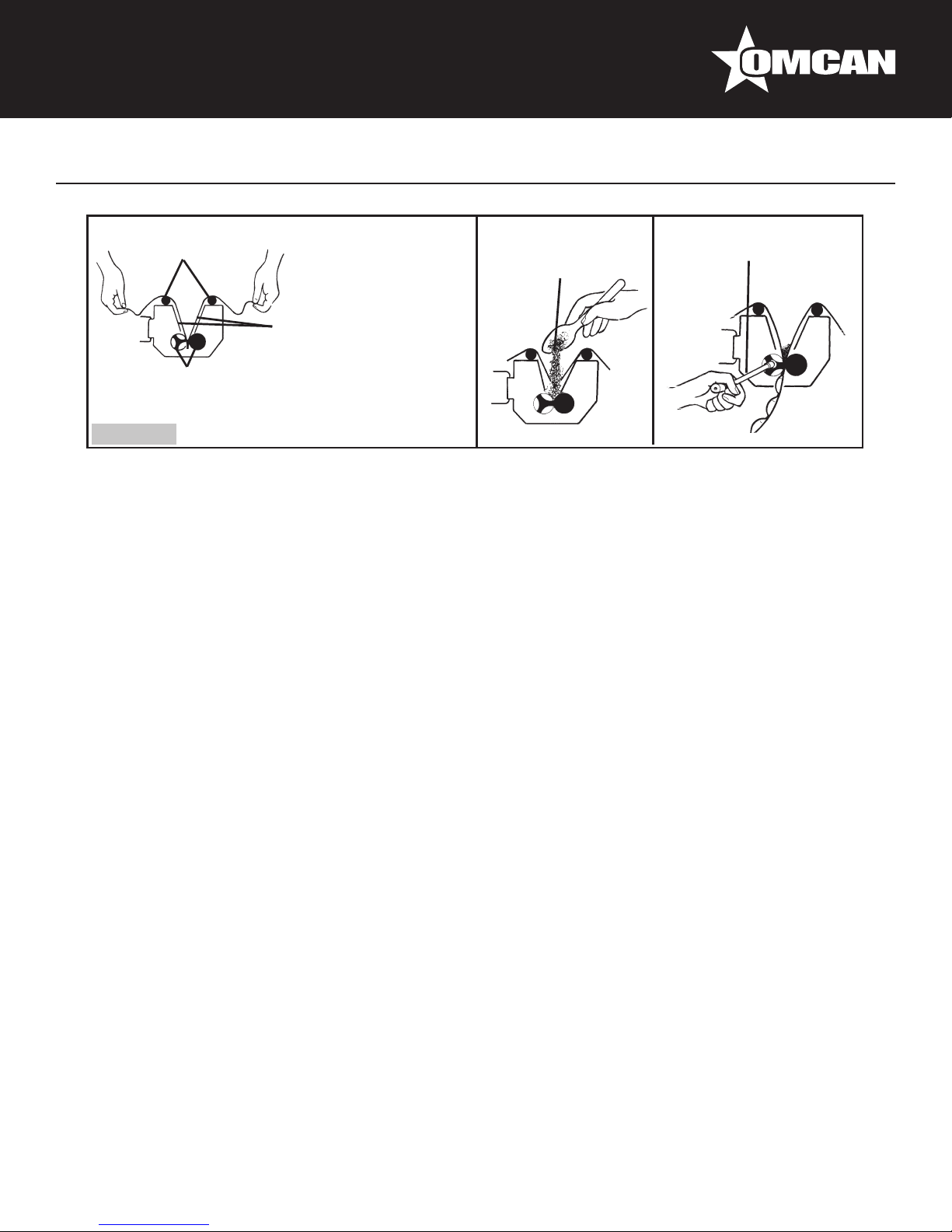

MILLEGNOCCHI” GNOCCHI MAKER (FIG.5)

Prepare a well amalgamated, smooth and soft mixture, form long cylinders (like breadsticks). Flour well,

choose the required pasta shape and pass them through the wooden rollers turning the handle clockwise.

8

Maintenance

Troubleshooting

CLEANING

This is the only maintenance normally required. Before and after each time of use, make sure that plug is not

in the socket and that the switch is on “0”. Thoroughly clean the machine and accessories with a dry cloth or

soft brush. Before use cleaning can be completed passing a piece of dough through the rollers, which should

then be eliminated. Do not use sharp objects to remove any remainders. Absolutely avoid using knives or other

utensils to put the dough between the machine rollers.

Never wash the machine and accessories with water or detergents.

Never wash any part of the machine and its accessories in a dishwasher.

Before stowing the machine and accessories make sure that all parts are perfectly dried.

PROBLEM LIKELY CAUSE REMEDY

The motor fails to start or stops

suddenly.

Plug disconnected or incorrectly

plugged in.

Plug in correctly.

Switch on “0”. Press the switch to “I”.

Safety guard up. Lower the safety guard.

If none of the above inconveniences are detected, contact your Authorised Dealer.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

13234 PM-IT-0146 Pasta Sheeter 6” / 146mm Roller Width

2mm Thick 0.1 HP / 85W 120V/60/1 cULus RM720

9

Illustrated Drawings

M

I

L

Cutter rollers

N

Handle attachment

Retainer fins

Handle

Cutter rollers

Fig. 3

Fig. 1

Hopper rollers

Ravioli making rollers

1 - 2

Filling

3

Fig. 4

Handle

4

Sloped hopper surfaces

Track for “cavatelli”

Track for “Sardinian gnocchi”

Handle

Wooden rollers

Track for “rigatelli”

Fig. 5

Safety guard

Fig. 2

M

I

L

Cutter rollers

N

Handle attachment

Retainer fins

Handle

Cutter rollers

Fig. 3

Fig. 1

Hopper rollers

Ravioli making rollers

1 - 2

Filling

3

Fig. 4

Handle

4

Sloped hopper surfaces

Track for “cavatelli”

Track for “Sardinian gnocchi”

Handle

Wooden rollers

Track for “rigatelli”

Fig. 5

Safety guard

Fig. 2

10

Illustrated Drawings

M

I

L

Cutter rollers

N

Handle attachment

Retainer fins

Handle

Cutter rollers

Fig. 3

Fig. 1

Hopper rollers

Ravioli making rollers

1 - 2

Filling

3

Fig. 4

Handle

4

Sloped hopper surfaces

Track for “cavatelli”

Track for “Sardinian gnocchi”

Handle

Wooden rollers

Track for “rigatelli”

Fig. 5

Safety guard

Fig. 2

11

Parts Breakdown

Model PM-IT-0146 13234

Picture Item No. Description Picture Item No. Description

78432 Knob Kit for RM720 78444 Base Kit for RM720

78433 Right Side Cover Kit for

RM720 78445 Feet Kit for RM720

78434 Apron Kit for RM720 78446 Motor Kit for RM720

78435 Safety Device Kit for

RM720 78447 Electrical Component Kit

for RM720

78436 Left Side Cover Kit for

RM720 78448 Power Cable Kit for

RM720

78437 Door Plate Gear Kit for

RM720 78449 Gears Kit for RM720

78438 Timing Case Kit for

RM720 78450 Pins Kit for RM720

78439 Roller Rigati Kit for

RM720 78451 Crank Kit for RM720

78440 Roller Rigati Kit for

RM720 78452 Flange Kit for RM720

41620 Retaining Spring Scraper

TG.2 Kit for RM720 78453 Support Bracket Kit for

RM720

41375 Retaining Spring Scraper

TG.4 Kit for RM720

78441 Roller Kit for RM720 78454 Rods and Tubes Kit for

RM720

78442 Adapter Kit for RM720 78455 Various Gears Kit for

RM720

78443 Apron Kit for RM720

12

Model PM-IT-0146 13234

Electrical Schematics

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

www.omcan.com/warrantyregistration.html

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan PM-IT-0146 User manual

Popular Kitchen Appliance manuals by other brands
