Omron E3X-DAC-S Series User manual

E3X-DAC-S
Color Sensing
Digital Fiber Sensor
Easy and Reliable
The Fiber SensorThat Sees in Color
Color Sensing
New Model with Four-color Determination for Even
More Complete Color-sensing Fiber Sensors

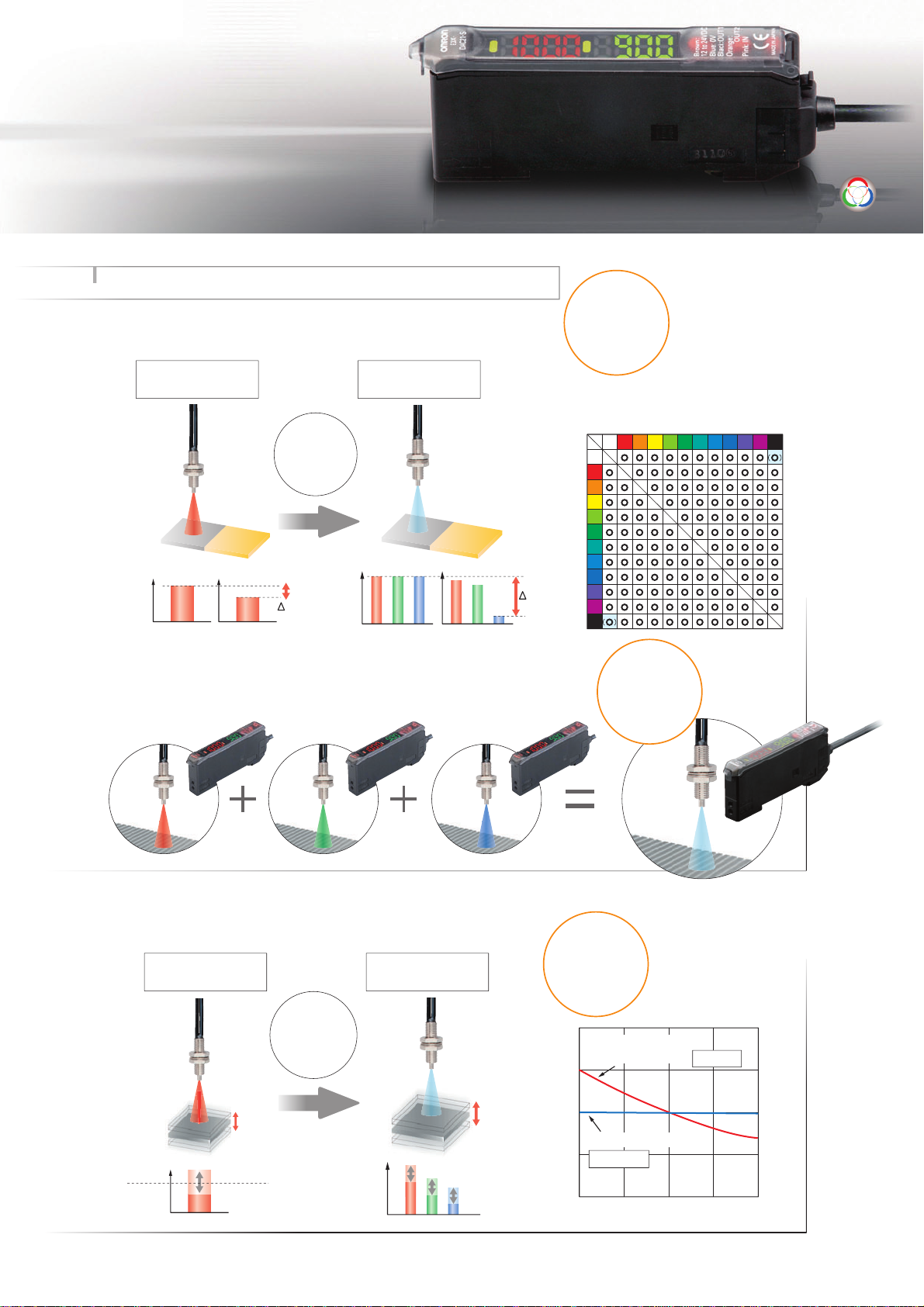

The color-sensing engine uses three parameters, RGB, to process
incident light. It detects color information from the workpiece for precise
detection of color differences.
Changes in the three parameters are processed as a ratio, so they are
not affected by light-intensity variations due to workpiece movement.
Intensity Detection
(Conventional Type)
Unstable...
Incident light
intensity 100
Color Detection
(Color Sensing Type)
90
RGB ratio
Incident light
intensity
8:5:3
80 to 130 RGB ratio
Color-Sensing
Engine
Easy and Reliable ...Featuring a Color-sensing Engine Precise
Detection
Resists
Movement
Digital value (%)
Distance change (%)
−20% −10% 10% 20%
100%
50%
0%
−50%
−100% 0%
90
100 100 100 80 10
10 90
A high-power white LED and a multi-RGB processing system combine to cover all
RGB wavelengths, enabling easy and accurate detection of workpieces without
having to use a different light source to match each one. No Need
to Select
Not affected
Affected
White
Red
Yellow-red
Yellow
Yellow-green
Green
Blue-green
Blue
Blue-purple
Purple
Red-purple
Black
Intensity
Detection
White Red Yellow-red Yellow Yellow-green Green Blue-green
Blue Blue-purple Purple Red-purple Black
Intensity Detection
(Conventional Type) Color Detection
(Color Sensing Type)
Misdetec-
tion...
Color Detection
Color Sensing
Color VS. Detection Capability

The color-sensing engine uses three parameters, RGB, to process
incident light. It detects color information from the workpiece for precise
detection of color differences.
Changes in the three parameters are processed as a ratio, so they are
not affected by light-intensity variations due to workpiece movement.
Intensity Detection
(Conventional Type)
Unstable...
Incident light
intensity 100
Color Detection
(Color Sensing Type)
90
RGB ratio
Incident light
intensity
8:5:3
80 to 130 RGB ratio
Color-Sensing
Engine
Easy and Reliable ...Featuring a Color-sensing Engine Precise
Detection
Resists
Movement
Digital value (%)
Distance change (%)
−20% −10% 10% 20%
100%
50%
0%
−50%
−100% 0%
90
100 100 100 80 10
10 90
A high-power white LED and a multi-RGB processing system combine to cover all
RGB wavelengths, enabling easy and accurate detection of workpieces without
having to use a different light source to match each one. No Need
to Select
Not affected
Affected
White
Red
Yellow-red
Yellow
Yellow-green
Green
Blue-green
Blue
Blue-violet
Violet
Red-violet
Black
Intensity
Detection
White Red
Yellow-red
Yellow Yellow-green Green Blue-green
Blue Blue-violet Violet Red-violet
Black
Intensity Detection
(Conventional Type) Color Detection
(Color Sensing Type)
Misdetec-
tion...
Color Detection
10 mm
Easy and Reliable ...Ease of Use and Smart Functions
In addition to ensuring easy use, we have added a number of smart
functions, such as remote control to simplify setup, and twin
sensing and output to simultaneously distinguish two registered
colors.(advanced models)

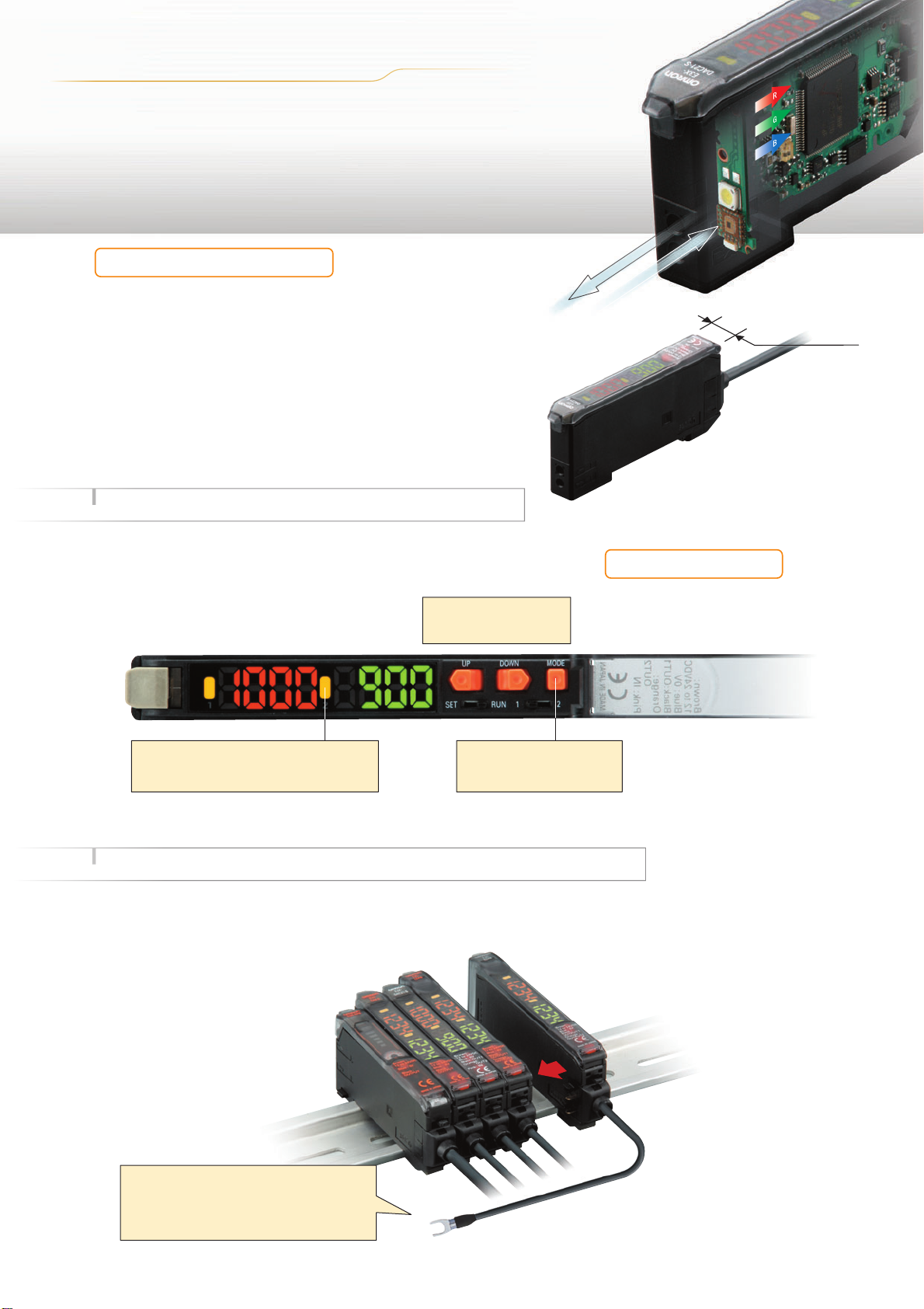

Amplifier Unit
A Slim, 10-mm-wide Amplifier Unit
Thinnest in the Industry
First in Its Class
Use of a white LED and a one-package RGB light-receiving
element has made it possible to unify the Amplifier Unit,
both in size and operation, with conventional models.
If detection should become unstable, the Amplifier Unit can
be separately replaced to immediately regain stability.
Easy to Understand
A double display for easy, precise setting.
Reliable
Setting guide function.
One push is all it takes.
Easy Setting
From left to right
Digital Fiber Sensors: E3X-NA
E3X-DA-S/MDA
E3X-DAC-S
Digital Laser Sensor: E3C-LDA
Proximity Sensor: E2C-EDA
Easy and Reliable ...Simplified Wiring Connector Reduces Work Steps
OMRON's unique simplified wiring connectors provide
the power for each added Sensor. Up to 16 Units can
be mounted, including a combination of Digital Fiber
Sensors and other simplified wiring connector
products such as Digital Laser Sensors.
This function guides the user to
ensure that the workpiece is in an
appropriate position for teaching.
(Indicates OVER, OK, or LOW.)
Power is supplied through the connector,
so only one output wire is
required. (For adding Sensors)
Color Sensing
Color VS. Detection Capability

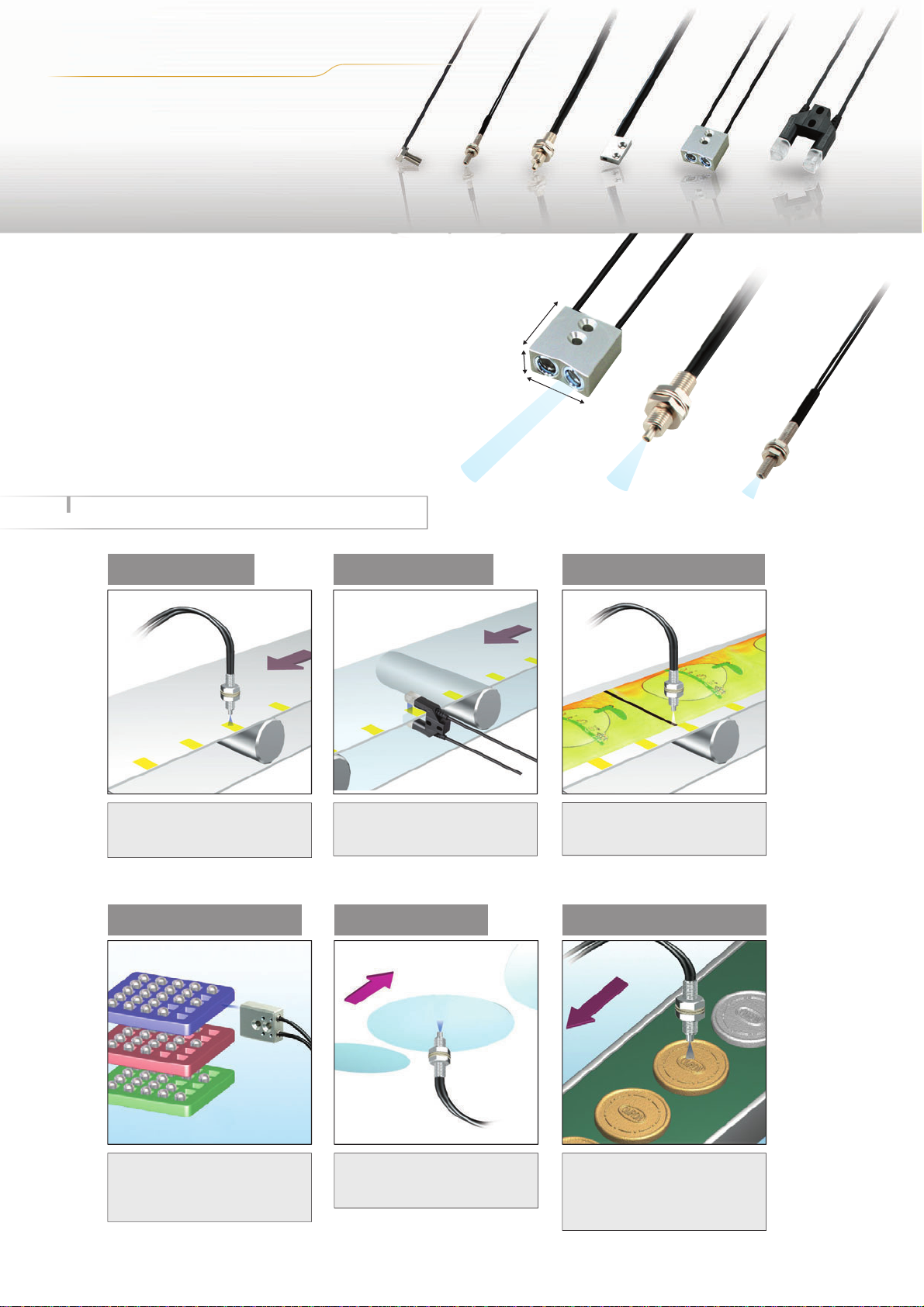

Application
Wide Range of
Fiber Heads Available
Select from a wide range of Fiber Heads to match
the workpiece and working space.This makes
installation possible even in small spaces.
Easy and Reliable Applications (Examples)
Detecting Marks Distinguishing
Semi-transparent Objects Detecting Black Marks
Distinguishing Trays *Detecting Wafers Detecting Products on
Conveyors
9 mm
23 mm
20 mm
Many Compact Heads
Because it distinguishes RGB
ratios, detection is highly resistant
to workpiece movement.
Through-beam Fiber Heads are
capable of detecting color differences
in semi-transparent objects.
In Black Mode, black seam tape and
other black marks can be detected
regardless of film color or patterns.
If you teach the conveyor (i.e., the
background), you can detect
workpieces even if they have
different colors, shapes, or gloss.
Workpieces that absorb a specific
wavelength can be detected with
a wide range of wavelengths.
Four-color determination greatly
reduces the work required for line
switchovers.
*Switching banks requires 300 ms.
Long-distance
Fiber Head
E32-A09 General-purpose
Fiber Head
E32-CC200
Compact
Fiber Head
E32-C31
Detection distance:
30 mm Detection distance: 9 mm Detection distance:
3 mm
M6 screw
M3 screw

E3X-DAC-S
5

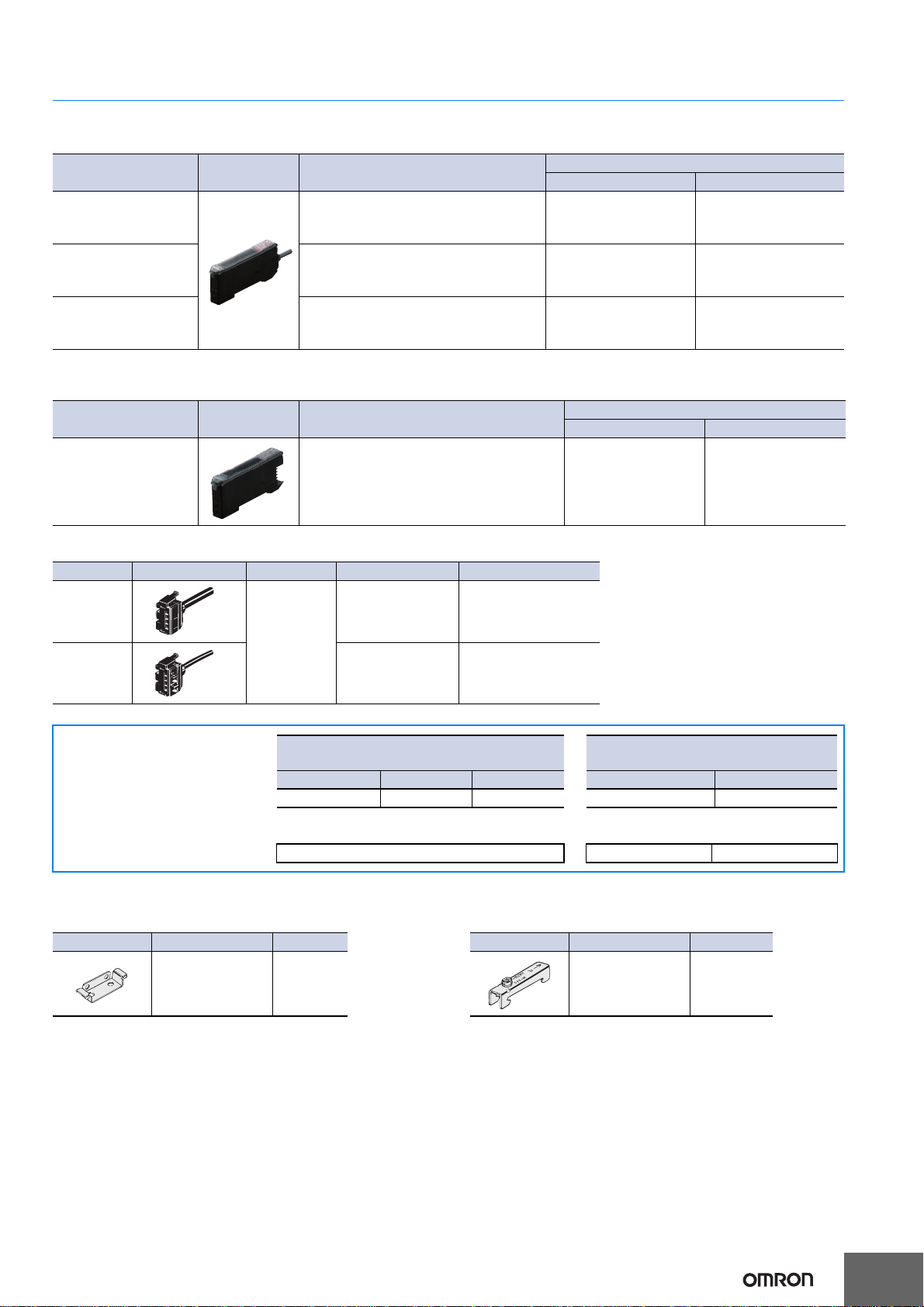

Ordering Information
Amplifier Units
Pre-wired model (Standard cable length 2 m)
*Four-color determination is enabled by switching between banks for two outputs using an external input.
Amplifier Units with Connectors (Amplifier Unit Connectors must be purchased separately.)
Amplifier Unit Connectors (Order Separately) Note: Protector seals are provided as accessories.
Accessories (Order Separately)
Mounting Bracket End Plate
Item Appearance Functions Model
NPN output PNP output
Standard models Timer, Response speed change E3X-DAC11-S 2M E3X-DAC41-S 2M
Advanced models
(2-color simultaneous
determination)
Standard models + Simultaneous deter-
mination (2 colors), AND/OR output, Re-
mote setting E3X-DAC21-S 2M E3X-DAC51-S 2M
Advanced models
(4-color determination*)
Standard models + Determination (4 col-
ors), AND/OR output, bank switching E3X-DAC21B-S 2M E3X-DAC51B-S 2M
Item Appearance Functions Model
NPN output PNP output
Standard models Timer, Response speed change E3X-DAC6-S E3X-DAC8-S
Item Appearance Cable length No. of conductors Model
Master
Connector
2 m
3E3X-CN11
Slave
Connector 1E3X-CN12
Combining Amplifier Units and
Connectors
Amplifier Units and Connectors are sold sep-
arately. Refer to the following tables when
placing an order. When Using 5 Amplifier Units
Amplifier Unit Applicable Connector
(Order Separately)
Model NPN output PNP output Master Connector Slave Connector
Standard models E3X-DAC6-S E3X-DAC8-S + E3X-CN11 E3X-CN12
Amplifier Units (5 Units) + 1 Master Connector 4 Slave Connectors
Appearance Model Quantity
E39-L143 1
Appearance Model Quantity
PFP-M 1

E3X-DAC-S
6
Ratings and Specifications
Amplifier Units
Type Standard models Advanced models
(2-color simultaneous
determination)
Advanced models
(4-color determination)
Item Model E3X-DAC@-S@(@: 11/41/6/8) E3X-DAC@-S@(@: 21/51) E3X-DAC@B-S@(@: 21/51)
Sensing distance Depends on the Fiber Unit. Refer to pages 8 to 10.
Sensing object Reflective models: Standard 11 color cards (See note 1.), Through-beam models: Opaque or translucent ob-
ject
Light source (wavelength) White LED (420 to 700 nm)
Sensing method CMode:RGBratiodetermination(orIMode:Lightintensitydeterminationforred,green,orblue,BlackMode:
Determination of total light intensity for red, green, and blue) (See note 2.)
Number of regis-
tered colors 1 2 (simultaneous determination) 4 (2-color determination ×2
banks)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Power consumption 960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC)
Control output NPN or PNP open collector Load power supply voltage: 26.4 VDC max.
Load current: 50 mA max. (residual voltage: 2 V max.)
Number of control outputs 1 output 2 outputs
External input
(See note 3. (page 7)) ---
Remote control Bank switching
Protection circuits Reverse polarity for power supply connection, output short-circuit, Reversed output polarity protection
Mutual interference prevention Up to 10 Units (optical communications control)
Response
time
Super-high-speed
mode
(See note 4.) Operate or reset: 60 μs Operate or reset: 120 μs
High-speed mode Operate or reset: 300 μs Operate or reset: 600 μs
Standard mode Operate or reset: 1 ms Operate or reset: 2 ms
High-resolution
mode Operate or reset: 4 ms Operate or reset: 8 ms
Sensitivity setting
(color registration, allowable
range) Teaching (one-point teaching or teaching with/without workpiece) or manual adjustment
Functions
Operating mode ON for match (ON for same color as registered color) or ON for mismatch (ON for different color from regis-
tered color)
Timer function Timer type: OFF delay, ON delay, or one-short, Timer time: 1 ms to 5 s (variable)
Control outputs --- Output for each channel, AND output, and OR output
Remote control --- One-point teaching, teaching with/ without workpiece, zero reset, and
light emission OFF
Bank switching (Switching between
banks A, B, C, and D.)
Display switch
(See note 5.) Seven patterns total: Match + Threshold, Margin + Threshold, Analog bar display, Peak + Bottom, etc.
Initialization Initial reset (factory defaults) or user reset (saved settings)
Zero-reset Provided Initial reset (factory default)
Display Operation indicator (orange)/
I mode display indicator (orange) Channel 1 and channel 2 operation indicators (orange)
Digital display Seven-segment displays (Main display: Red, Sub-display: Green)
Digital direction Switchable between normal and reversed.
Ambient illumination (Receiver
side) Incandescent lamp: 3,000 lux Sunlight: 10,000 lux
Ambient temperature range
(See note 6.) Operating: −25°C to 55°C Storage: −30°C to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩmin. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance Destruction: 10 to 50 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance Destruction: 500 m/s2, for 3 times each in X, Y and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached)
Connection method Pre-wired(Standardcablelength2 m) or Amplifier Unit connector
(Units connected: 16 max.) Pre-wired (Standard cable length 2 m)
Note: Refer to page 7 for notes 1 to 6.

E3X-DAC-S
7
Note:1.Sensing Object: Standard Color Card (230 Colors) from Japan Color
Enterprise Co., Ltd.)
2.When teaching with/without a workpiece, the best sensing method will
be automatically selected (RGB ratio (C Mode) or light intensity deter-
mination (I Mode)). If color differences are not strong enough and RGB
ratios would result in unstable detection, then light intensity determina-
tion (I Mode) will be selected.
The detection mode can also be set to C, I, or Black Mode.
3.Input Specifications
Refer to the Instruction Manual for the external input pulse width.
A pulse width of 300 ms or longer is required to switch banks for the
E3X-DAC@B-S.
4.Mutual interference prevention cannot be used in super-high-speed
mode, and light intensity determination (I Mode) must be used.
5.With light intensity determination (I Mode), the correlation is not dis-
played, but rather the light intensity is displayed.
6.The allowable ambientoperating temperature changes according to the
number of Units that are linked.
2 Units: −25 to 55°C, 3 to 10 Units: −25 to 50°C, and 11 to 16 Units:
−25 to 45°C
Amplifier Unit Connectors
Weight (packed state) Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Materials Case Polybutylene terephthalate (PBT)
Cover Polycarbonate (PC)
Accessories Instruction manual
Type Standard models Advanced models
(2-color simultaneous
determination)
Advanced models
(4-color determination)
Item Model E3X-DAC@-S@(@: 11/41/6/8) E3X-DAC@-S@(@: 21/51) E3X-DAC@B-S@(@: 21/51)
Color (11 standard colors) Munsell color notation
White N9.5
Red 4R 4.5/12.0
Yellow/red 4YR 6.0/11.5
Yellow 5Y 8.5/11.0
Yellow/green 3GY 6.5/10.0
Green 3G 6.5/9.0
Blue/green 5BG 4.5/10.0
Blue 3PB 5.0/10.0
Blue/purple 9PB 5.0/10.0
Purple 7P 5.0/10.0
Red/purple 6RP 4.5/12.5
Black (N2.0)
Contact input
(relay or switch) Non-contact input (transistor)
NPN
ON: Shorted to 0 V (sourcing
current: 1 mA max.).
OFF: Open or shorted to Vcc.
ON: 1.5 V max. (sourcing cur-
rent: 1 mA max.)
OFF:
Vcc-1.5VtoVcc(leakage
current: 0.1 mA max.)
PNP
ON: Shorted to Vcc (sinking
current: 3 mA max.).
OFF: Open or shorted to 0 V.
ON: Vcc - 1.5 V to Vcc (sink-
ing current: 3 mA max.)
OFF: 1.5 V max. (leakage cur-
rent: 0.1 mA max.)
Item Model E3X-CN11 E3X-CN12
Rated current 2.5 A
Rated voltage 50 V
Contact resistance 20 mΩmax. (20 mVDC max., 100 mA max.) (The figure is for connection to the Amplifier Unit and the adjacent
Connector. It doesnotincludethe conductor resistance of the cable.)
No. of insertions Destruction: 50 times (The figure for the number of insertions is for connection to the Am-
plifier Unit and the adjacent Connector.)
Materials Housing Polybutylene terephthalate (PBT)
Contacts Phosphor bronze/gold-plated nickel
Weight (packed state) Approx. 55 g Approx. 25 g

E3X-DAC-S
8
Sensing Distance
Threaded Models
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Cylindrical Models
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Flat Models
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Sensing direction Size Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Right-angle M4 E32-T11N 2M 150 110 95 50 30 22 18 16
Straight E32-T11R 2M
Sensing direction Size Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Right-angle M3 E32-C31N 2M 7.7 6 4.8 2.1 1.6 1.2 0.9 0.7
M6 E32-C11N 2M 35 26 22 9 7.5 5 4.5 3
Straight M3 E32-C31 2M 17 13 11 4.5 3.7 2.7 2.2 1.5
M6 E32-D11R 2M 42 32 26 11 8.5 6 5 3.5
E32-CC200 2M 60 45 35 16 12974
Size Sensing
direction Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
1.5 dia. Top-view E32-T22B 2M 70 55 48 40 15 11 9 6
3 dia. E32-T12R 2M 150 110 95 50 30 22 18 16
Side-view E32-T14LR 2M 55 44 38 19 12 8.5 7 6.5
Size Sensing
direction Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
1.5 dia. Top-view E32-D22B 2M 8.8 6.7 5.8 2.1 1.8 1.3 1.1 0.7
3 dia. E32-D221B 2M 19 15 13 4.5 4.1 3 2.4 1.5
E32-D32L 2M 35 26 22 9 7.5 5 4.5 3
Sensing direction Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Top-view E32-T15XR 2M 150 110 95 50 30 22 18 16
Side-view E32-T15YR 2M 55 44 38 19 12 8.5 7 6.5
Flat-view E32-T15ZR 2M
Sensing direction Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Top-view E32-D15XR 2M 42 32 26 11 8.5 6 5 3.5
Side-view E32-D15YR 2M 10 7.5 6.5 2.5 2.1 1.5 1.3 0.9
Flat-view E32-D15ZR 2M

E3X-DAC-S
9
Sleeve Models
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Small-spot, Reflective Sensors
*The distance to differentiate between blue and blue-purple is 43 to 53 mm.
High-power Beam
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Narrow View
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Sensing direction Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Top-view E32-TC200BR 2M 150 110 95 50 30 22 18 16
Sensing direction Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Top-view E32-DC200BR 2M 42 32 26 11 8.5 6 5 3.5
Spot diameter
Center distance
(mm)
Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
6 dia. 50 E32-L15 2M 40 to 80 40 to 80 40 to 80 40 to 80 40 to 55 * 40 to 55 * −−
Sensing direction Aperture angle Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Top-view 10 ° E32-T17L 10M 4,300 3,200 2,800 1,400 900 600 500 460
Side-view 30 ° E32-T14 2M 950 700 600 300 200 140 120 100
Right-angle 12 ° E32-T11N 2M + E39-F1 1,000 750 650 340 220 150 130 110
Top-view 12 ° E32-T11R 2M + E39-F1 1,000 750 650 340 220 150 130 110
Side-view 60 ° E32-T11R 2M + E39-F2 110 85 70 36 22 16 14 12
Top-view 12 ° E32-T11 2M + E39-F1 1,000 750 650 320 200 150 120 110
Side-view 60 ° E32-T11 2M + E39-F2 180 140 120 60 38 28 22 20
Top-view 12 ° E32-T61-S 2M + E39-F1 950 700 600 320 200 140 120 100
Side-view 60 ° E32-T61-S 2M + E39-F2 120 95 80 42 26 19 16 14
Sensing direction Aperture angle Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Side-view 4 ° E32-T24S 2M 360 280 240 120 75 55 46 40
E32-T22S 2M 500 400 350 170 110 80 65 55

E3X-DAC-S
10
Chemical-resistant, Oil-resistant
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Bending-resistant
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Heat-resistant
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Type Sensing
direction Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Chemical/oil-re-
sistant
Top-view
E32-T12F 2M 850 650 550 280 180 120 100 95
E32-T11F 2M 550 420 360 180 110 80 70 60
Side-view E32-T14F 2M 100 80 70 35 22 16 13 12
Chemical/oil-re-
sistant at 150°C
Top-view E32-T51F 2M 380 300 250 130 80 55 48 44
Type Sensing
direction Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Chemical/oil-resistant
Top-view
E32-D12F 2M 22 17 15 6 4.9 3.5 2.9 2
Chemical-resistant cable E32-D11U 2M 42 32 26 11 8.5 6 5 3.5
Size Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
1.5 dia. E32-T22B 2M 70 55 48 40 15 11 9 6
M3 E32-T21 2M
M4 E32-T11 2M 190 140 120 60 40 28 24 20
Square E32-T25XB 2M 55 42 36 30 11 8 7 4.5
Size Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
1.5 dia. E32-D22B 2M 8.8 6.7 5.8 2.1 1.8 1.3 1.1 0.7
M3 E32-D21 2M
3 dia. E32-D221B 2M 19 15 13 4.5 4.1 3 2.4 1.5
M4 E32-D21B 2M
M6 E32-D11 2M 42 32 26 11 8.5 6 5 3.5
Square E32-D25XB2M 14109332.11.71.1
Heat-resistant temperature Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
150°C E32-T51 2M 200 160 140 70 44 32 26 22
200°C E32-T81R-S 2M 75 60 50 26 16 11 9.5 8.5
350°C E32-T61-S 2M 120 95 80 42 26 19 16 14
Heat-resistant temperature Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
150°C E32-D51 2M 55 42 36 14 11 8.5 7 4.5
200°C E32-D81R-S 2M 2015135432.51.5
350°C E32-D61-S 2M
400°C E32-D73-S 2M 13 10 8.5 3.5 2.8 2 1.7 1.2

E3X-DAC-S
11
Area Beam
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Reflective Fiber Units
Vacuum-resistant
Through-beam Fiber Units
*These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
Type Sensing width Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Area 11 mm E32-T16PR 2M 240 180 150 80 50 36 30 26 E32-T16JR 2M 200 160 130 65 44 30 26 22
30 mm E32-T16WR 2M 360 280 240 120 75 55 46 40
Type Sensing width Model
Sensing distance (mm)
White paper Standard color card (11 colors)
(mutual determination)
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
Array 11 mm E32-D36P1 2M 35 26 22 9 7.5 5 4.5 3
Heat-resistant temperature Model
Sensing distance (mm)
Opaque object (Translucent object) *
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
High-
resolution
mode Standard
mode
High-speed
mode Super-high- speedmode
120°C E32-T51V 1M 55 42 36 18 11 8.5 7 6
E32-T51V 1M + E39-F1V 280 200 180 90 55 42 35 30
200°C E32-T84SV 1M 130 100 85 45 28 20 17 15

E3X-DAC-S
12

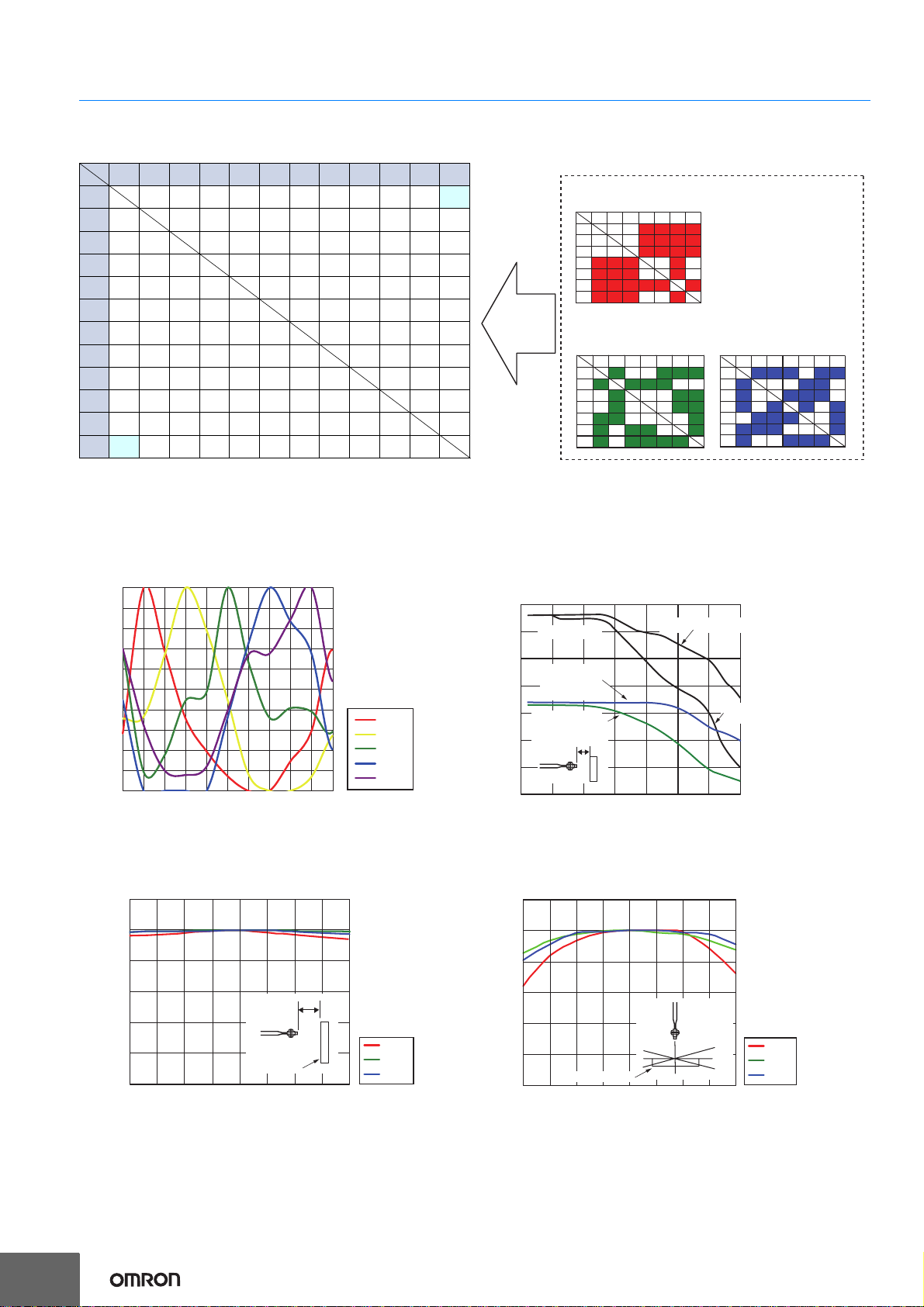

Engineering Data (Reference Value)
Color vs. Detection Capability
E3X-DAC@-S+E32-CC200
Color Detection Characteristics Color Detection Capability vs. Distance
E3X-DAC@-S+E32-CC200 E3X-DA@-S+E32-CC200
E3X-DAB/G@-S+E32-CC200 (Model with single-color light
source)
Correlation vs. Distance Correlation vs. Angle
E3X-DAC@-S+E32-CC200 E3X-DAC@-S+E32-CC200
5639
4427
5538
545 2
645 2
32322 4
9784
83510
8553
536
536
33 4
533 3
10 6 6 4 3
553 38
532
5242
3223
342 6
322 4
8364
No Need
to Select
Model with Red Light Source
(E3X-DA@-S)
Model with Green
Light Source
(E3X-DAG@-S)
Model with Blue
Light Source
(E3X-DAB@-S)
White Red Yellow Green Blue Purple Black
White Red
Yellow Green Blue Purple Black White Red Yellow Green Blue Purple Black
White
Red
Yellow
Green
Blue
Purple
Black
White
Red
Yellow
Green
Blue
Purple
Black
White
Red
Yellow
Green
Blue
Purple
Black
Sensing distance: 9 mm (i.e., the teaching distance)
❍: Detection possible, ×: Detection not possible.
*Use 2-point teaching to distinguish between white and black.
White Red Yellow/
red Yellow Yellow/ green Green Blue/ green Blue Blue/ purple Purple Red/ purple Black∗
White ❍❍❍❍❍❍❍❍❍❍(❍)
Red ❍ ❍❍❍❍❍❍❍❍❍❍
Yellow/
red ❍❍ ❍❍❍❍❍❍❍❍❍
Yellow ❍❍❍ ❍❍❍❍❍❍❍❍
Yellow/
green ❍❍❍❍ ❍❍❍❍❍❍❍
Green ❍❍❍❍❍ ❍❍❍❍❍❍
Blue/
green ❍❍❍❍❍❍ ❍❍❍❍❍
Blue ❍❍❍❍❍❍❍ ❍❍❍❍
Blue/
purple ❍❍❍❍❍❍❍❍ ❍❍❍
Purple ❍❍❍❍❍❍❍❍❍ ❍❍
Red/
purple ❍❍❍❍❍❍❍❍❍❍ ❍
Black∗(❍)❍❍❍❍❍❍❍❍❍❍
0
20
40
60
80
100
120
140
0
X
3530252015105
E3X-DAC-S
Number of colors differentiated (combinations)
Sensing distance X (mm)
= Teaching distance
For one-point
teaching
For 2-point teaching
Model with blue
light source
E3X-DAB-S
Model with green
light source
E3X-DAG-S
0
100
200
300
400
500
600
700
800
900
1000
Correlation (Digital Display)
Sensing distance: 9 mm
(i.e., the teaching
distance)
Registered Color
Red
Yellow
Green
Blue
Purple
Sensing object color
White
Red
Yellow/red
Yellow
Yellow/green
Blue/green
Blue
Blue/purple
Purple
Red/purple
Green
−25
−20
−15
−10
−5
0
5
X
− 40 − 30 − 20 − 10 10 20 30 400
Change in correlation (%)
Sensing distance: 9 mm
(i.e., the teaching
distance)
Registered Color
Red
Green
Blue
Sensing
object
Change in distance X (%)
−25
−20
−15
−10
−5
0
5
−
20 − 15 − 10 − 5 5 10 15 200
+θ
−θ
Angle of incline θ(°)
Sensing distance: 9 mm
(= Teaching distance)
Registered Color
Red
Green
Blue
Change in correlation (%)
Sensing object

E3X-DAC-S
13

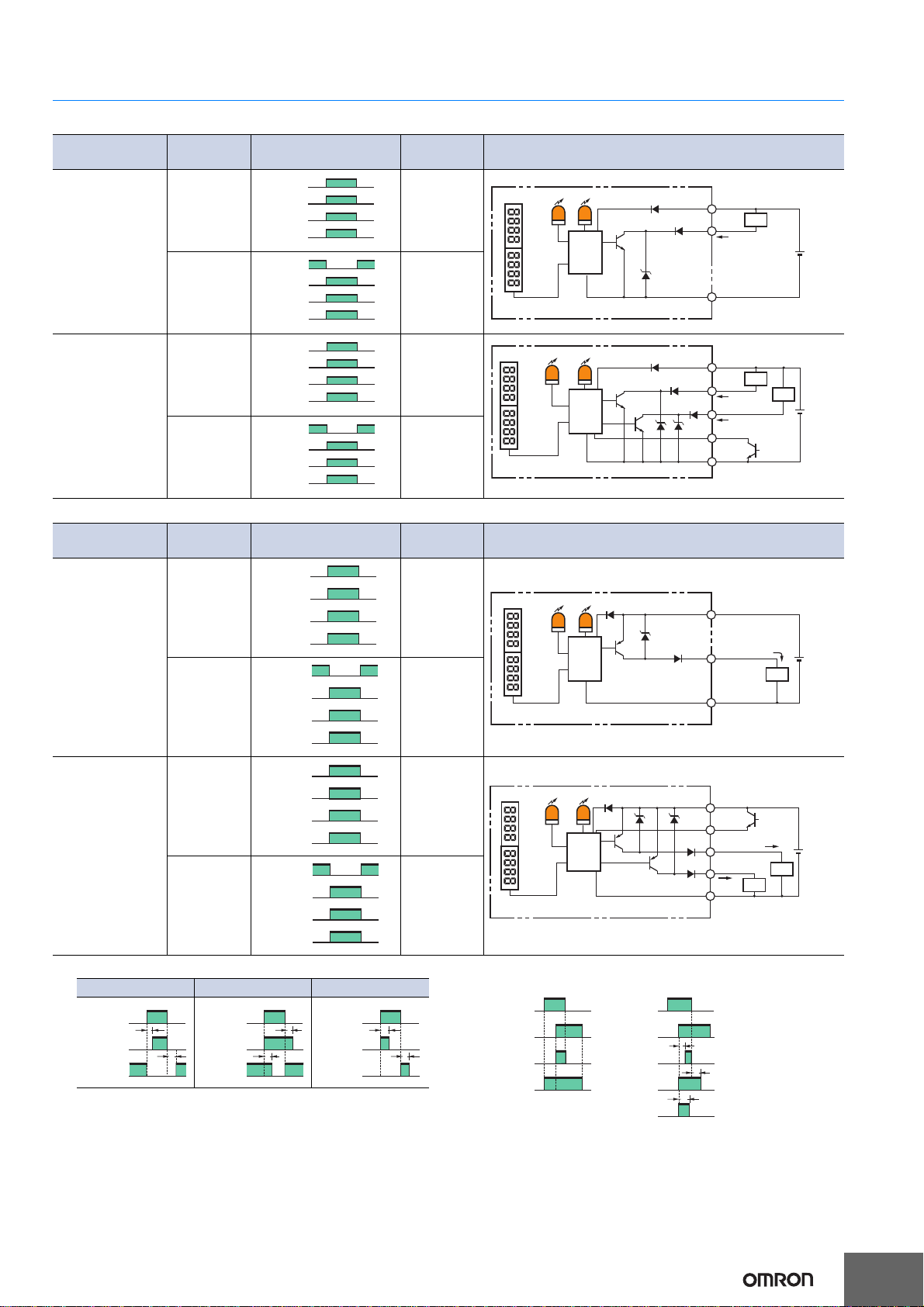

Output Circuit Diagrams
NPN Output
PNP Output
Note:1.Timing Charts for Timer Function Settings (T: Set Time) 2.Control Output (AND, OR, Sync) and Timing Chart for Timer Settings
(T: Set Time)
Model Operation
mode Timing charts Operation selector Output circuit
E3X-DAC11-S
E3X-DAC6-S
ON for
match LIGHT ON
(L-ON)
ON for mis-
match DARK ON (D-ON)
E3X-DAC21-S
E3X-DAC21B-S
ON for
match LIGHT ON
(L-ON)
ON for mis-
match DARK ON (D-ON)
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between brown and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Load
I mode indicator (orange) Brown
Black
Blue
Control output12 to
24 VDC
Display
Photo-
electric
Sensor
main
circuit
Operation
indicator
(Orange)
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between brown and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between brown and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Orange
Pink
Load
External input
(Bank switching
input) *
Brown
Black
Blue
12 to
24 VDC
Display
Photo-
electric
Sensor
main
circuit
Ch1
operation
indicator
(orange)
Ch2 operation indicator
(orange)
Load
Ch2 control output
Ch1
control output
*For the E3X-DAC@B-S
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between brown and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Model Operation
mode Timing charts Operation selector Output circuit
E3X-DAC41-S
E3X-DAC8-S
ON for
match LIGHT ON
(L-ON)
ON for mis-
match DARK ON (D-ON)
E3X-DAC51-S
E3X-DAC51B-S
ON for
match LIGHT ON
(L-ON)
ON for mis-
match DARK ON (D-ON)
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between blue and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Control output
Brown
Black
Blue
12 to
24 VDC
Display
Photo-
electric
Sensor
main
circuit
Operation
indicator
(Orange)
Load
I mode indicator (orange)
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between blue and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between blue and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
Brown
Black
Blue
12 to
24 VDC
Display
Photo-
electric
Sensor
main
circuit Load
Load
Orange
Pink
Ch1
operation
indicator
(orange)
Ch2 operation indicator (orange)
Ch2 control output
Ch1 control output
External input
(Bank switching
input) *
*For the E3X-DAC@B-S
Match
Mismatch
ON
OFF
ON
OFF
Operate
Reset
(Between blue and black leads)
Operation
indicator
(orange)
Output
transistor
Load
(relay)
ON delay OFF delay One-shot
Match
Mismatch
ON
OFF
ON
OFF
L-ON
D-ON
T
T
Match
Mismatch
ON
OFF
ON
OFF
L-ON
D-ON
T
T
Match
Mismatch
ON
OFF
ON
OFF
L-ON
D-ON
T
T
CH1
CH2
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OUT
(OR)
OUT
(AND)
CH1
CH2
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
One-shot
(AND)
OFF delay
(AND)
ONdelay
(AND)
T
T
T

E3X-DAC-S
14
Nomenclature
Safety Precautions
This product is not designed or rated for ensur-
ing safety of persons either directly or indirect-
ly.
Do not use it for such purposes.
Do not use the product with voltage in excess
of the rated voltage. Excess voltage may result
in malfunction or fire.
Never use the product with an AC power sup-
ply. Otherwise, explosion may result.
High-temperature environments may result in
burn injury.
The following precautions must be observed to ensure safe
operation of the Sensor.
1. Do not use the Sensor in an environment where explosive
or flammable gas is present.
2. Do not use the Sensor in a location subject to splattering
of water, oils, or chemicals.
3. Do not attempt to disassemble, repair, or modify the Sen-
sor.
4. Do not apply voltages or currents that exceed the rated
range to the Sensor.
5. Do not use the Sensor in an ambient atmosphere or envi-
ronment that exceeds the ratings.
6. Wire the power supply correctly, including the polarity.
7. Connect the load correctly.
8. Do not short-circuit the load at both ends.
9. Do not use the Sensor if the case is damaged.
10. Dispose of the Sensor as industrial waste.
11. Do not use the Sensor in locations subject to direct sun-
light.
12. Burn injury may occur. The Sensor surface temperature
rises depending on application conditions, such as the
ambient temperature and the power supply voltage. Use
caution when operating or performing maintenance on the
Sensor.
Amplifier Units
Standard Models
E3X-DAC@-S (@: 11/41/6/8) Advanced Models (2-color simultaneous determination, 4-color determination)
E3X-DAC@-S (@: 21/51), E3X-DAC@B-S (@: 21/51)
UP
DOWN
MODE
ONwhen output is ON.
OFF when output is OFF.
Operation Indicator (orange)
Locks the fiber.
Lock lever
Incident level, function, etc.
Main Display (Red)
Threshold, function settings, etc.
Sub-Display (Green)
Use to select SET
or RUNmode.
Mode Selector
Function setting operations
Operation Keys
Use to switch between Light ON
and Dark ONmodes.
Operation Selector
Lit orange: Operation
in I Mode.
I Mode Indicator
UP
DOWN
MODE
ONwhen output is ON.
OFF when output is OFF.
Locks the fiber.
Lock lever
Incident level, function, etc.
Main Display (Red)
Threshold, function settings, etc.
Sub-Display (Green)
Use to select SET
or RUNmode.
Mode Selector
Function setting operations
Operation Keys
ONwhen output is ON.
OFF when output is OFF.
Ch1 Operation Indicator Ch2 Operation Indicator
Used to select the channel to
display and set.
Channel Switch
WARNING
CAUTION
Precautions for Safe Use

E3X-DAC-S
15
Do not use the product in atmospheres or environments that
exceed product ratings.
Amplifier Unit
●Designing
Operation after Turning Power ON
The Sensor is ready to detect within 200 ms after the power
supply is turned ON. If the Sensor and load are connected to
separate power supplies, be sure to turn ON the Sensor first.
Time may be required for the degree of coincidence to stabi-
lize after the power supply is turned ON.
Operation When Turning Power OFF
Output pulses may occur when the power is turned OFF. Turn
OFF the power supply to the load and the load line before
turning OFF the power supply to the Sensor.
●Mounting

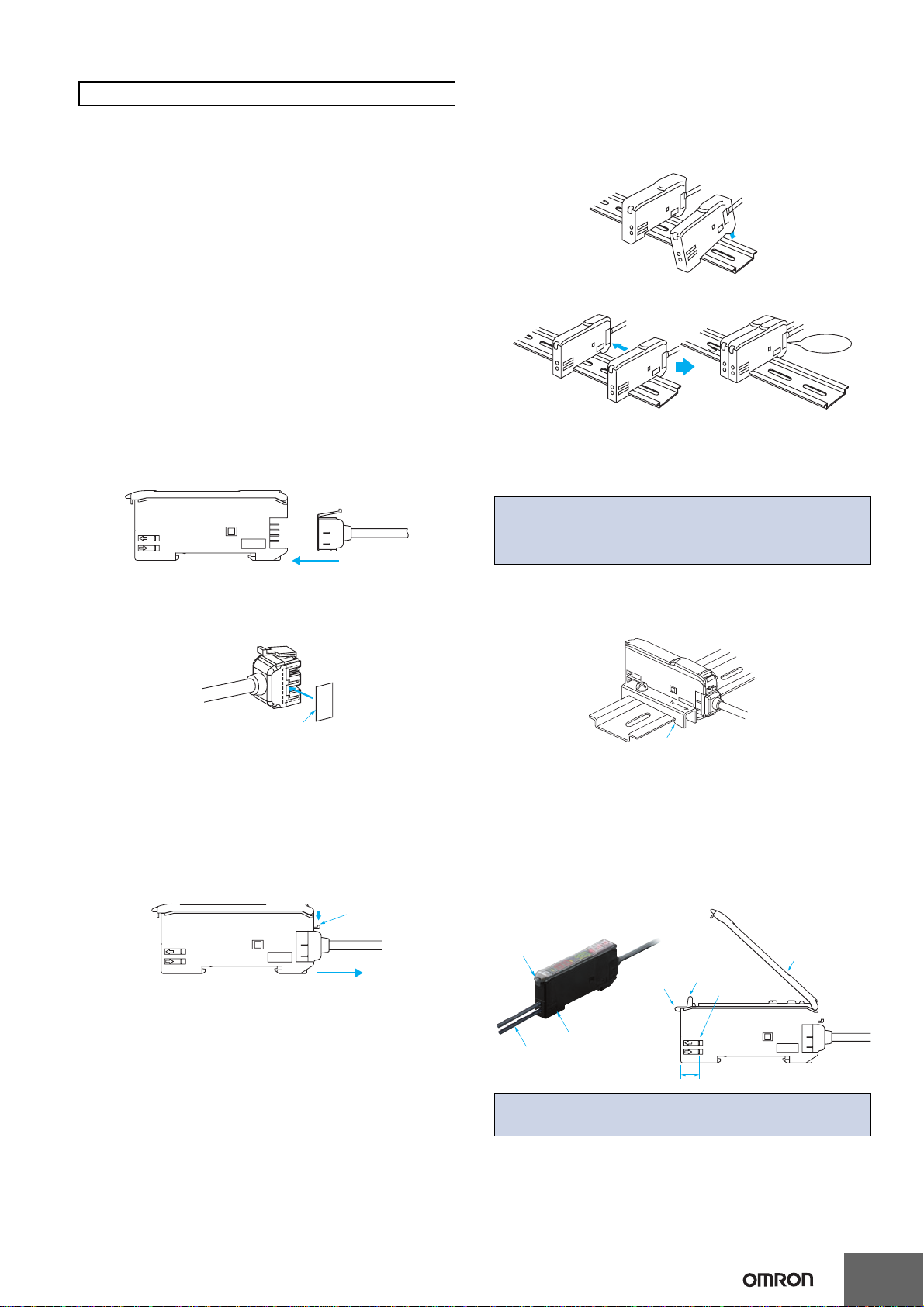

Connecting and Disconnecting Connectors
Mounting Connectors
1. Insert the Master or Slave Connector into the Amplifier Unit
until it clicks into place.
2. Attach the protector seals (provided as accessories) to the
sides of master and slave connectors that are not connect-
ed.
Note: Attach the seals to the sides with grooves.
Removing Connectors
1. Slide the slave Amplifier Unit(s) for which the Connector is
to be removed away from the rest of the group.
2. After the Amplifier Unit(s) has been separated,press down
on the lever on the Connector and remove it. (Do not at-
tempt to remove Connectors without separating them from
other Amplifier Units first.)
Adding and Removing Amplifier Units
Adding Amplifier Units
1. Mount the Amplifier Units one at a time onto the DIN track.
2. Slide the Amplifier Units together, line up the clips, and
press the Amplifier Units together until they click into place.
Removing Amplifier Units
Slide Amplifier Units away from each other, and remove from
the DIN track one at a time. (Do not attempt to remove Ampli-
fier Units from the DIN track without separating them first.)
Mounting the End Plate (PFP-M)
An End Plate should be used if there is a possibility of the Am-
plifier Unit moving, e.g., due to vibration.
Fiber Connection
The E3X Amplifier Unit has a lock button for easy connection
of the Fiber Unit. Connect or disconnect the fibers using the
following procedures:
1. Connection
Open the protective cover, insert the fibers according to the fi-
ber insertion marks on the side of the Amplifier Unit, and lower
the lock lever.
Precautions for Correct Use
Insert
Seal
Remove
Lever
Press down
Note:1.The specifications for ambient temperature will vary according to the
number of Amplifier Units used together. For details, refer to Ratings
and Specifications.
2.Always turn OFF the power supply before joining or separating Ampli-
fier Units.
Note: Do not pull on, compress, or otherwise exert excessive force on the fi-
bers after connecting them to the Amplifier Unit. (Do not exert more
than 0.3 N·m.)
Click into place
End Plate
Lock button
Fiber insertion mark
Fiber
9 mm
Insertion position
Locked Unlocked
Protective cover

E3X-DAC-S
16
2. Disconnecting Fibers
Remove the protective cover and raise the lock lever to pull
out the fibers.
●Adjusting
Mutual Interference Protection Function
Light from other sensors can cause the value on the digital
display to become somewhat unstable. If this occurs, reduce
the threshold to create a greater margin and enable more sta-
ble detection.
Output Short-circuit Protection
If the output short-circuit protection function operates because
the load connected to the control output is short-circuited,
OVER/CUR will flash on the display. Check the connection of
the load.
EEPROM Writing Error
If the data is not written to the EEPROM correctly due to a
power failure or static-electric noise, initialize the settings with
the keys on the Amplifier Unit. ERR/EEP will flash on the dis-
play when a writing error has occurred.
Optical Communications
Several Amplifier Units can be slid together and used in
groups. Do not, however, slide the Amplifier Units or attempt
to remove any of the Amplifier Units during operation.
●Others
Protective Cover
Always keep the protective cover in place when using the Am-
plifier Unit.
Fiber Unit
●Design Precautions
Applicable Fiber Units
Refer to the sensing distance tables on pages 8 to 11 for the
Fiber Units that can be used and the sensing distances. Ret-
ro-reflective, Limited-reflective, Ultra-compact, and Applica-
tion-specific Fiber Units, which are not listed, cannot be used.
●Installation Precautions

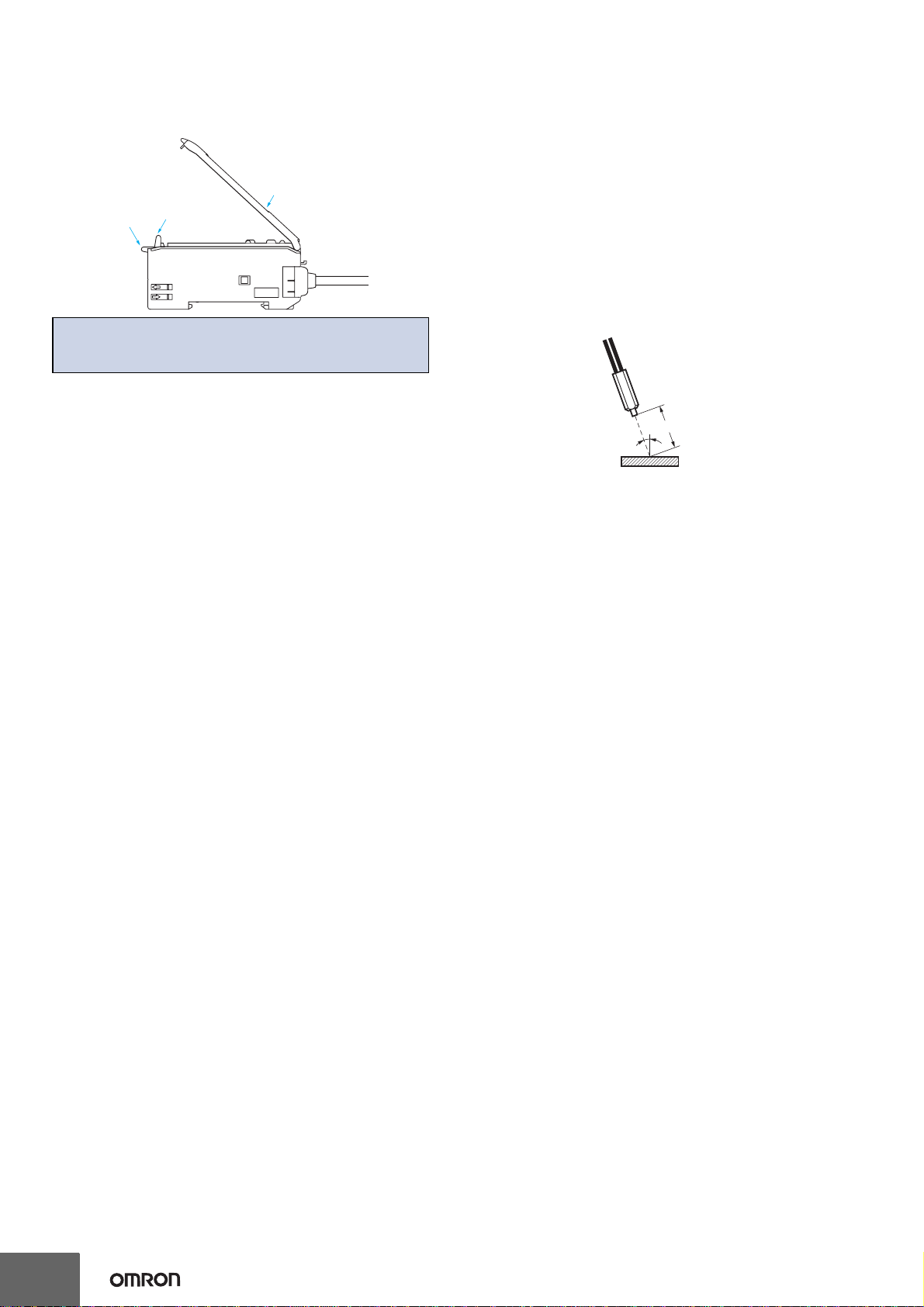

Glossy Sensing Objects
If the sensing object is glossy, detection may not be stable. If
the Sensor is inclined by 5°to 20°when using a glossy sens-
ing object, as shown below, detection capabilities can be in-
creased and stable detection achieved.
Note:1.To maintain the fiber properties, confirm that the lock is released be-
fore removing the fibers.
2.Be sure to lock or unlock the lock button within an ambient tempera-
ture range between −10°C and 40°C.
Locked Unlocked
Protective cover
Sensing distance
Sensing object
E32-CC200 or other Fiber Unit
θ= 5°to 20°

E3X-DAC-S
17

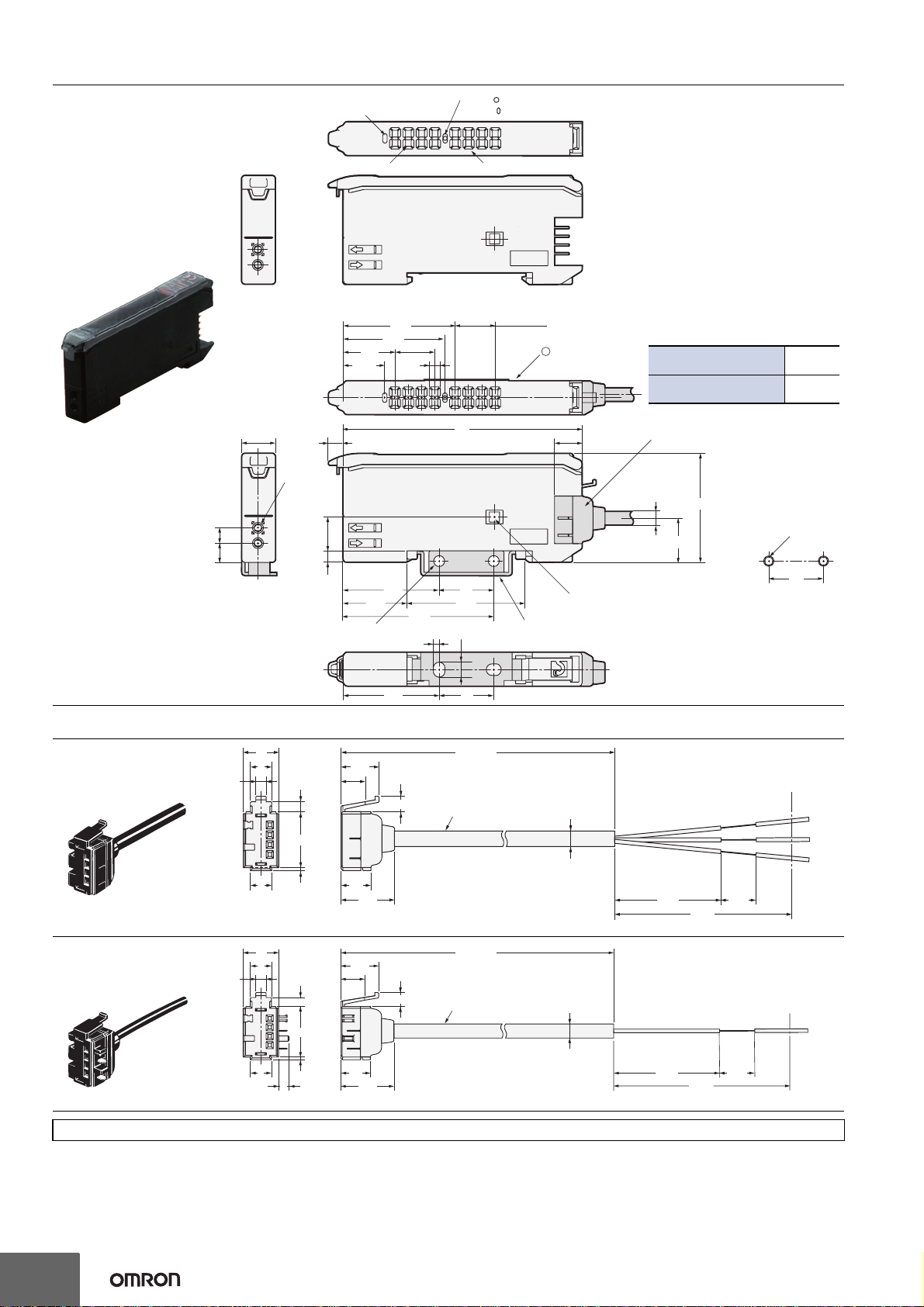

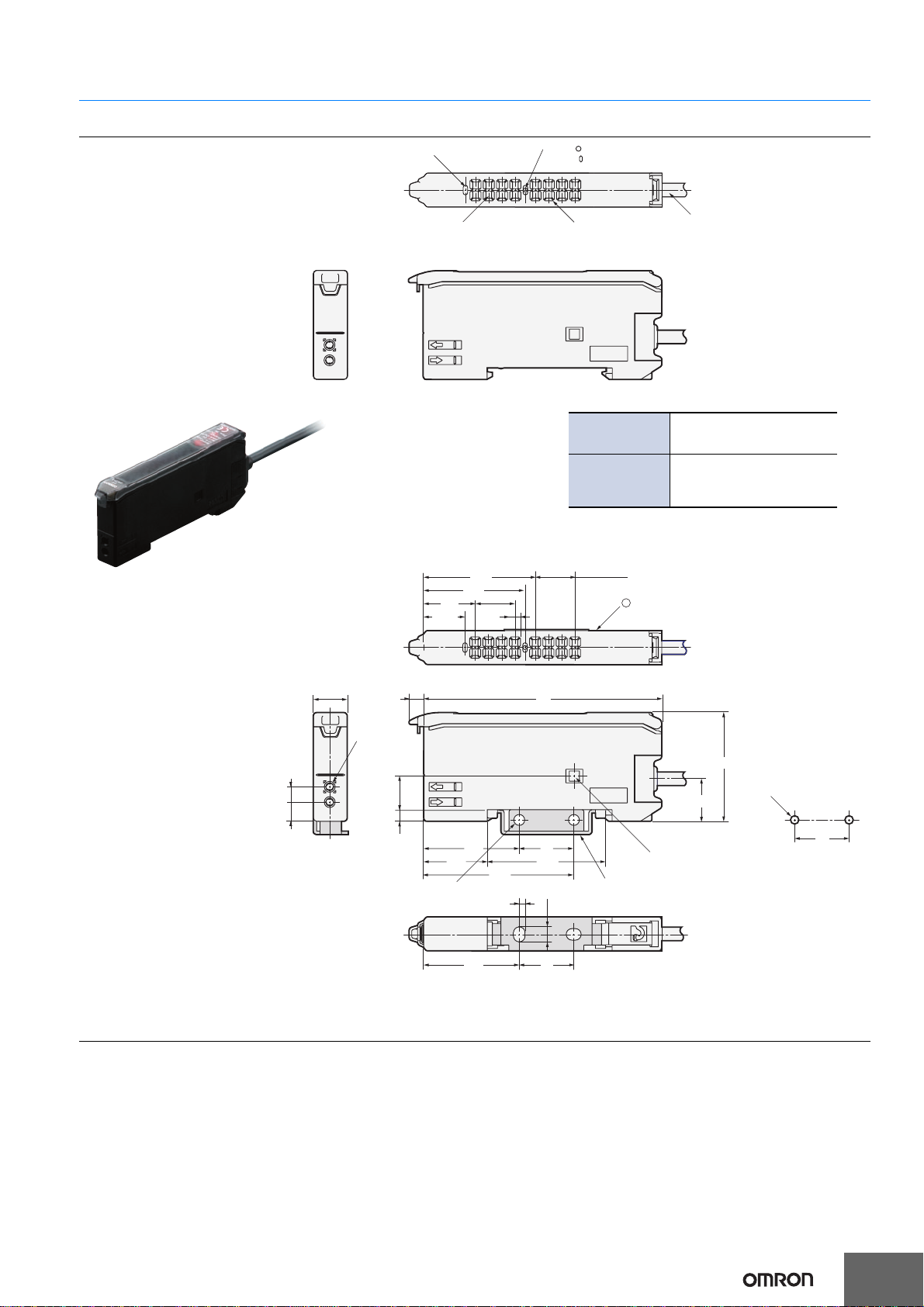

Dimensions (Unit: mm)
Amplifier Units
Operation indicator
Main display Sub-display Vinyl-insulated round cable
Standard length: 2 m *
Round ( ): I Mode indicator
Oblong ( ): Operation indicator for channel 2
* Cable Specifications
3.4
10
Two, 2.4 dia.
4.5
5.65
3.9 × 3 = 11.7
12.15
15.1
32.8
3.25
29.8
3.9 × 3 = 11.7
4.3 70
32
12.5
9.9
16
3.4 4.4
34.8
28.1
1628.1
18.7 44.3
A *
Hole for optical communications
Mounting Bracket (E39-L143) (Order Separately)
SUS304 stainless steel
Two, 3.2 dia. holes
*The Mounting Bracket can also be
used on this side.
16
Two, M3
MountingHoles
With Mounting Bracket Attached
E3X-DAC11-S
-DAC41-S
4-dia., 3-conductor (Conductor
cross section: 0.2 mm2, insulator
diameter: 1.1 mm)
E3X-DAC21-S
-DAC51-S
-DAC21B-S
-DAC51B-S
4-dia., 5-conductor (Conductor
cross section: 0.2 mm2, insulator
diameter, 1.1 mm)
Amplifier Units with Cables
E3X-DAC11-S
E3X-DAC41-S
E3X-DAC21-S
E3X-DAC51-S
E3X-DAC21B-S
E3X-DAC51B-S

E3X-DAC-S
18
Amplifier Unit Connectors
Refer to the E32 Series Fiber Sensor Best Selection Guide (Cat. No. E353).
3.4
3.9 × 3 = 11.75
12.15
15.1
32.8
3.25
29.8
3.9 × 3 = 11.7
A *1
4.3 70 8.1
32
12.95
9.9
16
34.8
28.1
18.7 44.3
Hole for optical communications
Mounting Bracket (E39-L143)
SUS304 stainless steel
Two, 3.2-dia. holes
3.4 4.4
10
Two, 2.4 dia.
4.5
5.65
Connector
Dia. A *2
*1 The Mounting Bracket can also be
used on this side.
*2 Cable Diameters
1628.1
Operation indicator
Main display Sub-display
Round ( ): I Mode indicator
Oblong ( ): Operation indicator
16
Two, M3
MountingHoles
Amplifier Units with Connectors
E3X-DAC6-S
E3X-DAC8-S
With Mounting Bracket Attached
E3X-CN11 (3 conductor) 4.0-mm
dia.
E3X-CN12 (1 conductor) 2.6 mm
dia.
Master Connectors
E3X-CN11
14.4
2.6
6
2.9
10
0.88.4
6.8
10.7
30
±2
4 dia.
10
±2
4
15.1
6
* E3X-CN11: 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section:0.2 mm
2
, Insulator diameter: 1.1 mm)
*
2,000
+50
0
50
+50
0
Slave Connectors
E3X-CN12
14.4
2.6
3
6
2.9
10
0.88.4
6.8
10.7
30
±2
E3X-CN12: 2.6 dia.
E3X-CN22: 4 dia.
10
±2
4
15.1
6
*
* E3X-CN12: 2.6-dia. vinyl-insulated round cable with 1 conductor (Conductor cross section:0.2 mm2, Insulator diameter: 1.1 mm)
2,000+50
0
50+50
0

E3X-DAC-S
19
Operation
Operation Reference
SET/RUN
mode Operation Keys Operation Displays Remarks
Main Display Sub-Display
Detection/
adjustment Adjusting thresholds
Incident level Threshold ➜Page 20
Referto4. Setting Thresholds
Manually in RUN Mode.
Executing user-speci-
fied functions
(Factory-set to 1-point
teaching.)
Used to executes various
teaching and zero-reset opera-
tions.
➜Page 20
Refer to 3. Registering Work-
pieceColorswithTeachingin
SET Mode.
Function set-
tings Changing teaching and setting details Setting items Setting details
➜Page 20
Refer to 3. Registering Work-
pieceColorswithTeachingin
SET Mode.
➜Page 21
Refer to 5. Setting Functions
in SET Mode.
Switching setting items
SET/RUN
mode Operation Keys Operation Display Remarks
Main Display Sub-Display
Locking and unlocking
keys Locks key operation to prevent incorrect operation.
➜Page 22
Refer to 6. Convenient Func-
tions.
Initialization and user re-
set Returns the system to its initial state.
➜Page 22
Refer to 6. Convenient Func-
tions.
UP
DOWN
MODE
Operation Indicator
for Channel 1
Standard models: I Mode indicator
Advanced models:Operation
indicator for channel 2
Match, function, etc.
Main Display (Red) Threshold,
function settings, etc.
Sub-Display (Green)
Mode Selector
Use to select SET or RUNmode.
Function setting operations
Operation Keys
RUN
(Factory-set to RUN)
UP DOWN
MODE
SET
UP DOWN
MODE
RUN
(Factory-set to RUN)
MODE
UP
LOC ON
SET DOWNUP
INIT YES?

E3X-DAC-S
20
Bank input
Channel switch Open
Set the SET/RUNMode
Selector to SET.
(Factory-set to RUN)
Match
Increases threshold. Decreases threshold.
Threshold
Workpiece
The set condition
will flash twice.
Teaching with
Workpiece
Match Threshold
Match Threshold
Set the SET/RUNMode
Selector to SET.
Press
either button
for 1 s.
Workpiece
The set condition
will flash twice.
Teaching with
Workpiece
The set threshold
will flash twice.
Match Threshold
Match Threshold
Match Threshold
Set the SET/RUNMode
Selector to SET.
Teaching without
Workpiece
* Workpiece colors must always be taught to perform judgment for
registered workpiece colors.
* With the factory settings, 1-point teaching can be executed in RUN
mode.(Press the MODE Key for 3 s.)
Along with registering the workpiece colors, the threshold
can be set at approximately –10%of the match.
The setting is completed in a simple operation with one
press of a button.
Two points, with and without the workpiece, are detected,
and the match of the intermediate point is set as the
threshold value.
This method is ideal for setting thresholds with margins or
performing judgments with lowmatch.
Press
either button
for 1 s.
Press
either button
for 1 s.
A threshold can be set manually. A threshold value can
also be fine-tuned using manual setting after teaching.
* Even if the display method for the Display Switch Function is
changed, the threshold will appear on the sub-display when the key
is pressed.
* Advanced Models
Set the Channel Selector to the desired channel before making any
adjustments or settings.This is true for all adjustments and settings.
OVER : Move the workpiece away.
OK :Teaching is possible.
LO : Move the workpiece closer.
* When teaching is performed, position the workpiece by using the
OVER, OK, and LO messages displayed on the sub-display (green)
as guides.
* The threshold level can be changed if the teaching level function is
used in SET mode.
* If BLACK mode is selected as the judgment mode in SET mode, the
threshold will be set to a level of approximately 10%higher than the
displayed degree of matching.
The operation mode is set with the Mode Selector.
* Advanced Models
The operation mode is set in SET mode.
Display
Closed
Bank
Open Closed
A B C D
The bank where data is registered can be changed by using the bank input and the channel switch.
UP DOWN
L
D
RUN
UP DOWN
SET
RUN
RUN
UP DOWN
UP DOWN
SET
12 21 12 21
1
2
Operation mode Operation
Match ON
Mismatch ONL-ON D-ON
(Factory-set)
3
3-1. One-point Teaching
To RUN
4
To RUN
3-2.Teaching with and without the Workpiece
➜ Page 21 Refer to 5. Setting Functions in SET Mode.
Setting Thresholds Manually in RUN Mode
Registering Workpiece Colors with Teaching in SET Mode
Setting the Operation Mode
Changing Banks (for Advanced Models (4-color Determination))
