ZX-T Series
Cat. No. E79E-EN-01
Detection Light Curtain
OPERATION MANUAL
Cat. No. E79E-EN-01 Note: Specifications subject to change without notice.
Authorized Distributor:
Printed in Europe
Cat. No. E79E-EN-01 F3ET2 Detection Light Curtain OPERATION MANUAL
F3ET2

Manufacturer: OMRON Europe B.V.
Wegalaan 67-69
2132 JD Hoofddorp, THE NETHERLANDS
WWW www.industrial.omron.eu
User‘s Manual: Version 0.2 dated 18-10-2011

1
Precautions
F3ET2 LIGHT CURTAINS OPERATION MANUAL
Precautions
WARNING
The F3ET2 multi-beam photoelectric sensor with beam evaluation function is not a safety
component for ensuring the safety of people which is defined in EC directive (2006/42/EC) or
by any other regulations or standards.
GENERAL INFORMATION
The instructions in this manual must be followed in order to safeguard correct installation. The
barrier does not contain any parts that are subject to maintenance; do not remove any
electronic parts from the housing for any reason. In case of malfunction, please contact your
sales representative with a description of the failure found and its period of operation. Do not
touch the front protective cover with your hands as dust and/or grease may decrease
performance.
OPERATING ENVIRONMENT
Do not use the light curtain in locations with explosive or flammable gas. Make sure that the
product is operated in accordance with IP65 standards. Do not subject the light curtain to
excessive shock when mounting. When using the light curtain in the vicinity of an inverter
motor, be sure to connect the protective earth ground wire of the motor to earth. Failure to
ground the motor may result in malfunction of the light curtain. Further it is recommended to
use shielded cables and to connect the shield to the ground in such cases.
CLEANING
When cleaning the front covers please do not use woollen cloths or organic solvents. The
interval between cleaning depends on conditions in the environment (dust, fog).
POWER SUPPLY VOLTAGE AND OUTPUT LOAD
Do not connect an AC power supply to the Sensor. If AC power (100 VAC or more) is supplied
to the Sensor, it may explode or burn. Make sure that the power supply to the Sensor is within
the rated voltage range. If a voltage exceeding the rated voltage range is supplied to the
Sensor, it may explode or burn.

Table Of Contents
3
F3ET2 LIGHT CURTAINS OPERATION MANUAL
Precautions ........................................................................................... 1
Chapter 1 Overview
Chapter 2 Installation
2-1 General...................................................................................................2-2
2-2 Mechanical installation ...........................................................................2-3
2-3 Operating environment ...........................................................................2-4
2-4 Operating distances................................................................................2-4
2-5 Wiring & output circuit.............................................................................2-5
2-6 Setting the internal selector-switches .....................................................2-6
Chapter 3 Order codes
Chapter 4 Technical specifications
4-1 Ratings ...................................................................................................4-2
Chapter 5 LED indicators and error indication
5-1 LED indication on receiver unit...............................................................5-2
5-2 LED indication on emitter unit.................................................................5-3
5-3 Troubleshooting for error indication........................................................5-4
Chapter 6 Dimensions
Chapter 7 Accessories
7-1 Mounting bracket ....................................................................................7-2
7-2 Cables ....................................................................................................7-2
Manual Revision History .............................................................................. 1

4

F3ET2 LIGHT CURTAINS OPERATION MANUAL
1
F3ET2 is a multi-beam light curtain for easy area detection for various applications. Due to its
robust housing F3ET2 is also suitable for hash environments in industrial automation.
F3ET2 is provided with PNP and NPN transistor output.
F3ET2 is available in two resolutions:
Models with 7.5 mm resolution are available upon request.
Due to its modular design F3ET2 can be provided in various sizes. For standard sizes please
refer to model list in chapter 3.
Model Sensing distance Pitch resolution Min. detectable object
F3ET2-005-[…] 0 to 3 m 5 mm 10 mm
F3ET2-018-[…] 0 to 15 m 18 mm 30 mm
Overview

F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
2-1 General ..........................................................................2-2
2-2 Mechanical installation ................................................2-3
Mounting accessories ..................................................................... 2-3
Additional mounting rigidity ............................................................. 2-3
Mechanical Mounting ...................................................................... 2-4
2-3 Operating environment ................................................2-4
2-4 Operating distances .....................................................2-4
2-5 Wiring & output circuit .................................................2-5
2-6 Setting the internal selector-switches ........................2-6
Installation

2-2
2-1 General
F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
Installation
2-1 General
The light curtain consists of one bar with light emitting optical elements and of one with
receiving optical elements. The photosensitive elements are scanned in sequence, thus
broken rays are detected.
F3ET2 features optical synchronisation and does not require synchronization wire between
transmitter and receiver. The sync-function is provided by the upper beam located on the
opposite side of the connector (see illustration below). During operation this beam must always
be kept free. Otherwise it will result in a longer response frequency of the light curtain.
1st BEAM
L: Maximum detection area
D: System resolution
D
L

2-3
2-2 Mechanical installation
F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
Installation
2-2 Mechanical installation

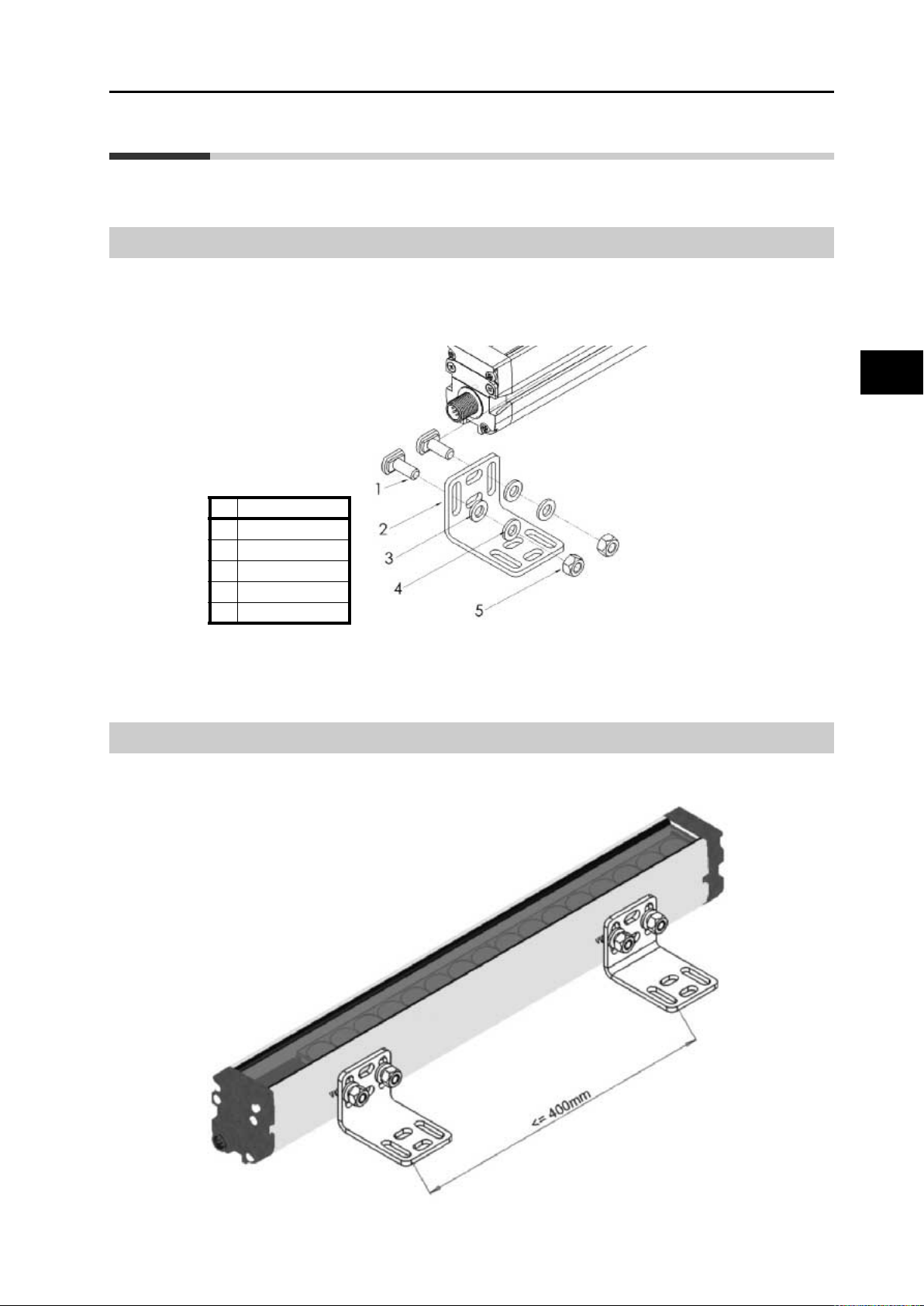

Mounting accessories
The F3ET2 system is mechanically installed by using the T-slots on the two sides or the back-
side of the housing.
Use the movable bolts, washers, growers and nuts to fix the mounting brackets as shown in
the picture
Note: Shipment contains different quantity of brackets, depending on the length of the LC. Longer LC
contains a higher number of brackets, following the rule of every 400 mm one bracket.
Additional mounting rigidity
It is recommended that the distance between the mounting brackets is 400 mm or less for
optimum performance of the F3ET2 system.
ID Description
1 movable M6 bolt
2 fixing braket
3 M6 washer
4 M6 Grower
5M6nut

2-4
2-3 Operating environment
F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
Installation
Mechanical Mounting
Please mount the light curtains in proper alignment as shown in the pictures below by using
the brackets provided with the light curtains.
If F3ET2 is installed at long distances the laser alignment aid F39-TGR-LLK2-CL provides a
visible laser spot for simplified installation.
If several light curtains are installed close to each other, interference of the light curtains must
be avoided. In this case the assembly should be carried out as follows:
2-3 Operating environment
The area for the installation of the light curtain must be suitable according to the technical
specifications. The temperature of the environment, interference caused by electromagnetic
disturbance and ambient light must be considered. Please contact the manufacturer for any
information not contained in this manual.
2-4 Operating distances
The operating distances, which are given in the technical specifications, are guaranteed values
for reliable operation. Operating F3ET2 above the specified sensing distance may cause
greater sensitivity to vibration and possible electromagnetic disturbances.
If the F3ET2 is operated in a distance <1m, the sensitivity can be set to NEAR operation by
dip-switch setting at transmitter (see ’ DIP switch setting’ on page 2-7).
This should be considered for following application conditions:
a) Multiple light curtains are installed close to each other (avoiding mutual interference)
b) Detection of small or semi-transparent objects
If none of above mentioned cases applies, FAR setting should be kept in order to provide
maximum detection reliability.
OK NG NG
TX TXRXRX

2-5
2-5 Wiring & output circuit
F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
Installation
2-5 Wiring & output circuit
Please connect the light curtain as described below:
Variable
Power Supply
RECEIVER
Earth
Ground +24 VDC 0 VDC Br Wh BL Bk Gr
EMITTER
Br Wh Bl Bk
Connector PIN assignment - Receiver
Type Internal wiring Pin Colour Signal name
M12 n5 pole
1Brown +Vs
2 White not used
3Blue 0V
4 Black PNP/NPN output
5 Gray not used
Connector PIN assignment - Transmitter
Type Internal wiring Pin Colour Signal name
M12 n4 pole
1Brown+Vs
2 White not used
3Blue 0V
4 Black Not used

2-6
2-6 Setting the internal selector-switches
F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
Installation
2-6 Setting the internal selector-
switches
Precautions for Correct Use
All the operations listed below must only be carried out when the receiver is disconnected to
the power supply.
L-ON/D-ON setting and distance setting can be changed by selector switches.
To access the selector switches unscrew the end cap of the receiver and transmitter unit:
There are two lines of dip switches in each transmitter and receiver. The settings must
be done for both lines. Change the setting of the dip-switch and close the cap again. The light
curtain can now be reconnected to the power supply.
1 2 34 5 6 7 8
OFF
ON
1 2 34 5 6 7 8
OFF
ON

2-7
2-6 Setting the internal selector-switches
F3ET2 LIGHT CURTAINS OPERATION MANUAL
2
Installation
DIP switch setting
Transmitter:
Receiver:
There are two lines of dip switches in each transmitter and receiver. The settings must
be done for both lines.
Dip-SW Status Function
1OFF Not USED
ON Not USED
2OFF Not USED
ON Not USED
3OFF Not USED
ON Not USED
4OFF Not USED
ON Not USED
5OFF FAR (Default)
ON NEAR
6OFF Not USED
ON Not USED
7OFF Not USED
ON Not USED
8OFF Not USED
ON Not USED
Dip-SW Status Function
1OFF Not USED
ON Not USED
2OFF PNP type (default)
ON NPN type
3 OFF Dark on (default)
ON Light on
4OFF Not USED
ON Not USED
5OFF Not USED
ON Not USED
6OFF Not USED
ON Not USED
7OFF Not USED
ON Not USED
8OFF Not USED
ON Not USED

F3ET2 LIGHT CURTAINS OPERATION MANUAL
3
Order codes

3-2
F3ET2 LIGHT CURTAINS OPERATION MANUAL
3
Order codes
Order code Measurement
range Pitch*1
*1. Models with other dimensions and 7.5 mm pitch are available. Please con-
tact your OMRON representative.
Sensing
distance Channels
F3ET2-005-150 150 5mm 3m 30
F3ET2-018-150 18 mm 15 m 8
F3ET2-005-300 300 5mm 3m 60
F3ET2-018-300 18 mm 15 m 16
F3ET2-005-450 450 5mm 3m 90
F3ET2-018-450 18 mm 15 m 24
F3ET2-005-600 600 5 mm 3 m 120
F3ET2-018-600 18 mm 15 m 32
F3ET2-005-900 900 5 mm 3 m 180
F3ET2-018-900 18 mm 15 m 48
F3ET2-005-1200 1200 5 mm 3 m 240
F3ET2-018-1200 18 mm 15 m 64
F3ET2-005-1500 1500 5 mm 3 m 300
F3ET2-018-1500 18 mm 15 m 80
F3ET2-005-1800 1800 5 mm 3 m 360
F3ET2-018-1800 18 mm 15 m 96
F3ET2-018-2100 2100 18 mm 15 m 112

F3ET2 LIGHT CURTAINS OPERATION MANUAL
4
4-1 Ratings...........................................................................4-2
Technical specifications
