Omron ZG2 Series User manual

Cat. No. Z288-E1-01
Smart Sensor
2D Profile Measuring Sensors
ZG2 Series
USERS MANUAL
Cat. No. Z264-E2-04-X Note: Specifications subject to change without notice.
Authorized Distributor:
Printed in Europe
Cat. No. Z264-E2-04-X Smart Sensor ZFX-C USER´S MANUAL

Introduction
Thank you for purchasing the ZG2 series.
This manual provides information regarding functions, performance and operating methods that
are required for using the ZG2.
When using the ZG2, be sure to observe the following:
• The ZG2 must be operated by personnel knowledgeable in electrical engineering.
• To ensure correct use, please read this manual thoroughly to deepen your understanding of the
product.
• Please keep this manual in a safe place so that it can be referred to whenever necessary.
■How to Switch the Display Language to English
Turn the power ON with the MENU key held down. This displays the display language selection
screen.
The Controller will start up with the messages displayed in English when it is next started up.
PLEASE SELECT
LANGUAGE
ENG JPN

1
1
2
3
4
5
6
User’s Manual
READ AND UNDERSTAND THIS
DOCUMENT(Please Read)
BEFORE USE
BASIC OPERATIONS
FUNCTION SETTINGS
CONNECTION WITH EXTERNAL
DEVICES
MEASUREMENT BY GANG-
MOUNTED CONTROLLERS
Smart Sensor
2D Profile Measuring Sensors
ZG2 Series
APPENDICES

2ZG2 User’s Manual
READ AND UNDERSTAND THIS DOCUMENT
Please read and understand this document before using the products. Please consult
your OMRON representative if you have any questions or comments.
WARRANTY
OMRON’s exclusive warranty is that the products are free from defects in materials and
workmanship for a period of one year (or other period if specified) from date of sale by
OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED,
REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR
PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER
ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT
THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED
USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY
WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.
In no event shall responsibility of OMRON for any act exceed the individual price of the
product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR
OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS
CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED,
INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE,
MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
SUITABILITY FOR USE
THE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY
ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND
SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE
DEVICE FOR SUCH PURPOSES.
Please refer to separate catalogs for OMRON’s safety rated products.
OMRON shall not be responsible for conformity with any standards, codes, or regulations
that apply to the combination of products in the customer’s application or use of the
product.
At the customer’s request, OMRON will provide applicable third party certification
documents identifying ratings and limitations of use that apply to the products. This
information by itself is not sufficient for a complete determination of the suitability of the
products in combination with the end product, machine, system, or other application or use.
The following are some examples of applications for which particular attention must be
given. This is not intended to be an exhaustive list of all possible uses of the products, nor
is it intended to imply that the uses listed may be suitable for the products:
• Outdoor use, uses involving potential chemical contamination or electrical interference,
or conditions or uses not described in this document.

ZG2 User’s Manual 3
• Nuclear energy control systems, combustion systems, railroad systems, aviation
systems, medical equipment, amusement machines, vehicles, safety equipment, and
installations subject to separate industry or government regulations.
• Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO
LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS
BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS
PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE
OVERALL EQUIPMENT OR SYSTEM.
PERFORMANCE DATA
Performance data given in this document is provided as a guide for the user in determining
suitability and does not constitute a warranty. It may represent the result of OMRON’s test
conditions, and the users must correlate it to actual application requirements. Actual
performance is subject to the OMRON Warranty and Limitations of Liability.
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on
improvements and other reasons.
It is our practice to change model numbers when published ratings or features are
changed, or when significant construction changes are made. However, some
specifications of the product may be changed without any notice. When in doubt, special
model numbers may be assigned to fix or establish key specifications for your application
on your request. Please consult with your OMRON representative at any time to confirm
actual specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes,
even when tolerances are shown.
ERRORS AND OMISSIONS
The information in this document has been carefully checked and is believed to be
accurate; however, no responsibility is assumed for clerical, typographical, or
proofreading errors, or omissions.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user’s programming of a programmable product,
or any consequence thereof.
COPYRIGHT AND COPY PERMISSION
This document shall not be copied for sales or promotions without permission.
This document is protected by copyright and is intended solely for use in conjunction with
the product. Please notify us before copying or reproducing this document in any manner,
for any other purpose. If copying or transmitting this document to another, please copy or
transmit it in its entirety.

4ZG2 User’s Manual
The following signal words are used in this manual.
The following alert symbols are used in this manual
Meanings of Signal Words
Indicates a potentially hazardous situation which, if not
avoided, will result in minor or moderate injury, or may result in
serious injury or death. Additionally there may be significant
property damage.
Meanings of Alert Symbols
Indicates general prohibitions for which there is no specific symbol.
Indicates the possibility of laser radiation.
Indicates prohibition when there is a risk of minor injury from electrical
shock or other source if the product is disassembled.
This product is not designed or rated for ensuring safety of persons.
Do not use it for such purposes.
Never look into the laser beam. Doing so continuously will result in
visual impairment.
Do not attempt to dismantle, pressurize, or incinerate the product. Doing
so may cause the laser beam to leak, resulting in the danger of visual
impairment.

ZG2 User’s Manual 5
The following points are important to ensure safety, so make sure that they are strictly
observed.
1. Installation Environment
• Do not use the product in environments where it can be exposed to inflammable/
explosive gas.
• To secure the safety of operation and maintenance, do not install the product close to
high-voltage devices and power devices.
• Install the product in such a way that its ventilation holes are not blocked.
2. Power Supply and Wiring
• The voltage and AC power supply must be within the rated range (DC 24 V ±10%).
• Reverse connection of the power supply is not allowed.
• Open-collector outputs should not be short-circuited.
• Use the power supply within the rated load.
• High-voltage lines and power lines must be wired separately from this product. Wiring
them together or placing in the same duct may cause induction, resulting in
malfunction or damage.
• Use the product within the power supply voltage specified by this manual.
• Use a DC power supply with safety measures against high-voltage spikes (safety extra
low-voltage circuits on the secondary side).
3. Other
• Do not disassemble, repair, or modify the product.
• Dispose of this product as industrial waste.
• Connect the exclusive device (Sensor). The product might break down or malfunction
if you use a part not included in the exclusive products.
• Should you notice any abnormalities, immediately stop use, turn OFF the power
supply, and contact your OMRON representative.
Precautions for Safe Use

6ZG2 User’s Manual
Observe the following precautions to prevent failure to operate, malfunctions, or
undesirable effects on product performance.
1. Installation Site
Do not install this product in locations subjected to the following conditions:
• Ambient temperature outside the rating
• Rapid temperature fluctuations (causing condensation)
• Relative humidity outside the range of 35 to 85%
• Presence of corrosive or flammable gases
• Presence of dust, salt, or iron particles
• Direct vibration or shock
• Reflection of intense light (such as other laser beams or electric arc-welding
machines)
• Direct sunlight or near heaters
• Water, oil, or chemical fumes or spray
• Strong magnetic or electric field
2. Power Supply and Wiring
• When using a commercially available switching regulator, make sure that the FG
terminal is grounded.
• If surge currents are present in the power lines, connect surge absorbers that suit the
operating environment.
• Before turning ON the power after the product is connected, make sure that the power
supply voltage is correct, there are no incorrect connections (e.g. load short-circuit),
and the load current is appropriate. Incorrect wiring may result in breakdown of the
product.
• Before connecting/disconnecting devices, make sure that the Sensor/Controller is
turned OFF. The Sensor or Controller may break down if it is connected/disconnected
while the power is ON.
• Use the extension cable sold separately for extending the cable between the Sensor
and the Controller.
p.17
• Use only combinations of the Sensor and Controller specified in this manual.
• Before turning the Controller ON, connect the Sensor. If the Controller is turned ON
without the Sensor connected, the Controller’s screen will remain dark and messages
cannot be read.
3. Warming Up
After turning the power supply ON, allow the product to stand for at least 30 minutes
before use. The circuits are still unstable just after the power supply is turned ON, so
measurement values may fluctuate gradually.
Precautions for Correct Use

ZG2 User’s Manual 7
4. Maintenance and Inspection
Do not use thinner, benzene, acetone or kerosene to clean the Sensor and Controller. If
large dust particles adhere to the filter on the front of the Sensor, use a blower brush
(used to clean camera lenses) to blow them off. Do not use breath from your mouth to
blow the dust off. To remove dust particles from the Sensor, wipe gently with a soft cloth
(for cleaning lenses) moistened with a small amount of alcohol. Do not use excessive
force to wipe off dust particles. Scratches to the filter might cause error.
5. Measurement Target
The measurement target is a non-transparent object. The sensor cannot detect the
following types of objects accurately: materials with extremely small reflectances, objects
smaller than the beam diameter, objects with large curvatures, or objects tilted to a large
degree.
6. Effect of Peripheral Lighting
Do not install the Sensor in a place where strong light hits the laser emitter/receiver
section of the Sensor.
Also, if a measurement target has a shiny surface, the light from the lighting will be
reflected and a malfunction may occur. In such a case, prevent reflection by, for example,
covering the light to stop reflection.
p.27
7. Compatibility of Mesurement Data
Bank data or System data saved with existing ZG series cannot be processed by ZG2.

8ZG2 User’s Manual
Editor’s Note
■Meaning of Symbols
Menu items that are displayed on the Controller’s LCD screen, and windows, dialog boxes
and other GUI elements displayed on the PC are indicated enclosed by brackets “[ ]”.
■Visual Aids
Indicates points that are important to achieve the full product performance,
such as operational precautions.
Indicates application procedures.
Indicates pages where related information can be found.
Important
Note

1
9
ZG2 User’s Manual
CONTENTS
1. BEFORE USE
ZG2 Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . 18
Basic Knowledge for Operation . . . . . . . . . . . . . . . . 21
Profile Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Precautions when designing a production line. . . . 22
Measurement Range in Height Direction and Resolution 22
Trigger Measurement/Continuous Measurement . . . . . 24
Mounting and Connecting Devices. . . . . . . . . . . . . . 27
Mounting the Sensor Head . . . . . . . . . . . . . . . . . . . . . . 27
Mounting the Controller. . . . . . . . . . . . . . . . . . . . . . . . . 39
Connecting Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Overview of Settings and Measurement. . . . . . . . . . 52
Operation Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Tasks and Bank Data . . . . . . . . . . . . . . . . . . . . . . . . . . 53
STD Menu and EXP Menu . . . . . . . . . . . . . . . . . . . . . . 55
Initializing Controller Settings . . . . . . . . . . . . . . . . . . . . 56
2. BASIC OPERATIONS
Flow of Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Starting Measurement . . . . . . . . . . . . . . . . . . . . . . . . 66
Monitoring the Measurement Status . . . . . . . . . . . . . . . 66
Magnifying the Profile Display. . . . . . . . . . . . . . . . . . . . 67
Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

10 ZG2 User’s Manual
3. FUNCTION SETTINGS
Setting Measurement Conditions . . . . . . . . . . . . . . . 70
How to Select Measurement Items . . . . . . . . . . . . . . . . 70
Measuring Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Measuring Step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Measuring Position and Width. . . . . . . . . . . . . . . . . . . . 77
Measuring Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Measuring Angle and Point of Intersection . . . . . . . . . . 80
Measuring Cross-sectional Area . . . . . . . . . . . . . . . . . . 82
Measuring Point of Inflection. . . . . . . . . . . . . . . . . . . . . 83
Calculating Measurement Values . . . . . . . . . . . . . . . . . 86
Deleting measurement items. . . . . . . . . . . . . . . . . . . . . 86
Customizing Measurement Conditions . . . . . . . . . . 87
Magnifying the Profile Display. . . . . . . . . . . . . . . . . . . . 87
Changing Measurement Positions. . . . . . . . . . . . . . . . . 88
Changing Measurement Points. . . . . . . . . . . . . . . . . . . 89
Changing the Edge Level and Edge Direction. . . . . . . . 90
Scaling of Measurement Values . . . . . . . . . . . . . . . . 91
Image Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Adjusting Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Changing Sensitivity Adjustment Region. . . . . . . . . . . . 99
Adjusting Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Adjusting the background filtering level. . . . . . . . . . . . 104
Setting noise filtering. . . . . . . . . . . . . . . . . . . . . . . . . . 104
Setting the high-power mode (increasing the amount of
emitted light) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Adjusting received light gain . . . . . . . . . . . . . . . . . . . . 105
Position Correction . . . . . . . . . . . . . . . . . . . . . . . . . 106
Slope Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Height/Position Correction. . . . . . . . . . . . . . . . . . . . . . 109
Adjusting the Output Conditions of the Measurement
Result. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Setting the Average Number of Measurements . . . . . 111
Setting Smoothing. . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Setting the Hold Function . . . . . . . . . . . . . . . . . . . . . . 112
Setting Zero Reset . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Setting the Offset Value. . . . . . . . . . . . . . . . . . . . . . . . 114

11
ZG2 User’s Manual
Executing Reference Zero Reset . . . . . . . . . . . . . . . . 115
Bank Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Bank Switching (change of device setup) . . . . . . . . . . 116
Copying Bank Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Clearing Bank Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Setting the Sensor Head Installation Status . . . . . . . . 118
Sensor Head Inclination Correction. . . . . . . . . . . . . . . 118
Setting the CCD Mode. . . . . . . . . . . . . . . . . . . . . . . . . 121
Setting the Sensor Head Data Loading Method . . . . . 121
Setting the Number of Digits Past the Decimal Point . 122
Setting/Changing the ECO Display . . . . . . . . . . . . . . . 122
Displaying the Controller Information . . . . . . . . . . . . . 122
Setting/Changing the Display Language. . . . . . . . . . . 123
Setting the Icon Color . . . . . . . . . . . . . . . . . . . . . . . . . 123
Saving the Setup Data. . . . . . . . . . . . . . . . . . . . . . . . . 123
4. CONNECTION WITH EXTERNAL DE-
VICES Output Data List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Using the Controller I/O Cable. . . . . . . . . . . . . . . . . 127
Wiring the Controller I/O Cable . . . . . . . . . . . . . . . . . . 127
Assignments and Functions of I/O Signal Wires . . . . . 128
I/O Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Analog Output Settings . . . . . . . . . . . . . . . . . . . . . . . . 132
Setting for Measurement by the TRIG Signal . . . . . . . 136
Setting for Switching Banks by the BANK Signal . . . . 136
Checking Signal Statuses . . . . . . . . . . . . . . . . . . . . . . 137
Setting the GATE Signal . . . . . . . . . . . . . . . . . . . . . . . 137
Using the Parallel Output Unit (sold separately). . 138
Connecting the Parallel Output Unit . . . . . . . . . . . . . . 138
Layout of Output Terminals. . . . . . . . . . . . . . . . . . . . . 138
Output Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Output Format of Measurement Values . . . . . . . . . . . 140
Output Format of Judgment Results . . . . . . . . . . . . . . 141
Assignment of Terminal Block Output. . . . . . . . . . . . . 143

12 ZG2 User’s Manual
Setting the Number of Digits Past
the Decimal Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Setting GATE Signal at Parallel Output. . . . . . . . . . . . 143
I/O Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Serial Communication . . . . . . . . . . . . . . . . . . . . . . . 149
Using the Serial Interface . . . . . . . . . . . . . . . . . . . . . . 149
Connecting Peripheral and External Devices . . . . . . . 152
Serial Auto Output at Trigger Measurement . . . . . . . . 155
Setting Automatic Output. . . . . . . . . . . . . . . . . . . . . . . 155
Setting the RS-232C Communication Specifications . 156
Setting the Node No.. . . . . . . . . . . . . . . . . . . . . . . . . . 156
About Communication Commands . . . . . . . . . . . . . . . 157
Bank Control Commands . . . . . . . . . . . . . . . . . . . . . . 160
Measurement Control/Measurement Value Acquisition
Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Setting Acquisition/Change Commands . . . . . . . . . . . 165
Backup/Restore Commands . . . . . . . . . . . . . . . . . . . . 168
Utility commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Parameter List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Command Processing Time . . . . . . . . . . . . . . . . . . . . 181
5. MEASUREMENT BY GANG-MOUNT-
ED CONTROLLERS
Mounting Order and Assignment of CH Numbers. 184
Setup Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Measuring Wide Measurement Targets . . . . . . . . . . . 185
Required Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Setting Mutual Interference Prevention. . . . . . . . . . . . 187
Settings Common to Gang-mounted Controllers. . . . . 189
Calculations Performed on Measurement Values Obtained
on Multiple Channels. . . . . . . . . . . . . . . . . . . . . . . . . . 190
I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

13
ZG2 User’s Manual
6. APPENDICES
Specifications and External Dimensions . . . . . . . . 194
Sensor Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Error Messages and Corrective Actions . . . . . . . . 211
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Menu List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
List of Key Operations . . . . . . . . . . . . . . . . . . . . . . . 218
Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Label Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Requirements from Regulations and Standards . . 222
Summary of Requirements to Manufactures. . . . . . . . 222
Summary of Requirements to User. . . . . . . . . . . . . . . 226
Definitions of Laser Classification . . . . . . . . . . . . . . . . 229
Compliance with EC Directives. . . . . . . . . . . . . . . . 231
Updating the Firmware. . . . . . . . . . . . . . . . . . . . . . . 232
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

14 ZG2 User’s Manual
MEMO

1 BEFORE USE
BEFORE USE
ZG2 Series 16
Basic Knowledge for Operation 21
Precautions when designing a production
line 22
Mounting and Connecting Devices 27
Overview of Settings and Measurement 52

ZG2 Series
16 ZG2 User’s Manual
ZG2 Series
Measurement by the ZG2 series can be started immediately merely by connecting the
model of Sensor Head suited to the application to the Controller. Also, the ZG2 series can
support various measurement applications by using it in combination with peripheral
devices.

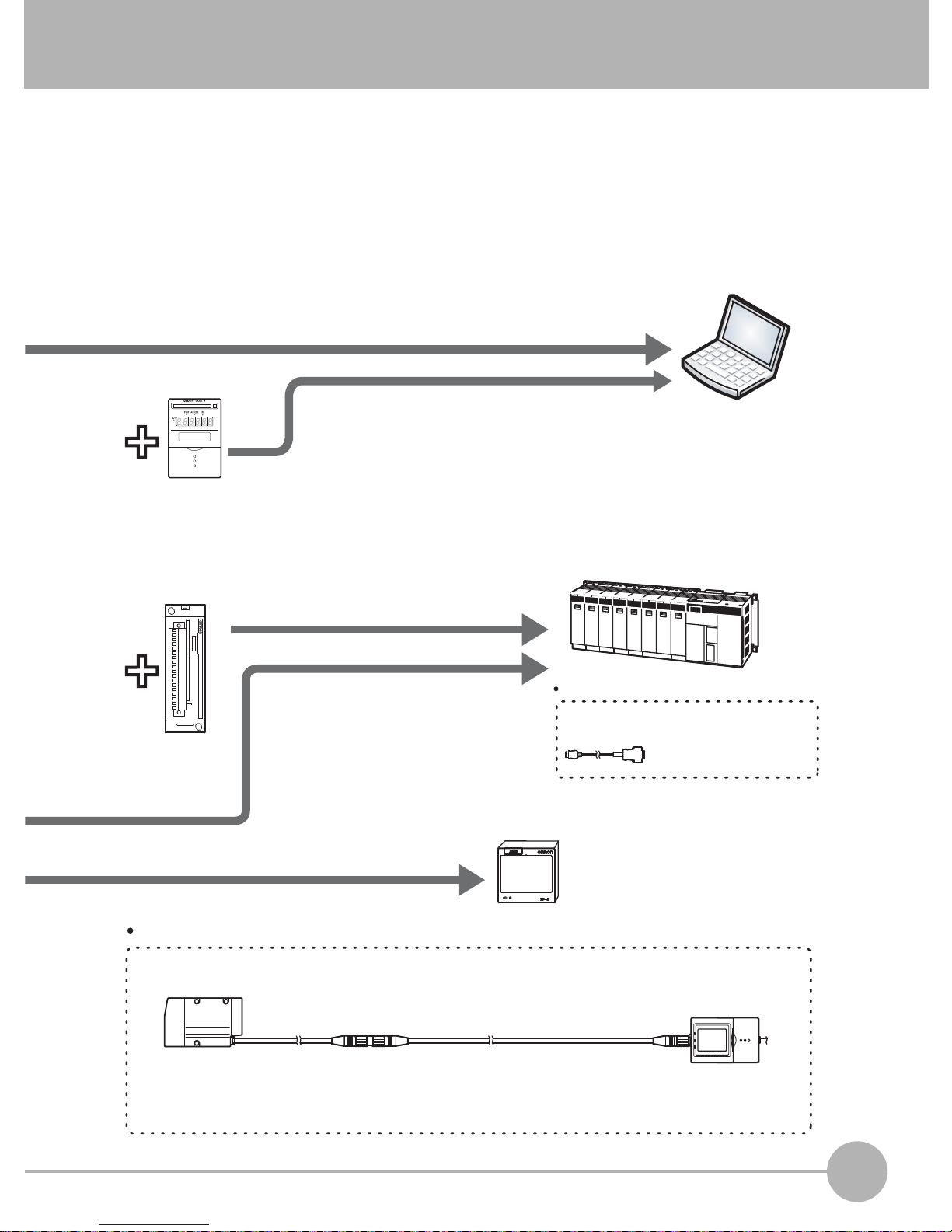

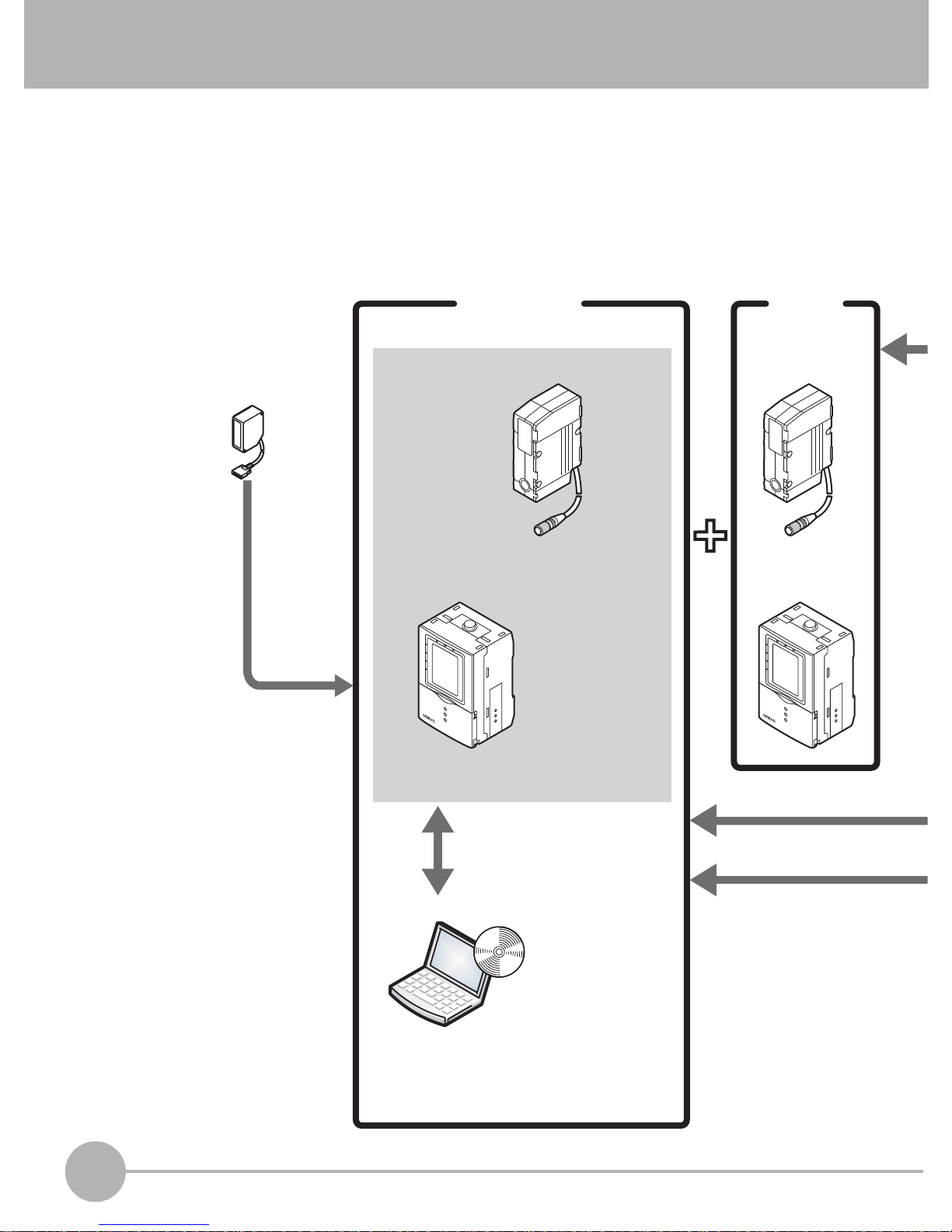

System Configuration
Sensor Head Sensor Head
Controller Controller
ZG2 series Up to two units
can be
gang-mounted.
ZG2-WDC11/WDC41
PC
Smart Monitor ZG2
(exclusive PC software)
ZG2-WDS70
ZG2-WDS22
ZG2-WDS8T
ZG2-WDS3VT
Detects the
measurement
target.
Performs
measurement
processing and
outputs the result.
Photoelectric sensor, etc.
A trigger signal is
input to control
measurement
timing.
Exclusive PC software allows complex
setups and verification of measurement
values to be performed with ease.
SmartMonitor ZG2 and USB cable are
ZG2-WDC_1A accessories.

ZG2 Series 17
ZG2 User’s Manual
1 BEFORE USE
Sensor Head-Controller extension cable (option)
Extension cable
ZG2-XC__CR:
(3 m, 8 m, 15 m, 25 m) (flexible cable)
Cable for Sensor:
0.5 m, 2 m (flexible cable)
Exclusive extension cables are available for extending the installation distance between the
Sensor Head and the Controller.
ZG - R PD
PARA LLEL OUTPUT UNIT
RS- 2 3 2 C
DATA
PC
PLC
Graphic Data Controller ZP-C
Data Storage
Unit ZG2-DSU11
/DSU41
RS-232C connector cable (option)
For PC: ZS-XRS2
For PLC/PT: ZS-XPT2
Parallel Output
Unit ZG-RPD11
/RPD41
A USB connection allows measurement data to be
captured easily on a PC. Also, the Controller can be
controlled from a PC (e.g. switching/changing of setup
data and input of measurement trigger).
Measurement values and judgment
results can be output at high speed
on the parallel interface.
Measurement values and judgment
results can be acquired, and the
controller can be controlled (e.g.
setup data can be switched/changed
and measurement triggers can be
input).
The analog signals of measurement values can be displayed
as a waveform, and judgment results can be displayed in
color.
Measurement data can be collected and profiles
saved. Also, up to 4096 banks' (16 banks x 256 files)
of measurement conditions can be registered if the
number of banks on the Controller is insufficient. A
USB connection allows data to be captured on a PC.
For details, refer to the ZG2-DSU User's Manual.
Exclusive cables are available to match
the connected device.
