Thank you for purchasing the Omron®BP760 7 series Automatic Blood
Pressure Monitor with ComFitTM Cuff.
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
• Staple your purchase receipt here
• Register your product on-line at
www.register-omron.com
Your new blood pressure monitor uses the oscillometric method of blood
pressure measurement. This means the monitor detects your blood’s
movement through your brachial artery and converts the movements into
a digital reading. An oscillometric monitor does not need a stethoscope
so the monitor is simple to use.
The BP760 comes with the following components:
• Monitor • ComFitTM Cuff • AC Adapter
• Instruction Manual printed in English and Spanish
• Quick Start Guide
The BP760 7 series Automatic Blood Pressure Monitor is intended for
home use.
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT
YOUR DOCTOR.
INTRODUCTION
SAVE THESE INSTRUCTIONS
Before Using the Monitor

5
SAFETY INFORMATION
INTENDED USE
This product is designed to measure the blood pressure and pulse rate
of people within the range of the designated arm cuff, following the
instructions in this instruction manual.
It is mainly designed for general household use. Please read the “Safety
Information” in this instruction manual before using the unit.
To assure the correct use of the product basic safety measures should
always be followed including the warnings and cautions listed in this
instruction manual.
SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury to the user or patient or damage
to the equipment or other property.
OPERATING THE DEVICE
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
DO NOT adjust medication based on measurement results from this
blood pressure monitor. Take medication as prescribed by your
physician. Only a physician is qualified to diagnose and treat High
Blood Pressure.

OPERATING THE DEVICE (continued)
The monitor is not intended to be a diagnostic device.
If battery fluid should get in your eyes, immediately rinse with plenty
of clean water. Contact a physician immediately.
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
This device is intended for use in measuring blood pressure and pulse
rate in the adult population. Do not use this device on infants or
persons who cannot express their intentions.
Read the Special Conditions section (page 30) of the instruction
manual if your systolic pressure is known to be more than 220
mmHg. Inflating to a higher pressure than necessary may result in
bruising where the cuff is applied.
Operate the device only as intended. Do not use the device for any
other purpose.
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
Do not use a cellular phone near the device. It may result in an
operational failure.
Use only Omron authorized parts and accessories. Parts and accessories
not approved for use with the device may damage the unit.
Use only 1.5V alkaline batteries with this device.
Do not use other types of batteries. This may damage the unit.
SAFETY INFORMATION
6

RISK OF ELECTRICAL SHOCK
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
CARE AND MAINTENANCE
Do not subject the monitor to strong shocks, such as dropping the
unit on the floor.
Do not submerge the device or any of the components in water.
Store the device and the components in a clean, safe location.
Changes or modification not approved by OMRON HEALTHCARE
will void the user warranty. Do not disassemble or attempt to repair
the unit or components.
SAFETY INFORMATION
7

8
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing
for 30 minutes prior to taking a measurement. Rest for at least 15
minutes prior to taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your arm.
5. Sit on a chair with your feet flat on the floor. Rest your arm on
a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physiological characteristics.
8. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement may not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at about the same time each day for consistency.

9

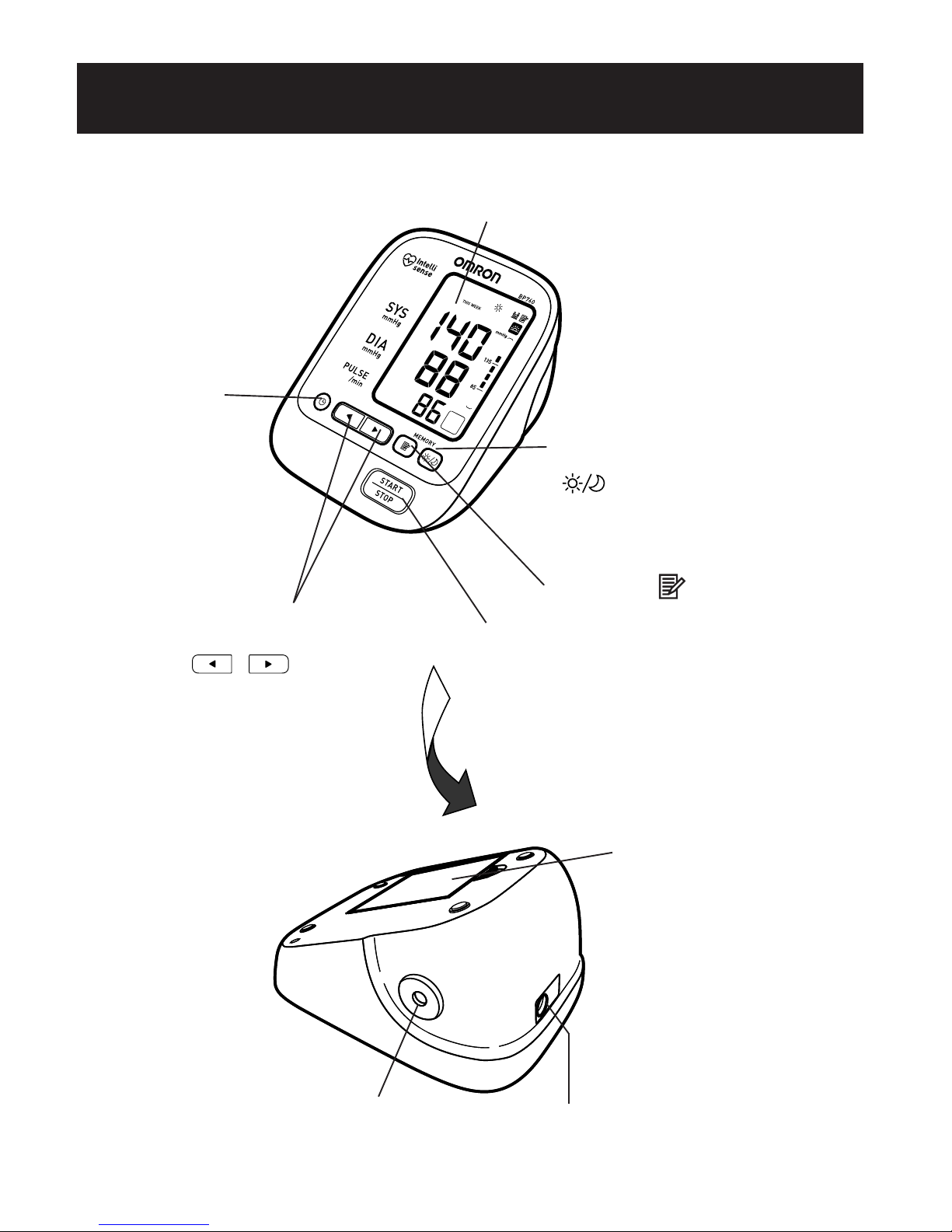

KNOW YOUR UNIT
Main Unit:
Air Jack
Battery Compartment
Start/Stop Button
Morning/Evening Average
() Button
Memory ( ) Button
Display
AC Adapter Jack
Operating Instructions
Up/Down
(/ ) Buttons
SET Button

KNOW YOUR UNIT
10
Components:
Arm Cuff
Air Tube
Air Plug
(Connects to Air Jack)
AC Adapter
Housing
Cord
7 series
Blood Pressure Monitor
with ComFitTM Cuff
ModelBP760
INSTRUCTION MANU A L
ESPAÑOL
ENGLISH
Quick Start GuideInstruction Manual

11

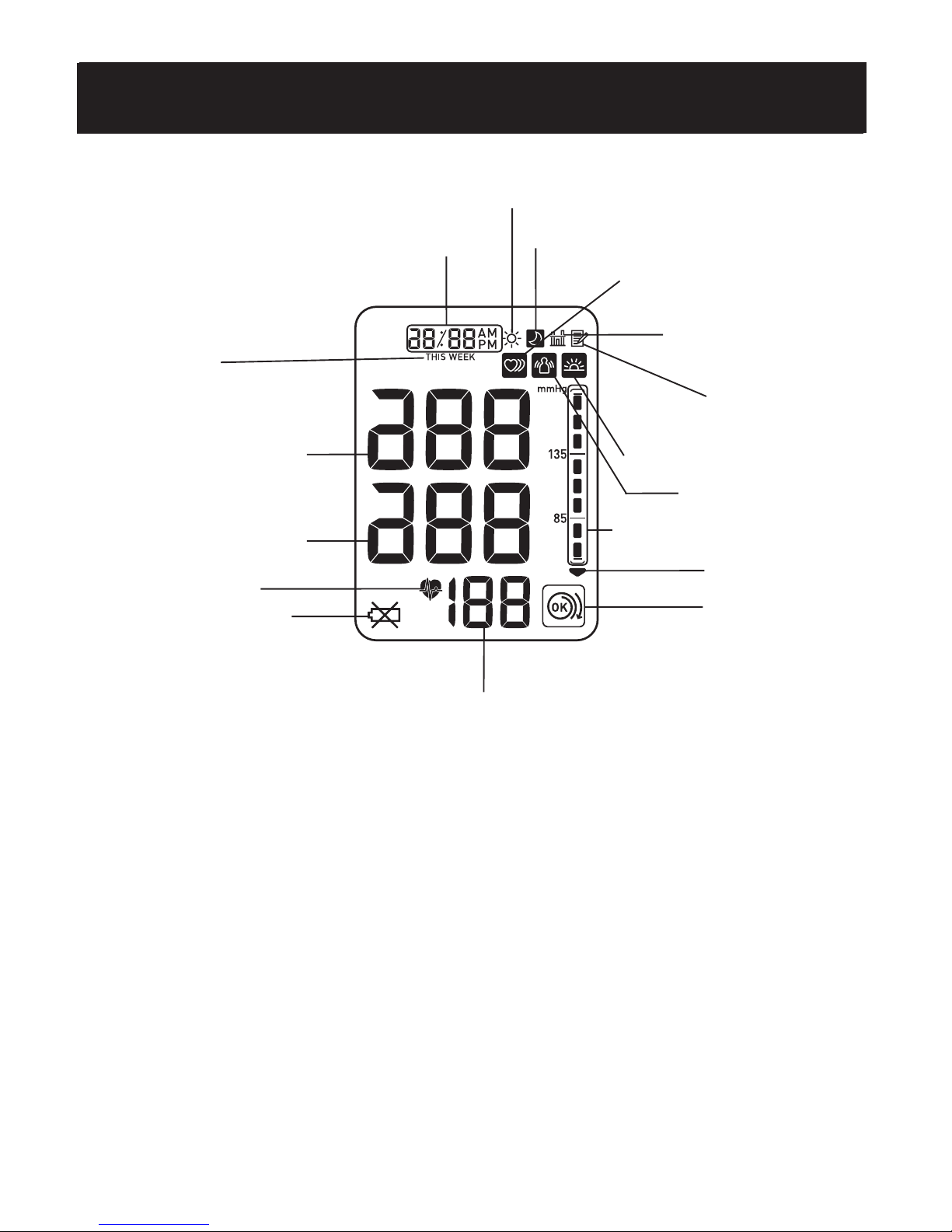

UNIT DISPLAY
Diastolic Blood Pressure
Systolic Blood Pressure
Movement Symbol
Pulse Display / Memory Number
Date/Time Display
Low Battery Indicator
Deflation Symbol
Morning Average Symbol
Heartbeat Symbol
Irregular Heartbeat Symbol
Evening Average Symbol
Average Value Symbol
Memory Symbol
Morning Hypertension Symbol
Week Display
Blood Pressure Level Indicator
Cuff Wrap Guide

12
IRREGULAR HEARTBEAT SYMBOL ( )
When the monitor detects an irregular rhythm two or more times during
the measurement, the Irregular Heartbeat Symbol ( ) will appear on the
display with the measurement values.
An irregular heartbeat rhythm is defined as a
rhythm that varies by less than 25% from
the average rhythm or 25% more than the
average rhythm detected while the monitor
is measuring the systolic and diastolic blood
pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results, we
recommend you consult your physician.
Follow the directions of your doctor.
MOVEMENT ERROR SYMBOL ( )
The Movement Error Symbol is displayed if you move your body during
the measurement. Please remove the arm cuff, and wait 2-3 minutes.
Take another measurement, remain still during inflation.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood
pressure
Pulse
Blood
pressure
Short Long
DISPLAY SYMBOLS

Internationally recognized guidelines for upper limit of normal home
blood pressure readings are as follows:
Home Guideline for Upper Limit of Normal BP
Systolic Blood Pressure 135 mmHg
Diastolic Blood Pressure 85 mmHg
This is a general guideline because blood pressure depends on
age and morbidity. A lower home blood pressure goal may be
recommended for certain patients, including diabetic patients,
pregnant women, and patients with renal failure.
The monitor is not intended to be a diagnostic device.
MORNING HYPERTENSION SYMBOL ( )
The Morning Hypertension Symbol is displayed if the morning average
reading for a week is above 135 for the Systolic Blood Pressure value
and/or 85 for the Diastolic Blood Pressure value when viewing the
Morning Averages and the Evening Averages in the memory.
OMRON HEALTHCARE recommends you contact your physician if
the MORNING HYPERTENSION SYMBOL appears on the display
with your measurement values.
DISPLAY SYMBOLS
13

HEARTBEAT SYMBOL ( )
The Heartbeat symbol flashes on the display at every heartbeat during
the measurement.
AVERAGE VALUE SYMBOL ( )
The Average Value Symbol is displayed when you press the memory
button. The most recent average reading appears on the display screen.
MORNING AVERAGE SYMBOL ( )
The Morning Average symbol is displayed when viewing Morning
Averages using the Memory Function.
EVENING AVERAGE SYMBOL ( )
The Evening Average symbol is displayed when viewing Evening
Averages using the Memory Function.
CUFF WRAP GUIDE SYMBOL ( / )
When the cuff is wrapped around the arm correctly, ( ) is displayed
while taking a measurement or using the memory function. If the cuff is
not wrapped around the arm correctly, ( ) is displayed.
DISPLAY SYMBOLS
14

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
- DANGER -
TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a power supply not in the U.S.A., use an
attachment plug adapter of the proper configuration for the power
outlet.
The power unit (AC Adapter) is intended to be correctly oriented
in a vertical or floor mount position.
NOTES: • Use only the authorized Omron AC Adapter that came with
this monitor.
• We recommend you install the batteries even if the AC
Adapter is used. If no batteries are installed, you may need
to reset the date and time if the AC Adapter is disconnected.
The measurement results will not be deleted.
CAUTION
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage the
unit.
USING THE AC ADAPTER
15

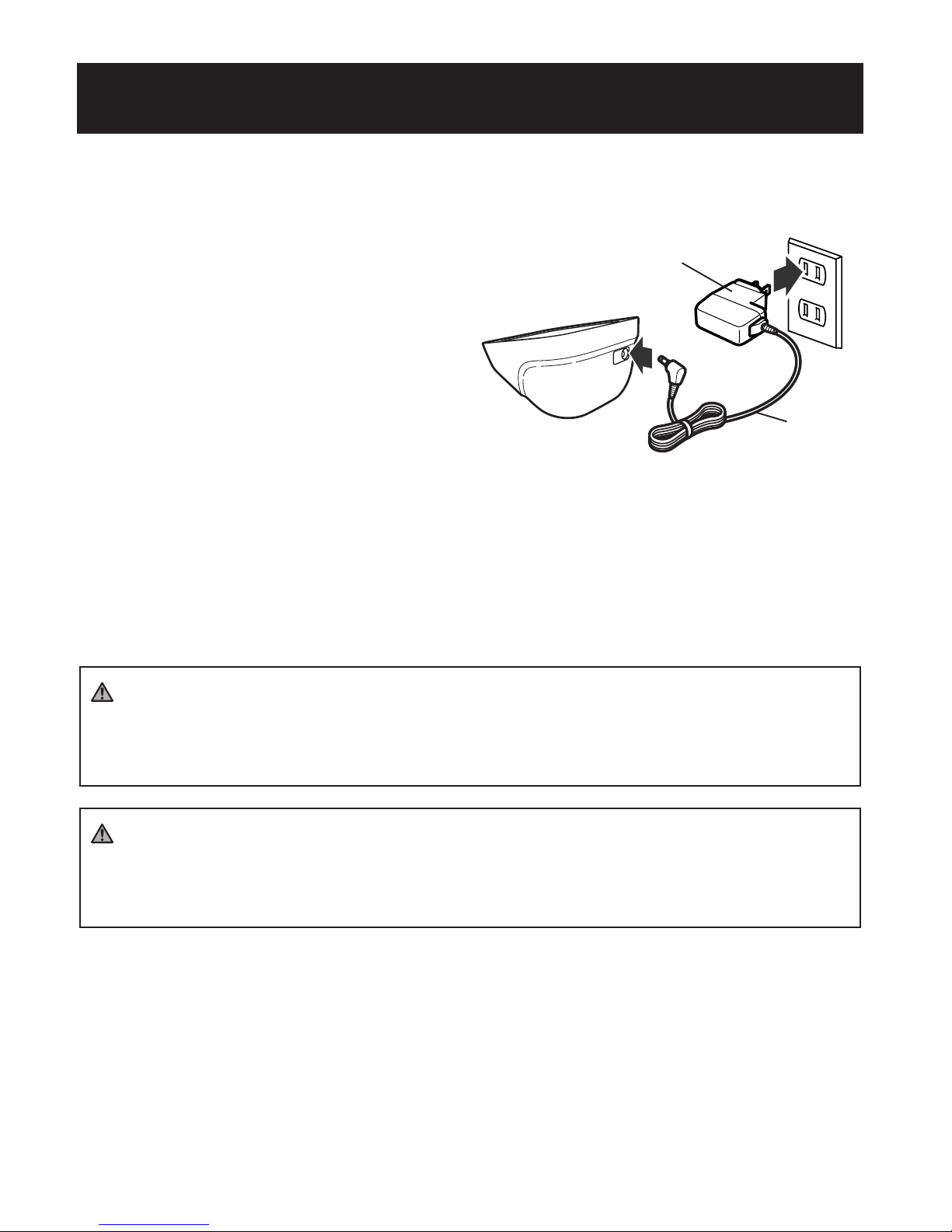

TO CONNECT THE AC ADAPTER
① Insert the AC Adapter Plug into
the AC Adapter Jack on the back
side of the monitor as illustrated.
② Plug the AC Adapter into a 120V
AC outlet (60 cycles).
TO DISCONNECT THE AC ADAPTER
① Hold the Housing to remove the AC Adapter from the electrical
outlet.
② Remove the AC Adapter plug from the monitor.
WARNING
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
WARNING
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
USING THE AC ADAPTER
16
Housing
Cord

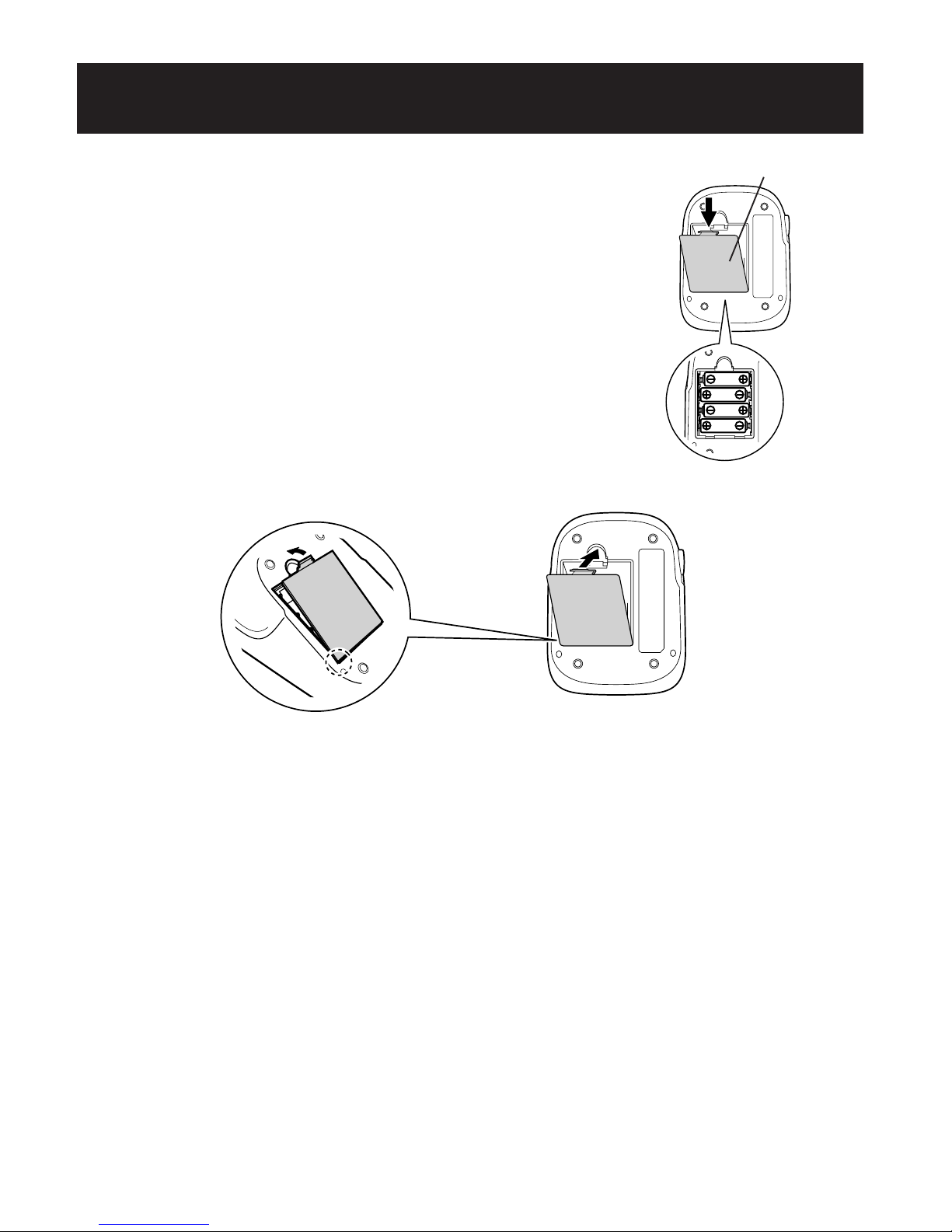

1. Remove the battery cover by pulling the
hook up while pushing it in the direction
of the arrow.
2. Install 4 “AA” size batteries so the +
(positive) and - (negative) polarities match
the polarities of the battery compartment
as indicated.
3. Replace the battery cover.
BATTERY INSTALLATION
17
Battery Cover

BATTERY REPLACEMENT
When the Low Battery Indicator appears on the display screen turn the
monitor off and remove all the batteries. Replace with four new batteries
at the same time. Longlife alkaline batteries are recommended.
WARNING
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
NOTES: • Turn the unit off before replacing the batteries. If the
batteries are removed while the unit is still on, the date and
time will be reset to that of the previous use. However, the
measurement results are not deleted.
• When the batteries are replaced, you may need to reset the
date and time. If “-:--” appears on the display, refer to “Setting
the Date and Time”.
CAUTION
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
BATTERY INSTALLATION
18
Low Battery Indicator

19
Set the monitor to the current date and time before taking a measurement
for the first time. If the date and time are not set correctly, the
measurement values stored in the memory and the average values may
not be correct.
If the date and time are not set, “-:--” appears during or after
measurement.
The Blood Pressure Monitor automatically stores up to 60 measurement
values with the dates and times. The monitor also calculates weekly
averages for measurements in the morning and in the evening. Morning
and Evening averages are stored for this week and the last seven weeks.
The monitor can also calculate an average reading based on the three
most recent measurements taken within 10 minutes of the last reading.
NOTE: • If only two readings are stored in the memory for the
10-minute period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute
period, this reading is displayed as the average.
SETTING THE DATE AND TIME

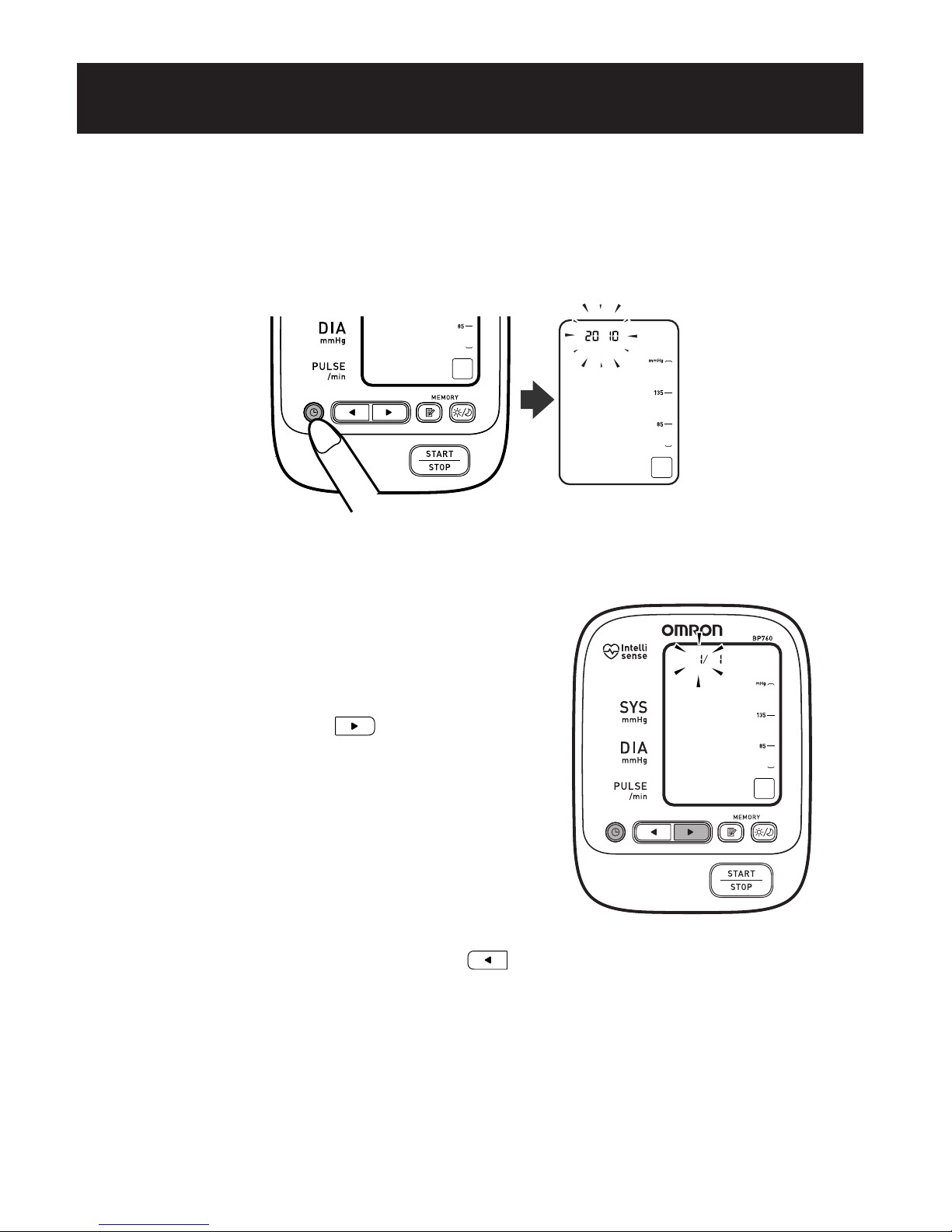

1. TO START THE SETTING
Press the SET button to adjust the date and time.
The year flashes on the display.
2. SETTING THE YEAR
The year can be set between 2010 and
2040. When the display reaches 2040,
it will return to 2010.
Press the Up button ( ) to advance
by one year.
Press the SET button to set the current
year.
The month flashes on the display.
NOTES: • Press the Down button ( ) to decrease the date and time
values.
• Press and hold the Up or Down button to increase or
decrease the date and time values faster.
SETTING THE DATE AND TIME
20
