Thank you for purchasing the Omron®HEM-790ITCAN IntelliSense®
Automatic Blood Pressure Monitor with ComFitTM Cuff.
INTRODUCTION
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
Staple your purchase receipt here
Your new digital blood pressure monitor uses the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood’s movement through your brachial artery and converts the
movements into a digital reading. The monitor stores measurement
results for two people and features Morning and Evening Averages.
TruReadTM allows for three consecutive measurements with timed
intervals for an average reading.
Omron Health Management Software included with this unit allows you
to view, process and print data about blood pressure measured by the
HEM-790ITCAN.
The HEM-790ITCAN comes with the following components:
• Monitor • ComFitTM Cuff • AC Adapter
• 4 “AA” Batteries • Storage Case
• Instruction Manual printed in English and French
• USB Cable • CD-ROM • Warranty Card
The HEM-790ITCAN IntelliSense®Automatic Blood Pressure Monitor
is intended for home use.
SAVE THESE INSTRUCTIONS

5
To assure the correct use of the product basic safety measures should
always be followed including the warnings and cautions listed in this
instruction manual.
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury to the user or patient or
damage to the equipment or other property.
OPERATING THE DEVICE
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.
SAFETY INFORMATION

OPERATING THE DEVICE (continued)
Read the Special Conditions section (page 36) of the instruction
manual if your systolic pressure is known to be more than 220
mmHg. Inflating to a higher pressure than necessary may result in
bruising where the cuff is applied.
Operate the device only as intended. Do not use the device for any
other purpose.
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
Do not use a cellular phone near the device. It may result in an
operational failure.
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage the
unit.
Use only 1.5V manganese or alkaline batteries with this device.
Do not use other types of batteries. This may damage the unit.
Do not play the CD-ROM disc included with this monitor on general
audio players, DVD players or personal game devices. It may
damage the speaker of the device and may harm your eardrums.
SAFETY INFORMATION
6

RISK OF ELECTRICAL SHOCK
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
CARE AND MAINTENANCE
Do not subject the monitor to strong shocks, such as dropping the
unit on the floor.
Do not submerge the device or any of the components in water .
Store the device and the components in a clean, safe location.
Changes or modification not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
SAFETY INFORMATION
7

8
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for
30 minutes before taking a measurement. Rest for at least 15
minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your arm.
5. Sit in a chair with your feet flat on the floor . Rest your arm on
a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement may not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at about the same time each day for consistency .

9
KNOW YOUR UNIT
Main Unit:
Air Jack
Battery Compartment
Start/Stop
Button
USER ID Selection
Switch
Morning/Evening Average
( / ) Buttons
Memory ( ) Button
SET Button
Display
AC Adapter Jack
USB Port

KNOW YOUR UNIT
10

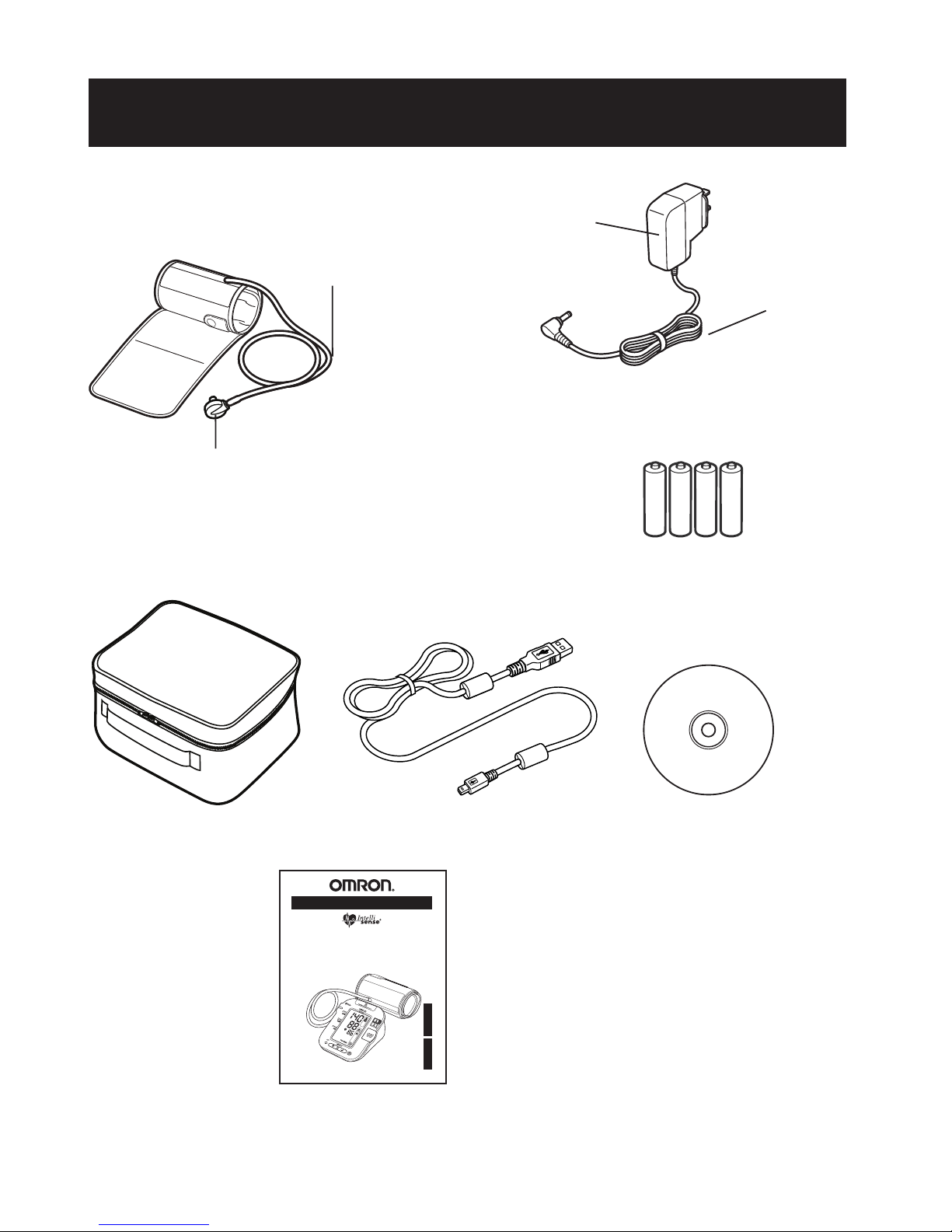

Components:
Arm Cuff
Air Tube
Air Plug
(Connects to Air Jack)
AC Adapter
Storage Case USB Cable CD-ROM
Four “AA” Batteries
Instruction Manual
Housing
Cord
Automatic Blood Pressure Monitor
w th ComFit MCuff
Model HEM 790ITCAN
INSTRUCTION MANUAL
FRANÇA S
ENGL SH

11
UNIT DISPLAY
Diastolic Blood Pressure
Systolic Blood Pressure
Movement Symbol
Pulse Display
Date/Time Display
Low Battery Indicator
Deflation Symbol
Morning Average Symbol
Heartbeat Symbol
Irregular Heartbeat Symbol Evening Average Symbol
Average Value Symbol
Memory Symbol
USER ID Symbol (A or B)
Morning Hypertension Symbol
Week Display
TruReadTM Symbol

12
IRREGULAR HEARTBEAT SYMBOL ()
When the monitor detects an irregular rhythm two or more times during
the measurement, the Irregular Heartbeat Symbol ( ) will appear on
the display with the measurement values.
An irregular heartbeat rhythm is defined as
a rhythm that is more than 25% slower or
25% faster from the average rhythm
detected while the monitor is measuring the
systolic blood pressure and the diastolic
blood pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results, we
recommend you consult your physician.
Follow the directions of your doctor.
MOVEMENT ERROR SYMBOL ()
The Movement Error Symbol is displayed if you move your body during
the measurement. Please remove the arm cuf f, and wait 2-3 minutes.
Take another measurement.
USER ID SYMBOL (/)
The USER ID Symbol indicates USER A or USER B as selected by
the user to take a measurement or when using the memory function.
The USER ID Symbol is not displayed when using the Guest Mode to
take a measurement.
or He
Normal Hear b tbe eat
Irregular Heartbeat
Pulse
Blood
pressure
Pulse
Blood
pressure
Short Long
DISPLAY SYMBOLS

The Canadian Hypertension Society (CHS)1recommends the following
guideline for upper limit of normal for home blood pressure readings:
CHS Home Guideline for Upper Limit of Normal BP
Systolic Blood Pressure 135 mmHg
Diastolic Blood Pressure 85 mmHg
This is a general guideline because blood pressure depends on
age and morbidity. The CHS recommends a lower home blood
pressure goal for certain patients, including people with
diabetes or kidney disease1.
The monitor is not intended to be a diagnostic device.
WARNING
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
Omron Healthcare recommends you contact your physician if the
MORNING HYPERTENSION SYMBOL and/or the HEARTBEAT
SYMBOL appear on the display with your measurement values.
MORNING HYPERTENSION SYMBOL ()
The Morning Hypertension Symbol is displayed if the morning average
reading for a week is above 135 for the Systolic Blood Pressure value
and/or 85 for the Diastolic Blood Pressure value when viewing the
Morning Averages and the Evening Averages in the memory.
DISPLAY SYMBOLS
13
1Canadian Hypertension Education Program 2006 Public Recommendations

HEARTBEAT SYMBOL ()
TAKING A MEASUREMENT
The Heartbeat Symbol flashes on the display during the
measurement. The Heartbeat Symbol flashes at every heartbeat.
When the measurement is complete, the Heartbeat Symbol flashes
on the display with your blood pressure and pulse rate if the
reading is above 135 for the Systolic Blood Pressure value and/or
85 for the Diastolic Blood Pressure value.
USING THE MEMORY FUNCTION
The Heartbeat Symbol flashes when the blood pressure reading
stored in the memory is above 135 for the Systolic Blood Pressure
value and/or 85 for the Diastolic Blood Pressure value.
AVERAGE VALUE SYMBOL ()
The Average Value Symbol is displayed when you press the memory
button. The most recent average reading appears on the display screen.
MORNING AVERAGE SYMBOL ()
The Morning Average symbol is displayed when viewing Morning
Averages using the Memory Function.
EVENING AVERAGE SYMBOL ()
The Evening Average symbol is displayed when viewing Evening
Averages using the Memory Function.
DISPLAY SYMBOLS
14

1. Press the ▼indicator on the battery cover
and slide the cover off in the direction of
the arrow.
2. Install 4 “AA” size batteries so the +
(positive) and - (negative) polarities match
the polarities of the battery compartment
as indicated.
3. Replace the battery cover.
BATTERY INSTALLATION
15
ÅÅ
ÅÅ
Å
Å
Å
Å{
Battery Cover

BATTERY REPLACEMENT
When the Low Battery Indicator appears on the display screen turn the
monitor off and remove all the batteries. Replace with four new batteries
at the same time. Longlife alkaline batteries are recommended.
CAUTION
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
NOTES:• Turn the unit off before replacing the batteries. If the
batteries are removed while the unit is still on, the date and
time will be reset to that of the previous use. However , the
measurement results are not deleted.
• When the batteries are replaced, you may need to reset the
date and time. If the year is flashing on the display screen,
refer to page 22, RESETTING THE DATE AND TIME.
• The supplied batteries may have a shorter life.
CAUTION
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
BATTERY INSTALLATION
16
Low Battery Indicator

Use only the authorized Omron AC Adapter with this monitor.
We recommend you install the batteries even if the AC Adapter is used.
If no batteries are installed, you may need to reset the date and time if
the AC Adapter is disconnected. The measurement results will not be
deleted.
CAUTION
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage
the unit.
USING THE AC ADAPTER
17

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
-DANGER-
TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a power supply not in the U.S.A. or Canada,
use an attachment plug adapter of the proper configuration for
the power outlet.
The power unit (AC Adapter) is intended to be correctly oriented
in a vertical or floor mount position.
NOTES:• Use only the authorized Omron AC Adapter that came with
this monitor:
• We recommend you install the batteries even if the AC
Adapter is used. If no batteries are installed, you may need
to reset the date and time if the AC Adapter is disconnected.
The measurement results will not be deleted.
CAUTION
Use only authorized parts and accessories. Parts and accessories not
approved for use with the device may damage the unit.
18
USING THE AC ADAPTER

TO CONNECT THE AC ADAPTER
① Insert the AC Adapter Plug into
the AC Adapter Jack on the back
side of the monitor as illustrated.
② Plug the AC Adapter into a 120V
AC outlet (60 cycles).
TO DISCONNECT THE AC ADAPTER
① Hold the Housing to remove the AC Adapter from the electrical
outlet.
② Remove the AC Adapter plug from the monitor.
WARNING
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
CAUTION
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
USING THE AC ADAPTER
19
1
2
Housing
Cord

20
Set the monitor to the current date and time before taking a
measurement for the first time. If the date and time are not set correctly ,
the measurement values stored in the memory and the average values
may not be correct.
The Blood Pressure Monitor automatically stores up to 84 individual
measurements values with the dates and times. The monitor also
calculates weekly averages for measurements in the morning and in the
evening. Morning and Evening averages are stored for this week and the
last seven weeks.
The monitor can also calculate an average reading based on the three
most recent measurements taken within 10 minutes of the last reading.
NOTE: • If only two readings are stored in the memory for the 10-
minute period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute
period, this reading is displayed as the average.
1. TO START THE SETTING
Press and hold the SET button to
adjust the date and time.
The year flashes on the display.
SETTING THE DATE AND TIME
