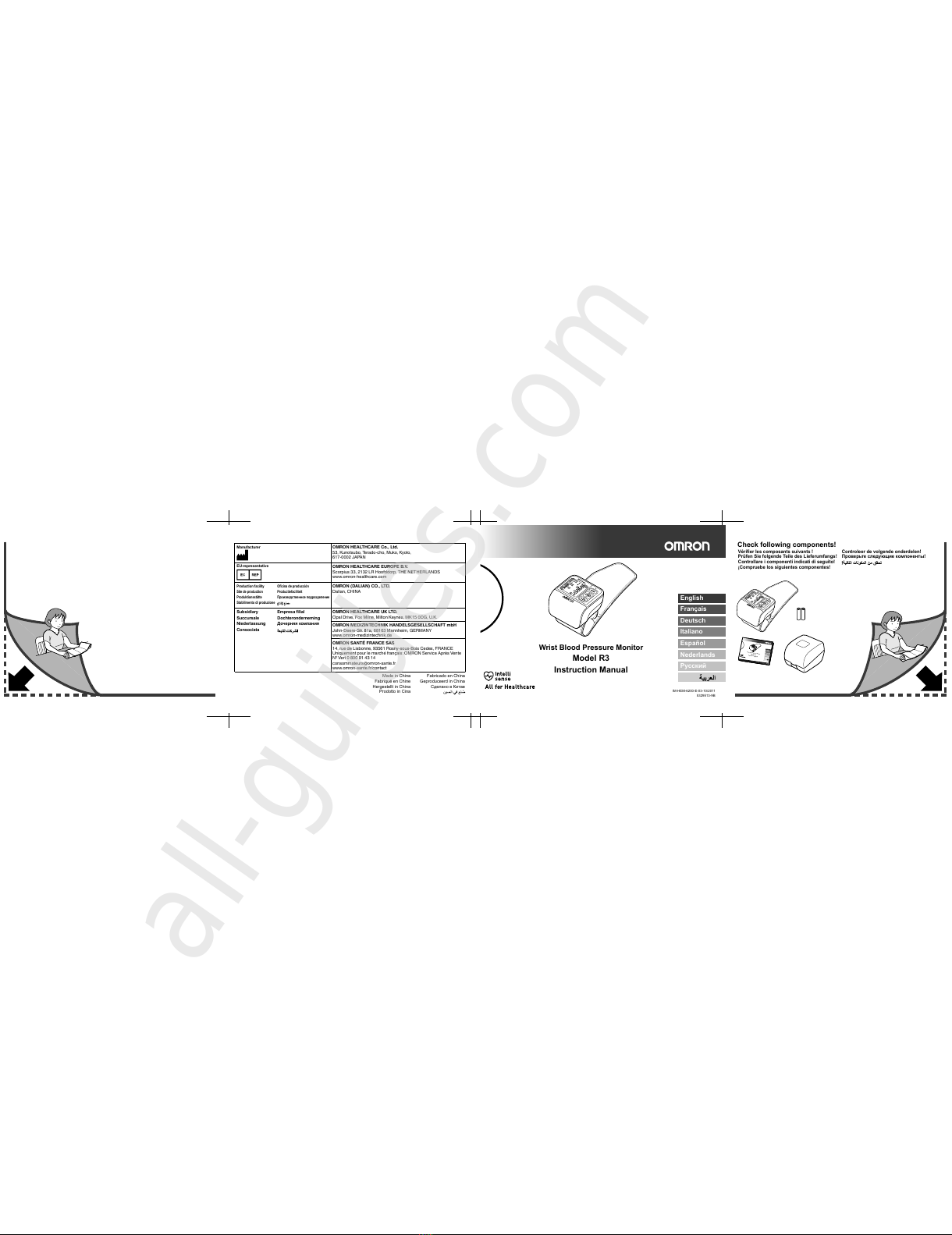

Omron R3 Intellisense User manual

Wrist Blood Pressure Monitor
Model R3
Instruction Manual
English
Français
Deutsch
Italiano
Español
Nederlands
IM-HEM-6200-E-03-10/2011
5329513-9B
Русский
WristBlood Pressure Monitor
ModelR3
InstructionManual
English
Français
Deutsch
Italiano
Espanõl
Nederlands
IM-HEM-6200-E-02-06/2010
5325660-5D
Check following components!
Vérifier les composants suivants !
Prüfen Sie folgende Teile des Lieferumfangs!
Controllare i componenti indicati di seguito!
¡Compruebe los siguientes componentes!
Controleer de volgende onderdelen!
Проверьте следующие компоненты!
Manufacturer
EU-representative
Production facility
Site de production
Produktionsstätte
Stabilimento di produzione
Oficina de producción
Productiefaciliteit
Производственное подразделение
Subsidiary
Succursale
Niederlassung
Consociata
Empresa filial
Dochteronderneming
Дочерняя компания
Prodotto in Cina
Сделано в КитаеHergestellt in China
Geproduceerd in ChinaFabriqué en Chine
Fabricado en ChinaMade in China
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto,
617-0002 JAPAN
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS
www.omron-healthcare.com
OMRON (DALIAN) CO., LTD.
Dalian, CHINA
OMRON HEALTHCARE UK LTD.
Opal Drive, Fox Milne, Milton Keynes, MK15 0DG, U.K.
OMRON MEDIZINTECHNIK HANDELSGESELLSCHAFT mbH
John-Deere-Str. 81a, 68163 Mannheim, GERMANY
www.omron-medizintechnik.de
OMRON SANTÉ FRANCE SAS
14, rue de Lisbonne, 93561 Rosny-sous-Bois Cedex, FRANCE
Uniquement pour le marché français: OMRON Service Après Vente
Nº Vert 0 800 91 43 14
[e-mail]
www.omron-sante.fr/contact
All manuals and user guides at all-guides.com
all-guides.com

a
e
f
c
d
b
Contents
Thank you for purchasing the OMRON R3 Wrist Blood Pressure Monitor.
The OMRON R3 is a compact and easy to use blood pressure monitor, operating on the oscillometric
principle. It measures your blood pressure and pulse rate simply and quickly. For comfortable
controlled inflation without the need of pressure pre-setting or re-inflation the devices uses its
advanced “IntelliSense” technology.
ImportantSafety Information................ ............. 1
1. Overview......... .............................................. 3
2. Preparation................................................ ... 4
2.1 Installing/Replacing the Batteries ............4
2.2 Setting the Dateand Time.......................5
3. Using the Unit .............................................. 6
3.1 Applying the Wrist Cuff............................6
3.2 How to Sit Correctly.................................7
3.3 Taking a Reading ....................................8

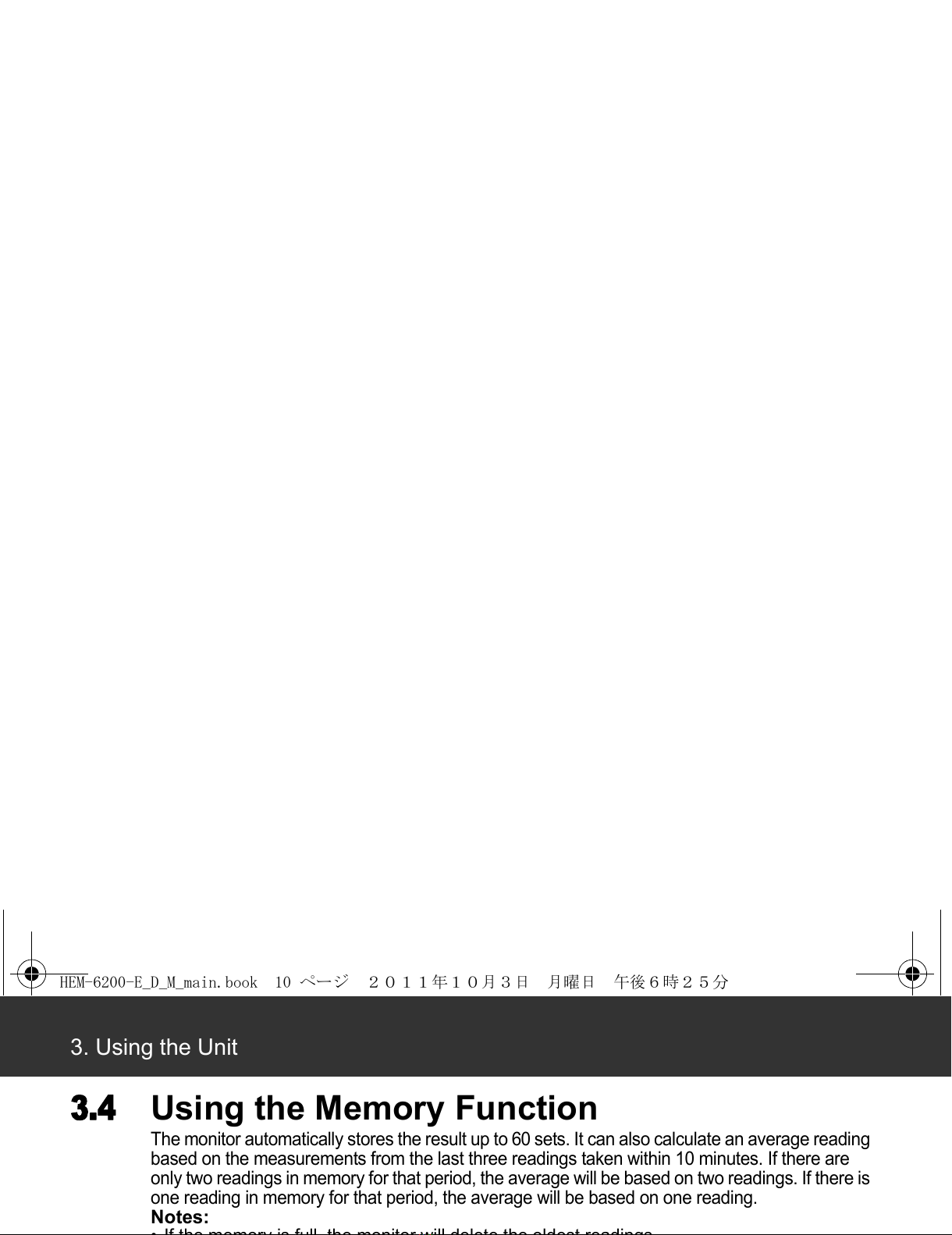

3.4 Using theMemory Function ..................10
4. Troubleshooting and Maintenance .......... 12
4.1 The Icons and Error Messages .............12

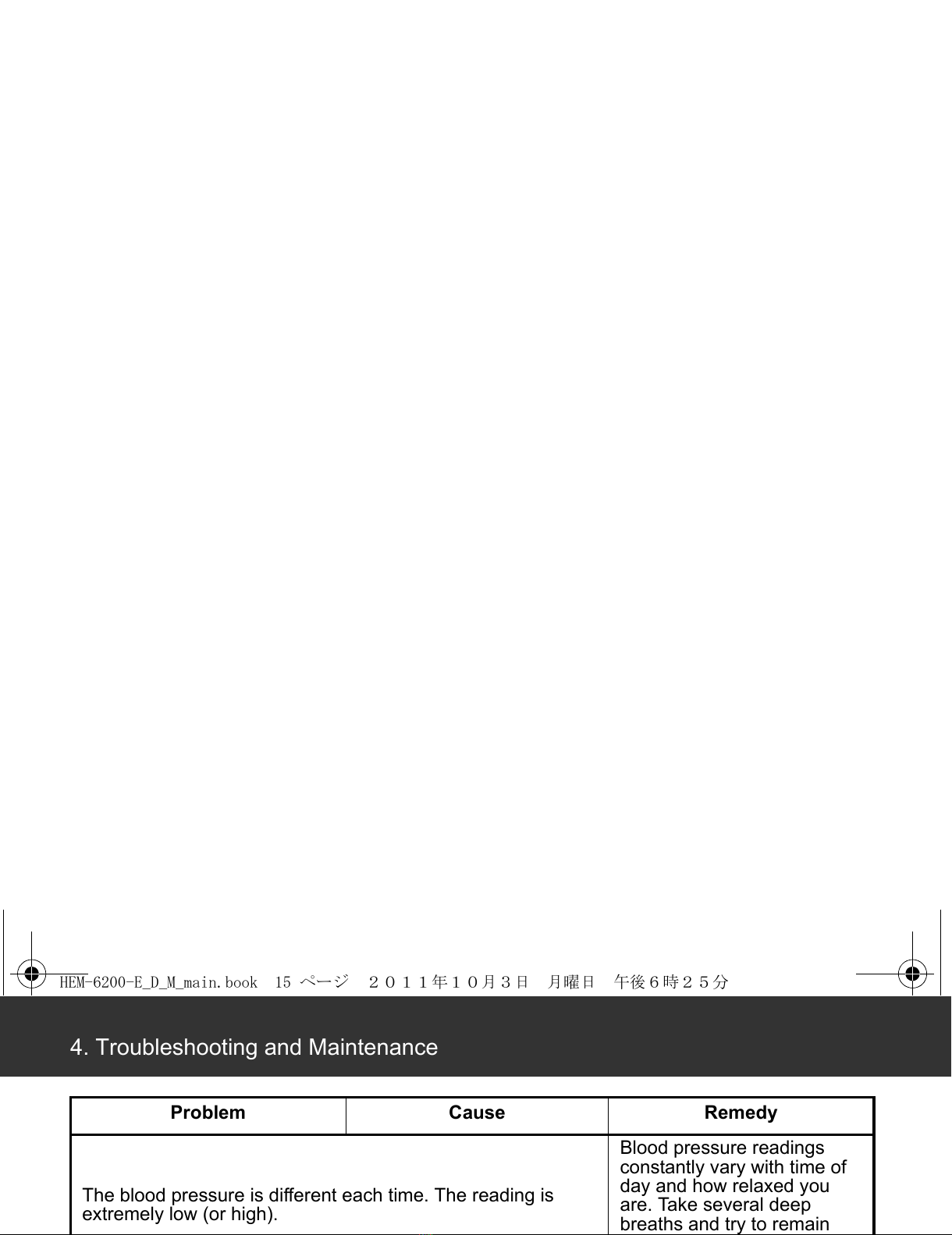

4.2 Troubleshooting.....................................14
4.3 Maintenance..........................................16
5. Technical Data............................................18
6. Some Useful Information about Blood Pressure ... 21
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR DOCTOR.
HEM-6200-E_en_TOC.fm Page 14 Tuesday, May 26, 2009 2:00 PM
J
K
N
O
M
PRS
H I
L
Q
C
A
BD
E
F
G
Intended Use
This product is designed to measure the blood pressure and pulse rate of people within the range of
the designated wrist cuff, following the instructions in this instruction manual.
It is mainly designed for general household use. Please read the Important Safety Information in this
instruction manual before using the unit.
All manuals and user guides at all-guides.com

1
EN
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and self-treatment are
dangerous.
• People with severe blood flow problems, or blood disorders, should consult a doctor before
using the unit, as cuff inflation can cause internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult a
doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury to the user or patient or damage to the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express their consent.
• Do not use the unit for any purpose other than measuring blood pressure.
• Do not disassemble the unit or wrist cuff.
• Do not inflate the wrist cuff over 299 mmHg.
HEM-6200-E_D_M_main.book 1 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

2

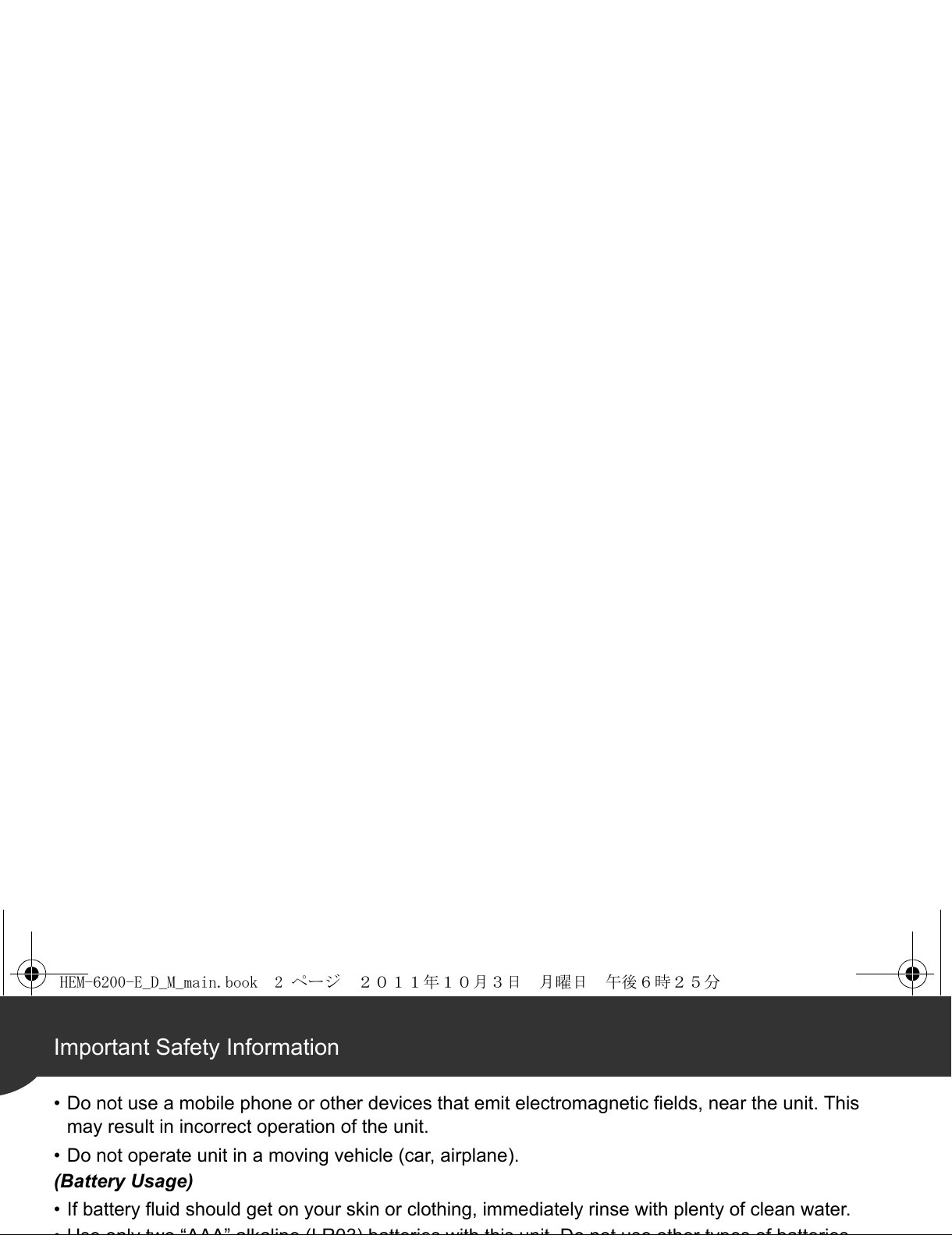

Important Safety Information
• Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This
may result in incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water.
• Use only two “AAA” alkaline (LR03) batteries with this unit. Do not use other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace both batteries at the same time.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol, smoking, exercising or eating.
• Do not inflate the wrist cuff when it is not wrapped around your wrist.
• Do not wash the wrist cuff or immerse it in water.
• Read and follow the “Important information regarding Electro Magnetic Compatibility (EMC)” in the
Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the Technical Data Section when
disposing of the device and any used accessories or optional parts.
HEM-6200-E_D_M_main.book 2 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

3
EN

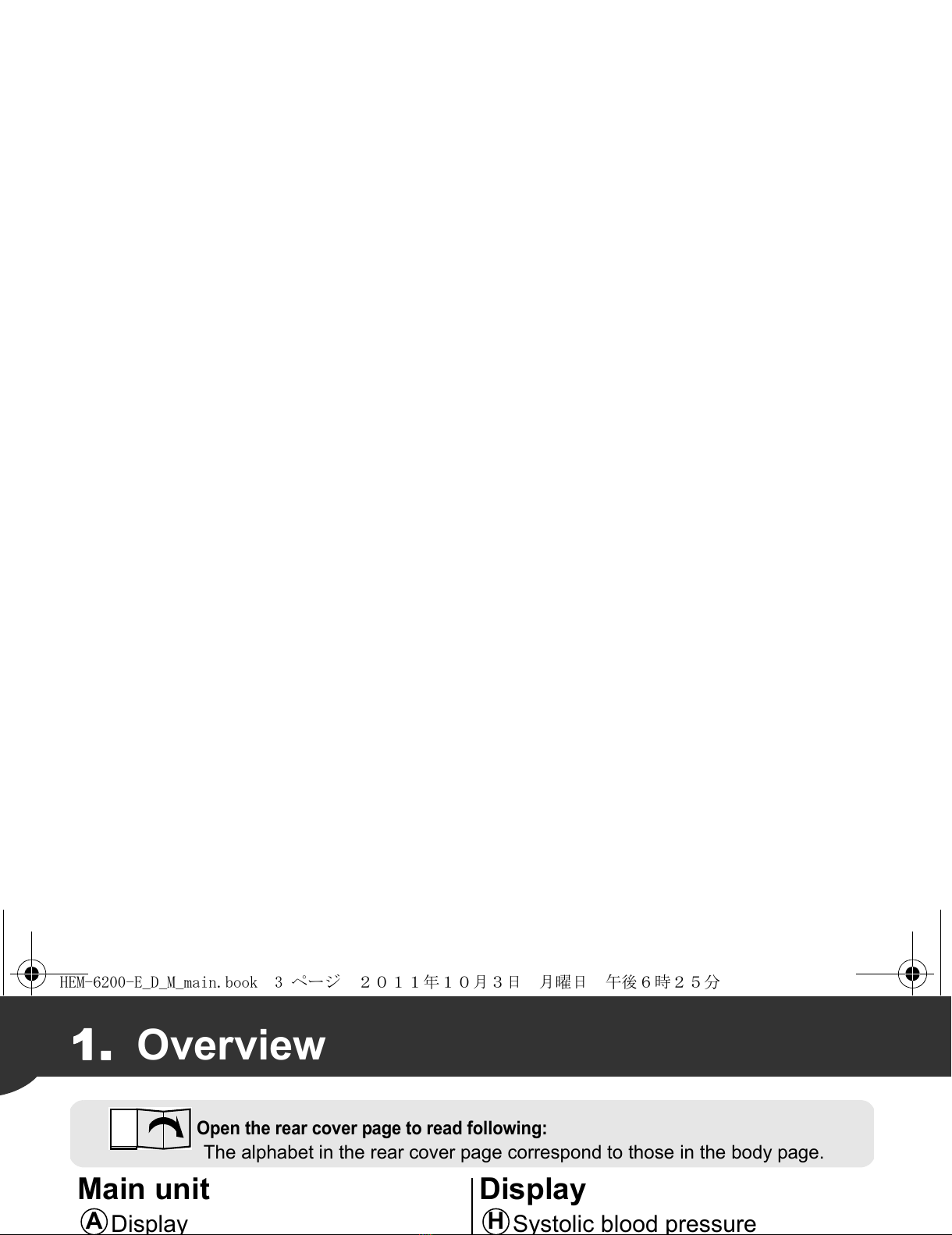

1. Overview
Main unit
Display
Battery compartment cover
Wrist cuff
MEM (Memory) button
O/I START ( ) button
SET ( ) button
Date/Time setting ( ) button
Display
Systolic blood pressure
Diastolic blood pressure
Memory symbol
Average value symbol
Irregular heartbeat symbol
Pulse display
Movement error symbol
Battery low symbol
Date/Time display
Heartbeat symbol
(Flashes during measurement.)
Deflation symbol
Blood pressure level indicator
Open the rear cover page to read following:
The alphabet in the rear cover page correspond to those in the body page.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
HEM-6200-E_D_M_main.book 3 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

4

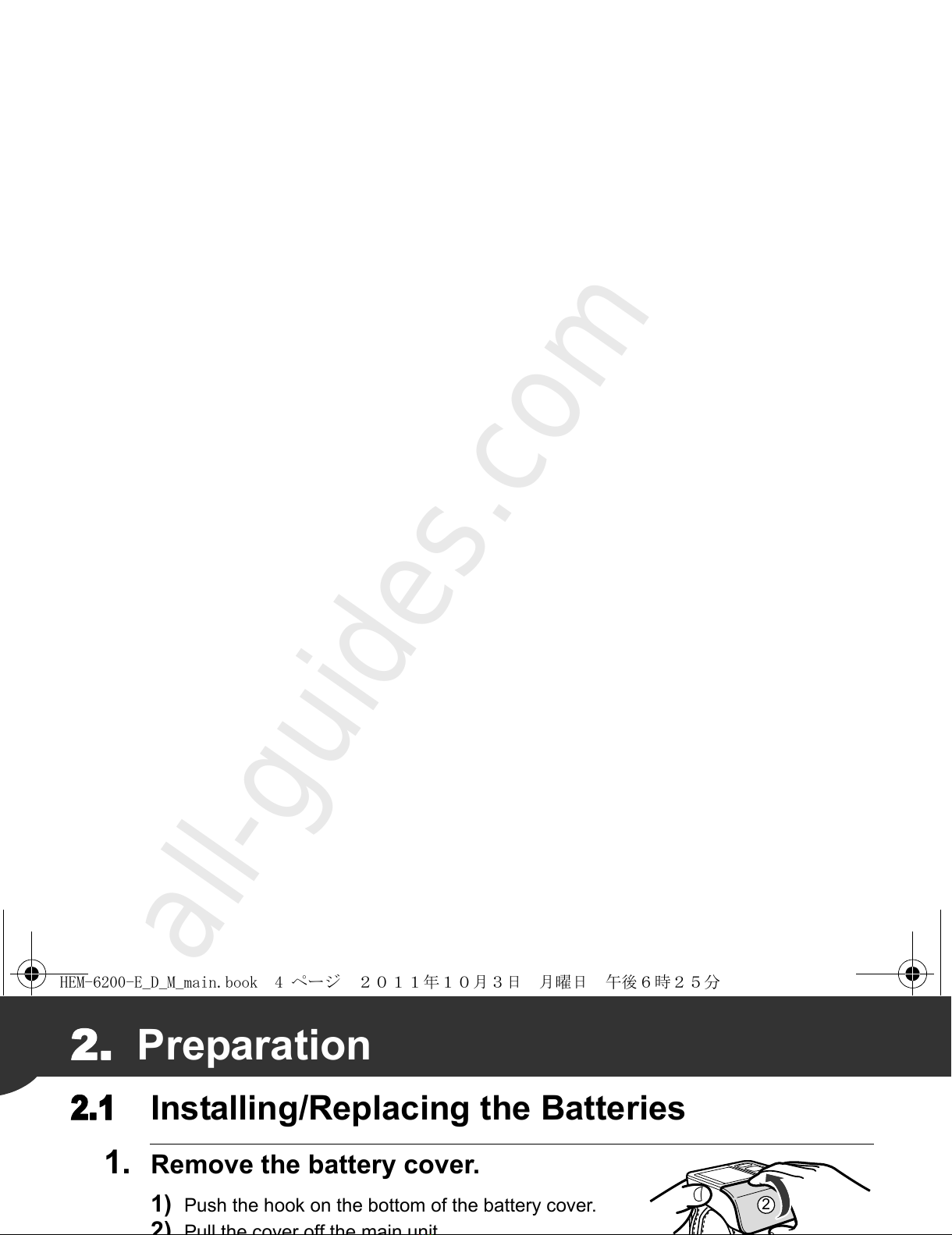

2. Preparation
2.1 Installing/Replacing the Batteries
1. Remove the battery cover.
1) Push the hook on the bottom of the battery cover.
2) Pull the cover off the main unit.
2. Insert two 1.5V “AAA” alkaline (LR03)
batteries as indicated in the battery
compartment and then replace the
battery cover.
Notes:
• If the battery low symbol ( ) appears on the display, turn
the unit off then replace both batteries at the same time.
• The measurement values continue to be stored in memory even after the batteries are
replaced.
Disposal of used batteries should be carried out in accordance with the national regulations for
the disposal of batteries.
1
2
HEM-6200-E_D_M_main.book 4 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com
all-guides.com

2. Preparation
5
EN
2.2 Setting the Date and Time
1. Set the monitor to the correct date and time before taking
a measurement for the first time.
Press the button.
2. Press the O/I START button to store the setting.
Notes:
• To reset the date and time, hold down the button while the power is off.
• If the batteries have been removed for 30 seconds or more, the date and time setting will
need to be reset.
• If the date and time are not set, “-:--” appears during or after measurement.
1)
2)
Push the button to
change.
• Hold down to advance
the digit rapidly.
Push the button to
confirm.
Next setting appears.
Year
Month
Day
Hour
Minute
HEM-6200-E_D_M_main.book 5 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

6
3. Using the Unit
3.1 Applying the Wrist Cuff
Do not apply over clothing.
1. Place the wrist cuff over your wrist.
2. Wrap the wrist cuff around your wrist.
Make sure that the wrist cuff does not cover the protruding part of the wrist bone (ulna) on the
outside of the wrist. ---
Your thumb should face upward.
Notes:
• You can take a measurement on either your left or right wrist.
• Wrap the wrist cuff securely around the wrist for taking accurate measurements.
• The blood pressure can differ between the right arm and the left arm, and therefore also the
measured blood pressure values can be different. Omron recommends to always use the
same arm for measurement. If the values between the two arms differ substantially, please
check with your physician which arm to use for your measurement.
Open both the front and rear covers to read following:
The alphabet and number in the cover page correspond to those in the body page.
a
b
HEM-6200-E_D_M_main.book 6 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

3. Using the Unit
7
EN
3.2 How to Sit Correctly
To take a measurement, you need to be relaxed and comfortably seated, under comfortable room
temperature. No eating, smoking or exercising 30 minutes before taking a measurement.
• Sit on a chair with your feet flat on the floor.
• Sit upright with your back straight. ---
• The cuff should be at the same level as your heart. ---
• Relax your wrist and hand. Do not bend your wrist back, clench your fist, or bend your wrist
forward. ---
• Do not use your other hand to support the wrist cuff. This can result in inaccurate
measurement results. ---
c
d
e
f
HEM-6200-E_D_M_main.book 7 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

3. Using the Unit
8

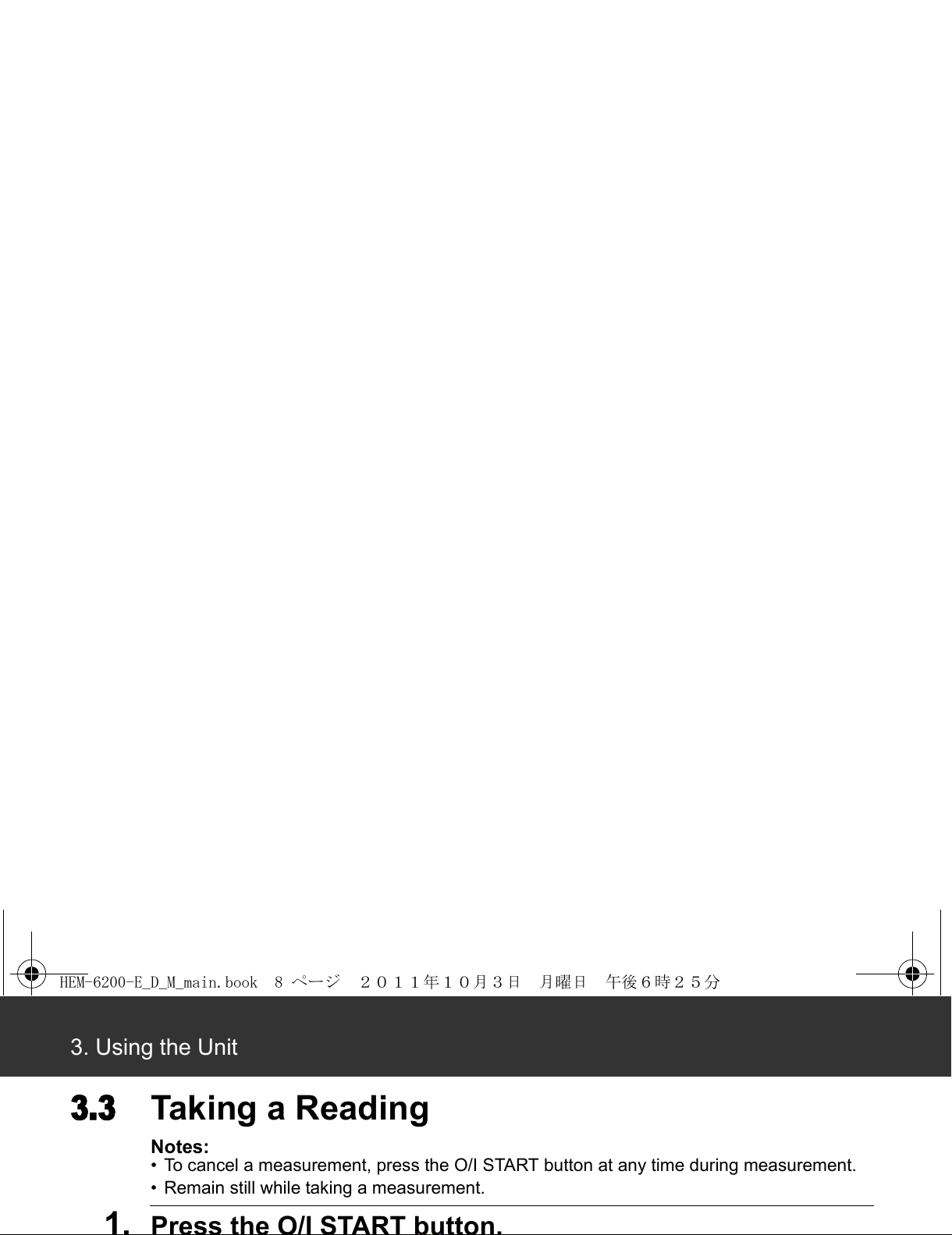

3.3 Taking a Reading
Notes:
• To cancel a measurement, press the O/I START button at any time during measurement.
• Remain still while taking a measurement.
1. Press the O/I START button.
The wrist cuff will start to inflate automatically.
2. Undo the wrist cuff and remove the unit.
3. Press the O/I START button to turn off the monitor.
The monitor automatically stores the measurement in its memory.
It will automatically turn off after two minutes.
START INFLATE DEFLATE COMPLETE
Alternating date/time display
HEM-6200-E_D_M_main.book 8 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

3. Using the Unit
9
EN
Important:
• Recent research suggests that the following values can
be used as a guide to high blood pressure for
measurements taken at home.
This criteria is for home blood pressure measurement.
For professional office blood pressure measurement
criteria, please refer to Chapter 6.
• Your blood pressure monitor includes an irregular heartbeat
feature. Irregular heartbeats can influence the results of the
measurement. The irregular heartbeat algorithm automatically
determines if the measurement is usable or needs to be repeated.
If the measurement results are affected by irregular heartbeats but
the result is valid, the result is shown together with the irregular
heartbeat symbol ( ). If the irregular heartbeats cause the
measurement to be invalid, no result is shown. If the irregular
heartbeat symbol ( ) is shown after you have taken a
measurement, repeat the measurement. If the irregular heartbeat
symbol ( ) is shown frequently, please make your doctor aware of it.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
HEM-6200-E_D_M_main.book 9 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com
all-guides.com

3. Using the Unit
10
3.4 Using the Memory Function
The monitor automatically stores the result up to 60 sets. It can also calculate an average reading
based on the measurements from the last three readings taken within 10 minutes. If there are
only two readings in memory for that period, the average will be based on two readings. If there is
one reading in memory for that period, the average will be based on one reading.
Notes:
• If the memory is full, the monitor will delete the oldest readings.
• When viewing the reading taken without setting the date and time, “-:--” is displayed instead
of the date and time.
Average Value
View Readings
Stored in Memory
• Hold down to view
readings rapidly.
Previous Reading
View Previous
Reading
• The Memory number
appears for a second
before the pulse rate
is displayed. The
newest set is
numbered “1”.
View the Average
Value
• If the previous
reading was taken
without setting the
date and time, the
average value is not
calculated.
Alternating date/time display
HEM-6200-E_D_M_main.book 10 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

3. Using the Unit
11
EN
To delete all the values stored in memory
When the memory symbol ( ) appears, first press the MEM button. Then while
holding it down, press the O/I START button simultaneously for about 2-3 seconds.
Note:
You cannot partially delete the stored readings.
Second First
HEM-6200-E_D_M_main.book 11 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

12
4. Troubleshooting and Maintenance
4.1 The Icons and Error Messages
Error Display Cause Remedy
Irregular or weak pulses are detected.
Remove the wrist cuff. Wait 2-3
minutes and then take another
measurement.
Repeat the steps in section 3.3. If this
error continues to appear, contact
your doctor.
Movement during measurement. Carefully read and repeat the steps in
section 3.3.
The batteries are low. You should replace them with new
ones ahead of time.
Refer to section 2.1.
The batteries are exhausted. You should replace them with new
ones at once.
Refer to section 2.1.
Blink
Lit
HEM-6200-E_D_M_main.book 12 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

4. Troubleshooting and Maintenance
13
EN
Note:
The irregular heartbeat symbol ( ) may also be displayed with error messages.
Cuff is over inflated.
Carefully read and repeat the steps
listed under section 3.3.
Movement during measurement.
An Er mark with a code/number
indicates the device has a hardware
failure.
Consult your OMRON retail outlet or
distributor.
Error Display Cause Remedy
HEM-6200-E_D_M_main.book 13 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

4. Troubleshooting and Maintenance
14
4.2 Troubleshooting
Problem Cause Remedy
The reading is extremely low
(or high).
The wrist cuff is not at heart
level. Measure while in the correct posture. Refer to section 3.2.
The cuff is wrapped snugly
around the wrist. Wrap the cuff correctly. Refer to section 3.1.
Your arms and shoulders
are tense.
Relax and try taking the
measurement again. Refer
to section 3.3.
Movement or talking during
measurement.
Remain still and do not talk
during measurement. Refer
to section 3.3.
Wrist cuff pressure does not
rise. Air is leaking from the wrist cuff. Consult your OMRON retail outlet or distributor.
Wrist cuff deflates too soon. The wrist cuff is loose.
Apply the cuff correctly so
that it is securely wrapped
around the wrist. Refer to
section 3.1.
HEM-6200-E_D_M_main.book 14 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com
all-guides.com

4. Troubleshooting and Maintenance
15
EN
The blood pressure is different each time. The reading is
extremely low (or high).
Blood pressure readings
constantly vary with time of
day and how relaxed you
are. Take several deep
breaths and try to remain
relaxed before taking a
measurement.
The unit loses power during
measurement. The batteries are drained. Replace the batteries with new ones.
Nothing happens when you
press the buttons.
The batteries are drained. Replace the batteries with
new ones.
The batteries have been
inserted incorrectly. Insert the batteries with the correct (+/-) polarity.
Other problems.
• Press the O/I START button and repeat measurement.
• If the problem continues, try replacing the batteries with
new ones.
If this still does not solve the problem, contact your OMRON
retail outlet or distributor.
Problem Cause Remedy
HEM-6200-E_D_M_main.book 15 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

4. Troubleshooting and Maintenance
16
4.3 Maintenance
To protect your unit from damage, please avoid the following:
• Subjecting your unit to extreme temperatures, humidity, or direct sunlight.
• Washing the cuff or exposing the cuff or unit to water.
• Disassembling the unit.
• Subjecting the unit to strong shocks or vibrations. Dropping the Unit.
• Cleaning the unit with volatile liquids.
• The unit should be cleaned with a soft, dry cloth.
• Use a soft, moistened cloth and soap to clean the cuff.
• Keep the unit in its storage case when not in use.
• Fold the cuff into the storage case.
Do not store the unit in the following situations:
• If the unit is wet.
• Locations exposed to extreme temperatures, humidity, direct sunlight, dust or
corrosive vapours.
• Locations exposed to vibrations, shocks or where it will be at risk of falling.
HEM-6200-E_D_M_main.book 16 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

4. Troubleshooting and Maintenance
17
EN
Calibration and Service
• The accuracy of this blood pressure monitor has been carefully tested and is
designed for a long service life.
• It is generally recommended to have the unit inspected every two years to ensure
correct functioning and accuracy. Please consult your authorised OMRON dealer or
the OMRON Customer Service at the address given on the packaging or attached
literature.
HEM-6200-E_D_M_main.book 17 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com

18
5. Technical Data
Product Description Wrist Blood Pressure Monitor
Model OMRON R3 (HEM-6200-E/HEM-6200-E8)
Display LCD Digital Display
Measurement Method Oscillometric method
Measurement Range Pressure: 0 mmHg to 299 mmHg Pulse: 40 to 180 beats/min.
Accuracy Pressure: 3 mmHg
Pulse: 5% of reading
Inflation Automatic inflation by pump
Deflation Automatic rapid deflation
Memory 60 Measurements
Power Source 2 “AAA” alkaline (LR03) batteries 1.5V
Battery Life Approx. 300 measurements with new alkaline batteries at a room
temperature of 23°C
Applied Part
Protection Against Electric
Shock Internally powered ME equipment
Operating temperature/
Humidity +10°C to +40°C / Maximum: 30 to 85% RH
Storage temperature/
Humidity/ Air pressure -20°C to +60°C / Maximum: 10 to 95% RH / 700-1060 hPa
Console Weight Approximately 117g without batteries
= Type B
HEM-6200-E_D_M_main.book 18 ページ ２０１１年１０月３日 月曜日 午後６時２５分
All manuals and user guides at all-guides.com
