Thank you for purchasing the Omron HEM-780 IntelliSense®
Automatic Blood Pressure Monitor with the ComFit™Cuff.
INTRODUCTION
3
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
Staple your purchase receipt here
Your new digital blood pressure monitor uses the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood movement through your brachial artery and converts the
movements into a digital reading. An oscillometric monitor does not
need a stethoscope so the monitor is simple to use.
The HEM-780 comes with the following components:
•Monitor • ComFit™Cuff
•AC Adapter • 4 “AA” Batteries
•Storage Case
•Instruction Manual printed in English and Spanish
The HEM-780 IntelliSense®Automatic Inflation Blood Pressure Monitor
is intended for home use.
SAVE THESE INSTRUCTIONS
Final 780N2 IM 6/3/05 11:42 AM Page 2

To assure the correct use of the product basic safety measures should
always be followed including the precautions listed below:
þRead all information in the instruction book and any other literature
included in the box before using the unit.
þContact your physician for specific information about your blood
pressure. Follow the instructions of your healthcare provider.
þOperate the unit only as intended. Do not use for any other purpose.
þThe unit is intended for use in measuring blood pressure and pulse
rate in adult patient population. Do not use on infants or persons who
cannot express their intentions.
þDo not use a cellular phone near the unit. It may result in
operational failure.
þDo not plug or unplug the adapter power cord with wet hands.
þChanges or modifications not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
IMPORTANT SAFETY NOTES
4
Final 780N2 IM 6/3/05 11:42 AM Page 3

5
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, smoking, and exercising for 30 minutes before
taking a measurement. Rest for at least 15 minutes before taking
the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your left arm.
5. Sit in a chair with your feet flat on the floor. Rest your left arm on
atable so that the cuffis at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. Asingle measurement does not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physiological characteristics.
Final 780N2 IM 6/3/05 11:42 AM Page 4

6
KNOW YOUR UNIT
Air Jack
Main Unit:
Battery Compartment
Start/Stop
Button
Memory Buttons
Date/Time Setting Button
Display
AC Adapter Jack
Components:
Arm Cuff
Air Tube
Air Plug
(Connects to Air Jack)
AC Adapter
Storage Case
Grip
Final 780N2 IM 6/3/05 11:42 AM Page 5

7
UNIT DISPLAY
Diastolic Blood Pressure
Systolic Blood Pressure
Memory Symbol
Pulse Display
Date/Time Display
Battery Low Symbol
Average Value Symbol
Heartbeat Symbol
Deflation Symbol
IRREGULAR HEARTBEAT SYMBOL
When the monitor detects an irregular rhythm twoor more times during
the measurement, the Irregular Heartbeat Symbol ( )
will appear on the display with the measurement values.
The irregular heartbeat rhythm is defined
as a rhythm that varies by more than or less
than 25% from the average rhythm detected
while the monitor is measuring the
systolic and diastolic blood pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results we
recommend you consult your physician.
Follow the directions of your doctor.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood
pressure
Pulse
Blood
pressure
Short Long
Irregular Heartbeat Symbol
IRREGULAR HEARTBEAT SYMBOL
Movement Error Symbol
Final 780N2 IM 6/3/05 11:42 AM Page 6

8

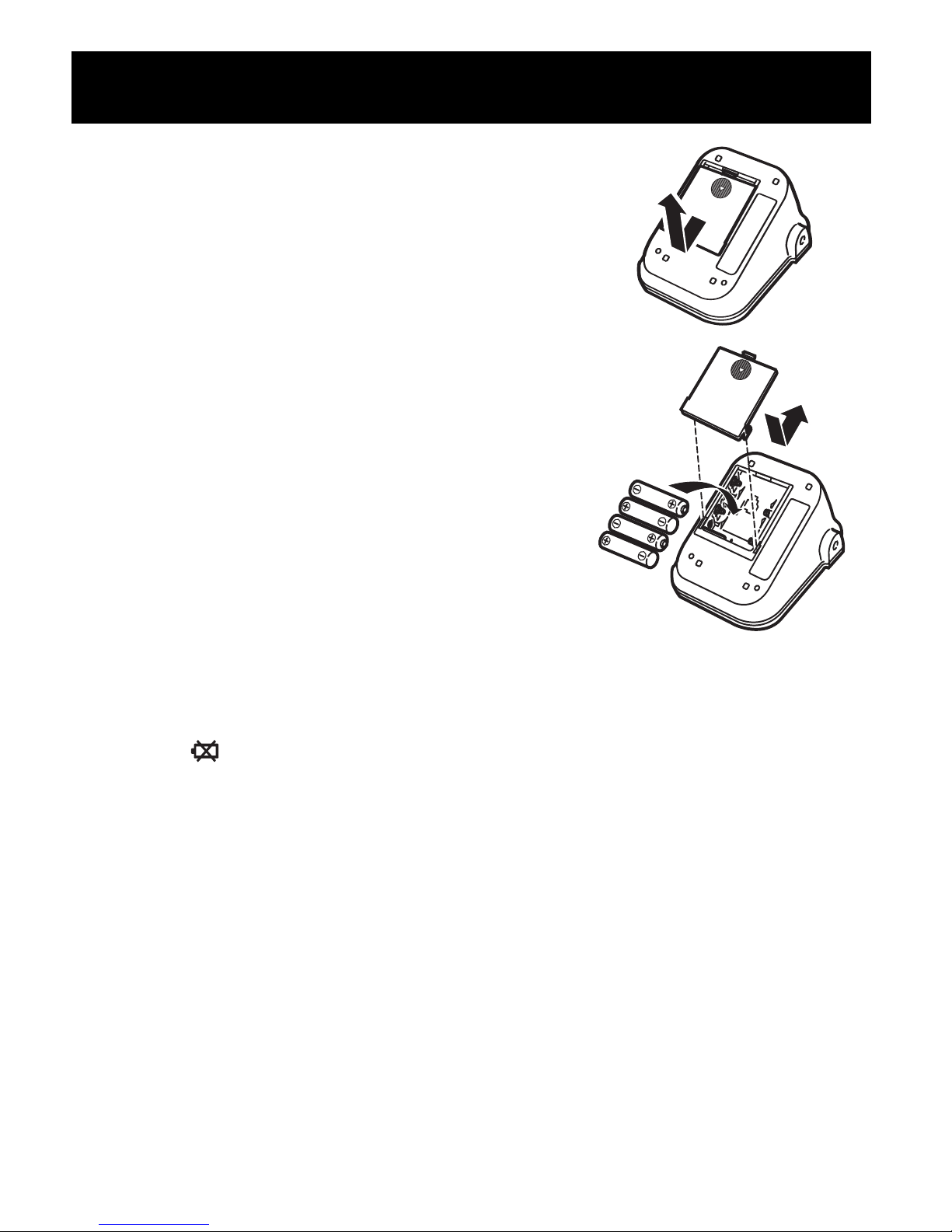

1. Press the ▼indicator on the battery cover
and slide the cover off in the direction of
the arrow.
2. Install 4 “AA” size batteries so the
+(positive) and - (negative) polarities
match the polarities of the battery
compartment as indicated.
3. Replace the battery cover.
BATTERY REPLACEMENT
Low Battery Indicator
When the LowBattery Indicator appears on the display screen remove
all the batteries. Replace with four new batteries at the same time.
Long-life alkaline batteries are recommended.
NOTE: Measurement values stored in the memory will not be deleted
during battery replacement.
After replacing the batteries, reset the date and time.
Refer to page 10, Setting the Date and Time.
BATTERY INSTALLATION
Final 780N2 IM 6/3/05 11:42 AM Page 7

Use only the authorized Omron AC Adapter, Model Number HEM-ADPT1,
with this monitor. Use of any other adapter may cause damage to the
monitor and will void the user warranty.
To connect the AC Adapter

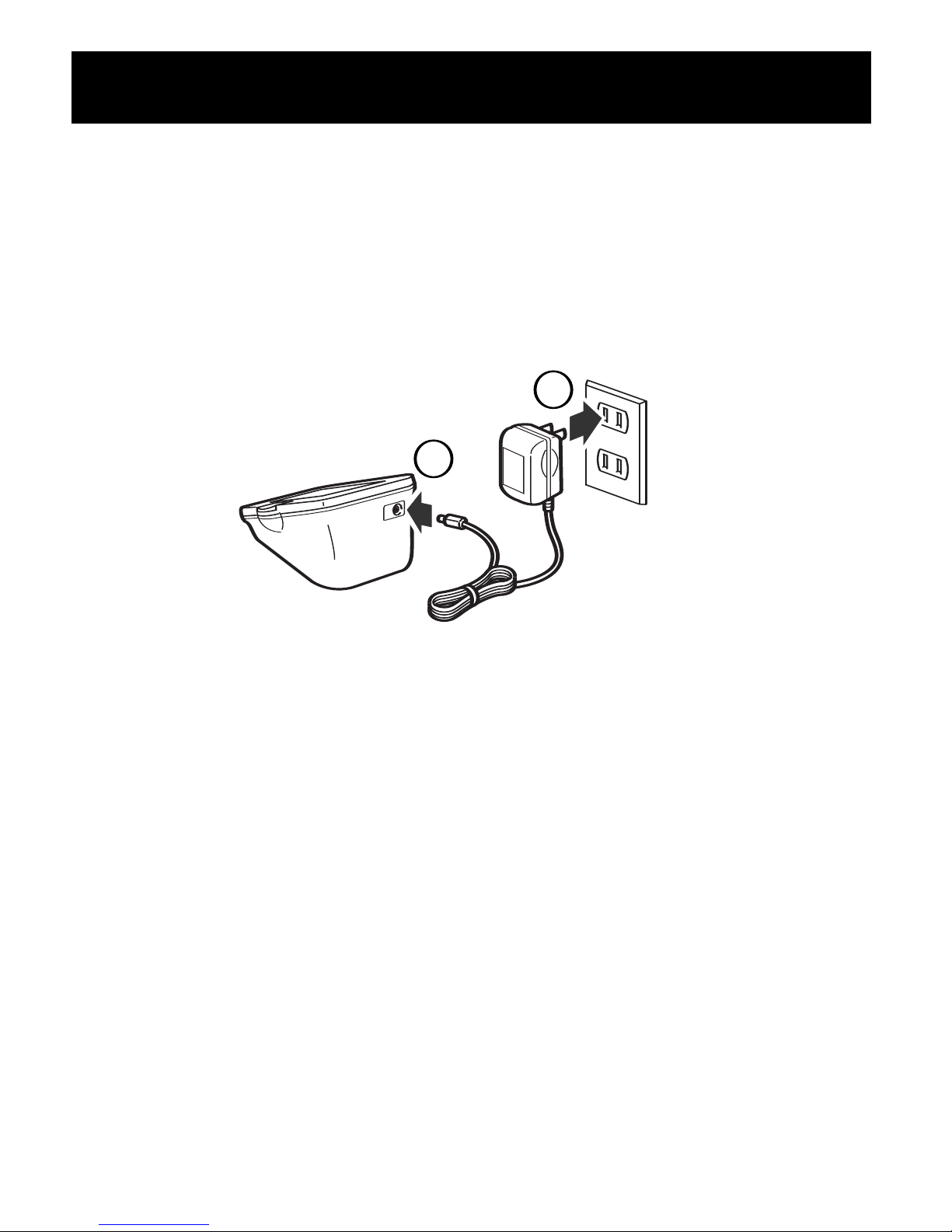

①Insert the AC Adapter Plug into the AC Adapter Jack on the back side
of the monitor as illustrated.
②Plug the AC Adapter into a 120V AC outlet (60 cycles).
Todisconnect the AC Adapter remove the AC Adapter from the electrical
outlet first and then remove the AC Adapter Plug from the monitor.
NOTE: The monitor is designed not to draw power from the batteries
when the AC Adapter is used.
USING THE AC ADAPTER
9
1
2
Final 780N2 IM 6/3/05 11:42 AM Page 8

The Blood Pressure Monitor automatically stores up to 90 measurement
values with the date and time. The monitor also calculates an average
reading based on the last three measurement values.
Set the monitor to the current date and time before taking a measurement
for the first time. If the current date and time is not set, a default date
and time will display.

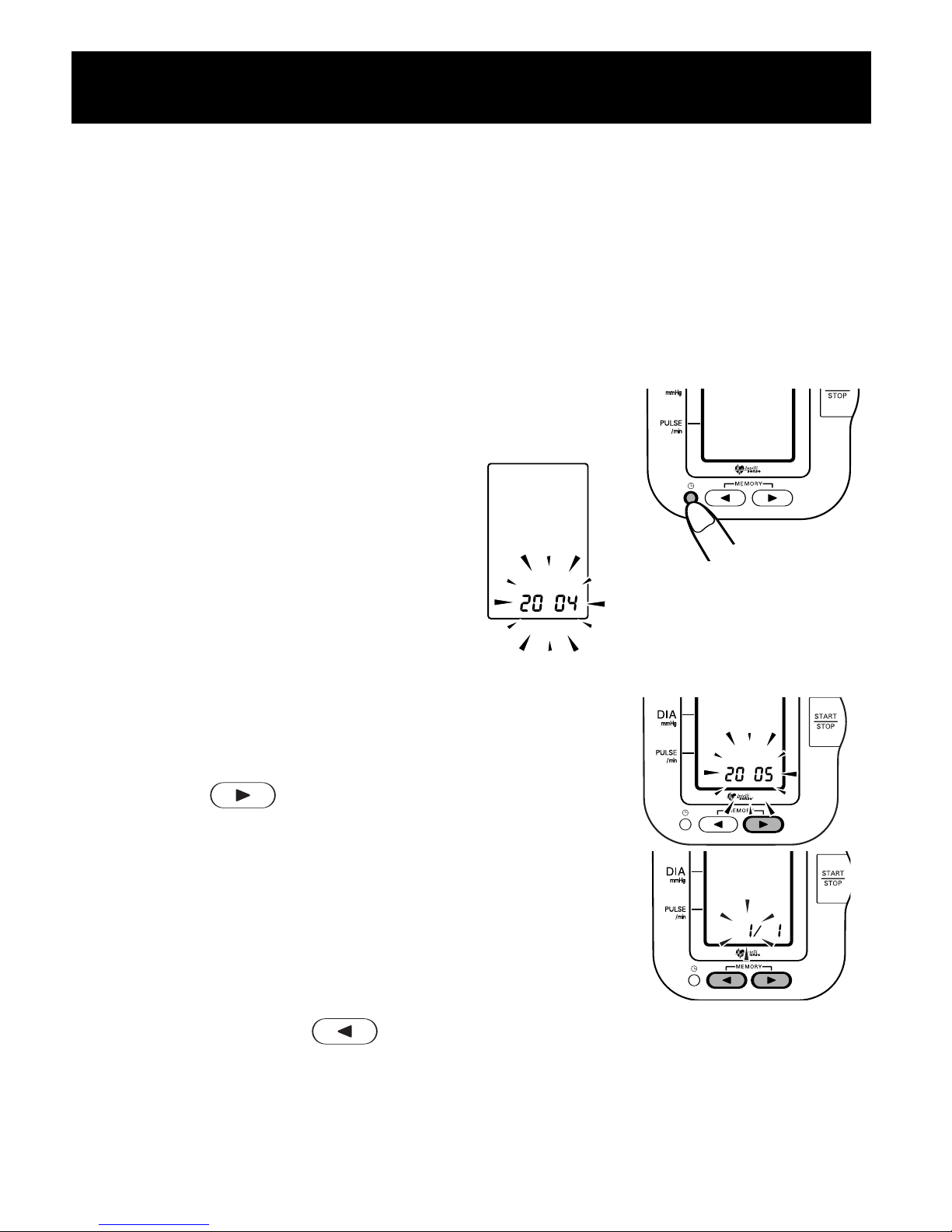

1. TO START THE SETTING
Press the Date/Time Setting
button to adjust the date
and time.
The year flashes on the display.
2.SETTING THE YEAR
The year can be set between 2004 and 2030.
When the display reaches 2030, it will return
to 2004.
Press the MEMORY up button to
advance by increments of one year.
Press the Date/Time Setting button to set
the current year.
The month flashes on the display.
NOTE: •Press the down memory button to decrease the day and
time values by increments of one.
•Press and holdthe memory down button to increase
SETTING THE DATE AND TIME
®
®
®
NOTES: •Press the MEMORY down button to decrease the day
and time values by increments of one.
• Press and hold the MEMORY up button to increase or memory
down button to decrease the date and time values faster.
10
Final 780N2 IM 6/3/05 11:42 AM Page 9

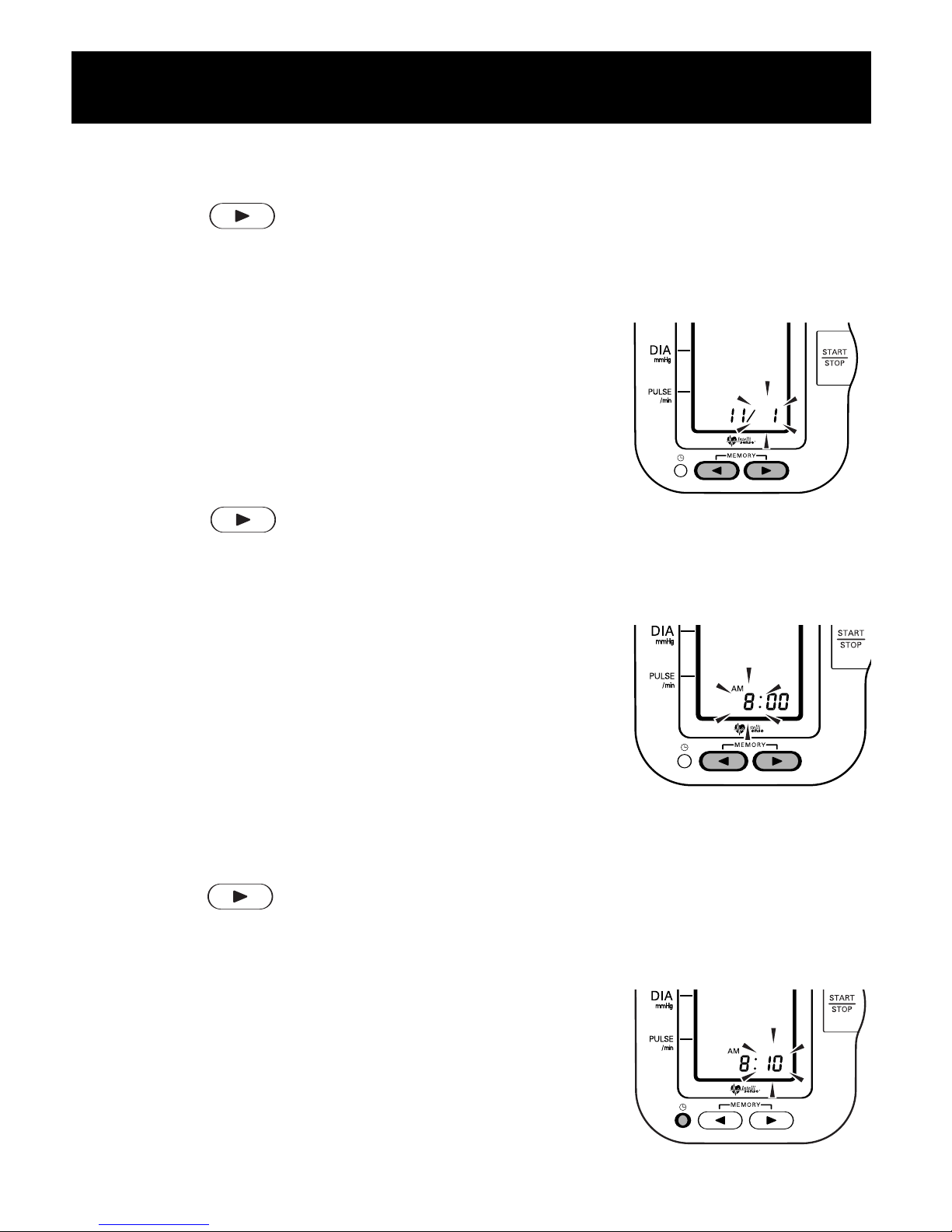

3. SETTING THE MONTH
Press the MEMORY up button to advance by increments
of one month.
Press the Date/Time Setting button to set the current month.
The day flashes on the display.
4. SETTING THE DAY
Press the MEMORY up button to advance
by increments of one day.
Press the Date/Time Setting button to set
the current day.
The hour flashes on the display.
5. SETTING THE HOUR
The time is set using AM or PM.
Press the MEMORY up button to advance by increments
of one hour.
Press the Date/Time Setting button to set the
current hour.
The minutes flash on the display.
SETTING THE DATE AND TIME
11
®
®
Final 780N2 IM 6/3/05 11:42 AM Page 10

6. SETTING THE MINUTE
Press the MEMORY up button to advance by increments
of one minute.
Press the Date/Time Setting button to set the current minute.
The year flashes on the display.

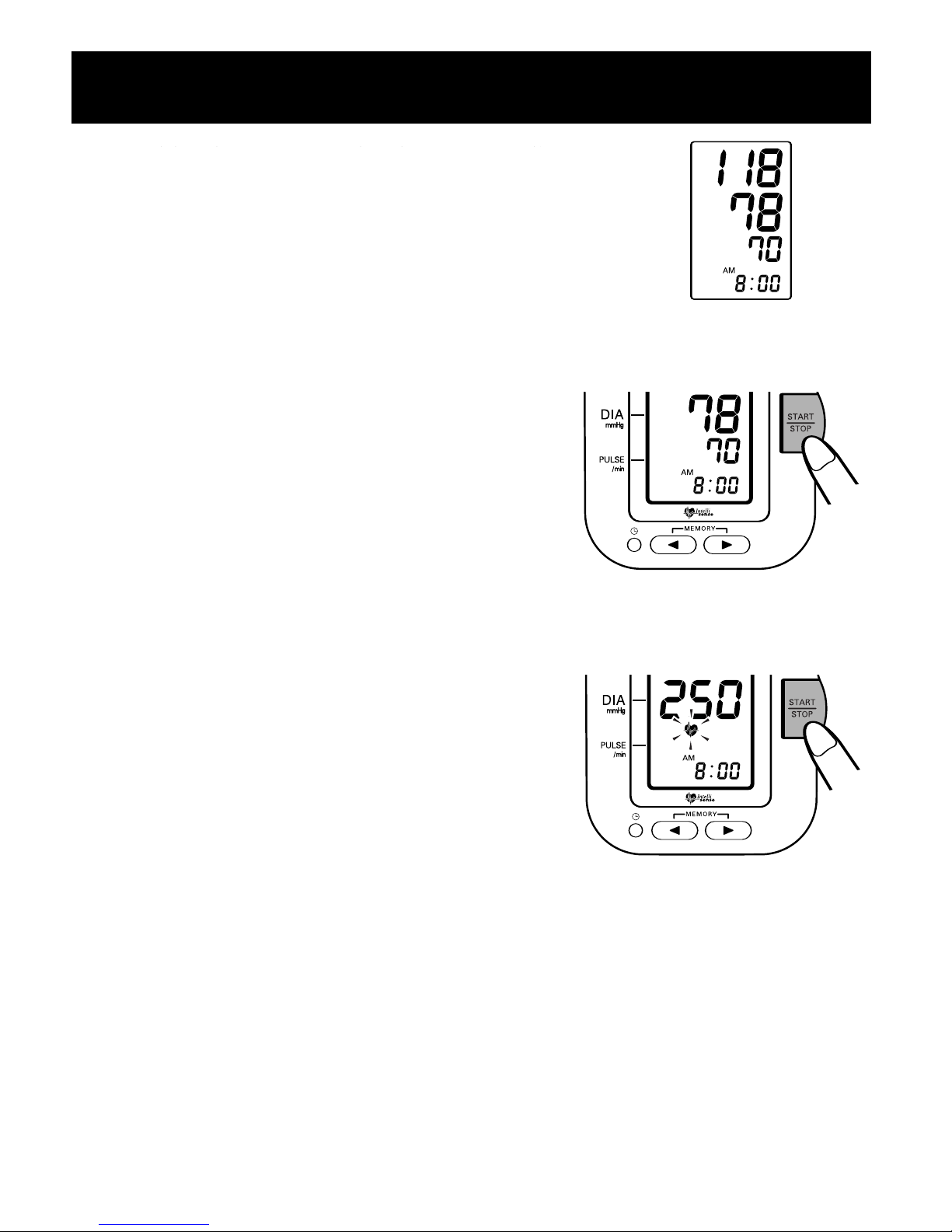

7. Press the START/STOP button to turn the display off.
SETTING THE DATE AND TIME
12
Final 780N2 IM 6/3/05 11:42 AM Page 11

1. Make sure the air plug is securely inserted in the main unit.
2. Remove tight-fitting clothing from your upper arm.
3. Sit in a chair with your feet flat on the floor. Place your arm on a
table so the cuff is level with your heart.
APPLYING THE ARM CUFF
13
Final 780N2 IM 6/3/05 11:42 AM Page 12

14
4. Hold the grip on the cuff securely
with your hand.
5. Turn the palm of your hand upward.
6. Apply the cuff to your left upper arm so the blue strip is on the inside
of your arm and aligned with your middle finger. The air tube runs
down the inside of your arm. The bottom of the cuff should be
approximately 1/2" above your elbow.
APPLYING THE ARM CUFF
Grip
Closure Strip
1/2 inch (1 - 2 cm)
Air Tube
Blue Strip
Final 780N2 IM 6/3/05 11:42 AM Page 13

15
7. Wrap the cuff firmly in place around your arm using the closure strip.
APPLYING THE CUFF ON THE RIGHT ARM
When taking a measurement using the right arm use this instruction
for Step 6.
Apply the cuffto your right upper arm so the grip is centered on
the inside of your inner arm. The bottom of the cuff should be
approximately 1/2'' aboveyour elbow.
NOTE: Be careful not to rest your arm on the air tube. This will restrict
the flowof air to the cuff
APPLYING THE ARM CUFF
Grip
Final 780N2 IM 6/3/05 11:42 AM Page 14

The monitor automatically determines your ideal inflation level. In rare
circumstances when a higher inflation may be necessary, the monitor
automatically re-inflates the cuff up to 30 mmHg higher than the initial
inflation and restarts the measurement.
1. Press the START/STOP button.
All display symbols appear on the screen. The cuff starts to inflate
automatically.
NOTE: To stop the inflation or measurement, push the
START/STOP button. The monitor will stop inflating,
start deflating, and will turn off.
2. Inflation stops automatically and the measurement is started.
As the cuff deflates, decreasing
numbers appear on the display.
The Heart Symbol ( ) flashes
at every heartbeat.
TAKING A MEASUREMENT
16
®
Final 780N2 IM 6/3/05 11:42 AM Page 15

You3blood pressure and pulse rate are dis-
played.
4. Press the START/STOP button to
turn the monitor off.
NOTE: The monitor will automatically
turn off after five minutes.
INSTRUCTIONS FOR SPECIAL CONDITIONS
If your systolic pressure is known
to be more than 220 mmHg,
press and hold the START/STOP
button until the monitor inflates
30 to 40 mmHg higher than your
suspected systolic pressure.
NOTES:
•Do not apply more pressure than necessary.
•The monitor will not inflate above 299 mmHg.
TAKING A MEASUREMENT
17
®
®
3. When the measurement is complete, the arm
cuff completely deflates. Your blood pressure
and pulse rate are displayed.
Final 780N2 IM 6/3/05 11:42 AM Page 16

Every time you complete a measurement the monitor stores the blood
pressure and pulse rate in the memory. The Blood Pressure Monitor
automatically stores up to 90 measurement values. When 90 sets of
measurement values are stored in the memory, the oldest record is
deleted to save the most recent measurement values.
The monitor also calculates an average reading based on the values of
the three most recent measurements taken. If the date and time is not
set, the measurement values will not be stored in the memory correctly.
TO DISPLAY THE AVERAGE VALUE
Average Value Symbol
1. Press the MEMORY down button. The average value symbol
will display on the screen with the average reading.
USING THE MEMORY FUNCTION
18
®
Final 780N2 IM 6/3/05 11:42 AM Page 17

TO DISPLAY THE MEASUREMENT VALUES
The date and time is alternately displayed with the measurement values.
1. Press the MEMORY down button to display the most recent
measurement values on the screen.
Press the MEMORY up button to display the oldest
measurement values.
NOTES: •Press the button repeatedly to display the next values.
•Press and hold the button to display the values faster.
2. Press the START/STOP button to turn the power off.
TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete records stored in the memory.
All records will be deleted.
1. Press and hold the MEMORY down button and
START/STOP button simultaneously for more than 2 seconds.
USING THE MEMORY FUNCTION
19
®
Alternating display
®
Final 780N2 IM 6/3/05 11:42 AM Page 18

To keep your digital blood pressure monitor in the best condition and
protect the unit from damage follow the directions listed below:
Keep the monitor in the storage case when
not in use. Make sure the AC Adapter is
placed under the main unit so that is does not
damage the display.
Do not forcefully bend the arm cuff
or air tube. Do not fold tightly.
Clean the monitor with a soft dry cloth.
Do not use any abrasive or volatile cleaners.
Do not attempt to clean the cuff. Never immerse the monitor or any
components in water.
Store the monitor in a safe and dry location. Do not subject the monitor
to extreme hot or cold temperatures, humidity and direct sunlight.
Avoid subjecting the monitor to strong shocks,such as dropping the
unit on the floor.
Remove the batteries if the unit will not be used for three months or
longer. Always replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
CARE AND MAINTENANCE
20
Final 780N2 IM 6/3/05 11:42 AM Page 19
