Omron R3-1 Plus User manual

EN
FR
DE
IT
ES
NL
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
RU
AR
Wrist Blood Pressure Monitor
Model R3-I Plus
IM-HEM-6022-E-02-08/08
5320469-9B
HEM6022-E.book Page 1 Thursday, August 21, 2008 7:54 PM

2
Contents
Before using the unit
Introduction ................................................ 3
Important Safety Information .................... 4
1. Overview ................................................ 6
2. Preparation ............................................ 8
2.1 Installing/Replacing the Batteries ....... 8
2.2 Setting the Date and Time ............... 10
Operating instructions
3. Using the Unit ...................................... 12
3.1 Applying the Wrist Cuff ..................... 12
3.2 Correct Posture ................................ 15
3.3 Taking a Reading ............................. 16
3.4 Using the Memory Function ............. 20
4. Quick Reference Guide ....................... 23
Care and maintenance
5. Handling Errors and Problems .......... 24
5.1 Error Messages ................................ 24
5.2 Troubleshooting ............................... 25
6. Maintenance and Storage ................... 27
7. Technical Data ..................................... 29
8. Some Useful Information about
Blood Pressure ................................... 32
HEM6022-E.book Page 2 Thursday, August 21, 2008 7:54 PM

3
ENEN
Introduction
Thank you for purchasing the OMRON R3-I Plus Wrist Blood
Pressure Monitor.
This remarkable, compact and easy to use instrument is ideal for
people who frequently monitor their own blood pressure. The
small, pre-formed wrist cuff is very convenient and easy to apply.
With a push of a button the OMRON Wrist Blood Pressure
Monitor measures your blood pressure and pulse and displays
the reading on a clear digital panel. Perfect for quick, easy
readings at home, at work, and while travelling. It also stores up
to 60 sets of measurements in memory and displays an average
reading based on the three most recent measurements taken
within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based on
two readings. If there is one reading in memory for that period,
the average will be based on one reading.)
The OMRON Wrist Blood Pressure Monitor uses the
oscillometric method of blood pressure measurement. This
means the unit detects the pulse wave vibrations in the artery of
your wrist and converts the oscillations into a digital reading.
Clinical research has proven a direct relationship between blood
pressure in the wrist and blood pressure in the arm. Changes in
wrist blood pressure reflect changes in arm blood pressure
because the arteries in the wrist and the arm are connected.
Frequently measuring the blood pressure in your wrist will
provide you and your doctor with an accurate indication of
changes in your true blood pressure.
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.
Before using the unit
HEM6022-E.book Page 3 Thursday, August 21, 2008 7:54 PM

4
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and
arteriosclerosis. People with poor peripheral circulation may find
that results for measurements taken at the wrist vary from those
taken on the upper arm. Please read this section carefully before
using the unit.
Warning:
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement
results and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders,
should consult a doctor before using the unit. Cuff inflation can
cause internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Consult a doctor immediately.
Caution:
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury to the user or patient or
damage to the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring
blood pressure.
• Do not disassemble the unit or wrist cuff.
• Do not inflate the wrist cuff over 299 mmHg.
HEM6022-E.book Page 4 Thursday, August 21, 2008 7:54 PM

5
Important Safety Information
EN
• Do not use a mobile phone, or other devices that emit
electromagnetic fields, near the unit. This may result in
incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately
rinse with plenty of clean water.
• Use only two “AAA” alkaline batteries with this unit. Do not use
other types of batteries.
• Do not insert the batteries with their polarities incorrectly
aligned.
• Replace old batteries with new ones immediately. Replace
both batteries at the same time.
• Remove the batteries if the unit will not be used for three
months or more.
• When the batteries are replaced, you may need to reset the
date and time. If the year is flashing on the display screen,
refer to “2.2 Setting the Date and Time”.
• Do not use new and used batteries together.
General Safety Precautions
• Do not inflate the wrist cuff when it is not wrapped around your
wrist.
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol,
smoking, exercising or eating.
• Do not wash the wrist cuff or immerse it in water.
• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any
used accessories or optional parts.
Save these instructions for future reference.
HEM6022-E.book Page 5 Thursday, August 21, 2008 7:54 PM

6

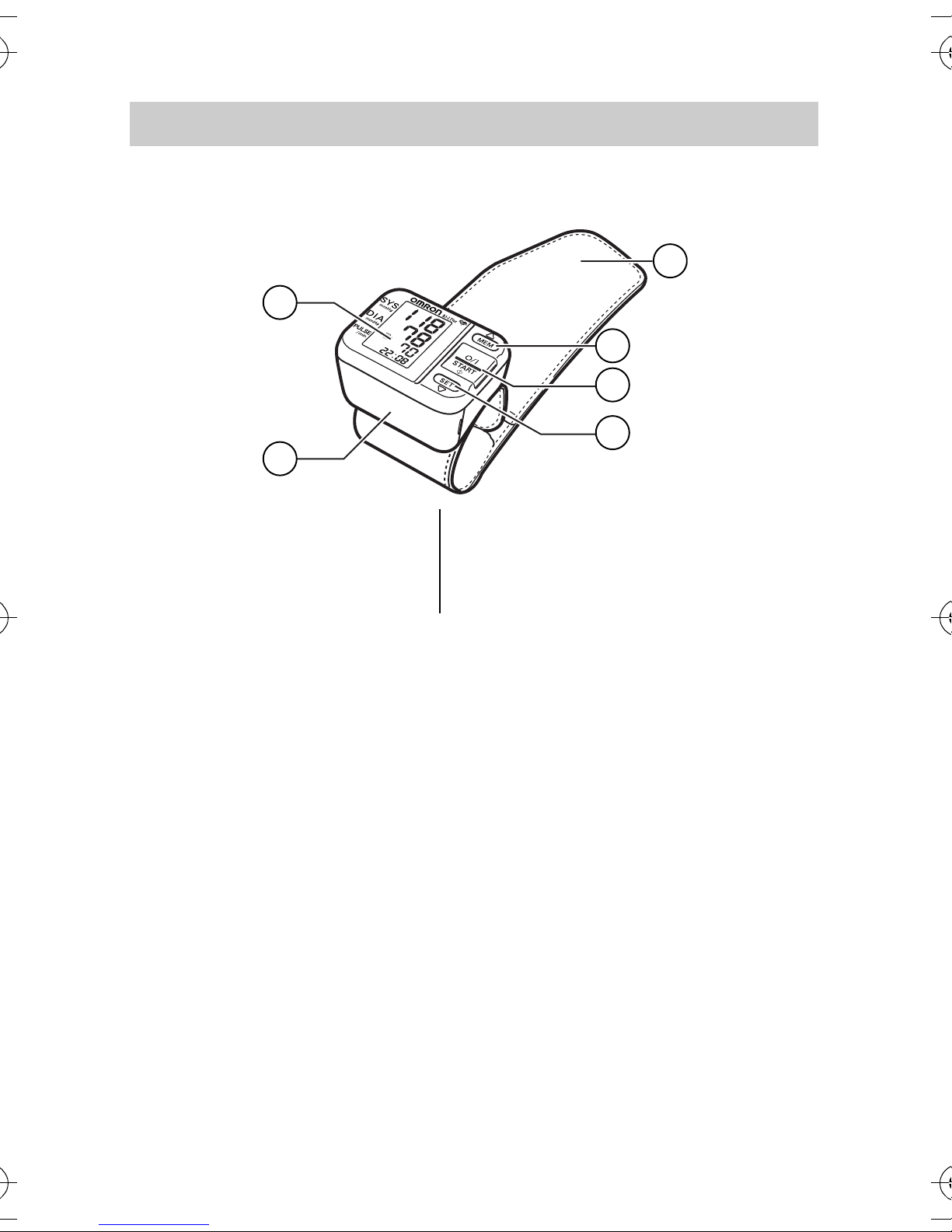

1. Overview
Main Unit
A. Display
B. Battery compartment
cover
C. Wrist cuff
D. MEM (Memory) button
E. O/I START button
F. SET button
A
B
C
D
E
F
HEM6022-E.book Page 6 Thursday, August 21, 2008 7:54 PM

7
1.Overview
EN
Display
Package Contents
G. Systolic blood pressure
H. Diastolic blood pressure
I. Average value symbol
(Displayed when viewing
value for the last three
measurements.)
J. Memory value symbol
(Displayed when viewing
values stored in memory)
K. Irregular heartbeat symbol
L. Battery low symbol
M. Heartbeat symbol
1. Flashes during
measurement.
2. If flashing after
measurement
completed, or when
viewing results stored in
the memory, indicates
blood pressure out of
recommended range.
N. Pulse
O. Deflation symbol
P. Date/Time
Q. Two “AAA” alkaline (LR03)
batteries R. Storage case
• Blood pressure pass
• Blood Pressure Monitor unit • Instruction manual • Guarantee card
G
M
O
P
N
H
I
L
KJ
Q
R
HEM6022-E.book Page 7 Thursday, August 21, 2008 7:54 PM

8
2. Preparation
2.1 Installing/Replacing the Batteries
1. Remove the battery compartment cover by pulling it off in
the direction of the arrow.
1) Grasp both ends of the
battery cover.
2) Pull the cover off the
main unit.
2. Insert two identical 1.5V “AAA” alkaline (LR03) batteries in
the battery compartment.
Make sure their polarity (+/-) is aligned with the polarity
(+/-) as indicated in the battery compartment.
1
12
HEM6022-E.book Page 8 Thursday, August 21, 2008 7:54 PM

9
2.Preparation
EN
3. Put the battery cover back in place.
Note: Be sure to set the date and time after installing or
replacing the batteries. Refer to “2.2 Setting the
Date and Time”.
The measurement values continue to be stored in
memory even after the batteries are replaced.
Battery Life & Replacement
If the battery low symbol ( ) appears on the display,
replace both batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will
still be able to use the unit for a short while. You should
replace the batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries were
exhausted. You should replace the batteries with new
ones at once.
• Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• If the batteries are removed, the Date/Time setting will
need to be reset. See “2.2 Setting the Date and Time” for
details.
• Dispose of batteries according to applicable local
regulations.
• Two new identical 1.5V “AAA” alkaline batteries will last
for approximately 300 measurements, when used to take
two measurements a day.
• Since the supplied batteries are for monitoring use only,
they may have a shorter life and not last for 300
measurements.
HEM6022-E.book Page 9 Thursday, August 21, 2008 7:54 PM

10
2.Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 60
measurement values in its memory and calculates an average
value based on the three most recent measurements taken
within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based on
two readings. If there is one reading in memory for that period,
the average will be based on one reading.) To make use of the
memory and average value function:
• Set the unit to the correct date and time before taking a
measurement for the first time.
• If the batteries have been removed, the date and time setting
will need to be reset.
• When the batteries are installed and the unit is turned on for
the first time, the year digits (2005) will flash on the display.
• The range for the year setting is 2005 to 2030. If the year
reaches 2030, it will return to 2005.

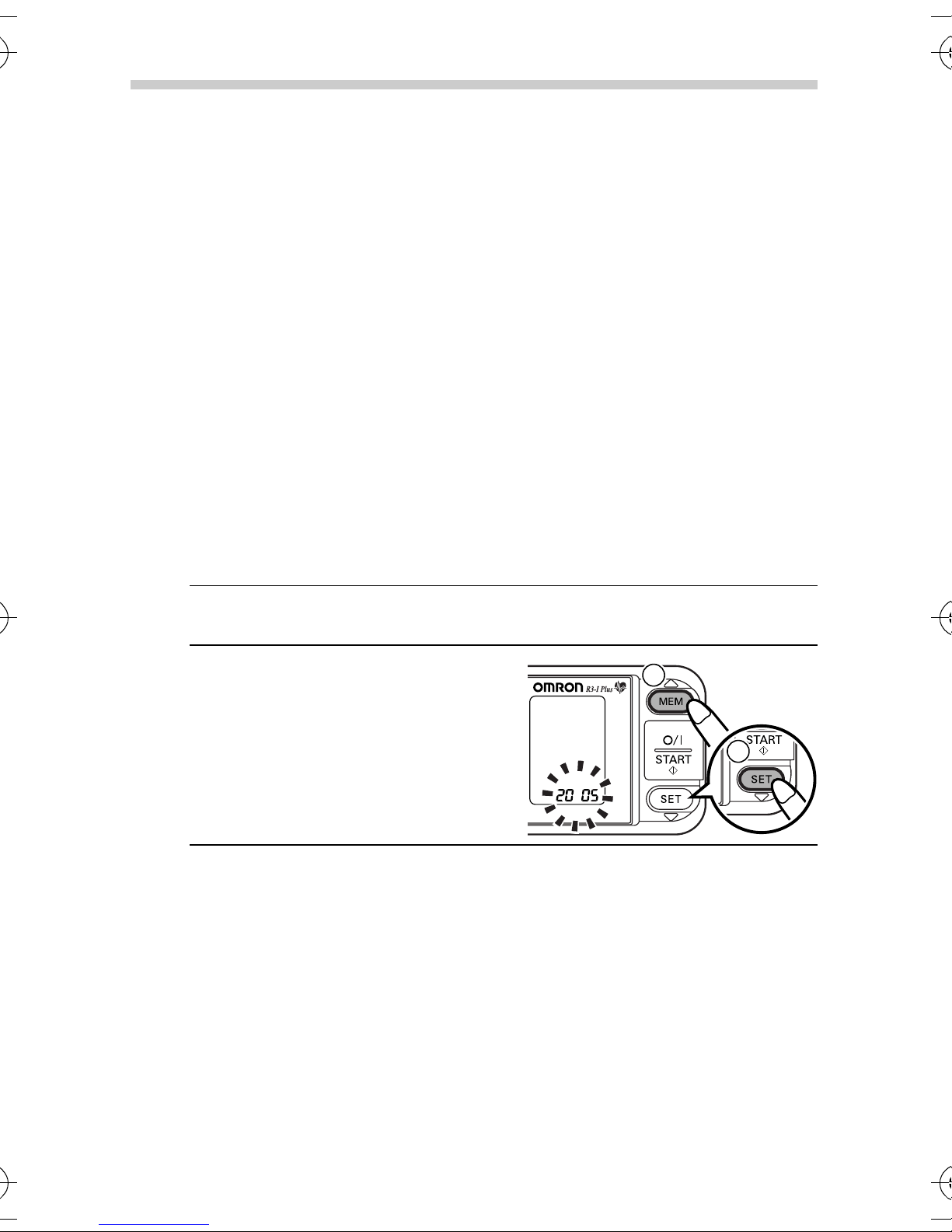

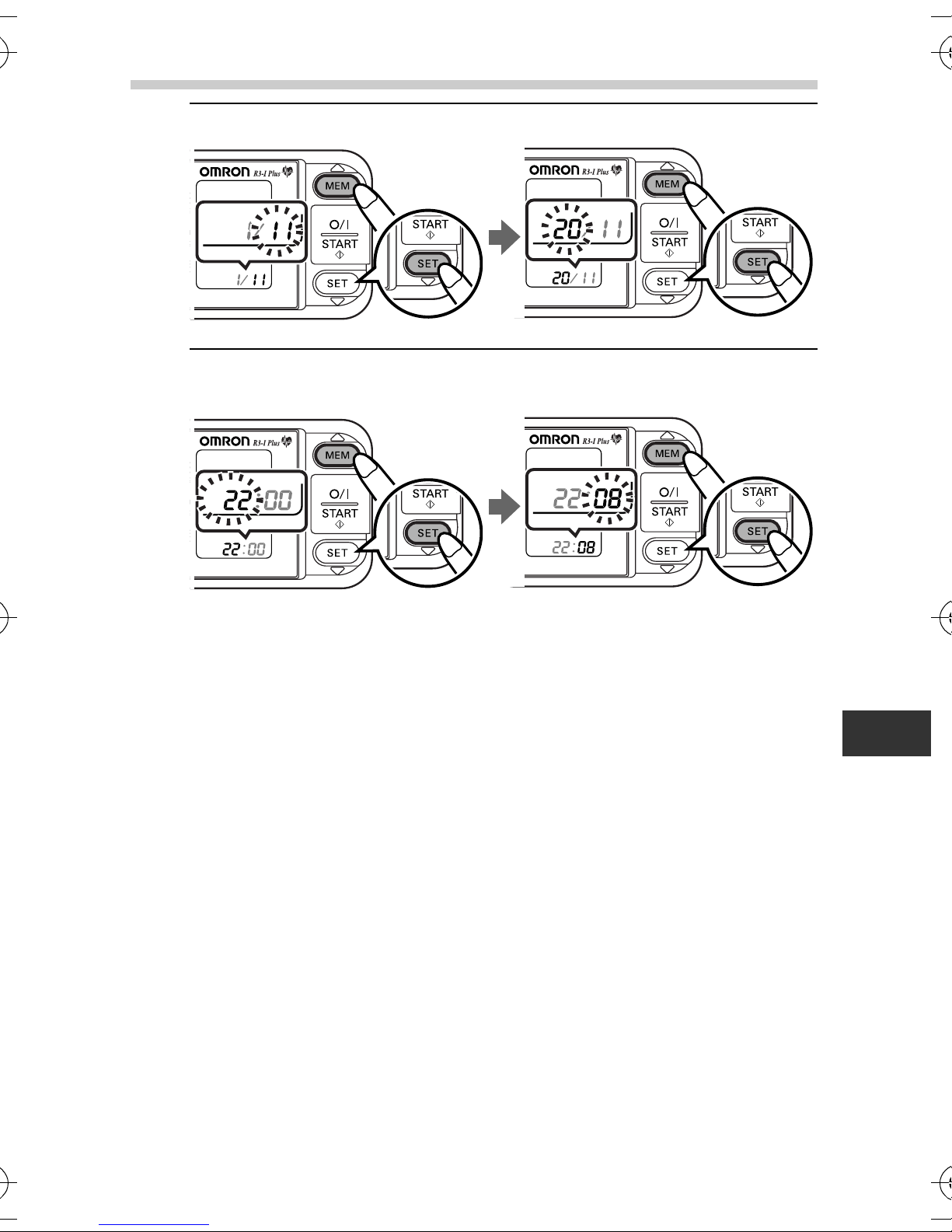

1. To set or reset the date and time, press the SET button.
2. Press the MEM button to
advance the digits one at a
time.
Note: If you hold down the
MEM button, the digits
will advance rapidly.
3. Press the SET button to confirm the setting when the
desired number appears on the display.
The year setting is set and the month digits will flash.
2
3
HEM6022-E.book Page 10 Thursday, August 21, 2008 7:54 PM

11
2.Preparation
EN

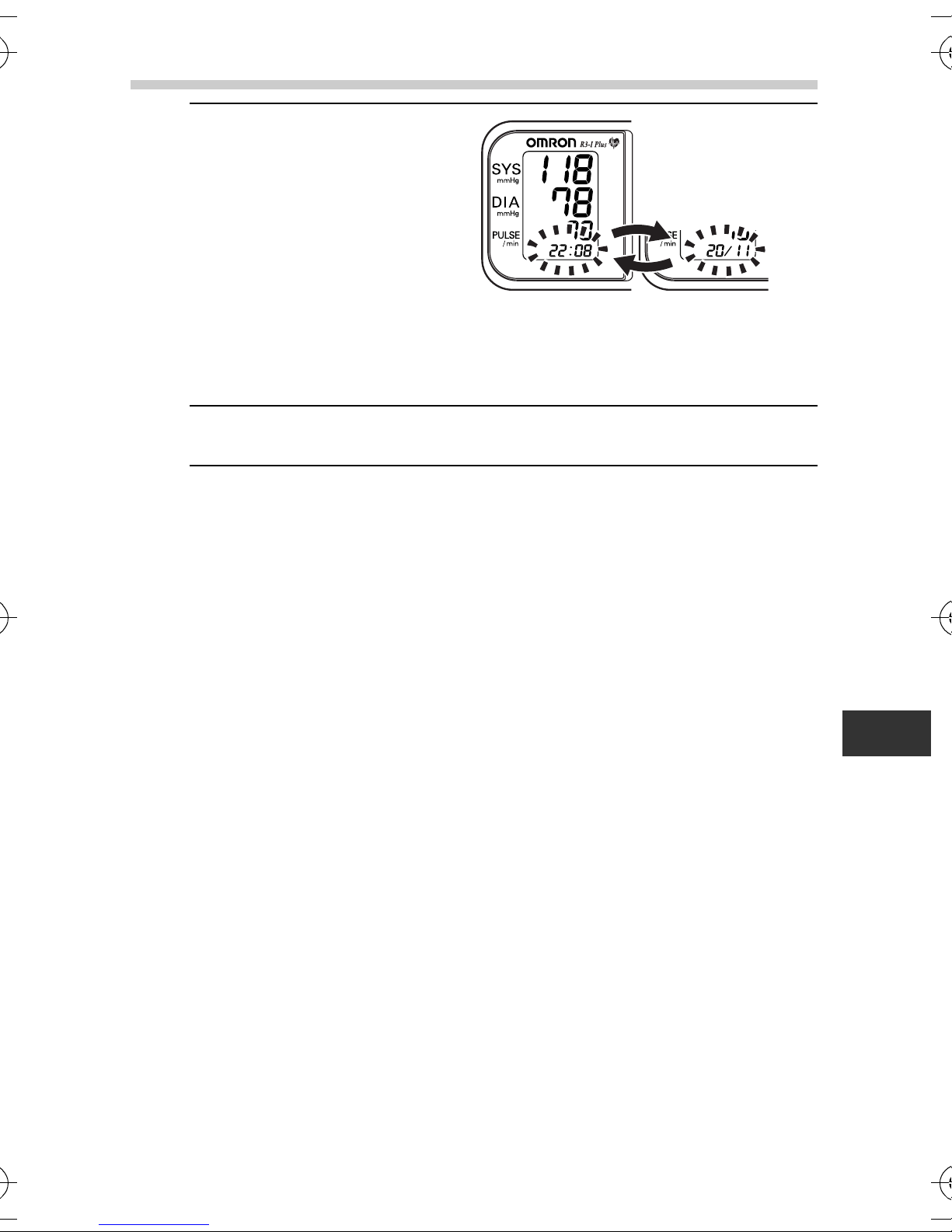

4. Repeat steps 2 and 3 to set the month and day.
5. Repeat steps 2 and 3 to set the hour and minutes for the
time.

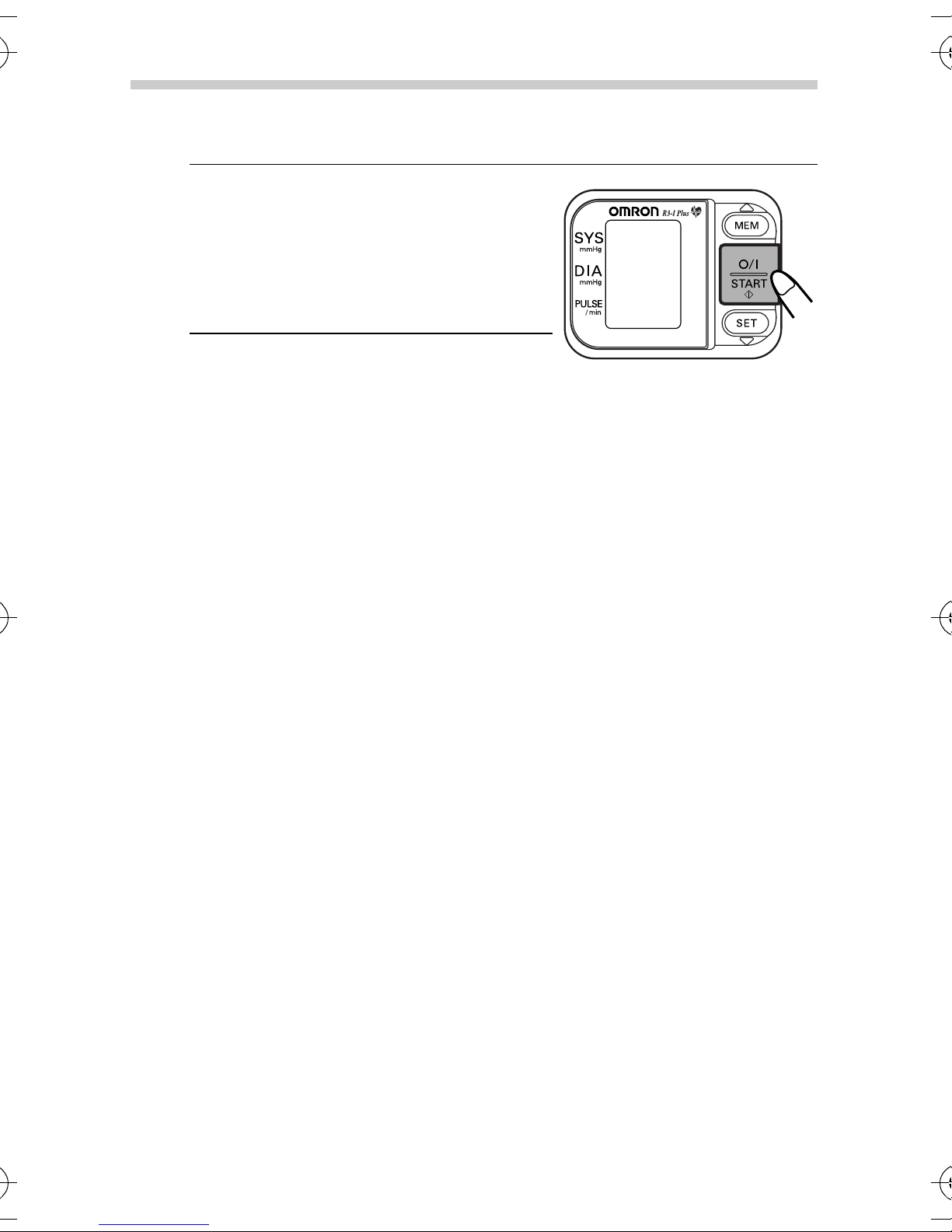

After all settings are completed the display may still be
flashing. To confirm settings and shut off the unit press O/I
START button.
Note:
The unit will automatically turn itself off after you press the
SET button to confirm the minute setting when the
batteries are installed for the first time.
HEM6022-E.book Page 11 Thursday, August 21, 2008 7:54 PM

12
3. Using the Unit

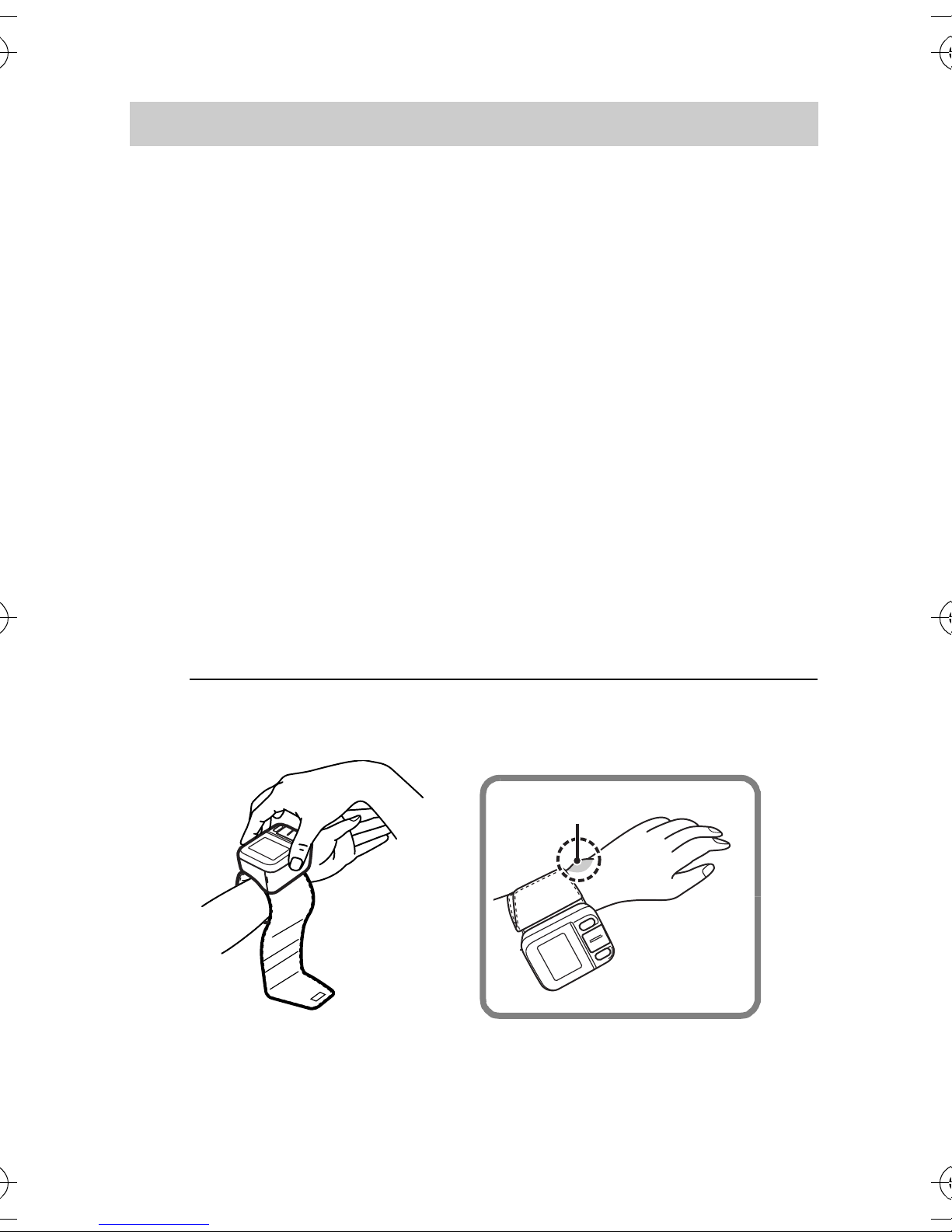

3.1 Applying the Wrist Cuff
You can take a measurement on either your left or right wrist.
Notes:
• You can take a measurement on either your left or right wrist.
The blood pressure can differ between your right and left wrist
and therefore also the measured blood pressure values can be
different. Omron recommends to always use the same wrist for
a measurement. If the values between the two wrists differ
substantially, please check with your doctor which wrist to use
for your measurement.
• To ensure correct measurement, apply the wrist cuff so that it
fits comfortably around your wrist.
• Roll up your sleeve so that the unit covers bare skin.
• Do not apply over clothing.
Taking a reading on the left wrist
1. Place the wrist cuff over your left wrist with your left thumb
facing upward.
Note: Make sure that the wrist cuff does not cover the
protruding part of the wrist bone (ulna) on the
outside of the wrist.
ulna
Operating instructions
HEM6022-E.book Page 12 Thursday, August 21, 2008 7:54 PM

13
3.Using the Unit
EN
2. Hold the bottom part of the wrist
cuff and wrap it around the wrist
while pulling so that it fits
comfortably.
Note: Unless the wrist cuff is
wrapped securely around
the wrist, it may not be
possible to take correct
measurements.
Smooth the cuff with your fingers
to ensure that it fits snugly around
the wrist.
Notes:
• If the fastener is not wrapped
securely around your wrist, the
cuff may slip during
measurement.
• If you have a slender wrist, the
cuff may feel slightly loose.
However, this will not affect
measurement results and you
should not force the cuff to fit.
• The remaining part of the wrist
cuff can be conveniently folded
back out of the way.
• If the remaining part of the cuff
is difficult to fold back,
measurement results will not be
effected.
HEM6022-E.book Page 13 Thursday, August 21, 2008 7:54 PM

14
3.Using the Unit
Taking a reading on the right wrist
Measurements can also be made
on the right wrist.
Fit the unit on the right wrist as
shown.
HEM6022-E.book Page 14 Thursday, August 21, 2008 7:54 PM

15
3.Using the Unit
EN
3.2 Correct Posture
Correct posture during measurement helps you get accurate
results.
You should also try to measure your blood pressure at the same
time each day.
Notes:
• Do not take measurements after bathing, drinking
alcohol, smoking, exercising or eating.
• Do not move or talk during measurement.
Position your arm so that
the unit is at the same
level as your heart
(height of a nipple).
Sit comfortably with
your back straight,
hold your arm across
your chest and relax.
Do not use your other
hand to support the
wrist cuff. This can
result in inaccurate
measurement results.
Relax your wrist and hand.
Do not bend
your wrist back. Do not clench your fist. Do not bend your wrist forward.
HEM6022-E.book Page 15 Thursday, August 21, 2008 7:54 PM

16
3.Using the Unit
3.3 Taking a Reading
1. Press the O/I START button to
start measurement.
The wrist cuff will start to inflate
automatically after the power is
turned on.
2. After the unit has detected your
blood pressure and pulse rate,
the cuff automatically deflates and your blood pressure
and pulse rate are displayed.
Notes:
• Sit still and do not talk or move until the measurement is
completed.
• Keep the unit at heart height until the measurement is
completed.
• To stop measurement, press the O/I START button at any
time during measurement.
HEM6022-E.book Page 16 Thursday, August 21, 2008 7:54 PM

17
3.Using the Unit
EN
3. Check the measurement
result.
The unit automatically
stores blood pressure
and pulse rate into its
memory. Refer to “3.4
Using the Memory
Function”.
The time and date of the measurement are displayed
alternately.
4. Undo the fastener and remove the unit.
5. Press the O/I START button to turn off the unit.
If you forget to turn off the unit, it will shut itself off
automatically after two minutes.
HEM6022-E.book Page 17 Thursday, August 21, 2008 7:54 PM

18
3.Using the Unit

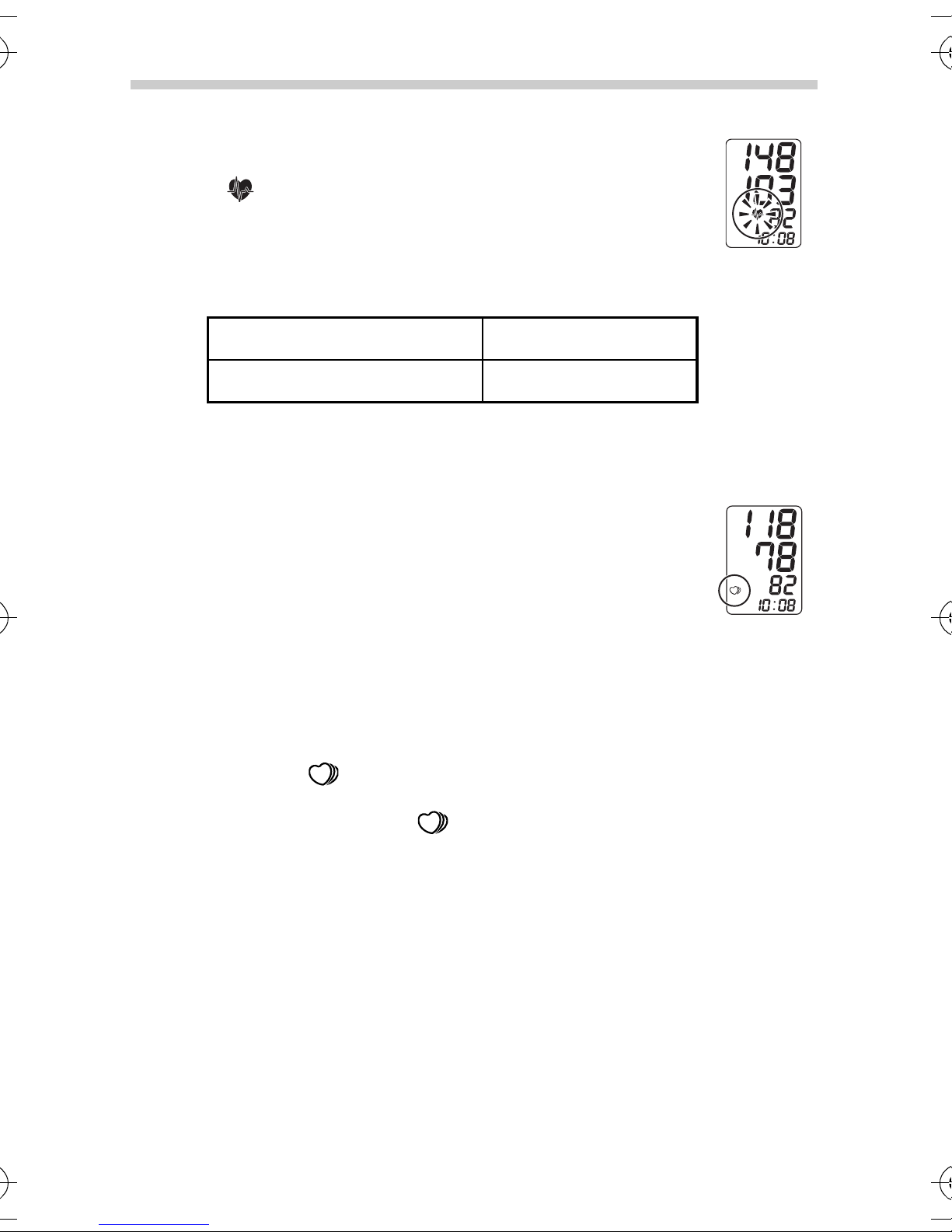

Symbol Information:
• If your systolic or diastolic pressure is outside
the standard range, the Heartbeat symbol
( ) will blink when the measurement result
is displayed.
Recent research suggests that the following
values can be used as a guide to high blood
pressure for measurements taken at home.
This criteria is for home blood pressure measurement.
For professional office blood pressure measurement
criteria, please refer to Chapter 8.
• Your blood pressure monitor includes an
irregular heartbeat feature. Irregular
heartbeats can influence the results of the
measurement. The irregular heartbeat
algorithm automatically determines if the
measurement is usable or needs to be
repeated. If the measurement results are affected by
irregular heartbeats but the result is valid, the result is
shown together with the irregular heartbeat icon. If the
irregular heartbeats cause the measurement to be
invalid, no result is shown. If the Irregular heartbeat
symbol ( ) is shown after you have taken a
measurement, repeat the measurement. If the Irregular
heartbeat symbol ( ) is shown frequently, please
make your doctor aware of it.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
HEM6022-E.book Page 18 Thursday, August 21, 2008 7:54 PM

19
3.Using the Unit
EN

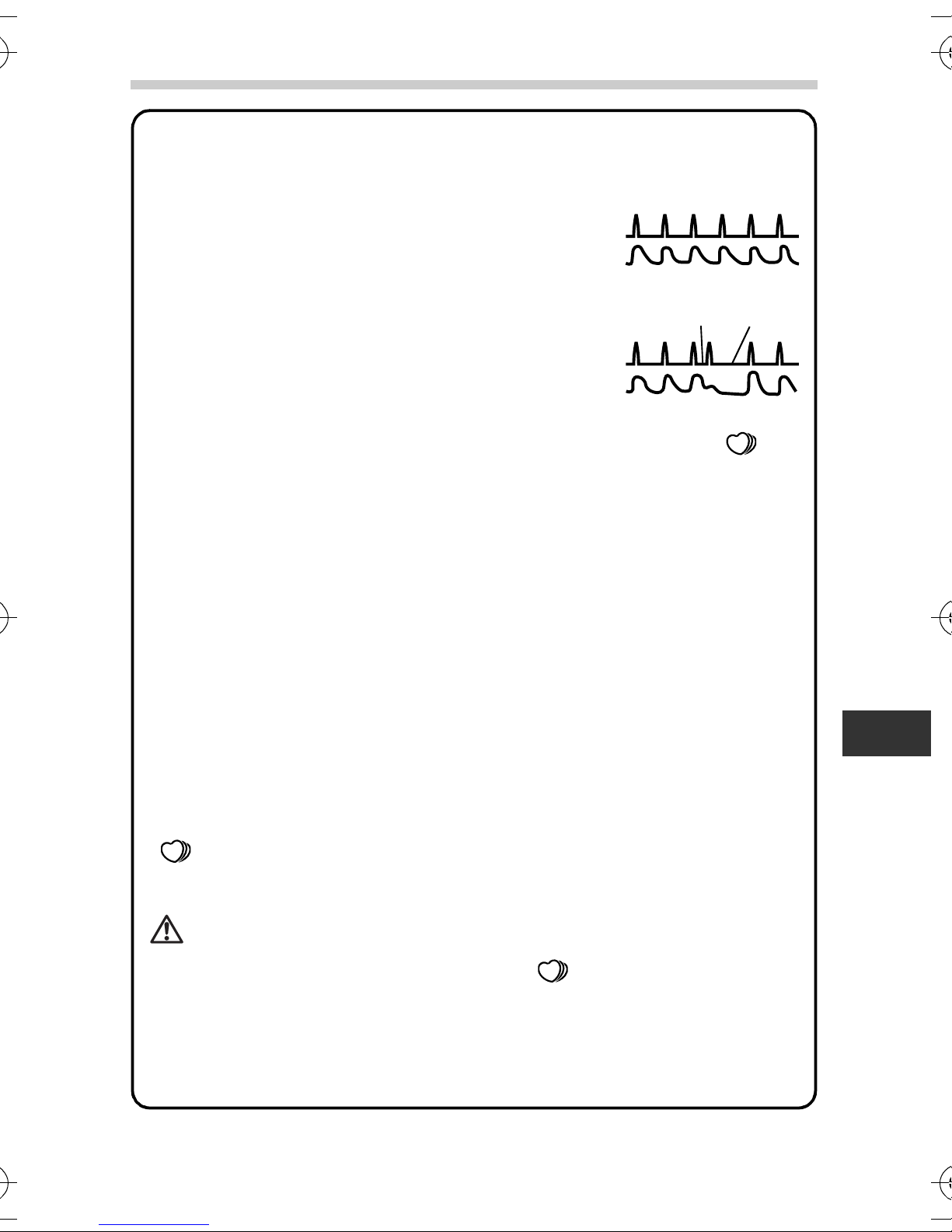

What is Irregular Heartbeat?
An irregular heartbeat is a
heartbeat rhythm that
varies by more than 25%
from the average heartbeat
rhythm detected while the
unit is measuring the
systolic and diastolic blood
pressure.
If such an irregular rhythm
is detected more than twice
during measurement, the Irregular heartbeat symbol ( )
appears on the display with the measurement results.
What is Arrhythmia?
A heartbeat is stimulated by electrical signals that cause the
heart to contract.
Arrhythmia is a condition where the heartbeat rhythm is
abnormal due to flaws in the bio-electrical system that drives
the heartbeat. Typical symptoms are skipped heartbeats,
premature contraction, an abnormally rapid (tachycardia) or
slow (bradycardia) pulse. This can be caused by heart
disease, aging, physical predisposition, stress, lack of sleep,
fatigue etc. Arrhythmia can only be diagnosed by a doctor
through a special examination.
Whether the appearance of the Irregular heartbeat symbol
( ) in the results indicates arrhythmia or not can only be
determined by an examination and diagnosis by your doctor.
Warning:
If the Irregular heartbeat symbol ( ) is shown
frequently, please make your doctor aware of it.
Conducting self-diagnosis and treatment based on
measurement results are dangerous. Be sure to follow
the instructions of your doctor.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood pressure
Blood pressure
Short Long
Pulse
HEM6022-E.book Page 19 Thursday, August 21, 2008 7:54 PM

20
3.Using the Unit
3.4 Using the Memory Function
This unit has a memory capable of storing 60 sets of readings.
Every time you complete the measurement, the unit
automatically stores blood pressure and pulse rate.
If there are three readings within 10 minutes of the last reading,
the average of the three readings is displayed. (If there are only
two readings in memory for that period, the average will be
based on two readings. If there is one reading in memory for that
period, the average will be based on one reading.)
Note: When 60 sets of readings are stored in memory, the
oldest set will be deleted to store a new set.
To View the Average Value
Press the MEM button.
If there are no measurements results
stored in memory, the screen to the
right is displayed.
Systolic blood pressure
Diastolic blood pressure
Pulse
HEM6022-E.book Page 20 Thursday, August 21, 2008 7:54 PM
