Omron V680S Series User manual

Man. No. Z353-E1-05
Reader/Writer
V680S-HMD63-EIP
V680S-HMD64-EIP
V680S-HMD66-EIP
V680S Series
User’s Manual
(EtherNet/IPTM)
RFID System

Introduction
Thank you for purchasing a V680S-series RFID System. This manual describes the functions, performance,
and application methods needed for optimum use of the V680S-series RFID System.
Please observe the following items when using the V680S-series RFID System.
Allow the V680S-series RFID System to be installed and operated only by qualified specialists with a
sufficient knowledge of electrical systems.
Read and understand this manual before attempting to use the RFID System and use the RFID System
correctly.
Keep this manual in a safe and accessible location so that it is available for reference when required.
NOTICE
(1) No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any
form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the
prior written permission of OMRON.
(2) Because OMRON is constantly striving to improve its high-quality products, the information
contained in this manual is subject to change without notice.
(3) Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON
assumes no responsibility for errors or omissions. Neither is any liability assumed for damages
resulting from the use of the information contained in this publication. If you find any problems in
this manual, please contact your OMRON representative. If you do so, please provide the Cat. No.
that is given at the back of this manual.
Trademarks
Microsoft, Windows, Windows Vista are either registered trademarks or trademarks of Microsoft
Corporation in the USA and other countries.
ODVA and EtherNet/IP are trademarks of the ODVA.
Java and other trademarks that contain “Java” are the registered trademarks of Oracle
Corporation or its related companies.
Other system names and product names used in this manual are the trademarks or registered
trademarks of the respective companies.

Introduction
Section 1 Section 2 Section 3 Section 4 Section 5 Section 6 Section 7 Section 8
Introduction
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section8
Terms and Conditions Agreement (Always Read This Information)
Product Overview
Names and Functions of Components
Installation and Connections
Preparations for Communications
Host Communications Specifications
Browser Interface
Troubleshooting
Appendices
RFID System
V680S-HMD63-EIP Reader/Writer
V680S-HMD64-EIP Reader/Writer
V680S-HMD66-EIP Reader/Writer
User
'
sManual

Introduction
Terms and Conditions Agreement
Warranty, Limitations of Liability
1. Warranties
Exclusive Warranty
Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship
for a period of twelve months from the date of sale by Omron (or such other period expressed in writing
by Omron). Omron disclaims all other warranties, express or implied.
Limitations
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE
PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE
PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.
Omron further disclaims all warranties and responsibility of any type for claims or expenses based on
infringement by the Products or otherwise of any intellectual property right.
Buyer Remedy
Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form originally
shipped with Buyer responsible for labor charges for removal or replacement thereof) the non-
complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal
to the purchase price of the non-complying Product; provided that in no event shall Omron be
responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products
unless Omron’s analysis confirms that the Products were properly handled, stored, installed and
maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of
any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies
shall not be liable for the suitability or unsuitability or the results from the use of Products in
combination with any electrical or electronic components, circuits, system assemblies or any other
materials or substances or environments. Any advice, recommendations or information given orally or
in writing, are not to be construed as an amendment or addition to the above warranty.
See http://www.omron.com/global/ or contact your Omron representative for published information.
2. Limitation on Liability; Etc
OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY
CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, NEGLIGENCE OR STRICT LIABILITY.
Further, in no event shall liability of Omron Companies exceed the individual price of the Product on
which liability is asserted.

Introduction
Application Considerations
1. Suitability of Use
Omron Companies shall not be responsible for conformity with any standards, codes or regulations
which apply to the combination of the Product in the Buyer’s application or use of the Product. At
Buyer’s request, Omron will provide applicable third party certification documents identifying ratings
and limitations of use which apply to the Product. This information by itself is not sufficient for a
complete determination of the suitability of the Product in combination with the end product, machine,
system, or other application or use. Buyer shall be solely responsible for determining appropriateness
of the particular Product with respect to Buyer’s application, product or system. Buyer shall take
application responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
2. Programmable Products
Omron Companies shall not be responsible for the user’s programming of a programmable Product, or
any consequence thereof.
Disclaimers
1. Performance Data
Data presented in Omron Company websites, catalogs and other materials is provided as a guide for
the user in determining suitability and does not constitute a warranty. It may represent the result of
Omron’s test conditions, and the user must correlate it to actual application requirements. Actual
performance is subject to the Omron’s Warranty and Limitations of Liability.
2. Change in Specifications
Product specifications and accessories may be changed at any time based on improvements and other
reasons. It is our practice to change part numbers when published ratings or features are changed, or
when significant construction changes are made. However, some specifications of the Product may be
changed without any notice. When in doubt, special part numbers may be assigned to fix or establish
key specifications for your application. Please consult with your Omron’s representative at any time to
confirm actual specifications of purchased Product.
3. Errors and Omissions
Information presented by Omron Companies has been checked and is believed to be accurate;
however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions.

Introduction
Observe the following precautions to ensure safe use of the Product.
1. Installation and Storage Environment
Do not install the Product near any equipment that generates a large amount of heat (such as
heaters, transformers, and large-capacity resistors).
If multiple Reader/Writers are installed near each other, communications performance may decrease
due to mutual interference. Refer to Mutual Interference of Reader/Writers in RF Tag Installation Precautions
in Section 8 Appendices and check to make sure there is no mutual interference between Reader/
Writers.
2. Installation and Removal
Never use an AC power supply. Doing so may result in rupture.
Wire the Product correctly. Incorrect wiring may result in rupture or burning.
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and
ground the host device to 100 or less.
The communications range is adversely affected if there is any metal material around the RF Tag.
Transmission will not be possible if the front and back panels are mistakenly reversed and the Unit is
mounted to a metallic surface.
V680-D1KP66MT
V680-D8KF67M
V680S-D2KF67M/-D8KF67M
V680S-D2KF68M/-D8KF68M
The transmission distance will be reduced when the Unit is not mounted to a metallic surface.
V680-D1KP66MT
V680-D8KF67M
V680S-D2KF67M/-D8KF67M
V680S-D2KF68M/-D8KF68M
The maximum communications range can be obtained when the Antenna faces the RF tag directly.
When the RF tag is installed at a tilt, the communications range is reduced. Consider the effect of the
RF tag at tilt when installing the RF Tag.
Provide the mounting distances between plural RF tags to prevent them from malfunctions due to
mutual interference.
if the central axis of an antenna and RF tag shifts, a communications range will fall.
Do not touch the product immediately after usage at high temperatures, Doing so may occasionally
result in burning.
3. Application Methods
Do not bend the Cable to a bending radius of 40 mm or less. Doing so may break the wires.
If an error is detected in the Product, immediately stop operation and turn OFF the power supply.
Consult with an OMRON representative.
4. Cleaning
Do not clean the Product with paint thinner, benzene, acetone, or kerosene.
5. Disposal
Dispose of the Product as industrial waste.
Precautions for Safe Use

Introduction
Always observe the following precautions to prevent operation failures, malfunctions, and adverse effects on
performance and equipment.
1. Installation and Storage Environment
Do not use or store the Product in the following locations.
Locations subject to combustible gases, explosive gases, corrosive gases, dust, dirt, metal powder,
or salt
Locations where the specified ambient temperature range or ambient humidity range is exceeded
Locations subject to extreme temperature changes that may result in condensation
Locations subject to direct vibration or shock outside the specified ranges
2. Installation
This Product uses a frequency band of 13.56 MHz to communicate with RF Tags. Some transceivers,
motors, inverters, switch-mode power supplies, and other devices generate electrical noise that will
affect these communications. If any of these devices are located in the vicinity of the Product, they
may affect communications with RF Tags, and may possibly damage the RF Tags. Prior to using the
Product in the vicinity of any of these devices, perform a test to determine whether the Product can
be used under the resulting influence.
Connect the control signal to the positive and negative sides of the power supply.
The control signal is used to change the operation mode of the Reader/Writer.
Refer to Connector in Section 2 Names and Functions of Components for the connection methods.
p.29
Do not exceed the rated voltage range. Doing so may result in Product destruction or burning.
Tighten the mounting screws to a torque of 1.2 N·m.
Tighten the Cable connector to a torque of 0.39 to 0.49 N·m.
Mount the two-way Branch Cable with an M4 screw.
3. Application Methods
Do not drop the Product.
Do not pull on the Cables with excessive force.
Do not attempt to disassemble, repair, or modify the Product.
If you use the products in an environment that will subject them to oil, confirm that the oil that is used
will not adversely affect the resins used in the products.
4. Maintenance
Perform inspections both daily and periodically.
Refer to Maintenance and Inspection in Section 7 Troubleshooting for the items to inspect.
p.178
Precautions for Correct Use

Introduction
Meanings of Symbols
Indicates particularly important points related to a function, including precautions and application advice.
Indicates page numbers containing relevant information.
Indicates reference to helpful information and explanations for difficult terminology.

Introduction
Table of Contents
Introduction 1
Terms and Conditions Agreement 2
Precautions for Safe Use 4
Precautions for Correct Use 5
Meanings of Symbols 6
Table of Contents 7
Section 1 Product Overview 9
Features 10
System Configuration 14
Application Flowchart 18
Section 2 Names and Functions of Components 25
Component Names 26
Functions 32
Using Communication Diagnostic and the RF Analyzer 54
Using Multi-Reader/Writer Operation 60
Section 3 Installation and Connections 79
Installation 80
Connections and Wiring 92
Section 4 Preparations for Communications 95
Starting the Reader/Writer 96
Setting IP Addresses 97
Setting Tag Data Links 103

Introduction
Section 5 Host Communications Specifications 105
EtherNet/IP Communications Protocol 106
V680S Command Details 115
Time Charts 141
Section 6 Browser Interface 145
Browser Operation Window 146
Operation Interface 147
Section 7 Troubleshooting 167
Error Descriptions 168
Errors and Indicator Status 170
Errors and Countermeasures 173
Maintenance and Inspection 178
Troubleshooting Flowcharts 179
IF the Ethernet connection between the Reader/Writer is abnormal 184
Cannot Display the Web Browser Operation Window 185
Safe Mode 191
Section 8 Appendices 193
Product Specifications 194
Data Characteristics 213
Reader/Writer Installation Precautions 232
RF Tag Installation Precautions 237
RF Tag Memory Capacities and Memory Types 283
RF Tag Memory Map 284
Chemical Resistance of the Reader/Writers and RF Tags 288
Degree of Protection 293
Differences in Address and Size Specifications between V680 and V680S Reader/Writers 295
Revision History 296

Section 1 Product Overview
Section 1
Product Overview
Features 10
System Configuration 14
Application Flowchart 18

Section 1 Features
Features
The integrated V680S-series Reader/Writers (V680S-HMD6-EIP) perform communications with RF Tags
according to commands from a host device.
Integrated Structure
The controller, amplifier, and antenna are integrated into the Reader/Writer for a simple structure.
Simple Installation
The Reader/Writer is automatically set to the best parameters according to the RF Tags to achieve
stable communications with more consistent communications and less omissions of RF Tags in the
communications field.
Reader/WriterPLC
Antennas
PLC
Amplifiers
ID Controller
Previous OMRONmodels V680S Integrated Reader/Writer
24-VDC
power supply
24-VDC
power supply
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
Read
Write

Section 1 Features
Stable Operation
When the Reader/Writer communicates with an RF Tag, it diagnoses the communications leeway and
reports the result. You can check the communications leeway to appropriately install the Reader/Writer
and RF Tags to achieve stable operation of your OMRON RFID System.
For details, refer to Using Communication Diagnostic and the RF Analyzer in Section 2 Names and Functions of Components.
p.54
If you use the RFID System under installation conditions that provide a high communications leeway,
you can reduce communications troubles during system operation and achieve stable line operation.
Area of stable communications
Area of unstable communications
Area of stable communications
Area of unstable communications
Area of stable communications
Area of unstable communications
Operation Indicator lights green Operation Indicator lights yellowOperation Indicator lights red

Section 1 Features
Simple Connection with EtherNet/IP
The Reader/Writer communicates with the host device through EtherNet/IP. EtherNet/IP is an industrial
multi-vendor network that uses Ethernet. The EtherNet/IP specifications are open standards managed
by the ODVA (Open DeviceNet Vendor Association). EtherNet/IP is used by a wide range of industrial
devices.
Because EtherNet/IP uses standard Ethernet technology, various general-purpose Ethernet devices
can be used in the network. You can easily increase the number of Reader/Writers by using a
Switching Hub.
To connect more than one Reader/Writer, all devices must be set to a unique IP address.
EtherNet/IP has mainly the following features.
High-speed, High-capacity Data Exchange through Tag Data Links (Cyclic Communications)
The EtherNet/IP protocol supports implicit communications, which allows cyclic communications called
tag data links with EtherNet/IP devices.
Tag Data Links (Cyclic Communications) at a Specified Communications Cycle for Each
Application Regardless of the Number of Nodes
Tag data links (cyclic communications) operate at the cyclic period that is specified for each
application, regardless of the number of nodes. Data is exchanged over the network at the refresh
cycle that is set for each connection. The communications refresh cycle will not increase even if the
number of nodes is increased, i.e., the concurrency of the connection’s data is maintained.
Because the refresh cycle can be set for each connection, each application can communicate at its
ideal refresh cycle. For example, interprocess interlocks can be transferred at high speed, while the
production commands and the status information are transferred at low speed.
Switching Hub
PLC
Reader/Writer
Reader/Writer
Reader/Writer
24-VDC power supply
24-VDC power supply
24-VDC power supply
EtherNet/IP
You can use a Switching Hub to easily increase
the number of Reader/Writers.
* A separate power supply is required to operate
the Reader/Writers.

Section 1 Features
Easy Operation
A Web server is provided so that you can easily perform setup and status monitoring by connecting to
a computer, without the need for any special software.
You can connect a computer to the Switching Hub to easily set up the Reader/Writers and check the
status of the Reader/Writers.
Switching Hub
PLC
Computer
24-VDC power supply
Reader/Writer

Section 1 System Configuration

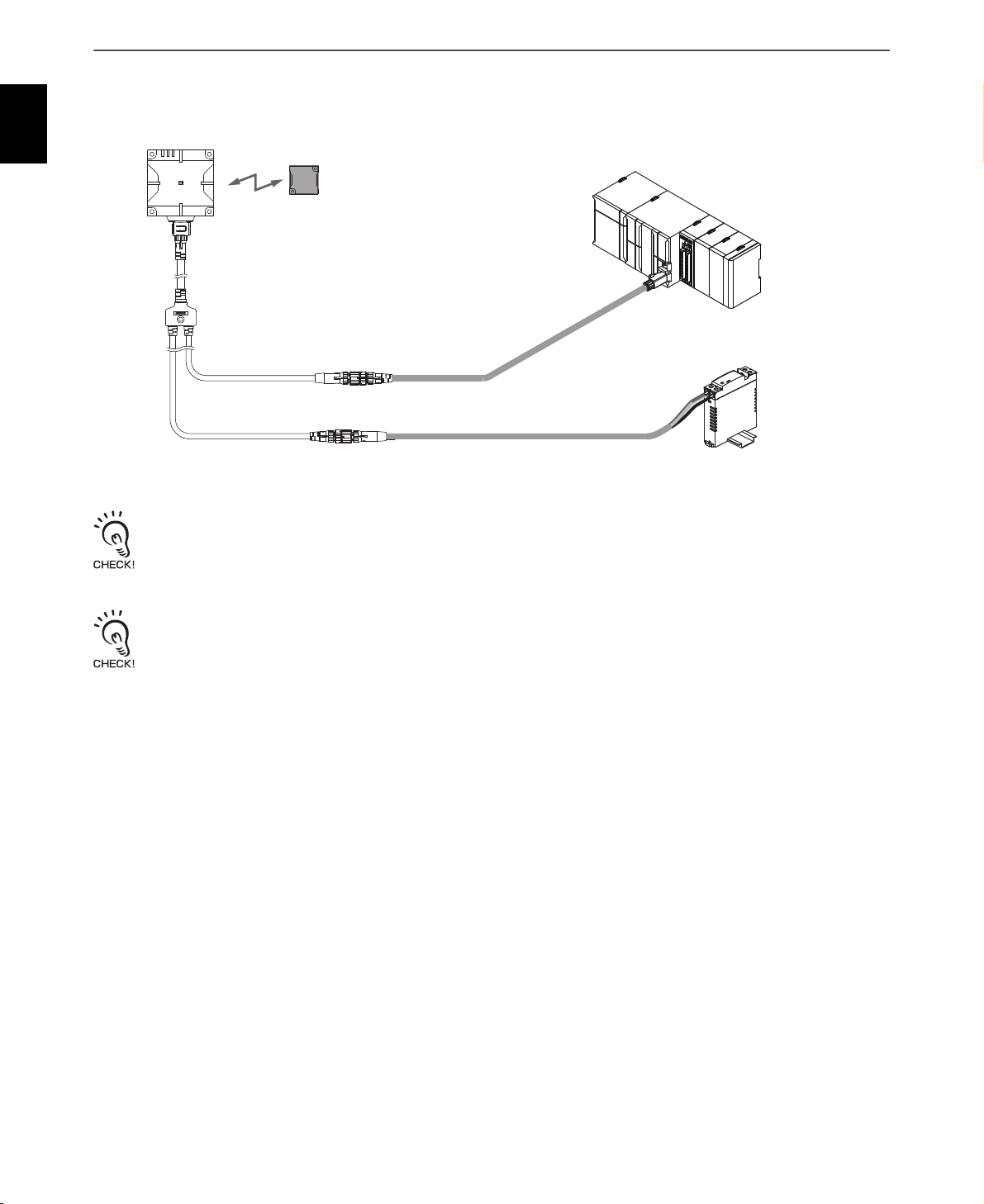

System Configuration
One Reader/Writer is connected to the Host device (e.g., PLC)
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and ground the host device to
100 or less.
Use a host device (PLC) that can set connections as the originator (i.e., the side that requests opening a communications line for
tag data links).
Reader/Writer
(V680S-HMD6-EIP)
Power Cable
(Recommended: XS5F-D42-80-F from OMRON)
Host device
(e.g., PLC)
24-VDC power supply
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42-MC-K from OMRON)
RF Tag
(V680 Series and V680S Series)

Section 1 System Configuration
The plural Reader/Writer’s are connected to the Host device (e.g., PLC)
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and ground the host device to
100 or less.
Always use a Switching Hub on any network where tag data links are used.
If you use a repeater hub on a network on which EtherNet/IP tag data links (cyclic communications) are used, the network
communications load will increase causing frequent collisions and unstable communications.
Use a host device (PLC) that can set connections as the originator (i.e., the side that requests opening a communications line for
tag data links).
Reader/Writer
(V680S-HMD6-EIP)
Power Cable
(Recommended: XS5F-D42-80-F from OMRON)
Ethernet Cable
24-VDC power supply
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42-MC-K from OMRON)
RF Tag
(V680 Series and V680S Series)
Reader/Writer
(V680S-HMD6-EIP)
RF Tag
(V680 Series and V680S Series)
Power Cable
(Recommended: XS5F-D42-80-F from OMRON)
24-VDC power supply
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42-MC-K from OMRON)
Host device
(e.g., PLC)

Section 1 System Configuration
 The computer is connected to monitor the results of communications diagnostics
Connect the Ethernet Cable to a host device (e.g., Switching Hub or PLC) that supports STP and ground the host device to
100 or less.
Always use a Switching Hub on any network where tag data links are used.
If you use a repeater hub on a network on which EtherNet/IP tag data links (cyclic communications) are used, the network
communications load will increase causing frequent collisions and unstable communications.
Use a host device (PLC) that can set connections as the originator (i.e., the side that requests opening a communications line for
tag data links).
Reader/Writer
(V680S-HMD6-EIP)
Power Cable
(Recommended: XS5F-D42-80-F from OMRON)
Host device
(e.g., PLC)
Ethernet Cable
Switching Hub
(Recommended: W4S1-05C Switching Hub
from OMRON)
24-VDC power supply
Computer
Ethernet Cable (Max. length: 100 m)
(Recommended: XS5W-T42-MC-K from OMRON)
RF Tag
(V680 Series and V680S Series)
The system requirements to use the Webbrowser are as follows:
䚷㻌Internet Explorer 7 or higher running on Windows XP or Windows 7
䚷㻌JRE Version 8.0 or higher
Computer to monitor the
results of communications
diagnostics
For details, refer to Section 6 Browser Interface.
p.145

Section 1 System Configuration

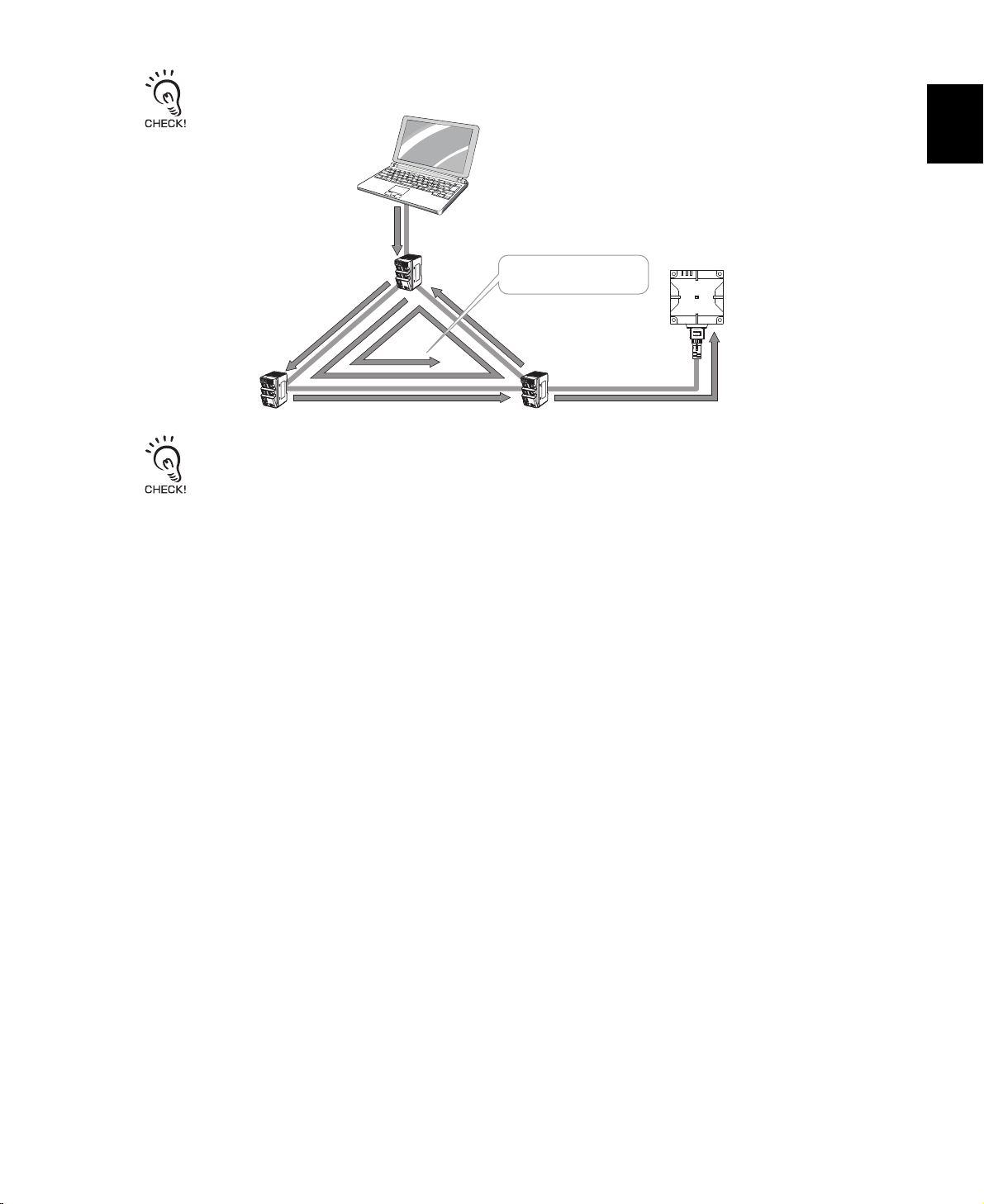

 About the Ethernet communication abnormality
If an Ethernet network is configured into a loop as shown below, broadcast packets are accumulated in the band, and
the communication is disabled. Therefore, do not configure the Ethernet network into a loop.
When a large amount of broadcast packets or multicast packets flow into the Ethernet network, Reader/Writers may
stop its operation. Please do not send a large amount of packet. Please separate the Reader/Writers from the network
segment that broadcast or multicast packets flow.
Sending broadcast storm
Reader/Writer
HUB
HUB
HUB Broadcast storm
Communication disabled

Section 1 Application Flowchart

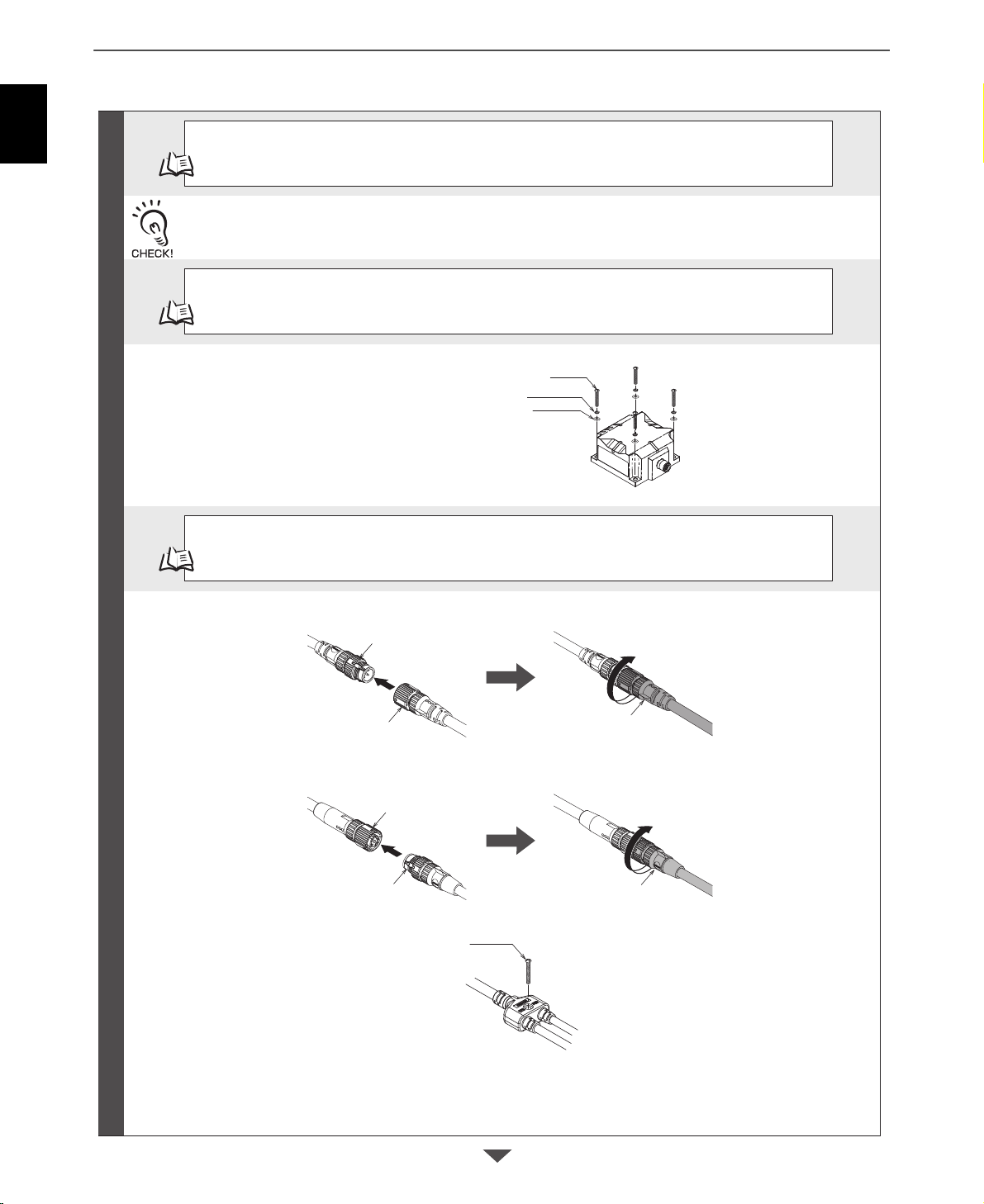

Application Flowchart
A simple application flowchart is described below. For correct application methods and details, refer to the
reference page or section given for each step.
Spring washer
Flat washer
M4 screw
Reader/Writer power supply connector
(M12 A-Coding, male)
Power supply connector on cable Power supply connector on cable
Ethernet connector on Reader/Writer
(M12 D-Coding, female)
Ethernet connector on cable Ethernet connector on cable
M4 screw
p.232
Checking the Installation Environment
Refer to Reader/Writer Installation Precautions in Section 8 Appendices to confirm the conditions under which
the RFID System will not be influenced by surrounding metal on the Reader/Writer or mutual interference
between Reader/Writers.
p.80
Installation
Install the Reader/Writer with four M4 screws.
V680S-HMD63-EIP: Use two screws.
V680S-HMD64-EIP/-HMD66-EIP: Use four screws.
p.92
Connections and Wiring
Connect the Power Cable to a 24-VDC power supply.
Connect the Ethernet Cable to the host device (PLC) or Switching Hub.
Preparations
Insert the Power Cable into the power supply connector on the Reader/Writer (M12 A-Coding, female) and turn
the cable connector on the Reader/Writer end clockwise to lock it in place.
Mount the Branch Cable with one M4 screw.
Recommended tightening torque: 0.39 to 0.49 N·m
Insert the Ethernet Cable into the Ethernet connector on the Reader/Writer (M12 D-Coding, male) and turn the
cable connector on the Reader/Writer end clockwise to lock it in place.
