INTRODUCTION
Thank you for purchasing the Omron Compressor Nebulizer System.
This product was developed in conjunction with respiratory therapists for the successful
treatment of asthma, allergies and other respiratory disorders. The compressor forces air
through the tubing to the nebulizer. When the air enters the nebulizer, it converts the
prescribed medication into a mist of microscopic droplets that are inhaled.
SAVE THESE INSTRUCTIONS
This unit is a medical device. Operate this unit only as instructed by your doctor
and/or respiratory therapist.
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 2

SAFETY INFORMATION
3
Read all the information in the instruction manual and any other literature included in
the box before using the unit.
When using an electrical product, especially when children are present, basic safety
precautions should always be followed including the following:
>CAUTION: Failure to read and observe all safety precautions could result in
personal injury or equipment damage.
• Disinfect the unit before using the device for the first time after purchase, if the device has
not been used for a long period of time, or if more than one person uses the same device.
• For type, dose, and regimen of medication follow the instructions of your healthcare provider.
• Provide close supervision when this device is used by, on, or near children or invalids.
• Keep the device out of the reach of infants and children. The device may contain small
pieces that can be swallowed.
• Do not use the device while sleeping or if drowsy.
• Operate the device only as intended. Do not use the device for any other purpose.
Use only authorized parts and accessories.
• Changes or modifications not approved by Omron Healthcare will void the user warranty.
Do not disassemble or attempt to repair the unit or components.
>WARNING: Risk of electrical shock
• Do not immerse the unit in water or other liquid.
• Do not operate the unit unattended.
• Do not use the unit while bathing.
• Never touch the unit with wet hands.
• Do not operate the unit with a damaged cord or plug.
• Do not block the air openings. Never place the unit where the air openings may be
obstructed during operation.
• Keep the power cord away from heated surfaces.
• Plug the unit into the appropriate voltage outlet.
• Unplug the unit immediately after use.
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 3

KNOW YOUR UNIT
4
co
1. MOUTHPIECE
2. POWER SWITCH (ON/OFF)
3. AIR TUBING CONNECTOR
4. PUMP FILTER (FILTER and FILTER COVER)
5. JET AIR NEBULIZER (NEBULIZER MEDICATION CUP)
6. AIR TUBING
7. AC POWER CORD
8. NEBULIZER CLIP
9. COMPRESSOR
2
7
5
4
1
6
3
8
9
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 4

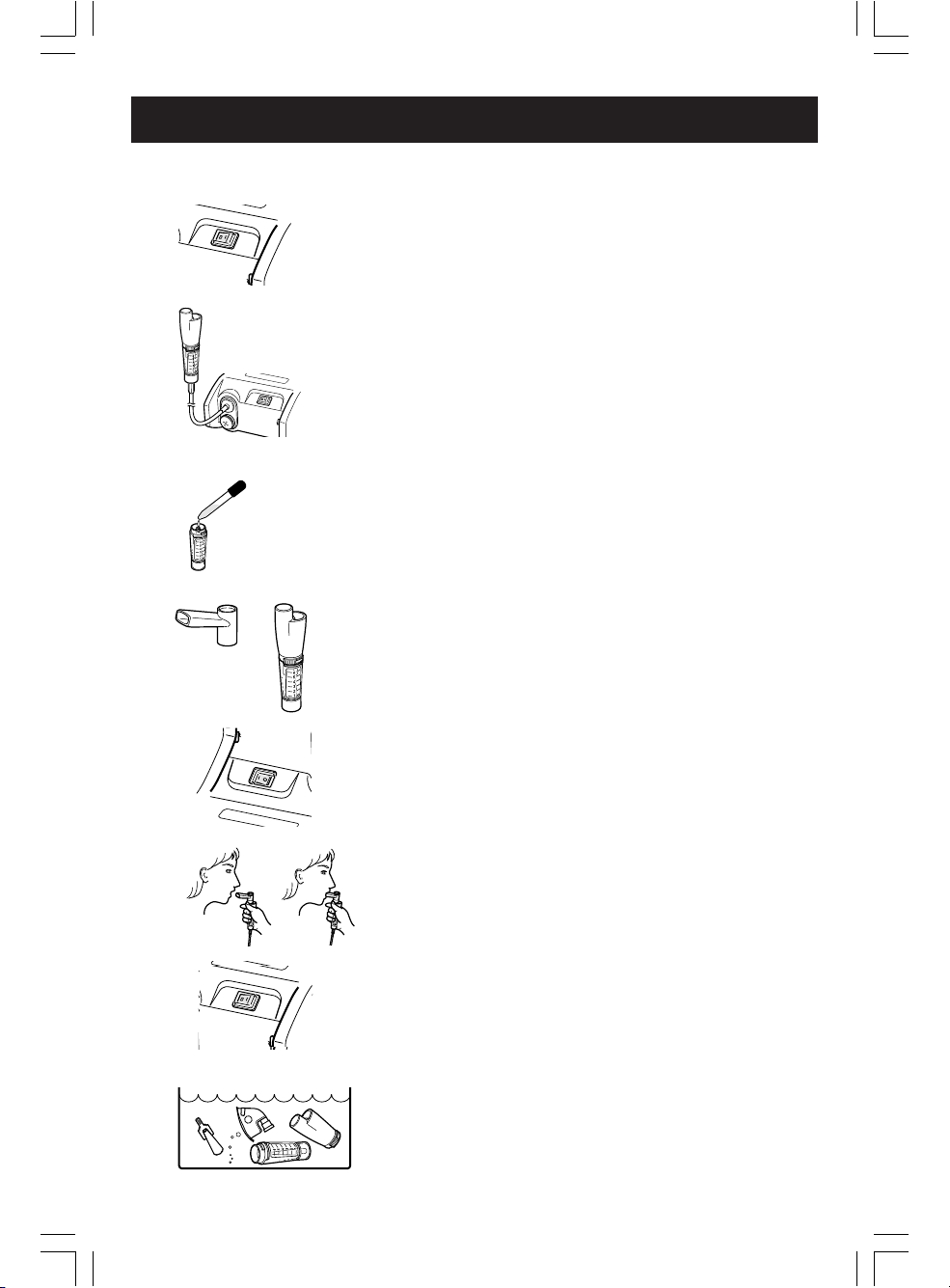

QUICK REFERENCE GUIDE
Make sure the compressor is turned off and the
power cord is disconnected from the
electrical outlet.
Attach one end of the air tubing to the base of the
nebulizer. Attach the other end of the air tubing
to the compressor.
Confirm the pick-up funnel is in the proper
position. Add the prescribed medication to the
nebulizer medication cup. Twist the top and
bottom sections together.
Attach the mouthpiece or mask to the Nebulizer.
Plug in the power cord of the compressor.
Turn the compressor on.
Take treatment as instructed by your
healthcare provider.
Turn the compressor off when treatment is
completed. Unplug the power cord.
Clean and store the nebulizer and compressor as
directed in this manual.
5
1
2
3
4
5
6
7
8
Read all the information in the instruction manual before using the
unit for the first time.
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 5

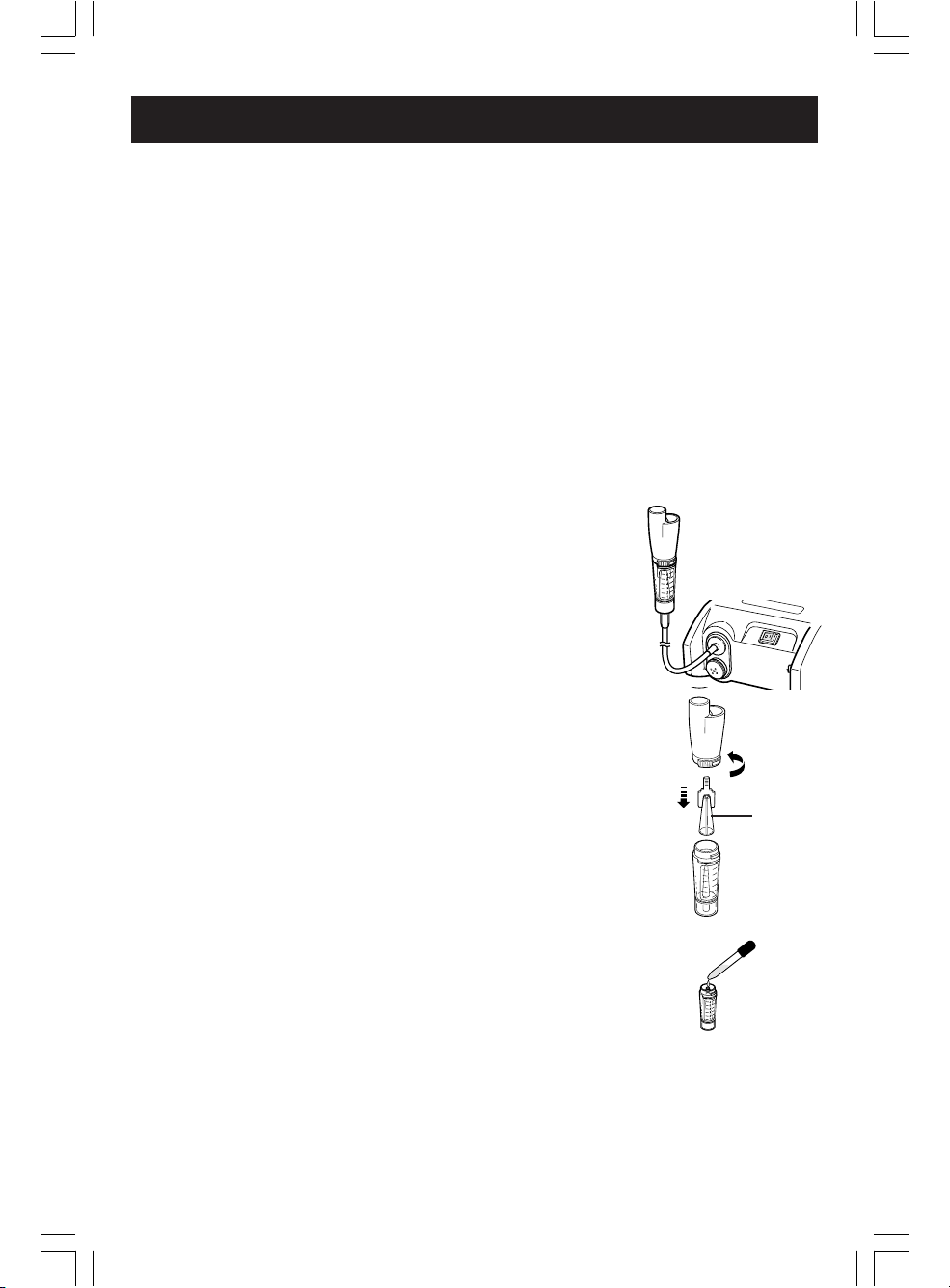

UNIT ASSEMBLY AND USAGE
Clean and disinfect the nebulizer and mouthpiece or mask before using the device
for the first time.
For directions on cleaning and disinfecting refer to pages 8 and 9 in this
instruction manual.
1. Place the compressor on a table or other flat stable surface. Make sure you can
easily reach the controls when you are seated.
> Caution: Make sure the power switch is in the off position
2. Remove the nebulizer, mouthpiece and air tubing from the carrying bag.
3. Attach one end of the air tubing to the air tubing connector
located on the front of the compressor. The air tubing must
be securely attached to the compressor.
4. Attach the other end of the air tubing to the base of the
nebulizer. Do not bend the air tubing, it will
constrict the airflow in the air tubing.
5. Gently twist and pull the nebulizer to separate the nebulizer
into two sections.
6. Insert the pick-up funnel into the bottom section of
the nebulizer.
7. Add the correct amount of prescribed medication to the nebulizer
medication cup (bottom section of the nebulizer). The maximum
capacity of the nebulizer medication cup is 6 ml.
> Caution: Do not add over 6 ml of medication to the medication cup
6
1
2
3
4
5
6
Funnel
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 6

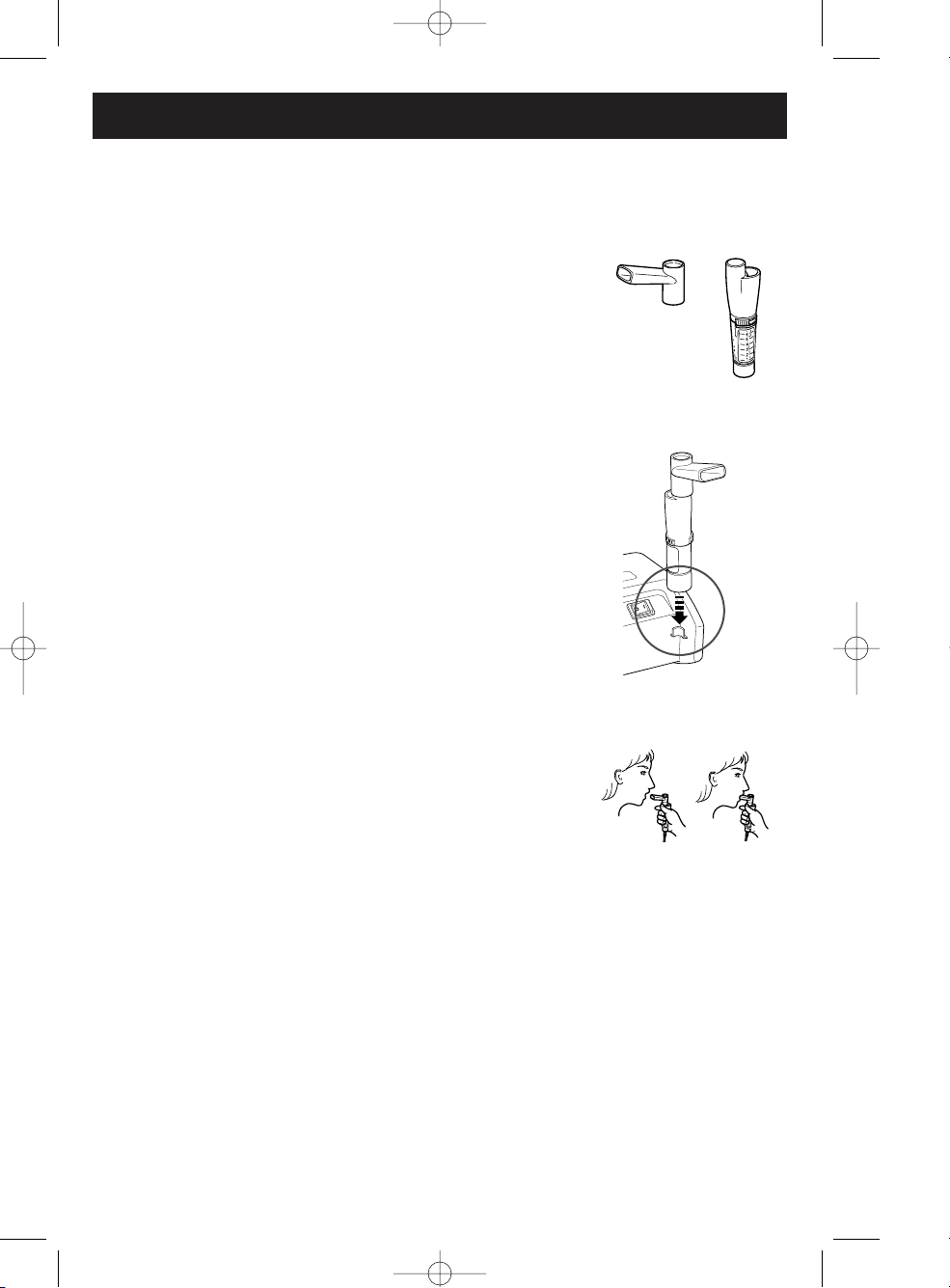

UNIT ASSEMBLY AND USAGE
7
8. Assemble the nebulizer. Gently twist the top and bottom sections together.
Make sure the two sections fit securely.
9. Securely attach the mouthpiece or mask to the top section of
the Jet-Air nebulizer as illustrated.
10. Place the nebulizer on the nebulizer clip on the front of
the compressor.
11. Plug the power cord into the correct voltage electrical outlet.
Remove the nebulizer from the nebulizer clip.
Turn the compressor on.
12. Begin treatment according to your doctor’s and/or
respiratory therapist’s instructions. Medication is
dispensed as you tilt the nebulizer towards your mouth.
13. When treatment is complete, turn the compressor off
and immediately unplug the unit from the electrical outlet.
14. Clean and store the nebulizer and compressor as directed
in this instruction manual.
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 7

8
CLEANING AFTER EACH USE
Following the cleaning instructions after each use will prevent any remaining
medication in the bottle from drying resulting in the device not nebulizing
effectively.
Important:
Thoroughly rinse the nebulizer and the mask or mouthpiece with hot
tap water after each use, and clean with a mild detergent after the last
treatment of the day. Do not give heavy stress to the funnel or drop it.
Do not start operation before the cleaned parts are completely dried.
1. Remove the mouthpiece or mask from the nebulizer.
2. Disconnect the air tubing from the nebulizer.
3. Gently twist and pull the nebulizer to separate the nebulizer into two sections.
4. Remove the funnel from the bottom section of the nebulizer.
5. Rinse both sections of the nebulizer, mouthpiece or mask, and funnel
with hot tap water.
6. Dry with clean paper towels or allow the parts to air dry in a clean
environment.
7. Assemble the device. Put the parts in a dry, sealed bag and place in the
storage pocket of the carrying bag.
THERMAL PROTECTOR
The compressor has a thermal protector which will turn the power off before
the compressor overheats. If the thermal protector shuts the power off:
1. Turn the compressor off.
2. Unplug the power cord from the electrical outlet.
3. Make certain the air slots on the compressor are not obstructed.
4. Wait 30 minutes for the motor to cool.
5. Restart the compressor.
6. If you are still experiencing problems, contact your healthcare dealer
for assistance.

DAILY DISINFECTING
9
Two different methods of disinfecting the parts may be used. Disinfecting daily
by soaking in a vinegar solution or using a commercially available medical
disinfectant. If your doctor or respiratory therapist specifies a different cleaning
procedure follow their instructions.
Disinfect the nebulizer and the mask or mouthpiece after the last
treatment of each day.
VINEGAR METHOD
1. Make a solution of 1 part white vinegar and 3 parts distilled water.
Make enough solution to submerge the parts.
2. Remove the mouthpiece or mask from the nebulizer.
3. Disconnect the air tubing from the nebulizer.
4. Gently twist and pull the nebulizer to separate the nebulizer into two sections.
5. Remove the funnel from the bottom section of the nebulizer.
6. Wash both sections of the nebulizer, mouthpiece or mask, and funnel in
warm water and mild detergent and rinse in hot tap water, or wash
in the dishwasher.
7. Submerge the parts in the white vinegar and distilled water solution
for 30 minutes.
8. Remove the parts and discard the solution. Rinse the parts with hot tap water.
9. Dry with clean paper towels or allow the parts to air dry in a clean environment.
10. Assemble the device. Put the parts in a dry, sealed bag and place in the
storage pocket of the carrying bag.
MEDICAL DISINFECTANT METHOD
Consult your doctor or respiratory therapist regarding the use of medical
disinfectant cleaners.
Carefully follow the instructions supplied by the manufacturer of the
medical disinfectant.
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 9

CARING FOR THE DEVICE
To keep your device in the best condition and protect the unit from damage
follow these directions:
• Do not subject the device or the parts to any strong shocks such as dropping the
device on the floor.
• Do not store the device in extreme hot or cold temperatures, high humidity
or under direct sunlight.
• Use only Omron Parts and Accessories.
CLEANING THE COMPRESSOR
Clean the casing of the main unit daily by using a soft cloth moistened with water
or a mild detergent. Wipe the casing and immediately dry using a soft clean cloth.
> Caution:
• Do not rinse or immerse the compressor in any liquid.
• Do not clean using abrasive cleaners.
STORING THE DEVICE
1. Put the nebulizer kit and the mouthpiece or mask in a dry, sealed bag and place in the
storage pocket of the carrying bag.
2. Coil the air tubing and place in the storage pocket.
3. Place the compressor in the carrying bag and zipper the bag closed.
4. Store the device in a safe area.
FILTER CHANGE
Change the filter every 30 days or when the filter turns gray.
1. Pull the filter cover out to expose the filter compartment.
2. Remove the dirty filter with a small pointed object.
3. Replace with a new, clean Omron filter.
4. Close the filter by inserting cover back into the filter compartment.
> Caution:
• Do not attempt to wash or clean the filter. Do not substitute cotton or any other
material for the filter. Do not operate without a filter.
PUMP MAINTENANCE
> WARNING: Electrical Shock Hazard
• Do not attempt to open or disassemble the unit housing. There are no user
serviceable parts.
• Do not attempt to lubricate any parts. This unit does not require oil.
• Maintenance must be performed by an authorized service center.
Unauthorized service will void the user warranty.
10
EN-02-11[CX4]-5 3/1/04 9:45 AM Page 10

SPECIFICATIONS
11
1. MODEL 9329 – Replacement Nebulizer Kit, includes:
(A) Nebulizer Cap (C) Air Tube
(B) Mouthpiece (D) Medication Tank
2. MODEL 1130 22000 – Adult Mask
3. MODEL 1130 21000 – Child Mask
4. MODEL 8403 – Replacement Filters (5)
5. MODEL 8411 – Disposable Nebulizer Kit, includes:
(A) Nebulizer (C) Air Tube
(B) Mouthpiece (D) Tee Adapter
Specifications and appearance are subject to change without notice for purposes of improvement.
COMPRESSOR under typical condition
Dimensions: 158 (W) x 100 (H) x 175 (D) mm
Weight: 3.7 lbs (1.7 kg)
Sound Level: 60 dBA (with Jet Air Nebulizer)
Electrical: 230V/50Hz Model
230V/60Hz Model
Power Consumption: 230V/50Hz Model: 85 watts
230V/60Hz Model: 110 watts
COMP-AIR® COMPRESSOR NEBULIZER SYSTEM (Compressor and Jet Air Nebulizer)
Maximum Pressure: 26 psi (180 kPa)
Maximum Air Flow: 8.0 L/min
Nebulizer Rate: 0.20 mL/min average
Particle Size: MMD approximately 5 µm
(Measured by OMRON based on EN13544-1)
Medication Capacity: 6 mL (cc)
Operating Temperature/Humidity: 10°C to 40°C
10% to 90% RH
Storage Temperature/Humidity: -25°C to 60°C
10% to 95% RH
Contents: Compressor, Jet Air Nebulizer, Air Tube, Mouthpiece,
Child Mask, Adult Mask, 5 pcs Replacement Filters,
Instruction Manual, Carrying Bag
PARTS AND ACCESSORIES

1
NE-C25
TC-01-13[CX4]_14APR08 5/9/08, 4:39 PM1

2

 KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK O
 ! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK P
 ! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK Q
 !"#KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK R
 !"#$ KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK SJT
 !" KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK U
 !"#$% KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK U
 ! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK V
 ! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NM
 KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKNN
 ! KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK NN

 !"=lãêçå= = !"#$%&'
 !"#$%&'()*+,-.&/0123456"#$789 :;<* >
 !"#$%&'()*+,-()*./%0#123456789:;< >?@

 !"#$%&'()*"+, L !"#$%&'()*+,-.
 !"#
TC-01-13[CX4] 3/1/04, 9:41 AM2

3
 !
 !"#$%&'()*+,-./#0123*+4567'(89:
 !"#$%&'()*+,-./01$2345678/9:;< >?
>=  !"#$%&'()*+,-./0123456789:;
• !"#$%&'()$%*+,-$%."/0 12345678
• !"#$%&'()*+,-./01234567$89:
• !"#$%&'#(!"#$%&'#)*!"#$%&+,-.'/0
 !
• !"#$%&%'()*+,-./0123456789,:;< /
• !"##$%&'()*+,-./
• !"#$%&'#()*+#,-.#()
 !"#$%&'()*+),
•=lãêçå=eÉ~äíÜÅ~êÉ= !"#$%&'()*+$,-.
 !"#$%&'()*+,
>=  !"
• !"#$%&'()*+,-
• !"#$%&'()*
• !"#$%&'(
• !"#$
• !"#$%&'()*+,-./
• !"#$%&'()*+,-"#$./0 !123%
• !"#$%&'(
• !"#$"%&'()*+,-./
• !"#$%&'()*+
TC-01-13[CX4] 3/1/04, 9:41 AM3

4
co
1
2
3
4
5
9
6
8
7
 !
NK  !
OK  ! L
PK  !"
QK  !"# !"#$%&
RK   !"#$
SK 
TK  !"
UK 
VK 
TC-01-13[CX4] 3/1/04, 9:41 AM4

5
11
11
1
22
22
2
33
33
3
44
44
4
55
55
5
66
66
6
77
77
7
88
88
8
 !"#
 !"#$%&'()*+,-./01234
 !"#$%&'()*+,-.,/$012
 !"#$%&'()!*+, -"#./0
 !
 !"#$%&'$()*+,-./0123
 !"#$%&'()*+,-.!
 !"#$%&'()*+,
 !"#$%&'
 !"#
 !"#$%&'()*+
 !"#$%&'()*%&'+,-.(
 !"#$%&'()*+,-
TC-01-13[CX4] 3/1/04, 9:41 AM5

6
 !"#$
 !"#$%&'()*+,-./0 !" !"#$
 !"#$%&'()*+,-./%0=U V=
NK  !"#$%&'()*+,&-./0123456
 !"
>= = !"#$%&$'%(
OK  !"#$%&'()*+,-./012
PK  !"#$%&'()*+! $%,-
 !"#$%&
QK  !"#$%&'()*!+,-./01 2
 !"#$%&'()*
RK  !"#$%&'()*+,-./012345
SK  !"#$%&'()*+
TK  !"#$ !"#$ !"#$%&'()
 !"#$%&'()*+,-=S=
>= !"#$%&'()*+=S= !"
1
2
3
4
5
6

TC-01-13[CX4] 3/1/04, 9:41 AM6

7
 !"#$
UK  !"#$$%& !"'()*+),-./#
 !"#$%&'()*
VK  !"#$%&'()*+,-./01234
NMK  !"#$%&'()*+,-
NNK  !"!#$%&'(!)*
 !"#$%&'
 !"#$%
NOK  !L !"#$%&'()"#*+,-./012
 !"#$%&'()*
NPK  !"#$%&'()*+#,-+./0123/45

NQK  !"#$%&'()*+,'-./0
TC-01-13[CX4] 3/1/04, 9:41 AM7

8
 !"
 !"#$%&'()* $%+,-./01234$%&'(/012+)5
 !"#$%
NK  !"#
OK  !"#$%&'
PK  !"#$%&'()*+,-
QK =PM= !"#$%
RK  !"#$%
SK  !"#$%&'()*+,- ./0123456789:;<
 !"#$%&'
 !"#$%&'()&'*+,-./0123456789:;<, >?@AB
 !"#

 !"#$%&'()*+,-./-0123456*78.9+:;-.< ,
 !"#!$%&'()*+,-.%/012!"3456789&':%
NK  !"#$%&'()*+,
OK  !"#$%&'(
PK  !"#$%&'()*+,-./012345
QK  !"#$%&'(")
RK  !"#$%&'()*+,-./01234
SK  !"#$%&'()*+,$-./0(1
TK  !"#$%&'()*+,-./01234-5"
TC-01-13[CX4] 3/1/04, 9:41 AM8

9
 !
 !"#$%&'()*+,-./0123456789:;< >?@ABCD
 !"#$%&'()*+,-./0123456789:;< >?5.@"
 !"#$%&'($)*+,-./012 !"#$ !"#$
 !"
NK =NWP= !"#$%&'()*+
 !"#$%&'()*+,-./0 123
OK  !"#$%&'()*+,
PK  !"#$%&'(
QK  !"#$%&'()*+,-./0123
RK  !"#$%&'(")
SK  !"#$%&'(&)*+,-./01234-56789:;< >"#?
 !"#$%&'()*
TK  !"#$%&'()*+,-./0123=PM=
UK  !"#$%&'()*+,-./$%0123+
VK  !"#$%&'()*!+,-.%/
NMK  !"#$%&'()*+,-./012345.6#
 !"
 !"#$%&'()*+,-./0123456789:
 !"#$%&'()*+,-*./01
TC-01-13[CX4] 3/1/04, 9:41 AM9
