Omron VIBRATING MESH NEBULIZER NE-U22V User manual

INSTRUCTION MANUAL
VIBRATING MESH NEBULIZER
Model NE-U22V
®
CAUTION: Federal law restricts this device to sale by or on the order of a
physician and/or licensed healthcare practitioner.
English Français Español
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 1

2
TABLE OF CONTENTS
Before Using the Device
Introduction.............................................................................. 3
Safety Information .................................................................... 4
Know Your Unit ...................................................................... 7
Accessories and Replacement Parts................................................ 8
Unit Assembly............................................................................ 9
Operating Instructions
Battery Installation .................................................................... 11
Using the AC Adapter ................................................................ 12
Filling the Medication Bottle ........................................................ 13
Selecting the Nebulization Mode .................................................. 14
Using the Device ...................................................................... 15
Care and Maintenance
Cleaning after Each Use.......................................................................... 16
Daily Disinfecting ...................................................................... 17
Caring for the Device .................................................................. 18
Troubleshooting
Troubleshooting Guide ................................................................ 20
Warranty Information ................................................................ 22
FCC Statement ........................................................................ 23
Specifications ............................................................................ 24
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 2

3
INTRODUCTION
Thank you for purchasing the Omron®NE-U22V MICROAir®Vibrating Mesh Nebulizer.
Omron Healthcare has moved forward in the development of electronic nebulizer technology with
the introduction of the NE-U22V MICROAir®Vibrating Mesh Nebulizer. Focusing on patient
convenience and compliance as its goal, this device offers ultimate portability for wherever you go
and revolutionary vibrating mesh technology that provides a precise, powerful and effective
treatment every time.
The MICROAir®is a vibrating mesh nebulizer system designed to aerosolize liquid medications for
inhalation by the patient. The device may be used with pediatric and adult patients in the home,
hospital, and sub-acute care settings.
Your NE-U22V MICROAir®comes with the following components:
• Main Unit
• Unit Cover
• Medication Bottle
• Mesh Cap
• Mask and Mouthpiece Adapter
• Mouthpiece
• Storage Case
• Instruction Manual
• Instructional DVD
The following are optional accessories sold separately:
• AC Adapter
• Child Mask
Fill-in for future reference
DATE PURCHASED:
SERIAL NUMBER:
Staple your purchase receipt here.
The MICROAir®is a prescription medical device. Operate this device only as
instructed by your physician and/or licensed healthcare practitioner.
SAVE THESE INSTRUCTIONS
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 3

4
SAFETY INFORMATION
To assure the correct use of the product basic safety measures should always be
followed including the warnings and cautions listed in this instruction manual.
OPERATING THE DEVICE
Read all the information in the instruction book and any other literature
included in the box before using the unit.
For type, dose, and regimen of medication follow the instructions of your
physician and/or licenced healthcare practitioner.
Pentamidine is not an approved medication for use with this device.
Do not use tap or mineral water in the nebulizer for nebulizing purposes.
Clean and disinfect the Medication Bottle, Mesh Cap, Mask, Mouthpiece
and Mask and Mouthpiece Adapter before using the device for the first time
after purchase.
If the device has not been used for a long period of time, clean and disinfect
the Medication Bottle, Mesh Cap, Mask, Mouthpiece, and Mask and
Mouthpiece Adapter before using them.
Always dispose of any remaining medication in the medication cup after each
use. Use fresh medication each time you use the device.
Do not leave the device or its parts where it will be exposed to extreme
temperatures or changes in humidity, such as leaving the device in a vehicle
during warm or hot months, or where it will be exposed to direct sunlight.
SAFETY ICONS USED IN THIS INSTRUCTION MANUAL
WARNING Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury
to the user or patient or damage to the equipment or
other property.
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 4

5
IMPORTANT SAFETY NOTES
OPERATING THE DEVICE (continued)
Provide close supervision when this device is used by, on, or near infants,
children or compromised individuals.
Inspect the main unit and the nebulizer parts each time before using the device.
Make sure no parts are damaged, the device is assembled properly, and the
device operates normally.
To prevent damage to the device, add the medication slowly. Do not allow the
medication to overflow the Medication Port.
Do not add more than 7 mL of medication to the medication cup.
To prevent damage to the device, make sure that the Mesh Cap is correctly in
place. If the Mesh Cap is not properly closed, medication will leak.
Do not operate the device at temperatures greater than +104º F (+40º C).
Do not subject the device or any of the components to strong shocks, such as
dropping on the floor.
This device is approved for human use only.
Do not disassemble or attempt to repair the device or components.
Operate the device only as intended. Do not use the device for any other purpose.
Dispose of the device, components and optional accessories according to
applicable local regulations. Unlawful disposal may cause environmental pollution.
Use only Omron authorized parts and accessories. Parts and accessories not
approved for use with the device may damage the unit.
Changes or modifications not approved by Omron Healthcare will void the
user warranty.
RISK OF ELECTRICAL SHOCK WHEN USING THE AC ADAPTER
Do not plug or unplug the power cord into the electrical outlet with wet hands.
Use only the AC adapter designed by Omron for this device. Use of any other
AC adapter may damage the device.
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 5

6
IMPORTANT SAFETY NOTES
RISK OF ELECTRICAL SHOCK WHEN USING THE AC ADAPTER
(continued)
Do not overload power outlets. Plug the device into the appropriate voltage outlet.
Do not use extension cords. Plug the power cord directly into the electrical outlet.
Unplug the power cord from the electrical outlet after using the device.
Unplug the power cord from the electrical outlet before cleaning the device.
MAINTENANCE AND STORAGE
Keep the device out of the reach of unsupervised infants and children. The
device may contain small parts that can be swallowed.
Do not immerse the main unit in water or other liquid.
Do not use or store the device in humid locations, such as a bathroom. Use the
device within the operating temperature and humidity.
Do not leave the cleaning solution in the nebulizer parts. Rinse the nebulizer
parts with distilled water after disinfecting.
Rinse the nebulizer parts after each use. Dry the parts immediately after washing.
Store the device and the components in a clean, safe location.
To prevent damage to the device, do not carry or leave the Medication Bottle
filled with medication or distilled water.
Do not place or attempt to dry the device or any of its parts in a microwave oven.
To prevent damage to the device, do not rinse or immerse the Main Unit in any
liquid, do not wash or rinse any of the parts under strong running water, and do
not touch the mesh with your hand or any object.
Do not use household bleach. The mesh will rust and the Mesh Cap cannot be used.
To prevent damage to the device, do not clean the Main Unit using abrasive
cleaners or any type of chemical, and do not allow any moisture to contact the
electrodes or the AC Adapter jack on the Main Unit.

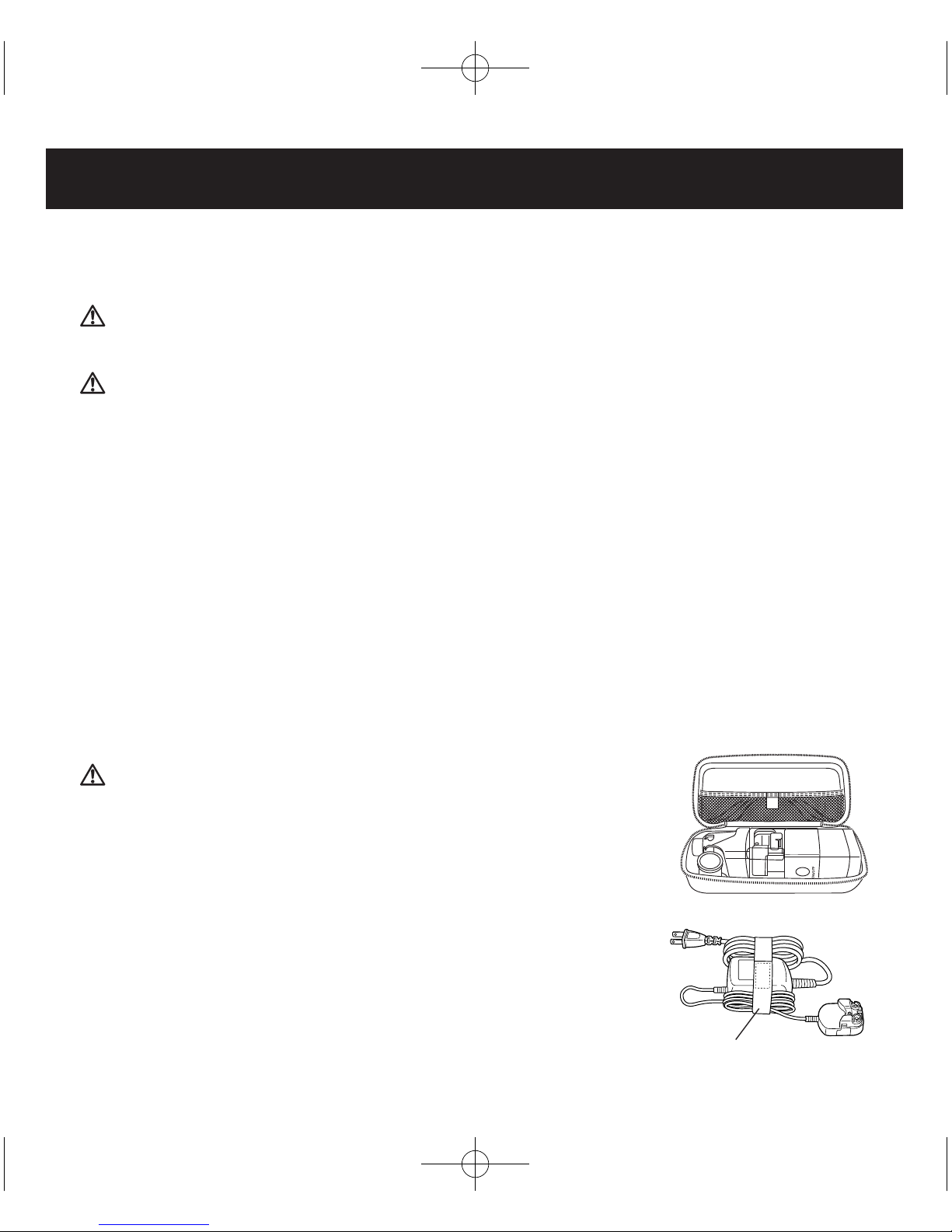

Do not put the AC Adapter in the Storage Case. The Storage Case is not
intended to carry the AC Adapter.
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 6

7
ON/OFF Button
Turns the power for the
Main Unit on and off
Bottle Cap Locking Lever
Opens the Medication Bottle for cleaning
Medication Bottle
Holds maximum capacity of 7mL for treatment
Medication Port
Add the medicine to the bottle
®
Electrode
Power conductor from the Main Unit
to the vibrator on the Medication
Bottle
Battery Low Indicator
An orange light blinks when the
batteries
are worn
Power Indicator
The green light shows the power is on
Main Unit
Bottom of Main Unit
Battery Cover
Push lever to
remove cover
Medicine Bottle Mesh Cap
Metal Alloy Mesh creates
high efficiency aerosol
Mask and Mouthpiece Adapter
Mouthpiece
Main Unit Cover
Protects the Main
Unit with the
attached
Medication Bottle
and
Mesh Cap
during storage
Holds the Mouthpiece or Mask
securely on the device
Patient Interface
KNOW YOUR UNIT
Electrode
Power conductor from the Main
Unit to the AC Adapter
Connection Stand
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/19/09 2:37 PM Page 7

8
KNOW YOUR UNIT
Instruction Manual
Storage Case
Instructional DVD
Power Plug
Cord Band
AC Adapter Connection Stand
Case holds the Main Unit,
Medication Bottle, Mask and
Mouthpiece Adapter
AC Adapter Model No. U22-5
Optional Accessory
Optional Accessory Replacement Parts
Model No.
BATTERY COVER U22-8
MAIN UNIT COVER U22-9
MASK AND MOUTHPIECE
ADAPTER U22-2
MEDICATION BOTTLE U22-3
MESH CAP U22-4
MOUTHPIECE U22-1
STORAGE CASE U22-7
Child Mask
Model No. C922
Patient Interface
for pediatric use
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 8

9
PREPARING THE NEBULIZER FOR USE
Insert the
Mesh Cap
vertically.
Do not open
the Bottle Cap.
Close it
securely.
You have finished
installation
.
WARNING
Read all the information in the instruction book and any other literature included
in the box before using the unit.
WARNING
Clean and disinfect the Medication Bottle, Mesh Cap, Mask, Mouthpiece and Mask
and Mouthpiece Adapter before using the device for the first time after purchase.
WARNING
If the device has not been used for a long period of time, clean and disinfect the
Medication Bottle, Mesh Cap, Mask, Mouthpiece, and Mask and Mouthpiece
Adapter before using them.
For directions on cleaning and disinfecting go to page 16 and 17 under Care and Maintenance.
The device must be assembled before it is used.
General Information
• Components may fit tightly since they are made to prevent the medication
from leaking.
• Hold the device securely with both hands.
• Install the parts securely. You may hear a click sound as you install some of the parts.
1. Attach the Mesh Cap to the Medication Bottle.
Click
NE-U22V_EN_FR_SP_Q6_6.3L.qxd 2/18/09 3:13 PM Page 9

10
PREPARING THE NEBULIZER FOR USE
You have finished
installation.
You have finished
assembly. You have finished
assembly.
Align both
electrodes with
each other.
You have finished
installation.
Click
2. Attach the Medication Bottle to the Main Unit.
3. Attach the Mask and Mouthpiece Adapter to the Main Unit.
4. Attach the Mouthpiece or the Child Mask to the Mask and Mouthpiece Adapter.
• How to attach the Child Mask • How to attach the Mouthpiece
