OPCOM Hydroponics Grow Wall3 User manual

Please read and follow every steps to avoid any malfunction.
B2.Young Plant Stage
1. In each sponge, keep the strongest and thicker ones and remove others.
2. Add 10.5 gallons water to the water tank.
3. During Young Plant Stage, turn on LED and Pump . Please refer to the ChartII.
4. Add NT-Starter into the water tank and ensure EC value between(=1.0-2.0mS/cm)
5. Ensure pH between 5.5-6.5 (adjust by pH+/-). For EC& pH adjustment instruction, please
refer to following Chart at below.
B3. Growing Stage
B. Seedling
Status
NT-Adjuster
0.0-0.5
(Add 2pc)
0.5-1.0
(Add 1pc)
1.0-1.5
Standard range
over 2.0
Add water
Satus
pH+
pH-
4.0-4.5
Add 3pc
4.5-5.0
Add 2pc
5.0-5.5
Add 1pc
5.5-6.5
Standard range
Standard range
6.5-7.0
Add 1pc
7.0-7.5
Add 2pc
lortnochctiws,thgiehsehcni2revootworgstnalp
nehW.1 box to auto mode. Please refer to Chart II.
2. After 4-6 weeks, harvest the larger plants for consumption and keep smaller plants growing.
3. For time saving, sow the new seeds in sprout tray one week before you start next planting process.
4-6 weeks
Harvest
Cut off Large leaf
1 week
Keep
for regrow
1. Before you start next seedling, take advantage of the seedling tray for sprouts and microgreens it takes 7-10 days to harvest.
2. Put seeds in warm water(recommeded temperature is 95 , not over 104 ) for 24 hours.
3. Cover the sponges with wet paper towels.
4. Place the seedling tray with cover in the shade or cover it with black cloth.
5. After germination, during the growing stage, keep green sprout under the light and white sprout in the shade or cover it
with black cloth; in 7-10 days, you can harvest.
Day 7-10Day 0 Day 1
Green sprout White sprout
Plant Size
Sponge Number
Planting number
How to Set up x 5 Layer
Medium-Large
88
62 (70%)
Plant Size
Sponge Number
Planting number
How to Set up x 5 Layer
Small
175
123 (70%)
Chart II: Plant Stage
Basil, Lemon Balm
Sprout Stage
Planting Time
Day 0~7
LED Mode
N/A
Pump Mode
N/A
Notes
* For your expected plant amount, you can refer to the sprout rate of 1st planting cycle.
* If you need more planting information, please vist to www.opcomfarm.com and read “Plant Q&A”.
Nourishment
N/A
T ( )
68 - 77
RH
80%
EC
0.5-1.0
pH
5.5-6.5
Young Plant Stage Day 3~14 ON ON NT-Starter 59 - 86 45%-70% 1.0-2.0 5.5-6.5
Growing Stage After Day 14 Auto Auto NT-Adjuster 59 - 86 45%-70% 1.0-2.0 5.5-6.5
Be sure each sponge is fully wet in
seedling tray.
* Please keep the seeds in refrigerator if you don’t use it, recommended temperture is 41 -50. 
(Fig4)
(Fig3)
This side up!
(Fig2）
(Fig1）
1. Add water to the seedling tray, up to the water (red) level.(Fig1)
2. First time sprout: just open the seedling box and add water. Then go to step 4. (Fig 1)
3. Second time sprout: Open Grow Sponge package,put each sponge piece into water of seedling tray
(make sure the front side with the seed label is side up), press the sponges into water 5 seconds and
ensure the sponges absorb water completely. Put seed moisturizing cover on the sponges.(Fig2)
4. Place the seedling tray with cover in the shade.(Fig3)
5. Suggest use watering can spray water to sponges and keep them wet everyday.
6. During 0 ~ 7 days, find the sprouted ones in the tray; pick them out, and move them into product (make
sure the sponges lineup with the black dot on the partition)(Fig4) and to next stage: B2. Young Plant Stage.
7. Discard unsprouted sponges after regular germination time.
* Different plant may have different germination time, please check before plant.
B1. Sprout Stage
C. Sprouts and Microgreens.
FF
L4
L5
L3
L2
L1
Grow Wall3

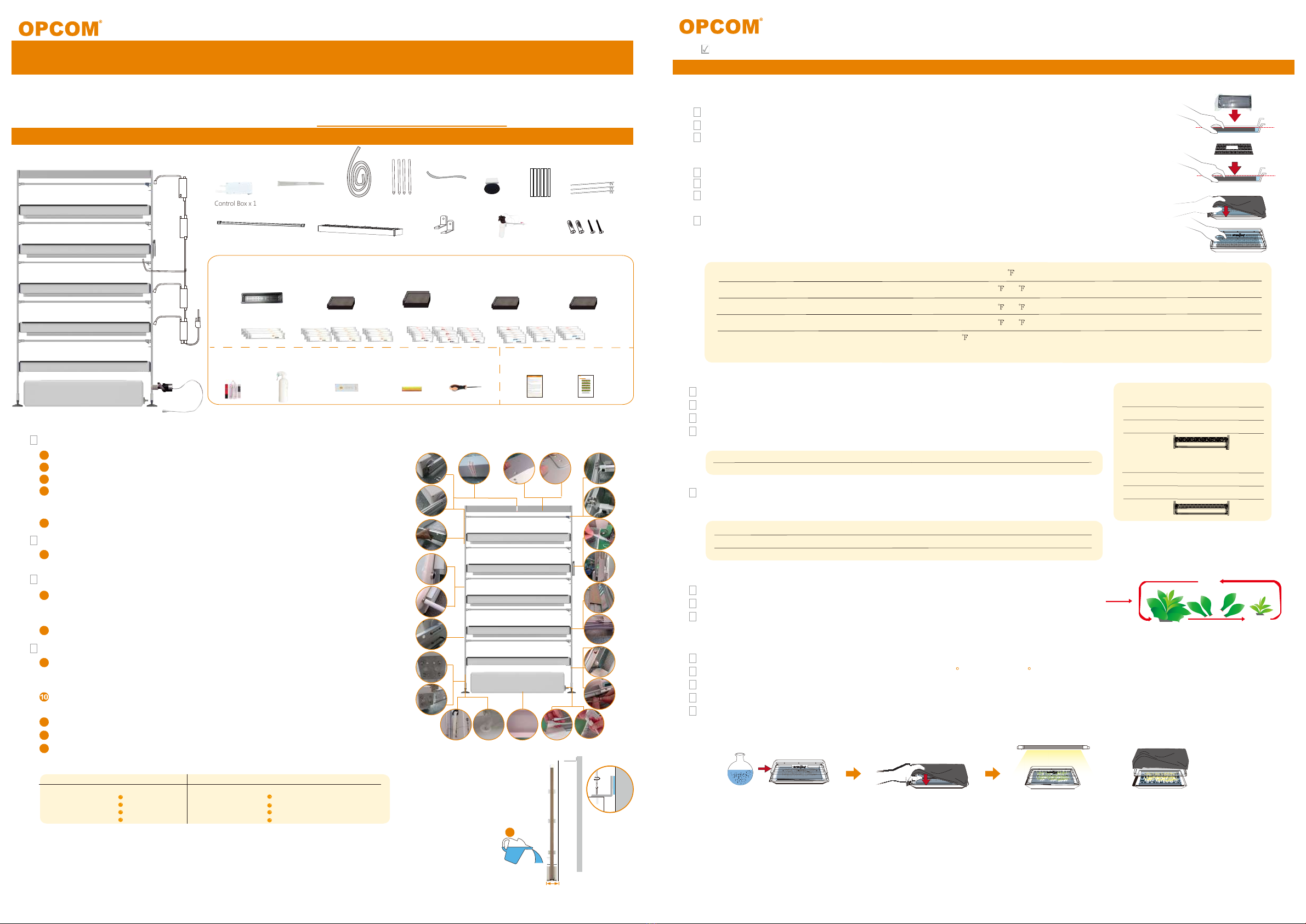

A. Assembly
efficient growth by one-touch AUTO mode.lt holds up to 80 plants capacity. Read the quick guide carefully before setting it up.
For detailed user guide video, please visit GrowWall3 page at http://www.opcomfarm.com/Growwall3
Thank you for purchasing OPCOM Farm GrowWall3, the indoor hydroponics growing system. lt is designed for easy to use and
A1. Remove all the parts from box and check all the accessories
L1
L2
L3
L4
L5
Chart I: Control Box Mode
Status
Auto
ON
High
Low
OFF
Fuction
Pump
Light Time(On/Off)
12 cycles/day
4 cycles/day
2 cycle/day
0 cycle/day
( 30 mins/cycle )
( 30 mins/cycle )
( 30 mins/cycle )
( 30 mins/cycle )
Status
Auto
O N
High
Low
OFF
Fuction
LED
Light Time(On/Off)
12H/12H
24H/0H 24 cycles/day
18H/6H
6H/18H
0H/24H
A2. Assemble GrowWall3
1. Assembly
1
The side column parts are assemble fixed to the L1 water tank.(Fig1.2)
2
L2 fixed with L3 water tank,follow this step until finish L5 assembly.(Fig3)
3
Fixed L5 side column parts with beam.(Fig4)
4
The beamparts is fixed in the lifting rod head and the lamp head lifting assembly,
then can move the tape and the lifting rod fixing piece is stuck in the lifting rod
fixing piece. (Fig5 .6 .7)
Assembly cable from side column, and DC connector fixed with screw cap.(Fig8.9)
5
2. Water Line Set Up
Connect the hose to the pump, move through the hole on the left side of the tankto
the slot on the right, and move upward fromthe lower layer to layer L5.(Fig10.11)
6
3. Electric Line Set Up
7
Insert three pieces of maple plank from the side column in turn. Clip the lifting
rod into the fixing piece, and then tighten the lifting trigger of the third column
on the right with the screw.(Fig12.13)
8
LED lamp head stuck in each layer of lifting corresponding hole.(Fig14.15 )
4. Other Installations
9
Insert the L1, L3, L5rigid water pipe on the right into the slot on the right, insert the
rigid water pipe into the L2and L4 layer on the left according to the same steps, and
then put the water pipe into the water tank.(Fig16.17 )
11
Add 8 gallons (90% full) of water to the tank.(Fig20 )
12
Attach the controlbox to the marked position and insert the pump power supply.(Fig21.22)
13
Connect the main power supply and start the switch.(Fig23.24)
LED Growth Lightx5
Control Box x 1
Wall Mount Brackets x 2pcs
Base Standx2
Planting tray x5pcs
* Most plants can de grown using the AUTO mode.
* a. When Power On, press hold POWER button until 1 beep sound (Less than 2 second) to turn off the power.
b.When Power On, press hold POWER button until 2 beep sound (About 5 second) to reset timeline to auto power on
(On/Off 16H/8H).
* a.When Power Off, press hold POWER button until 1 beep sound (Less than 2 second) to turn off the power.
b.When Power Off, press hold POWER button until 2 beep sound (About 5 second) to reset timeline to auto power off
(On/Off 8H/16H).
Hose x 1
Seedling Tray(ST-70) x2pcs
(665*175*65mm)
Grow Kits
Warranty Card Quick Guide Manual
Grow Sponge 4 x 60pk
(OASP001)
1. EC & pH
Meter x1pc
Accessories Manual
4.Cleaning s
ponge x1pc
2. Water Spray x1pc 3. Remote Controller x 1pc
Grow Sponge 3x60pk
(OASS001 For Green Lettuce)
Grow Sponge 3x60pk
(OASS006 For Basil)
Grow Sponge 3 x60pk
(OASS002 For Red Leaf Lettuce)
NT-Starter 40gx3pcs
(OANT006 for 40L)
NT-Adjuster 20gx15pcs
(OANT008 for 40L) pH+ 2.2gx15pcs pH- 6gx15pcs
QuickGuide Manual
Grow Wall3
Hydroponics Gre en Wall3
2
maple plank x6
Tube(2) x 1
8 gallons（30L）
9
7.87 inch
2
1
1
1
Tube(1) x 4
Pump x 2pcs
(Backup pump x 1)
Lifting rod x6
Expansion Anchor Bolts x4pcs
Wall-Mount Screws x4pcs
Ribbon x10pc
Don’tremovethe tape until finishliftingrod assembly!
Amounting the wall mount holder in screw hole at the top of the cross member.
(Fig18.19 )
(Fig1)
(Fig2)
(Fig3)
(Fig16)
(Fig17)
(Fig4)
(Fig5)
(Fig6) (Fig7) (Fig18) (Fig19)
(Fig14)
(Fig15)
(Fig21)
(Fig22)
(Fig12)
(Fig13)
(Fig8)
(Fig9)
(Fig24)(Fig23)(Fig20)(Fig11)(Fig10)
5. Screwdriver Cross-
Head x1pc

Ver.: 190903

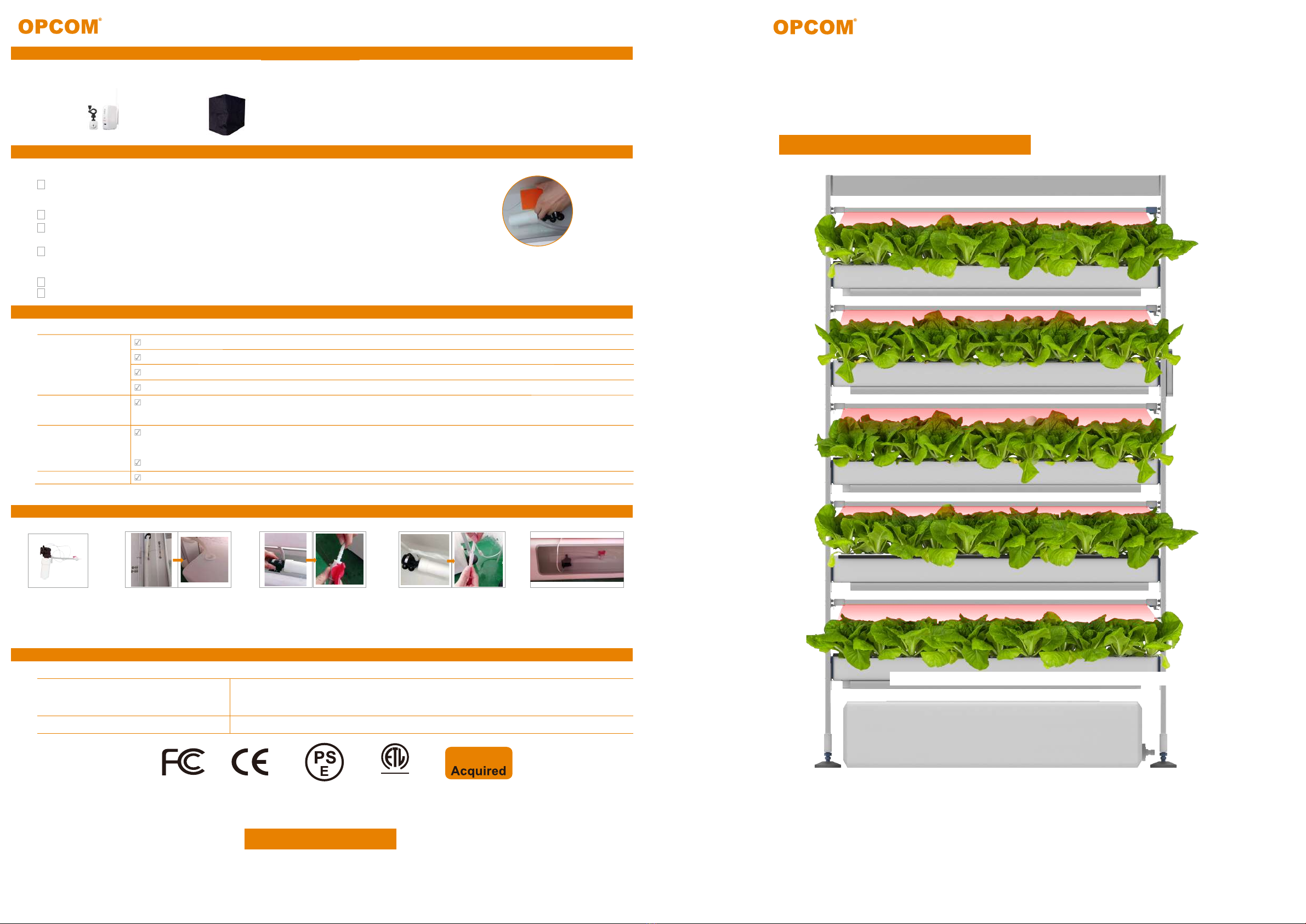

H. Q&A
E. Maintenance
F. Troubleshooting
Checkpoints / Solution
Make sure all power cables are connected.
Power button is ON.
Make sure LED status is ON
If it is on HI or LOW mode, the lamp has off time, during 24-hour cycle.
Pump may make a buzzing sound in the beginning due to air inside the pump. After a minute with
water running through the pump, this sould be reduced.
Control Box is designed with Auto, HI and LOW modes, which turn the lamps and the pump on and off
periodically. It simulates an outdoor daily cycle to offer the best growing condition
Rotate the ring at the end of the pump clockwise or counterclockwise to get the most suitable water flow
Make sure it is not clogged at the water flowing gateway on each planting layer
Issue
Lamps not
lighting up
Pump has a
buzzing sound
The lamp/ pump
stop Safter hours
Water Over flows
Answer
During the abnormal delivery in vessels, aircraft, or other vehicles, it may lead to damages in
GrowWall3(OFG003L5-3) and create leaking problem. OPCOM FARM provides waterproof tape
for you to fix it in case damage happen.
You can move the partition to change the size of the pot for your planting.
Question
Product leakage When it works.
How to use planting partition?
F1. Add Water
1. Measure the pH/EC value every 1-2 weeks and add water to maintain the vlaue balance
F2. Change Water
1. After a cycle of planting, change the water and clean the unit. (fig 1 )
2 When change water, clean water gateway on each planting layers, you may also add moss detergent in
the water tank to avoid themoss remaining
3. On the regular basis of every 1-2 weeks, clean the filtering sponge in the pump
1. Keep the electrode clean of EC/pH meter and cover the electrode protective cap when not in use.
2. Turn off the meter when not in use for an extended amount of time.
F3. EC / pH Meter Use and Calibration
www.opcomfarm.com
For more information, please visit
F1708038 P17103002
P17092804
F1709051
PATENT
Intertek
USC
CM
L
T
S
T
E
D
4010499
G. Installation steps of water pump
D. Optional Accessories
1. OPCOM Link Box 2. Black Cloth Cover
(Fig1)
Quick Guide Manual
Grow Wall3
Hydroponics Grow Wall 3
1. As shown in the picture:
prepare the backup pump.
4. Plug in DC jack 5. Pump replacement is
completed as shown in the
3. Connecting control valve
2. Insert the upper water pipe
into the water tank inlet
