opti-solar SP5000 Premium User manual

Solar Hybrid PV Inverter
SP5000 Premium
Version: 1.0
User Manual

Table Of ontents
1. Introduction ........................................................................ 1
2. Important Safety Warning .................................................... 2
3. Unpacking & Overview......................................................... 4
4. Insta ation ......................................................................... 5
5. Grid (Uti ity) Connection ...................................................... 7
6. PV Modu e (DC) Connection ................................................. 9
7. Battery Connection ............................................................ 12
8. Load (AC Output) Connection ............................................ 13
9. EMS Connection ................................................................ 15
10. Generator connection ........................................................ 15
11. Communication ................................................................. 16
12. Dry Contact Signa ............................................................. 17
13. Re ay Contro Port ............................................................. 19
14. App ication with Energy Meter ............................................ 21
15. Commissioning .................................................................. 22
16. Initia Setup ...................................................................... 23
17. Operation ......................................................................... 35
18. Charging Management ....................................................... 45
19. Maintenance & C eaning .................................................... 47
20. Troub e Shooting ............................................................... 48
21. Specifications .................................................................... 51

1
1. Introduction
SP5000 Premium can provide power to connected oads by uti izing PV power, uti ity
power and battery power.

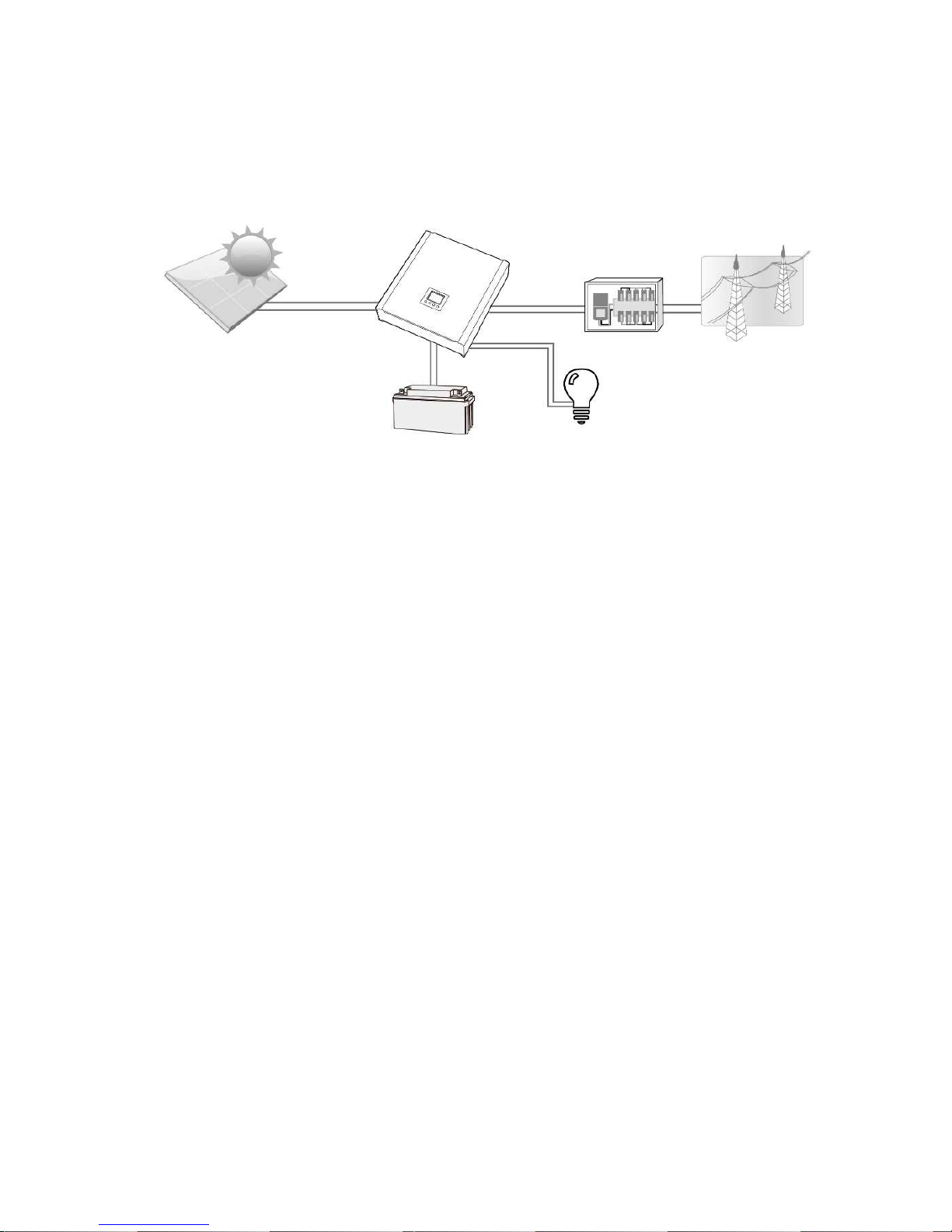

Figure 1 Basic hybrid PV System Overview
Depending on different power situations, this hybrid inverter is designed to generate
continuous power from PV so ar modu es (so ar pane s), battery, and the uti ity. When
MPP input vo tage of PV modu es is within acceptab e range (see specification for the
detai s), this inverter is ab e to generate power to feed the grid (uti ity) and charge
battery. This inverter is on y compatib e with PV modu e types of sing e crysta ine and
po y crysta ine. Do not connect any PV array types other than these two types of PV
modu es to the inverter. Do not connect the positive or negative termina of the so ar
pane to the ground. See Figure 1 for a simp e diagram of a typica so ar system with this
hybrid inverter.
Note: By fo owing the EEG standard, every inverter so d to German area is not a owed
to charge battery from Uti ity. The re evant function is automatica y disab ed by the
software.
PV modu e
Battery
Hybrid inverter
Distribution Box
E ectric grids
Load

2
2. Important Safety Warning
Before using SP5000 Premium, please read all instructions and
cautionary markings on the unit and this manual. Store the manual
where it can be accessed easily.
This manua is for qua ified personne . The tasks described in this manua may be
performed by qua ified personne on y.
General Precaution-
WARNING! Before insta ing and using this inverter, read a instructions and cautionary
markings on the inverter and a appropriate sections of this guide.
WARNING! Norma y grounded conductors may be ungrounded and energized when a
ground fau t is indicated.
WARNING! This inverter is heavy. It shou d be ifted by at east two persons.
AUTION! Authorized service personne shou d reduce the risk of e ectrica shock by
disconnecting AC, DC and battery power from the inverter before attempting any
maintenance or c eaning or working on any circuits connected to the inverter. Turning off
contro s wi not reduce this risk. Interna capacitors can remain charged for 5 minutes
after disconnecting a sources of power.
AUTION! Do not disassemb e this inverter yourse f. It contains no user-serviceab e
parts. Attempt to service this inverter yourse f may cause a risk of e ectrica shock or fire
and wi void the warranty from the manufacturer.
AUTION! To avoid a risk of fire and e ectric shock, make sure that existing wiring is in
good condition and that the wire is not undersized. Do not operate the Inverter with
damaged or substandard wiring.
onventions used:
WARNING! Warnings identify conditions or practices that cou d resu t in persona
injury;
AUTION! Caution identify conditions or practices that cou d resu t in damaged to the
unit or other equipment connected.

3
AUTION! Under high temperature environment, the cover of this inverter cou d be hot
enough to cause skin burns if accidenta y touched. Ensure that this inverter is away
from norma traffic areas.
AUTION! Use on y recommended accessories from insta er. Otherwise, not-qua ified
too s may cause a risk of fire, e ectric shock, or injury to persons.
AUTION! To reduce risk of fire hazard, do not cover or obstruct the coo ing fan.
AUTION! Do not operate the Inverter if it has received a sharp b ow, been dropped, or
otherwise damaged in any way. If the Inverter is damaged, p ease ca for an RMA
(Return Materia Authorization).
AUTION! AC breaker, DC switch and Battery circuit breaker are used as disconnect
devices and these disconnect devices sha be easi y accessib e.
Symbols used in Equipment Markings
Refer to the operating instructions
Caution! Risk of danger
Caution! Risk of e ectric shock
Caution! Risk of e ectric shock. Energy storage timed
discharge for 5 minutes.
Caution! Hot surface
Before working on this circuit
-Iso ate inverter/Uninterruptib e Power System (UPS)
-Then check for Hazardous Vo tage between a
termina s inc uding the protective earth.
Risk of Voltage Backfeed

4
3. Unpacking & Overview
3-1. Packing List
Before insta ation, p ease inspect the unit. Be sure that nothing inside the package is
damaged. You shou d have received the fo owing items inside of package:
Inverter unit PV connectors Mounting p ate Fixing screws EMS port
Software CD Manua USB cab e RS-232 cab e Re ay contro port
3-2. Product Overview
1) PV connectors
2) AC output connectors (Load
connection)
3) Battery connectors
4) AC Grid connectors
5) RS-232 communication port
6) USB communication port
7) Inte igent s ot
8) Grounding
9) LCD disp ay pane (P ease check
section 10 for detai ed LCD
operation)
10) Operation buttons
11) Dry contact
12) Battery therma sensor
13) Emergency power off (EPO)
14) EMS port
15) DC Switch
16) Re ay contro port
17) Generator connectors

5
4. Installation
4-1. Selecting Mounting Location
Consider the fo owing points before se ecting where to insta :
Do not mount the inverter on f ammab e construction materia s.
Mount on a so id surface
This inverter can make noises during operation which may be perceived as a
nuisance in a iving area.
Insta this inverter at eye eve in order to a ow the LCD disp ay to be read at a
times.
For proper air circu ation to dissipate heat, a ow a c earance of approx. 20 cm to
the side and approx. 50 cm above and be ow the unit.
Dusty conditions on the unit may impair the performance of this inverter.
The ambient temperature shou d be between 0°C and 40°C and re ative humidity
shou d be between 5% and 85% to ensure optima operation.
The recommended insta ation position is to be adhered to vertica .
For proper operation of this inverter, p ease use appropriate cab es for grid
connection.
The po ution degree of the inverter is PD2. Se ect an appropriate mounting
ocation. Insta the so ar inverter in a protected area that is dry, free of excessive
dust and has adequate air f ow. Do NOT operate it where the temperature and
humidity is beyond the specific imits. (P ease check the specs for the imitations.)
Insta ation position sha not prevent access to the disconnection means.
This inverter is designed with IP20 for indoor app ications on y.
Regu ar y c ean the fan fi ter.
4-2. Mounting Unit
Insta ation to the wa shou d be imp emented with the proper screws. After that, the
device shou d be bo ted on secure y.
The inverter on y can be used in a CLOSED ELECTRICAL OPERATING AREA. On y service
person can enter into this area.
WARNING!! Remember that this inverter is heavy! P ease be carefu y when ifting out
from the package.
WARNING!! FIRE HAZARD.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE
ONLY.

6
1. Dri six ho es in the marked
ocations with supp ied six screws.
The reference tightening torque is
35 N.m.
2. Raise the inverter and p ace it over the
mounting p ate.
3. Fix the inverter in position by
screwing the supp ied two screws
(M4*12) ocated on the top two
sides of the inverter.
4. Check if the inverter is firm y secured.

7
5. Grid (Utility) onnection
5-1. Preparation
Before connecting to AC uti ity, p ease insta a separate AC circuit breaker between
inverter and AC uti ity. This wi ensure the inverter can be secure y disconnected during
maintenance and fu y protected from over current of AC input.
NOTE1: A though this inverter is equipped with 250VAC/40A fuse, it’s sti necessary to
insta a separate circuit breaker for safety consideration. P ease use 250VAC/40A circuit
breaker between inverter and AC uti ity.
NOTE2: The overvo tage category of the AC input is III. It shou d be connected to the
power distribution.
WARNING! It's very important for system safety and efficient operation to use
appropriate cab e for grid (uti ity) connection. To reduce risk of injury, p ease use the
proper recommended cab e size as be ow.
Suggested cab e requirement for AC wire
Mode SP5000 Premium
Nomina Grid Vo tage 230VAC
Conductor cross-section (mm
2
) 6
AWG no. 10
5-2. onnecting to the A Utility
Step 1: Check the grid vo tage and frequency with an AC vo tmeter. It shou d be the
same to “VAC” va ue on the product abe .
Step 2: Turn off the circuit breaker.
Step 3: Remove insu ation s eeve 10 mm for three
conductors. And shorten phase L and neutra
conductor N 3 mm. Refer to chart 1.
Step 4: Connect wires according to po arities
indicated on termina b ock. Be sure to connect PE
protective conductor ( ) first.
L→
→→
→LINE (brown or black)
→
→→
→Ground (yellow-green)
N→
→→
→Neutral (blue)
Step 5: Make sure the wires are secure y connected.
The reference tightening torque is 0.82 N.m.
Chart
2
L
N
Chart 1

8
5-3. onnecting to the Generator
Step 1: Check the generator vo tage and frequency with an AC vo tmeter. It shou d be
the same to “VAC” va ue on the product abe .
Step 2: Turn off the circuit breaker.
Step 3: Remove insu ation s eeve 10 mm for three
conductors. And shorten phase L and neutra
conductor N 3 mm. Refer to chart 1.
Step 4: Connect wires according to po arities
indicated on termina b ock. Be sure to connect PE protective conductor ( ) first.
L→
→→
→LINE (brown or black)
→
→→
→Ground (yellow-green)
N→
→→
→Neutral (blue)
Step 5: Make sure the wires are secure y connected.
The reference tightening torque is 0.82 N.m.
Note: For safe operation, p ease use one more wire with ring termina to connect
grounding. Refer to Chart 3.
Chart 3
Recommended wire and terminal size:
Wire Size
Ring Terminal
Torque value
able mm2 Dimensions
D (mm) L (mm)
10 AWG 6 4.3 21.8 1.2~ 2 Nm
Chart
2
AUTION: To prevent risk of e ectric shock, ensure the ground wire is proper y earthed
before operating this hybrid inverter no matter the grid is connected or not.
Ring terminal:
L
N
Chart 1

9
6. PV Module (D ) onnection
AUTION: Before connecting to PV modu es, p ease insta separately a DC circuit
breaker between inverter and PV modu es.
NOTE1: P ease use 1000VDC/10A circuit breaker.
NOTE2: The overvo tage category of the PV input is II.

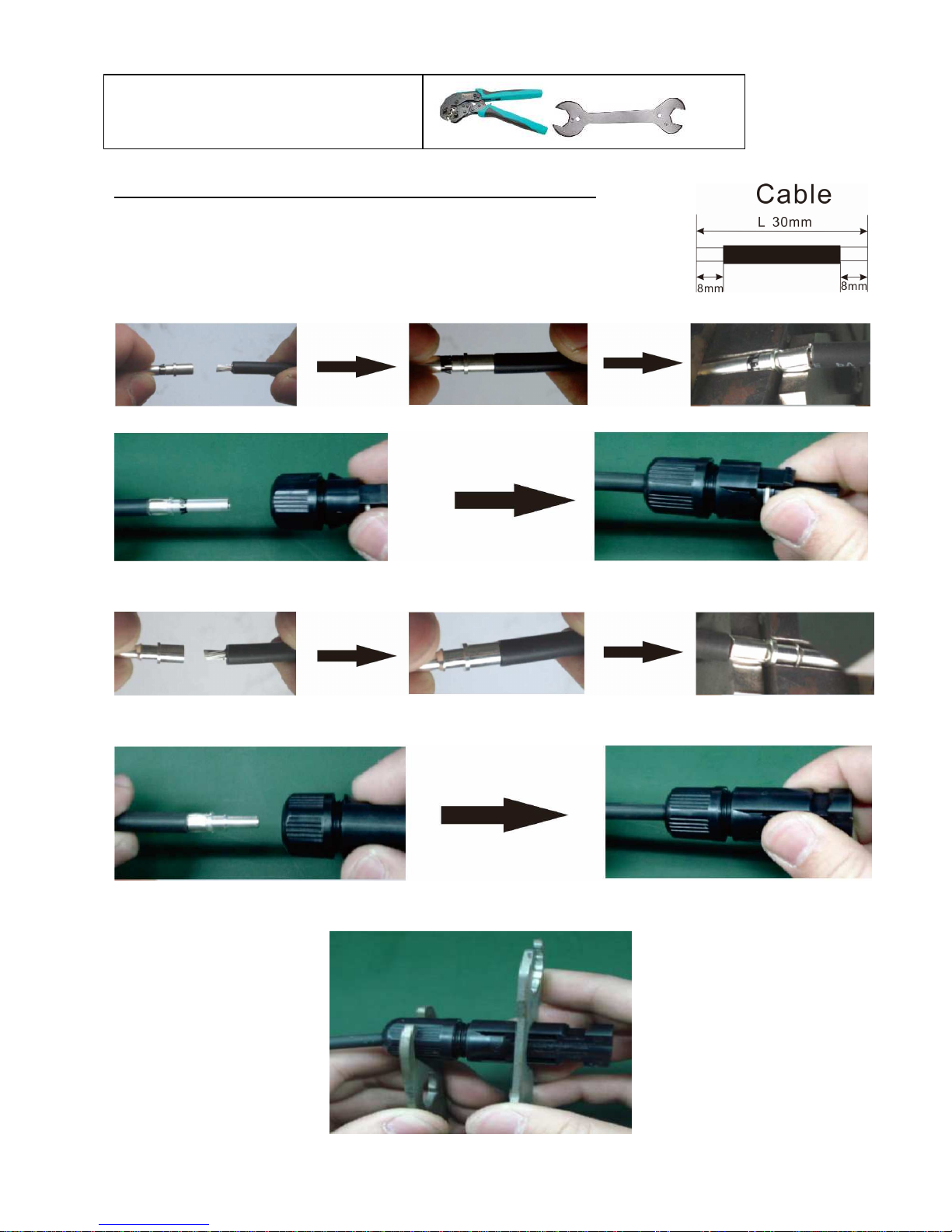

P ease fo ow be ow steps to imp ement PV modu e connection:
Step 1: Check the input vo tage of PV array modu es. The acceptab e input vo tage of the
inverter is 250VDC - 900VDC. This system is on y app ied with two strings of PV array.
P ease make sure that the maximum current oad of each PV input connector is 10A.
Step 2: Disconnect the circuit breaker and switch off the DC switch.
Step 3: Assemb e provided PV connectors with PV modu es by the fo owing be ow steps.
omponents for PV connectors and Tools:
Fema e connector housing
Fema e termina
Ma e connector housing
Ma e termina
AUTION: Exceeding the maximum input vo tage can destroy the unit!! Check the
system before wire connection.
WARNING: Because this inverter is non-iso ated, on y three types of PV modu es are
acceptab e: sing e crysta ine and po y crysta ine with c ass A-rated and CIGS modu es.
To avoid any ma function, do not connect any PV modu es with possibi ity of eakage
current to the inverter. For examp e, grounded PV modu es wi cause eakage current to
the inverter. When using CIGS modu es, p ease be sure NOT grounding.
AUTION: It’s requested to have PV junction box with surge protection. Otherwise, it
wi cause inverter damage when ightning occurs on PV modu es.

10
Crimping too and spanner
able preparation and connector assembly process:
Strip one cab e 8 mm on both end sides and be carefu NOT to
nick conductors.
Insert striped cab e into fema e termina and crimp fema e
termina as shown be ow charts.
Insert assemb ed cab e into fema e connector housing as shown be ow charts.
Insert striped cab e into ma e termina and crimp ma e termina as shown be ow charts.
Insert assemb ed cab e into ma e connector housing as shown be ow charts.
Then, use spanner to screw pressure dome tight y to fema e connector and ma e
connector as shown be ow.
Step 4: Check correct po arity of connection cab e from PV modu es and PV input

11
connectors. Then, connect positive po e (+) of connection cab e to positive po e (+) of
PV input connector. Connect negative po e (-) of connection cab e to negative po e (-) of
PV input connector.
WARNING! It's very important for system safety and efficient operation to use
appropriate cab e for PV modu e connection. To reduce risk of injury, p ease use the
proper recommended cab e size as be ow.
Conductor cross-section (mm
2
) AWG no.
4 12
Recommended Panel onfiguration
Solar Panel
Spec.
(reference)
- 250Wp
- Vmp: 36.7Vdc
- Imp: 6.818A
- Voc: 44Vdc
- Isc: 7.636A
- Ce s: 72
SOLAR INPUT 1 SOLAR INPUT 2
Q'ty of
panels
Total
Input
Power
(Min in serial: 11pcs;
Max. in serial: 18pcs)
11pcs in seria x 11pcs 2750W
x 11pcs in seria 11pcs 2750W
11pcs in seria 11pcs in seria 22pcs 5500W
18pcs in seria 18pcs in seria 36pcs 9000W
AUTION: Do NOT touch the inverter to avoid e ectric shock. When PV modu es are
exposed to sun ight, it may generate DC vo tage to the inverter.
AUTION: Never direct y touch termina s of the inverter. It wi cause etha e ectric
shock.

12
7. Battery onnection
AUTION: Before connecting to batteries, p ease insta separately a DC circuit
breaker between inverter and batteries.
NOTE1: P ease on y use sea ed ead acid battery, vented and Ge battery. P ease check
maximum charging vo tage and current when first using this inverter. If using Lithium
iron or Nicd battery, p ease consu t with insta er for the detai s.
NOTE2: P ease use 60VDC/150A circuit breaker.
NOTE3: The overvo tage category of the battery input is II.
P ease fo ow be ow steps to imp ement battery connection:
Step 1: Check the nomina vo tage of batteries. The nomina input vo tage for inverter is
48VDC.
Step 2: Use two battery cab es. Remove insu ation s eeve 12
mm and insert conductor into cab e ring termina . Refer to
right chart.
Step 3: Remove battery cover and fo ow battery po arity guide
printed near the battery termina ! P ace the externa battery cab e ring termina over the
battery termina .
RED cable to the positive terminal (+);
BLA K cable to the negative terminal (-).
WARNING! Wrong connections wi damage the unit permanent y.
Step 4: Make sure the wires are secure y connected. The reference tightening torque is
2.04 N.m.
WARNING! It's very important for system safety and efficient operation to use
appropriate cab e for battery connection. To reduce risk of injury, p ease use the proper
recommended cab e size as be ow.
Nomina Battery Vo tage 48V
Conductor cross-section (mm
2
) 38
AWG no. 2

13
8. Load (A Output) onnection
AUTION: To prevent further supp y to the oad via the inverter during any mode of
operation, an additiona disconnection device shou d be p aced on in the bui ding wiring
insta ation.
WARNING! It's very important for system safety and efficient operation to use
appropriate cab e for AC connection. To reduce risk of injury, p ease use the proper
recommended cab e size as be ow.
Mode SP5000 Premium
Nomina Grid Vo tage 230VAC
Conductor cross-section (mm
2
) 6
AWG no. 10
Step 1: Remove insu ation s eeve 8 mm for three conductors. And shorten phase L and
neutra conductor N 3 mm. Refer to chart 4.
Step 2: Connect wires according to po arities indicated on
termina b ock. Be sure to connect PE
protective conductor ( ) first. Refer to Chart 5.
L→
→→
→LINE (brown or black)
→
→→
→Ground (yellow-green)
N→
→→
→Neutral (blue)
Step 3: Make sure the wires are secure y
connected.
The reference tightening torque is 0.82 N.m.
AUTION: It’s on y a owed to connect oad to “AC Output Connector”. Do NOT connect
the uti ity to “AC Output Connector”.
CAUTION: Be sure to connect L termina of oad to L termina of “AC Output Connector”
and N termina of oad to N termina of “AC Output Connector”. The G termina of “AC
Output Connector” is connected to grounding of the oad. Do NOT mis-connect.
AUTION: This inverter is not a owed to operate in para e . P ease do NOT para e
connect more than one unit in AC output connector. Otherwise, it wi damage this inverter.
L
N
Chart
4
Chart
5

14
Software Setting
P ease set up mains output in parameter setting of bund ed software. When “Emergency
power supp y contro ” is enab ed and inverter is working in battery mode, it wi cut off
AC output and remain energy through EMS port when battery vo tage drops down to the
setting va ue in “Battery vo tage to cut-off mains output in battery mode”. After that, if
battery vo tage recovers to the setting va ue in “Battery vo tage to turn on mains output
in battery mode”, inverter wi turn on AC output again.

15
9. EMS onnection
This port is avai ab e to provide a power source (230V/5A) for emergent ight and oad.
9-1 Interface onfiguration
There are four pins on this port. However, on y Pin 1 (Line) and Pin 4 (Neutra ) are
worktab e. P ease use supp ied cab es to connect Pin 1 and Pin 4 shown as be ow charts.
9-2. Function Description
When “Emergency power supp y contro ” is enab ed, EMS port wi be active. Even
though battery vo tage drops to cut-off AC output point, EMS port wi remain output
power for emergent use.
10. Generator connection
It is to connect to generator for power backup when uti ity is not avai ab e and battery is
connected. Inverter wi trigger generator upon
receiving signa from dry contact during ow battery.
When generator is triggered, so ar power wi on y
charge battery and over oad protection wi be
automatica y enab ed.

16
11. ommunication
The inverter is equipped with severa communication ports and it is a so equipped with a
s ot for a ternative communication interfaces in order to communicate with a PC with
corresponding software. This inte igent s ot is suitab e to insta with SNMP card and
Modbus card. Fo ow be ow procedure to connect communication wiring and insta the
software.
For RS232 port, you shou d use a DB9
cab e as fo ows:
For USB port, you shou d use a USB cab e
as fo ows:
For Dry contact port, p ease remove
insu ation s eeve 8 mm for three
conductors and insert three cab es into
ports
For SNMP or MODBUS card, you shou d
use RJ45 cab es as fo ows:
P ease insta monitoring software in your computer. Detai ed information is isted in the
next chapter. After software is insta ed, you may initia the monitoring software and
extract data through communication port.

17
12. Dry ontact Signal
There is one dry contact avai ab e on the bottom pane . It cou d be used to
remote contro for externa generator.
12-1. Electric Parameter
Parameter Symbo Max. Unit
Re ay DC vo tage Vdc 30 V
Re ay DC current Idc 1 A
Note: The app ication of the dry contact shou d not exceed the e ectric
parameter shown as above. Otherwise, the interna re ay wi be damaged.
12-2. Function Description
Unit
Status Condition Dry contact port:
NO&C NC&C
Power
Off Unit is off and no output is powered. Open C ose
Power On
Battery vo tage is ower than setting
battery cut-off discharging vo tage
when grid is avai ab e.
C ose Open
Battery vo tage is ower than setting
battery cut-
off discharging vo tage when
grid is unavai ab e.
C ose Open
Battery vo tage is higher than be ow 2
setting va ues:
1. Battery re-discharging vo tage when
grid is avai ab e.
2. Battery re-discharging vo tage when
grid unavai ab e.
Open C ose

18

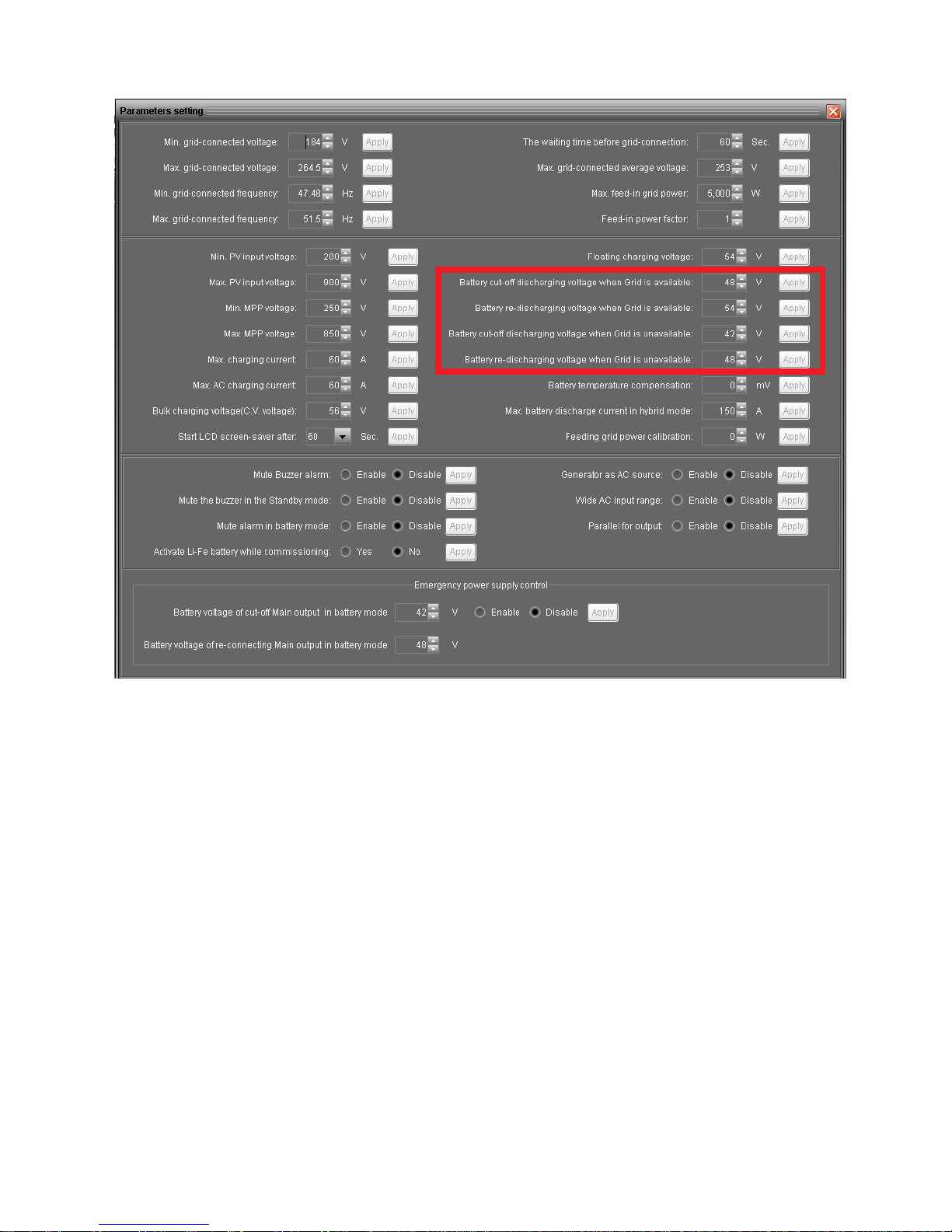

You can set the re ated parameters in software. Refer to be ow chart:
