1. Introduction
1-1. Overview
This PV inverter is designed to convert solar electric (photovoltaic or PV) power into
utility-grade electricity that can be sold to the local power company. This inverter is embedded
with smart MPP tracker to allow the PV inverter to operate at optimum power output voltage.

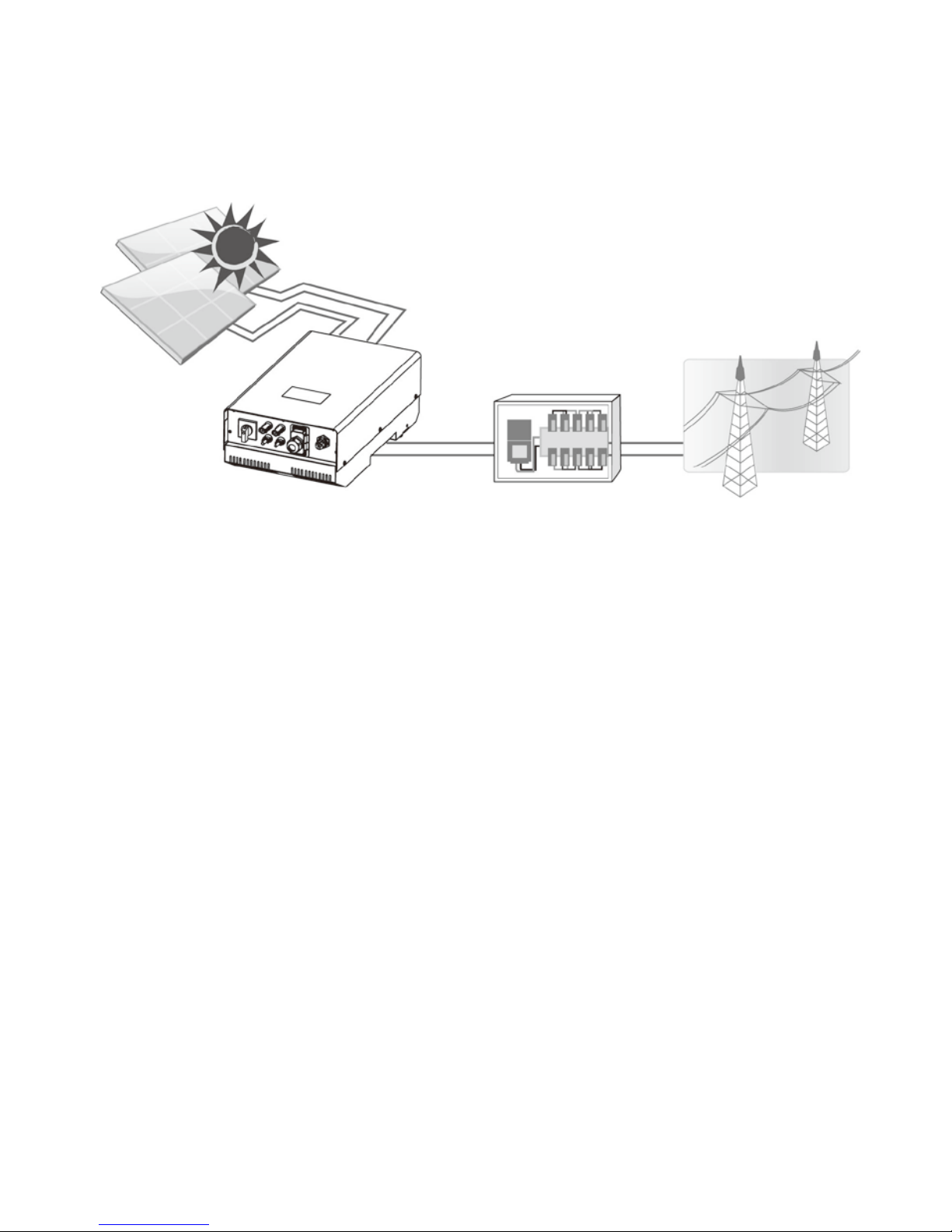

Figure 1 Basic PV System Overview
This inverter is only compatible with PV module types of single crystalline and poly crystalline.
And, only Class A-rated PV modules are acceptable to use. Do not connect any sources of
energy other than these two types of PV modules to the inverter. When designing the PV
system, ensure that the values comply with the permitted operating range of all components
at all times. See Figure 1 for a simple diagram of a typical PV system with the Inverter.
1-1. Affecting Factors for Performance of the Inverter
There are a lot of factors to influence the performance of this inverter.
Rating for PV Modules
PV modules are rated at ideal factory conditions, such as specified illumination (1000 W/m2),
spectrum of the light and temperature (25 °C / 77 °F). This is called the STC (Standard Test
Condition) rating and is the figure that appears on the spec label of PV module. Generally
speaking, only around 60% to 70% of its peak STC-rated output will be produced from your
PV modules due to unpredicted environmental factors.
Temperature and Power Reduction
Environment temperature affects the power output of PV modules. Higher the temperature,
lower the power output of PV module. Comparing with pole-mounted PV module array,
roof-mounted PV module array generates less power due to less air circulation and excess
heat from roof top.
Distribution Box Electric grids
PV inverter
PV module 1
PV module 2
(only for 5KW)

2
Conventions used:
WARNING! Warnings identify conditions or practices that could result in personal injury;
CAUTION! Caution identify conditions or practices that could result in damaged to the
unit or other equipment connected.
Important: The inverter will reduce its output generation to protect its electronic circuits
from overheating and any damage under high temperature environment. For maximum power
output in high temperature, it’s recommended to mount the inverter in a shaded location with
good ventilation.
Angle of the Sun
The angle of the sun in relation to the PV array surface—the array orientation can dramatically
affect the PV array output. The array energy output will vary depending on the time of day and
time of year as the sun’s angle in relation to the array changes. Sunlight output decreases as
the sun approaches the horizons (such as in winter in Europe) due to the greater atmospheric
air mass it must penetrate, reducing both the light intensity that strikes the array’s surface and
spectrum of the light. In general, you can expect only four to six hours of direct sunlight per
day depending on what part of Europe the inverter is installed.
Partial Shade
Shading on a single PV module of the array will reduce the output power of the entire system.
Such shading can be caused by something as simple as the shadow of a utility wire or tree
branch on part of the array’s surface. This condition, in effect, acts like a weak battery in a
flashlight, reducing the total output, even though the other batteries are good. However, the
output loss is not proportionate to shading even a tiny bit of shading will reduce the PV power
to the inverter. The inverter is designed to maximize its power production in all of the above
situations using its proprietary MPPT algorithm.
Other Factors
Other factors to reduce power generation of a solar system are:
Dust or dirt on the modules
Fog or smog
Mismatched PV array modules, with slight inconsistencies in performance from one
module to another.
Inverter efficiency
Wire losses
Utility grid voltage
2. Important Safety Warning
Before using the inverter, please read all instructions and cautionary markings on
the unit and this manual. Store the manual where it can be accessed easily.
This manual is for qualified personnel. The tasks described in this manual may be performed
by qualified personnel only.
General Precaution-

3
WARNING! Before installing and using this inverter, read all instructions and cautionary
markings on the inverter and all appropriate sections of this guide.
WARNING! Normally grounded conductors may be ungrounded and energized when a
ground fault is indicated.
WARNING! This inverter is heavy. It should be lifted by at least two persons.
CAUTION! Authorized service personnel should reduce the risk of electrical shock by
disconnecting both the AC and DC power from the inverter before attempting any
maintenance or cleaning or working on any circuits connected to the inverter. Turning off
controls will not reduce this risk. Internal capacitors can remain charged for 5 minutes after
disconnecting all sources of power.
CAUTION! Do not disassemble this inverter yourself. It contains no user-serviceable parts.
Attempt to service this inverter yourself may cause a risk of electrical shock or fire and will
void the warranty from the manufacturer.
CAUTION! To avoid a risk of fire and electric shock, make sure that existing wiring is in good
condition and that the wire is not undersized. Do not operate the Inverter with damaged or
substandard wiring.
CAUTION! Under high temperature environment, heat sink of this inverter could be hot
enough to cause skin burns if accidentally touched. Ensure that this inverter is away from
normal traffic areas.
CAUTION! Use only recommended accessories from installer. Otherwise, not-qualified tools
may cause a risk of fire, electric shock, or injury to persons.
CAUTION! To reduce risk of fire hazard, do not cover or obstruct the heat sink.
CAUTION! Do not operate the Inverter if it has received a sharp blow, been dropped, or
otherwise damaged in any way. If the Inverter is damaged, called for an RMA (Return Material
Authorization).

4
3. Unpacking & Overview
3-1. Packing List
Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. You should have received the following items inside of package:
Inverter unit PV connectors* AC connector Mounting plate Software Manual USB cable
CD
*Note: 1 set of PV connectors for 3KW inverter and two sets of PV connectors for 5KW
inverter.
3-2. Product Overview

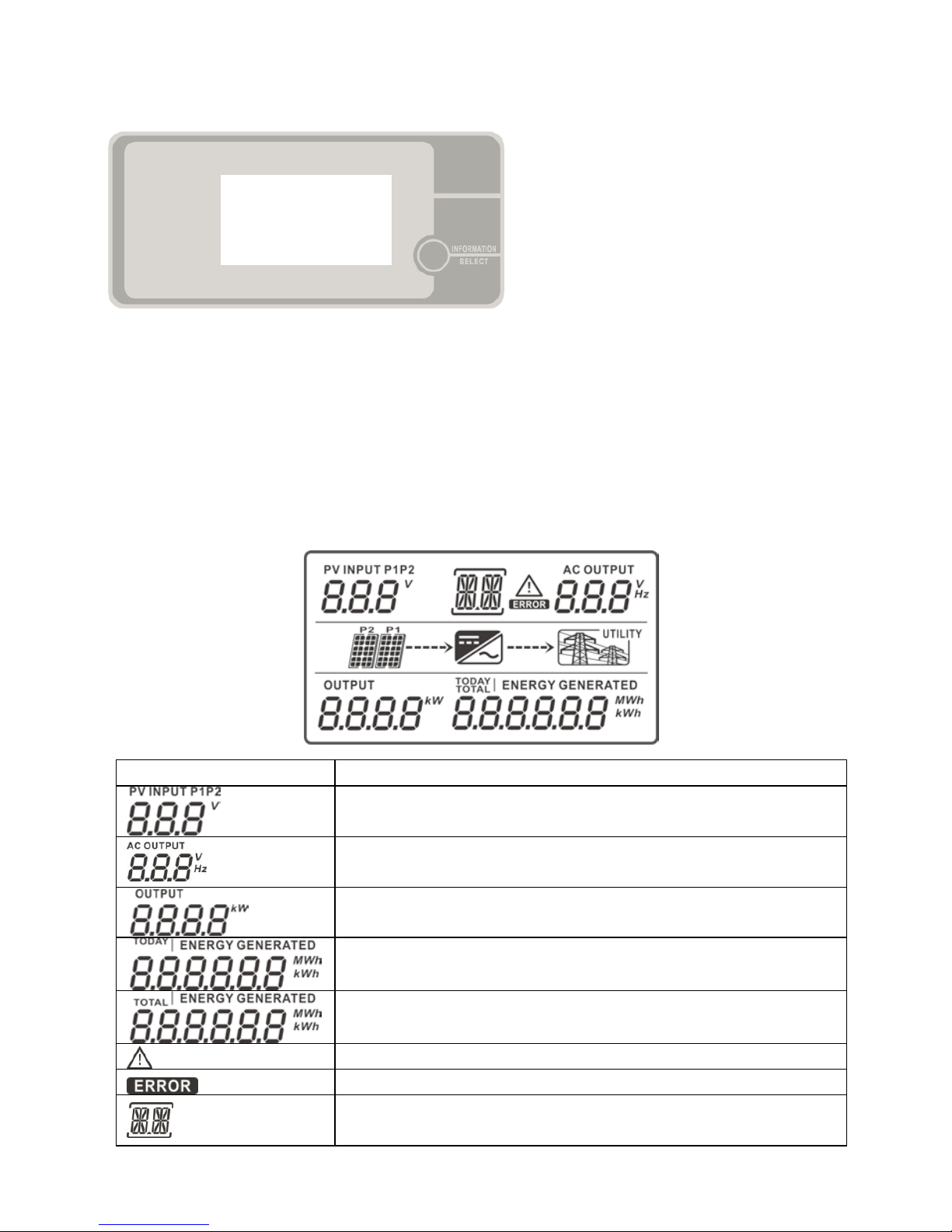

1) LCD display panel (Please check section 8 for detailed LCD operation)
2) Intelligent slot with USB communication port
3) Connectors for solar modules
4) AC output terminal
5) DC switch (Option)
6) Operation button
3KW inverter
5KW inverter

5
WARNING!! Remember that this inverter is heavy! Please be carefully when lifting out
from the package.
4. Installation
4-1. Selecting Mounting Location
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction materials.
Mount on a solid surface
Although the unit is fitted with UV resistant components, direct exposure to sunlight
may cause a power reduction due to excessive heating.
This inverter can make noises during operation which may be perceived as a nuisance in
a living area.
Install this inverter at eye level in order to allow the LCD display to be read at all times.
For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the
side and approx. 50 cm above and below the unit.
Dusty conditions on the unit may impair the performance of this inverter.
The ambient temperature should be between -25°C and 60°C to ensure optimal
operation.
The recommended installation position is to be adhered to (vertical).
Unused DC connectors and interfaces must be sealed with sealing plugs to ensure
protection class IP65 for the whole system (inverter & cables).
This inverter is designed with IP65 for outdoor applications with high humidity.
4-2. Mounting Unit with Wall Mounting Bracket
Please utilize the delivered mounting plate for problem-free installation of the solar inverter.
Installation to the wall should be implemented with the proper screws. Mount the wall bracket
so that the solar inverter can be easily attached to the wall. After that, the device should be
bolted on securely.

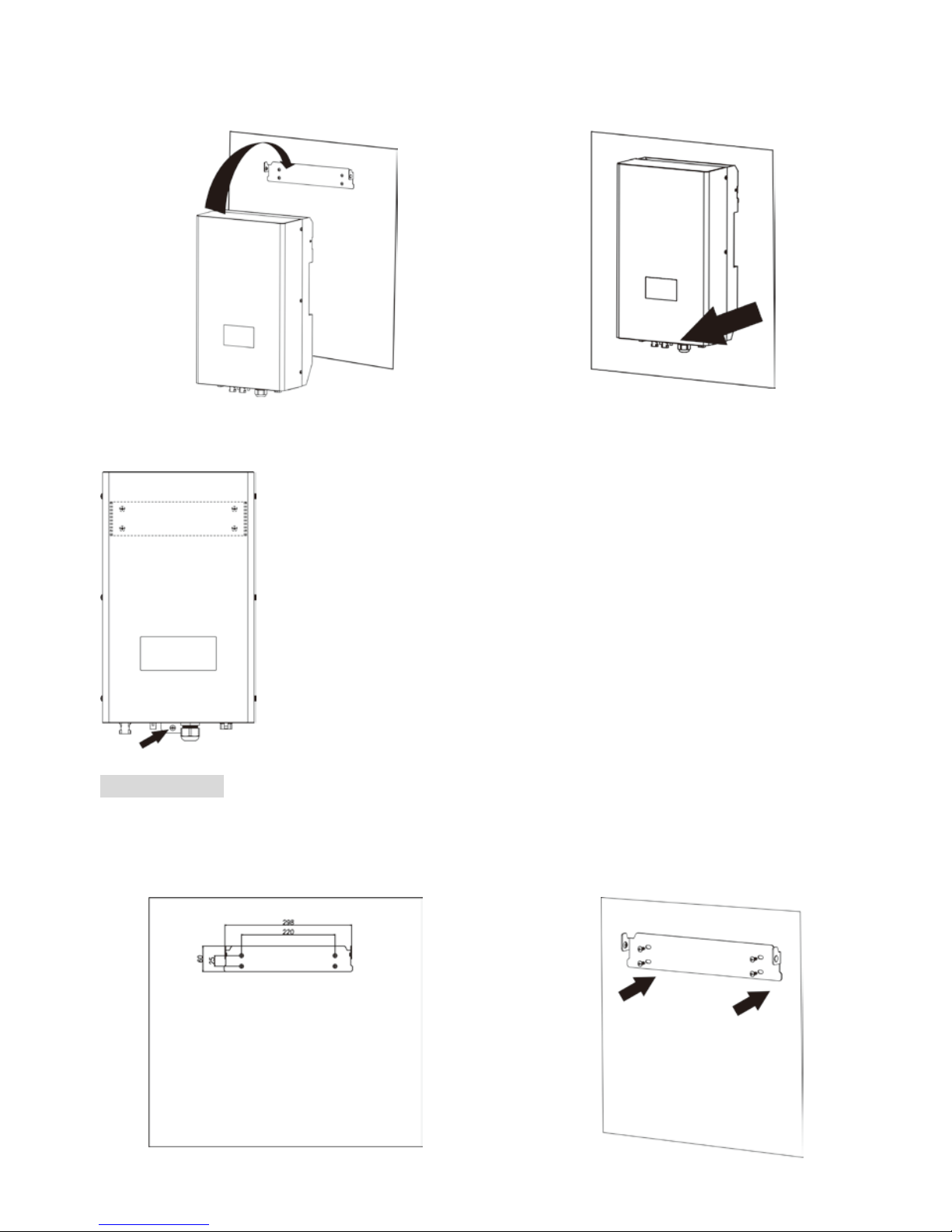

3KW inverter
1. Employ the mounting plate as a template
for marking the positions of the
boreholes
2. Mount the mounting plate with
appropriate screws (M5x4pcs,SUS304
or M10x2pcs, SUS304) into four or two
holes to fix the plate in place

6
3. Follow the below figure to place the solar
inverter onto the mounting plate.
4. Check if the solar inverter is firmly
secured.
5. Screw the inverter in position by screwing the supplied M5 screw, located on the
underside of the enclosure. Refer to blow chart.

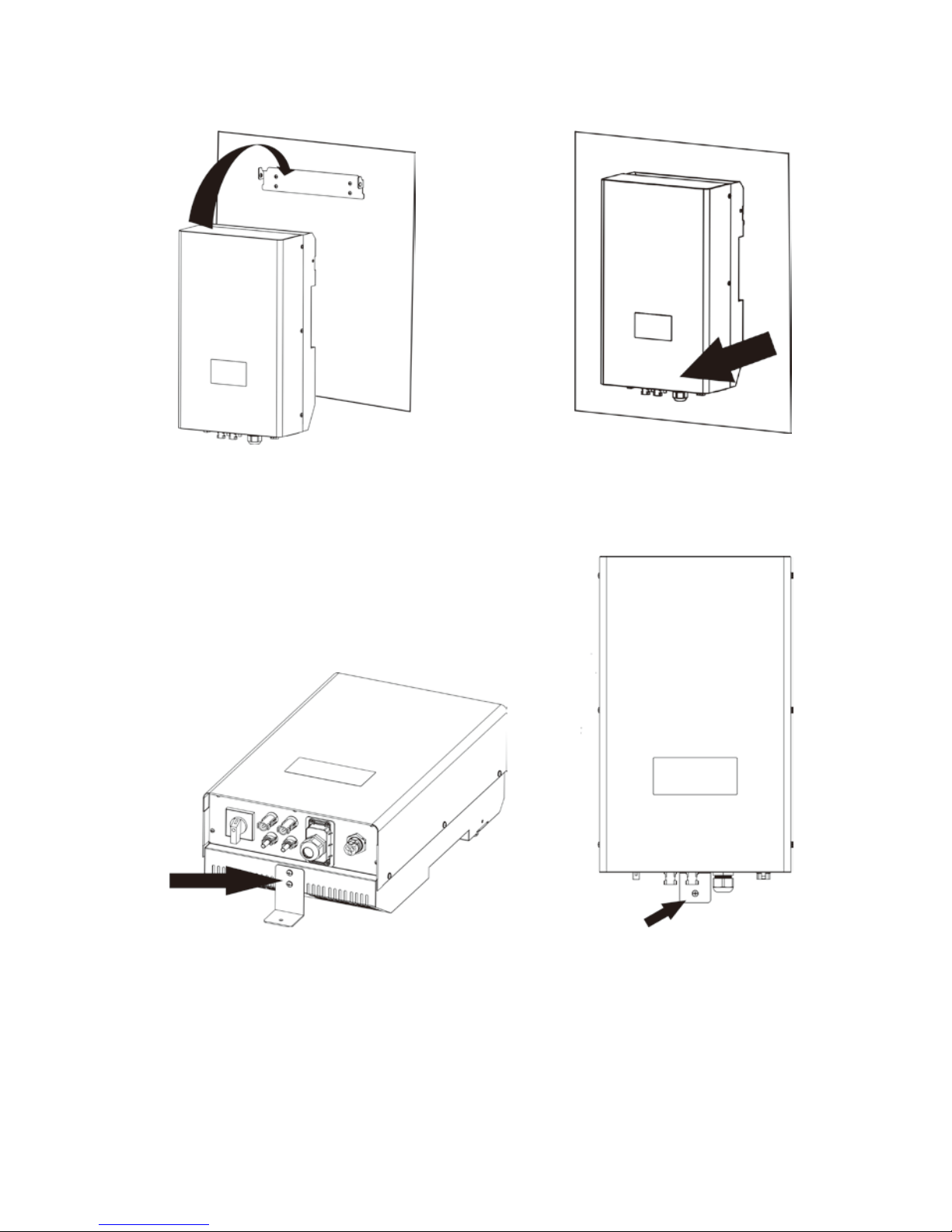

5KW inverter
1. Employ the mounting plate as a template
for marking the positions of the
boreholes
2. Mount the mounting plate with
appropriate screws (M5x4pcs,SUS304
or M10x2pcs, SUS304) into four or two
holes to fix the plate in place

7
3. Follow the below figure to place the solar
inverter onto the mounting plate.
4. Check if the solar inverter is firmly
secured.
5. Attach small mounting plate to the unit with supplied 2 pieces of M4 screws. Then, screw
the inverter in position by screwing one M5 screw, located on the underside of the
enclosure. Refer to blow chart.

8
5. Grid (AC) Connection
5-1. Preparation
Before connecting to AC utility, please install a separate AC circuit breaker between inverter
and AC utility. This will ensure the inverter can be securely disconnected under load.
NOTE1: Although this inverter is equipped with a fuse (F1 point on PCB, 3KW: 250VAC/20A;
5KW: 250VAC/30A), it’s still necessary to install a separate circuit breaker for safety
consideration. Please use 250VAC/20A circuit breaker for 3KW and 250VAC/30A circuit
breaker for 5KW.
NOTE2: If you want to add a manual RCMU, it shall be type B.
WARNING! It's very important for system safety and efficient operation to use appropriate
cable for grid connection. To reduce risk of injury, please use the proper recommended cable
size as below.
Suggested cable requirement for AC wire
Model External
Diameter(mm) Conductor cross-section (mm2) AWG no. Temperature
3KW & 5KW ≦4.5 ≥3.3 ≤12 125°C
5-2. Connecting to the AC Utility

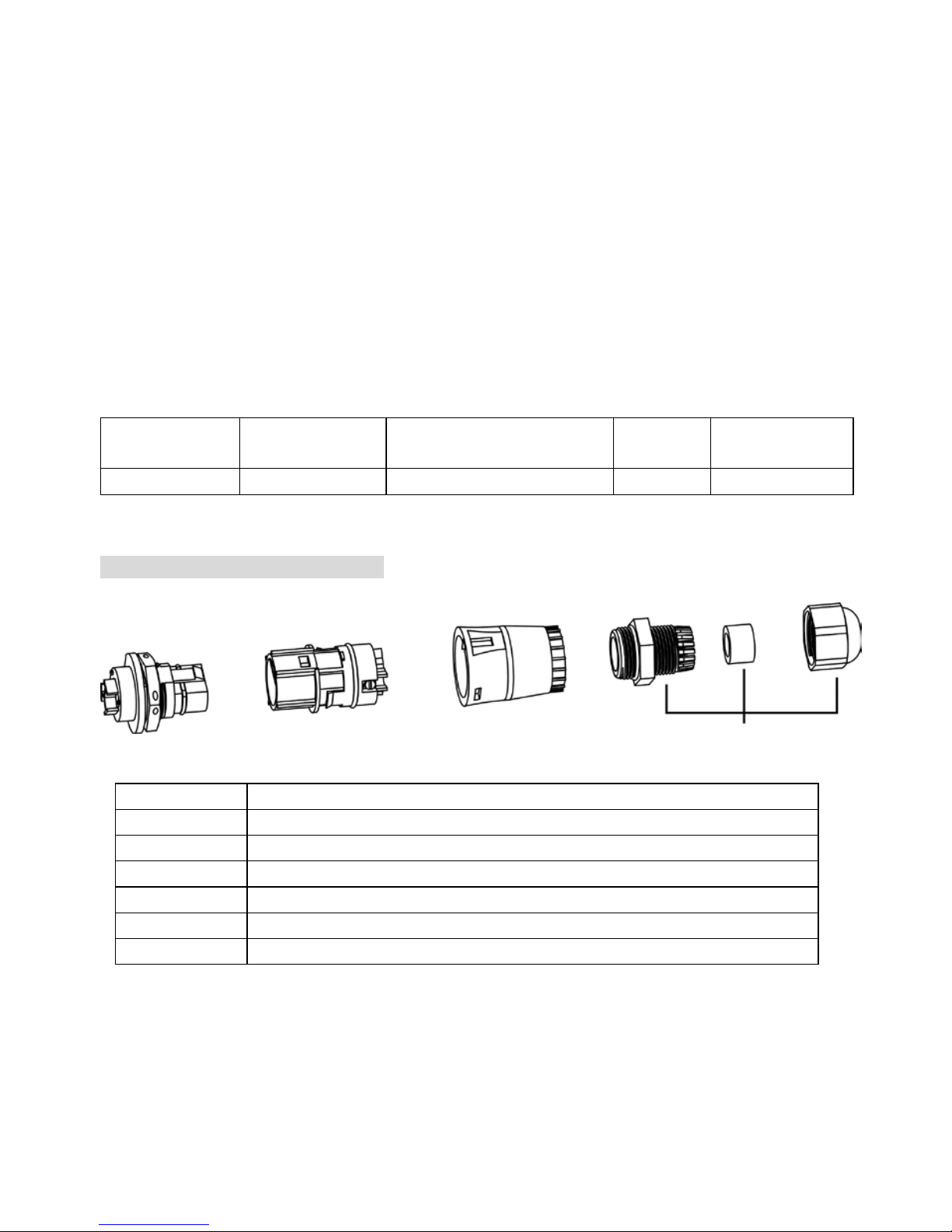

Overview of AC Connection Socket
Component Description
A AC output terminal on the inverter
B Socket element
C Protective element
D Threaded sleeve
E Sealing nut
F Pressure dome
Step 1: Check the grid voltage and frequency with an AC voltmeter. It should be the same to
“VAC” value on the product label.
Step 2: Turn off the circuit breaker.
Step 3: Insert sealing nut (E) inside of threaded sleeve (D). Then, screw pressure dome (F)
tightly onto the assembled threaded sleeve. (Refer to Chart 1)
B
A C D E F
Cable gland

9
Step 4: Thread the protective element (C) with assembled cable gland over the utility cable.
(Refer to Chart 1)
Chart 1
Step 5: Remove insulation sleeve 8 mm for three conductors. And shorten phase L and neutral
conductor N 3 mm.
Step 6: Insert utility cable through socket element (B) and tighten the screw to fix utility cable.
And push protective element (C) onto the socket element (B) until it audibly snaps into place.
screw
Step 7: Connect wires according to polarities indicated on AC output
terminal on the inverter and tighten the screws after connection.
L→LI NE (brow n or black)
G→Ground (yellow -green)
N→Neutral (blue)
Step 8: Twist the gland so that the cable is firmly connected.
CAUTION: To prevent risk of electric shock, ensure the ground wire is properly earthed
before operating the solar inverter.
C D E F
B

10
6. PV Module (DC) Connection
CAUTION: Do NOT connect battery or DC source to PV connectors. Otherwise, it will cause
inverter damage.
CAUTION: Before connecting to PV modules, please install separately a 2P circuit breaker
for 3KW, 4P or two 2P DC circuit breakers for 5KW between inverter and PV modules.
NOTE: Please use 600VDC/15A circuit breaker for 3KW and 600VDC/17A circuit breaker for
5KW.
Please follow below steps to implement PV module connection:
Step 1: Assemble provided PV connectors into PV modules by following below steps.
Negative terminal connection
WARNING: This inverter is only compatible to two types of PV modules: single crystalline
and poly crystalline. To avoid any malfunction, do not connect any PV modules with
possibility of leakage current to the inverter.
CAUTION: To avoid any damage to the unit, be sure DC switch or circuit breakers are all
in “OFF” status before connecting to PV modules.

11
Positive terminal connection
Step 2: Check the input voltage of PV array modules. The acceptable input voltage of solar
inverter is 125VDC - 500VDC. If this system is only applied with one string of PV array, then
please make sure that the maximum current load of each PV input connector is 13A for 3KW
and 15A for 5KW. For 5KW inverter, you may serial connect two sets of PV modules as one and
the maximum current load will not exceed 30A.
Step 3: Disconnect the circuit breaker.
Step 4: Check correct polarity of connection cable from PV modules and PV input connectors.
Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector.
Connect negative pole (-) of connection cable to negative pole (-) of PV input connector.
CAUTION:
Exceeding the maximum input voltage can destroy the unit!! Check the system
before wire connection.

12
WARNING! It's very important for system safety and efficient operation to use appropriate
cable for DC connection. To reduce risk of injury, please use the proper recommended cable
size as below.
Suggested cable requirement for DC wire
Model External
Diameter(mm) Conductor cross-section (mm2) AWG no. Temperature
3KW & 5KW ≦6.0 ≥3.3 ≤12 125°C
CAUTION: Never directly touch terminals of the inverter. It w
ill cause lethal electric shock.

13
7. Communication
This inverter is equipped with a slot for communication interfaces in order to communicate
with a PC with corresponding software. This intelligent slot is suitable to install with
RS-232/USB combo card and Modbus card. Follow below procedure to connect
communication wiring and install the software.
Step 1: Take out communication cover by removing 4 screws.
Step 2: Assemble and connect communication cable.
No matter this inverter is equipped with RS-232/USB combo card or Modbus card, you will see
two ports available after removing the cover.
Modbus card RS-232/USB combo card
If it’s equipped with Modbus card, you have to assemble communication cable through cable
gland first. Please cut the sealing nut and insert supplied USB cable through sealing nut as
shown in below chart. Insert the assembled cable through pressure dome and screw tightly
cable gland to the cover.
Then, insert this cable through cover to connect RS-485 port of this inverter and your PC as
below chart.
Modbus card connection

14
If it’s equipped with RS-232/USB combo card, you may use supplied USB cable to connect USB
port of this inverter and your PC. Or you may use one network cable (RJ-45) to connect
RS-232 port of this inverter and your PC.
RS-232/USB combo card connection
Step 3: Install monitoring software in your PC.
Please insert CD into your computer and install monitoring software in your PC. Follow below
steps to install software.
1. Follow the on-screen instructions to install the software.
2. When your computer restarts, the monitoring software will appear as shortcut icon located
in the system tray, near the clock.
Step 4: Initial your monitoring software and extract data through communication port. After
completing data acquisition, please put the communication port back to the unit.

15
8. Commissioning
Step 1: Check the following requirements before commissioning:
Ensure the inverter is firmed secured
Check if the open circuit DC voltage of PV module meets requirement (Refer to Section
6)
Check if the open circuit utility voltage of the utility is at approximately same to the
nominal expected value from local utility company.
Correct connection to grid
Full connection to PV modules
Unused DC input connectors are sealed with supplied sealing plugs.
AC circuit breaker and DC circuit breaker are installed correctly.
Step 2: After switching on the DC circuit breakers, it will display “No Utility” in the LCD screen.
Then, switch on the AC circuit breakers. After 60 seconds, the system will automatically
connect to the grid. Then:
If inverter icon is in the LCD display like below, commissioning has been successfully.
Or, if icon flashes, there is insufficient radiation and the inverter is in standby
mode. Wait for sufficient radiation.
Or, if icon flashes, the grid voltage or frequency is beyond acceptable range
and the inverter is in standby mode. Wait for grid voltage or frequency to return to
acceptable range.
Or if icon flashes, there has been an error. Please check chapter 11 for trouble
shooting. If the problem still resists, please inform your installer.
Step 3: After the inverter is successfully on, please calibrate the time and date of the inverter
via monitoring software. Please check software manual for the details.

16
9. Operation
9-1. Interface
This LCD panel shows current status and value of your system. This display is operated by
Information/SELECT button.
NOTICE: To accurately monitor and calculate the energy generation, please calibrate the
timer of this unit via software every one month. For the detailed calibration, please check the
user manual of bundled software.
9-2. LCD Information Define
Display Function
Indicates input voltage of PV module 1 or PV module 2.
P1: PV module 1, P2: PV module 2, V: voltage
Indicates AC output voltage or frequency.
V: voltage, Hz: frequency
Indicates current feeding power.
Indicates energy generated today.
Indicates total energy generated so far.
Indicates that the warning occurs.
Indicates that the fault occurs.
Indicates fault code in fault mode or WR for warning
situation.

17
Indicates PV module status.
Each indicates 150VDC. When input voltage is
below 100VDC, icon will flash.
When PV module is not connected, icon will
flash.
Indicates the Inverter circuit is working.
Indicates grid.
9-3. Operation Button
The INFORMATION/SELECT button controls LCD settings and has three functions.
Function Operation Description
Information
changes Press the button once To jump to next selection or decrease value.
Query Menu Press and hold the button for 2
seconds To enter query menu
Selection
confirmed Press and hold the button for 2 seconds
To confirm selection or
value entry in query menu.
NOTE: If backlight shuts off, you may activate it by pressing any button.
9-4 Query Menu Operation

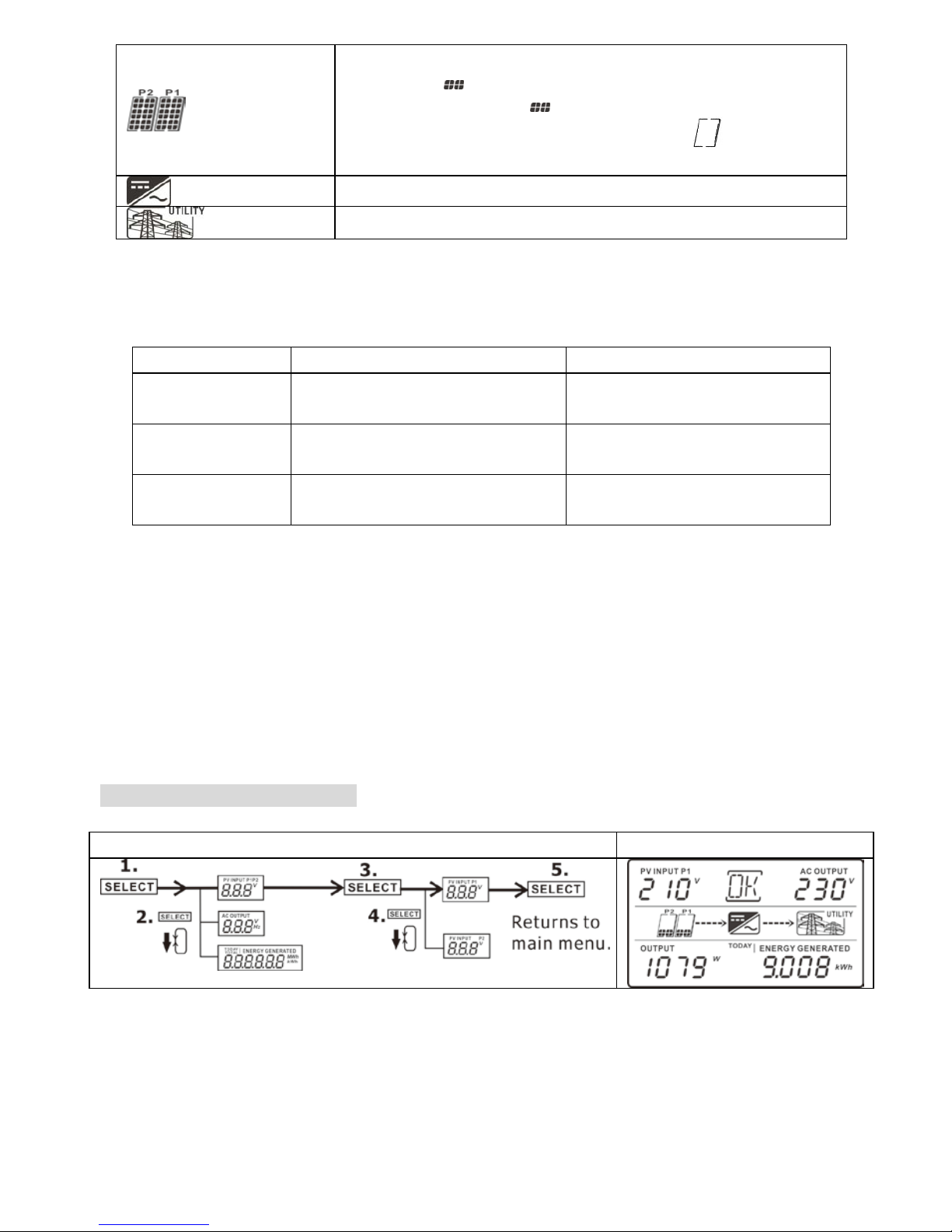

This display shows current values of your system. These displayed values can be changed in
query menu via button operation. Press “INFORMATION/SELECT” button to enter query menu.
There are three query selections:
Input voltage of PV module 1 or PV module 2
Frequency or voltage of AC output
Power generation today or total power generation since installation.

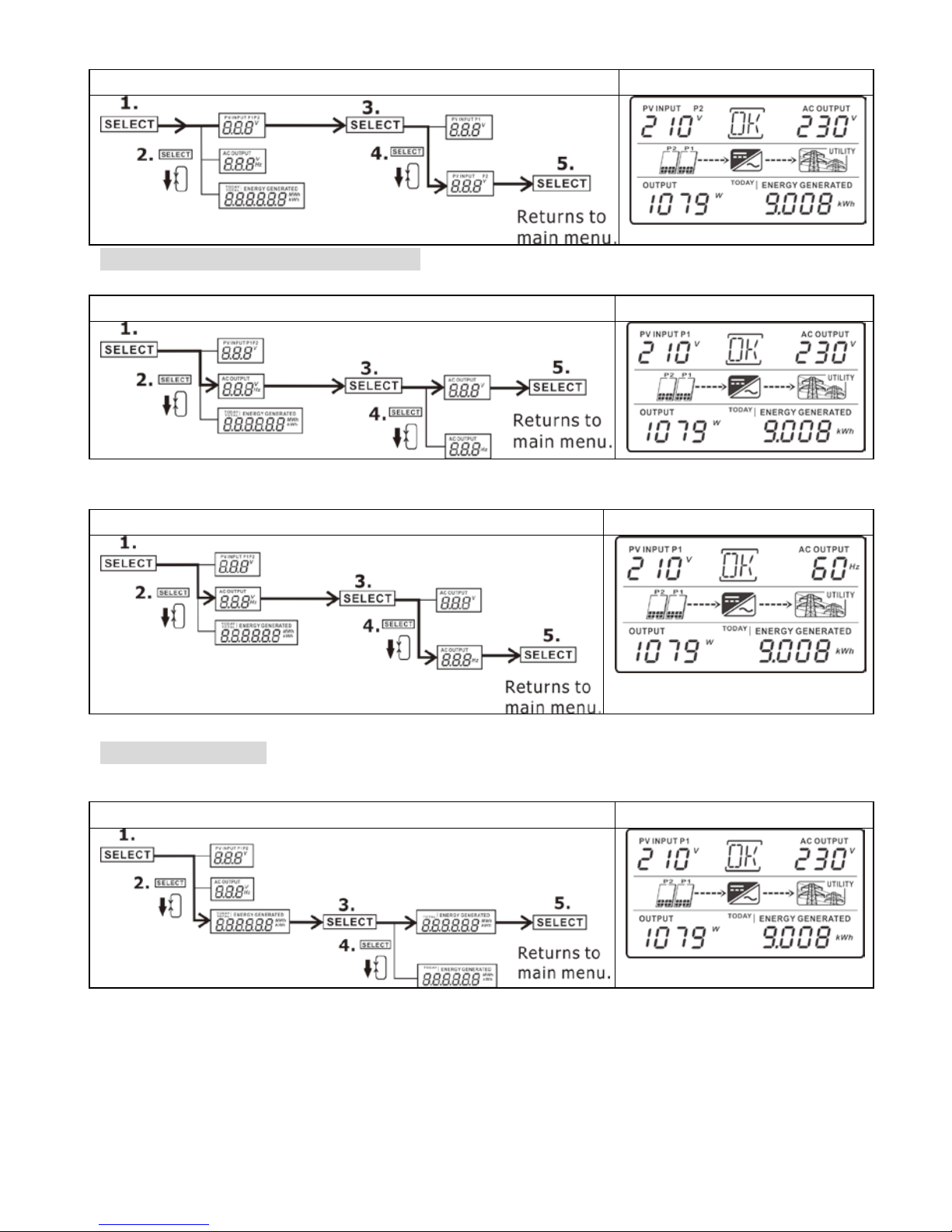

Input voltage of PV module
Input voltage of PV module 1
Procedure LCD Display

18
Input voltage of PV module 2 (only available for 5KW)
Procedure LCD Display
Frequency or voltage of AC output
Voltage of AC output
Procedure LCD Display
Frequency of AC output
Procedure LCD Display
Power generation
Power generation today
Procedure LCD Display
