OWE-900
Elite Series
9 Channel DVR
OWE-1600
Elite Series
16 Channel DVR
OWH-400/OWH-400-S
H.264 Series
4 Channel DVRs
OWH-800/OWH-800-S
H.264 Series
8 Channel DVRs

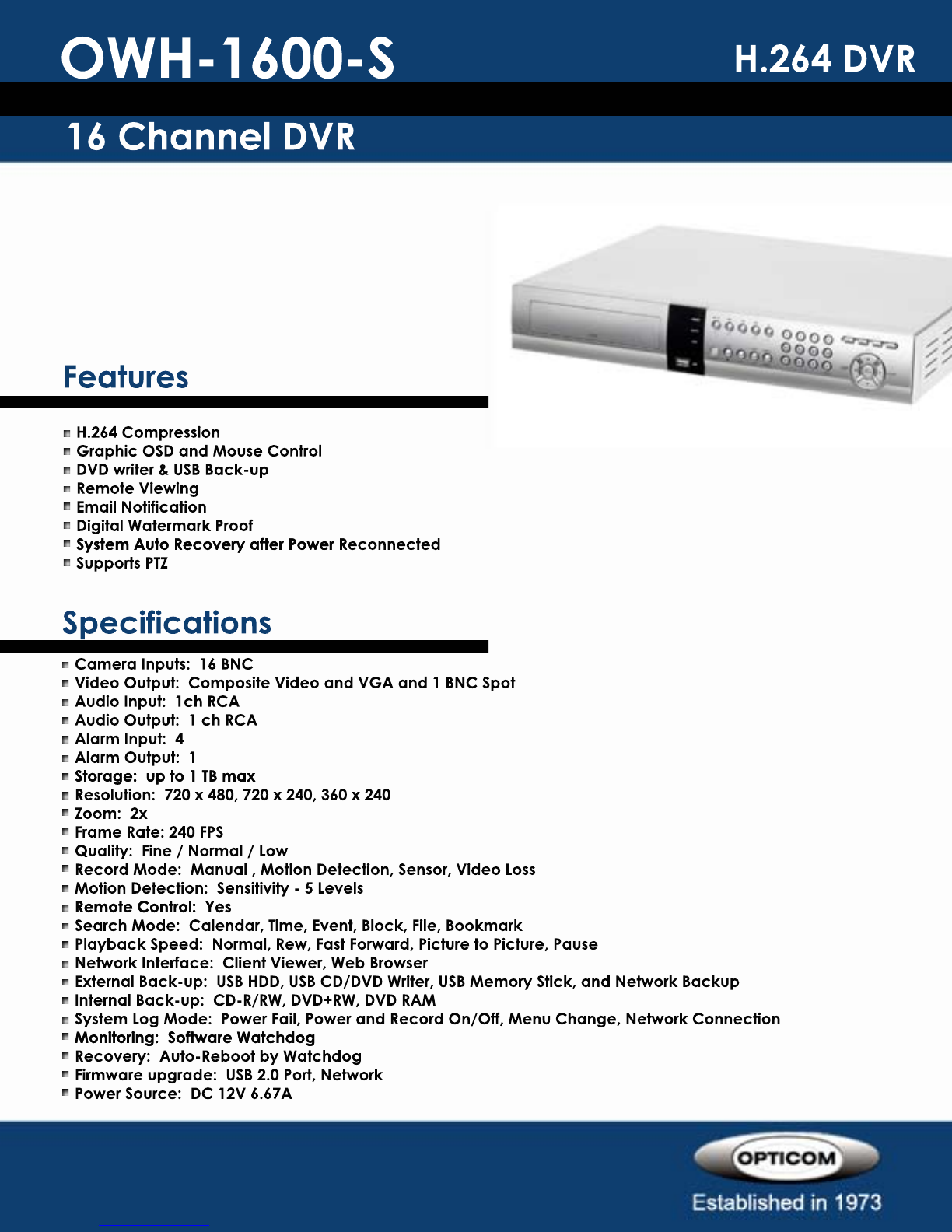

OWH-1600/OWH-1600-S
H.264 Series
16 Channel DVRs

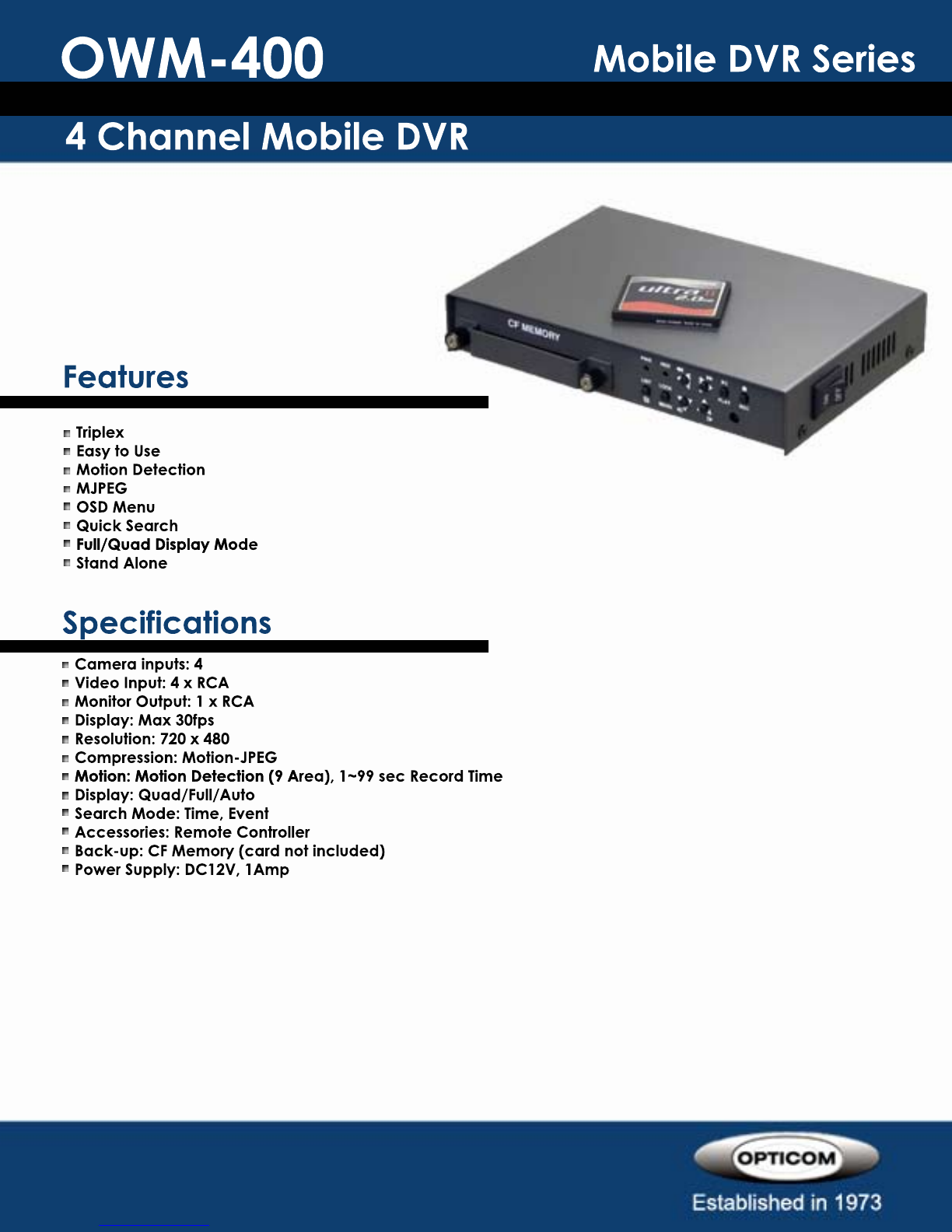

OWM-400
Mobile Series
4 Channel DVR
Opticom Technologies INC. offers several Stand Alone DVRs with powerful performance, multiple functions,
and operating reliability. They feature an extremely simple setup procedure and a very intuitive graphic user
interface. They are built in Korea, the birthplace of DVR technology.
Opticom has served the security and surveillance industry since 1973 and specializes in solving the most
challenging projects with field proven products.
OWE Series
OWH-S Series
OWB-400
Basic Series
4 Channel DVR
OWB-800
Basic Series
8 Channel DVR
OWB-1600
Basic Series
16 Channel DVR
OWL-400
Lite Series
4 Channel DVR
OWL-800
Lite Series
8 Channel DVR
OWL-1600
Lite Series
16 Channel DVR
MPEG 4 Compression
4, 9, & 16 Channels
Networking
User Friendly Interface
Economically Priced
Linux OS
3 3 Year Warranty
Product Information Bulletin

4 Channel DVR
Features
Specifications
OWB-400
Basic Series DVR
MPEG-4 Compression
Triplex Operation
Simple Interface
AVI Backup
Various Network Accesses
Simple Scheduling
Instant Back-up FunctionInstant Back-up Function
250 GB HDD
Camera inputs: 4 BNC
Display Outputs: 1 VGA, 1 Spot
Record: 120 fps
Display: 120 fps
Triplex: Network, Record, Playback
Video Input: 4 BNC, 1.0Vp-p, 75 Ohm
Alarm Input: 4Alarm Input: 4
Alarm Output: 1
Recording: 352 x240 (120fps) / 704 x 480 (30fps)
Recording Quality: Low, Medium, High
Recording Mode: Continuous / Schedule / Motion / Sensor / Manual
Plackback Speed: Fast Forward / Reverse
Search Mode: Event, Archive, Log, Time Line
Back-Up: USB Flash Drive / NetworkBack-Up: USB Flash Drive / Network
Menu Display: Text UI
Input Method: Remote Control
Network: TCP/IP, DDNS
Network Interface: 10/100 base-T Ethernet (RJ-45)
Network Access: Multi-site Client Software, Web Browser
Network Functions: Live, Search, Backup, PTZ Control
Firmware Upgrade: USBFirmware Upgrade: USB
Power Source: DC 12V adapter, Supplied
Weight: 3.3 lbs / 1.5kgs
Dimensions: 13.4” x 10.3” x 2.5” / 340 x 262 x 63mm

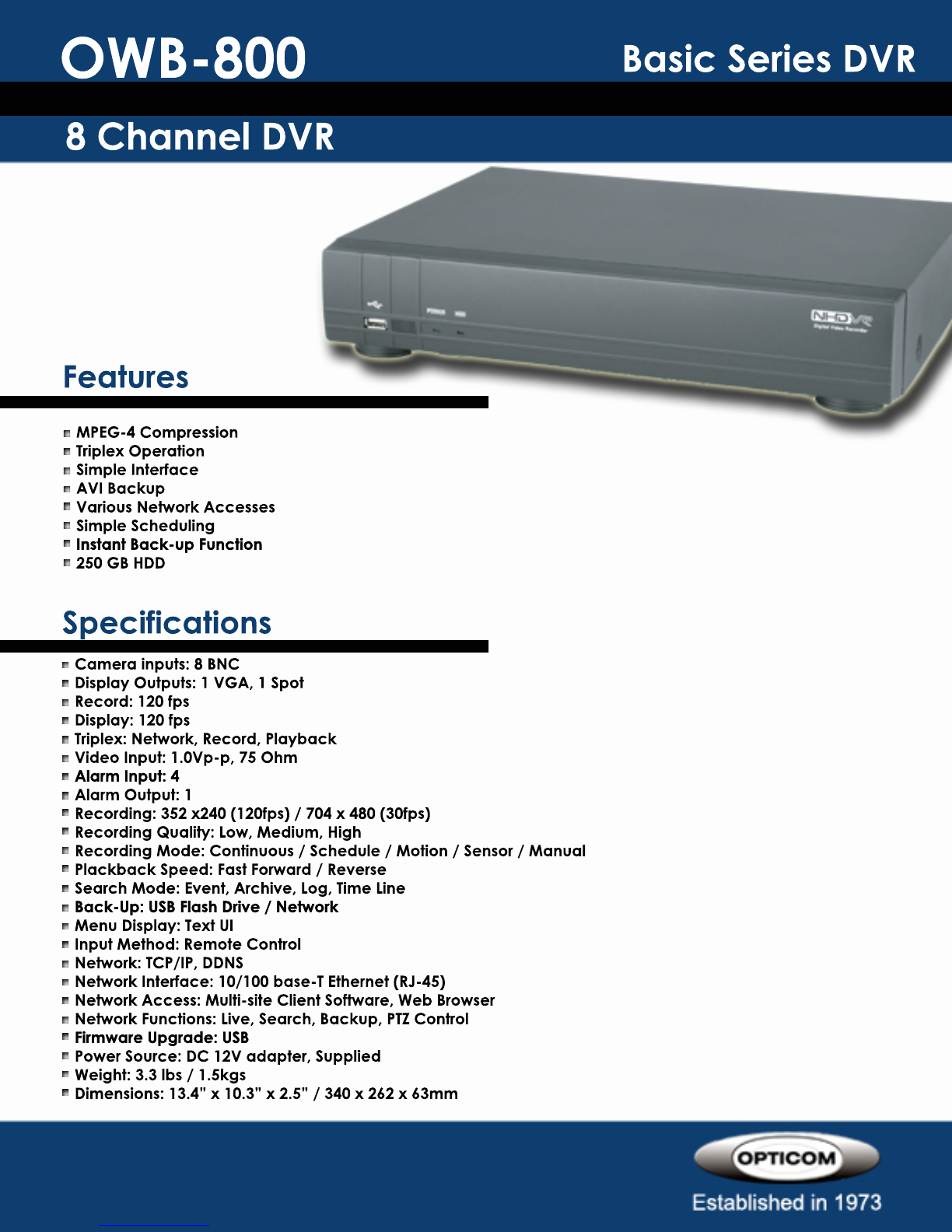

8 Channel DVR
Features
Specifications
OWB-800
Basic Series DVR
MPEG-4 Compression
Triplex Operation
Simple Interface
AVI Backup
Various Network Accesses
Simple Scheduling
Instant Back-up FunctionInstant Back-up Function
250 GB HDD
Camera inputs: 8 BNC
Display Outputs: 1 VGA, 1 Spot
Record: 120 fps
Display: 120 fps
Triplex: Network, Record, Playback
Video Input: 1.0Vp-p, 75 Ohm
Alarm Input: 4Alarm Input: 4
Alarm Output: 1
Recording: 352 x240 (120fps) / 704 x 480 (30fps)
Recording Quality: Low, Medium, High
Recording Mode: Continuous / Schedule / Motion / Sensor / Manual
Plackback Speed: Fast Forward / Reverse
Search Mode: Event, Archive, Log, Time Line
Back-Up: USB Flash Drive / NetworkBack-Up: USB Flash Drive / Network
Menu Display: Text UI
Input Method: Remote Control
Network: TCP/IP, DDNS
Network Interface: 10/100 base-T Ethernet (RJ-45)
Network Access: Multi-site Client Software, Web Browser
Network Functions: Live, Search, Backup, PTZ Control
Firmware Upgrade: USBFirmware Upgrade: USB
Power Source: DC 12V adapter, Supplied
Weight: 3.3 lbs / 1.5kgs
Dimensions: 13.4” x 10.3” x 2.5” / 340 x 262 x 63mm

16 Channel DVR
Features
Specifications
OWB-1600
Basic Series DVR
MPEG-4 Compression
Triplex Operation
Simple Interface
AVI Backup
Various Network Accesses
Simple Scheduling
Instant Back-up FunctionInstant Back-up Function
250 GB HDD
Camera inputs: 16 BNC
Display Outputs: 1 VGA, 1 Spot
Record: 120 fps
Display: 120 fps
Triplex: Network, Record, Playback
Video Input: 1.0Vp-p, 75 Ohm
Alarm Input: 4Alarm Input: 4
Alarm Output: 1
Recording: 352 x240 (120fps) / 704 x 480 (30fps)
Recording Quality: Low, Medium, High
Recording Mode: Continuous / Schedule / Motion / Sensor / Manual
Plackback Speed: Fast Forward / Reverse
Search Mode: Event, Archive, Log, Time Line
Back-Up: USB Flash Drive / NetworkBack-Up: USB Flash Drive / Network
Menu Display: Text UI
Input Method: Remote Control
Network: TCP/IP, DDNS
Network Interface: 10/100 base-T Ethernet (RJ-45)
Network Access: Multi-site Client Software, Web Browser
Network Functions: Live, Search, Backup, PTZ Control
Firmware Upgrade: USBFirmware Upgrade: USB
Power Source: DC 12V adapter, Supplied
Weight: 3.3 lbs / 1.5kgs
Dimensions: 13.4” x 10.3” x 2.5” / 340 x 262 x 63mm

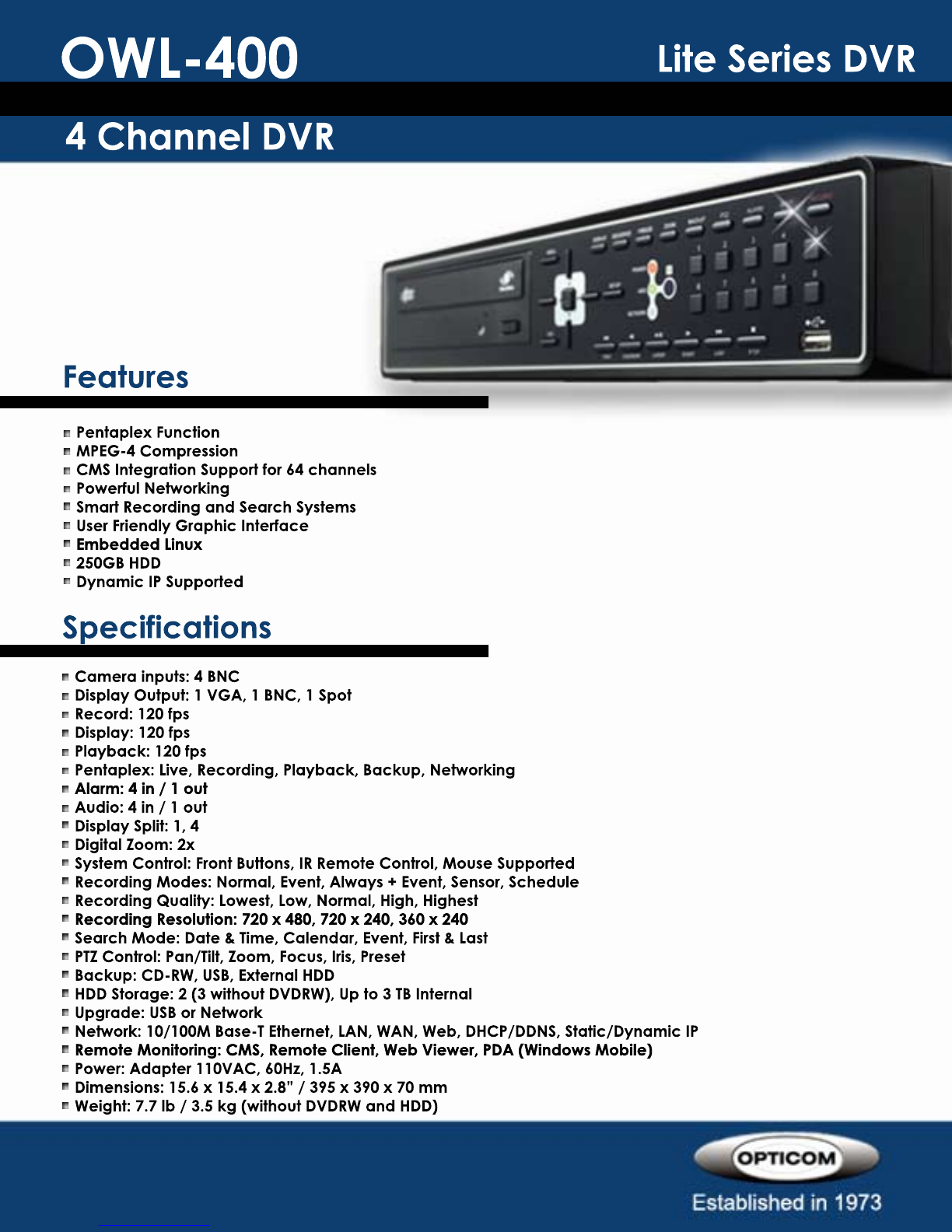

4 Channel DVR
Features
Specifications
OWL-400
Lite Series DVR
Pentaplex Function
MPEG-4 Compression
CMS Integration Support for 64 channels
Powerful Networking
Smart Recording and Search Systems
User Friendly Graphic Interface
Embedded LinuxEmbedded Linux
250GB HDD
Dynamic IP Supported
Camera inputs: 4 BNC
Display Output: 1 VGA, 1 BNC, 1 Spot
Record: 120 fps
Display: 120 fps
Playback: 120 fps
Pentaplex: Live, Recording, Playback, Backup, Networking
Alarm: 4 in / 1 outAlarm: 4 in / 1 out
Audio: 4 in / 1 out
Display Split: 1, 4
Digital Zoom: 2x
System Control: Front Buttons, IR Remote Control, Mouse Supported
Recording Modes: Normal, Event, Always + Event, Sensor, Schedule
Recording Quality: Lowest, Low, Normal, High, Highest
Recording Resolution: 720 x 480, 720 x 240, 360 x 240Recording Resolution: 720 x 480, 720 x 240, 360 x 240
Search Mode: Date & Time, Calendar, Event, First & Last
PTZ Control: Pan/Tilt, Zoom, Focus, Iris, Preset
Backup: CD-RW, USB, External HDD
HDD Storage: 2 (3 without DVDRW), Up to 3 TB Internal
Upgrade: USB or Network
Network: 10/100M Base-T Ethernet, LAN, WAN, Web, DHCP/DDNS, Static/Dynamic IP
Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)
Power: Adapter 110VAC, 60Hz, 1.5A
Dimensions: 15.6 x 15.4 x 2.8” / 395 x 390 x 70 mm
Weight: 7.7 lb / 3.5 kg (without DVDRW and HDD)

9 Channel DVR
Features
Specifications
OWL-900
Lite Series DVR
Pentaplex Function
MPEG-4 Compression
CMS Integration Support for 64 channels
Powerful Networking
Smart Recording and Search Systems
User Friendly Graphic Interface
Embedded LinuxEmbedded Linux
250GB HDD
Dynamic IP Supported
Camera inputs: 9 BNC
Display Outputs: 1 VGA, 1 BNC, 1 Spot
Record: 240 fps
Display: 270 fps
Playback: 240 fps
Pentaplex: Live, Recording, Playback, Backup, Networking
Alarm: 4 in / 1 outAlarm: 4 in / 1 out
Audio: 4 in / 1 out
Display Split: 1, 4, 9
Digital Zoom: 2x
System Control: Front Buttons, IR Remote Control, Mouse Supported
Recording Modes: Normal, Event, Always + Event, Sensor, Schedule
Recording Quality: Lowest, Low, Normal, High, Highest
Recording Resolution: 720 x 480, 720 x 240, 360 x 240Recording Resolution: 720 x 480, 720 x 240, 360 x 240
Search Mode: Date & Time, Calendar, Event, First & Last
PTZ Control: Pan/Tilt, Zoom, Focus, Iris, Preset
Backup: CD-RW, USB, External HDD
HDD Storage: 2 (3 with out DVDRW), Up to 3 TB Internal
Upgrade: USB or Network
Network: 10/100M Base-T Ethernet, LAN, WAN, Web, DHCP/DDNS, Static/Dynamic IP
Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)
Power: Adapter 110VAC, 60Hz, 1.5A
Dimensions: 15.6 x 15.4 x 2.8” / 395 x 390 x 70 mm
Weight: 7.7 lb / 3.5 kg (without DVDRW and HDD)

Established in 1973
16 Channel DVR
Features
Specifications
OWL-1600
Lite Series DVR
Pentaplex Function
MPEG-4 Compression
CMS Integration Support for 64 channels
Powerful Networking
Smart Recording and Search Systems
User Friendly Graphic Interface
Embedded LinuxEmbedded Linux
250GB HDD
Dynamic IP Supported
Camera inputs: 16 BNC
Display Outputs: 1 VGA, 1 BNC, 1 Spot
Record: 240 fps
Display: 480 fps
Playback: 240 fps
Pentaplex: Live, Recording, Playback, Backup, Networking
Alarm: 4 in / 1 outAlarm: 4 in / 1 out
Audio: 4 in / 1 out
Display Split: 1, 4, 9, 16
Digital Zoom: 2x
System Control: Front Buttons, IR Remote Control, Mouse Supported
Recording Modes: Normal, Event, Always + Event, Sensor, Schedule
Recording Quality: Lowest, Low, Normal, High, Highest
Recording Resolution: 720 x 480, 720 x 240, 360 x 240Recording Resolution: 720 x 480, 720 x 240, 360 x 240
Search Mode: Date & Time, Calendar, Event, First & Last
PTZ Control: Pan/Tilt, Zoom, Focus, Iris, Preset
Backup: DVD-RW, USB, External HDD
HDD Storage: 2 (3 with out DVDRW), Up to 3 TB Internal
Upgrade: USB or Network
Network: 10/100M Base-T Ethernet, LAN, WAN, Web, DHCP/DDNS, Static/Dynamic IP
Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)
Power: Adapter 110VAC, 60Hz, 1.5A
Dimensions: 15.6 x 15.4 x 2.8” / 395 x 390 x 70 mm
Weight: 7.7 lb / 3.5 kg (without DVDRW and HDD)

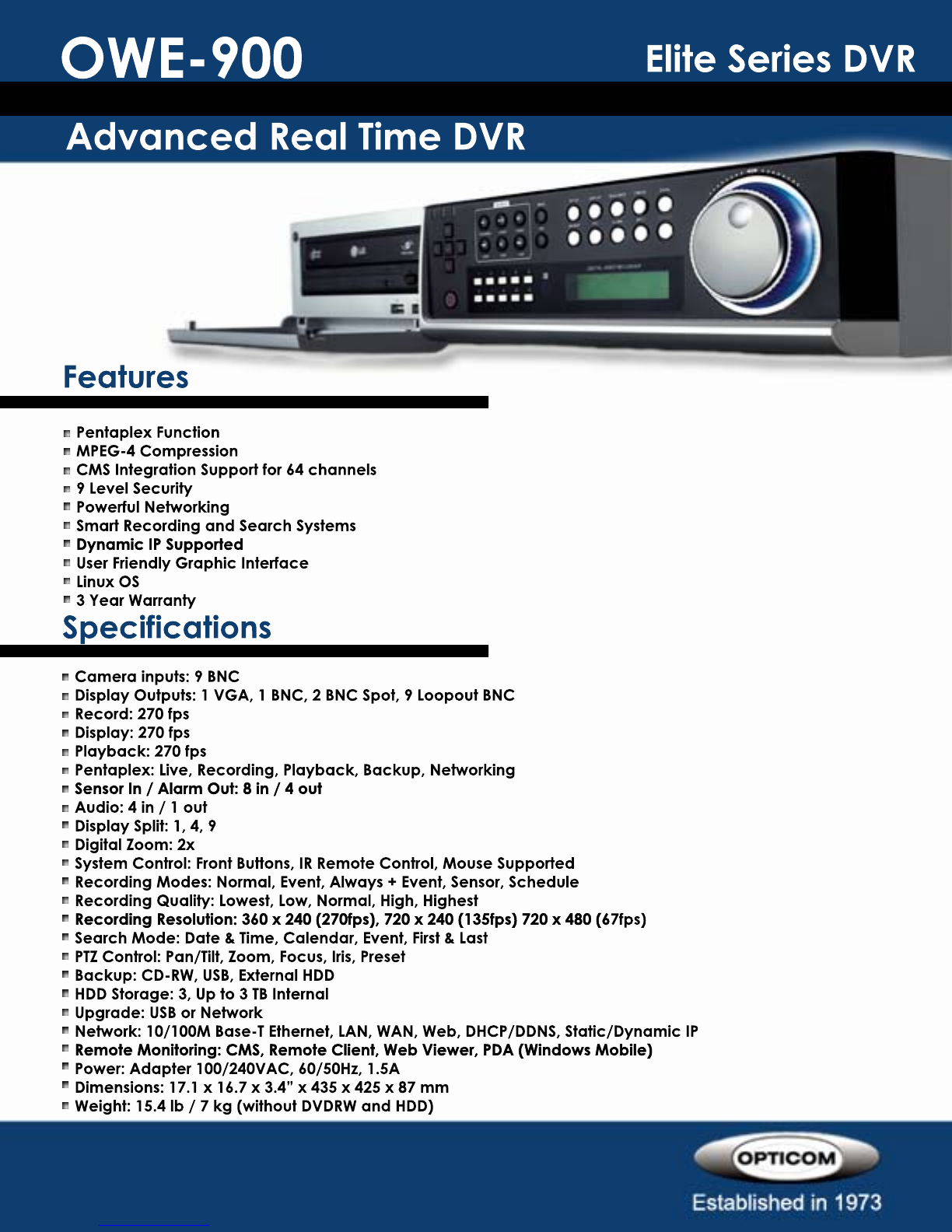

Advanced Real Time DVR
Features
Specifications
OWE-900
Elite Series DVR
Pentaplex Function
MPEG-4 Compression
CMS Integration Support for 64 channels
9 Level Security
Powerful Networking
Smart Recording and Search Systems
Dynamic IP SupportedDynamic IP Supported
User Friendly Graphic Interface
Linux OS
3 Year Warranty
Camera inputs: 9 BNC
Display Outputs: 1 VGA, 1 BNC, 2 BNC Spot, 9 Loopout BNC
Record: 270 fps
Display: 270 fps
Playback: 270 fps
Pentaplex: Live, Recording, Playback, Backup, Networking
Sensor In / Alarm Out: 8 in / 4 outSensor In / Alarm Out: 8 in / 4 out
Audio: 4 in / 1 out
Display Split: 1, 4, 9
Digital Zoom: 2x
System Control: Front Buttons, IR Remote Control, Mouse Supported
Recording Modes: Normal, Event, Always + Event, Sensor, Schedule
Recording Quality: Lowest, Low, Normal, High, Highest
Recording Resolution: 360 x 240 (270fps), 720 x 240 (135fps) 720 x 480 (67fps)Recording Resolution: 360 x 240 (270fps), 720 x 240 (135fps) 720 x 480 (67fps)
Search Mode: Date & Time, Calendar, Event, First & Last
PTZ Control: Pan/Tilt, Zoom, Focus, Iris, Preset
Backup: CD-RW, USB, External HDD
HDD Storage: 3, Up to 3 TB Internal
Upgrade: USB or Network
Network: 10/100M Base-T Ethernet, LAN, WAN, Web, DHCP/DDNS, Static/Dynamic IP
Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)
Power: Adapter 100/240VAC, 60/50Hz, 1.5A
Dimensions: 17.1 x 16.7 x 3.4” x 435 x 425 x 87 mm
Weight: 15.4 lb / 7 kg (without DVDRW and HDD)

16 Channel DVR
Features
Specifications
OWE-1600
Elite Series DVR
Pentaplex Function
MPEG-4 Compression
CMS Integration Support for 64 channels
9 Level Security
Powerful Networking
Smart Recording and Search System
Dynamic IP SupportedDynamic IP Supported
User Friendly Graphic Interface
Linux OS
3 Year Warranty
Advanced Real Time DVR
Camera inputs: 16 BNC
Display Outputs: 1 VGA, 1 BNC, 2 BNC Spot, 16 Loopout BNC
Record: 480 fps
Display: 480 fps
Playback: 480 fps
Pentaplex: Live, Recording, Playback, Backup, Networking
Sensor In / Alarm Out: 16 in / 4 outSensor In / Alarm Out: 16 in / 4 out
Audio: 4 in / 1 out
Display Split: 1, 4, 9, 16
Digital Zoom: 2x
System Control: Front Buttons, IR Remote Control, Mouse Supported
Recording Modes: Normal, Event, Always + Event, Sensor, Schedule
Recording Quality: Lowest, Low, Normal, High, Highest
Recording Resolution: 360 x 240 (480fps), 720 x 240 (240fps), 720 x 480 (120fps)Recording Resolution: 360 x 240 (480fps), 720 x 240 (240fps), 720 x 480 (120fps)
Search Mode: Date & Time, Calendar, Event, First & Last
PTZ Control: Pan/Tilt, Zoom, Focus, Iris, Preset
Backup: CD-RW, USB, External HDD
HDD Storage: 3, Up to 3 TB Internal
Upgrade: USB or Network
Network: 10/100M Base-T Ethernet, LAN, WAN, Web, DHCP/DDNS, Static/Dynamic IP
Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)Remote Monitoring: CMS, Remote Client, Web Viewer, PDA (Windows Mobile)
Power: Adapter 100/240VAC, 60/50Hz, 1.5A
Dimensions: 17.1 x 16.7 x 3.4” x 435 x 425 x 87 mm
Weight: 15.4 lb / 7 kg (without DVDRW and HDD)

4 Channel DVR
Features
Specifications
OWH-400
H.264 DVR
H.264 Compression
Remote Viewing
CMS Software
User Friendly Interface
Supports PTZ
VGA and BNC Output
USB Back-upUSB Back-up
IR Remote Control
Camera inputs: 4 BNC
Display Outputs: 1 VGA, 1 BNC
Record: 120 fps
Display: 120 fps
Triplex: Network, Record, Playback
Video Input: 4 BNC, 1.0Vp-p, 75 Ohm
Alarm Input: 4Alarm Input: 4
Alarm Output: 1
Audio Input: 2 x BNC
Audio Output: 2 x BNC
Recording: 352 x240 (120fps) / 720 x 480 (30fps)
Recording Mode: Manual / Sensor / Timer / Motion Detection
Back-Up: USB Flash Drive / Network
Network Interface: RJ45 (LAN,INTERNET)Network Interface: RJ45 (LAN,INTERNET)
PTZ Control: Yes
Communication Port: RS485, USB2.0
Power Source: DC 12V adapter, Supplied

8 Channel DVR
Features
Specifications
OWH-800
H.264 DVR
H.264 Compression
Remote Viewing
CMS Software
User Friendly Interface
Supports PTZ
VGA and BNC Output
USB Back-upUSB Back-up
IR Remote Control
Camera inputs: 8 BNC
Display Outputs: 1 VGA, 1 BNC, 1 Spot (BNC)
Record: 240 fps @ CIF / 60 fps @ D1
Display: 240 fps
Triplex: Network, Record, Playback
Video Input: 4 BNC, 1.0Vp-p, 75 Ohm
Alarm Input: 8Alarm Input: 8
Alarm Output: 1
Audio Input: 2 x BNC
Audio Output: 2 x BNC
Recording: 352 x240 (120fps) / 720 x 480 (30fps)
Recording Mode: Manual / Sensor / Timer / Motion Detection
Back-Up: USB Flash Drive / Network
Network Interface: RJ45 (LAN,INTERNET)Network Interface: RJ45 (LAN,INTERNET)
PTZ Control: Yes
Hard Drive Info: 500GB Included / Holds up to 2 HDD’s
Communication Port: RS485, USB2.0
Power Source: DC 12V adapter, Supplied

16 Channel DVR
Features
Specifications
OWH-1600
H.264 DVR
H.264 Compression
Remote Viewing
CMS Software
User Friendly Interface
Supports PTZ
VGA and BNC Output
USB Back-upUSB Back-up
IR Remote Control
Camera inputs: 16 BNC
Display Outputs: 1 VGA, 1 BNC, 1 Spot (BNC)
Record: 240 fps @ CIF / 60 fps @ D1
Display: 240 fps
Triplex: Network, Record, Playback
Video Input: 4 BNC, 1.0Vp-p, 75 Ohm
Alarm Input: 16Alarm Input: 16
Alarm Output: 1
Audio Input: 2 x BNC
Audio Output: 2 x BNC
Recording: 352 x240 (120fps) / 720 x 480 (30fps)
Recording Mode: Manual / Sensor / Timer / Motion Detection
Back-Up: USB Flash Drive / Network
Network Interface: RJ45 (LAN,INTERNET)Network Interface: RJ45 (LAN,INTERNET)
PTZ Control: Yes
Hard Drive Info: 500GB Included / Holds up to 2 HDD’s
Communication Port: RS485, USB2.0
Power Source: DC 12V adapter, Supplied

4 Channel DVR
Features
Specifications
OWH-400-S
H.264 DVR
H.264 Compression
Graphic OSD and Mouse Control
DVD writer & USB Back-up
Remote Viewing
Email Notification
Digital Watermark Proof
System Auto Recovery after Power ReconnectedSystem Auto Recovery after Power Reconnected
Supports PTZ
Camera Inputs: 4 BNC
Video Output: Composite Video and VGA and 1 BNC Spot
Audio Input: 1ch RCA
Audio Output: 1 ch RCA
Alarm Input: 4
Alarm Output: 1
Storage: up to 1 TB maxStorage: up to 1 TB max
Resolution: 720 x 480, 720 x 240, 360 x 240
Zoom: 2x
Frame Rate: 120 FPS
Quality: Fine / Normal / Low
Record Mode: Manual , Motion Detection, Sensor, Video Loss
Motion Detection: Sensitivity - 5 Levels
Remote Control: YesRemote Control: Yes
Search Mode: Calendar, Time, Event, Block, File, Bookmark
Playback Speed: Normal, Rew, Fast Forward, Picture to Picture, Pause
Network Interface: Client Viewer, Web Browser
External Back-up: USB HDD, USB CD/DVD Writer, USB Memory Stick, and Network Backup
Internal Back-up: CD-R/RW, DVD+RW, DVD RAM
System Log Mode: Power Fail, Power and Record On/Off, Menu Change, Network Connection
Monitoring: Software WatchdogMonitoring: Software Watchdog
Recovery: Auto-Reboot by Watchdog
Firmware upgrade: USB 2.0 Port, Network
Power Source: DC 12V 6.67A

8 Channel DVR
Features
Specifications
OWH-800-S
H.264 DVR
H.264 Compression
Graphic OSD and Mouse Control
DVD writer & USB Back-up
Remote Viewing
Email Notification
Digital Watermark Proof
System Auto Recovery after Power ReconnectedSystem Auto Recovery after Power Reconnected
Supports PTZ
Camera Inputs: 8 BNC
Video Output: Composite Video and VGA and 1 BNC Spot
Audio Input: 1ch RCA
Audio Output: 1 ch RCA
Alarm Input: 4
Alarm Output: 1
Storage: up to 1 TB maxStorage: up to 1 TB max
Resolution: 720 x 480, 720 x 240, 360 x 240
Zoom: 2x
Frame Rate: 240 FPS
Quality: Fine / Normal / Low
Record Mode: Manual , Motion Detection, Sensor, Video Loss
Motion Detection: Sensitivity - 5 Levels
Remote Control: YesRemote Control: Yes
Search Mode: Calendar, Time, Event, Block, File, Bookmark
Playback Speed: Normal, Rew, Fast Forward, Picture to Picture, Pause
Network Interface: Client Viewer, Web Browser
External Back-up: USB HDD, USB CD/DVD Writer, USB Memory Stick, and Network Backup
Internal Back-up: CD-R/RW, DVD+RW, DVD RAM
System Log Mode: Power Fail, Power and Record On/Off, Menu Change, Network Connection
Monitoring: Software WatchdogMonitoring: Software Watchdog
Recovery: Auto-Reboot by Watchdog
Firmware upgrade: USB 2.0 Port, Network
Power Source: DC 12V 6.67A

16 Channel DVR
Features
Specifications
OWH-1600-S
H.264 DVR
H.264 Compression
Graphic OSD and Mouse Control
DVD writer & USB Back-up
Remote Viewing
Email Notification
Digital Watermark Proof
System Auto Recovery after Power ReconnectedSystem Auto Recovery after Power Reconnected
Supports PTZ
Camera Inputs: 16 BNC
Video Output: Composite Video and VGA and 1 BNC Spot
Audio Input: 1ch RCA
Audio Output: 1 ch RCA
Alarm Input: 4
Alarm Output: 1
Storage: up to 1 TB maxStorage: up to 1 TB max
Resolution: 720 x 480, 720 x 240, 360 x 240
Zoom: 2x
Frame Rate: 240 FPS
Quality: Fine / Normal / Low
Record Mode: Manual , Motion Detection, Sensor, Video Loss
Motion Detection: Sensitivity - 5 Levels
Remote Control: YesRemote Control: Yes
Search Mode: Calendar, Time, Event, Block, File, Bookmark
Playback Speed: Normal, Rew, Fast Forward, Picture to Picture, Pause
Network Interface: Client Viewer, Web Browser
External Back-up: USB HDD, USB CD/DVD Writer, USB Memory Stick, and Network Backup
Internal Back-up: CD-R/RW, DVD+RW, DVD RAM
System Log Mode: Power Fail, Power and Record On/Off, Menu Change, Network Connection
Monitoring: Software WatchdogMonitoring: Software Watchdog
Recovery: Auto-Reboot by Watchdog
Firmware upgrade: USB 2.0 Port, Network
Power Source: DC 12V 6.67A

4 Channel Mobile DVR
Features
Specifications
OWM-400
Mobile DVR Series
Triplex
Easy to Use
Motion Detection
MJPEG
OSD Menu
Quick Search
Full/Quad Display ModeFull/Quad Display Mode
Stand Alone
Camera inputs: 4
Video Input: 4 x RCA
Monitor Output: 1 x RCA
Display: Max 30fps
Resolution: 720 x 480
Compression: Motion-JPEG
Motion: Motion Detection (9 Area), 1~99 sec Record TimeMotion: Motion Detection (9 Area), 1~99 sec Record Time
Display: Quad/Full/Auto
Search Mode: Time, Event
Accessories: Remote Controller
Back-up: CF Memory (card not included)
Power Supply: DC12V, 1Amp
