Oregon Scientific EMR812HGN User manual

1
EN
MULTI-CHANNEL IN-OUT
CABLE FREE
THERMO-HYGROMETER
MODEL : EMR812HGN
USER’S MANUAL
INTRODUCTION
Congratulations on your purchase of the Multi-Channel In-Out
Thermometer/Hygrometer(EMR812HGN)witha433MHzcable-
free thermo-hygro sensor.
Enclosed with this package is one (1) main display unit and one (1)
cable-free remote thermo-hygro sensor unit.
The main unit has an extra-large multifunction 2-line LCD that
shows recordings for indoor and outdoor temperatures, humidity,
maximum and minimum recordings and trend indicators. The unit
supports up to three 433MHz remote thermo-sensors or thermo-
hygro sensors. A variety of additional sensors can be purchased
separately.
In addition to monitoring maximum and minimum temperature and
humidity readings, the unit also has an alarm that can be set to
activate once readings exceed a given variance.
No wire installation is required between the main and remote units.
AstheEMR812HGNoperatesat433MHz,itcanbeusedintheU.S.
and most places in Continental Europe.
FEATURES: MAIN UNIT

2
EN
A Extra large two-line Liquid Crystal Display (LCD)
Multifunction display showing temperature and humidity,
max./min. memory, and trend indicators for the main unit and
remote sensors.
B CHANNEL button
-Selects among different channels
-Activates remote sensor scanning mode
C IN/REMOTE
-Selects between the main-unit display and a selected
remote unit
-Activates search mode
D MEM/CLEAR button
-Recalls the maximum or minimum temperature and
humidity readings
-Clears the maximum and minimum temperature and
humidity memory of remote sensor channels or the main
unit display
E HI/LO button
-Set the upper or lower temperature alarm limits of
individual channels
-Confirms alarm settings
Fbutton
Sets the readings for the upper or lower temperature and
humidity of individual channels
G AL ON/OFF button
Activates or deactivates alarm
H RESET
Returns all settings to default values and erases all memories
I°C/°F slide switch
Selects between degree Centigrade (°C) and Fahrenheit (°F)
J Battery compartment
Accommodates two AA-size batteries
K Retractable table stand
For standing the main unit on a flat surface
L Recessed Wall-mount hole
For mounting the main unit on a wall

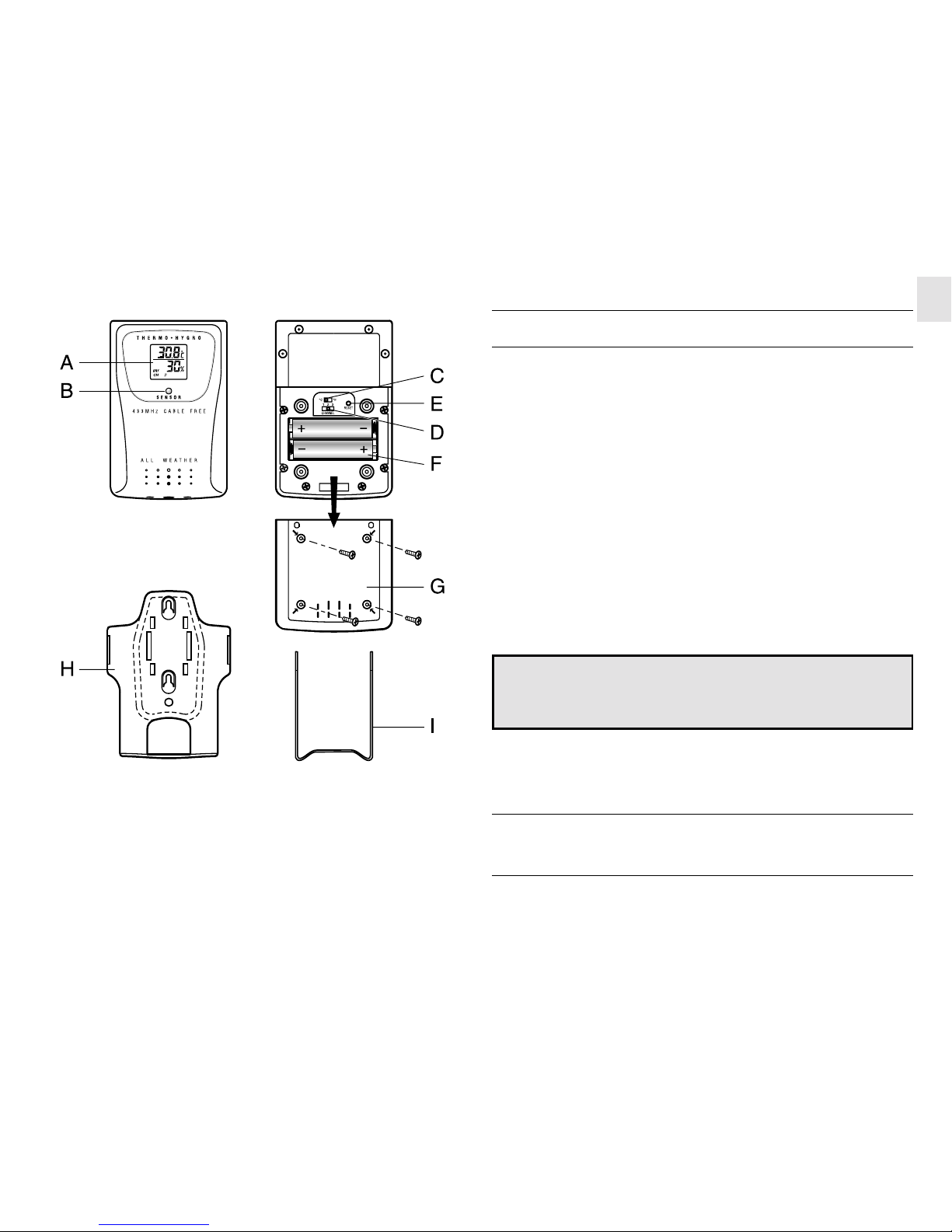

FEATURES: REMOTE
THERMO-HYGRO SENSOR
A Two-line LCD
Displays the current temperature and humidity monitored by
the remote unit
B LED indicator
Flashes when the remote unit transmits a reading
C°C/°F slide switch
Selects between Centigrade (°C) and Fahrenheit (°F)
D Channel slide switch
Designates the remote unit Channel 1, Channel 2 or
Channel 3
E RESET
Returns all settings to default values
F Battery compartment
Accommodates two AAA-size batteries
G Battery door

3
EN
H Wall-mountholder
Supports the remote unit in wall-mounting
I Removable table stand
For standing the remote unit on a flat surface
BEFORE YOU BEGIN
Toensure properfunctioning oftheEMR812HGN followthis setup
procedure.
For best operation:
1. Assign different channels to different remote units.
2. Insertbatteriesfor remote unitsbefore doing soforthe main unit
(see instructions for battery installation).
3. Place the main unit as close as possible next to the remote unit,
reset the main unit after installing batteries. This will ensure
easier synchronization between the transmission and reception
of signals.
4. Positiontheremoteunitandmainunitwithineffectivetransmission
range, which, in usual circumstances, is 20 to 30 meters.
Note that the effective range is vastly affected by the building
materialsandwherethemainandremoteunitsarepositioned.
Try various set-ups for best result.
Though the remote units are weather proof, they should be placed
away from direct sunlight, rain or snow.
BATTERY AND CHANNEL
INSTALLATION: REMOTE UNIT
The remote thermo-hygro sensor unit uses two (2) UM-4 or “AAA”
size alkaline batteries.

4
EN
Follow these steps to install / replace batteries:
1. Remove the screws on the battery compartment.
2. Select the channel number on the CHANNEL slide switch.
3. Select the temperature display unit on the °C/°F slide switch.
4. Insert the batteries strictly according to the polarities shown
therein.
5. Replace the battery compartment door and secure its screws.
Replacethebatterieswhenthelow-batteryindicatoroftheparticular
channel lights up on the main unit. (Repeat the steps described in
section “BEFORE YOU BEGIN”)
Notethat once a channel isassignedtoa remote unit, you can
only change it by removing the batteries or resetting the unit.
BATTERY INSTALLATION: MAIN UNIT
The main unit uses two (2) UM-3 or “AA” size alkaline batteries.
Follow these steps to install / replace batteries:
1. Slide open the battery compartment door.
2. Insert the batteries strictly according to the polarities shown
therein.
3. Replace the battery compartment door.
Replace the batteries when the low-battery indicator of the indoors
temperature lights up. (Repeat the steps described in section
“BEFORE YOU BEGIN”)
If not disposed of properly, batteries can be harmful.
Protect the environment by taking exhausted batteries
ot authorized disposal stations.

5
EN
GETTING STARTED
Once batteries are placed in a given remote sensor unit, it will start
transmitting information at 40-second intervals.
Also, for approximately a 3-minute duration, the main unit will
automatically search for signals once batteries are installed. Upon
successful reception, the individual channel temperature reading
willbe displayedon thetopline andthe respective humidityreading
on the bottom line. The main unit will automatically update its
readings at about 40-second intervals.
If no signals are received, blanks “ --- ” will be displayed and the
kinetic wave icon will not show.
To force a signal search:
◊Press and hold IN/REMOTE for 2-seconds to enforce a
3-minute search.
Thisis usefulin synchronizingthetransmission andreception of the
remote and main units.
Repeat this step whenever you find discrepancies between the
reading shown on the main unit and that on the respective remote
unit.
HOW TO CHECK REMOTE AND
INDOORS TEMPERATURES
Display of readings from a remote sensor or the main unit is a one-
step procedure. The remote sensor channel or the main unit display
is indicated in a box under the kinetic-wave icon.
Kinetic-wave
Icon
Designated Indoor Remote Remote Remote
Display Display Display Display Display
Channel One Channel Two Channel Three
Todisplaytemperature/humidityreadingsfromthemainunit:
◊PressIN/REMOTEuntiladot isdisplayedin theboxunder the
kinetic-wave.
To display temperature / humidity readings from a remote
sensor:
◊PressCHANNELuntil theappropriateremotesensorchannelis
displayed in the box under the kinetic-wave.
Ifnoreadingsarereceivedformoneparticularchannelformorethan
15minutes, blanks “ ---”will be displayed until further readings are
successfully searched. Check the remote sensor to ensure that it is
secure and that the correct channel has been selected. Optionally,
press and hold IN/REMOTE for 2-seconds to enforce a search.
HOW TO READ
THE KINETIC-WAVE DISPLAY
The kinetic-wave display shows the signal-receiving status of the
main unit. There are three possible forms:

6
EN
The unit is in searching mode.
Transmission data are securely
registered.
No signals.
THE COMFORT-LEVEL ICONS
The comfort level is based on the recorded relative humidity. An
indicatorwillbedisplayed otshowif thelevelis comfortable,wetor
dry.
TEMPERATURE AND HUMIDITY TREND
INDICATORS
Thetemperature-trendandhumidity-trendindicatorsshowthetrends
of collected readings. Arrows indicate a rising, steady or falling
trend.
Note:Ifthetemperaturegoesabove orbelow thetemperature
measuringrange ofthe main unitor the remoteunit (statedin
specification), the display will show “HHH” or “LLL”.
REMOTE SENSOR SCANNING
The unit can be set to automatically scan and display readings from
the remote sensors. When the remote-sensor mode is active, the
display will show the readings from one channel for about 4-second
and then proceed to the next channel display.
To activate the remote-sensor scanning mode:
◊Press and hold CHANNEL for 2-seconds.
Arrow
indicator
Temperature
Trend Steady FallingRising
Arrow
indicator
Humidity
Trend Steady FallingRising
Comfort-level

7
EN
To deactivate the remote-sensor scanning mode:
◊Press any button.
MAXIMUM AND MINIMUM
TEMPERATURE AND HUMIDITY
The maximum and minimum recorded temperature and humidity
readings will automatically be stored in the memory.
To display the maximum and minimum display memory:
1. Select the channel to be checked.
2. PressMEM/CLEARoncetodisplaythemaximumtemperature
and again the minimum temperature. The respective indicators,
MAX or MIN will be displayed.
To clear the memory:
• Press and hold MEM/CLEAR for 2-seconds.
If you press MEM/CLEAR now, the maximum and minimum
temperatures will have the same values as the current ones until
different readings are recorded.
HOW TO USE CHANNEL-1
TEMPERATURE/HUMIDITY ALARM
Upper and lower temperature and humidity limits for channel-1 can
be set so that an alarm activates when the limits are exceeded.
Thehigh andlow temperatureandhumidity displaysareselected by
sequentially pressing HI/LO.
The high-low displays are as follows:
Sequence Respective Display
Pressing HI/LO once Enters HI temperature display
Pressing HI/LO twice Enters HI humidity display
Pressing HI/LO three times Enters LO temperature display
Pressing HI/LO a four time Enters LO humidity display
To set a high or low temperature or humidity alarm:
1. Press HI/LO, channel-1 will be displayed.
2. Press tosetthetemperatureorhumiditylimit.Eachpresswill
increaseincrements by onedegree or percentage.Pressand hold
the button for a rapid-scrolling sequence by increments of five.

8
EN
Note:
The temperature range is from -50
° C (-58 ° F) to +70 ° C
(158 ° F).
Ifthisisthefirsttimeyousetthelimits,thelowerlimitwillstart
from -50
° C (-58 ° F) and the upper limit +70 ° C (158 ° F).
Otherwise, the reading will start from the temperature last
selected.
The humidity range is from 2% to 98%.
Ifthisisthefirsttimeyousetthelimits,thelowerlimitwillstart
from 2% and the upper limit 98% Otherwise, the reading will
start from the humidity last selected.
3. Repeat the steps to set the upper humidity setting and the lower
temperature and humidity settings.
4. When finished, press HI/LO to set another limit or wait
16-seconds and the unit will automatically return to the normal
display. The respective HI, LO or both indicators will light up
to signify the status of the alarm.
If in another channel other than channel one is selected, when the
alarm activates the display will switch to channel-1 and the display
will flash. If left untouched, the alarm will activate for a 1-minute.
Pressanykeytomomentarilystopthealarm.Thealarmwillactivate
again if the limit continues exceeds the set limit.
Note: If a second limit is passed while an alarm is active, the
firstalarm will complete its 1-minute cycle and the alarmwill
continue to activate for a second minute to indicate that a
second limit has been surpassed.
To disable an alarm:
1. Enter the setting mode by pressing HI/LO.
2. Then, press AL ON/OFF.
The alarm has been disabled and will not sound at the previously set
limit.
To disable a sounding alarm:
◊Press any button, the alarm sound will stop.
DISCONNECTED SIGNALS
If without obvious reasons the display for a particular channel goes
blank, press IN/REMOTE to enforce an immediate search.
If that fails, check:
1. The remote unit of that channel is still in place.
2. The batteries of both the remote unit and main unit. Replace as
necessary.
Notethat when the temperaturefallsbelow freezing point, the
batteries of outdoor units will freeze, lowering their voltage
supply and the effective range.
3. Thetransmissioniswithinrangeandpathisclearofobstaclesand
interference. Shorten the distance when necessary.

9
EN
TRANSMISSION COLLISION
Signals from other household devices, such as door bells, home
security systems and entry controls, may interfere with those of this
product and cause temporarily reception failure. This is normal and
does not affect the general performance of the product. The
transmissionandreceptionoftemperaturereadingswillresumeonce
the interference recedes.
NOTE ON °C AND °F
Theunitoftemperaturedisplayisselectedonthe°C/°Fslideswitch.
Select °C for Centigrade or °F for Fahrenheit.
Note that the remote temperature display on the main unit is
dominated by the selection on the
° C/ ° F slide switch of the
main unit. Whatever the display units of the remote sensors
are, they will be automatically converted to the chosen one of
the main unit.
LOW BATTERY WARNING
When it is time to replace batteries, the respective low-battery
indicator will show up when the respective channel is selected. The
batterylevelofthemainunitwillbeshownontheindoortemperature
when it is running low.
HOW TO USE THE TABLE STAND OR
WALL MOUNTING
Themainunithasaretractabletablestand,whichwhenflippedopen,
can support the unit on a flat surface. Or you can flip close the stand
and mount the unit on a wall using the recessed screw hole.
As for the remote unit, it comes with a wall-mount holder and a
removable stand. Use either to hold the unit in place.
Main unit Wall-mount Table Stand
Remote unit Wall-mount Table Stand

10
EN
THE RESET BUTTON
Thisbutton isonly usedwhen the unitis operatingin an unfavorable
way or malfunctioning. Use a blunt stylus to hold down the button.
All settings will return to their default values.
PRECAUTIONS
This product is engineered to give you years of satisfactory service
if you handle it carefully. Here are a few precautions:
1. Do not immerse the unit in water.
2. Do not clean the unit with abrasive or corrosive materials. They
may scratch the plastic parts and corrode the electronic circuit.
3. Donotsubjecttheunittoexcessiveforce,shock,dust,temperature
orhumidity, which may result in malfunction,shorterelectronic
life span, damaged battery and distorted parts.
4. Donottamperwiththeunit’sinternalcomponents.Doingsowill
invalidate the warranty on the unit and may cause unnecessary
damage. The unit contains no user-serviceable parts.
5. Onlyuse fresh batteriesas specifiedinthe user’smanual. Do not
mix new and old batteries as the old ones may leak.
6. Always read the user’s manual thoroughly before operating the
unit.
SPECIFICATIONS
Main unit
Display temperature range : -50.0°C to 70.0°C
(-58.0°F to 158.0°F)
Proposed operating range : - 5.0°C to 50.0°C
( 23.0°F to 122.0°F)
Temperature resolution : 0.1°C to ( 0.2°F)
Temperature compensation : -10.0°C to 60.0°C
(14.0°F to 140.0°F)
Relative Humidity : 25% RH to 90% RH
Operating range
Remote thermo-hygro unit
Display temperature range : -50.0°C to 70.0°C
(-58.0°F to 158.0°F)
Proposed operating range : -20.0°C to 60.0°C
( -4.0°F to 140.0°F)
Temperature resolution : 0.1°C to ( 0.2°F)
Temperature compensation : -10.0°C to 60.0°C
(14.0°F to 140.0°F)
Relative Humidity : 25% RH to 90% RH
Operating range

11
EN
General
RF Transmission Frequency : 433 MHz
No. of Remote unit : Maximum of 3
RF Transmission Range : Maximum 30 meters
Temperature compensation : 0.1°C to ( 0.2°F)
Temperature sensing cycle : around 40 seconds
Power
Main unit : 2 pcs UM-3 or “AA” 1.5V
alkaline batteries
Remote sensing unit : 2 pcs UM-4 or “AAA” 1.5V
alkaline batteries
Weight
Main unit : 159.5 gm
Remote sensing unit : 63 gm
Dimensions
Main unit : 117 x 107 x 26 mm
Remote sensing unit : 92 x 60 x 20 mm
CAUTION
— The content of this manual is subject to change without
further notice.
— Due to printing limitation, the displays shown in this
manual may differ from the actual display.
— The manufacturer and its suppliers held no
responsibility to you or any other person for any damage
expenses, lost profits, or any other claim arise by using
this product.
— The contents of this manual may not be reproduced
without the permission of the manufacturer.

12
EN
EC-DECLARATION OF CONFORMITY
This product complies with the essential requirements of Article 3 of the R&TTE 1999 / 5 / EC
Directive, if used as intended and the following standards have been applied:
Safety of information technology equipment
(Article 3.1.a of the R&TTE Directive)
Applied Standard EN 60950: 2000
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
Applied Standards ETSI EN 301 489-1-3 (Ver.1.4.1) :2002-08
Additional information:
TheproductherewithcomplieswiththerequirementsoftheLowVoltageDirective73/23/EC,
the EMC Directive 89 / 336 / EC and carries the CE marking accordingly.
Carmelo Cubito
Agrate Brianza (MI) / Italy January 2004
EC Mandatory of Manufacturer
COUNTRIES RTTE APPROVAL COMPLIED
All EC countries, Switzerland CH
And Norway N
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more about
Oregon Scientific products such as digital cameras; MP3 players;
children'selectroniclearningproductsandgames;projectionclocks;
health and fitness gear; weather stations; and digital and conference
phones. The website also includes contact information for our
customer care department in case you need to reach us, as well as
frequently asked questions and customer downloads.
We hope you will find all the information you need on our website,
howeverifyou'dliketocontacttheOregonScientificCustomerCare
departmentdirectly,pleasevisitwww2.oregonscientific.com/service/
support or call 949-608-2848 in the US. For international enquiries,
please visit http://www2.oregonscientific.com/about/international/
default.asp.
