Oricom Secure740 User manual

User Guide
KEEP THIS USER GUIDE FOR FUTURE REFERENCE
Always retain your proof of purchase in case of warranty service.
AUSTRALIA: www.oricom.com.au
Video Baby Monitor
Secure740

Safety InformatIontaBLe of ContentS
Safety InformatIon 1
oVerVIeW of fUnCtIonaL
ComPonent PoSItIonS 4
SettIng UP yoUr VIdeo BaBy
monItor 6
BaSIC oPeratIon of the keyS 11
menU oPtIonS and fUnCtIonS 12
SettIngS 19
CUStomer SUPPort 29
troUBLeShootIng 30
eXPreSS Warranty 32
WARNING: Rechargeable Lithium Ion batteries are potentially
hazardous and can present a serious re hazard if damaged,
defective or improperly used. Do not leave your product
unattended whilst charging the battery. Do not leave your
child unattended with this product.
Need Help?
If you need assistance setting up or using your Oricom
product now or in the future, call Oricom Support.
Australia 02 4574 8888
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10am – 8pm NZST

1Safety InformatIontaBLe of ContentS
Important Safety Information
• It is very important that you read the User Guide
carefully as it contains detailed information you
will need to get the most from your Oricom baby
monitor. If you have any issues setting up or using
your Oricom baby monitor, please call our Customer
Support team.
• Your Oricom baby monitor is designed to be an
aid and should not be used as a substitute for
responsible and proper adult supervision of a child.
• The baby monitor has been designed to provide
some added reassurance in the form of sound
and video transmission for those times when you
are not in the same room as your baby, provided
you always stay within hearing range of the baby
monitor during use.
• Your baby monitor is not a medical device, nor a
device to prevent cases of Sudden Infant Death
Syndrome (SIDS) or "cot death", and you should not
rely on it for your baby's wellbeing. It is important
that you regularly check on your baby personally.
• Make sure the baby unit, parent unit and mains
adaptor cables are kept out of reach of your baby
and other young children at all times, at least one
metre away.
• Never place the baby unit or parent unit inside your
baby’s cot, bed or playpen.

2Safety InformatIon Safety InformatIon
• Never cover the parent or baby units with clothes,
towels, blankets or any other item. Never use or
place your parent or baby unit in or near moisture or
water (e.g. near bath or pool). Immersing in water
could cause electric shock and even death.
• The installation location plays an important role in
ensuring proper operation. Therefore, maintain a
distance of at least one metre from other electronic
equipment, such as microwave ovens or hi−fi
devices, otherwise they could cause interference.
During continual use, the baby unit power adaptors
may become warm to the touch. This is normal and
should not be a concern.
Risk of suffocation!
Keep all packaging materials and protective foils
out of reach of children.
!
Warning
WARNING: Rechargeable Lithium Ion batteries are
potentially hazardous and can present a serious fire
hazard if damaged, defective or improperly used. Do
not leave your product unattended whilst charging the
battery. Do not leave your child unattended with this
product.

3Safety InformatIon Safety InformatIon
Battery safety
• Batteries represent a hazard to health and the
environment!
• They contain toxic, ecologically hazardous heavy
metals. Do not dispose of batteries in a re as they
may explode. Dispose of batteries according to local
regulations, never in your household rubbish.
• Do not dismantle, cut, open, crush, bend, puncture,
or shred cells of the batteries. If a battery leaks, do
not let the battery liquid touch skin or eyes. If this
happens, immediately ush the affected areas with
water, and seek medical assistance.
• Do not modify, remanufacture, attempt to insert
foreign objects into the battery, or immerse or
expose it to water or other liquids. Batteries may
explode if damaged.
• Use only the battery supplied with the product.
Improper use, or use of unapproved batteries, may
present a risk of re, explosion, or other hazard, and
may invalidate any approval or warranty.
• If you believe the battery is damaged, remove
product from the charger and stop using the
product. Contact Oricom for assistance. Never use
a damaged battery.

4
oVerVIeW of fUnCtIonaL
ComPonent PoSItIonS
Disposal
Always dispose of your products at the end of their
life in accordance with your local waste disposal
requirements.
Packaging materials including cardboard and paper
packaging, should be recycled in accordance with
your local council waste regulations.
Parent Unit
1 ON/OFF BUTTON
2 MENU AND BACK
3VOLUME + / -
4 UP / DOWN BUTTONS
5 LEFT/RIGHT BUTTONS
6TALK AND ZOOM
7MICROPHONE
8CHARGING SOCKET
9RESET
 BATTERY DOOR
཰
ཱ
ི
ཱུ
ྲྀ
ཷ
ླྀ
ཹ
ཱི
ུ
ུ
ཱི
oVerVIeW of fUnCtIonaL
ComPonent PoSItIonS

5
oVerVIeW of fUnCtIonaL
ComPonent PoSItIonS
Camera Unit
཰
ཱ
ི
1POWER
ADAPTOR PORT
2ON/OFF SWITCH
3 PAIR BUTTON
Check pack contents:
1 Baby unit (camera)
1 AC adaptor for the baby unit
1 Parent unit
1 Li-ion Polymer rechargeable battery pack for the
parent unit
1 AC adaptor for the parent unit
1 User guide
If any items are missing, contact Oricom customer
support.
WARNING: Rechargeable Lithium Ion batteries are
potentially hazardous and can present a serious re
hazard if damaged, defective or improperly used. Do
not leave your product unattended whilst charging the
battery. Do not leave your child unattended with this
product.
oVerVIeW of fUnCtIonaL
ComPonent PoSItIonS

6
SettIng UP yoUr VIdeo
BaBy monItor
SettIng UP yoUr VIdeo
BaBy monItor
1. Setting up your Video Baby Monitor
Power adaptor markings
Please ensure you connect the correct power adaptor
to parent and baby units. Each power adaptor is
marked with a drawing showing the parent unit or
camera unit as follows:
Baby Unit Power
Adaptor Marking
Parent Unit Power
Adaptor Marking

7
SettIng UP yoUr VIdeo
BaBy monItor
SettIng UP yoUr VIdeo
BaBy monItor
1.1. Connecting the power adaptor for the
baby unit
• Connect the small plug of the adaptor to the back
of the Baby Unit and the other end into the power
socket.
• Only use the included adaptor (5V DC/1A)
Do not place the AC Adaptor cable in a high
"wear and tear" location. Never use a frayed or
compromised cord.
!
Warning
Strangulation Hazard: Children have been
STRANGLED with cords. Keep this cord out of the
reach of children (more than 1 metre away).

8
1.2 Aligning the baby unit
For optimal performance, place your baby unit
between one and two metres away from your baby.
Point the baby unit towards the baby. Check that the
baby is suitably displayed on the parent unit screen.
1.3. Connecting the power adaptor for the Parent
Unit
• Connect the small plug of the adaptor to the Parent
Unit and the other end to the power socket.
• Only use the included adaptor (5V DC/1.5A).
• Recommended charging time of at least 16 hours
before rst use.
• Press and hold the POWER button on the parent
unit to turn it ON.
SettIng UP yoUr VIdeo
BaBy monItor
SettIng UP yoUr VIdeo
BaBy monItor

9
Desk stand
In-use time and battery charging
Depending on the usage, the parent unit will work for
up to 8 hours on a fully charged battery with power
save turned ON.
When the battery charge becomes low on the parent
unit, the battery icon will turn red. At this point, you
need to charge the parent unit.
When charging, the battery status indicator on the
parent unit screen will change to the charging icon
<>.
To speed up the charging process, turn the parent unit
off when charging if it is not being used.
You can continue to use your parent unit to monitor
your baby even when the battery is low, provided the
power adaptor is plugged in to recharge the battery.
SettIng UP yoUr VIdeo
BaBy monItor
SettIng UP yoUr VIdeo
BaBy monItor

10
NOTE:
• The parent unit can be kept on charge even if it is
fully charged.
• When the parent unit is being used whilst on
charge, the charging time will be extended.
• We recommend that you TURN OFF the parent
unit when it is not in-use, to conserve battery
power.
Battery Life
The rechargeable battery pack (supplied) can be
charged and discharged hundreds of times, however
it will eventually wear out and lose its ability to hold a
full charge. When the in-use time becomes noticeably
shorter than normal, it is time to purchase a new
battery pack.
How to purchase spare parts
You can purchase battery packs (Part number:
2B0103) and extra camera units from Oricom
www.oricom.com.au
SettIng UP yoUr VIdeo
BaBy monItor
BaSIC oPerat Ion
of the keyS

11
2. Basic operation of the keys
PARENT UNIT
ON/OFF BUTTON
Switch ON/OFF – Press and
hold for 3 seconds
Screen Sleep/Wake – Briey
press
MENU BUTTON Press to access the menu
BACK KEY Press to return to previous option
UP/DOWN BUTTONS Display brightness “+” & “-”
LEFT/RIGHT BUTTONS Navigation keys
OK BUTTON Press to conrm a selection
TALK BUTTON Press and hold to talk
ZOOM BUTTON Press to digitally zoom
Press to adjust volume level
BABY UNIT
ON/OFF switch Switch to turn the Baby Unit
ON/OFF
PAIR button Press and hold to pair to the
Parent Unit
SettIng UP yoUr VIdeo
BaBy monItor
BaSIC oPerat Ion
of the keyS

12
3. MENU options and functions
Camera
Press MENU button.
1) Select Camera icon. Press “OK” button to conrm
the selection.
2) Press add camera (SC740 supports up to 4
cameras). Press OK button to conrm the selection.
3) Press the “Pair” button on the camera to pair within
30 seconds.
menU oPtIonS
and fUnCtIonS
menU oPtIonS
and fUnCtIonS

13
menU oPtIonS
and fUnCtIonS
menU oPtIonS
and fUnCtIonS

14
View (multiple camera mode)
Press MENU button:
1) Select the view icon for multiple camera options.
Press “OK” button to conrm the selection.
2) Choose camera 1/ camera 2/ camera 3/camera 4 or
choose to scan between the connected cameras.
menU oPtIonS
and fUnCtIonS
menU oPtIonS
and fUnCtIonS

15
Lullabies
Press MENU button:
1) Select the Lullabies icon. Press “OK” button to conrm
the selection.
2) Choose the lullaby to play from the lullabies list.
Your monitor will automatically replay the chosen
lullaby.
3) Note: Select all to play all the lullabies. Select the
VOL icon to adjust lullaby volume.
menU oPtIonS
and fUnCtIonS
menU oPtIonS
and fUnCtIonS

16
Feeding Timer
Press MENU button
1) Select Feeding Timer icon. Press “OK” button to
conrm the selection.
2) Choose your preferred feeding reminder time. Once
selected, a countdown will appear when monitor
is in viewing mode. When the predened time has
elapsed, monitor will alarm for 5 seconds.
menU oPtIonS
and fUnCtIonS
menU oPtIonS
and fUnCtIonS

17

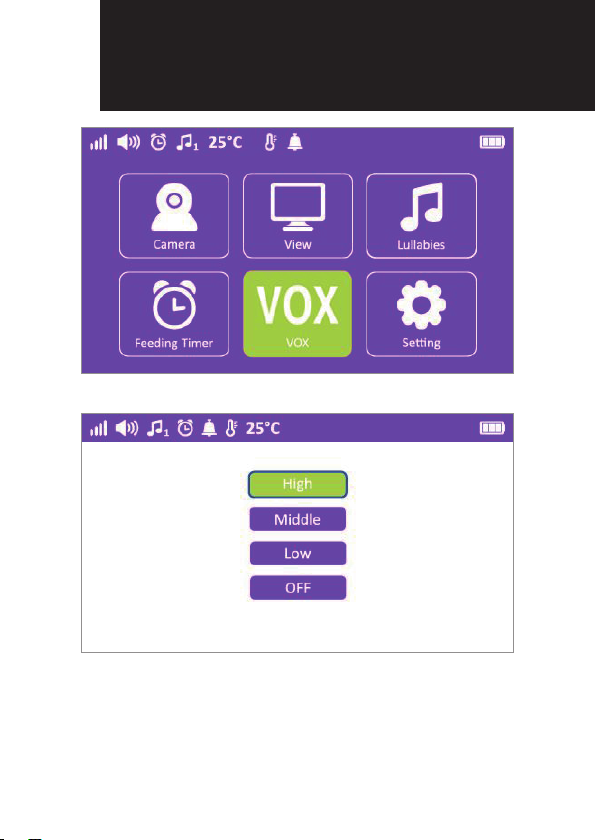

VOX
Press MENU button
1) Select VOX icon. Press “OK” button to conrm the
selection, when VOX is turned on, the screen and
sound are muted.
2) Choose your preferred alarm sensitivity level. When
this feature is turned on, your baby monitor will
wake the screen, open the audio and sound an
alarm when the noise level coming from the baby
unit reaches the VOX threshold. You have the
option to turn off the audible alarm alert by selecting
"OFF" when prompted after the sensitivity selection.
menU oPtIonS
and fUnCtIonS
menU oPtIonS
and fUnCtIonS

18 SettIngS
menU oPtIonS
and fUnCtIonS
