Oricom UHF305 User manual

Keep this user guide for future reference. Always retain your proof of
purchase in case of warranty service.
www.oricom.com.au
Operating Instructions

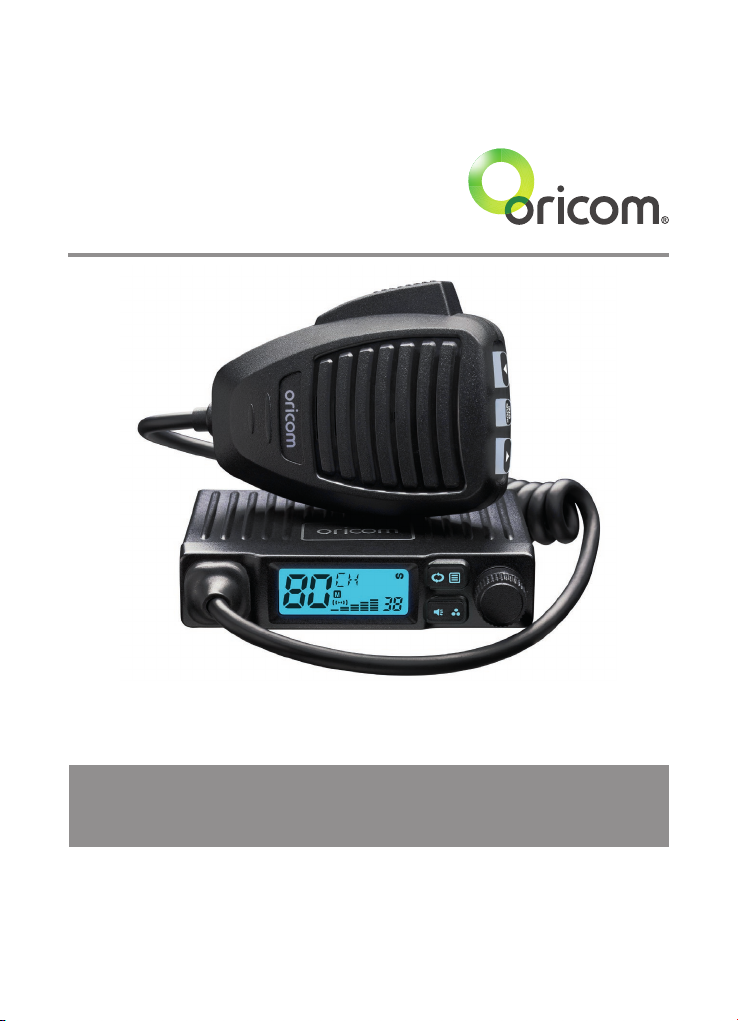

UHF305 80 Channel UHF Citizen Band Radio

When a narrowband radio receives a transmission from an older wideband radio the speech may sound loud and
distorted – simply adjust your radio volume for the best listening performance. When an older wideband radio
receives a signal from a new narrowband radio the speech may sound quieter - simply adjust your radio volume for
best listening performance. When operating a narrowband radio or Channel 41 - 80 interference is possible from
wideband radios transmitting on high power or on adjacent frequency.
The issues described above are not a fault of the radio but a consequence of mixed use of wideband and
narrowband radios.
This unit complies with all relevant Australian
and New Zealand approval requirements
AS/NZS 4365:2011

3
Table of contents...........................................................3
Controls and Indicators..................................................4
Important information.....................................................7
Installation of your Oricom Radio ..................................8
Operations...................................................................10
UHF CB channels and frequencies .............................24
Express Warranty (Australia).......................................28
Table of contents
Need Help?
If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support.
Australia [phone]
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10am – 8pm NZST

4
Controls and Indicators
Controls and Indicators
Front View
1 2 3
4
5
1. Microphone connector
2. LCD display
3. Monitor/Triple watch
4. Scan/Menu
5. Volume/Channel/Squelch
Rear View
87
6
6. 3.5mm external jack for optional 8 ohm speaker
7. Power supply connection
8. Antenna Jack

5
Controls and Indicators
Microphone
1. Push to talk
2. Volume/Channel/SQ down
3. Volume/Channel/SQ up
4. MODE/INS
INS: Priority channel recall
You can set one priority channel, this is done in the menu.
You can recall priority channel by pressing and holding the
MODE/INS button.
Briey pressing the MODE/INS will select Channel change, then
the Squelch setting, and then Volume.
1
2 4 3

6
Controls and Indicators
LCD Icons & Indicators
1 2 3 4
5
6 7 8 9  
1. Channel display
2. Memory channel
3. Status display
4. CTCSS on
5. DCS on
6. TX on
7. Triple watch on
8. Duplex on
9. Roger Beep on
10. Signal strength & TX
11. Scrambler on
12. CTCSS or DCS channel
display

7
Important information
Please read before installing or operating Your
Oricom Radio
The operation of this radio in Australia and New Zealand is
subject to conditions in the following licenses:
In Australia, the ACMA Radio communications (Citizen Band
Radio Stations) and in New Zealand by MED the General User
Radio License for Citizen Band Radio.
Safety Information and Warnings
WARNING
Potentially Explosive Atmosphere
Turn your radio OFF when in any area with a potentially explosive
atmosphere. Sparks in such areas could cause an explosion or re
resulting in injury or even death.
NOTE: Areas with potentially explosive atmospheres are often, but
not always clearly marked. They include fueling areas such as below
deck on boats; fuel or chemical transfer or storage facilities; areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders; and any other area where you would normally be
advised to turn off your vehicle engine.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn your radio
OFF near electrical blasting caps or in a “blasting area” or in areas
posted: “Turn off two way radios.” Obey all signs and instructions.
Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic
interference (EMI). To avoid the possibility of electromagnetic
interference and/or compatibility conicts, turn off your radio in any
location where posted notices instruct you to do so such as health
care facilities.

8
Installation of your Oricom Radio
CAUTION
When installing your radio in your vehicle, check that
during installation you do not damage any wiring or
vehicle components that may be hidden around the
mounting position.
Ensure the installation does not interfere with the
operation of the vehicle and meets all regulatory and
safety retirements for accessories tted to your vehicle.
For optimum performance, your radio needs to be
installed correctly. If you are unsure about how to
install your radio, we suggest you have your radio
professionally installed by a UHF specialist or Auto
electrician. When installing the radio, avoid mounting
it close to heaters or air conditioners. Never press the
PTT button before connecting the antenna to the radio.
Wiring Methods
There are two possible wiring congurations for connecting to
the vehicles power supply.
A. Radio stays ON when the ignition is switched OFF
Connect the radio’s negative (black) lead to the vehicle chassis,
or directly to the batteries negative terminal.
Connect the radio’s positive (red) lead via the 3 Amp fuse to
the battery’s positive terminal. Alternatively, the positive lead
could be connected at the fuse box at a point that has DC Power
continuously available (preferably the battery side of the ignition
switch) via the 3 Amp fuse.
B. Radio turns OFF with the ignition switch
Connect the radio’s negative (black) lead to the vehicle’s
chassis, or directly to the batteries negative terminal.
The radios positive (red) lead should connect to an accessory
point in the vehicle’s fuse box via the 3 Amp fuse.

9
Installation of your Oricom Radio
Antenna information
The antenna (not supplied) is of critical importance to maximize
your output power and receiver sensitivity.
A poorly installed, inferior quality antenna or one not designed
for the correct frequency band will give poor performance. You
should only purchase an antenna designed for the 477MHz
frequency band.
Antenna installation
1. This radio is tted with a NEW small FME type antenna
connector. If this is not compatible with your existing antenna
connection, please contact Oricom to purchase an adaptor.
(Part Number: 2U0159)
2. To obtain maximum performance from the radio, select a high
quality antenna and mount it in a good location.
Never press the PTT button before connecting the
antenna to the radio.
Optional accessories
If required, you may install an external (8 ohm, min 5W power)
speaker tted with a 3.5mm plug (not supplied).
Depending on the installation, it may be necessary to use an
external speaker (not supplied) to give improved volume and
clarity. This can be plugged into the external speaker (SP)
socket on the rear of the unit.
Oricom Micro UHF CB Radio Accessories
The following Oricom Micro UHF accessories can be purchased
directly from Oricom. Visit www.oricom.com.au or call
[phone].
Model No Description
PNPKIT
Plug and Play Windscreen Mounting Kit (Pack
includes: Windscreen mounting bracket, Mag
mount antenna and 12V Car charger)

10
Operations
Turning on the Power
Press and hold the Channel selector.
At power on, the applied DC voltage is displayed numerically as
shown below.
Special overvoltage detection circuitry protects the radio and
warns of excessive voltage conditions by the LCD ashing the 7
backlight colours.
Setting the Volume
Turn the channel selector clockwise to adjust the sound level for
comfortable reception;
or; with the microphone, push the up or down buttons to
increase or decrease the volume. If held down, the volume will
increase or decrease quickly.
Operations

11
Operations
Selecting a channel
Press channel selector once. “CH” will appear on the LCD. Select the
channel by rotating the channel knob.
Or, with the microphone push the mode button once and select
the channel using the up or down button.
Setting the Squelch Level
1. Press channel selector 2 times. The current squelch level is
displayed.
2. Select the squelch level by rotating the channel knob.
The radio has 16 preset (off to 15) squelch levels, off-Squelch
open.
1 - Max. sensitivity (Min. squelch)
15 - Min. sensitivity (Max/Tight squelch)
On the microphone, push the mode button two times and select the
squelch level using the up or down button.
Note : * After 5 seconds of inactivity, the radio will automatically
exit the sub display of “VOL” “CH” and “SQL”.

12
Operations
PTT (Push-To-Talk) button
Pressing the PTT allows audio to be transmitted, by speaking across
the front of the microphone.
TX is indicated by the level bars on the LCD display. To receive,
release the PTT button and then TX will disappear on the display.
When transmitting, hold the MIC 5 cm from your mouth and speak
clearly in normal voice across the front of the mic.
Scanning
The Scan feature allows you to search for active channels
automatically.
There are two scanning modes: Open Scan and Priority Scan. Both
of these scan modes can be set from the menu.
Open scan
Press Scan/Menu button and scanning starts. The OS sub menu
display appears on the LCD.
The scan direction can be changed at any time by rotating the
channel selector left or right. This can also be controlled by
microphone up and down buttons.
To stop Scan, press Scan/Menu Button or PTT button.
When a signal is found, scanning will stop at that channel to allow the
signal to be heard, then resume scanning when the channel is clear
again.
Scanning will resume after preset time
CH 1-2-3-4-5-6-7 …… 77-78-79-80

13
Priority scan
With Priority Scan, the radio scans for activity, but in addition, it also
inserts your Priority Channel into the scan sequence.
This means that your Priority Channel will be monitored regularly
while scanning to ensure that no calls are missed. Any signal
received on your Priority Channel will take precedence over any
signals received on the other channels.
CH 1-2-3-4-5- PRI CH - 6-7-8-9-10- PRI CH …… 76-77-78-79-80
Note: priority scan must be turned on in the settings menu.
Option 8 in the Menu, select between open scan and priority
scan.
Monitor Function
The monitor button is used to temporarily open the
squelch, in order to listen to signals that are too weak to
keep the squelch permanently opened.
For brief listening, press Monitor briey to turn Squelch
off, press briey again to turn Squelch back on.
Triple Watch Function
Pressing and holding the monitor button activates the Triple watch
function.
Triple watch can monitor 2 or 3 channels, the currently displayed
channel and 2 more channels saved in TRI1 and TRI2.
To store the channels in TRI1 or TRI2, select the channels and
features CTCSS/DCS/Duplex on the display, then enter menu mode
and save the channel in TRI1 or TRI2.
If only one additional channel is required, then select “Off” in TRI2.
Once Watch is activated, by pressing and holding the Monitor button,
the TRI 1 and TRI 2 channels are checked in the following sequence:
Main channel is checked for 0.7 of a second, then TRI 1 for 0.15
seconds, TRI 2 FOR 0.15 seconds and then back to the Main
channel.
Operations

14
The sequence is repeated unitl a signal is detected or radio is
switched off. If there is a signal present on TRI 1 or TRI 2, the radio
will wait on that channel for 5 seconds after the
signal is no longer present. You can push and hold
the monitor button to select as the normal channel,
otherwise the Triple Watch will continue in its normal
sequence.
Triple Watch can be disabled by pushing and holding
the monitor button.
Menu Function
The Menu function provides a convenient method of customizing
some of the radios functions.
The following menu options are available:
Note that some items are only available on certain channels.
To access the Menu functions:
1. Press and hold the SCAN/MENU button. The rst menu function is
displayed.
2. Briey press the menu button to cycle throught each available
function.
After the last function has been selected, the cycle automatically
exits the menu.
3. Use the volume control or microphone up down buttons to change
the parameters of the selected function.
4. To exit the menu, press PTT button or press and hold the menu
button for 2 seconds.
Operations
Press and hold
2 seconds

15
The following features can be selected by using the “MENU” button:
1) User selectable 38 CTCSS and 104 DCS codes (CTCSS or DCS
cannot be enabled on channels 5 or 35)
2) Scrambler setting (Off, 1 to 5 different frequencies)
3) LCD backlight colour (7 colours)
4) LCD backlight level (Bright or Dimmer)
5) Voice enhancer equalizer setting (-5 to +5, 10 steps)
6) Duplex On/Off (Only on DPX channels)
7) Priority channel memory ( 1 to 80 Channel)
8) Scan mode (Open or priority scan)
9) Busy channel lockout (On or Off)
10) Key beep tone (On or Off)
11) Roger beep tone (On or Off)
12) Triple watch sub channel 1 setting
13) Triple watch sub channel 2 setting
14) Memory channel (On or Off)
15) Squelch tail (On or Off)
16) Flip LCD
17) Software version display
Operations

16
Operations
Function Parameter Display Default
CTCSS and DCS
CTCSS 38
OffOff
DCS 104
Scrambler
1
OffOff
5
Backlight LED
colour
YE
GreenGreen
Cy
Bright of LCD
br
Bright
dr
Voice equalizer
+5
00
-5
Duplex
On
Off
Off
Priority CH.
1
1111
80
Scan mode
OS
OS
PS
Busy channel lock
On
Off
Off
Key beep tone
On
Off
Off
Roger beep tone
On
Off
Off
Triple watch CH 1
1
Off
80

17
Operations
Triple watch CH 2
1
Off
80
Memory CH
On
Off
Off
Squelch tail
On
Off
Off
Flip LCD
Top up
Top up
Bottom up
Software Version Ver. 01Version
Duplex
General
Your radio has a Repeater Access function to allow use of
local repeater station (if available in your area). Repeaters are
shared radio systems installed by interested parties (clubs, local
business etc.) that pick transmissions on specic channels and
re-transmit (or repeat) the received signal to another channel.
Channel 2
Channel 32
Channel 2
Channel 32
Repeater Station

18
Operations
The Repeater Access function can be set (from channel 1 to 8
and 41 to 48) used by local repeater stations. When activated,
your radio will receive the Repeater on its specic channel (all
repeater outputs are on channel 1 to 8 and 41 to 48) but transmit
to the repeater channel 31 to 38 and 71 to 78 (Factory default is
set to On for all repeater channels).
e.g.
CH01 on Duplex mode will receive on CH01 but transmit on CH31.
CH02 on duplex mode will receive on CH02 but transmit on CH32.
If you transmit on CH01 duplex mode, you are actually
transmitting on CH31; the repeater station down converts your
signal and retransmits on CH01.
Your transceiver allows you to pre-select Duplex operation
individually on each channel.
CH and Number Simplex mode Transmit/
Receiver Frequency (MHz)
Duplex Mode Transmit/
Receiver Frequency(MHz)
1 476.425 477.175 CH31
2 476.450 477.200 CH32
3 476.475 477.225 CH33
4 476.500 477.250 CH34
5 476.525 477.275 CH35
6 476.550 477.300 CH36
7 476.575 477.325 CH37
8 476.600 477.350 CH38
41 476.4375 477.1875 CH71
42 476.4625 477.2125 CH72
43 476.4875 477.2375 CH73
44 476.5125 477.2625 CH74
45 467.5375 477.2875 CH75
46 476.5625 477.3125 CH76
47 476.5875 477.3375 CH77
48 476.6125 477.3625 CH78

19
CTCSS and DCS Setting
This feature allows you to receive signals only from callers who have
selected the same CTCSS and DCS code. DCS is similar to CTCSS. It
provides 104 extra, digitally coded, squelch codes that follow after the
38 CTCSS codes. CTCSS 1 - 38, followed by DCS 1 - 104.
Scramble
Scramble enables private communications by scrambling the voice
signal. This prevents users without descrambler equipment or a
compatible unit from understanding the conversation.
You can select 5 different scrambler settings in the menu, “S” appears
on the LCD when the scrambler function is turned on.
7 Multi Colour backlight
You can select from 7 different colours for the LCD backlight.
LCD Backlight Brightness
You can reduce the brightness of the LCD backlight to be more
comfortable while driving at night.
Voice Enhancer Equalizer
Choose from 10 different receive audio level settings to provide a
natural voice enhancer for super clarity and performance.
Operations

20
The radio has 10 preset (-5 to 5) voice enhancer equalizer levels.
-5 : Bass - Enhancing the low frequencies, this adjusts the sound
quality for a lower clear sound level.
0 : Normal.
+5 : Treble - Enhancing the high frequencies, this adjusts the sound
quality to a higher sharp level.
-5 : Bass
0 : Normal
+5 : Treble
Duplex
Duplex mode can be turned on or off on the duplex channels.
When turned on, the transmit channel will be as shown in the table on
page18.
Priority Channel Set
A priority channel can be stored in the menu.
The letter “PRI” will appear when the seleced channel is set to Priority.
This channel will then be automatically monitored during the Priority Scan.
Note: You can only store one channel as your priority channel.
Scanning
The UHF305 has two types of scanning: Open scanning (OS) and
Priority scanning (PS).
Operations
