Oriental motor CVD Series User manual

Thank you for purchasing an Oriental Motor product.
This Manual describes product handling procedures and safety precautions.
•Please read it thoroughly to ensure safe operation.
•Always keep the manual where it is readily available.
HM-60392
Drivers for 2-Phase, 5-Phase Stepping Motors
CVD Series
RS-485 communication type
USER MANUAL

2
Table of contents
How to use *
Introduction
Measures for various cases
Reference
* This manual describes contents from checking the
product to settings related to RS-485 communication.
Refer to the CVD Series RS-485 communication type
OPERATING MANUAL Function Edition for control
methods via Modbus RTU (RS-485 communication) as
well as operating methods of the product.
1 Before use.................................................... 3
1-1 Operating manuals...................................................... 3
1-2 Overview of the product........................................... 4
2 Safety precautions..................................... 5
3 Precautions for use .................................... 7
STEP 1 Checking the product .................... 8
1-1 Package contents......................................................... 8
1-2 How to identify the product model ...................... 8
1-3 Products possible to combine................................. 9
1-4 Information about nameplate................................. 9

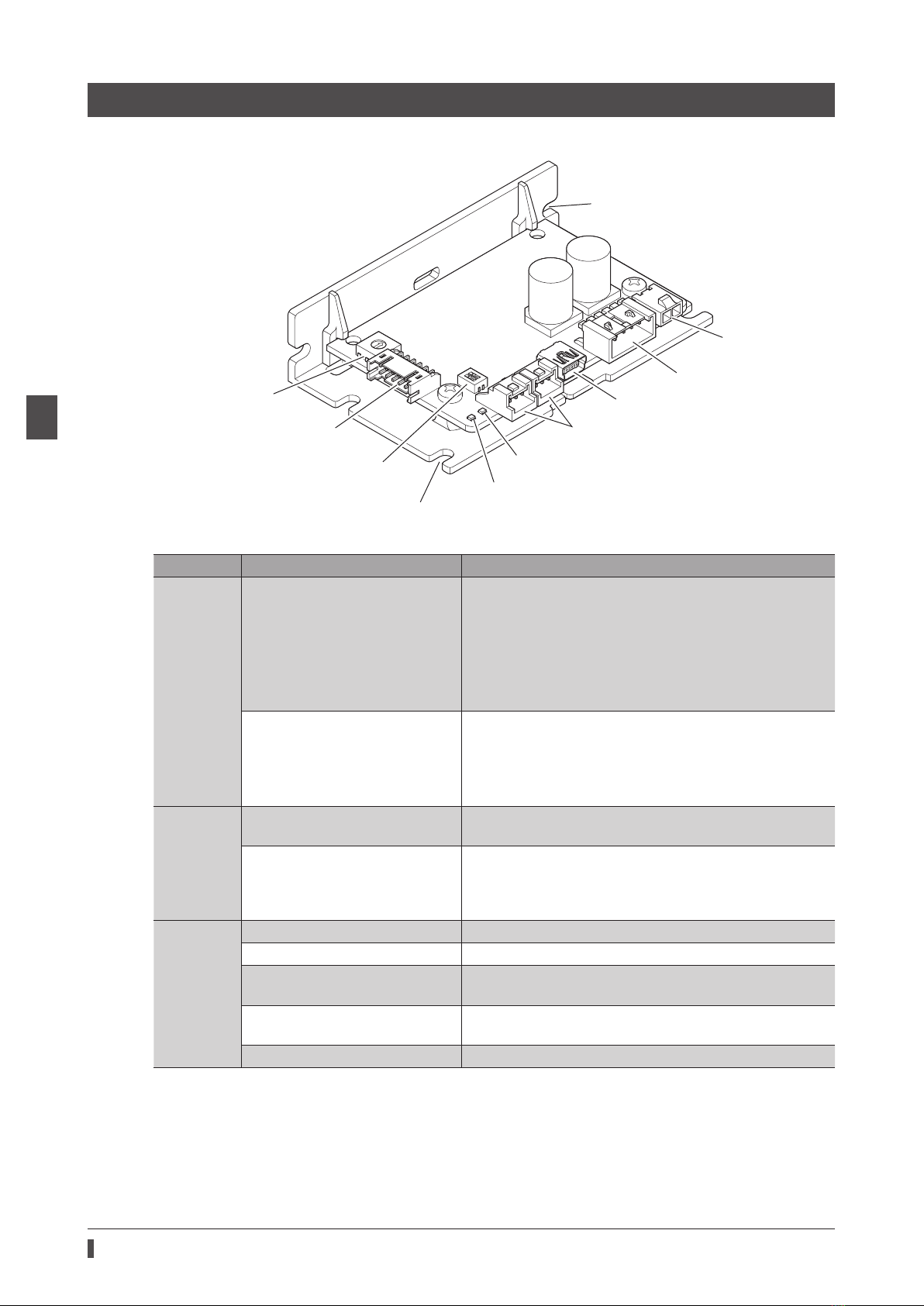

1-5 Names and functions of parts ...............................10
STEP 2 Installation .....................................11

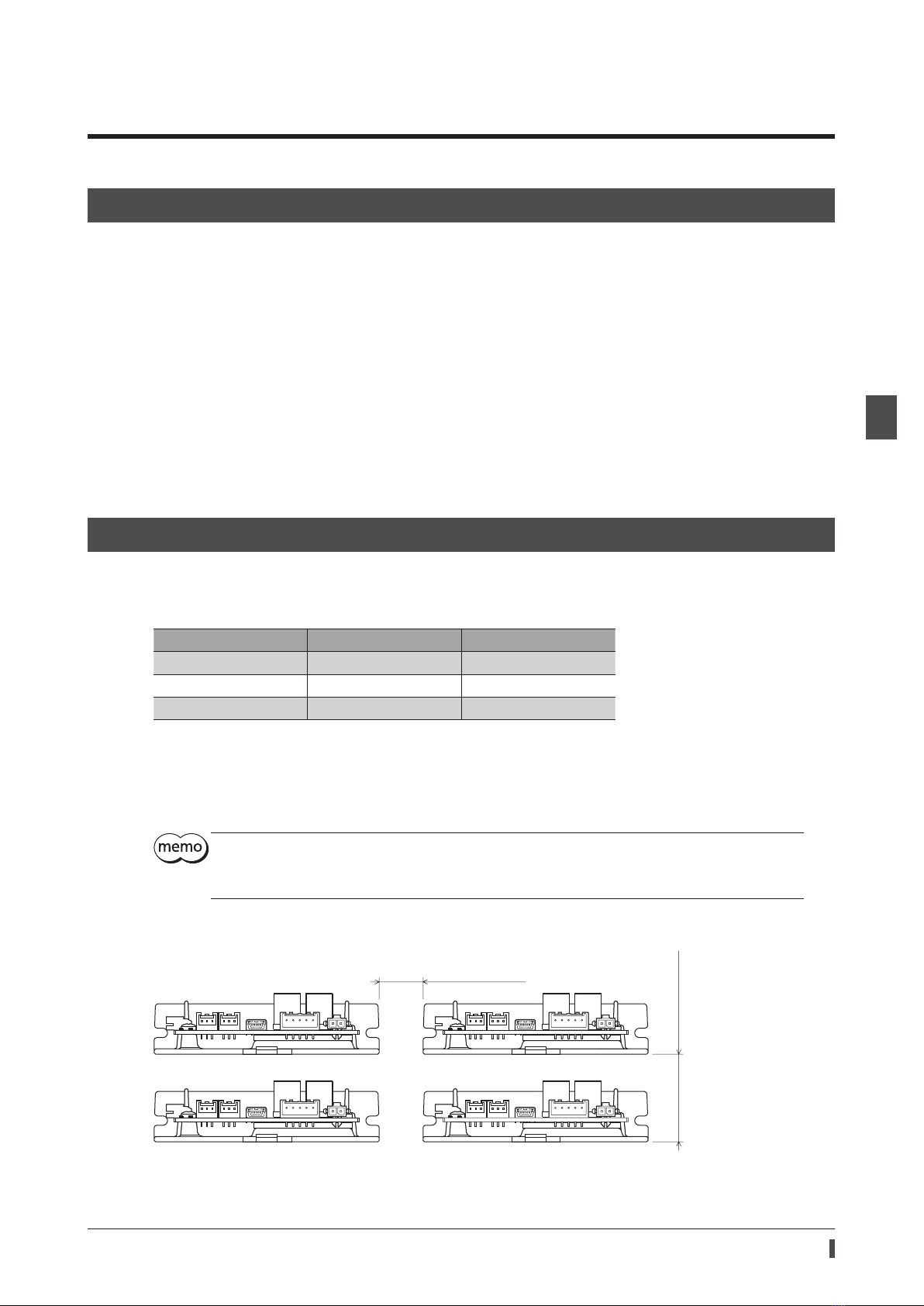

2-1 Installation location...................................................11

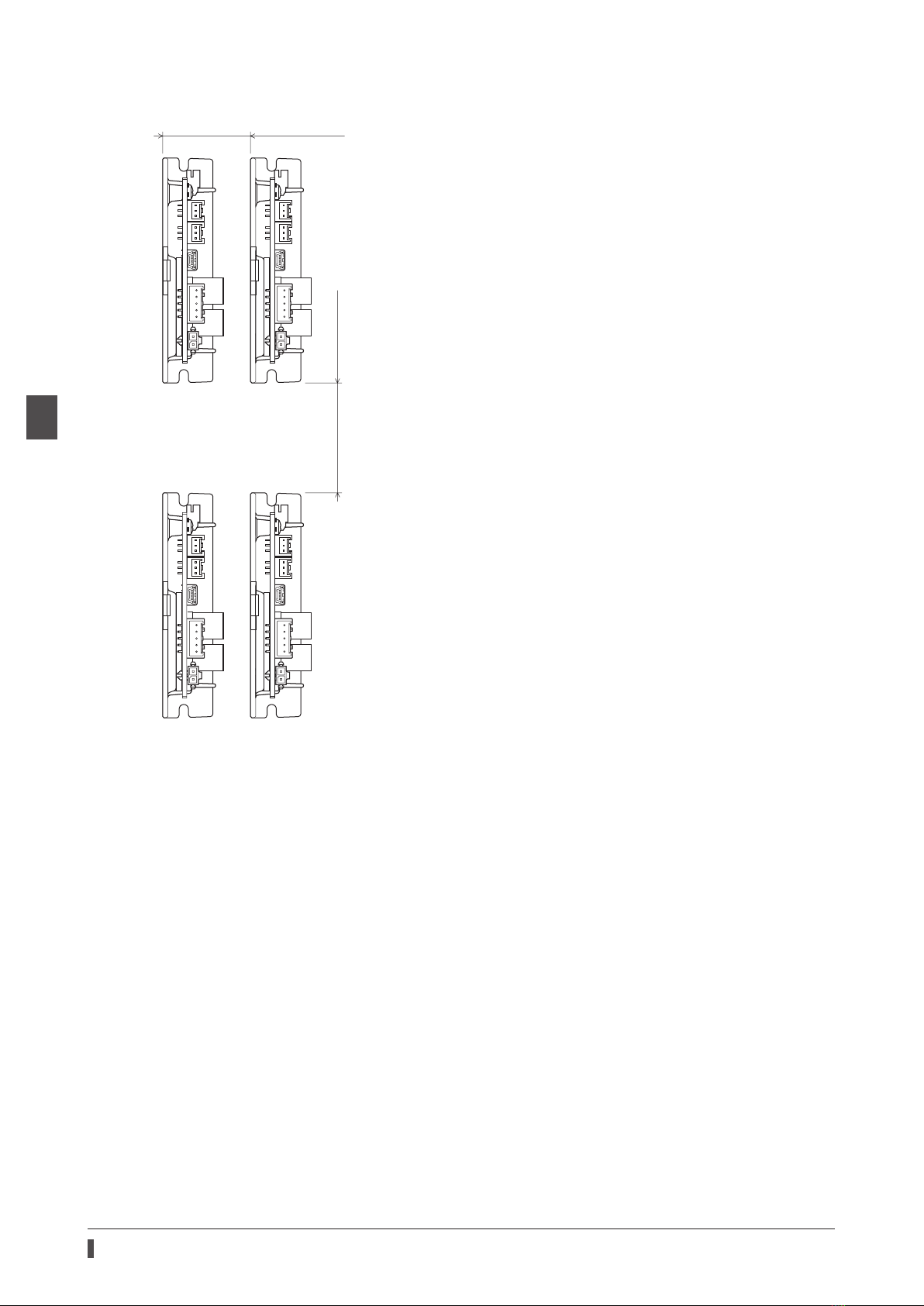

2-2 Installation direction.................................................11

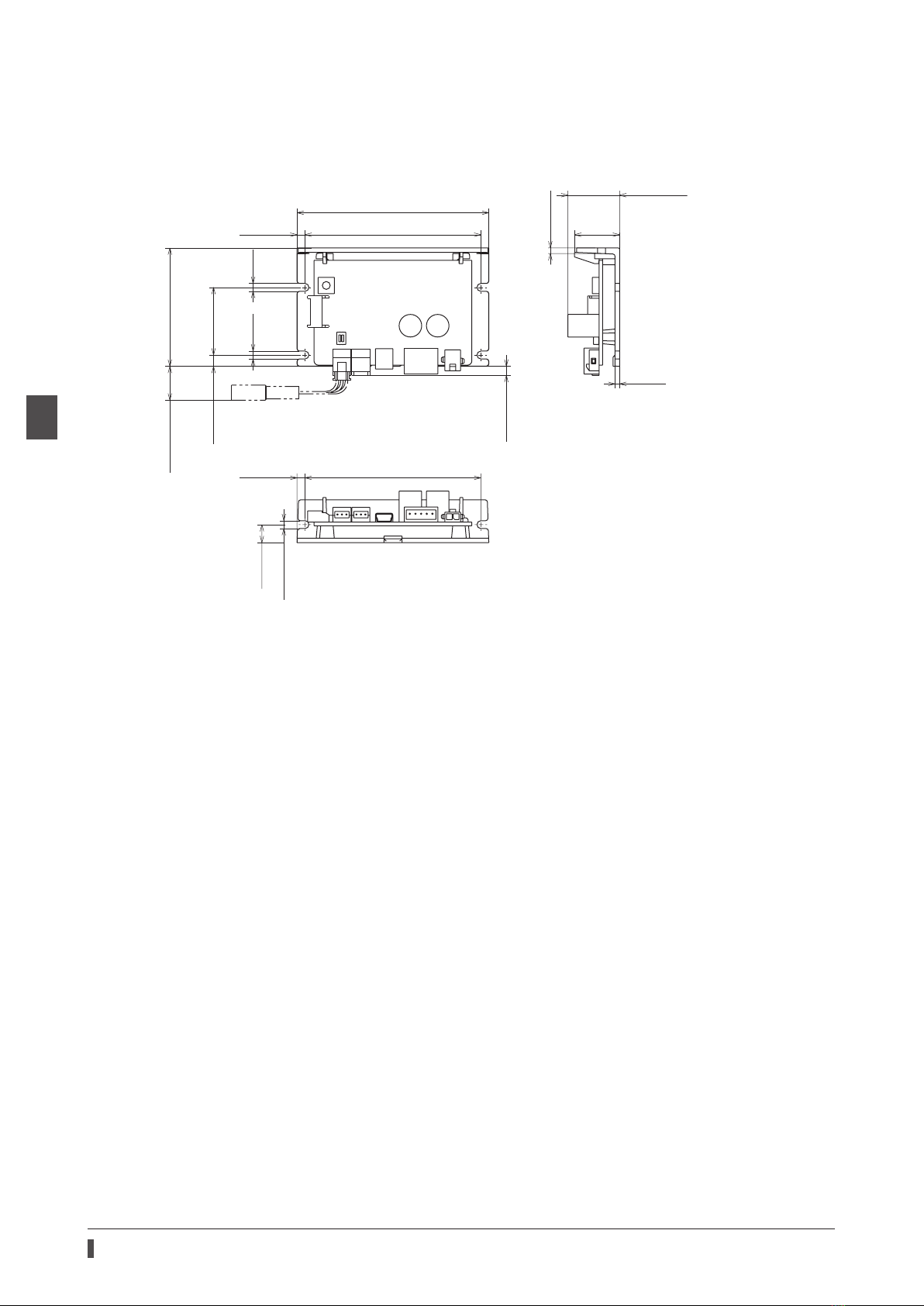

2-3 Installation method...................................................13
STEP 3 Connection.....................................15
3-1 Connecting the motor (CN2):
2-phase stepping motor..........................................16
3-2 Connecting the motor (CN2):
5-phase stepping motor..........................................17
3-3 Connecting the main power supply (CN1) .......18
3-4 Connecting the RS-485 communication
compatible product (CN4, CN5)............................19
3-5 Connecting the USB cable (CN3)..........................21
3-6 Connecting the I/O signals (CN6).........................21
STEP 4 Setting the applicable motor .....24
STEP 5 Settings related to
RS-485 communication................26
5-1 Setting of termination resistor..............................26
5-2 Setting of communication parameters..............27
4 Inspection and maintenance.................29
5 Alarms ........................................................30
6 Information...............................................38
7 Troubleshooting and
remedial actions.......................................45
8 Cables.........................................................47
9 Accessories................................................49
10 Specications ...........................................50
11 Regulations and standard......................51
12 Noise elimination measures ..................52

Before use
3
Introduction
1 Before use
Only qualied personnel of electrical and mechanical engineering should work with the product.
Use the product correctly after thoroughly reading the section “2 Safety precautions”on p.5. In addition, be sure to
observe the contents described in warning, caution, and note in this manual.
The product described in this manual is designed and manufactured to be incorporated in general industrial
equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any damage caused
through failure to observe this warning.
1-1 Operating manuals
Related operating manuals
For operating manuals not included with the product, contact your nearest Oriental Motor sales oce or download
from Oriental Motor Website Download Page.
Also read the operating manual of the motor used in combination with a driver.
Operating manual name Included or not included
with product
CVD Series RS-485 communication type
OPERATING MANUAL Driver Included
CVD Series RS-485 communication type
USER MANUAL (this document) Not included
CVD Series RS-485 communication type
OPERATING MANUAL Function Edition Not included
How to use operating manuals
To use the product, read this manual together with the CVD Series RS-485 communication type OPERATING MANUAL
Function Edition.
This document (USER MANUAL) describes the contents specic to the CVD Series RS-485 communication type driver,
and the CVD Series RS-485 communication type OPERATING MANUAL Function Edition describes operating methods,
input/output signals, and control methods via Modbus RTU (RS-485 communication). Refer to the CVD Series RS-485
communication type OPERATING MANUAL Function Edition for the contents not included in this manual.
zWhen the screen display of the support software MEXE02 is described
When the screen display of the MEXE02 with software version 4 is described, it may be indicated using a number
such as “(p10)” described in front of the parameter type.
Example of description
code
MEXE02 Register address Item Description Initial
value
Upper Lower
p10 1380h
(4992)
1381h
(4993)
Slave address
(Modbus)
Sets the address number (slave address).
Setting range 1
1 to 31 *
* Do not use 0.

Before use
4
Introduction
1-2 Overview of the product
The CVD Series RS-485 communication type drivers are DC power input products for 2-phase and 5-phase stepping
motors.
Lineup
Two types of drivers, which are for 2-phase stepping motors and 5-phase stepping motors, are provided.
Low vibration and low noise
A board type microstepping driver equipped with the smooth drive function achieves low-vibration and low-noise
operation.
Compatible with industrial network
These drivers are compatible with Modbus RTU (RS-485 communication).
Operation data and parameters can be set and also operation can be executed and stopped via RS-485
communication.
Operation data and parameters can also be set using the MEXE02.
Operation types
Positioning operation, return-to-home operation, continuous operation and other operations can be executed.
Up to 256 operation data points can be set, and multi-point positioning can also be performed.
Equipped with direct data operation function
The direct data operation is a function to start operation at the same time as rewriting of the data. It is suitable when
the setting of the operation data is changed frequently such as changing the speed or travel amount according to a
load.

Safety precautions
5
Introduction
2 Safety precautions
The precautions described below are intended to prevent danger or injury to the user and other personnel through
safe, correct use of the product. Use the product only after carefully reading and fully understanding these
instructions.
Handling the product without observing the instructions that accompany a“WARNING”
symbol may result in serious injury or death.
Handling the product without observing the instructions that accompany a“CAUTION”
symbol may result in injury or property damage.
The items under this heading contain important handling instructions that the user
should observe to ensure the safe use of the product.
The items under this heading contain related information and contents to gain a further
understanding of the text in this manual.
General
•Do not use the product in explosive or corrosive environments, in the presence of ammable gases, locations
subjected to splashing water, or near combustibles. Doing so may result in re, electric shock or injury.
•Assign qualied personnel to the task of installing, wiring, operating/controlling, inspecting, and troubleshooting
the product. Failure to do so may result in re, electric shock, injury or damage to equipment.
•When an alarm is generated in the driver (any of the driver’s protective functions is triggered), remove the cause
before clearing the alarm (protective function). Continuing the operation without removing the cause of the
problem may cause malfunction of the motor and driver, leading to injury or damage to equipment.
Installation
•Install the driver inside an enclosure. Failure to do so may result in electric shock or injury.
Connection
•Always keep the power supply voltage of the driver within the specied range. Failure to do so may result in re or
electric shock.
•Connect the cables securely according to the wiring diagram. Failure to do so may result in re or electric shock.
•Do not forcibly bend, pull, or pinch the cable. Doing so may result in re or electric shock.
Operation
•Turn o the main power supply in the event of a power failure. Failure to do so may result in injury or damage to
equipment.
•Do not remove the motor excitation during operation. Doing so may cause the motor to stop and lose the holding
force, resulting in injury or damage to equipment.
•For a main power supply , use a DC power supply with reinforced insulation on its primary and secondary sides.
Failure to do so may result in electric shock.
Repair, disassembly and modication
•Do not disassemble or modify the driver. Doing so may result in injury or damage to equipment.

Safety precautions
6
Introduction
General
•Do not use the driver beyond its specications. Doing so may result in electric shock, injury, or damage to
equipment.
•Do not insert a nger or an object between the board and the heat sink. Doing so may result in re, electric shock,
or injury.
•Do not touch the driver during operation or immediately after stopping. Doing so may result in a skin burn(s).
•Do not forcibly bend or pull the cable that is connected to the driver. Doing so may cause damage to the product.
Installation
•Do not place combustibles around the driver. Doing so may result in re or a skin burn(s).
•Do not leave anything around the driver that would obstruct ventilation. Doing so may result in damage to
equipment.
Operation
•Use a motor and driver only in the specied combination. An incorrect combination may cause a re.
•Provide an emergency stop device or emergency stop circuit external to the equipment so that the entire
equipment will operate safely in the event of a system failure or malfunction. Failure to do so may result in injury.
•Before supplying main power to the driver, turn all input signals to the driver to OFF. Failure to do so may result in
injury or damage to equipment.
•When moving the moving part manually, put the motor into a non-excitation state. Continuing the work while the
motor is in an excitation state may result in injury.
•Immediately when a problem occurred, stop operation and turn o the main power supply. Failure to do so may
result in re, electric shock, or injury.

Precautions for use
7
Introduction
3 Precautions for use
This chapter covers restrictions and requirements the user should consider when using the product.
zWhen conducting the insulation resistance measurement or the dielectric strength test, be sure to
separate the connection between the motor and the driver.
Conducting the insulation resistance measurement or dielectric strength test with the motor and driver connected
may result in damage to the product.
zNote on connecting a power supply whose positive terminal is grounded
The USB communication connector (CN3) of the driver is not electrically insulated. When grounding the positive
terminal of the power supply, do not connect any equipment (PC, etc.) whose negative terminal is grounded. Doing
so may cause the driver and these equipment to short, damaging both. When connecting, do not ground equipment.
zStoring data in non-volatile memory
Do not turn o the main power supply while writing the data to the non-volatile memory, and also do not turn o for
5 seconds after the completion of writing the data. Doing so may abort writing the data and cause an alarm of the
EEPROM error to generate. The non-volatile memory can be rewritten approximately 100,000 times.
zNoise elimination measures
Refer to p.52 for the noise elimination measures.
zRegeneration
When a large load inertia is operated at a high speed, the power supply voltage may increase by the regenerative
energy generated, causing an alarm of overvoltage to generate. This may result in damage to the driver, so reconsider
the operating condition so as not to generate the regenerative voltage.

Checking the product
8
How to use
STEP 1 Checking the product
1-1 Package contents
Verify that the items listed below are included. Report any missing or damaged items to the Oriental Motor sales
oce from which you purchased the product.
•Driver ........................................................ 1 unit
•OPERATING MANUAL Driver............. 1 copy
When taking out the driver from the electrostatic discharge (ESD) protection bag, make sure your
hands are not charged with static electricity. Static electricity may cause damage to the driver.
1-2 How to identify the product model
Check the model name of the driver against the number shown on the nameplate. Refer to p.9 for how to identify
the nameplate.
CVD 2 B R - K R
1 2 3 4 5 6
1 Series CVD: CVD Series
2Number of phases
of motor
2: 2-phase
5: 5-phase
3 Driver shape B: Driver with mounting plate
4 Connector shape R: Right angle
Blank: Vertical
5 Power supply input K: DC power supply
6 Type R: RS-485 communication type

Checking the product
9
How to use
1-3 Products possible to combine
Products with which the driver can be combined are listed below. Check the model name of the product with the
nameplate.
Driver model Product type Applicable Series Motor model *1
CVD2B-KR
CVD2BR-KR
2-phase stepping motor
bipolar PKP Series
PKP213D05
PKP214D06
PKP22D15
PKP22D152
PKP23D15
PKP23D23
PKP24D082
PKP24D152
PKP24D232
PKP24MD152
PKP25D28A2
PKP262FD15A
PKP26D142
PKP26D282
PKP26MD282
CVD5B-KR
CVD5BR-KR 5-phase stepping motor
PKP Series
PKP52
PKP54MN
PKP54N182
PKP56FMN
PKP56FN242
PK Series
PK513
PK52H
PK52P
PK54
PK56*2
*1 The motor model column in the table describes part of the entire name of models. Drivers can be combined with
motors that include the model names listed here.
The box () in the motor model indicates a number representing the motor length.
The box () in the motor model indicates A(single shaft) or B(double shaft) representing the shape.
*2 Only motors with rated current of 1.4 A/phase. Motors other than 1.4 A/phase cannot be combined.
1-4 Information about nameplate
The gure shows an example.
Driver model
Serial number
Manufac
turing date
The position describing the information may vary depending on the product.

Checking the product
10
How to use
1-5 Names and functions of parts
The gure shows the driver which connector shape is of right angle.
Power supply
connector (CN1)
Motor connector (CN2)
USB communication connector (CN3)
RS-485 communication connector (
CN4, CN5)
C-DAT/C-ERR LED (green/red)
Cutouts for mounting A
(4 places)
PWR/ALM LED (green/red)
Termination resistor
setting switch (SW2)
I/O signal connector (CN6)
Mo
tor setting switch
(SW1
)
Cutouts for mounting B
(2 places)
Type Name Description
LED
PWR/ALM LED (Green/Red)
•This LED is lit in green while the main power supply is turned
on.
•If an alarm (protective function) is generated, the LED will
blink in red.
•If information is generated, the LED will simultaneously blink
in red and green twice. (Green and red colors may overlap
and it may be visible to orange.)
C-DAT/C-ERR LED (Green/Red)
•This LED will blink or illuminate in green when the driver is
communicating with the host controller properly via RS-485
communication.
•This LED will be lit in red if a RS-485 communication error
occurs with the host controller.
Switch
Motor setting switch (SW1) Sets an applicable motor.
Factory setting: 0
Termination resistor setting switch
(SW2)
Sets the termination resistor (120 Ω) of RS-485
communication.
Factory setting: OFF for both No.1 and No.2
(termination resistor disabled)
Connector
Power supply connector (CN1) Connects the main power supply.
Motor connector (CN2) Connects the motor.
USB communication connector
(CN3)
Connects a PC in which the MEXE02 has been installed.
(USB2.0 mini-B port)
RS-485 communication connectors
(CN4, CN5) Connects the RS-485 communication compatible product.
I/O signal connector (CN6) Connects when using direct I/O or sensors.

Installation
11
How to use
STEP 2 Installation
2-1 Installation location
The driver is designed and manufactured to be incorporated in equipment.
Install it in a well-ventilated location that provides easy access for inspection. The location must also satisfy the
following conditions:
•Inside an enclosure that is installed indoors (provide vent holes)
•Operating ambient temperature 0 to +50 °C (+32 to +122 °F) (non-freezing)
•Operating ambient humidity 85 % or less (non-condensing)
•Area free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid
•Area not exposed to direct sun
•Area free of excessive amount of dust, iron particles or the like
•Area not subject to splashing water (rain, water droplets), oil (oil droplets), or other liquids
•Area free of excessive salt
•Area not subject to continuous vibrations or excessive shocks
•Area free of excessive electromagnetic noise (from welders, power machinery, etc.)
•Area free of radioactive materials, magnetic elds or vacuum
•Up to 1,000 m (3,300 ft.) above sea level
2-2 Installation direction
Install the driver in vertical or horizontal position on a at metal plate having excellent vibration resistance. If the
driver is installed in a state other than vertical or horizontal position, its heat radiation eect will deteriorate.
The items shown below are necessary in order to install the driver. They must be provided by the customer.
Items to be prepared Cutouts for mounting A Cutouts for mounting B
M3 screw 4 pcs. 2 pcs.
M3 spring washer 4 pcs. 2 pcs.
M3 nut * 4 pcs. 2 pcs.
* Not necessary if screw holes are provided in the enclosure.
There must be clearances of at least 25 mm (0.98 in.) and 50 mm (1.97 in.) in the horizontal and vertical directions
respectively, between the driver and enclosure or other equipment within the enclosure. When two or more drivers
are to be installed side by side, provide clearances in the horizontal and vertical directions as shown in the gure.
The gure shows the driver which connector shape is of right angle.
•Install the driver inside an enclosure
•Do not install any equipment that generates a large amount of heat or noise near the driver.
•If the ambient temperature of the driver exceeds 50 °C (122 °F), improve the ventilation condition.
zHorizontal installation [Unit: mm (in.)]
20 (0.79) or more
40 (1.57) or mor
e

Installation
12
How to use
zVertical installation [Unit: mm (in.)]
50 (1.97) or more
40 (1.57) or more

Installation
13
How to use
2-3 Installation method
Install the driver using either the “cutouts for mounting A” or “cutouts for mounting B.”
Torque the mounting screw to 0.5 N·m (71 oz-in).
The gure shows the driver which connector shape is of right angle.
If both cutouts A and B are used for installation, the heat sink is distorted, causing the board to apply
stress.
When tightening the screws, make sure that the screw tightening tool does not touch the I/O signal
connector (CN6).
zHorizontal installation
Install the driver in a direction shown in the gure. Installing the driver upside down causes the heat radiation eect
to deteriorate.
When using the cutouts for mounting A When using the cutouts for mounting B
M3 screws
Spring washers
Metal pla
te
Spring washers
Metal plate
M3 screws
zVertical installation
The driver can be installed in any direction.
When using the cutouts for mounting A When using the cutouts for mounting B
Spring washers
M3 screws
Metal plate
Metal plate
Spring washers
M3 screws

Installation
14
How to use
Dimension [Unit: mm (in.)]
The gure shows the driver which connector shape is of right angle.
Mass: 0.065 kg (2.3 oz.)
78 (3.07)
78 (3.07)
85 (3.35)
24.5 max.
(0.96 max.)
20
(0.79)
2 (0.08)
52.5 (2.07)
30 (1.18)
3.5
(0.14)
2.5 (0.10)
3.5 (0.14)
3.5 (0.14)
3.5 (0.14)
5.5 max.
(0.22 max.)
8 (0.31)
[16.5 (0.65)]
5(0.20)
3.5
(0.14)

Connection
15
How to use
STEP 3 Connection
Connection example
Noise lter
Host controller
AC power supply
RS-485 communication
compatible product
Main power supply
Connect to CN6
Connect to CN2
Connect to CN3
USB cable
Connect to CN1
I/O signal cable *1 *2
Connect to CN4 or CN5
Connect to CN4 or CN5
RS-485 communication cable
(F
or connecting between drivers) *1
Connection cable *1
RS-485 communication cable
(For connecting host controller) *1
GND
+24 V
PC in which the MEXE02
has been installed *3
Power supply cable *1
*1 This cable is provided as our product.
*2 Connect when using direct I/O or sensors.
*3 The PC must be supplied by the customer.
•When connecting, pay attention to the polarity of the power supply. Reverse-polarity connection
may cause damage to the driver.
•Connect the connectors securely. Insecure connections may cause malfunction or damage to the
driver.
•When disconnecting the connector, pull out while pressing the latches on the connector.
•When turning on the main power supply again or connecting/disconnecting the connector, turn
o the main power supply and wait for the PWR/ALM LED to turn o.
•Separate an I/O signal cable at least 100 mm (3.94 in.) from inductance loads such as
electromagnetic relays, and wire so that it is not in parallel with power supply cables and
connection cables.
•Do not wire the power supply cable of the driver in the same cable duct with other power lines or
connection cables.
•If the connection cable or power supply cable generates an undesirable amount of noise
depending on the installation and wiring, shield the cable or install a ferrite core.
•Up to three pieces of cables can be used to connect between a motor and a driver. Keep 10 m
(32.8 ft.) or less for the wiring distance between the motor and the driver.
•Keep 10 m (32.8 ft.) or less for the total wiring distance of the RS-485 communication cable. To
extend more than 10 m (32.8 ft.) causes the driver to be aected easily by electrical noise.

Connection
16
How to use
3-1 Connecting the motor (CN2): 2-phase stepping motor
Connector pin assignments vary depending on the motor. Refer to the table when connecting.
The pin number is shown in the gure.
“Color” in the table shows the colors of lead wires of our connection cable.
The motors of the model A and model B are dierent in pin assignments. The motor does not rotate
properly if the connection is wrong.
Model A Model B Model C
51 1 6
Pin No.Pin No.
Pin assignment
15
Driver
CN2 pin No.
Model A Model B Model C
Pin No. Color Pin No. Color Color
1 4 Blue 1 Blue Blue
2 5 Red 3 Red Red
3 − − −
4 2 Green 6 Green Green
5 1 Black 4 Black Black
Applicable connector
Manufacturer Molex Incorporated
Connector housing 51103-0500
Contact 50351-8100
Designated crimping tool 63811-8100
Applicable lead wire
•AWG24 to 22 (0.2 to 0.3 mm2) *
•Outer sheath diameter:
ø1.15 to 1.8 mm (ø0.045 to 0.071 in.)
•Stripping length of wire insulation:
2.3 to 2.8 mm (0.091 to 0.11 in.)
* If a motor whose motor setting switch (SW1) is set to “A” is used, use the lead wires of AWG22 (0.3 mm2). Refer to
p.24 for the motor setting switch.
zMotors of frame size 20 mm (0.79 in.)
When motors of the frame size 20 mm (0.79 in.) (PKP213, PKP214) are used, connect by relaying lead wires of
AWG24 to AWG22 (0.2 to 0.3 mm2) since the wire diameter of the motor lead wires is as small as AWG26 (0.14 mm2).
Connection cables (without termination processing) provided by us can also be used. Refer to p.48 for the model
name.
PKP213
PKP214
Lead wires of AWG24 to AWG22
Lead wires of AWG26

Connection
17
How to use
3-2 Connecting the motor (CN2): 5-phase stepping motor
Connector pin assignments vary depending on the motor. Refer to the table when connecting.
The pin number is shown in the gure.
“Color” in the table shows the colors of lead wires of our connection cable.
The motors of the model A and model B are dierent in pin assignments. The motor does not rotate
properly if the connection is wrong.
Model A Model B Model C
51 1 5
Pin No.Pin No.
Pin assignment
15
Driver
CN2 pin No.
Model A Model B Model C
Pin No. Color Pin No. Color Color
1 5 Blue 1 Blue Blue
2 4 Red 2 Red Red
3 3 Orange 3 Orange Orange
4 2 Green 4 Green Green
5 1 Black 5 Black Black
Applicable connector
Manufacturer Molex Incorporated
Connector housing 51103-0500
Contact 50351-8100
Designated crimping tool 63811-8100
Applicable lead wire
•AWG24 to 22 (0.2 to 0.3 mm2) *
•Outer sheath diameter:
ø1.15 to 1.8 mm (ø0.045 to 0.071 in.)
•Stripping length of wire insulation:
2.3 to 2.8 mm (0.091 to 0.11 in.)
* If a motor whose motor setting switch (SW1) is set to “7” is used, use the lead wires of AWG22 (0.3 mm2). Refer to
p.25 for the motor setting switch.

Connection
18
How to use
3-3 Connecting the main power supply (CN1)
Power supply current capacity
The current capacity of the main power supply varies depending on the product to be combined.
z2-phase stepping motor
Motor model * Input power supply voltage Power supply current capacity
PKP213D05
24 VDC±10 %
0.5 A or more
PKP214D060.5 A or more
PKP22D15
PKP22D152
PKP23D15
1.9 A or more
PKP23D232.0 A or more
PKP24D0820.8 A or more
PKP24D1521.4 A or more
PKP24D2322.0 A or more
PKP24MD1521.4 A or more
PKP25D28A2 3.0 A or more
PKP262FD15A 1.9 A or more
PKP26D1421.3 A or more
PKP26D282
PKP26MD2823.0 A or more
* The motor model column in the table describes part of the entire name of models.
The box () in the motor model indicates a number representing the motor length.
The box () in the motor model indicates A(single shaft) or B(double shaft) representing the shape.
z5-phase stepping motor
Motor model * Input power supply voltage Power supply current capacity
PK513
24 VDC±10 %
0.6 A or more
PK52H1.4 A or more
PK52P0.6 A or more
PK541.4 A or more
PK561.8 A or more
PKP521.7 A or more
PKP54MN
PKP54N1822.8 A or more
PKP56FMN
PKP56FN2423.0 A or more
* The motor model column in the table describes part of the entire name of models.
The box () in the motor model indicates a number representing the motor length.
The box () in the motor model indicates A(single shaft) or B(double shaft) representing the shape.
Pin assignment
12
Pin No. Description
1 +24 VDC Power supply input
2 Power supply GND

Connection
19
How to use
Applicable connector
Manufacturer Molex Incorporated
Connector housing 43645-0200
Contact 43030-0001
Designated crimping tool 638190000
Applicable lead wire
•AWG22 (0.3 mm2)
•Outer sheath diameter:
ø1.85mm (ø0.073 in.)
•Stripping length of wire insulation:
2.54 to 2.92 mm (0.1 to 0.115 in.)
Keep the wiring distance as short as possible [less than 2 m (6.6 ft.)] to suppress the eect of noise.
3-4 Connecting the RS-485 communication compatible product
(CN4, CN5)
Connect the RS-485 communication cable to CN4 or CN5 connector. A vacant connector can be used to connect a
dierent driver.
Pin assignment
123
Pin No. Signal name Description
1 TR+ RS-485 communication signal (+)
2 TR− RS-485 communication signal (−)
3 SG Signal ground
Applicable connector
Manufacturer J.S.T. Mfg. Co., Ltd.
Connector housing PAP-03V-S
Contact SPHD-001T-P0.5 or SPHD-002T-P0.5
Designated crimping tool
•When the contact model is SPHD-001T-P0.5
AWG24 to AWG22: YC-611R
AWG26 to AWG24: YC-610R
•When the contact model is SPHD-002T-P0.5
YRS-620
Applicable lead wire
•When the contact model is SPHD-001T-P0.5
AWG26 to 22 (0.13 to 0.33 mm2)
Outer sheath diameter: ø1 to 1.5 mm (ø0.039 to 0.059 in.)
•When the contact model is SPHD-002T-P0.5
AWG28 to 24 (0.08 to 0.21 mm2)
Outer sheath diameter: ø0.76 to 1.5 mm (ø0.03 to 0.059 in.)
Twisted-pair wires or shielded wires are recommended for RS-485 communication cable.

Connection
20
How to use
Internal output circuit
SG is insulated from the internal GND.
Driver 1
SG
RS-485
*1
SG
TR+
TR−
SG
TR+
TR−
120 Ω
1 kΩ
1 kΩ
5 V
SG
SG
SW2
No.2
SW2
No.1
Driver 2
SG
TR+
TR−
SG
TR+
TR−
120 Ω
1 kΩ
1 kΩ
5 V
SG
SG
SW2
No.2
SW2
No.1
Driver 31
SG
TR+
TR−
120 Ω
1 kΩ
1 kΩ
5 V
SG
SG
SW2
No.2 *2
SW2
No.1 *2
*1 Termination resistor (120 Ω)
*2 Turn the termination resistor to ON.
