Oriental motor BMU Series User manual

Brushless Motor
30 W /60 W /120 W
QUICK START GUIDE
BMU Series
Connector type
HM-5191
And others.....
Remove
the panel.
Refer to "8 Convenient functions."
Many other useful features are also available
CN1 : 3 pin
CN4 : 9 pin
To display the rotation speed of the
gearhead output shaft
To display the size of a load
To hold a load by the slight
position-keeping function
To increase the rotation speed slowly
AC power supply
The rotation speed will not change even if the setting dial is turned.
The motor can be operated using a programmable controller.
For example.....
1Press the MODE key 2
1
Press and hold the MODE key for 5 seconds
Press the MODE key Press and hold the MODE key for 5 seconds
2
When the
FUNCTION key is
pressed, the rotation
speed is displayed.
□Connector
□Driver
□QUICK START GUIDE (this document)
Package contents
Motor (sold separately)
□OPERATING MANUAL
This document describes for when the
motor is of the connector type.
The descriptions other than "connection
for motor and cable" are common to the
BMU Series.
Refer to "7 Operating by programmable controller."
© Copyright ORIENTAL MOTOR CO., LTD. 2016 ORIENTALMOTOR CO.,LTD.
OPERATING MANUAL
OPERATING MANUAL
There are two types of connection cables
which cable leading directions are dierent.
(→Refer to the right gure)
To connect the motor and driver, the dedicated
connection cable is always needed.
For the round shaft type, only the cable for leading in
opposite direction of output shaft can be used.
Connection cable (sold separately)
Leading in opposite direction
of output shaft
Leading in direction of
output shaft
Model: CC__HBLF Model: CC__HBLB
□Motor □Mounting screw set
The gure shows an
example of the
combination type.
∗Be sure to match the motor output power with the
driver output power.
Supplied with the
combination type.
□OPERATING MANUAL
Thank you for purchasing an Oriental Motor product.
Use the product correctly after thoroughly reading the section "Safety precautions" of the operating
manual.
This document describes methods till rotating the motor after connecting it to the driver.
For details about how to use the product, refer to the supplied with the driver.
OPERATING MANUAL
The package includes the items shown below.
Be sure to ground the Protective Earth Terminal
(ground terminal) to ensure the safe use of the product.
Refer to "1 Connecting" for details, and ground securely.
To lock the
setting data
To release
the lock
As mentioned in the right,
various operating functions
are available.
The display blinks
several times
The display blinks
several times
MODE key
Top screen of
monitor mode
FUNCTION key
Display: Rotation speed

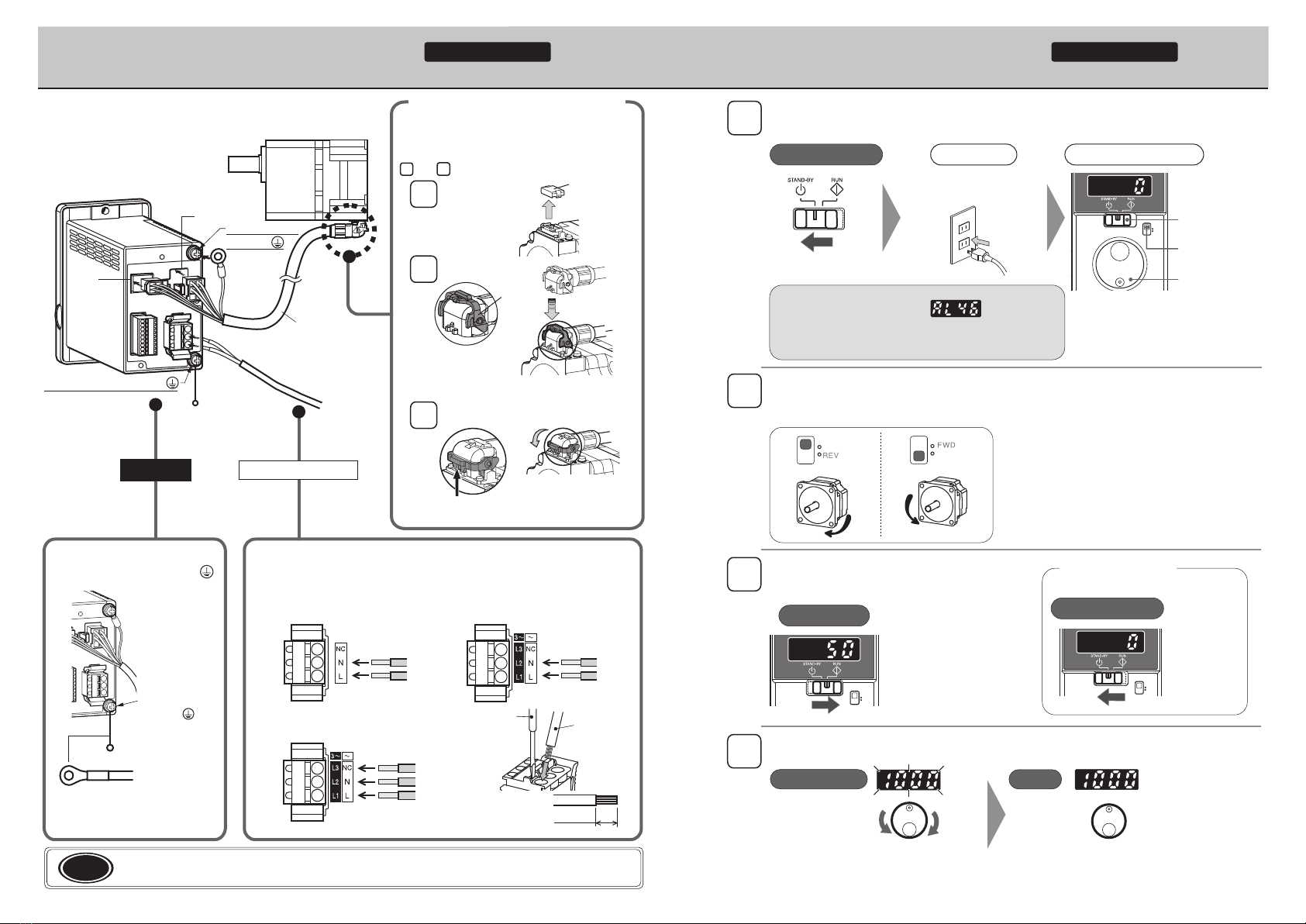

2 Operating a motor
1
2
3
4
•Single-phase 100-120 VAC •Single-phase 200-240 VAC
•Three-phase 200-240 VAC
Protective Earth
Terminal
Refer to "5 Connection" Refer to "6 Operating by front panel"
Protective Earth Terminal
1 Connecting OPERATING MANUAL OPERATING MANUAL
1
2
3
Connector
cap
Remove
Attach
Secure
Be sure to turn down the locking lever
till the position shown in the gure.
Motor
Driver
PE To power
supply
10 mm
(0.39 in.)
PE
FWD
REV
Lead wire
Screwdriver
Be sure to ground using the
Protective Earth Terminal .
Protective Earth
Terminal
Connect a power supply cable according to the power-supply
voltage specications of the driver. Prepare the power supply cable
since it is not supplied with the product.
Be sure to ground the product. Failure to do so may result in electric shock or damage to the product.
Static electricity may cause damage to the product if the Protective Earth Terminals are not grounded.
Note
Prepare a grounding wire since
it is not supplied with the product. AWG18 to 14
(0.75 to 2.0 mm )
2
M4
AC power ON
Rotation direction selection
Decelerate
Connection cable
The gure is an example for
when the product is of a
single-phase 100 VAC.
If the power supply is turned on while the operation switch
is set to the RUN side, the alarm is generated.
【How to reset 】Set the operation switch to [STAND-BY].
The alarm is reset, and the motor rotation
speed is displayed.
P
U
S
H
-
S
E
T
FWD
REV
Rotation speed
0 r/min (standstill)
Accelerate
[ Example: 50 →1000 r/min ]
CN2
CN3
CN1 CN1
CN1
The motor rotates.
50 r/min (factory setting)
The gures show the round shaft type.
With the combination type, the gearhead output
shaft rotates in the opposite direction to the above
gure when the gear ratio is 30, 50, and 100.
When the setting dial is
pressed, the display
changes to lighting
from blinking, and the
speed will be set.
When you start the
motor next time, it will
rotate at the set speed.
CN1
Setting dial
Press
When the setting dial is turned, the display blinks.
You can change the speed while blinking.
Operation
switch
Set the operation switch to
Set the operation switch to
Rotation
direction switch
Select the motor rotation direction using the rotation direction switch.
[ STAND-BY ] Power ON The display blinks
Ground
FWD REV
Insert into CN1
AWG18 to 14 (0.75 to 2.0 mm )
2
Start of motor
Change of motor speed
Set
Adjustment
[ RUN ]
FWD
REV
The motor stops.
To stop the motor
Set the operation switch to
[ STAND-BY ]
Connection for motor and cable
This is an example for when the cable is "leading
in direction of output shaft." In the case of the
cable of "leading in opposite direction of output
shaft," the cable leading direction is opposite in
and .
23
Keep the locking
lever in the position
shown in the gure, and insert.
Position of lever
Locking
lever
