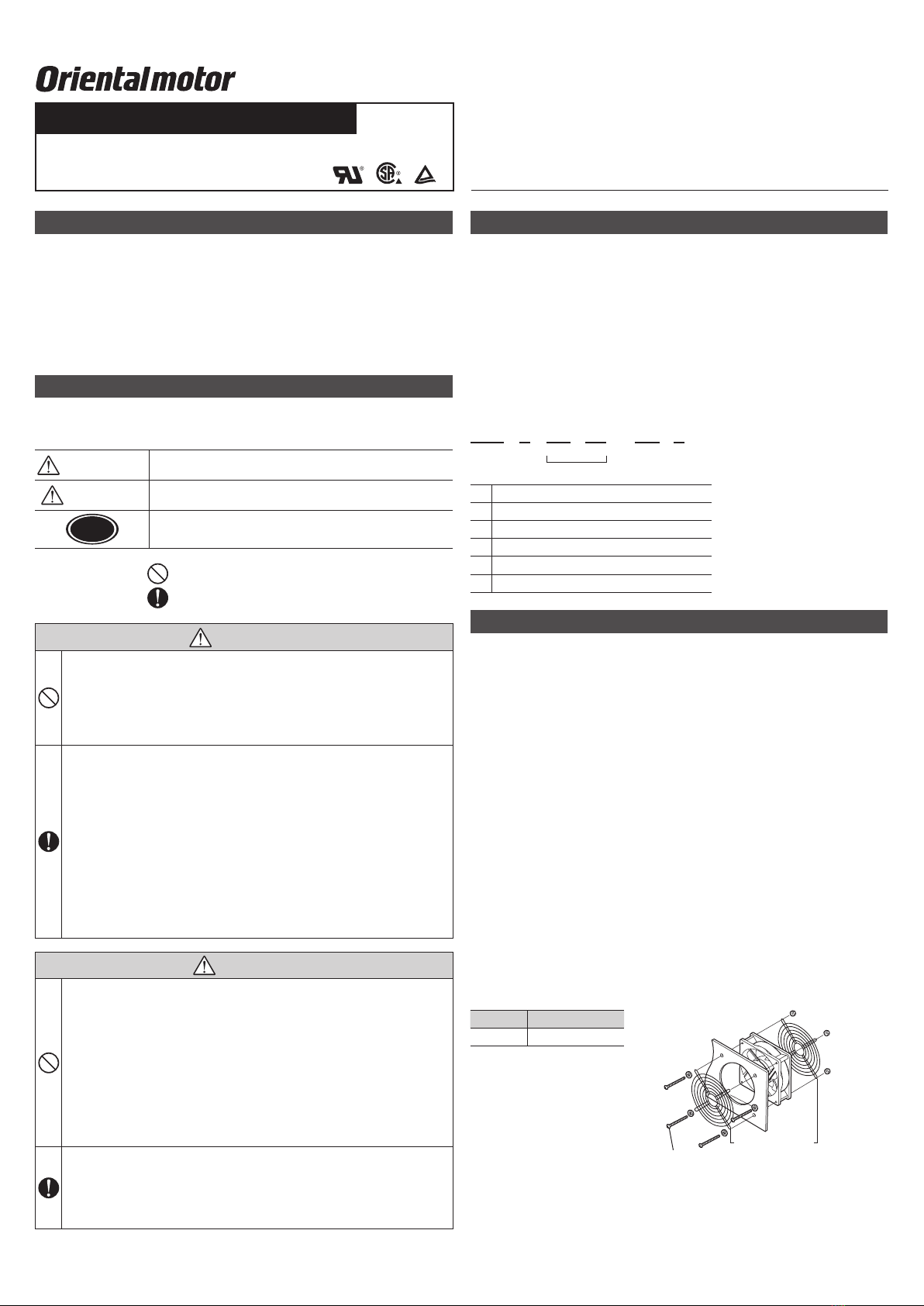

製品の取り扱いは、電気・機械工学の専門知識を持つ有資格者が行なってください。お
使いになる前に、「安全上のご注意」をよくお読みのうえ、正しくお使いください。また、
本文中の警告・注意・重要に記載されている内容は、必ずお守りください。
この製品は、一般的な産業機器への組み込み用として設計・製造されています。その他
の用途には使用しないでください。また、電源には、一次側と二次側が強化絶縁され
た直流電源を使用してください。この警告を無視した結果生じた損害の補償について
は、当社は一切その責任を負いませんので、あらかじめご了承ください。

ここに示した注意事項は、製品を安全に正しくお使いいただき、お客様や他の人々へ
の危害や損傷を未然に防止するためのものです。内容をよく理解してから製品をお使
いください。
㆙࿌
この警告事項に反した取り扱いをすると、死亡または重傷を負う場合
がある内容を示しています。
ὀព
この注意事項に反した取り扱いをすると、傷害を負うまたは物的損害
が発生する場合がある内容を示しています。
重要製品を正しくお使いいただくために、お客様に必ず守っていただきた
い事項を本文中の関連する取り扱い項目に記載しています。
[図記号の説明] :してはいけない「禁止」内容を示しています。
:必ず実行していただく「強制」内容を示しています。
㆙࿌
•爆発性雰囲気、引火性ガスの雰囲気、腐食性の雰囲気、水中、可燃物のそば
では使用しないでください。火災・けがの原因になります。
•通電状態で移動、設置、接続、点検の作業をしないでください。電源を切っ
てから作業してください。けがの原因になります。
•リード線を無理に曲げたり、引っ張ったり、はさみ込まないでください。火
災の原因になります。
•ファンを分解・改造しないでください。けがの原因になります。
•設置、接続、運転・操作、点検・故障診断の作業は、適切な資格、知識を有す
る人が行なってください。火災・けがの原因になります。
•電源入力電圧は、定格範囲を必ず守ってください。火災の原因になります。
•電源には、一次側と二次側が強化絶縁された直流電源を使用してください。
感電の原因になります。
•接続は、接続図にもとづき確実に行なってください。火災・やけどの原因にな
ります。
•拘束保護回路がはたらいたときは、電源を切ってください。拘束状態が解除
されたときにファンが突然起動して、けが・装置破損の原因になります。
•停電したときは、電源を切ってください。停電復旧時にファンが突然起動して、
けが・装置破損の原因になります。
ὀព
•ファンの仕様値を超えて使用しないでください。けが・装置破損の原因になり
ます。
•ファンの開口部に指や物を入れないでください。けがの原因になります。
•ファンの回転部(羽根)やリード線で、製品を持ち上げないでください。けが
の原因になります。
•ファンのリード線をフレームフック部から外さないでください。リード線が
傷つくおそれがあります。
•ファンの周囲に、可燃物を置かないでください。火災・やけどの原因になりま
す。
•ファンの周囲に、通風を妨げる障害物を置かないでください。装置破損の原
因になります。
•運転中は回転部(羽根)に触れないでください。けがの原因になります。フィ
ンガーガードなどを使って保護してください。
•ファンを設置するときは静電対策を行なってください。装置破損の原因にな
ります。
•異常が発生したときは、ただちに運転を停止して、電源を切ってください。
火災・けがの原因になります。
•ファンは筐体に確実に固定してください。けが・装置破損の原因になります。
HF-3145-3
取扱説明書 お買い上げいただきありがとうございます。
この取扱説明書には、製品の取り扱いかたや安全上の注意事項を示しています。
•取扱説明書をよくお読みになり、製品を安全にお使いください。
•お読みになったあとは、いつでも見られるところに必ず保管してください。
DCプロペラファン••MD
Pタイプ
(防水)

 
次のものがすべて揃っていることを確認してください。
不足したり破損している場合は、お買い求めの支店または営業所までご連絡ください。
□•ファン•.........................1台 □•取扱説明書(本書)•.......1部
セット品には、フィンガーガードと取付ねじセットが付属しています。
 
お買い求めの製品名は、銘板に記載された品名で確認してください。
お問い合わせの際は、銘板に記載された品名、製造番号、製造年月をお伝えください。
MD P 12 38 - 24 L
①③②④⑤
⑥
ファンサイズ
① シリーズ名 MD
:
MDシリーズ
② タイプ P
:
Pタイプ(防水)
③ フレーム取付角寸法
④ フレーム厚み
⑤ 定格電圧 24
:DC24•V
⑥ 付加機能 L
:回転停止アラーム

 
点検が容易な次のような場所に設置してください。
ただし、水中では使用できません。
屋内に設置された筐体内
使用周囲温度:−20 ~ +70 °C(凍結・結露しないこと)
使用周囲湿度:85%以下(結露しないこと)
爆発性雰囲気、有害なガス(硫化ガスなど)、および液体のないところ
直射日光が当たらないところ
塵埃や鉄粉などの少ないところ
油(油滴)、およびその他の液体がかからないところ
連続的な振動や過度の衝撃が加わらないところ
放射性物質や磁場がなく、真空でないところ
電磁ノイズ(溶接機、動力機器など)が少ないところ
スイッチング回路や高周波電源の近くで使用すると、電磁ノイズ(伝導ノイズ、放射
ノイズ)の影響で、誘導電流がファンの内部に流れる場合があります。誘導電流が流
れるとファンの軸受けに電食が発生し、異常音や寿命低下の原因になります。電磁
ノイズの影響がない環境で使用してください。
 
ファンは、耐振動性にすぐれ、熱伝導効果が高い平滑な金属板に設置してください。
使用する機器に取付穴をあけ、ねじでファンを固定してください。
風の方向と羽根の回転方向は、ファンフレーム側面の表示:矢印をご覧ください。
指や異物の侵入を防ぐことができるフィンガーガードを周辺機器(別売)でご用意し
ています。お使いの場合は、図のように取り付けてください。
ねじサイズ 締付トルク
フィンガーガード
(別売)
取付用ねじ
(付属していません)
M4 0.6•N・m
•この取扱説明書の一部または全部を無断で転載、複製することは、禁止されています。
•製品の性能、仕様および外観は改良のため予告なく変更することがありますのでご
了承ください。
••と• •は、日本その他の国におけるオリエンタルモーター株式会
社の登録商標または商標です。
© Copyright ORIENTAL MOTOR CO., LTD. 2012
2019 年 4 月制作
重要リード線の末端には、水がかからないようにしてください。水がかかると、
リード線をとおしてファン内部に水分が浸入し、ファンが破損するおそれ
があります。
この部分に水を
かけないでください
リード線

 
DC電源を投入すると、ファンが回転します。
製品の銘板で電圧仕様を確認し、正しい電圧を入力してください。
重要ファンと DC電源の配線距離によって、ファンに印加される電圧が DC電源
の出力電圧よりも高くなる場合があります。ファンに印加される電圧が仕
様を超えないよう使用してください。
[•接続図•]
駆動用
DC電源
+
−(GND)
アラーム出力
赤
黒
黄
リード線サイズ:AWG24
 

z
通電中にファンの回転が停止すると、アラーム信号を出力します。
黄がアラームのリード線です。駆動用 DC電源とアラーム信号の GNDは共通です。
出力形式:オープンコレクタ出力
出力状態:回転時 Lレベル(内部トランジスタ ON)
停止時 Hレベル(内部トランジスタ OFF)
接続図 遅延機能
黄
黒
ファン お客様の回路
GND
DC27.6V以下
R
0V
5mA
以下
ファンの起動時にアラームの検出を
回避する場合は、外部に遅延機能が
必要です。遅延時間は 1 秒以上とし
てください。

このファンは焼損防止回路を内蔵しています。拘束状態を検知すると、巻線に流れる
電流を自動的に制御するため、拘束によってファンが焼損することはありません。
拘束状態が解除されると自動で運転を再開します。点検するときは、必ず電源を切っ
てください。
  
 
運転後は、定期的に次の項目を点検することをお勧めします。
異常があるときは使用を中止し、お客様ご相談センターにご連絡ください。

z
ファンの取付ねじに緩みがないか確認してください。
ファンから異常な音が発生していないか確認してください。
 
製品の保証については、当社の WEBサイトでご確認ください。
 
製品は、法令または自治体の指示に従って、正しく処分してください。

製品の仕様については当社の WEBサイトでご確認ください。
https://www.orientalmotor.co.jp/
  
 
適用規格 認証機関
UL•507 UL
CSA•C22.2•No.113 CSA
EN•60950-1 TÜV
耐熱クラス UL/CSA規格:105(A) EN規格:120(E)
 設置条件(EN/IEC規格)
機器組み込み型
過電圧カテゴリー:Ⅰ
汚 損 度:2
感電保護:クラスⅢ機器
保護等級:IP68
 EN/IEC 60529、EN/IEC 60034-5 に従い評価しています。
 
RoHS指令 (2011/65/EU)の規制値を超える物質は含有していません。
Introduction
■Before using the product
Only qualied personnel of electrical and mechanical engineering should work with the product.
Use the product correctly after thoroughly reading the section "Safety precautions." In addition,
be sure to observe the contents described in warning, caution, and note in this manual.
The product described in this document has been designed and manufactured to be
incorporated in general industrial equipment. Do not use for any other purpose. For
the power supply, use a DC power supply with reinforced insulation on its primary and
secondary sides. Oriental Motor Co., Ltd. is not responsible for any damage caused through
failure to observe this warning.
Safety precautions
The precautions described below are intended to ensure the safe and correct use of the
product, and to prevent the user and other personnel from exposure to the risk of injury. Use
the product only after carefully reading and fully understanding these instructions.
WARNING
Handling the product without observing the instructions that
accompany a "WARNING" symbol may result in serious injury or death.
CAUTION
Handling the product without observing the instructions that accompany
a "CAUTION" symbol may result in injury or property damage.
Note The items under this heading contain important handling instructions
that the user should observe to ensure safe use of the product.
[Description of
graphic symbols] : Indicates "prohibited" actions that must not be performed.
: Indicates "compulsory" actions that must be performed.
WARNING
Do not use the product in explosive or corrosive environments, in the presence of
ammable gases, locations subjected in water, or near combustibles. Doing so may
cause re or injury.
Do not transport, install, connect, or inspect the product while the power is supplied.
Always turn o the power before carrying out these operations. Injury may result.
Do not forcibly bend, pull or pinch the lead wire. Doing so may result in re.
Do not disassemble or modify the fan. Doing so may cause injury.
Only qualied and educated personnel should be allowed to perform installation,
connection, operation and inspection/troubleshooting of the product. Handling by
unqualied and uneducated personnel may result in re or injury.
Keep the input-power voltage within the specied range. Failure to do so may result
in re.
For the power supply, use a DC power supply with reinforced insulation on its
primary and secondary sides. Failure to do so may result in electric shock.
Perform connections securely according to the connection diagram. Failure to do so
may result in re or a skin burn(s).
Shut o the power to the fan in the event the rotating part (blades) is locked during
operation and the burnout prevention circuit is activated. Otherwise, the fan will
start unexpectedly when released from the locked condition. This may cause injury
or damage to equipment.
Turn o the power in the event of a power failure. Otherwise, the fan will start
unexpectedly when the power is restored. This may cause injury or damage to equipment.
CAUTION
Do not use the fan beyond its specications. Doing so may result in injury or
damage to equipment.
Keep your ngers and objects out of the openings in the fan. This may cause injury.
Do not lift the fan by holding the rotating part (blades) or lead wires of the fan.
Doing so may cause injury.
Do not remove the lead wire of the fan from the frame hook. Doing so may cause
damage to the lead wire.
Keep the area around the fan free of combustible materials. Failure to do so may
result in re or a skin burn(s).
Do not leave anything around the fan that would obstruct ventilation. Doing so may
result in damage to equipment.
Do not touch the rotating part (blades) while operating. Doing so may cause injury.
The use of the nger guard is recommended to ensure protection.
Before installing the fan, take measures against static electricity. Failure to do so
may result in damage to equipment.
Immediately when trouble has occurred, stop operation and turn o the power
supply. Failure to do so may result in re or injury.
Securely install the fan in an enclosure. Failure to do so may result in injury or
damage to equipment.
Checking the product
■Package contents
Verify that the items listed below are included.
Report any missing or damaged items to the branch or sales oce from which you
purchased the product.
□Fan......................................... 1 unit □OPERATING MANUAL (this document)............... 1 copy
A nger guard and a mounting screw set are included with the fan kit products.
■Checking the model name
Verify the model name of the purchased product against the model shown on the name
plate of the product.
Tell us the model name, product serial number, and manufacturing date shown on the name
plate when you contact us.
MD P 12 38 - 24 L
①③②④⑤ ⑥
Fan size
①Series name MD: MD Series
②Type P: Ptype (splash proof)
③Frame size
④Frame thickness
⑤Rated voltage 24: 24 VDC
⑥Additional function L: Stall alarm
Installation
■Installation location
Install the product in the following location that provides easy access for inspection.
However, this fan cannot be used in the water.
Inside an enclosure installed indoors
Operating ambient temperature: −
2
0 to +70 °C [−4 to +158 °F]
(non-freezing, non-condensing)
Operating ambient humidity: 85% or less (non-condensing)
Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid
Area not exposed to direct sun
Area free of excessive amount of dust, iron particles or the like
Area not subject to oil (oil droplets) or other liquids
Area not subject to continuous vibration or excessive shocks
Area free of radioactive materials, magnetic elds or vacuum
Area free of excessive electromagnetic noise (from welders, power machinery, etc.)
When using near a switching circuit or high-frequency power supply, the induced current
may ow inside the fan due to electromagnetic noise (conductive noise, radiative noise).
If the induced current ows, the electric corrosion is caused in the bearings of the fan. As a
result, it may generate the noise or shorten the service life of the products. Use the fan in
the environment that the electromagnetic noise does not cause.
■Installation method
Install the fan onto an appropriate at metal plate having excellent vibration resistance
and heat conductivity.
Drill mounting holes in equipment, and secure the fan using screws.
For directions of the air ow and blades rotation, see the arrow indicated on the side of
the fan frame.
Finger guards that can prevent ngers and foreign particles from entering are available as
peripheral equipment (sold separately). Install as shown in the gure when using.
Screw size Tightening torque
Finger guard
(sold separately)
Mounting sc
rews
(not supplied)
M4 0.6 N·m (5.3 lb-in)
HF-3145-3
OPERATING MANUAL Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety precautions.
Please read it thoroughly to ensure safe operation.
Always keep the manual where it is readily available.
DC Axial Flow Fans MDSeries
PType (splash proof)
Unauthorized reproduction or copying of all or part of this manual is prohibited.
Characteristics, specications and dimensions are subject to change without notice.
and are registered trademarks or trademarks of Oriental Motor Co.,
Ltd., in Japan and other countries.
© Copyright ORIENTAL MOTOR CO., LTD. 2012
Published in April 2019
T
echnical Support Tel:(800)468-3982
8:30
A.M. to 5:00 P.M., P.S.T. (M-F)
7:30
A.M. to 5:00 P.M., C.S.T. (M-F)
www
.orientalmotor.com
Schiessstraße 44, 40549 Düsseldor
f, Germany
T
echnical Support Tel:00 800/22 55 66 22
www
.orientalmotor.de
T
el:01256-347090
www
.oriental-motor.co.uk
T
el:01 47 86 97 50
www
.orientalmotor.fr
T
el:02-93906346
www
.orientalmotor.it
T
el:+55-11-3266-6018
www
.orientalmotor.com.br
• Please contact your nearest Oriental Motor oce for further information.
4-8-1Higashiueno
,Taito-ku,Tokyo 110-8536
Japan
T
el:03-6744-0361
www
.orientalmotor.co.jp
Tel:0800-060708
www.orientalmotor.com.tw
Singapore
Tel:1800-8420280
www.orientalmotor.com.sg
Tel:1800-806161
www.orientalmotor.com.my
Korea
Tel:080-777-2042
www.inaom.co.kr
Tel:1800-888-881
www.orientalmotor.co.th
Tel:400-820-6516
www.orientalmotor.com.cn
Tel:+91-80-41125586
www.orientalmotor.co.in
Hong Kong Branch
Tel:+852-2427-9800
Note Be sure not to splash water on the lead wire terminal, otherwise water could
seep inside the fan through the lead wire.
Keep water from splashing
on this part of the cable
Lead wire
Connection
■Connecting the power supply
The fan starts rotating when the DC power supply is turned on.
Verify the voltage specication with the nameplate of the product, and input the suitable voltage.
Note A voltage applied to the fan may be higher than the output voltage of the DC
power supply depending on the wiring distance between the fan and the DC
power supply. Use the fan in a state where a voltage applied to the fan does not
exceed the voltage specication.
[Connection diagram]
DC power supply
for driving
+
– (GND)
Alarm output
Red
Black
Yellow
Lead wire size: AWG24
■Connecting the alarm circuit
zStall alarm
If the fan stops rotating while the power is supplied, an alarm signal is output.
The yellow lead wire is for alarm signal. GND of the DC power supply for driving and that of
the alarm signal are common.
Output circuit: Open-collector output
Output status: L level when the fan rotates (internal transistor ON)
H level when the fan stops (internal transistor OFF)
Connection diagram Delay function
Yellow
Black
Fan User's circuit
GND
27.6 VDC or less
R
0 V
5 mA
or less
To avoid an alarm detection when the
fan starts rotating, a delay function
is required externally. The delay time
should be at least one second.
Overheat protection for locked condition
This fan is equipped with a built-in burnout prevention circuit. Since this circuit automatically
controls the current ow to the windings when a locked condition is detected, it prevents
the fan from burning out. The fan resumes operation automatically as soon as it is released
from the locked condition. Turn o the power at the time of inspections.
Inspection and maintenance
■Inspection
It is recommended that periodic inspections for the items listed below are conducted after
each operation.
If an abnormal condition is noted, discontinue any use and contact your nearest Oriental
Motor sales oce.
zInspection item
Check if any of the mounting screws of the fan is loose.
Check if the fan generates unusual noises.
■Warranty
Check on the Oriental Motor Website for the product warranty.
■Disposal
Dispose the product correctly in accordance with laws and regulations, or instructions of
local governments.
Specications
Check on the Oriental Motor Website for the product specications.
Regulations and standards
■UL Standards, CSA Standards, EN Standards
Applicable standards Certication body
UL 507 UL
CSA C22.2 No.113 CSA
EN 60950-1 TÜV
Thermal class UL/CSA Standards: 105(A) EN Standards: 120 (E)
 Installation conditions (EN/IEC Standards)
For incorporating in equipment
Overvoltage category:Ⅰ
Pollution degree: 2
Protection against electric shock: ClassⅢequipment
Degree of protection: IP68
 This product has been evaluated in accordance with EN/IEC 60529 and EN/IEC 60034-5.
■RoHS Directive
The products do not contain the substances exceeding the restriction values of RoHS
Directive (2011/65/EU).

Other Oriental motor Fan manuals

Oriental motor MRS16V User manual

Oriental motor

Oriental motor MRS16V User manual

Oriental motor MU Series User manual

Oriental motor

Oriental motor MU Series User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MU Series User manual

Oriental motor

Oriental motor MU Series User manual

Oriental motor MD Series User manual

Oriental motor

Oriental motor MD Series User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MF Series User manual

Oriental motor

Oriental motor MF Series User manual

Oriental motor MDV Series User manual

Oriental motor

Oriental motor MDV Series User manual

Oriental motor MD Series User manual

Oriental motor

Oriental motor MD Series User manual

Oriental motor MRS Series User manual

Oriental motor

Oriental motor MRS Series User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MRE Series User manual

Oriental motor

Oriental motor MRE Series User manual

Oriental motor MF930 User manual

Oriental motor

Oriental motor MF930 User manual

Oriental motor MRS Series User manual

Oriental motor

Oriental motor MRS Series User manual

Oriental motor MRS18V2 User manual

Oriental motor

Oriental motor MRS18V2 User manual

Oriental motor MD Series User manual

Oriental motor

Oriental motor MD Series User manual

Oriental motor MD Series User manual

Oriental motor

Oriental motor MD Series User manual

Oriental motor ORIX MRS18V2 User manual

Oriental motor

Oriental motor ORIX MRS18V2 User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MU Series User manual

Oriental motor

Oriental motor MU Series User manual

Oriental motor MDS Series User manual

Oriental motor

Oriental motor MDS Series User manual

Oriental motor MDE Series User manual

Oriental motor

Oriental motor MDE Series User manual

Popular Fan manuals by other brands

BALMUDA EGF-1600 Series instruction manual

BALMUDA

BALMUDA EGF-1600 Series instruction manual

Montech UL40 Assembly instructions

Montech

Montech UL40 Assembly instructions

Ebmpapst W4E350-CN25-70 operating instructions

Ebmpapst

Ebmpapst W4E350-CN25-70 operating instructions

Exodraft RSHG manual

Exodraft

Exodraft RSHG manual

Barcol-Air CERA-1 installation instructions

Barcol-Air

Barcol-Air CERA-1 installation instructions

LSL Products Super Stanker installation instructions

LSL Products

LSL Products Super Stanker installation instructions

Suntec Wellness CoolBreeze 4000 SV operating instructions

Suntec Wellness

Suntec Wellness CoolBreeze 4000 SV operating instructions

Ventry 20EM3550 owner's manual

Ventry

Ventry 20EM3550 owner's manual

Nibe DVC 10-50 user manual

Nibe

Nibe DVC 10-50 user manual

EIP AM2000 user manual

EIP

EIP AM2000 user manual

Honeywell HSF600B owner's manual

Honeywell

Honeywell HSF600B owner's manual

Greenheck SP110L Installation, operation and maintenance manual

Greenheck

Greenheck SP110L Installation, operation and maintenance manual

S&P CAB-PLUS manual

S&P

S&P CAB-PLUS manual

Patton PX405PED owner's guide

Patton

Patton PX405PED owner's guide

Giacomini KFC-F Installation and user manual

Giacomini

Giacomini KFC-F Installation and user manual

Ebmpapst G2D180-BD02-07 operating instructions

Ebmpapst

Ebmpapst G2D180-BD02-07 operating instructions

TroposAir Fresco 4BE52 owner's manual

TroposAir

TroposAir Fresco 4BE52 owner's manual

CWE SAR-1000 instruction manual

CWE

CWE SAR-1000 instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
