Orlaco 0226010 User manual

Monitor 7” HLED
Installation manual
Manual No. IM0973585 A 02
01/2019
English
Article number: 0226010

2IM0973585 A 02
Safety
In order to guarantee safe operation, these safety
instructions must be read before you start using
this equipment.
• Do not open the enclosure. This can cause
damage, short-circuiting or electrical shocks.
• Do not expose the equipment to extreme
temperatures. This can cause deformation of the
enclosure or damage to internal components.
• Repairs may only be made by the
manufacturer.
• The equipment must be installed as shown in
this manual.
Before you start using this equipment, please read this manual
carefully and follow all instructions. This manual describes the
installation of the equipment, outlines the connection options and
explains how to put the equipment into operation. We recommend
that you keep this manual in a safe place for reference purposes.
If you have any questions or issues concerning the operation
of this equipment, consult the relevant section in the manual or
contact the Orlaco Products BV Service department.
The camera and monitor systems from Orlaco comply with the
latest CE, ADR, EMC and mirror-directive regulations. All products
are manufactured in accordance with the ISO 9001 quality manage-
ment, IATF 16949 quality automotive and ISO 14001 environmental
management.
Contents page
1. Monitor variants 3
2. Monitor placement 3
3. Basic system installations 4
3.1. EMC 5
4. Technical specifications 6
5. Assembly, connection and data Monitor 7” 7
6. Maintenance and cleaning 8
7. Disposal 8
8. General terms and conditions 8
9. Release notes 8
Monitor 7’’ HLED
Installation manual
Art. no. 0226010; Monitor 7” HLED

3
IM0973585 A 02
Installation manual
1. HLED variants
HLED Art. No. Video Cable Bracket Power Cable Page
Monitor 7” HLED 1
0226010 1 metre 4 pin female, digicoax -1 metre 7

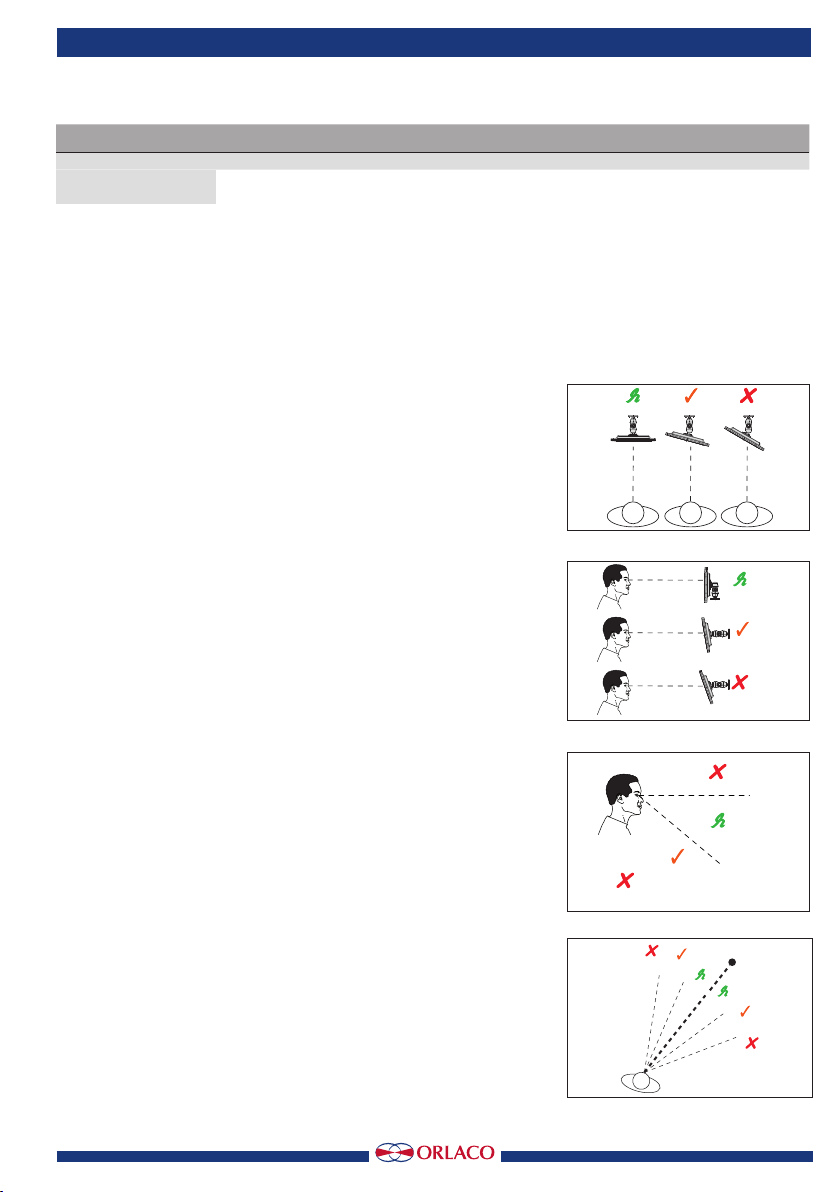

2. Monitor placement (guideline)
The correct placement of the monitor depends on the type of the vehicle.
Please take note of the following guidelines when installing the monitor.
Obstruction of the eld of vision
The monitor must be placed in such a way that the field of vision of
surrounding traffic and the work area is obstructed as little as possible.
Obstruction of the operation
The monitor may not obstruct the basic operation within the vehicle.
Mounting hardware
Adjustable bracket can be ordered seperately (e.g. Art. No. 2015500).
View point on the monitor
Posture
View point on the monitor
Viewing direction of the monitor
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm
150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm
150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm
150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm
150 cm
Moderate Bad
Bad Good

4IM0973585 A 02

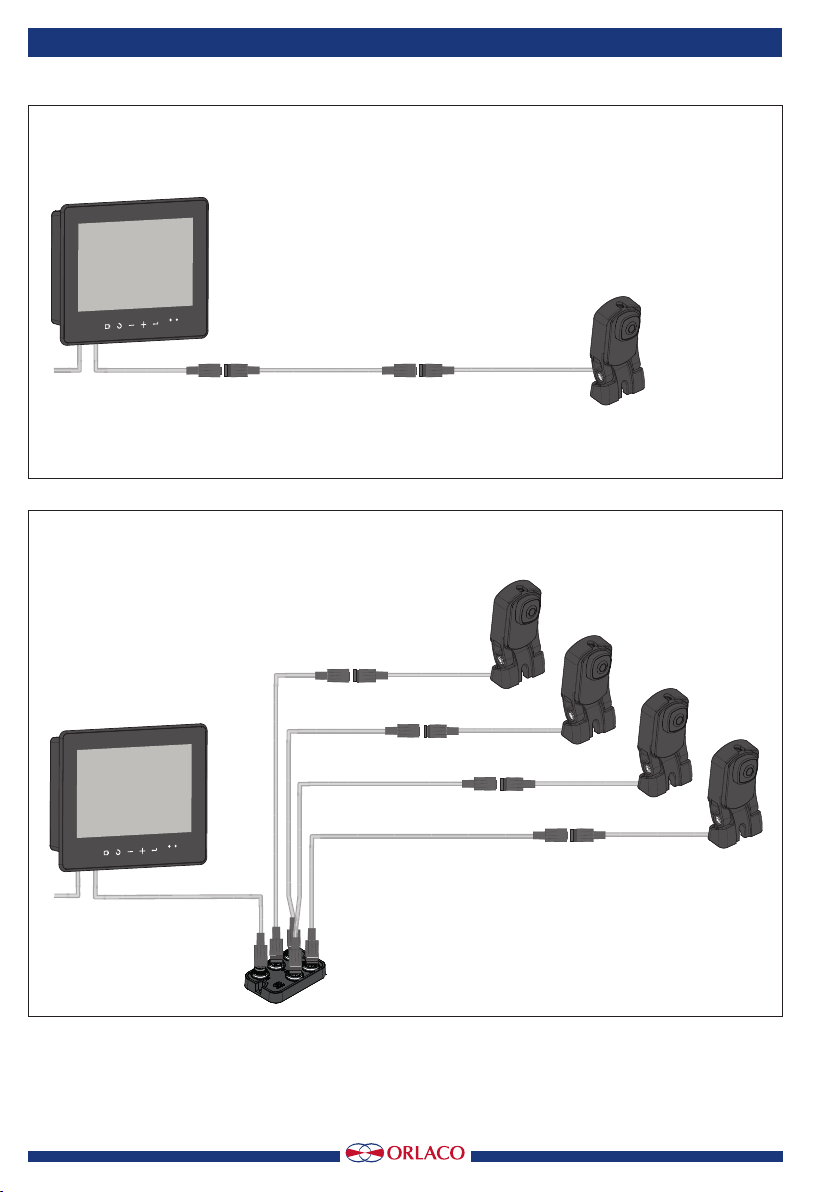

3. Basic system installation
Installation manual
Power
12...24V/DC
Monitor 7” HLED
Art. No. 0226010
Monitor 7” HLED
Art. No. 0226010
Cable Uni DigiCoax
Camera HMOS
with bracket
Power
24V/DC
Cable DigiCoax
Cable DigiCoax
Cable DigiCoax
Cable DigiCoax
DigiCoax Switcher
Art. No. 0404240
4x
HMOS Camera
with bracket
Camera 1
Camera 2
Camera 3
Camera 4
1 camera system
4 camera system

5
IM0973585 A 02

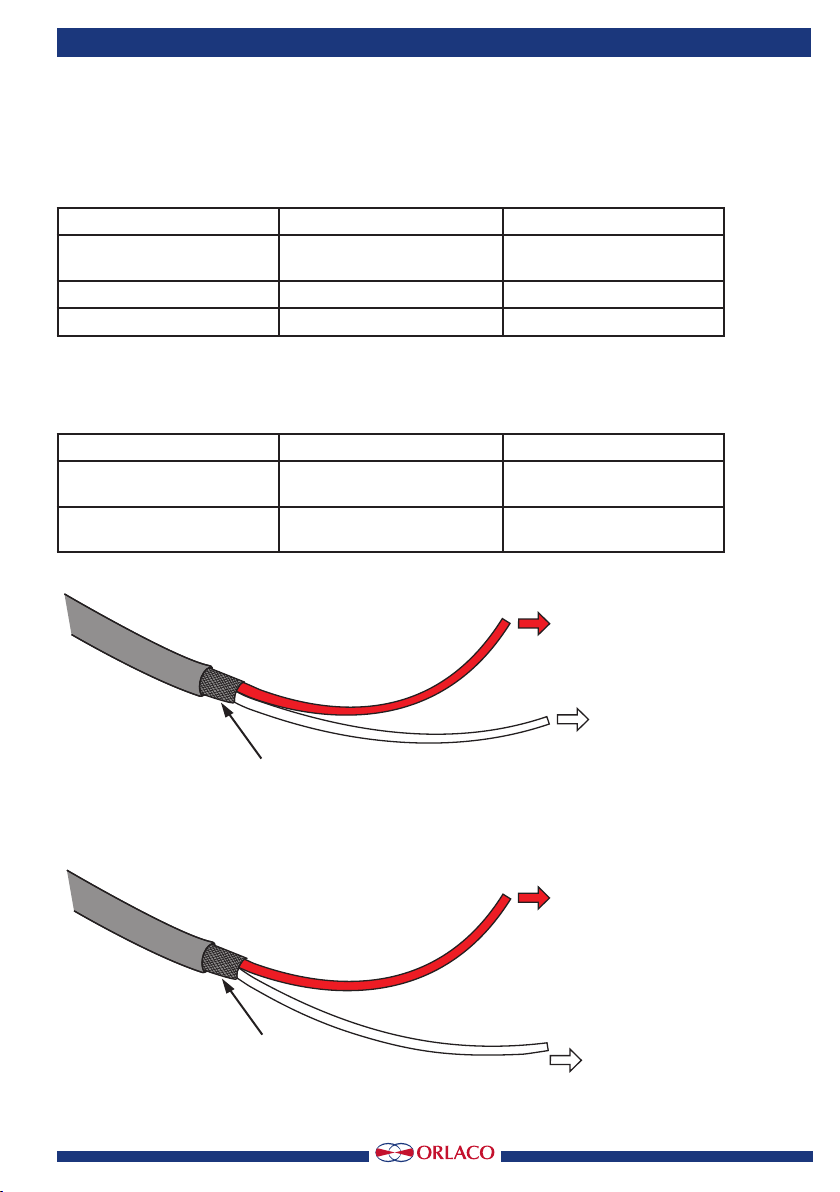

3.1. Electromagnetic compatibility installation instructions (EMC).
Preferred installation
Installation especially for forklifttrucks.
Warning! On vehicles with separated powerwiring like electrical forklifttrucks no other installation is allowed,
the shielding may NOT in any way be connected to the battery:
Color/wire Function Vehicle connection:
Red wire +(plus) power supply +(plus) voltage of the vehicle
(12..24V/Dc, 5A fuse)
White wire -(minus) GND power supply -(minus) of the vehicle
Shielding powercable Eliminates EMC disturbances Chassis of the vehicle
Alternative installation
If no separate 0V/minus is available on the vehicle and the minus of the battery is connected to the chassis of the
vehicle; connection is as follows:
Color/wire Function Vehicle connection:
Red wire +(plus) power supply +(plus) voltage of the vehicle
(12..24V/DC, 5A fuse)
White wire and
Shielding powercable
-(minus) GND power supply
and EMC
Chassis of the vehicle combined
with -(minus) of the vehicle
Preferred installation
Red wire
+ (Plus)
Power supply White wire
-(Minus) GND
Shielding
To +(Plus) voltage
of the vehicle
To - (Minus)
of the vehicle
Red wire
+ (Plus)
Power supply
White wire
-(Minus) GND
Shielding
To the chassis
and -(Minus)
of the vehicle
Alternative installation To +(Plus) voltage
of the vehicle
Connect shielding to the chassis
and -(Minus) of the vehicle. Wire not included.
Connect shielding to the chassis of the vehicle. Wire not included.
Installation manual

6IM0973585 A 02
4. Technical specications
Installation manual
General
Type
a-Si TFT, Normaly black, Transmissive, with Cover Lens.
Resolution
WXGA 1280 x RGB x 800 pixels.
Active Area
150.528 (H) x 94.08 (V) (7” diagonal).
Softwaremenu
Full On-Screen-Display (OSD) functionality in 15 languages.
ABC mode
Improved Auto Brightness Control (ABC) including adjustable minimum and maximum levels for automatic control.
Light output
1000 Nits, sunlight readable.
Operating temperature
-30°C...+75°C.
Weight
0,84Kg. (included cables)
Features
Optically bonded display with chemically strengthened cover glass protected against water, robust design.
Integrated Capacitive keyboard in slim design. Glass cover with ARAF surface treatment.
The Monitor 7” HLED is applicable in a system with a Digicoax switcher and 4 HMOS cameras. This combination must be
powered only by using input voltage of 24V/DC.
Mounting hardware
Adjustable brackets can be ordered separately (Art No.2015500).
Electrical
Input voltage range
12V/24V/DC
Power consumption
12W@24V.
Protection:
Above 33V overvoltage protection, protection deactivated below 30V.
Below 7V undervoltage protection, protection deactivated above 8V.
Protected against load dumps, spikes and surges, reverse polarity on all wiring.
Power-output:
For powering camera. Output current 1A max. Power output is input voltage, protected against load dumps, spikes, surges and
reverse polarity.
Video input
Coax GMSL.
Cables
1m multicable (power) open wired, 1m multicable (video) with M16 molded 4p Digicoax female connector.
Mechanical
Surface
Optical bonded, Glass cover with ARAF surface treatment.
Housing
Color Black, material: high impact automotive thermoplastic.
Protection
IP69K according DIN 40050 part 9, IP67 according EN60529.
Temperature/humidity test
According IEC60068-2-1/2/3/14/30/38.
Certication
Quality & environment
Units are manufactured by Orlaco in the Netherlands; ISO 9001, ISO14001, ISO-TS16949.
Approvals
R10, EN13309, ISO EN 14982, ISO 13766.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Available documentation
User manual UM0972225
Installation manual IM0973585

7
IM0973585 A 02
5. Assembly, connection and data Monitor 7” HLED
Connect instructions: See also chapter 3. “Basic System Installations”
User instructions: Please refer to User manual No: UM0972225 for operation.
Article No. 0226010 Monitor 7” HLED
Power cable open wired (Secure the power input with a 5A fuse)
1 = Red = Video power in: 12V/24V
2 = Blue = Aux 1
3 = Brown = Aux 2
4 = White = Power 0V in
5 = Grey = CAN-H
6 = Yellow = CAN-L
7 = White/yellow = N.C.
Video cable front side molded 4p + Coax female connector:
1 = Black = 0V
2 = Red = Power
3 = Yellow = Aux 1
4 = Grey = Aux 2
5 = Coax core = Video
6 = Coax shield = Video GND
Shielding = To housing
1
2
3
7
456
1
6
4
5
3
2
Cables 1m multicable (power) open wired, 1m multicable (video) with M16 molded 4p Digicoax female connector
Weight
0,84kg (Monitor, cables and connector)
Installation manual
Video cable
Length 1m Power cable
Length 1m
Connector
Digicoax
Female
Molded M16 4p
151,5 35,9
95,1
194,6
152,3
Units in mm
178,9
Back side
30
125,6
40,5
Min. bend radius= 50mm
R = 50
97,8
69,5
4x M5 x 8
max torque 2,5Nm

8IM0973585 A 02
Installation manual
6. Maintenance and cleaning
Take care when cleaning the glass cover of the monitor. Use a high
quality and safe foam cleaner and a soft cloth. Do absolutely not
use aggressive chemicals or abrasive cleaning agents.
7. Disposal
Disassembly, removal and disposal. Local regulations for dealing
with waste must be followed when disposing of disassembled
components or entire units.
8. General terms and conditions
Orlaco Products BV is not liable for damage resulting from
inadequate servicing, incorrect usage or alterations made to the
equipment without informing the manufacturer in writing.
This manual has been made available by Orlaco Products BV.
All rights reserved. No part of this manual may be reproduced
and/or made public in printed form, in photocopy form or on
microfilm, or in any other way, without the prior written permission
of Orlaco. This also applies to the associated drawings and figures.
Orlaco reserves the right to make changes to components at any
time without informing customers beforehand or directly.
All dimensions given are for commercial purposes.
For information regarding repairs that is not covered in this
manual, please contact the Orlaco Products BV service department.
This manual has been prepared with all due care and attention.
However, Orlaco Products BV cannot be held responsible for any
errors in this manual or any consequences thereof.
9. Release notes
A 01. First issue, January 2019.
A 02. Specifications changed, October 2019.
