Set Economy
Rearview HiRes 7”
System Manual
No. SM0974081 A 01
Art. No. 0410100
07/2020
English

System manual
2 SM0974081 A 01
Safety
In order to guarantee safe operation, these safety
instructions must be read before you start using this
equipment.
• Do not open the enclosure. This can cause damage,
shortcircuiting or electrical shocks.
• Do not expose the equipment to extreme temperatures.
This can cause deformation of the enclosure or
damage to internal components.
• Repairs may only be made by the manufacturer.
• The equipment must be installed as shown in this
manual.
Before you start using this equipment, please read this manual
carefully and follow all instructions. This installation manual
describes the functions of the equipment, outlines the
connection options and explains how to put the equipment into
operation. We recommend that you keep this manual in a safe
place for reference purposes.
If you have any questions or issues concerning the operation
of this equipment, consult the relevant section in the manual or
contact the Orlaco Products BV Service department.
All data subject to change without notice. All dimensions are for
commercial purpose only. The camera/display systems from
Orlaco comply with the latest CE, ADR, EMC and mirror-directive
regulations, where applicable. All products are manufactured in
accordance with the ISO 9001 quality management system, IATF
16949 quality automotive, ISO 14001 environmental management
systems, where applicable.
Contents page
1. Set Economy Rearview HiRes 7” 3
2. System overview Set 4
3. Monitor placement 6
4. Power Cable installation 7
5. Electrical connections Sets 8
6. Dimensions 11
7. Maintenance and cleaning 12
8. Disposal 12
9. Genaral terms and conditions 12
10. Release notes 12
Set Economy Rearview HiRes 7”
MirrorEye 7” Monitor
Camera HMOS 120 Digicoax mirror
Cable 11m Uni Digicoax
Display 7”/12.3” Video cable 1.5m
Vehicle cable harness 7” display 1.75m
System manual
SM0974081 A 01 11

System manual
10 SM0974081 A 01
System manual
SM0974081 A 01 3

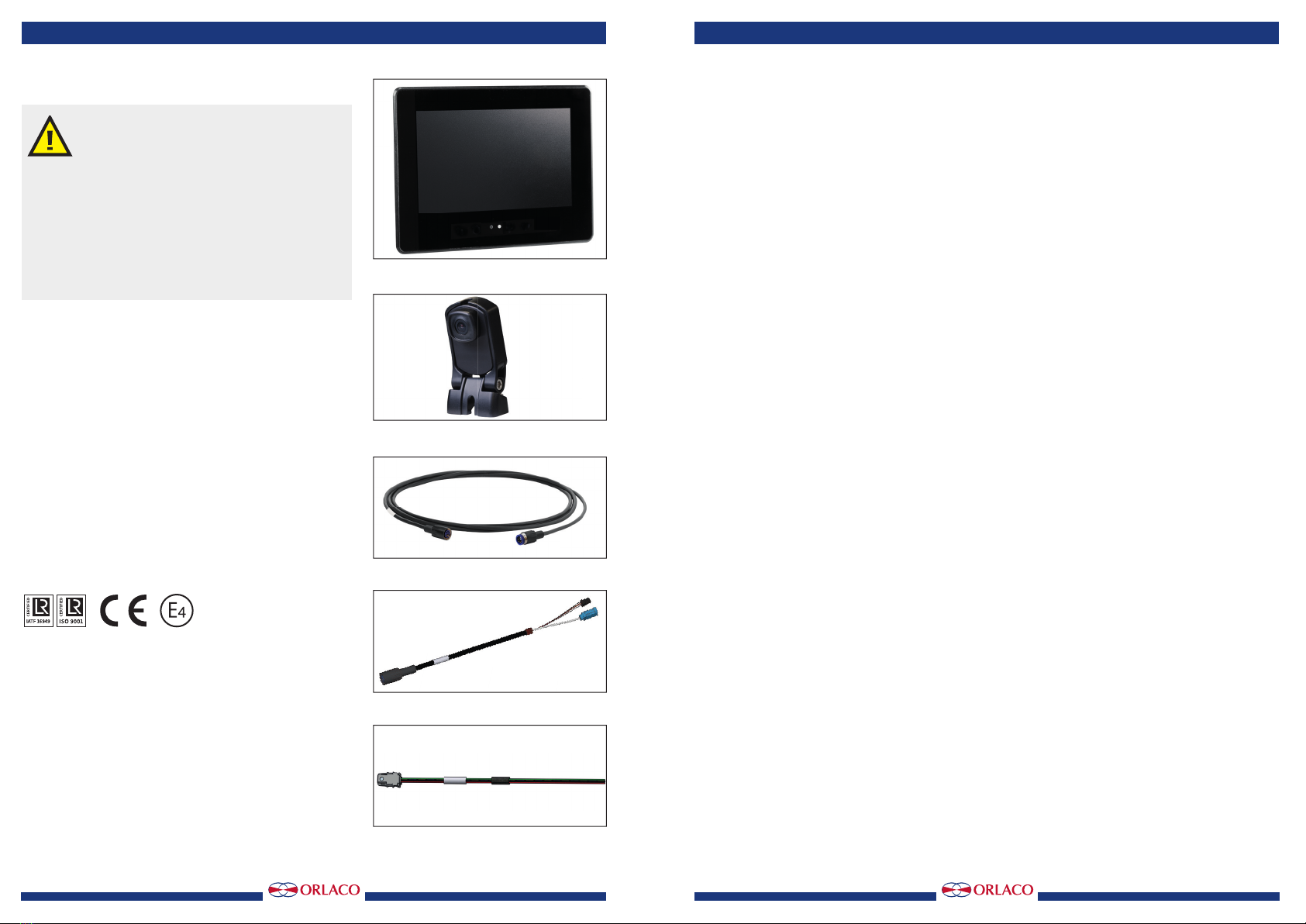

1. Set Economy Rearview HiRes 7”
Article No. Description Article No. Description
Set
0410100
Set Economy Rearview HiRes 7”
0200018
0185050
0311070
1001548
1002984
MirrorEye 7” Monitor
Camera HMOS 120° Digicoax mirror
Cable 11m Uni Digicoax
Display 7”/12.3” Video cable 1.5m
Vehicle cable harness 7” display 1,75m
Power
12...30V/DC
MirrorEye 7” Monitor
Art. No. 0200018
Cable 11m Uni DigiCoax
Art. No. 0311070
Camera HMOS 120°
DigiCoax Mirror
with bracket
Art. No. 1001548

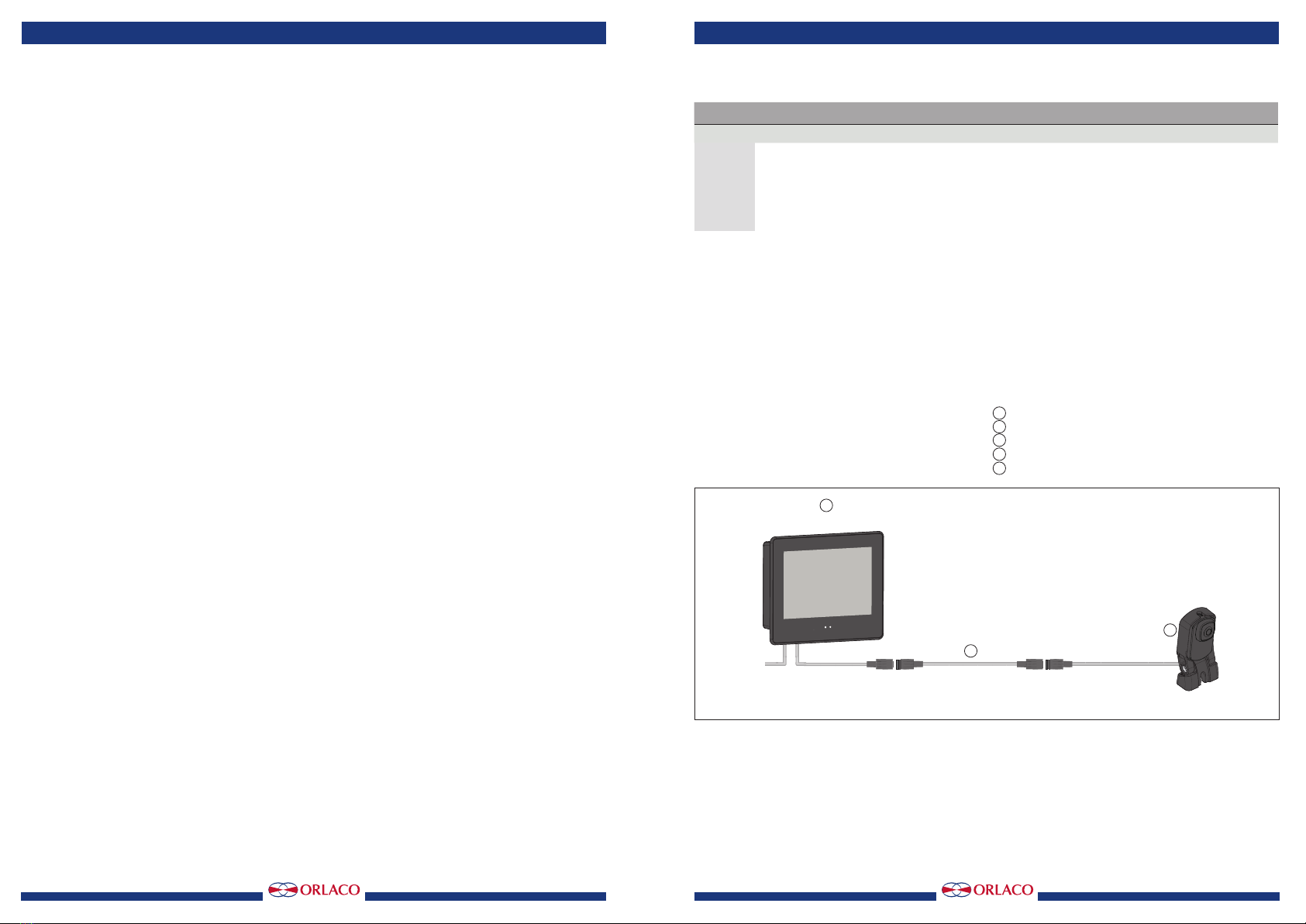

2. System overview Set
Set Economy Rearview HiRes 7”
Set No. 0410100
1 0200018 MirrorEye 7” Monitor
2 0185050 Camera HMOS 120° Digicoax mirror
3 0311070 Cable 11m Uni Digicoax
4 1001548 Display 7”/12.3” Video cable 1.5m
5 1002984 Vehicle cable harness 7” display 1.75m
1
2
3
Figure 1

System manual
4 SM0974081 A 01
3. Monitor placement (guideline)
The correct placement of the monitor depends on the
type of the vehicle. Please take note of the following
guidelines when installing the monitor.
Obstruction of the eld of vision
The monitor must be placed in such a way that the field
of vision of surrounding traffic and the work area is
obstructed as little as possible.
Obstruction of the operation
The monitor may not obstruct the basic operation within
the vehicle.
Mounting hardware
Adjustable bracket can be ordered seperately (Art. No.
2015500).
Viewing distance
View point on the monitor
Posture
View point on the monitor
Viewing direction of the monitor
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
40 cm 75 cm
150 cm
Moderate Bad
Bad Good
System manual
SM0974081 A 01 9
7. Maintenance and cleaning
Cleaning
Use a high quality and safe foam cleaner and a soft cloth. Do abso-
lutely not use aggressive chemicals or abrasive cleaning agents.
8. Disposal
Disassembly, removal and disposal. Local regulations for dealing
with waste must be followed when disposing of disassembled
components or entire units.
9. General terms and conditions
Orlaco Products BV is not liable for damage resulting from
inadequate servicing, incorrect usage or alterations made to the
equipment without informing the manufacturer in writing.
This installation manual has been made available by Orlaco
Products BV. All rights reserved. No part of this manual may be
reproduced and/or made public in printed form, in photocopy
form or on microfi lm, or in any other way, without the prior
written permission of Orlaco. This also applies to the associated
drawings and figures.
Orlaco reserves the right to make changes to components at any
time without informing customers beforehand or directly. All
dimensions given are for commercial purposes.
For information regarding repairs that is not covered in this
manual, please contact the Orlaco Products BV service department.
This manual has been prepared with all due care and attention.
However, Orlaco Products BV cannot be held responsible for any
errors in this manual or any consequences thereof.
10. Release Notes
A 01 First edition, 07/2020.
objects in
monitor are
closer than
they appear

System manual
8 SM0974081 A 01
Figure 8

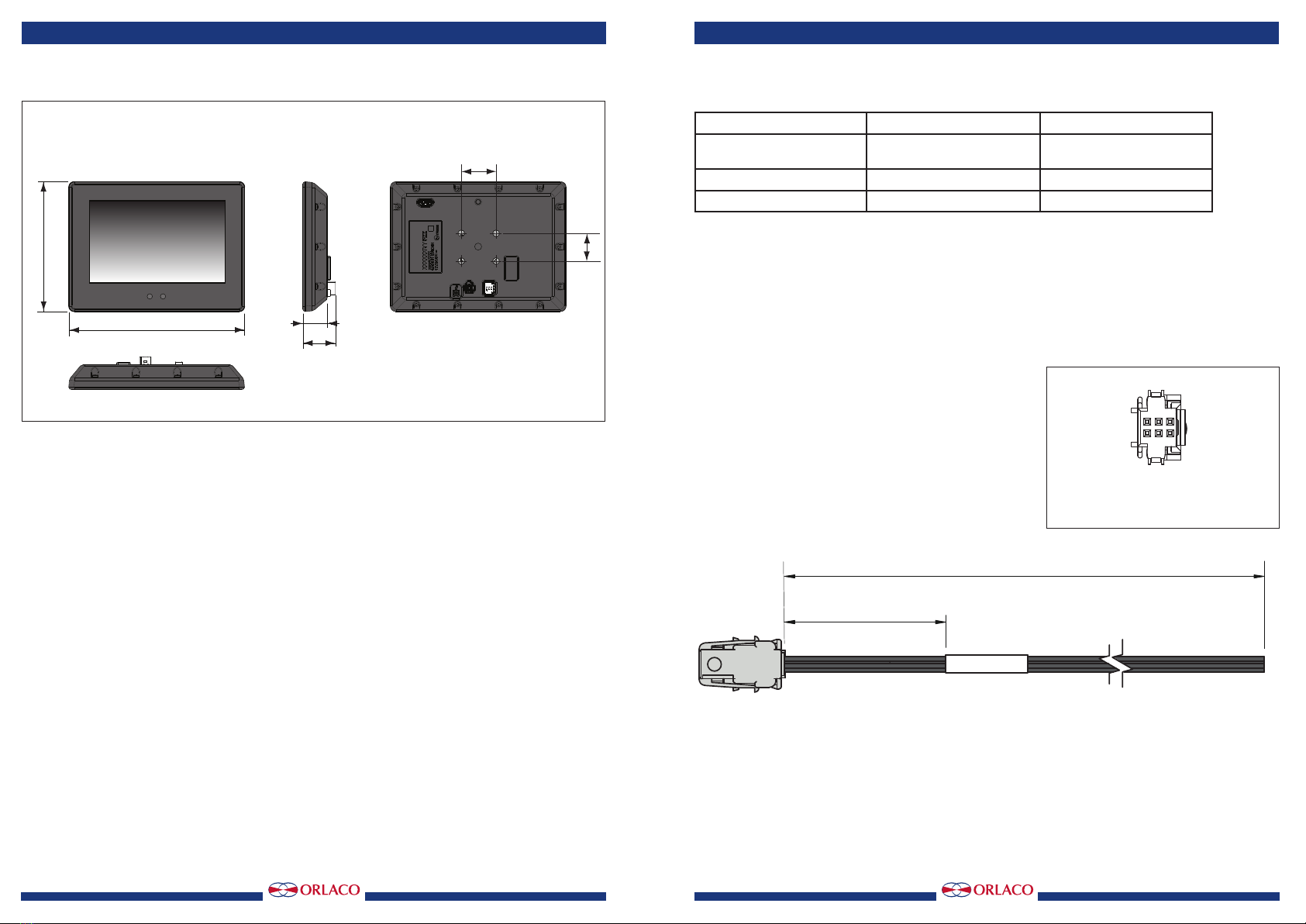

6. Dimensions Monitor 7” Economy
28
37
199
147
30
40,5
System manual
SM0974081 A 01 5
Figure 2
Figure 3
1750mm
100mm
6p Female connector
open wire
5. Electrical connections Set
Art no. 1002984
Vehicle cable harness 7” display 1.75m , see figure 3.
Electrical connections; 6p female connector, see figure 2.
1 = Red
2 = Black
4 = Green
1
4
3
Front side
6p female connector
6
4. Power Cable installation
Start-up time is always ± 2 sec.
Color/wire Function Vehicle connection:
Red
Green
+(plus) powersupply +(plus) voltage of the vehicle
(12..30V/Dc, 5A fuse)
Black -(minus) GND powersupply -(minus) of the vehicle
Screening powercable Not available Not available

System manual
6 SM0974081 A 01
1
6
4
5
3
2
1500 47
35
Digicoax M16
4p female Connector
3mm Female dual row
Receptacle
Fakra HF
straight Jack

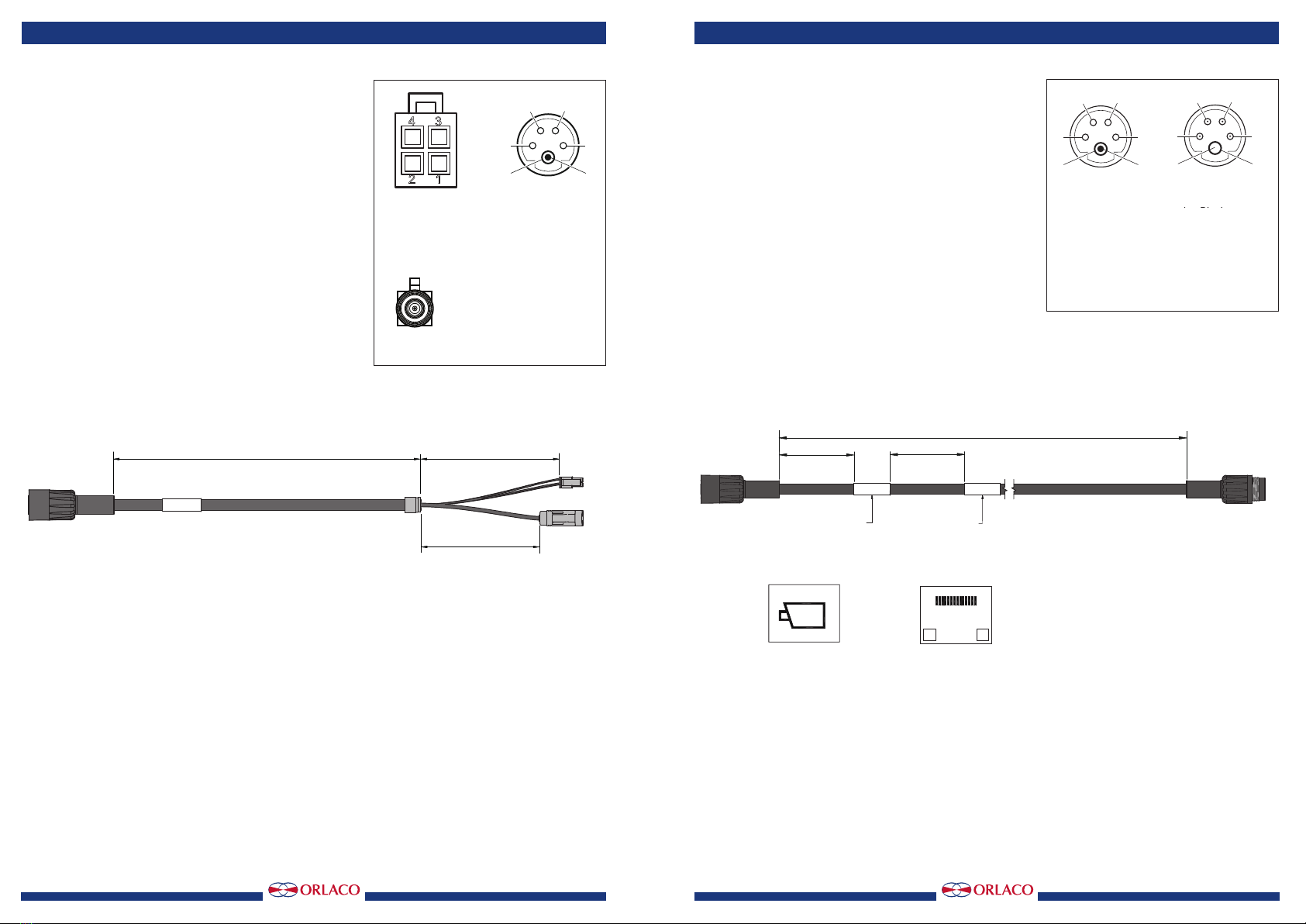

Art no. 1001548
Display 7”/12.3” Video cable 1.5m, see figure 5.
Electrical connections, see figure 4.
Digicoax M16 4p female Connector
1 = Black = 0V
2 = Red = Power
3 = Yellow = Aux 1
4 = Grey = Aux 2
5 = Coax = Coax core
6 = Coax Shielding = Coax GND
Overall Shielding connect to housing
3mm Female dual row Receptacle
1 = Grey = LED Power out
2 = Yellow = Led 0V
3 = Red = Cam Power out
4 = Black = Cam 0V
5 = Coax Core = Center housing
6 = Coax Shielding = Coax GND Figure 4
Figure 5
Back side
3mm Female dual
row Receptacle
Front side
Digicoax M16
4p Female Connector
Fakra HF
straight Jack
System manual
SM0974081 A 01 7
Figure 7
CAMERA-END 0311XXX
Digicoax
Serial no.
Length
100 100
Label 1
Label 1
Label 2
Label 2
Units in mm
Connector female
Molded M16 4p + Coax
Connector male
Molded M16 4p + Coax
1
6
4
5
3
2
Front side
female connector
4
5
1
6
2
3
Front side
male connector
1Blk
Figure 6
Art. No. 0311070
Cable 11m Uni Digicoax, see figure 7.
Electrical connections, see figure 6
Digicoax M16 4p Connector
1 = Black = 0V
2 = Red = Power
3 = Yellow = Aux 1LS
4 = Grey = Aux 2
5 = Coax core = Video
6 = Coax shield = Video GND
Overall shielding connected to connector housing.
