Ortur Laser Master 2 PRO S2 Firmware
Your Ortur Laser Master 2 PRO S2 rmware is the operating system that resides
inside the motherboard and controls all operations of the machine as well as the
interactions between the motherboard and the host computer.
In some circumstances, a rmware update is required to improve the Ortur Laser
Master 2 PRO S2 performance or x discovered issues. In some less common
situations, a rmware upgrade might be required to clear issues caused by user
error. Please read the instructions below carefully.
When NOT to upgrade or reinstall the rmware
• Not yet contacted support at https://ortur.tech/support to resolve an issue
• Ortur Laser Master 2 PRO S2 is working correctly and showing no problems
When TO upgrade the rmware
• Advised to do so by Ortur or Ortur Customer Support
• A new version of the rmware is posted at https://ortur.tech/latest-rmware
advising a rmware update to x a discovered problem or enhancing Ortur
Laser Master 2 PRO S2 functionality
Requirements to upgrade the rmware safely
• This guide covers updating procedure on Microsoft Windows, MacOs and
Linux. (This procedure was already validated in Windows 11)
• Direct Connection from the Ortur Laser Master 2 PRO S2 to your computer
USB port. Note: Some users reporting the use of USB Hubs may cause
problems.
• Have access to software that allows decompressing a .zip le. (Note:
Windows, MacOs and Linux will natively perform this operation. However 3rd
party extractors are also usable)
• Disable temporally any 3rd party Antivirus Software. Although normally not
required it is still a recommendation.
General Recommendations

3
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
Basic Troubleshooting
Firmware Write Fail
In some operating systems, specially Windows, security software as Anti-virus
or AntiMalware can prevent the complete copy of the BIN rmware le to your
Ortur Laser Master 2 PRO S2 motherboard, causing the machine to become
unresponsive. These events are rare but can happen, specially on Pre Windows 8
Operating systems.
Solution:
1. Please temporarelly disable the security software and attempt rmware
upgrade procedures a second time;
2. Use a di󰀨erent computer. Many users that experience the above issue reported
that simply using a di󰀨erent computer allowed for the rmware update process
to nalize without problems.
3. If neither solution above was successful, please get in touch via our Ticketing
system at https://ortur.tech/support. Ortur Support team will most likely suggest
a remote session to your computer to allow an untouched le transfer to your
Ortur Laser Master 2 PRO S2 motherboard.
Wrong Firmware le
Your Ortur Laser Master 2 PRO S2 is expecting a particularly type of le when you
try a rmware update. If the motherboard identies a wrong le format or type it will
automatically reject this le and turn o󰀨. This will result in the following errors:
Windows: “Error 0x800701B1: A Device which does not exist was Specied”
Mac: “The operation can’t be complete because an unexpected error occurred (error 100006)
Linux: “Error While Copying. Error When getting information from le. No such le or directory”
Solution: Please verify that the rmware le is the correct series for your Ortur
Laser Master 2 PRO S2. Only 1.8x series rmware les are accepted.
There are a few rare circunstances on which applying a new rmware to your
Ortur Laser Master 2 PRO S2 might lead to some problems. Below we will list a
few of these known issues and how to best address them:

4
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
Update Procedure - Windows
Step 1 - Retrieve Firmware Files
1. Visit https://ortur.tech/latest-rmware
2. Browse through the web-page until you nd Ortur Laser Master 2 PRO S2;
3. Select the Download Tab and click DOWNLOAD LINK;
4. Save the .Zip le to your desktop;
5. Unzip the downloaded le using Windows, WinRar, 7-zip, WinZip or any unpacker
program compatible with your computer;

5
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
3. Depending on how accurate the button presses are performed, this operation
might need to be repeated.
4. The press buttons are successful when “ORTUR LASER” device appears in
“This PC” as a drive. (The drive letter might be dierent than F:)
Step 2 - Enable Firmware mode on your Ortur
1. Connect your Ortur Laser Master 2 PRO S2 via USB directly to your computer
- do not use USB Hubs. Keep the Ortur Laser Master 2 PRO S2 in O󰀨 and
conrm the emergency switch is NOT engaged;
2. On the front of your Ortur Laser Master 2 PRO S2 motherboard press the
following sequence of buttons:
• Press and Hold the POWER button for 5 seconds
• Without releasing the held POWER button, after 5 seconds elapse, tap
RESET button for 1 second.
OLM-ESP-V1.2 Motherboard

6
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
5. From the extracted/unzipped folder drag and drop onto the “ORTUR LASER”
drive the le ESP_OLM2_PRO_S2_187.bin. Alternatively, right click the ESP_
OLM2_PRO_S2_187.bin le and press copy. Navigate to ORTUR LASER drive
and right click and press paste; (Ctrl + C and Ctrl + V will also work)
Note: The le will have the version number. At the time of writing of this guide is ESP_OLM2_
PRO_S2_187.bin. Any other les included in the ZIP le should be ignored unless advised by
Ortur Support otherwise
6. Wait a few moments to be sure the le is copied properly;
7. Wait 5 seconds. Ortur Laser Master 2 PRO S2 will power o󰀨 automatically;
8. Conrm that your Power Adapter is plugged in and its receiving Mains Power;
9. Power on your Ortur Laser Master 2 PRO S2 by pressing Power Button for 5
seconds;
10. Monitor your Ortur Laser Master 2 PRO S2, making sure it performs the homing
cycle correctly.
Step 3 - Conrm Firmware was written correctly
In order to conrm the Firmware was written successfully to your Ortur Laser
Master 2 PRO S2 Motherboard, is necessary to connect your machine to one of the
following software: LaserGRBL or Lightburn.
Additionally is required to restore Factory Default settings on the Motherboard to
clear the EEPROM ( Electrically Erasable Programmable Read-Only Memory) -
internal motherboard memory.
Important to NOTE: any customization on the GRBL settings will be
overwritten.

7
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
LaserGRBL
1. Launch LaserGRBL software;
Note: We would recommend updating to the latest version as well. LaserGRBL
4.6.2 is the latest version at the time of writing of this guide
2. Select the appropriate COM port for your Ortur Laser Master 2 PRO S2 and
press Connect button;
3. Once connection is established, console window will show the welcome
message;
4. Conrm that the welcome message shows OLF 187 as latest rmware. This
conrms the update procedure was successful.
5. Although probably not necessary, click the “Padlock” button to clear any possible
errors and set the motherboard into listening mode;
6. Above console window, where LaserGRBL has a input box saying (Type Gcode
Here) enter the following command: $RST=* and press the Enter key;

8
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
The rmware update procedure is now complete!
The Ortur Laser Master 2 PRO S2 is ready to be used normally.
Important Note:
Any customization of the GRBL settings prior to rmware update was overwritten.
If they are necessary by any reason they should be introduced again.
Possible reminders for GRBL settings customizations:
• For the use of the Ortur YRR and Ortur YRR 2.0;
• Installation of a 3rd party Z-axis adjuster (Y Max Travel setting);
• Flame sensor Disable or optimization;
• Gshock Sensor sensitivy changes;
• Any other GRBL setting personalization;
7. A response is given by the Ortur Laser Master 2 PRO S2 motherboard,
acknowledging the command by sending a [MSG: Restoring defaults]

9
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
LightBurn
1. Launch LightBurn software;
Note: We would recommend updating to the latest version as well. Lightburn
1.0.04 is the latest version at the time of writing of this guide

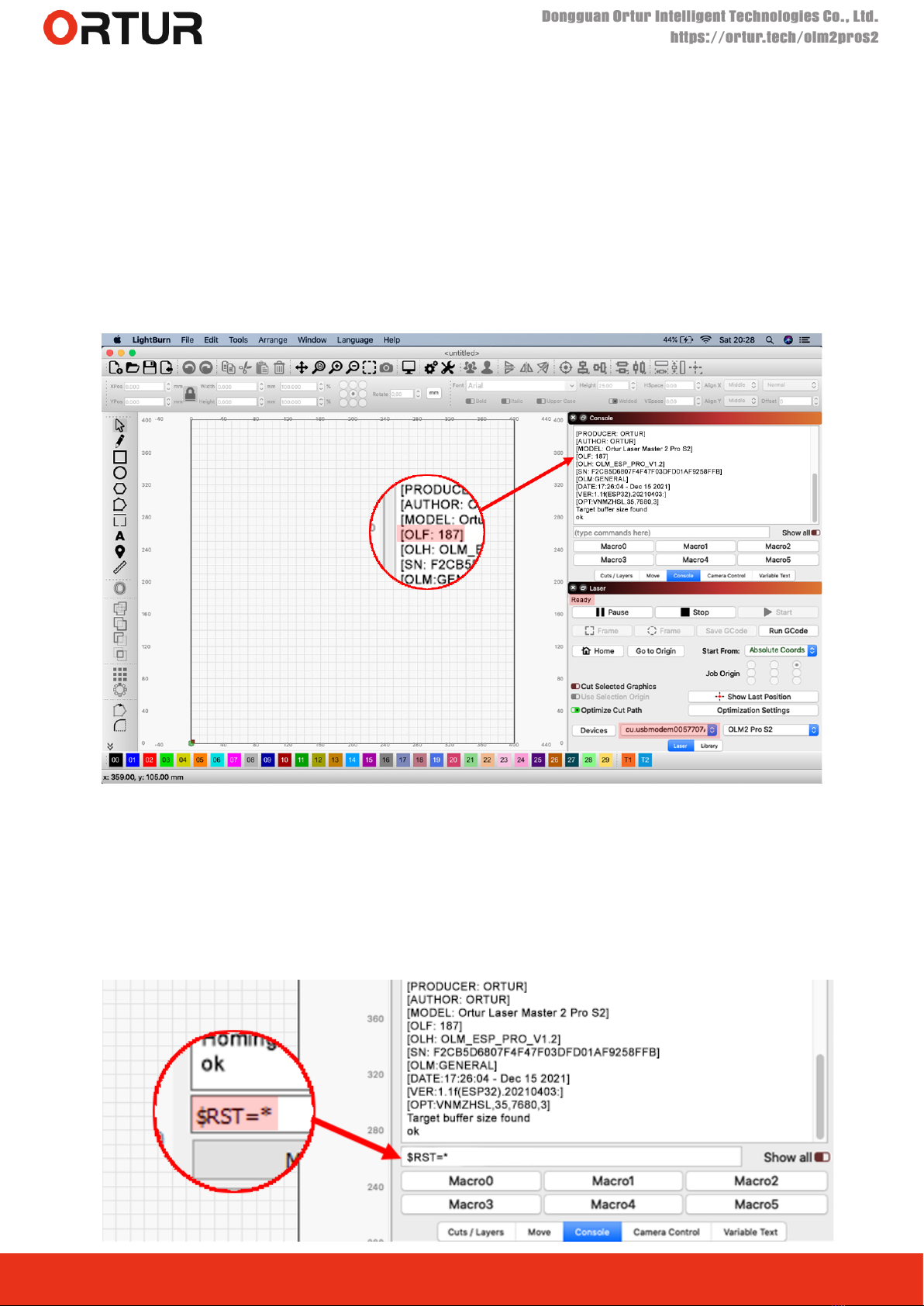

2. Select the appropriate COM port for your Ortur Laser Master 2 PRO S2 and wait
for the Connection status “READY”;
3. Once connection is established, console window will show the welcome
message. If Console is not visible go to Window menu - Console.
4. Conrm that the welcome message shows [OLF 187] as latest rmware. This
conrms the update procedure was successful.
5. Below console window, where LightBurn has a input box saying (type
commands here) enter the following command: $RST=* and press the Enter key;

10
Dongguan Ortur Intelligent Technologies Co., Ltd.
https://ortur.tech/olm2pros2
No.1 Building, Ruijin Science and Technology Industrial Park, Changping, Dongguan 523558, Guandong Province, China
7. A response is given by the Ortur Laser Master 2 PRO S2 motherboard,
acknowledging the command by sending a [MSG: Restoring defaults]
The rmware update procedure is now complete!
The Ortur Laser Master 2 PRO S2 is ready to be used normally.
Important Note:
Any customization of the GRBL settings prior to rmware update was overwritten.
If they are necessary by any reason they should be introduced again.
Possible reminders for GRBL settings customizations:
• For the use of the Ortur YRR and Ortur YRR 2.0;
• Installation of a 3rd party Z-axis adjuster (Y Max Travel setting);
• Flame sensor Disable or optimization;
• Gshock Sensor sensitivy changes;
• Any other GRBL setting personalization;
