Ortur Ortur-4 User manual

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
1
Ortur-4 User Manual

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
2
Part 1: Printer Menus / Operations
1. “Print from SD” Menu:-----------------------------------------------------------------------------------------------------------------5
2. “Motion” Menu:-------------------------------------------------------------------------------------------------------------------------5
2.1 “Move axis” Menu: -------------------------------------------------------------------------------------------------------------------6
2.1.1 “Soft Endstops” Option:-----------------------------------------------------------------------------------------------------------6
2.1.2 “Move X” Menu:---------------------------------------------------------------------------------------------------------------------6
2.1.3 “Move Y” Menu + 2.1.4 “Move Z” Menu+ 2.1.5 “Extruder” Menu:--------------------------------------------------------7
2.2 “Auto home” Command:-----------------------------------------------------------------------------------------------------------7
2.3 “Home X” Command:----------------------------------------------------------------------------------------------------------------7
2.4 “Home Y” Command:----------------------------------------------------------------------------------------------------------------7
2.5 “Home Z” Command:----------------------------------------------------------------------------------------------------------------8
2.6 “Bed Leveling” Menu:---------------------------------------------------------------------------------------------------------------8
2.6.1 “Auto Home” Command:----------------------------------------------------------------------------------------------------------8
2.6.2 “Level bed” Command:-----------------------------------------------------------------------------------------------------------8
2.6.3 “Edit Mesh” Menu:-----------------------------------------------------------------------------------------------------------------9
2.6.4 “Bed Leveling” Option:-----------------------------------------------------------------------------------------------------------9
2.6.5 “Fade Height” Menu:--------------------------------------------------------------------------------------------------------------9
2.6.6 “Probe Z Offset” Menu:----------------------------------------------------------------------------------------------------------10
2.6.7 “Load setting” Command:------------------------------------------------------------------------------------------------------10
2.6.8 “Store setting” Command:-----------------------------------------------------------------------------------------------------11
2.7 “Disable Steppers” Command:--------------------------------------------------------------------------------------------------11
3. “Temperature” Menu:---------------------------------------------------------------------------------------------------------------11
3.1 “Nozzle” Menu:-----------------------------------------------------------------------------------------------------------------------11
3.2 “Bed” Menu:--------------------------------------------------------------------------------------------------------------------------12
3.3 “Fan speed” Menu:------------------------------------------------------------------------------------------------------------------12
3.4 “Preheat PLA” Menu:---------------------------------------------------------------------------------------------------------------13
3.4.1 “Preheat PLA” Command:-------------------------------------------------------------------------------------------------------13
3.4.2 “Preheat PLA End” Command:-------------------------------------------------------------------------------------------------14
3.4.3 “Preheat PLA Bed” Command:------------------------------------------------------------------------------------------------14
3.5 “Preheat ABS” Menu:--------------------------------------------------------------------------------------------------------------14
3.5.1 “Preheat ABS” Command + 3.5.2 “Preheat ABS End” Command + 3.5.3 “Preheat ABS Bed” Command:---14
4. “Configuration” Menu:--------------------------------------------------------------------------------------------------------------15
4.1 “Advanced Settings” Menu:------------------------------------------------------------------------------------------------------15
4.1.1 “Probe Z Offset” Menu:-----------------------------------------------------------------------------------------------------------15
4.1.2 “Set home offsets” Command:------------------------------------------------------------------------------------------------15
4.1.3 “Velocity” Menu:------------------------------------------------------------------------------------------------------------------16
4.1.4 “Acceleration” Menu:------------------------------------------------------------------------------------------------------------16
4.1.5 “Jerk” Menu:------------------------------------------------------------------------------------------------------------------------16
4.1.6 “Steps/mm” Menu:---------------------------------------------------------------------------------------------------------------16
4.1.7 “Temperature” Menu:------------------------------------------------------------------------------------------------------------17
4.1.8 “Filament” Menu:-----------------------------------------------------------------------------------------------------------------17
4.1.9 “Initialize EEPROM” Menu:------------------------------------------------------------------------------------------------------17

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
3
4.2 “Runout Sensor” Option:----------------------------------------------------------------------------------------------------------18
4.3 “Outage Recovery” Option:------------------------------------------------------------------------------------------------------18
4.4 “Preheat PLA configuration” Menu:--------------------------------------------------------------------------------------------18
4.5 “Preheat ABS Configuration” Menu:------------------------------------------------------------------------------------------19
4.6 “Store setting” Command:-------------------------------------------------------------------------------------------------------19
4.7 “Load setting” Command:--------------------------------------------------------------------------------------------------------19
4.8 “Restore failsafe” Command:---------------------------------------------------------------------------------------------------20
5. “Change filament” Menu:----------------------------------------------------------------------------------------------------------20
5.1 “Preheat PLA” Command:---------------------------------------------------------------------------------------------------------20
5.2 “Preheat ABS” Command:--------------------------------------------------------------------------------------------------------23
5.3 “Preheat Custom” Command:---------------------------------------------------------------------------------------------------23
Part 2: Printing Menus
6. “Pause print” Command:----------------------------------------------------------------------------------------------------------24
7. “Stop print” Menu:-------------------------------------------------------------------------------------------------------------------24
8. “Tune” Menu:--------------------------------------------------------------------------------------------------------------------------24
8.1 “Speed” Menu:----------------------------------------------------------------------------------------------------------------------25
8.2 “Nozzle” Menu:----------------------------------------------------------------------------------------------------------------------25
8.3 “Bed” Menu:-------------------------------------------------------------------------------------------------------------------------25
8.4 “Fan speed” Menu:-----------------------------------------------------------------------------------------------------------------26
8.5 “Flow” Menu:------------------------------------------------------------------------------------------------------------------------27
8.6 “Babystep X” Menu:---------------------------------------------------------------------------------------------------------------27
8.7 “Babystep Y” Menu:----------------------------------------------------------------------------------------------------------------28
8.8 “Probe Z Offset” Menu:------------------------------------------------------------------------------------------------------------28
9. “Configuration” Menu:--------------------------------------------------------------------------------------------------------------29
10. “Change filament” Command:--------------------------------------------------------------------------------------------------29

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
4
Info Screen:
This info screen is displayed when the printer is powered on. Press the control button to access the main
menu.
Useful Terms:
There are several terms referenced throughout this manual that are commonly interchanged.
Hotbed – this is the heated print surface where your filament is deposited during printing. This is also
referred to as a build plate, print bed, or heated bed.
Nozzle – this is the component that deposits the molten filament on the hotbed. Nozzles are commonly
made from brass or stainless steel and range in sizes from 0.1mm to 1.2mm. Your Ortur-4 is equipped with
a .4mm nozzle.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
5
Part 1: Printer Operations - Setup
1. “Print from SD” Menu:
In the Main Menu, the first submenu is “Print from SD”. Press the control button to access the menu.
In the “Print from SD” Menu, you will see a list of all Gcode files saved on the SD card. Turn the control
button clockwise or counterclockwise to choose the Gcode file you’d like to print. Press the control button
to start the print.
Please ensure you have leveled the X Axis and hotbed prior to printing! Skipping this step WILL damage
your printer!
2. “Motion” Menu:
In the Main Menu, the Second Submenu is “Motion”, You could press the Control Button to go to this menu.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
6
2.1 “Move axis” Menu:
In the “Motion” Menu, the First Option is the “Move axis” submenu. Press the control button to access.
2.1.1 “Soft Endstops” Option:
In the “Move axis” Menu, the First Option is “Soft Endstops” Option. Pressing the control button will turn the
“Soft Endstops” on or off. “Soft Endstops” prevent the axes from moving to negative coordinates. This helps
to protect the printer if the X, Y, or Z end stops fail (nozzle crashing into bed).
2.1.2 “Move X” Menu:
In the “Move axis” Menu, the Second option is “Move X”. From the “Move X” menu you can select the “Move
10mm”, “Move 1mm” and “Move 0.1mm” Commands. Based on your selection, the axis will move by either
10mm, 1mm, or 0.1mm as you turn the control knob.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
7
2.1.3 “Move Y” Menu + 2.1.4 “Move Z” Menu+ 2.1.5 “Extruder” Menu:
The “Move X”, “Move Y”, and “Move Z” menus all operate the same way. The “Extruder” menu allows you to
extrude filament by the selected distance. Note that you MUST preheat the nozzle prior to attempting to
extrude filament.
2.2 “Auto home” Command:
In the “Motion” Menu, the second option is the “Auto home” command. Pressing the control button will
move all 3 axes back to their home position (X:0, Y:0, Z:0) automatically.
2.3 “Home X” Command:
In the “Motion” Menu, the Third Option is the “Home X” Command. Pressing the control button will return
the X axis to the home position [X:0].
2.4 “Home Y” Command:
In the “Motion” Menu, the Fourth option is the “Home Y” command. Pressing the control button will return
the Y axis to the home position [Y:0].

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
8
2.5 “Home Z” Command:
In the “Motion” Menu, the Fifth Option is the “Home Z” Command. Pressing the control button will return the
Z axis to the home position [Z:0].
2.6 “Bed Leveling” Menu:
In the “Motion” Menu, the Sixth Option is the “Bed Leveling” Menu. Pressing the control button will open a
submenu to set the appropriate bed leveling options.
2.6.1 “Auto Home” Command:
Before you activate the Auto Bed Leveling Function, you first should “Auto home” all of the axes.
2.6.2 “Level bed” Command:
In the “Bed Leveling” Menu, the Second Option is “Level Bed” Command. Press the control button to begin
probing the hotbed. If the hotbed is moved or you change a nozzle, you should reprobe to update the
distances. After probing completes, remember to save by pressing “Store Settings”.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
9
2.6.3 “Edit Mesh” Menu:
In the “Bed Leveling” Menu, the Third Option is “Edit Mesh” Menu. This submenu allows you to adjust the
detected Z values manually. Most users will not need to use this function and should utilize the automatic
option.
2.6.4 “Bed Leveling” Option:
The “Bed Leveling” option will turn automatic bed leveling on or off.
2.6.5 “Fade Height” Menu:
In the “Bed Leveling” Menu, the Fifth Option is “Fade Height”. The Fade Height setting tells the printer to
slowly taper off the automatic leveling correction until it reaches a flat plane (typically after the first few
layers). This helps reduce unnecessary Z-axis movements. A value of 0 will enable bed leveling for the
entire print and is recommended for most users.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
10
2.6.6 “Probe Z Offset” Menu:
In the “Bed Leveling” Menu, the Sixth Option is “Probe Z Offset”. The Probe Z Offset is the distance between
nozzle and the hotbed when the auto leveling sensor triggers. For example, if your automatic bed leveling
sensor triggers when the nozzle is .4mm from the bed, your Z offset would be around .4mm. This tells the Z
axis how much lower to move after the auto leveling sensor is triggered. Rotate the knob clockwise or
counterclockwise to adjust the Z Offset Value.
You MUST set your Z Offset value correctly to avoid damaging your printer. Please see the section titled
“How to set up the Auto-Leveling & Probe Z Offset Function” for additional details!
2.6.7 “Load settings” Command:
In the “Bed Leveling” Menu, the Seventh Option is “Load settings”. “Load settings” will load the previously
saved settings and erase any unsaved changes.
2.6.8 “Store settings” Command:

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
11
In the “Bed Leveling” Menu, the Eighth Option is “Store settings” command. If you’re satisfied with the new
settings, press the control button to save.
2.7 “Disable Steppers” Command:
In the “Motion” Menu, the Seventh Option is the “Disable Steppers” Command. Pressing the control button
will disable the stepper motors. This allows you to safely move the X, Y, and Z axes by hand without
damaging the stepper motors.
3. “Temperature” Menu:
In the Main Menu, the Third Submenu is the “Temperature” Menu.
3.1 “Nozzle” Menu:
In the “Temperature” Menu, the First Option is the “Nozzle” menu.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
12
The Nozzle menu allows you to turn clockwise or counterclockwise to adjust the Target Temperature of
Nozzle. After setting the desired temperature, press the control button to begin heating.
3.2 “Bed” Menu:
In the “Temperature” Menu, the Second Option is the “Bed” Menu.
The Bed menu allows you to turn clockwise or counterclockwise to adjust the Target Temperature of Bed.
After setting the desired temperature, press the control button to begin heating.
3.3 “Fan speed” Menu:

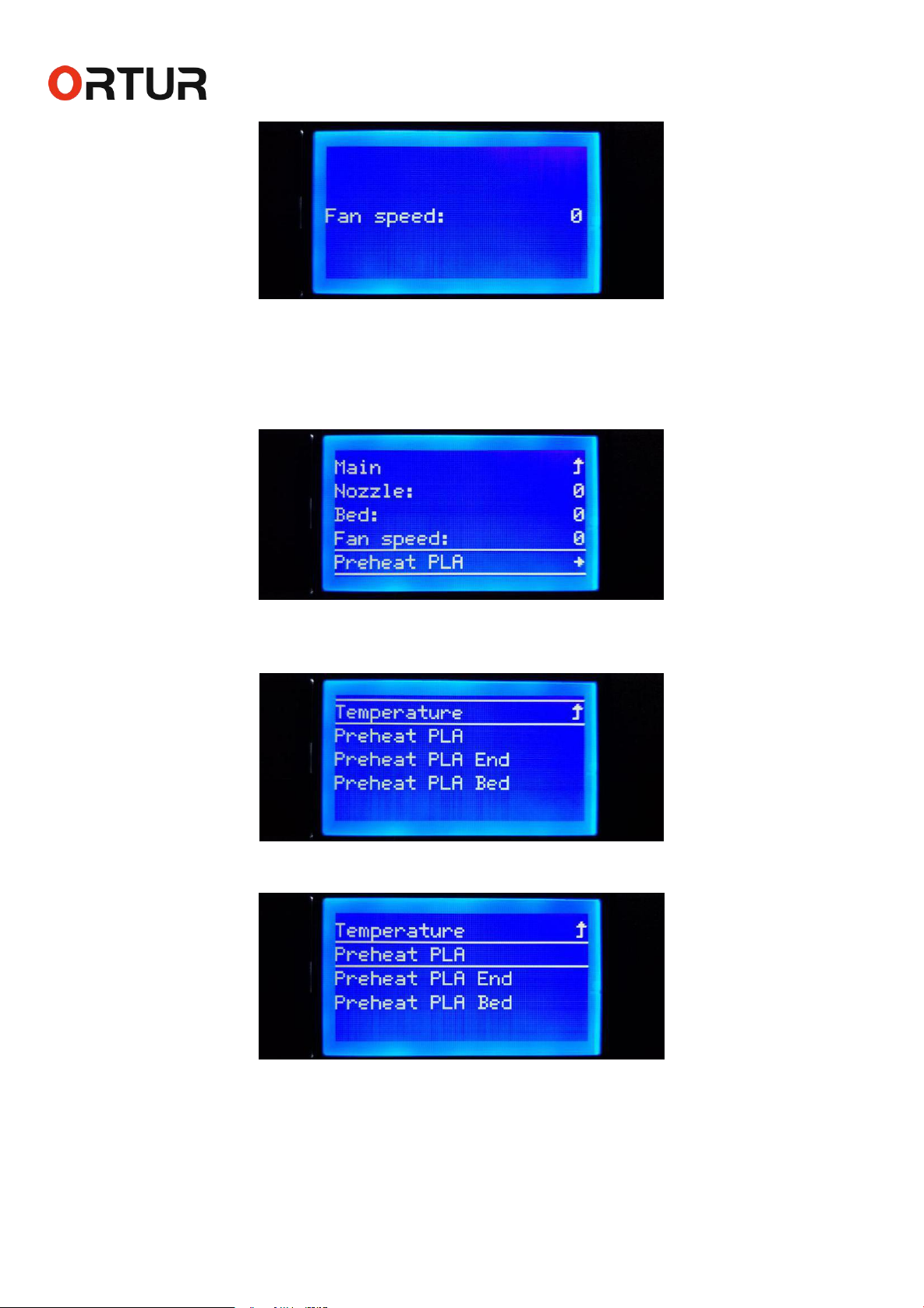

In the “Temperature” Menu, the Third Option is “Fan speed”. Adjusting the fan speed can help improve print
quality with different materials.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
13
Turn the control knob clockwise or counterclockwise to adjust the target fan speed of the blower fan (part
cooling fan). Press the Control Button to turn on the blower fan at the desired speed. Note that the fan
speed values range from 0-255, with 0 being off, 127 being approximately 50%, and 255 being 100%.
3.4 “Preheat PLA” Menu:
In the “Temperature” Menu, the Fourth Option is “Preheat PLA” Menu. If you are using PLA filament, this
menu provides access to preset temperatures and fan settings.
3.4.1 “Preheat PLA” Command:
This command preheats both the nozzle and hotbed to your target PLA temperature. These values can be
modified at {Configuration => Preheat PLA Configuration}.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
14

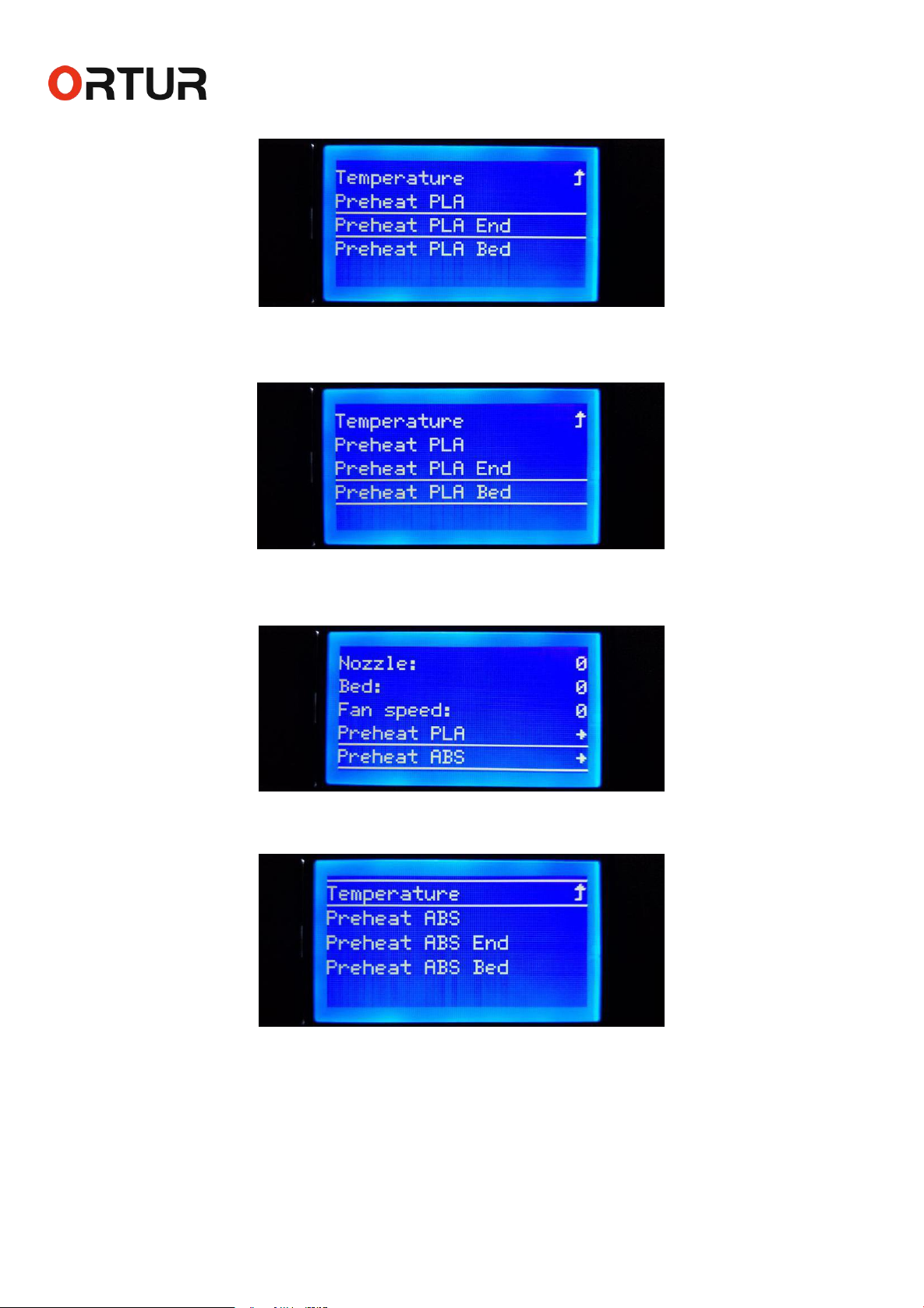

3.4.2 “Preheat PLA End” Command:
This command preheats only the nozzle to your target PLA temperature.
3.4.3 “Preheat PLA Bed” Command:
This command preheats only the hotbed to your target PLA temperature.
3.5 “Preheat ABS” Menu:
In the “Temperature” Menu, the Fifth Option is “Preheat ABS”. These commands allow you to prepare the
printer for printing ABS filament.
3.5.1 “Preheat ABS” Command + 3.5.2 “Preheat ABS End” Command + 3.5.3 “Preheat ABS Bed” Command:
These commands operate in the same manner as the “Preheat PLA” options and can set your nozzle,
hotbed, or both to the target ABS temperature.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
15
4. “Configuration” Menu:
In the Main Menu, the Fourth Submenu is “Configuration” Menu. Press the Control Button to access this
submenu.
4.1 “Advanced Settings” Menu:
In the “Configuration” Menu, the First Option is “Advanced Setting” Menu.
4.1.1 “Probe Z Offset” Menu:
This is the same as the Probe Z Offset configured in the Bed Leveling menu.
4.1.2 “Set home offsets” Command:
In the “Advanced Settings” Menu, the Second Option is “Set home offsets” Command. If you press the
Control Button, it would let the printer set home offsets.
4.1.3 “Velocity” Menu:

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
16
Velocity is an advanced setting that controls the speed of your printer’s movements, or the rate of change
of position. Most users will not need to modify velocity.
4.1.4 “Acceleration” Menu:
Acceleration is an advanced setting that controls the rate of change of speed. Acceleration would
typically be modified to compensate for excessive ringing in prints. Most users will not need to modify
acceleration.
4.1.5 “Jerk” Menu:
Jerk is an advanced setting that controls the rate of change of acceleration. Similar to acceleration,
properly tuned jerk settings can help reduce ringing and improve print quality. Most users will not need to
modify jerk.
4.1.6 “Steps/mm” Menu:
PS. For the normal users, please don’t change any configuration in this menu.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
17
4.1.7 “Temperature” Menu:
PS. For the normal users, please don’t change any configuration in this menu.
4.1.8 “Filament” Menu:
Most users will not need to modify any settings in this menu.
4.1.9 “Initialize EEPROM” Menu:
In the “Advanced Settings” Menu, the Ninth Option is “Initialize EEPROM” Menu.
You could press the Control Button to go to “Initialize EEPROM” Menu. And there is a “Initialize EEPROM”
Command. This command would let the printer clean your own setting and get back to the default factory
settings.
When the “Initialize EEPROM” Command executed, all custom settings are erased. For example, the Bed
Leveling process must be executed again to properly set the Z Offset.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
18
4.2 “Runout Sensor” Option:
In the “Configuration” Menu, the Second Option is “Runout Sensor” Option. You could press the Control
Button to turn on or turn off the Filament Run-out Detection Function.
4.3 “Outage Recovery” Option:
In the “Configuration” Menu, the Third Option is “Outage Recovery” Option. You could press the Control
Button to turn on or turn off the Power Outage Recovery&Resume Print Function.
4.4 “Preheat PLA configuration” Menu:
In the “Configuration” Menu, the Fourth Option is “Preheat PLA configuration” Menu. As referenced in
Section 3.4 “Preheat PLA”, this is where you customize your PLA settings.

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
19
You can adjust the values for Fan speed, Nozzle Temperature and Hotbed Temperature. Press the control
button on “Store settings” to save your settings to the printer’s EEPROM.
4.5 “Preheat ABS Configuration” Menu:
In the “Configuration” Menu, the Fifth Option is “Preheat ABS configuration” Menu. You could press the
Control Button to go to this Menu.
And then, you could adjust the Configuration of Fan speed, Nozzle Temperature and Hotbed Temperature,
and store the new setting.
4.6 “Store setting” Command:
In the “Configuration” Menu, the Sixth Option is “Store setting” Command. You could press the Control
Button to store your manual setting.
4.7 “Load setting” Command:

Dongguan Ortur Intelligent Technologies Co., Ltd.
www.ortur3d.com www.ortur3dprinter.com
No.27, Second Industrial Park, Heshi Road, Qiaotou Town, Dongguan 523527, Guandong Province, China
20
In the “Configuration” Menu, the Seventh Option is “Load setting” Command. You could press the Control
Button to load the setting, that you had stored at last time.
4.8 “Restore failsafe” Command:
In the “Configuration” Menu, the Eighth Option is “Restore failsafe” Command. You could press the Control
Button to load the default setting, that had been stored at factory.
5. “Change filament” Menu:
In the Main Menu, the Fifth Submenu is “Change filament” Menu. You could press the Control Button to go to
this submenu.
5.1 “Preheat PLA” Command:
In the “Change filament” Menu, the First Option is “Preheat PLA” Command. Press the Control Button to
change a roll of new PLA Filament step by step:
5.1.1 First Step: The Extruder Head will return to home position.
