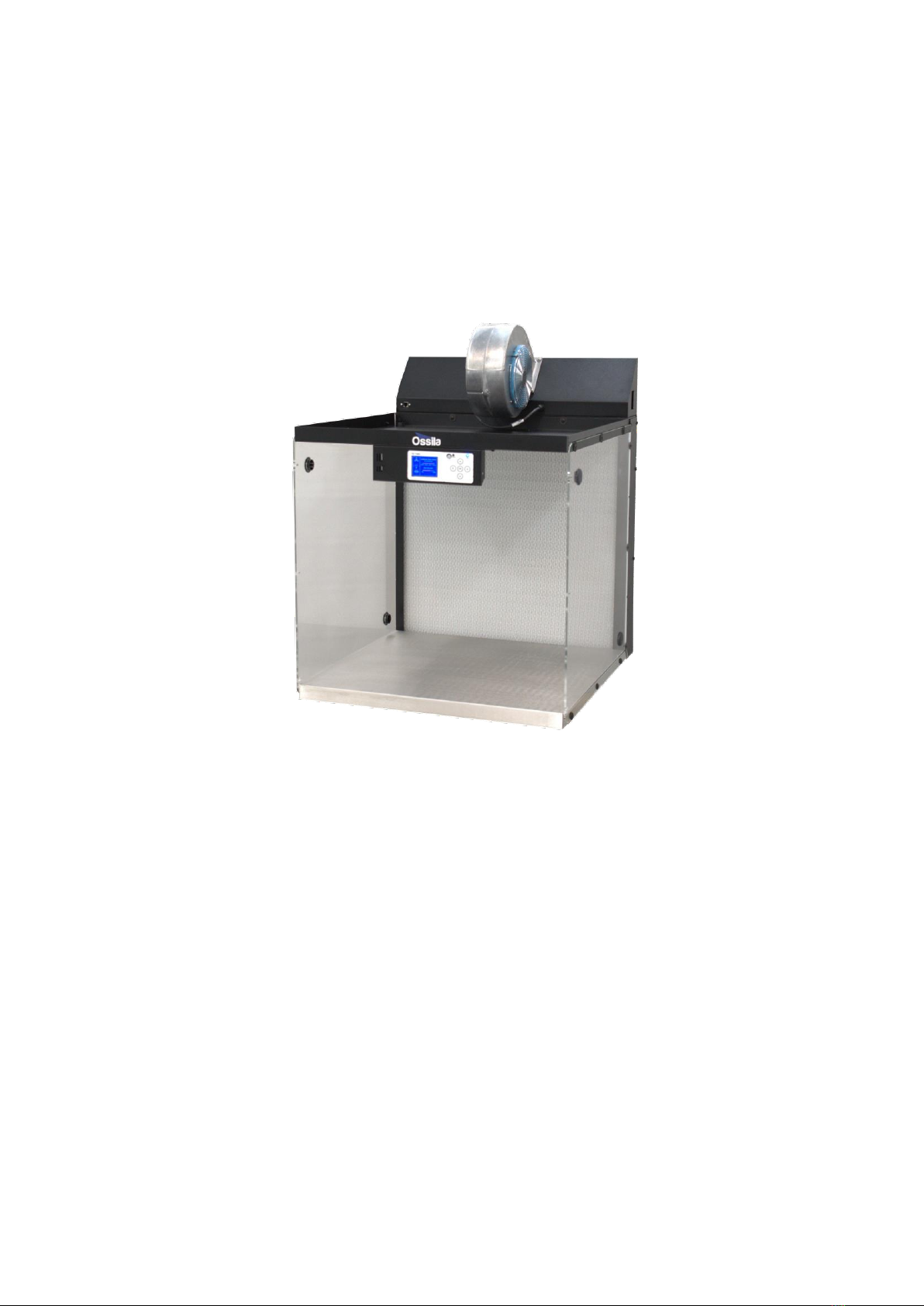

Ossila L2008A1 User manual

Manual Version: 1.0.A
Product code: L2008A1
Product Version: 1.0
Software Version: 1.0

Contents
Contents......................................................................................................................................2
1. Overview..............................................................................................................................4
2. EU Declaraon of Conformity (DoC) ......................................................................................6
[Dansk] EU-overensstemme lseserklærin g.............................................................................. 7
[Deutsch] EU-Konformitätserklärung .................................................................................... 7
[Eesti keel] ELi vastavusavaldus .............................................................................................7
[Ελληνικά] Δήλωση πιστότητας ΕΕ ...................................................................................... 7
[Español] Declaración de conformidad UE............................................................................. 7
[Français] Déclaration de conformité UE ................................................................................ 7
[Hrvatski] E.U izjava o sukladnosti.......................................................................................... 7
[Italiano] Dichiarazione di conformità UE............................................................................. 7
[Latviešu] ES atbils tības deklarācija....................................................................................... 7
[Lietuvių k.] ES atitikties deklaracija...................................................................................... 7
[Magyar] EU-s megfelelőségi nyilatkozat............................................................................... 7
[Nederlands] EU-Conformiteitsverklaring............................................................................... 7
[Norsk] EU-samsvarserklæ ring................................................................................................ 7
[Română] Declaraţie de conformitate UE ............................................................................... 7
[Slovensky] Vyhlásenie o zhode pre EÚ...................................................................................... 7
[Slovenščina] Izjava EU o skladnosti......................................................................................... 8
[Suomi] EU-vaatimustenm ukaisuusvakuutus.......................................................................... 8
[Svenska] EU-försäkran om överensstämmelse.......................................................................... 8
3. Safety...................................................................................................................................9
3.1 Warning................................................................................................................................. 9
3.2 Use of Equipment.................................................................................................................. 9
3.3 Hazard Icons.......................................................................................................................... 9
3.4 General Hazards.................................................................................................................. 10
3.5 Power Cord Safety............................................................................................................ 11
3.6 Servicing ............................................................................................................................ 11
3.7 Health and Safety – Installaon........................................................................................... 11
3.8 Health and Safety – Operaon ............................................................................................ 12
3.9 Health and Safety – Servicing.............................................................................................. 12
4. Unpacking ..........................................................................................................................12
4.1 Packing List.......................................................................................................................... 12
4.2 Damage Inspecon.............................................................................................................. 13
5. Specicaons ..................................................................................................................... 13
6. System Components ........................................................................................................... 16
7. Installaon ......................................................................................................................... 17
7.1 Vercal Laminar Flow Hood ................................................................................................ 17

8. Operaon...........................................................................................................................34
8.1 Overview............................................................................................................................. 34
8.2 User Interface...................................................................................................................... 35
8.3 Praccal Operaon.............................................................................................................. 36
8.4 Inial Operaon .................................................................................................................. 36
8.5 Quick Sengs Opons ........................................................................................................ 37
8.6 UV Light Operaon.............................................................................................................. 37
8.7 Sengs Menu ..................................................................................................................... 38
8.8 Filter Change Menu............................................................................................................. 39
9. Maintenance ......................................................................................................................41
9.1 Cleaning .............................................................................................................................. 41
9.2 Pre-lter Replacement ........................................................................................................ 41
9.3 HEPA Filter Replacement..................................................................................................... 42
9.4 Repair and Service............................................................................................................... 46
9.5 Storage Condions .............................................................................................................. 46
10. Troubleshoong ................................................................................................................. 47

4
1. Overview
The Laminar Flow Hood is designed to provide a working space that meets a certain level of
cleanliness for critical applications such as nanofabrication, or microbiological applications.
These working spaces are often dened as a controlled environment or clean zone rather
than a cleanroom. Typically, the cleanliness of the system is dened in one of two ways, via
ISO 14644 Cleanrooms and Associated Control Environments or the FED STD 209E Airborne
Particulate Cleanliness in Cleanrooms and Cleanzones. Although the FED STD 209E standard
has been withdrawn and superseded by the ISO standards it is still often used within the
wider community and so is still referenced in the instrument and documentation.
The use of controlled environments allows users to prepare samples or perform experiments
inside an environment with a specic minimum level of control. In the case of the laminar
ow hood, this is a certain level of cleanliness dened as particulate counts. In both standards
particles are dened by their size and are grouped into bins with decreasing particle size and
increasing maximum particle density count. Table 1 shows the comparison between the two
standards and the maximum particle count per bin.
ISO Class
Maximum Particles per m3
FED STD
209E
≥0.1µM
≥0.2µM
≥0.3µM
≥0.5µM
≥1µM
≥5µM
ISO 1
101
ISO 2
102
2.4 x 101
101
ISO 3
103
2.4 102
102
3.5 x 101
Class 1
ISO 4
104
2.4 x 103
103
3.5 x 102
8.3 x 101
Class 10
ISO 5
105
2.4 x 104
104
3.5 x 103
8.3 x 102
Class 100
ISO 6
106
2.4 x 105
105
3.5 x 104
8.3 x 103
2.93 x 102
Class 1,00
ISO 7
3.5 x 105
8.3 x 104
2.93 x 103
Class 10,000
ISO 8
3.5 x 106
8.3 x 105
2.93 x 104
Class
100,000
ISO 9
3.5 x 107
8.3 x 106
2.93 x 105
Room Air
Table 1. ISO 14644 vs FED STD 209E particle count guidelines
The Ossila Laminar Flow Hood operate at ISO Class 5 cleanliness, this cleanliness is dened
by the design of the system and the ltration used. For most ISO Class 5 systems HEPA lters
are used typically of class H13 but some use H14 for a ner ltration. Higher degrees of
classication can be reached using ULPA ltration, using either U15 or U16 lters.

It is these lters that allow the system to operate and generate a clean environment. The
general principal behind the laminar ow hood is that air is passed through a lter which
remove particulates from the air. This air is then passed over a surface at a speed which
ensure air ow is unidirectional and laminar, rather than turbulent. This allows dirty air to be
ushed out of the environment and creates a curtain of clean air that stops inltration of
particulate from the external environment. Operating in the laminar ow region also ensures
that pockets of recirculating air are not formed which could trap particulates within it.

6
2. EU Declaration of Conformity (DoC)
We
Company Name: Ossila BV
Postal Address: Biopartner 3 building, Galileiweg 8
Postcode: 2333 BD Leiden
Country: The Netherlands
Telephone number: [phone]
Email Address: [e-mail]
declare that the DoC is issued under our sole responsibility and belongs to the
following product:
Product: Laminar Flow Hood (L2008A1)
Serial number: L2008A1-xxxx
Object of declaraon:
Laminar Flow Hood (L2008A1)
The object of declaraon described above is in conformity with the relevant Union
harmonisaon legislaon:
Low Voltage Direcve 2014/35/EU
EMC Direcve 2014/30/EU
RoHS Direcve 2011/65/EU
The following harmonised standards and technical specicaons have been applied:
BS EN 61010-1:2010/A1:2019 Safety requirements for electrical equipment for measurement, control, and
laboratory use.
Signed:
Name: Dr James Kingsley
Place: Leiden
Date: 01/08/2023

7
Декларация за съответствие на ЕС
Производител: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Декларира с цялата си отговорност, че посоченото оборудване съответства на приложимото законодателство на ЕС за хармонизиране, посочено на предходната(-ите) страница(-и)
на настоящия документ.
[Čeština]Prohlášení o shodě EU
Výrobce:Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Prohlašujeme na vlastní odpovědnost, že uvedené zařízeni je v souladu s příslušnými harmonizačními předpisy EU uvedenými na předchozích stranách tohoto dokumentu.
[Dansk] EU-overensstemme lseserklærin g
Producent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Erklærer herved, at vi alene er ansvarlige for, at det nævnte udstyr er i overensstemmelse med den relevante EU-harmoniseringslovgivning, der er anført på den/de
foregående side(r) i dette dokument.
[Deutsch]EU-Konformitätserklärung
Hersteller: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Wir erklären in alleiniger Verantwortung, dass das aufgeführte Gerät konform mit der relevanten EU-Harmonisierungsgesetzgebung auf den vorangegangenen Seiten dieses
Dokuments ist.
[Eesti keel] ELi vastavusavaldus
Tootja: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Kinnitame oma ainuvastutusel, et loetletud seadmed on kooskõlas antud dokumendi eelmisel lehelküljel / eelmistel lehekülgedel ära toodud asjaomaste ELi ühtlustamise
õigusaktidega.
[Ελληνικά] Δήλωση πιστότητας ΕΕ
Κατασκευαστής:Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Δηλώνουμε υπεύθυνα όn ο αναφερόμενος εξοπλισμός συμμορφώνεται με τη σχεnκή νομοθεσία εναρμόνισης της ΕΕ που υπάρχει σnς προηγούμενες σελίδες του παρόντος
εγγράφου.
[Español] Declaración de conformidad UE
Fabricante: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Declaramos bajo nuestra única responsabilidad que el siguiente producto se ajusta a la pertinente legislación de armonización de la UE enumerada en las páginas anteriores
de este documento.
[Français] Déclaration de conformité UE
Fabricant: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Déclarons sous notre seule responsabilité que le matériel mentionné est conforme à la législation en vigueur de l'UE présentée sur la/les page(s) précédente(s) de ce
document.
[Hrvatski] E.U izjava o sukladnosti
Proizvođač: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Izjavljujemo na vlastitu odgovornost da je navedena oprema sukladna s mjerodavnim zakonodavstvom EU-a o usklađivanju koje je navedeno na prethodnoj(nim) stranici(ama)
ovoga dokumenta.
[Italiano] Dichiarazione di conformità UE
Produttore: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Si dichiara sotto la propria personale responsabilità che l'apparecchiatura in elenco è conforme alla normativa di armonizzazione UE rilevante indicata nelle pagine precedenti del
presente documento.
[Latviešu] ES atbils tības deklarācija
Ražotājs: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Ar pilnu atbilclību paziņojam, ka uzskaitītais aprīkojums atbilst attiecīgajiem ES saskaņošanas tiesību aktiem, kas minēti iepriekšējās šī dokumenta lapās.
[Lietuvių k.] ES atitikties deklaracija
Gamintojas: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL,
atsakingai pareiškia, kad išvardinta įranga atitinka aktualius ES harmonizavimo teisės aktus, nurodytus ankstesniuose šio dokumento
[Magyar] EU-s megfelelőségi nyilatkozat
Gyártó: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Kizárólagos felelösségünk mellett kijelentjük, hogy a felsorolt eszköz megfelel az ezen dokumentum előző oldalán/oldalain található EU-s összehangolt jogszabályok vonatkozó
rendelkezéseinek.
[Nederlands] EU-Conformiteitsverklaring
Fabrikant: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Verklaart onder onze uitsluitende verantwoordelijkheid dat de vermelde apparatuur in overeenstemming is met de relevante harmonisatiewetgeving van de EU op de vorige
pagina('s) van dit document.
[Norsk] EU-samsvarserklæ ring
Produsent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Erklærer under vårt eneansvar at utstyret oppført er i overholdelse med relevant EU-harmoniseringslavverk som står på de(n) forrige siden(e) i dette dokumentet.
[Polski]Deklaracja zgodności Unii Europejskiej
Producent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Oświadczamy na własną odpowiedzialność, że podane urządzenie jest zgodne ze stosownymi przepisami harmonizacyjnymi Unii Europejskiej, które przedstawiono na
poprzednich stronach niniejszego dokumentu.
[Por tuguês] Declaração de Conformidade UE
Fabricante: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Declara sob sua exclusiva responsabilidade que o equipamento indicado está em conformidade com a legislação de harmonização relevante da UE mencionada na(s) página(s)
anterior(es) deste documento.
[Română]Declaraţie de conformitate UE
Producător: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Declară pe proprie răspundere că echipamentul prezentat este în conformitate cu prevederile legislaţiei UE de armonizare aplicabile prezentate la pagina/paginile anterioare a/ale
acestui document.
[Slovensky] Vyhlásenie o zhode pre EÚ
Výrobca: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Na vlastnú zodpovednosť prehlasuje, že uvedené zariadenie je v súlade s príslušnými právnymi predpismi EÚ o harmonizácii uvedenými na predchádzajúcich stranách tohto
dokumentu.

8
[Slovenščina] Izjava EU o skladnosti
Proizvajalec: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
s polno odgovornostjo izjavlja, da je navedena oprema skladna z veljavno uskladitveno zakonodajo EU, navedeno na prejšnji strani/prejšnjih straneh tega dokumenta.
[Suomi] EU-vaatimustenm ukaisuusvakuutus
Valmistaja: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Vakuutamme täten olevamme yksin vastuussa siitä, että tässä asiakirjassa luetellut laitteet ovat tämän asiakirjan sivuilla edellisillä sivuilla kuvattujen olennaisten
yhdenmukaistamista koskevien EU-säädösten vaatimusten mukaisia.
[Svenska]EU-försäkran om överensstämmelse
Tillverkare: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Vi intygar härmed att den utrustning som förtecknas överensstämmer med relevanta förordningar gällande EU-harmonisering som fmns på föregående sidor i detta dokument.

9
3.Safety
3.1Warning
3.2 Use of Equipment
The Laminar Flow Hood is designed to be used as instructed. It is intended to be operated in a
laboratory environment and is designed to be used in the following environmental conditions:
•Indoors in a laboratory environment (pollution degree 2)
•Altitudes up to 2500 m
•Temperatures of 5°C to 40°C; maximum relative humidity of 80% up to 31°C.
The equipment is supplied with a power cord (and if necessary, an additional power transformer) for
the country of purchase, in accordance with European Commission regulations and British Standards.
Use of any other electrical power cables, adaptors, or transformers is not recommended.
3.3 Hazard Icons
The symbols shown in Table 3.1 can be found at points throughout the manual. Note each warning
before attempting any associated operations.
•Only use the power cord (and transformer) supplied with the unit.
•Mains inlet rated for 110-230V ± 10%. For 110V mains supplies, use provided
transformer.
•The unit must be connected to an earthed power outlet.
•The equipment should not be disassembled by users beyond the state it is
shipped.
•Two people should be present when moving or assembling the laminar flow hood.

10
Table 3.1 Hazard warning labels used in this manual.
Symbol
Associated Hazard
General warning or caution, which accompanying text will explain
Electrical shock
Severe injury or death by electrical shock
Explosion
High speed rotating fan
UV light source
Fire Hazard
3.4 General Hazards
Before installing or operating the Laminar Flow Hood, there are several health and safety precautions
which must be followed and executed to ensure safe installation and operation.
WARNING: Improper handling when operating or servicing this equipment can result in serious injury.
Read this manual before operating or servicing this equipment.
I. DANGER: DO NOT use the Laminar Flow Hood in the presence of an explosive
atmosphere.
II. WARNING: To avoid electrical shock or injury, do not disassemble the bae or
electronics case or try to access any internal parts of the bae. Servicing should only
be carried out by a trained professional. Before servicing, disconnect the power cord
and wait 10 minutes (high voltage may persist in capacitors for some time after removal
of power).
III. CAUTION: The Laminar Flow Hood uses a ground-type power plug, which must be
connected to an earthed outlet to prevent electrical shock. The Laminar Flow Hood will
be supplied with an earthed plug appropriate for the country of purchase.

11
IV. CAUTION: The Laminar Flow Hood has a high voltage source. Do not attempt to open
the unit.
V. CAUTION: The Laminar Flow Hood is heavy, movement and assembly should be done
with two people.
3.5 Power Cord Safety
I. Emergency power disconnect options: Use the power cord as a disconnecting method
and remove it from the power source. To facilitate disconnect, make sure the power
outlet for this cord is readily accessible to the operator.
II. Only use the power cord supplied with the Laminar Flow Hood. Using an unearthed
plug may result in serious injury or death.
3.6 Servicing
I. Routine replacement of the lters is recommended to ensure ecient running of the
Laminar Flow Hood. Filters act as accumulators and appropriate PPE should be used
when removing old lters to minimise exposure to any potential hazardous materials
collected by the lters.
If servicing is required beyond routine servicing, please return the unit to Ossila Ltd The warranty will
be invalidated if:
•Modication or service has taken place by anyone other than an Ossila engineer.
•The Unit has been subjected to chemical damage through improper use.
•The Unit has been operated outside the usage parameters stated in the user documentation
associated with the Unit.
•The Unit has been rendered inoperable through accident, misuse, contamination, improper
maintenance, modication, or other external causes.
3.7 Health and Safety – Installation
I. The nal assembled Laminar Flow Hood is heavy, two or more people should be used
to move the system into place.
II. The bae should remain disconnected from the mains electrics until the Laminar Flow
Hood is fully assembled. Doing so before complete assembly may result in serious
injury or death.

12
3.8 Health and Safety – Operation
I. UV radiation can cause severe burns to the eyes and skin. An integrated passive
infrared sensor detects when users are nearby and pauses the operation of the UV
light. Acrylic side panels act as absorbers of emitted UV however radiation can escape
through the front opening. As a precaution, never look directly into the Laminar Flow
Hood when the UV light is on.
II. When using the Laminar Flow Hood only non-hazardous activities should be
undertaken within the hood. Airow of the unit is designed to move air from the
experimental area to the user. This will not provide protection to users from activities
within the hood.
III. The Laminar Flow Hood bae has a high voltage source. Do not attempt to open the
unit.
IV. Do not use any open ames within the laminar ow hood.
3.9 Health and Safety – Servicing
I. Service or installation work that includes integrating electrical components should only
be performed by an Ossila engineer. Never alter the wiring of any purchased
equipment. If changes are made, such alterations may damage the equipment, cause
injury, or even death. At the very least, such alterations will void your warranty.
II. If the fuses located in the fuse drawer at the back of the unit need changing, the unit
must be placed in a safe mode by switching the unit o and disconnecting the power
cord from the power socket.
4. Unpacking
4.1 Packing List
The standard items included with the Laminar Flow Hood are:
•Bae Assembly
•Electronic Case Assembly

13
•Two Acrylic Side Panels
•One Acrylic Front Window Sash
•Stainless Steel Tray
•Back Panel
•Assembly Kit and Instructions
•Power Supply Cord
In addition to these items, customers who live in countries where the voltage of the mains power is
110 V will have a step-up transformer which can be used to increase the voltage supplied to the system
to 220 V.
4.2 Damage Inspection
Examine the components for evidence of shipping damage. If damage has occurred, please contact
Ossila directly for further action.
5. Specications
The Laminar Flow Hood specications are shown in Table 5.1

14
Table 5.1. Laminar Flow Hood specications
Motor Specication
Motor Type
Single speed AC Blower
Maximum Flow Rate
510 m3.hour-1
Noise
75 dB
Dimensions and Weight
Working Area
590 mm x 630 mm
Working Height
625 mm
Weight
24 Kg
Outer Dimensions (Vertical)
Width: 660 mm
Height: 908 mm
Depth: 660 mm
Outer Dimensions (Horizontal)
Width: 660 mm
Height: 850 mm
Depth: 660 mm
Materials and Finish
Plenum, Back Panel, and Electronics
Case
Material: 1.2 mm Aluminium
Finish: Textured Black Powder Coating
Side Panels and Sash
Material: 5 mm Acrylic
Finish: Transparent with Polished Edges
Tray
Material: 1.2 mm Stainless Steel
Finish: #4 Brushed Finish
Filtration
Filter Grade (Pre-Filter)
95% (F9) Particle Filter
Filter Grade
99.995% (H13) HEPA Particle Filter
Pore Size
0.3 µm
Depth
50 mm

15
Particulate Sensor
Sensor Type
Light Scattering Discrete Airborne Particulate
Counter
Count Range
0 – 100,000 particles.cm3
Count Accuracy
±10%
Particle Bins Sizes
0.3 µm - 1 µm
1 µm - 2.5 µm
2.5 µm - 5 µm
5 µm - 10 µm
Pressure Sensor
Sensor Type
MEMS Barometric Pressure Sensor
Pressure Range
30,000 Pa – 120,000 Pa
Accuracy
±6 Pa
Resolution
0.2 Pa
Visible Lighting
Type
High Eciency LED Array
Colour
6500K Daylight
Brightness
300 Lumens
UV Lighting
Type
High Eciency UV LED
Wavelength
280nm (UVC)
Intensity
45 mW
User Interface
Display Type
24-bit Colour TFT LCD Display
Display Resolution
480 x 272 px
Display Size
4.3”
Interface
Tactile Keypad
Power Supply
Connector Type
IEC C13 Power Cable
Voltage Range
220V – 240V
Fuse
2x 1A Slow Blow
Rated Power
185 VA

16
6. System Components
The Laminar Flow Hood comprises of several components that t together to form the assembly,
Figure 6.1 shows the complete assembly.
Figure 6.1 Laminar Flow Hood Complete Assembly

17
7. Installation
7.1 Vertical Laminar Flow Hood
Figure 7.1.1. Attach the steel tray to the back panel through the
slots and holes shown.
Figure 7.1.2. Attach one of the acrylic side panels using M4 x 14mm
screws, M4 at washers, and M4 anged nuts.

18
Figure 7.1.3. Repeat with the second acrylic side panel on the other
side to complete the hood section.
Figure 7.1.4. Place the bae onto the plenum as shown ensuring
the threaded studs enter the corresponding slots on the plenum.

19
Figure 7.1.5. Place locking washers and nuts on all the studs,
tightening the nuts so that even pressure is applied to the mating
surface.
Figure 7.1.6. Attach the screws and at washer to the outside of the
sides of the plenum using a nut. Ensure that the screw protrudes
out of the case as shown in the inset image. Repeat for the other
side of the plenum.

20
Figure 7.1.7. Lower the plenum onto the assembled hood, ensuring
that the protruding screws fall into the slots on the top of the acrylic
windows. Tighten the screws to secure the plenum to the hood.
Figure 7.1.8. Connect the rear panel to the plenum using the slots
and holes at the rear.
