OVE ANTIGUA SP 32 User manual

12015-04-20
Opening
470 / 590
[18 1/2] / [23 1/4]
550
[21 5/8]
CSA Markings
2000
[78 3/4]
1219 / 1524
[48] / [60]
Measures: millimeter [inch]
ANTIGUA SP 32
2800 Etienne Lenoir, Laval
Quebec H7R 0A3 Canada
Purchase date: _________________________ Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
813
[32]

2
TABLE OF CONTENT
PACKAGE CONTENT.......................................................................................................................................... 4
HARDWARE CONTENT...................................................................................................................................... 5
TOOLS REQUIRED............................................................................................................................................. 5
SAFETY INFORMATION..................................................................................................................................... 6
PREPARATION.................................................................................................................................................... 6
SHOWER REVERSIBILITY.................................................................................................................................. 7
BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8
WALL TRACK INSTALLATION........................................................................................................................... 9
GLASS PANELAND SUPPORT BAR INSTALLATION...................................................................................... 10
DOOR PANEL INSTALLATION......................................................................................................................... 13
HANDLE INSTALLATION & SEALING.............................................................................................................. 15
CARE AND MAINTENANCE............................................................................................................................. 16
LIMITED 5 YEARS WARRANTY........................................................................................................................ 16

3

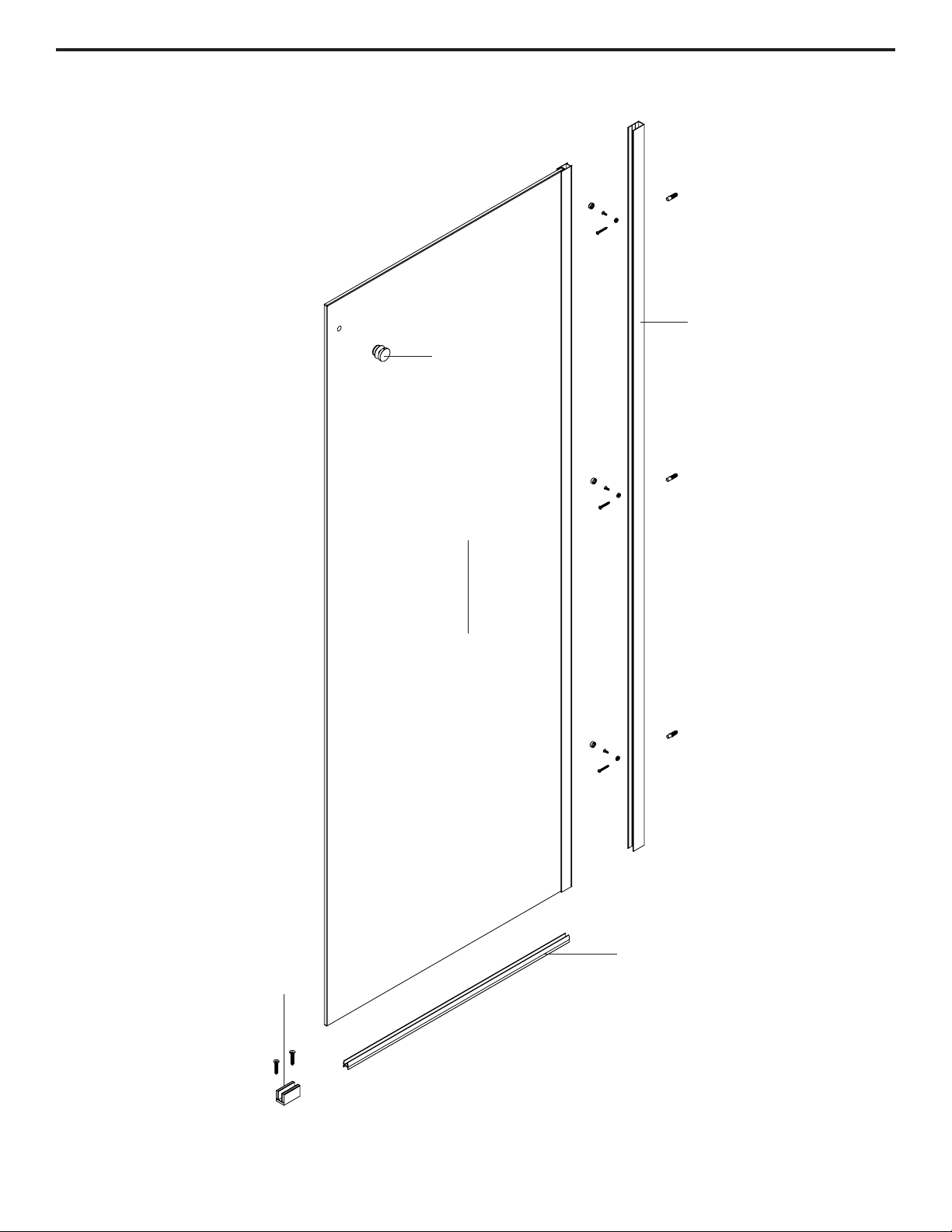

PACKAGE CONTENT
B
Y
V
W
X

4
PACKAGE CONTENT
PART# DESCRIPTION QTY CODE
B Wall track 1 99STR2020-WM
V Side panel’s bracket 1 99SGC1054-WM
W Side panel clamp 1 99SGC1055-WM
X Side panel’s bottom seal strip 1 99SRU0145
Y Side panel 1 99SGC10054-WM
Z Hardware content 1 99SHW0070-WM

5

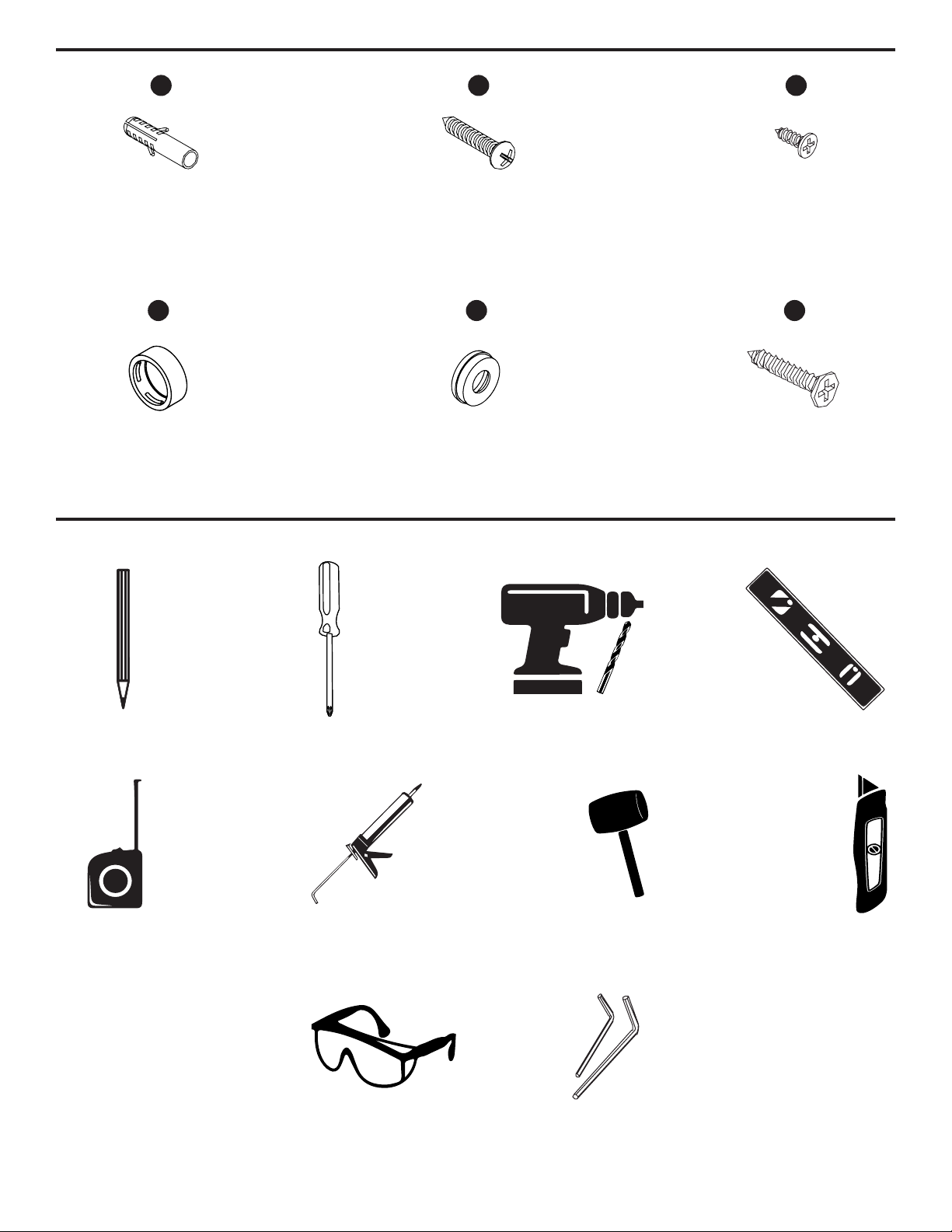

HARDWARE CONTENT
FFEE
AA
II
BB
Wall Anchor
ø8x30mm
3+1
Screw
ST5x25mm
2+1
Cap
3x Fitting
3x
TOOLS REQUIRED
Pencil Screwdriver Level
Measuring Tape Silicone Rubber mallet Cutter
Safety glasses
Screw
ST5x30mm
3+1
DD
Screw
ST4x12mm
3+1
Allen key
4mm
Drill with ceramic tile bits
ø3mm (1/8in) & ø8mm (5/16in)

6
Please read and understand this entire manual before attempting to assemble, operate
or install the product.
WARNING
• Distributor is not responsible for any damage to the unit or personal property caused
by improper installation. If you disregard instructional warnings, you will void your
warranty and possibly deal with water damage.
CAUTION
• Carefully remove product from packaging and keep packaging until installation is
complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation,
please contact customer service at the number provided in this guide.
• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightofthe
unit and an occupant.
• Please, consult local building codes and compliance standards prior to installation
and ensure conformity.
SAFETY INFORMATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing or
damaged, do not attempt to assemble the product.
Estimated Assembly Time 60min.
Handle the tempered glass with caution! Improperly handling the glass can
cause it to break suddenly in small pieces (never in pointed fragments).
Dot NOT put glass panels on hard surfaces, always work on clean and soft
surface (e.g. towel). Shattering may occur otherwise!
HEAVY PRODUCT! You will need at least two people to install this
unit properly.

7

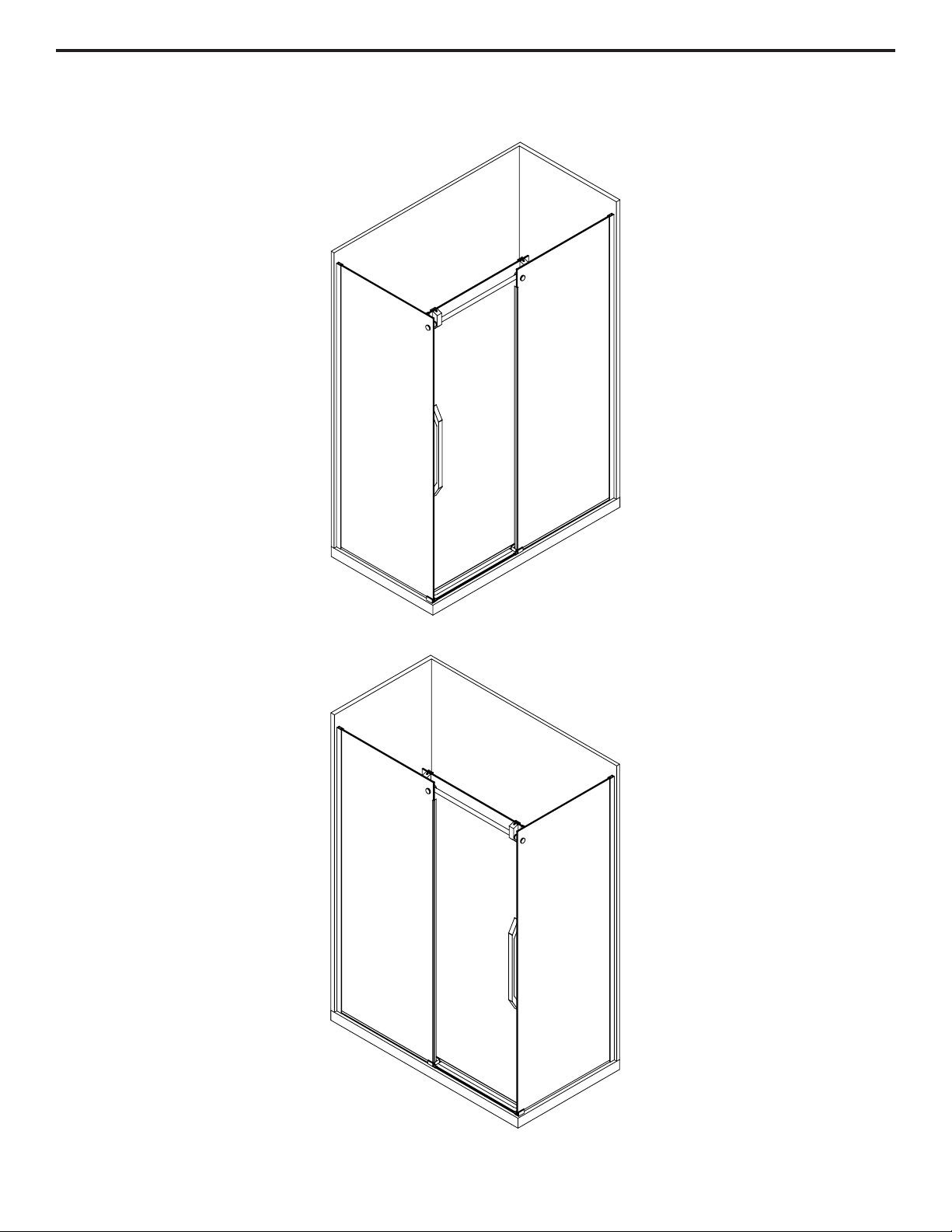

• This instruction is drawn up for an opening from right to left (see illustration B).
• For an installation from left to right (see illustration A), use the same instructions, but switch around the
panels: mirror effect.
SHOWER REVERSIBILITY
A
B

8

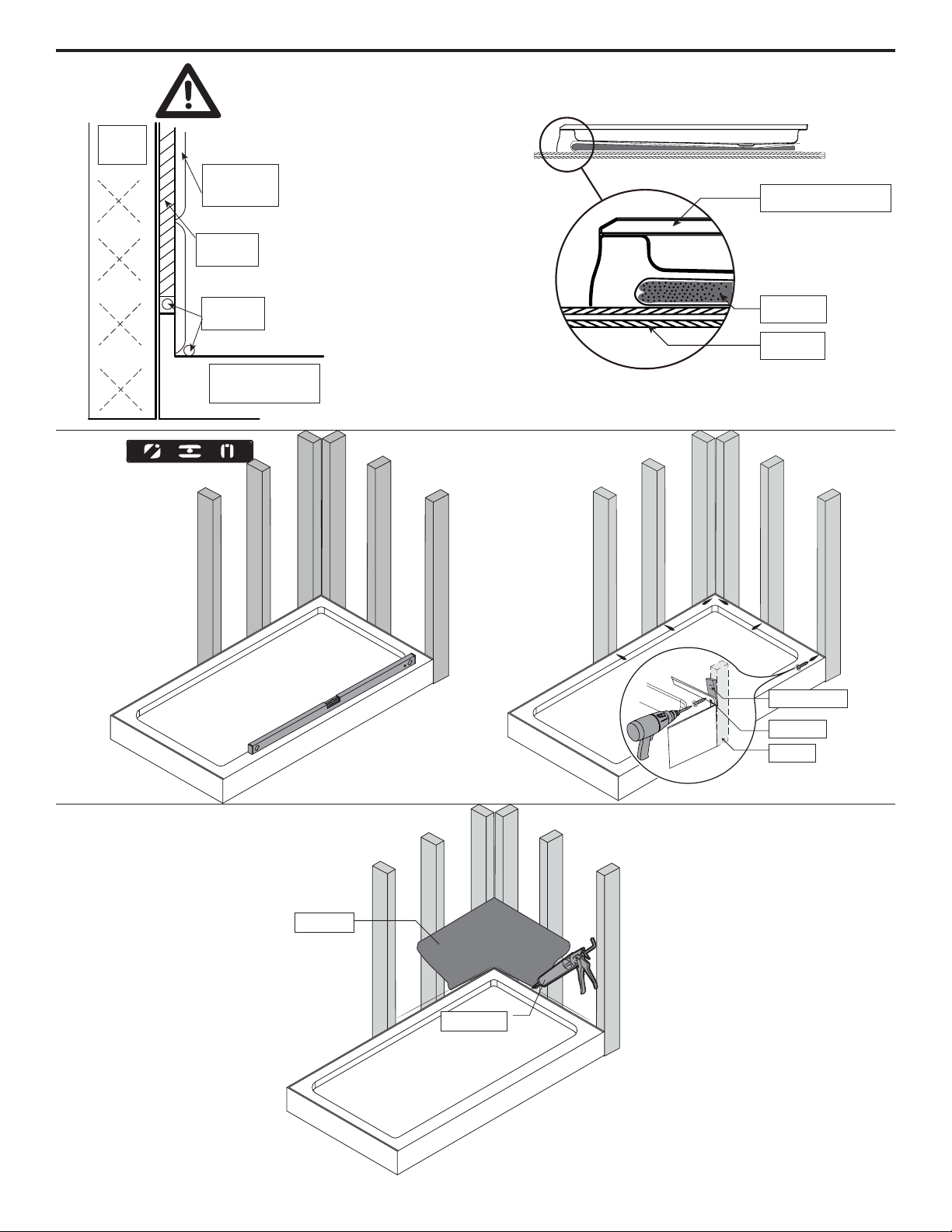

BASE INSTALLATION GUIDELINES (OPTIONAL)
1 2
4
Tile Wall
Studs
Drywall
Silicone
5
Shower Base
3
Shower Base
Cement
Floor
Wood shim
Flange
Stud
Drywall
Silicone
Flange

9

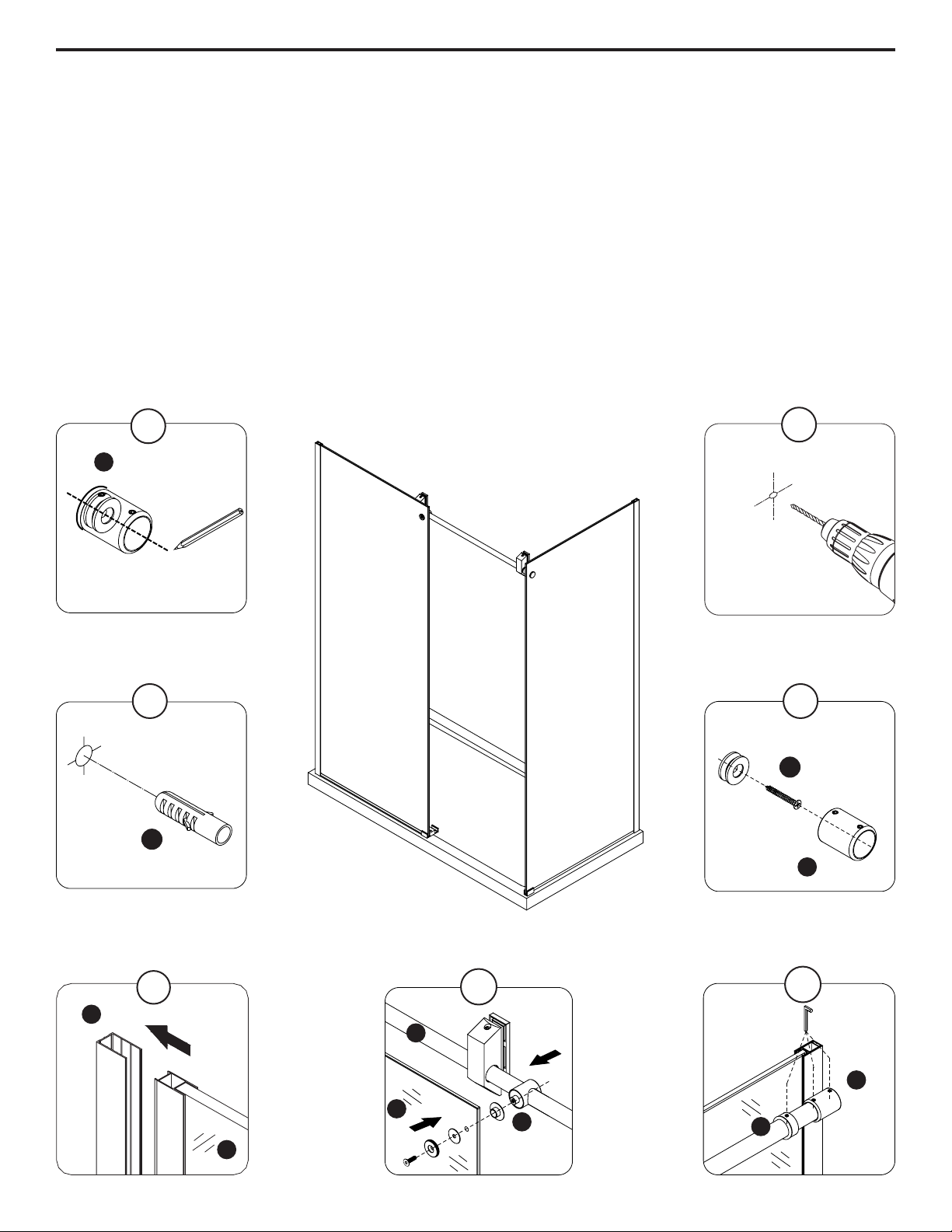

1. Level the tracks (B) and mark the track holes’ positions.
2.RemovetracksanddrillpilotholesinthemarkedlocationswithaΦ8mm(5/16in)drillbit.
3.Insertthewallanchors(AA)usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Replace and secure the metal tracks (B) with screws (BB). Do not overtighten.
WALL TRACK INSTALLATION
Φ8mm
5/16in
Helpful Hint
Do not overtighten!
This may crack the
acrylic or tile walls.
AA
2
3
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
24mm
15/16in
BB
4
B
1
17mm
11/16in

10

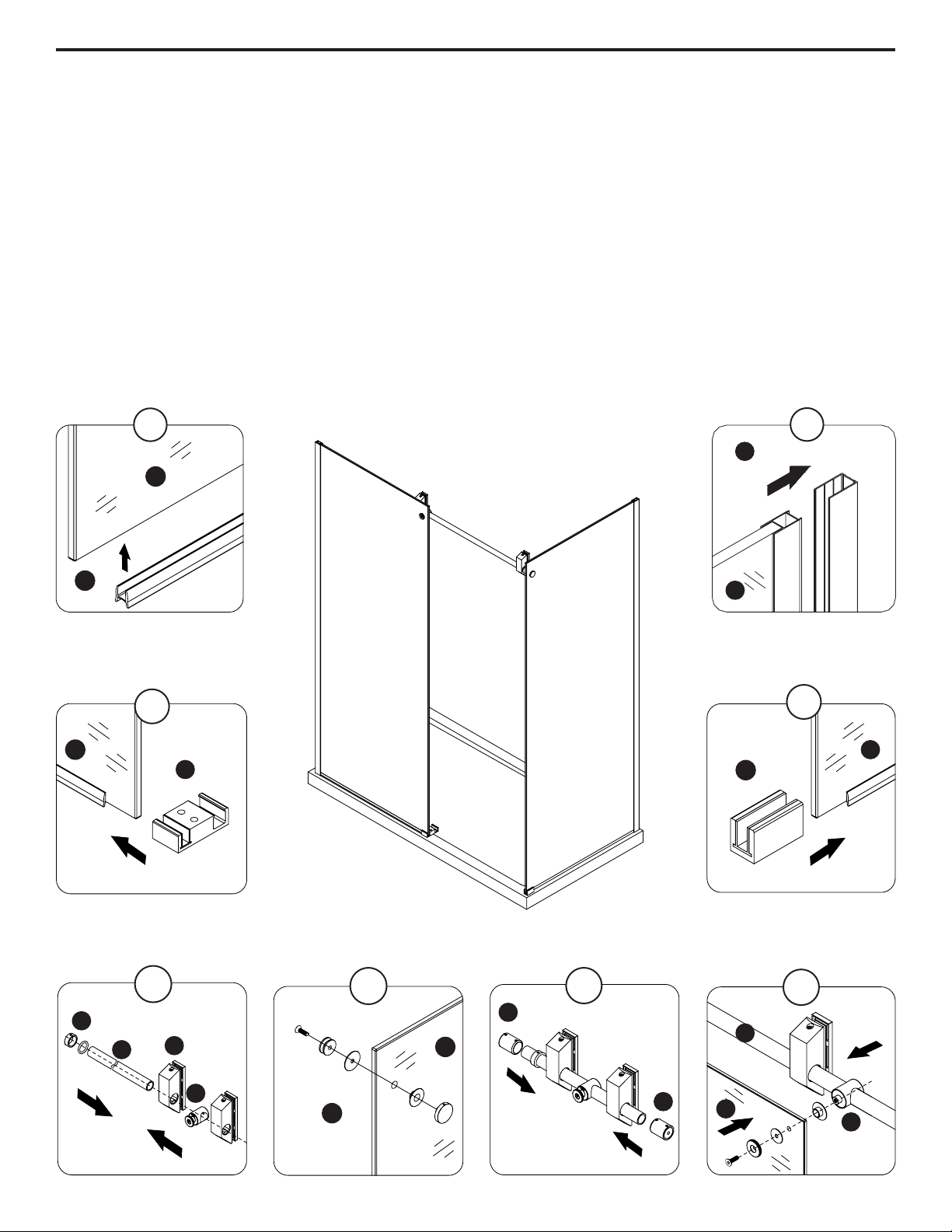

1. Insert the side panel’s bottom seal strip (X) at the base of the side panel (Y). With a cutter, cut the surplus to
adequate size.
2. Insert the side panel (Y) into the metal track (B). Do not fully tighten it as further adjustments may be required.
Note: The wall track (B) allows you to adjust the position of the side panel (Y). Adjusting the depth and/or
giving the side panel a slight angle allows for precise alignment with the door.
3-4. Smoothly slide the guide (Q) and the side panel clamp(W)atthebottomofthexedpanel(C)andtheside
panel (Y) without securing.
5-7. Installthedoorstopper(E),doorrollers(H),xedpanel’sbracket(G),side panel’s bracket (V) and the support
bar anthors (D) onto the support bar (F).
8.Looselymountthesupportbar(F)ontoxedpanel(C)usingthebrackets(G)andlevelit.

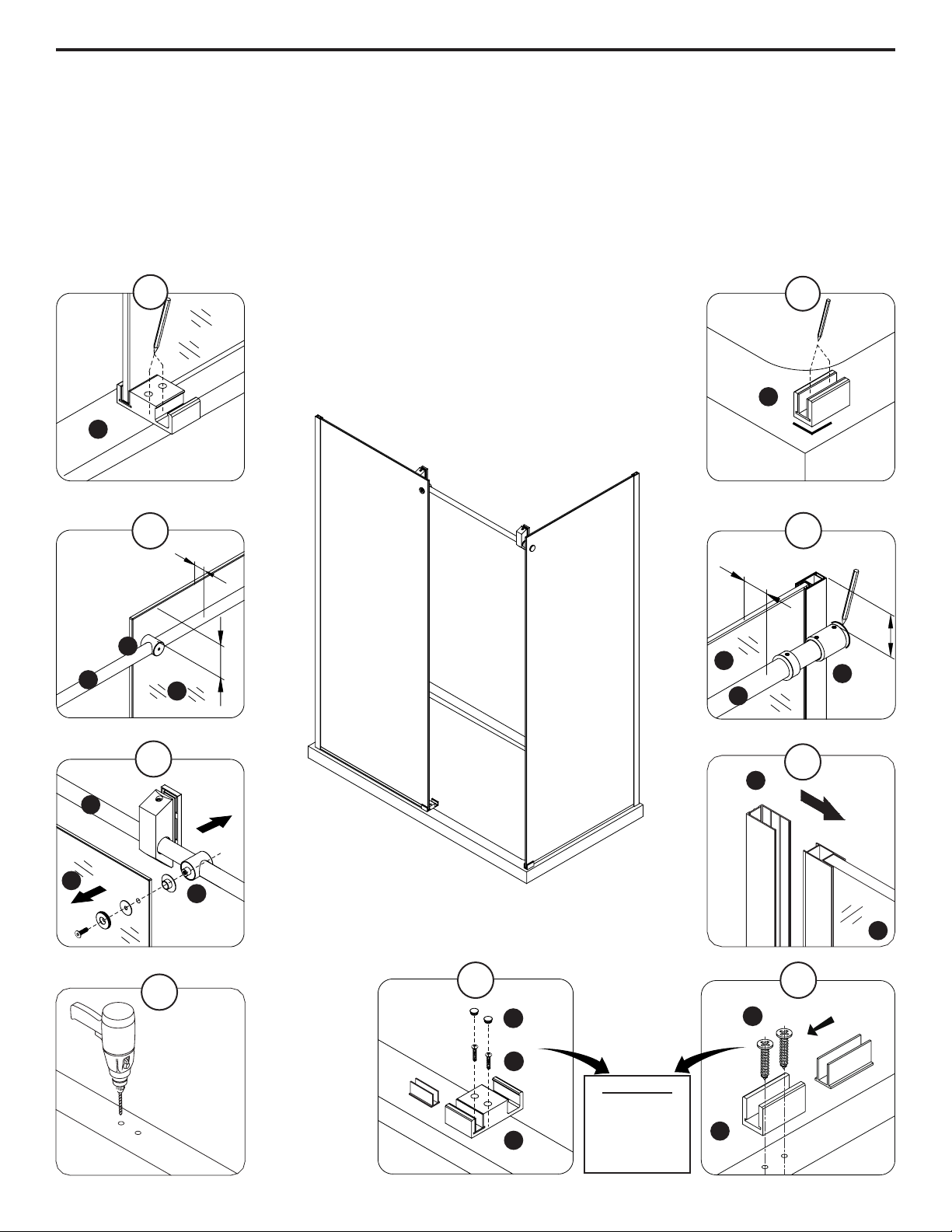

GLASS PANEL AND SUPPORT BAR INSTALLATION
Q
B
Y
Y
X
2
3
C
78
1
H
E
F
G
D
DCG
5
F
4
6
Y
W
V
Y
