Ozito OPT-2033 User manual

0
I
330MM PLANER THICKNESSER
0
I
330MM
PLANER THICKNESSER
THICKNESSER
330MM 2000W
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage: 230–240V ~ 50Hz
Motor: 2000W
No Load Speed: 9,100/min
Feed Speed: 6m/min
Max. Planing Width: 330mm
No. of Blades: 2
Planing Depth: 0-3mm
Planing Height: 6-160mm
Table Size: 330 x 290mm
Weight: 28kg
OPT-2033
STANDARD EQUIPMENT
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: valve adapters and accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
Ozito Industries Pty. Ltd. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ozito.com.au
Thicknesser
Push Stick, Blade Guide, Dust
Extraction Adaptor, 2 x Spanners,
Hex Key, Depth Adjustment Handle
& 4 x Feet
0622
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.

0
I
330MM PLANER THICKNESSER
330MM WIDTH
2000W
PLANER THICKNESSER
UP
DOWN
Installing The Rubber Feet
1. Press the rubber feet into the
slots on the base of the unit.
Installing The Depth Adjustment Handle
1. Align the depth adjustment
handle with the protruding
shaft on the machine.
2. Tighten the screw and nut to
lock the handle into place.

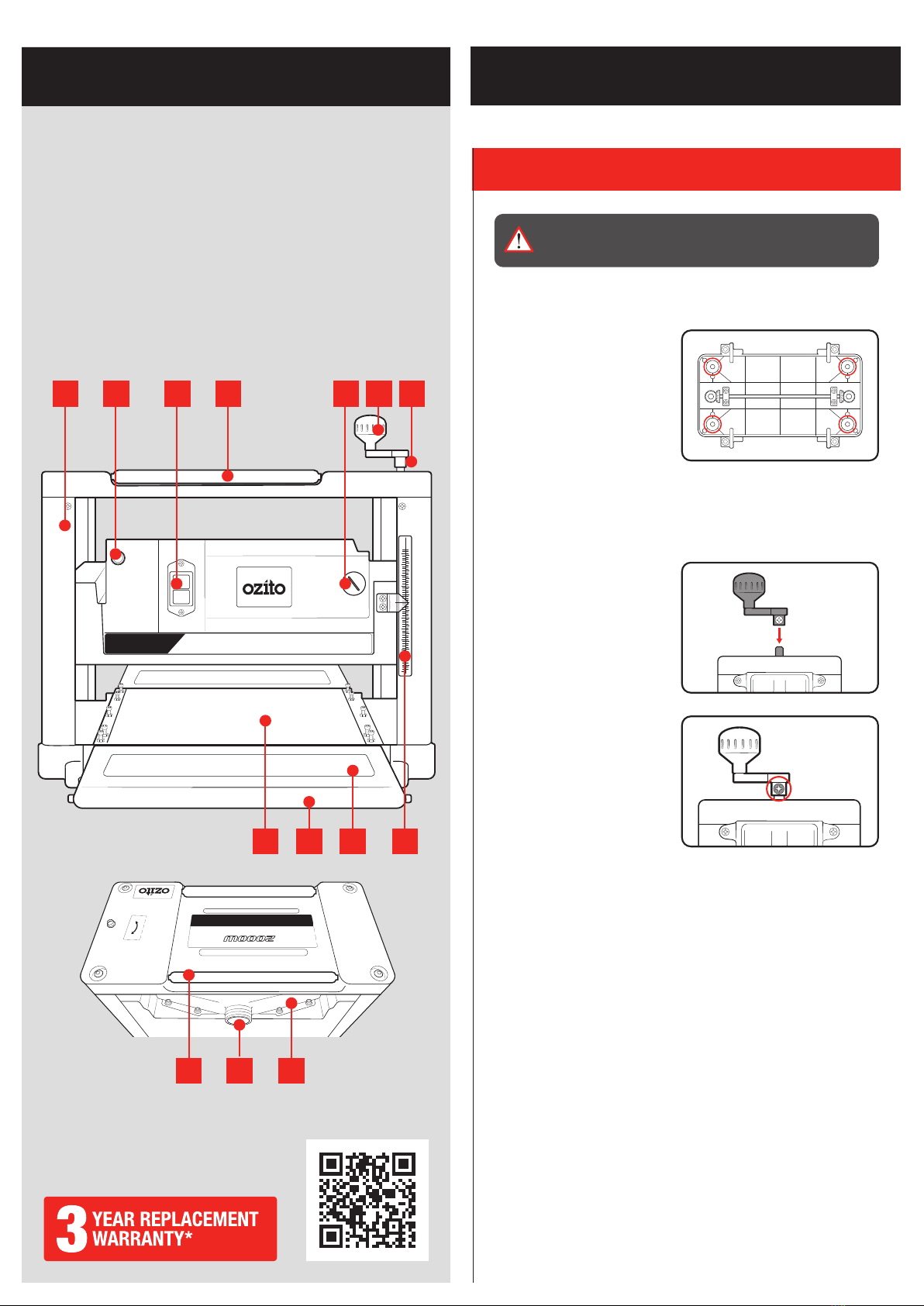

1. Casing
2. Overload Reset Button
3. On/Off Switch
4. Material Support Rollers
5. Carbon Brush Cover
6. Depth Adjustment Handle
7. Handle Screw
8. Depth Guide
9. In-Feed Extension Table
10. Material Support Roller
11. Working Table
12. Material Support Roller
13. Dust Extraction Port
14. Dust Hood
THICKNESSER
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
330MM PLANER
THICKNESSER
330MM PLANER
THICKNESSER
21 4 6 73 5
8910
13 1412
11
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.

1. Turn the depth adjustment handle to
raise the blade and allow sufficient
space for the workpiece.
2. Place the workpiece below the blade
and lower the blade to the surface of the
workpiece.
3. Without adjusting the height, remove
the workpiece. Then lower the blade
to the desired planing depth.
4. Start the machine and gently feed the
workpiece into the machine using the
provided push stick.
WARNING! ALWAYS USE THE PUSH STICK PROVIDED
INSTEAD OF YOUR HANDS TO FEED THE WORKPIECE.
WARNING! DO NOT FORCE THE WORKPIECE INTO THE
THICKNESSER. THE MACHINE AUTOMATICALLY PULLS
THE WORKPIECE.
Planing Tips
• The length of the workpiece should not be less than 153mm
long.
• The thickness of workpiece should not be less than 6mm +
desired planing depth.
• Do not remove more than 3mm of material at a time.
• When working with hardwood, do not remove more than 2.5mm
at a time to avoid overloading the machine.
• Removing material gradually over several passes will result in a
smoother surface finish.
• The surface finish can be affected by the hardness, moisture
and fibre content of the timber. The blade sharpness, machining
direction and planing depth can also affect the surface finish.
• Feed material into the machine along the grain where possible
for best results.
• Always test any adjustments on scrap pieces of timber before
attempting on your workpiece.
• If not working in well ventilated areas, connect a dust extraction
unit, such as a vacuum cleaner, to the dust extraction port to
create a cleaner work environment. Use the dust extraction
adapter if required.

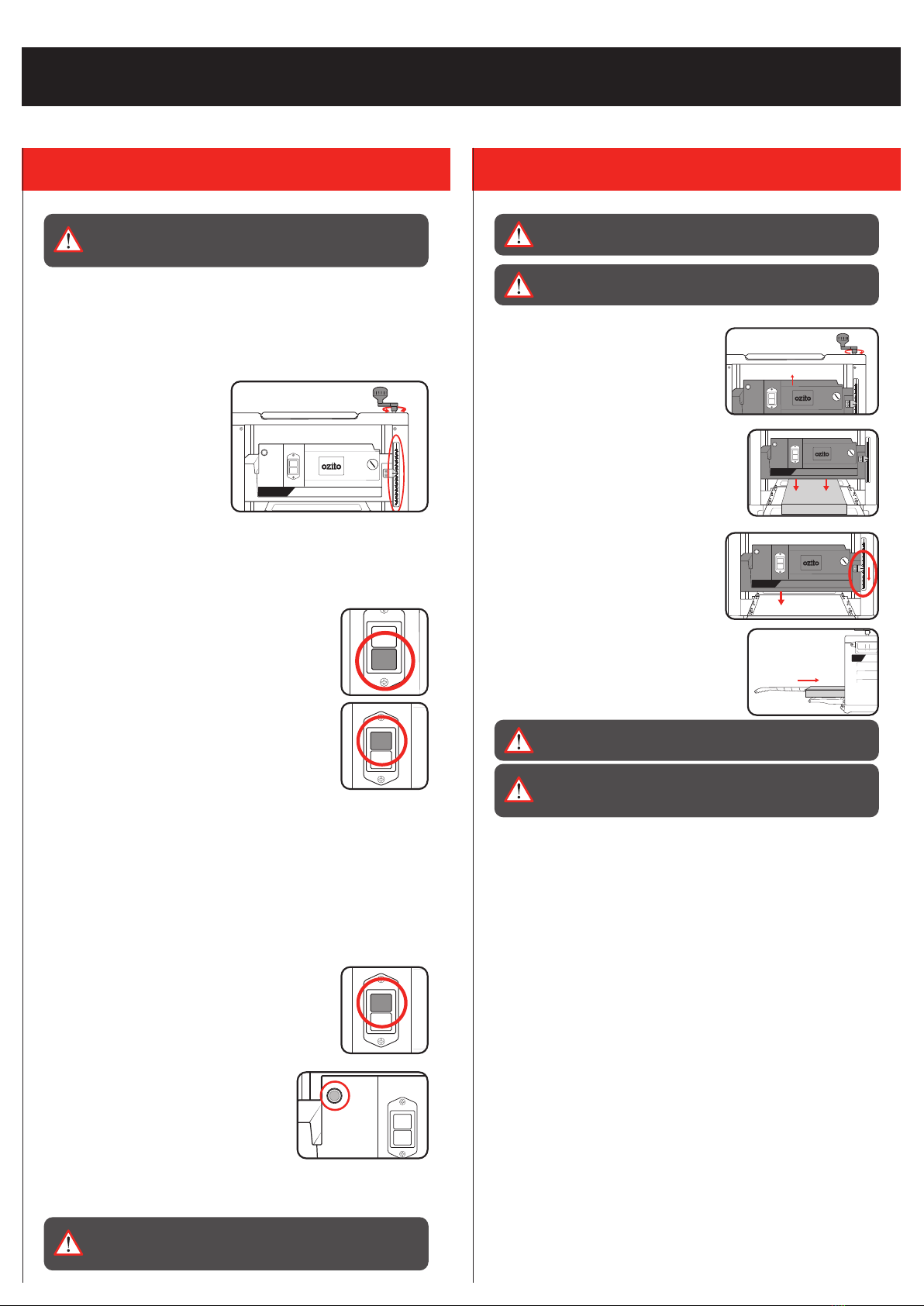

2. CONTROLS 3. PLANING
OPERATION
Adjusting The Planing Depth
The planing depth can be raised or lowered 1.5mm with every
full rotation of the handle. Always test the setting on a scrap
workpiece first.
1. Turn the depth adjustment
handle and use the planing
thickness guide to determine
the required height.
Switching The Tool On/Off
1. Press the “i” button to start the machine.
2. Press the “0” button to stop the machine.
Overcurrent Protection
If the planing material gets stuck, the tool is overloaded or there is
a short, the overcurrent protection will automatically shut off the
machine to prevent damage.
Follow the steps below to reset the machine after an overload.
1. Press the “0” button to ensure the machine
does not start up again unexpectedly, then
disconnect the power supply to the machine.
2. Push the overload reset button and allow
the machine to cool down.
3. Remove any jammed material or loose debris that may have
caused the overload.
4. Restart the machine normally and resume use.
WARNING! DO NOT CONTINUE USING THE TOOL IF
THE OVERCURRENT PROTECTION ACTIVATES AGAIN
IMMEDIATELY ON RESTART.
0
I
330MM
PLANER THICKNESSER
0
I
330MM PLANER THICKNESSER
0
I
330MM
PLANER THICKNESSER
0
I
330MM
PLANER THICKNESSER
330MM PLANER
THICKNESSER
0
I
330MM PLANER THICKNESSER
0
I
330MM
PLANER THICKNESSER
0
I
330MM
PLANER THICKNESSER
0
I
330MM
PLANER THICKNESSER
WARNING! NEVER PLACE HANDS NEAR THE CUTTER
HEAD UNLESS THE MACHINE IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY.
WARNING! NEVER USE THE THICKNESSER WITH
MATERIALS OTHER THAN TIMBER.
WARNING! WEAR EYE, EAR & BREATHING
PROTECTION TO AVOID PERSONAL INJURY.

Blade Replacement
1. Loosen the screw and remove the
depth adjustment handle.
2. Undo the 4 hex bolts on the top of
the unit with an M5 hex key and
remove the casing.
3. Undo the 4 hex bolts with an M4 hex
key and remove the dust hood.
4. Use the 10mm spanner to
turn the hex bolts clockwise
and loosen the blade.
5. Remove the knife blade and
the blade locking plate.
6. Replace the worn blade with
a new blade of the same
dimensions. Place the new
knife blade and blade locking place back into the slot.
Note: Ensure the blade edge is facing the correct direction.
7. Hold the assembly in place
to loosely tighten the blade
by turning the 9 hex bolts
anti-clockwise.
8. Place the blade guide in the
proper orientation on the
blade assembly and use it
to push the blade to the proper position,
then fully tighten the blade.
Note: Ensure that the 2 support blocks on
the left and right side of the blade guide
are pressed against the knife blade.
9. Repeat steps 4 to 8 for the other blade.
WARNING! CHECK THAT ALL SCREWS ARE
TIGHTENED. TURN THE BLADE HOLDER BY HAND TO
CHECK THAT IT ROTATES EASILY AND SMOOTHLY.
10. Reassemble the dust hood and casing onto the machine.
Note: Test the settings on a scrap piece of material to ensure the
blades are properly installed and operating as they should.
Adjusting The Table Extensions
The table extensions have been factory adjusted for use straight
out of the box. However these can become uneven over time, in
which case follow the steps below to readjust them.
1. Raise the blade height so
that it is out of the way.
2. Place a level on the main
worktable and inspect the
extension table for gaps.
3. If the table extensions are
not level, there will be gaps
between the surface and the
level. Loosen the adjustment
nut and use the screw to
adjust the table height.
4. Retighten the nut when the proper height is achieved.
Parallelism
Adjust the machine parallelism if workpieces are no longer coming
out square.
Note: Poor parallelism is usually caused by misaligned blades.
Always check that the blade holder and work table are parallel
before attempting to adjust the parallelism setting.
1. Place the machine on its side
and loosen the cross rod
bolts.
2. Move the cross rod to
disengage the conical gear
from the blade holder gear.
3. Rotate the blade holder gear to adjust
the height of the blade holder. Each gear
tooth shifting anti-clockwise raises the
blade holder by 0.1mm.
4. Once adjusted, move the cross rod gear
back into place and re-tighten the bolts.
MAINTENANCE
0
I
330MM
PLANER THICKNESSER
330MM WIDTH
2000W
PLANER THICKNESSER
UP
DOWN
330MM PLANER
THICKNESSER
330MM WIDTH
2000W
PLANER THICKNESSER
UP
DOWN
BLADE
GUIDE
BLADE
330MM PLANER
THICKNESSER
330MM PLANER
THICKNESSER
1.
2.
OPT-2033
WARNING! BEFORE CLEANING THE APPLIANCE OR
CARRYING OUT ANY MAINTENANCE PROCEDURE,
MAKE SURE THAT IT IS DISCONNECTED FROM THE
POWER SUPPLY TO PREVENT ACCIDENTAL STARTING.
WARNING! WEAR GLOVES AND HANDLE THE BLADES
WITH CAUTION TO AVOID PERSONAL INJURY OR
COLLATERAL DAMAGE.

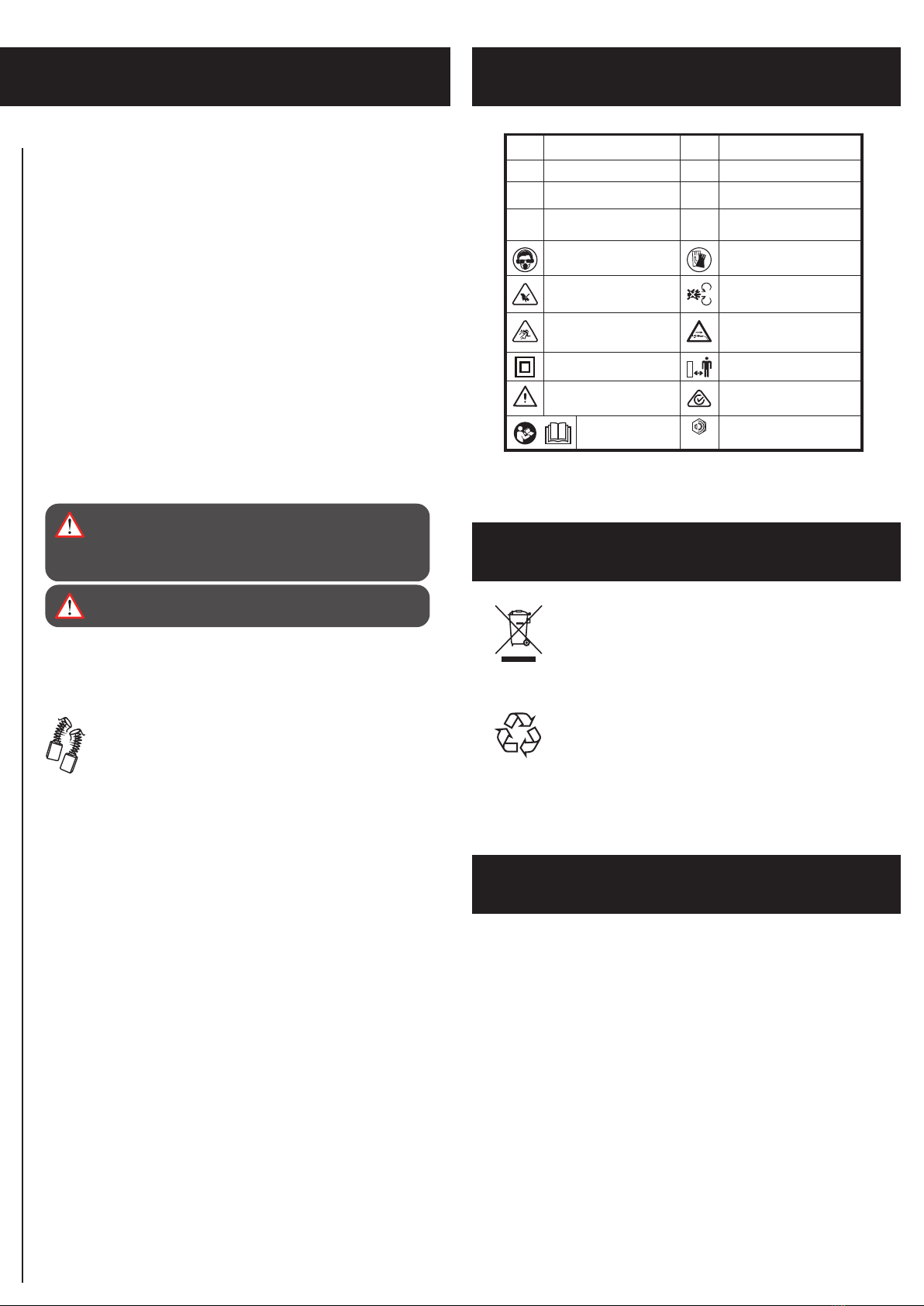

DESCRIPTION OF SYMBOLS
Cleaning
1. We recommend that you clean the appliance immediately after
you use it.
2. Keep the safety devices free of dirt and dust as much as
possible. Wipe the equipment with a clean cloth.
3. Clean the appliance regularly with a damp cloth and some soft
soap. Do not use cleaning agents or solvents; these may be
aggressive to the plastic parts in the appliance. Ensure that no
water can get into the interior of the appliance.
Lubrication
1. Regularly remove shavings from the depth setting chains,
reduction drive and lifting screws for the blade holder.
2. Remove chips with a cloth and brush, then lightly grease with a
clean brush dipped in oil.
WARNING! NEVER POUR OIL DIRECTLY ON THE
COMPONENTS. TOO MUCH OIL WILL CAUSE DUST TO
STICK AND IMPAIR LUBRICATIONS, WHICH IN TURN
REDUCES THE SERVICE LIFE OF THE MACHINE.
WARNING! THE BLADE HOLDER BEARINGS ARE
SEALED AND MUST NOT BE LUBRICATED.
Carbon Brushes
When the carbon brush wears out, the tool will spark
and/or stop. Discontinue use as soon as this happens. It
should be replaced prior to recommencing use of the tool.
Carbon brushes are a wearing component of the tool, and
are not covered under warranty. Continuing to use the tool when
the carbon brush needs to be replaced may cause permanent
damage to the tool. Carbon brushes will wear out after many uses
but when the carbon brush needs to be replaced, take the tool to
an electrician or a power tool repairer for a quick and low cost
replacement.
Storage
Pull the mains plug out of the socket, switch off the tool and make
sure that it is secured in such a way that it cannot be started up
again by any unauthorised person.
Store the tool in a dry location which is not accessible to
unauthorised persons.
Supply Cords
If replacement of the supply cord is necessary, this has to be done
by a certified electrician in order to avoid a safety hazard.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the tool by an unauthorised person
or by mishandling of the tool.
Meters per minute Millimetres
Wear gloves
Keep bystanders away
Switch off & remove plug from
mains before adjusting, cleaning or
if the cord is entangled or damaged
Beware of debris being ejected
from the machine
Rotating blades; keep hands & feet
out of openings while the machine
is running
Warning Regulatory Compliance Mark
(RCM)
Sound power level in decibels
Double insulated
Wear eye, ear & breathing
protection
Sharp blade; keep hands clear
VVolts Hz
W
Hertz
~
n0
mm
/min
m/min
Alternating Current Watts
No load speedRevolutions per minute
Read Instruction Manual LWA
Power tools that are no longer usable should not
be disposed of with household waste but in an
environmentally friendly way. Please recycle where
facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution
in the environment. Please recycle packaging where
facilities exist. Check with your local council authority for
recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk at your
local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]

WARNING! When using mains-powered tools, basic safety precautions, including the following, should
always be followed to reduce risk of fire, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,
before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
This tool has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage
on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated; therefore no earth wire is required.
Note: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension
lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for
the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A residual
current device reduces the risk of electric shock.
The appliance is not to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure
that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage
greater than that specified for the tool can result in serious injury to the user, as well as damage to the tool. If in
doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the
motor.
• Always wear safety glasses and hearing protection when operating this machine. Always wear a dust mask to
reduce the risk of inhalation of harmful dust.
• Always remove the plug from the mains socket before making any adjustments or performing maintenance.
• Don’t cram wood into outfeed side.
• Before use check that all screws connections are properly tightened.
• Do not force the tool. Let the feed mechanism do the work. Never insert objects or body parts in the outfeed.
• Check regularly that the rubber roller and iron roller are clean. If the rollers are contaminated the workpiece will
not infeed correctly.
• Do not machine workpieces with many knots or sprigs.
• The operating position is in front of the machine. Stand by the side of the infeed table.
• Remove any nails, screws and other metal objects from the workpiece before machining.
• Check that the blades are correctly installed.
• Wear gloves and handle the knife blades with care to avoid personal injury and/or collateral damage.
• Never start planing until the blade holder has reached full speed.
• Never use blunt blades as this could result in kickback.
• Always replace or sharpen both blades at the same time. Both blades must be of the same size and weight.
• Never place hands near the cutter head unless the machine is switched off and disconnected from the power
supply. Never insert your fingers or other body parts in the chip outlet.
• Always use the push stick provided instead of your hands to feed the workpiece.
• Always keep your hands well away from the cutter head and the chip ejection area while the machine is running.
• Always check that the recoil claw is in the correct position.
• Do not force the workpiece if it’s not being fed smoothly, check if the machine has other problems.
• If the workpiece jams while being fed into the machine, do not continue to force the operation. Stop the tool,
disconnect from the power and investigate for the cause of the jam.
• The sawdust created by planing makes it difficult to see as clearly as necessary and can impair the operator’s
health in certain circumstances. If not working in well ventilated areas, the machine must be connected with the
dust extraction port to an extractor unit, such as a small portable dust extractor.
• Do not use the machine without the appropriate guard in place and correctly adjusted. Never use the machine
without dust chute.
• Never use the thicknesser with materials other than timber.
THICKNESSER SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do
the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power
tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
