Ozito PLR-750 User manual

PLANER
750W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 220-240V ~ 50Hz
Input Power: 750W
No Load Speed: 17,000/min
Planing Width: 82mm
Blade Type: Reversible 82x5.5x1.2mm
Planing Depth: 2mm
Rebate Depth: 0-10mm
Weight: 2.4kg
PLR-750
STANDARD EQUIPMENT
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
Spanner & Hex Key
0618
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes
consumable parts, for example: carbon brushes, planer blades, etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
Thumb Screws, Car-
riage Bolt & Wingnut
Parallel Guide &
Angle Bracket
Planer
Rebate Guide & Dust
Adaptor

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1 Front Base Plate
2 Depth Adjustment Knob
3 Dust Extraction Chute
4 On/Off Trigger
5 Lock-Off Button
6 Automatic Base Park Shoe
7 Rear Base Plate
PLANER
KNOW YOUR PRODUCT
1. ASSEMBLY
10 Parallel Guide
11 Angle Bracket
12 Rebate Guide
13 Vacuum Hose Adaptor
ACCESSORIES
SETUP & PREPARATION
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
1 Place the Rebate Guide in
the slot on the same side as
the Dust Extraction Chute.
The Rebate Guide allows a specic rebate depth to be achieved.
NOTE: The Rebate Guide is attached on the same side as the Dust
Extraction Chute.
12 131110
3 4 5
6
7
Attaching The Rebate Guide
2 Place one of the supplied
thumbscrews into the slot
and tighten by rotating it
clockwise.
1 Fasten the Angle Bracket to
the Parallel Guide using the
supplied carriage bolt and
wingnut.
Attaching The Parallel Guide
2 Align the Angle Bracket with
the hole on the side of the
planer.
3 Place one of the supplied
thumbscrews into the hole
and tighten by rotating it
clockwise.
Dust Extraction
For optimum dust extraction, a vacuum hose (not supplied) can be
tted to the tool by using a Dust Extraction Adaptor (supplied).
1 Insert the Dust Extraction
Adaptor into the Dust
Extraction Chute.
2 Connect a vacuum hose
to the Dust Extraction
Adaptor.
2
1

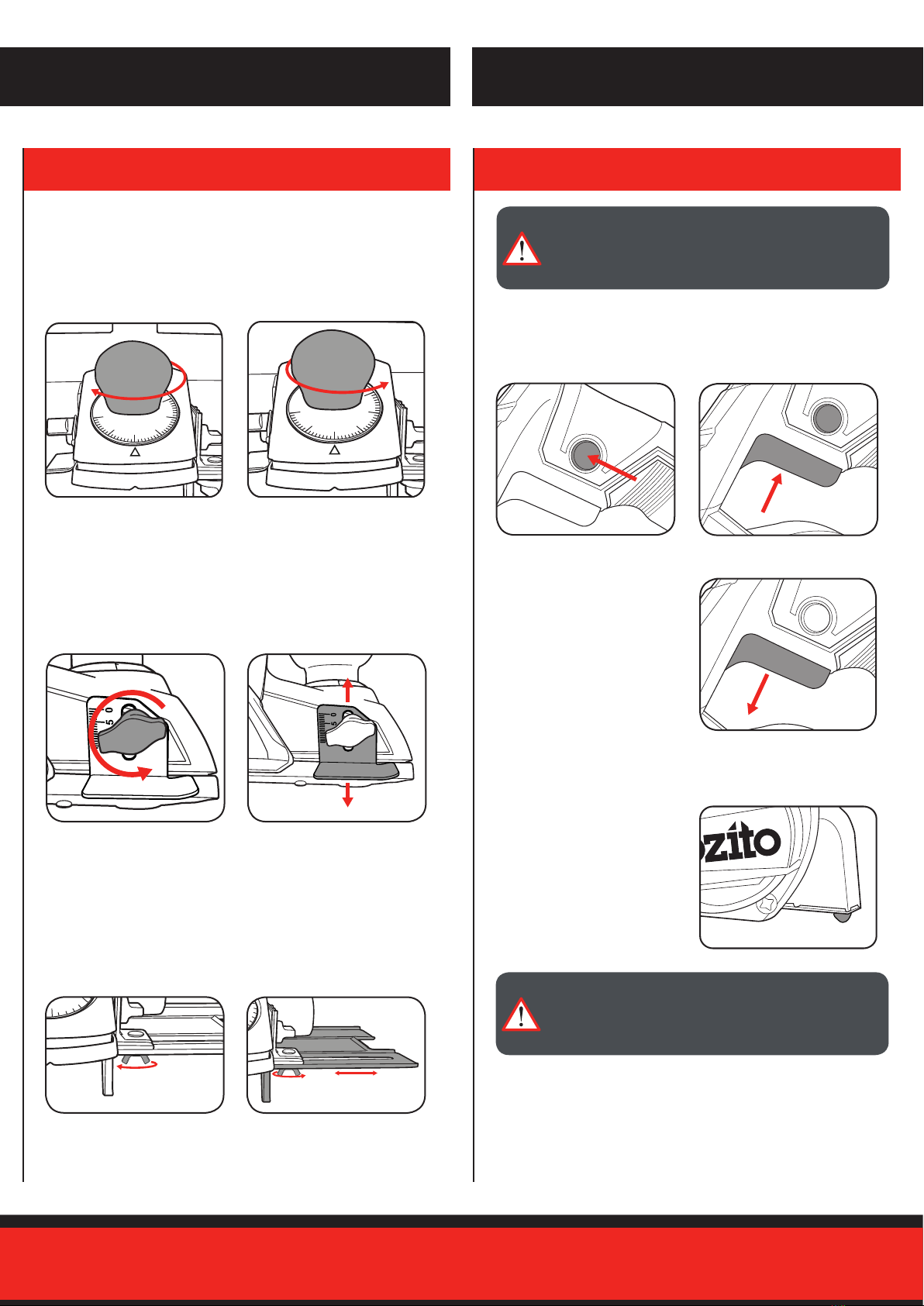

2. ADJUSTMENTS 3. CONTROLS
1 Increase cutting depth by
rotating clockwise.
1 Press and hold the Lock-Off
Button.
2 Press the On/Off Trigger to
start the planer.
3 Release the On/Off Trigger
to turn off the planer.
1 Loosen the rebate
thumbscrew.
1
2
2 Decrease cutting depth by
rotating counter-clockwise.
OPERATION
NOTE: Wait until the blade
stops completely before setting
the planer down.
NOTE: Set the Depth Adjustment Knob back to ‘0’ once nished with
the tool to protect the blades from damage.
The planing depth can be adjusted between 0 and 2mm. The
numbers on the Depth Adjustment Knob correspond to the planing
depth (mm). Always test the setting on a scrap workpiece rst.
Adjusting The Rebate Guide
Adjusting The Parallel Guide
2 Slide the Rebate Guide to
the required depth.
3 Tighten the rebate
thumbscrew to secure it.
WARNING! THE POWER SUPPLY FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30mA OR LESS). A RESIDUAL
CURRENT DEVICE REDUCES THE RISK OF ELECTRIC
SHOCK.
WARNING! THE PARK SHOE DOES NOT PROTECT
THE BLADE FROM DAMAGE. ALWAYS WAIT UNTIL
THE BLADE STOPS COMPLETELY BEFORE SETTING
THE PLANER DOWN.
The Base Park Shoe allows you to
rest the planer on the workpiece
without the blades causing dents
or damage.
The park shoe will rotate out of
the way while planing.
Automatic Base Park Shoe
1
Depth Adjustment Knob
Lock-Off Trigger
1 Loosen the parallel guide
wingnut. 2 Slide the Guide to the
required position and tighten
the wingnut.
3 After adjusting the Parallel Guide, make sure the guide is clear of
the blade by adjusting the position of the Angle Bracket.
a
b

The planer has a precision machined ‘V’ groove in the Front Base
Plate for making 45ochamfers along the edges of your workpiece.
PLR-750
4. PLANING 5. REBATE CUTS
2 Place the groove
precisely on the corner
of the workpiece.
1 Set the required depth on the
planer.
NOTE: A layer of material will
be removed from the workpiece
even if the cutting depth is set
to 0; always test the setting on a
scrap workpiece rst.
1 Set the required depth on the
planer.
NOTE: For nishing surfaces,
use a low chip depth and
make multiple passes over the
material.
2 Switch on the planer.
3 Lower the planer onto the
workpiece, and push the planer
over the surface with both hands.
NOTE: Ensure that both base plates
lie at along the material during
planing.
NOTE: Ensure the operating
pressure is applied to the rear base
plate when lifting the planer off the
material.
5 Switch on the planer.
6 Plane along workpiece, using the Parallel Guide to keep the
planer square to the material.
7 The Rebate Guide indicates when the required rebate height is
achieved. Keep planing along the workpiece until the Rebate
Guide touches the surface of the rebate.
2 Adjust the Parallel Guide to
the appropriate width.
3 Adjust the Rebate Guide
to the height of the desired
rebate.
4 Adjust the chip depth by
turning the Depth Adjustment
Knob.
NOTE: It is recommended that rebates are formed over several
passes. A 6mm rebate can be formed by making 3 passes over the
material at a depth setting of 2mm.
1 Mark out the area for rebate
and clamp the workpiece
down.
1
1
2
Chamfering Edges
Making a Rebate CutPlaning Flat Surfaces
3 Plane along the edge of
your workpiece.

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Cleaning
• Keep the ventilation vents of the planer clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the planer housing to ensure it is free from
all dust particles which may build up. Build up of dust particles may cause the
planer to overheat and fail.
• If the enclosure of the planer requires cleaning, do not use solvents but a
moist soft cloth only. Never let any liquid get inside the planer; never immerse
any part of the planer into a liquid.
Carbon Brushes
When the carbon brushes wear out, the planer
will spark and/or stop. Discontinue use as soon
as this happens. They should be replaced prior to
recommencing use of the planer. Carbon brushes
are a wearing component of the planer, and are not
covered under warranty. Continuing to use the planer
when carbon brushes need to be replaced may
cause permanent damage to the planer. Carbon brushes will wear out after
many uses but when the carbon brushes need to be replaced, take the planer
to an electrician or a power tool repairer for a quick and low cost replacement.
Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the planer by an unauthorised person or by mishandling of the
planer.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the planer failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulatory compliance mark
Read instruction manual Warning
n0No load speed
Changing Blades
Before you make any adjustments, make sure the power cord has
been disconnected from the power supply.
The blades that come tted to the tool are 82mm blades. The
drum is tted with two separate blades; both must be reversed or
replaced at the same time. Never replace only one blade.
1 Loosen the 3 hex head
screws using the spanner
provided.
3 Install new blades.
Note: Blades are reversible. If changing blades for the rst time,
turn over the blades to expose a fresh cutting edge.
2 Push the used blade out
through the slot in the motor
housing using a screwdriver.
Keep ngers away from
blade.
4 Tighten the 3 hex head
screws.
5. Repeat the process for the second blade.
WARNING! ALWAYS WEAR PROTECTIVE GLOVES
WHEN CHANGING THE BLADE.

WARNING!
• Wait for the cutter to stop before setting the tool down. An exposed cutter
may engage the surface leading to possible loss of control and serious injury.
• Hold the power tool by insulated gripping surfaces only, because the cutter
may contact its own cord. Cutting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an electric shock.
• Use clamps or another practical way to secure and support the workpiece to
a stable platform. Holding the work by hand or against the body leaves it unstable
and may lead to loss of control.
• Recommendation that the tool always be supplied via a residual current
device with a rated residual current of 30 mA or less.
• If the supply cord of this power tool is damaged, it must be replaced by a
specially prepared cord available through the service organization.
WARNING!
Use of this tool can generate dust containing chemicals known to cause
cancer, birth defects or other reproductive harm. Use appropriate respiratory
protection.
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
• Be sure to read the instruction manual thoroughly before using this tool.
• Be sure the voltage agrees with specic data on the nameplate.
• Be sure the switch is in OFF position before connecting tool to the power supply.
• Be sure to switch OFF immediately if the tool is jammed in work.
• Be sure the tool is disconnected from power source when cleaning or making
adjustments to the tool.
• Be sure the tool is properly held and set for correct use before turning switch to ON.
• Be sure to use specied replacement parts only.
• Be sure to maintain tool with care. Follow instructions for lubricating and changing
accessories.
• Be sure to store tool in a clean dry place after disconnecting from power source.
• Keep air vents unobstructed for proper motor cooling.
• DO NOT lay tool down on shoe when the blades are exposed. This can chip the
blades.
• Keep side dust extraction port unobstructed at all times.
• Never reach under the tool for any reason unless it is turned off and UNPLUGGED.
BLADES ARE EXPOSED AND EXTREMELY SHARP.
• Use this tool for working with wood and wood products only.
• Never operate without securely holding the front handle.
• Always operate planer with two hands.
• Planer blades are extremely sharp – Handle with great care.
WARNING!
Some wood contains preservatives such as copper chromium arsenate (CCA) which
can be toxic. When sanding, drilling, or cutting these materials extra care should be
taken to avoid inhalation and minimise skin contact.
This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance
safely. Young children should be supervised to ensure that they do not play with the
appliance.
PLANER SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
This product has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V is interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at 30mA or less). A
residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available
through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
