Ozito DP-350 User manual

10. Base
11. Table
12. Head assembly
13. Switch
14. Depth indicator
15. Depth indicator lock nuts
16. Depth rod
17. Depth rod support
18. 13mm Keyed chuck
19. Column support bolts x 3
20. 3mm Allen key
21. 4mm Allen key
22. Chuck key
23. Table support lock
24. Depth scale
Motor size: 350W
Input: 230-240V ~ 50Hz
No load speed: 580, 850, 1220, 1650, 2650/min
Chuck: 13mm Keyed
Spindle travel: 50mm
Spindle shaft to column distance: 104mm
Column height: 395mm
Protection class: 1 (Earthed Appliance)
Weight: 16.4kg
1
3
1
SPECIFICATIONS – MODEL NO. DP-350
18
1. Pulley cover
2. Pulley cover knob
3. Belt tension knob
4. Head lock screws
5. Feed wheel hub
6. Feed wheel handles
7. Table support
8. Column
9. Column support
2
4
5
6
7
8
9
11
12
13 14
15
16
19
23
20
10
17
21
22
24
KNOW YOUR PRODUCT

2
TABLE OF CONTENTS
SPECIFICATIONS…………………………………………
INTRODUCTION………………………………………...
ELECTRICAL SAFETY…………………………………...
GENERAL SAFETY INSTRUCTIONS…………………..
DRILL PRESS SAFETY WARNINGS ……………………
ASSEMBLY………………………………………………..
ADJUSTMENTS………………………………………….
OPERATION………………………………………….…..
MAINTENANCE………………………………………….
SPARE PARTS…………………………………………….
TROUBLESHOOTING…………………………………..
DESCRIPTION OF SYMBOLS…………………………..
CONTENTS………………………………………………
WARRANTY………………………………………………
Page 1
Page 3
Page 3
Page 4
Page 6
Page 8
Page 10
Page 12
Page 12
Page 13
Page 13
Page 14
Page 14
Page 15

INTRODUCTION
ELECTRICAL SAFETY
3
Congratulations on purchasing an Ozito Drill Press.
We aim to provide quality tools at an affordable price.
We hope you will enjoy using this tool for many years.
Your Ozito DP-350 Drill Press has been designed for
accurate drilling into steel, timber and plastic. It is
intended for DIY use only.
WARNING! When using mains-powered equipment, basic safety
precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for
future reference.
The electric motor has been designed for 230V and 240V only. Always check that the
power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
If the supply cord is damaged, it must be replaced by an electrician or a power
tool repairer in order to avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of
an extension lead not suitable for the power input of the tool or which is damaged
or defective may result in a risk of fire and/or electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do Not
use multiple extension leads.
!
!
!!

4
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury. The term “Power
Tool” in all of the warnings listed below refers to your mains operated
(corded) power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
!
!
!!

5
GENERAL SAFETY INSTRUCTIONS (cont.)
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that can not be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do
not allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from intended
could result in a hazardous situation.
h) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
i) Children should be supervised to ensure that they do not play with
the appliance.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
!!

DRILL PRESS SAFETY WARNINGS
6
!
!WARNING! For your own safety, do not try to use your drill press or plug it
in until it is completely assembled and installed according to the instructions
and until you have read and understood the following:
1. Your drill press must be bolted securely to a workbench. In addition, if there is any
tendency for your drill press to move during certain operations, bolt the
workbench to the floor.
2. This drill press is intended for use in dry conditions and indoor use only.
3. Always wear safety goggles which comply to a recognised standard. Use a face or
dust mask along with safety goggles if the drilling operation is dusty. Use ear
protectors, especially during extended periods of operation.
4. Do not try to drill material too small to be securely held. Do not drill material that
does not have a flat surface unless it is clamped securely.
5. Always keep hands out of the path of the drill bit. Avoid awkward hand positions
where a sudden slip could cause your hand to move into the drill bit.
6. Do not install or use any drill bit that exceeds 175mm (7 inches) in length or
extends more than 150mm (6 inches) below the chuck jaws. They can suddenly
bend outwards or break.
7. Do not use wire wheels, router bits, shaper cutters, circle (fly) cutters or rotary
planers on this drill press.
8. When cutting a large piece of material make sure it is fully supported at the
table height.
9. Do not perform any operation freehand. Always hold the workpiece firmly against
the table so it will not rock or twist. Use clamps or a vice for unstable workpieces.
10. Make sure there are no nails or foreign objects in the part of the workpiece to
be drilled.
11. Whenever possible, position the workpiece to contact the left side of the column;
if it is too short or the table is tilted, clamp solidly to the table.
12. If the workpiece overhangs the table such that it will fall or tip if not held, clamp it
to the table or provide auxiliary support.
13. Set the drill press to a speed appropriate to the job.
14. Do not start the drill press while the drill bit is touching the workpiece.
15. When using a drill press vice, always fasten it to the table.
16. Make sure all clamps and locks are firmly tightened before drilling.
17. Securely lock the head and table support to the column, and the table to the table
support before operating your drill press.
18. Never turn your drill press on before clearing the table of all objects (tools, scraps
of wood etc.)
19. Before starting the operation, jog the motor switch to make sure the drill bit does
not wobble or vibrate.
20. Let the spindle reach full speed before starting to drill. If your drill press makes an
unfamiliar noise or if it vibrated excessively, stop immediately, turn the drill press
off and unplug it. Do not restart until the problem is corrected.
!!

!
!
7
21. Do not perform layout assembly or setup work on the table while the drill press
is in operation.
22. Do not exceed the rpm stated on the bit or accessory. See the instructions that
come with the accessory.
23. When drilling large diameter holes, clamp the workpiece firmly to the table.
Otherwise, the bit may grab and spin the workpiece at high speed. Do not use
fly cutters or multiple-part cutters, as they can come apart or become
unbalanced in use.
24. Make sure the spindle has come to a complete stop before touching
the workpiece.
25. To avoid injury from accidental starting, always turn the switch off and unplug
the drill press before installing or removing any accessory attachment or
making any adjustment.
26. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
27. Children should be supervised to ensure that they do not play with
the appliance.
28. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
CAUTION: Do not expose to rain or use in damp locations.
WARNING! For your own safety read instruction manual before operating
drill press. Wear eye protection, do not wear gloves, necktie or loose
clothing, clamp workpiece or brace against column to prevent rotation, use
recommended speed for drill accessory and workpiece material.
DRILL PRESS SAFETY WARNINGS
!!

8
ASSEMBLY
!
!WARNING! During assembly ensure the drill press is disconnected from the
power supply.

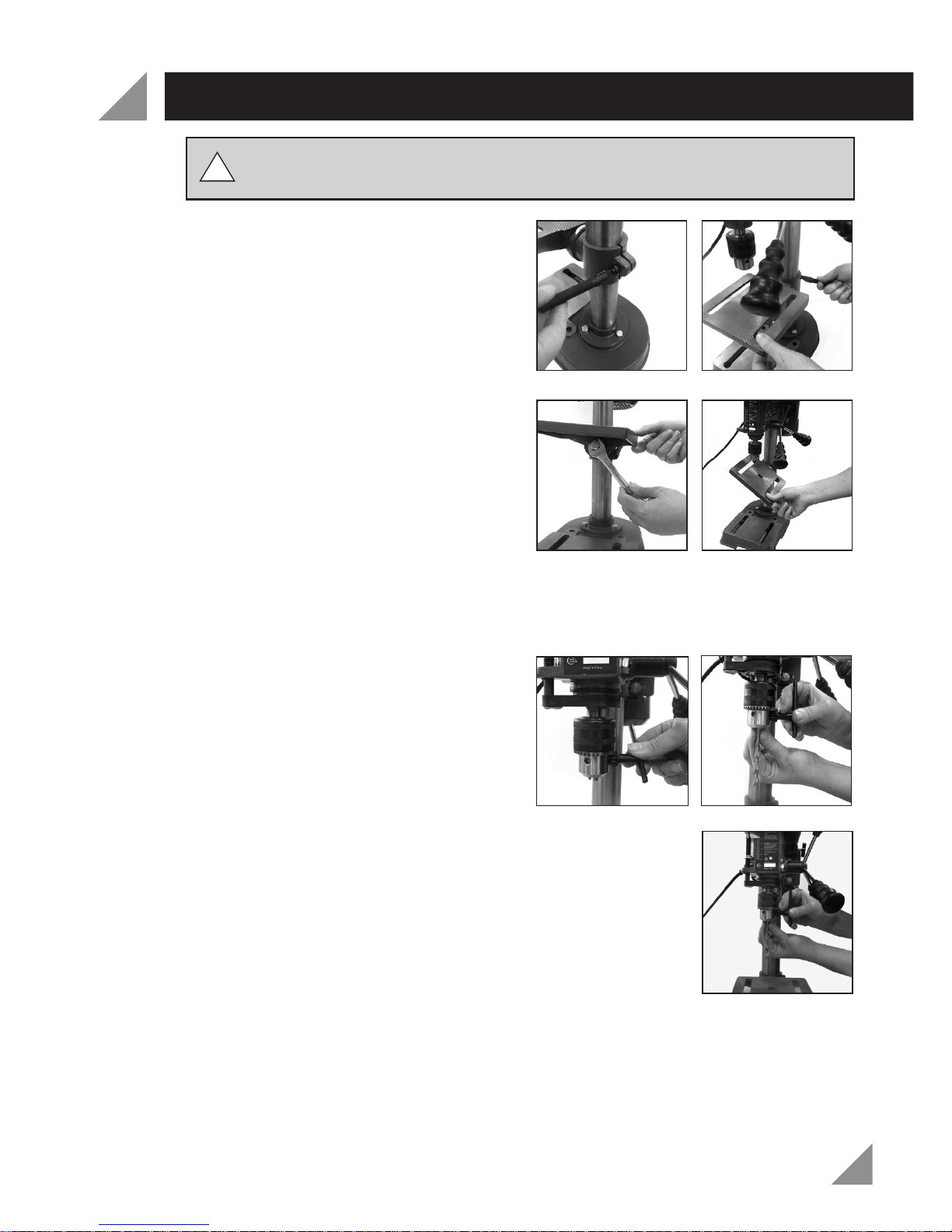

1. Carefully remove contents from the packaging.
2. Select a firm, level surface on which to assemble the drill press.
3. Select the base (10) (Fig. 1) and align the column (8) over the large hole (Fig. 2).
Align the holes in the column support (9) with those in the base (10) and secure in
place using the 3 column support bolts (19), spring and flat washers (supplied) (Fig. 3).
Fit the spring washer over the bolt followed by the flat washer and using a 12mm
spanner or shifter (not supplied) securely tighten all 3 column support bolts (19).
4. Slide the table support (7) over the column (8). Using the
table support lock (23), secure the table (11) into the
desired position (Fig. 4).
5. Lift the head assembly (12) and slide it down onto the
column (8) as far as it will go. To secure in position install
the two head lock screws (4). Tighten using the 4mm
allen key (21), rotating in a clockwise direction (Fig. 5).
Fig. 1 Fig. 2 Fig. 3
Fig. 4
Fig. 5

9
ASSEMBLY (cont.)
6. To fit the feed wheel handles (6),
screw them into the feed wheel hub
(5) (Fig. 6 & 7).
7. To fit the 13mm keyed chuck (18), first place a piece of
timber on the table (11) and position the 13mm keyed
chuck (18) with the jaws retracted under the drive shaft.
Raise the table (11) toward the drive shaft until the 13mm
keyed chuck (18) is approximately 25mm from the drive
shaft (Fig. 8).
8. To secure the 13mm keyed chuck (18) to the drive shaft
gently lower the drive shaft using the feed wheel handles
(6) (Fig. 9) until the drive shaft is pushed into the hole of
the 13mm keyed chuck (18). A gentle tap on the timber is
required to secure the 13mm keyed chuck (18) onto the
tapered drive shaft.
Fig. 8
Fig. 9
Fig. 6 Fig. 7

!
!
10
ADJUSTMENTS
WARNING! Before making any adjustments, ensure the drill press is
disconnected from the mains power.
Adjusting the Table Height
1. Loosen the table support lock (23) (Fig. 14).
2. Set the desired table height and tighten
the table support lock (23) to secure the
table (11) in position (Fig. 15).
Adjusting the Table Angle
The table (11) can be adjusted up to 45° to
the left or right.
1. Loosen the table support angle bolt
(located below the table) by rotating
anti-clockwise using an 18mm spanner
or shifter (not supplied) (Fig. 16). Align
and set the desired angle.
2. Tighten the table support angle bolt by rotating in a clockwise direction to secure
the table (11) in position.
CAUTION: When the table is angled/tilted, ensure the workpiece is clamped to the table (11).
Installing and Removing Drill Bits
1. Using the chuck key (22), loosen the
jaws of the chuck (18) by rotating in an
anti-clockwise direction (Fig. 18).
2. Insert the drill bit fully into the 13mm
keyed chuck (18) (Fig. 19).
3. Whilst holding the drill bit in one hand rotate the top collar
of the 13mm keyed chuck (18) in a clockwise direction.
Ensure you tighten all 3 holes in the 13mm keyed chuck (18)
using the chuck key (22) to securely tighten the jaws and hold
the drill bit in position (Fig. 20).
Pre-setting the Drilling Depth
1. Loosen the depth indicator lock nuts (15) by turning in an anti-clockwise direction.
2. Ensure the drill bit is secure in the 13mm keyed chuck (18) and tightened correctly.
Lower the feed wheel handles (6) to the desired depth using the depth scale (24).
Fig. 14 Fig. 15
Fig. 16 Fig. 17
Fig. 18 Fig. 19
Fig. 20

ADJUSTMENTS (cont.)
11
3. Whilst holding the feed wheel handles (6), tighten the
depth indicator lock nuts (15) until they touch the metal
stop (Fig. 21).
4. Lift the feed wheel handles up and then proceed to operate
the drill press.
5. To disable the depth lock loosen the depth indicator lock
nuts (15) and reset to the desired position. Having these
in the highest position on the depth rod (16) will provide
maximum drilling capacity.
Changing the Speed
The speed of the drill press can be changed
by adjusting the belt on the pulley system.
Using a smaller pulley on the spindle/chuck
increases the drill speed. Using a larger
pulley on the spindle/chuck decreases the
drill speed.
1. Loosen the belt tension knob
(3) (Fig. 22).
2. Push the motor towards the
head assembly (12) and
tighten the belt tension
knob (3) (Fig. 23).
3. To adjust the belt speed, move the belt to the correct
pulley step for the speed required.
To select a faster drill speed, move the belt up to a
smaller step on the spindle/chuck pulley.
To select a slower drill speed move the belt down to
a larger step on the spindle/chuck pulley.
When moving the belt, it is easier to place the belt
onto the small pulley first and then turn it onto the
larger pulley (Fig. 24).
4. To apply tension to the belt once it has been fitted to a new speed setting,
loosen the belt tension knob (3). The belt tension will automatically tension
the belt to the correct tension, then re-tighten the belt tension knob (3).
Turning On and Off
Note: The pulley cover (1) is fitted with a safety switch and must be closed to
operate the drill press.
1. Switch the drill press on by pressing the green (I)
button on the switch (13) (Fig. 25).
2. Switch the drill press off by pressing the red (O)
button on the switch (13).
3. Secure your workpiece to the table (11) if possible,
use a vice or clamps (not supplied). Fig. 25
Fig. 22 Fig. 23
Fig. 24
Fig. 21

OPERATION
12
1. Ensure the drill press is switched off and disconnected from the power supply.
2. Loosen the jaws of the 13mm keyed chuck (18) with the chuck key (22) by turning
in an anti-clockwise direction and insert the selected drill bit into the 13mm keyed
chuck (18) as far as it will go.
3. Ensure that the drill bit is centred in the 13mm keyed chuck (18) and tighten the
chuck jaws with the chuck key (22) in a clockwise direction. Tighten all three holes
to ensure the drill bit is secured evenly by each jaw.
4. Select your drilling depth and secure the depth indicator lock nuts (15) in position.
5. Adjust the table (11) to your desired position.
6. Slowly rotate the feed wheel handles (6) to bring the drill bit down towards the
table (11) and into your workpiece. After drilling a hole, release the feed wheel
handles (6) slowly to return the 13mm keyed chuck (18) to its original position.
Note: Ensure the hole in the centre of the table (11) is aligned with the drill bit. If not
aligned, use the 4mm allen key (21) provided to loosen the head assembly (12) on the
column support (9) and re-align the head assembly (12). Re-tighten the 2 head lock
screws (4).
7. Continue the operation until the task is completed. When completed, switch the
drill press off by pressing the red (O) button on the switch (13).
WARNING! Ensure the drill press is disconnected from the power supply
before performing any maintenance.
1. Ball bearings are packed with grease at the factory. No further lubrication of
bearings is required.
2. Lubricate all moving parts periodically. Wipe the column, table and base with an
oily cloth to minimise corrosion.
3. Keep air vents clean of dust and dirt.
4. Remove dust and dirt from the drill press regularly with a soft cloth, brush or
compressed air.
5. If the power cord is damaged, have it replaced by an
electrician or a power tool repairer.
6. Regularly check that all bolts, screws and nuts are securely
fixed as these could work loose during normal operation.
7. If the drive belt will not align with the pulleys. The pulleys
may be worn and need to be replaced. To remove the
pulleys, use the 3mm allen key (20) provided. Loosen in
an anti-clockwise direction (Fig. 26).
Note: Ozito Industries will not be responsible for any damage or injuries caused by the
repair of the drill press by an unauthorised person or by mishandling of the drill press.
MAINTENANCE
Fig. 26
!
!

TROUBLESHOOTING
13
SPARE PARTS
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Handle Sleeve SPDP350-16
Switch SPDP350-50
Drive Belt SPDP350-67
Problem Cause Solution
Drill press will
not start
Noisy operation
Excessive drill
bit wobble
Drill bit binds
in workpiece
Drill bit burns
Power cord not connected
to the mains power supply
Power fault
Power cord damage
Faulty switch or motor
Incorrect belt tension
Bent or damaged drill bit
Drill bit is not securely
placed in the 13mm keyed
chuck
The 13mm keyed chuck is
not installed correctly
Belt tension is set incorrectly
Incorrect speed
Ensure that the power cord is
connected to the mains power
Check the mains power supply
Use an authorised service
centre to repair or replace
Use an authorised service
centre to repair or replace
Adjust tension as required
Use a new drill bit
Remove the drill bit and re-
insert correctly, ensure the
chuck jaws are fully tightened
Ensure you install the 13mm
keyed chuck correctly
Re-adjust the belt tension
Adjust speed as described in
the "changing the speed"
section
Pulley cover not secured Check the pulley cover is
closed and lowered correctly
in position

1 x 3mm Allen key
1 x Chuck key (for chuck)
1 x Steel column
1 x Table
AUSTRALIA (Head Office)
1-23 Letcon Drive, Bangholme Victoria, Australia, 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local council
authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Hp Horse power Regulator compliance mark
Use eye protection Warning
n o No load speed
!
!
CONTENTS
OZITO INDUSTRIES PTY LTD
14
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
1 x Head assembly
3 x Feed wheel handles
1 x 13mm Keyed chuck
1 x 4mm Allen key
1 x Belt (assembled to pulleys)
1 x Base
3 x Column support bolts
1 x Instruction manual

3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes consumable parts, for example:
head assembly, feed wheel handles, keyed chuck, allen key, chuck key, steel column, table,
belt, base, column support bolts.
WARNING
The following actions will result in the warranty being void.
Professional, Industrial or high frequency use.
If the tool has been operated on a supply voltage other than that specified on the tool.
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
Failure to perform maintenance as set out within the instruction manual.
If the tool is disassembled or tampered with in any way.
OZITO
Australia/New Zealand (Head Office)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
•
•
•
•
•
OW5
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER
TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT.
PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
` Australia 1800 069 486
New Zealand 0508 069 486
